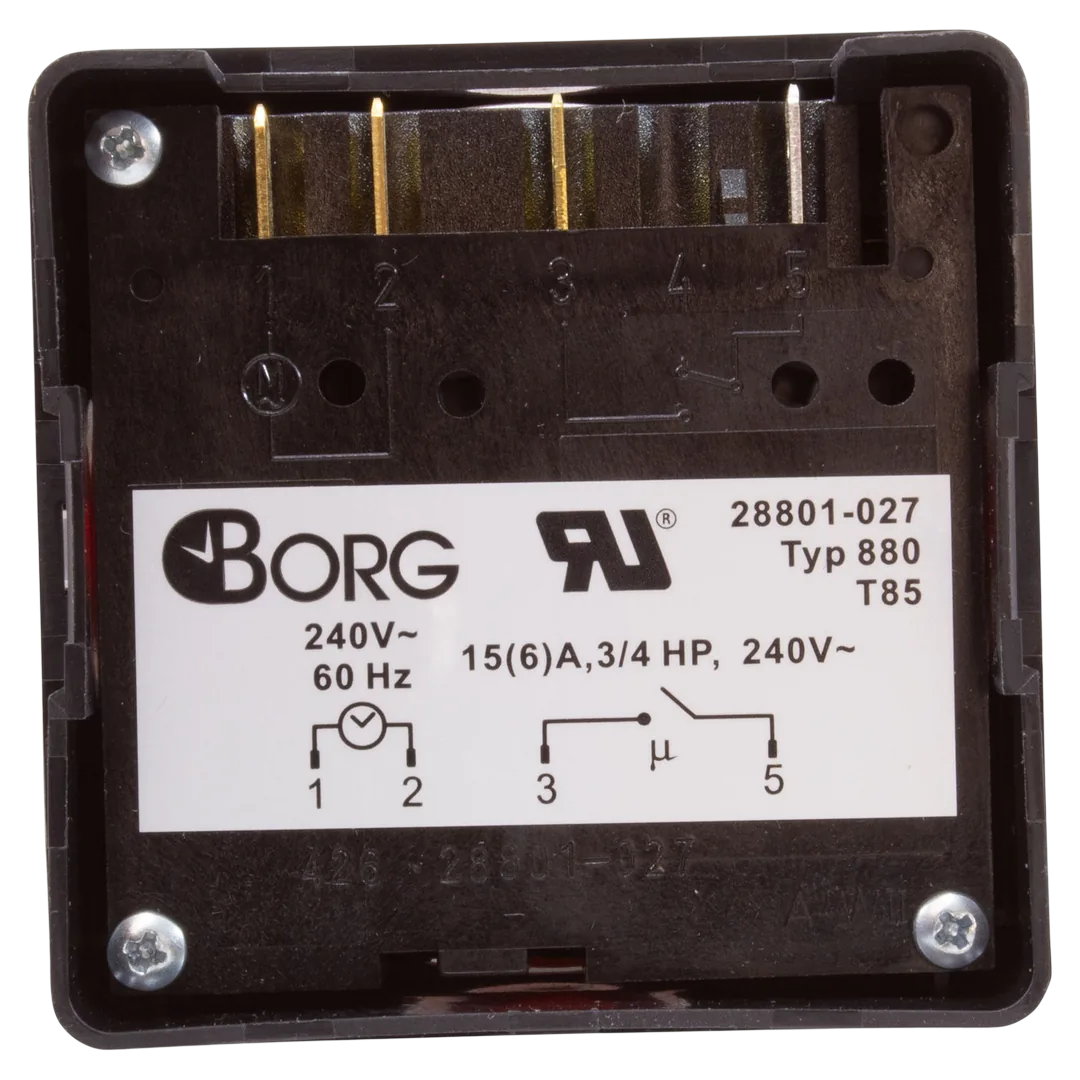

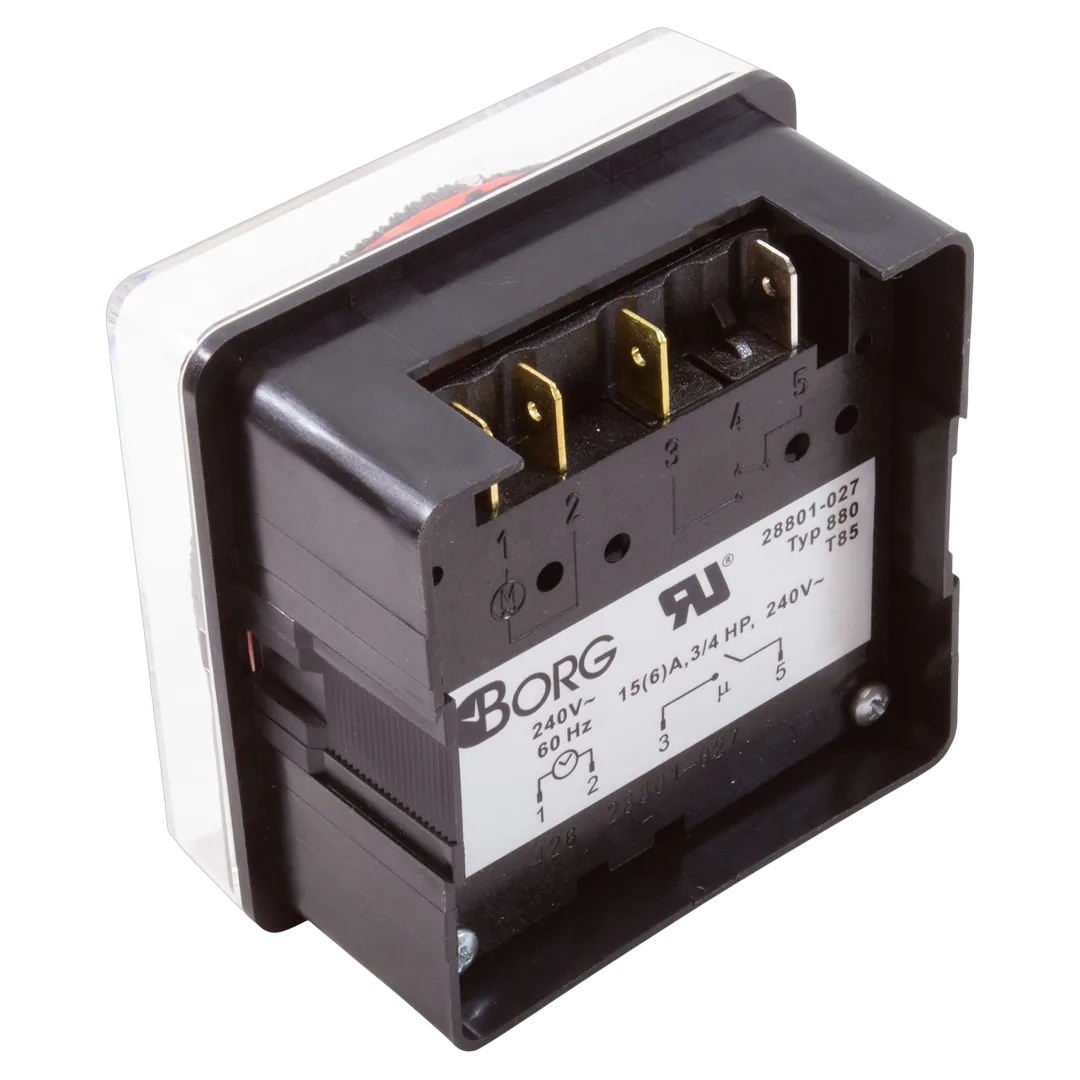

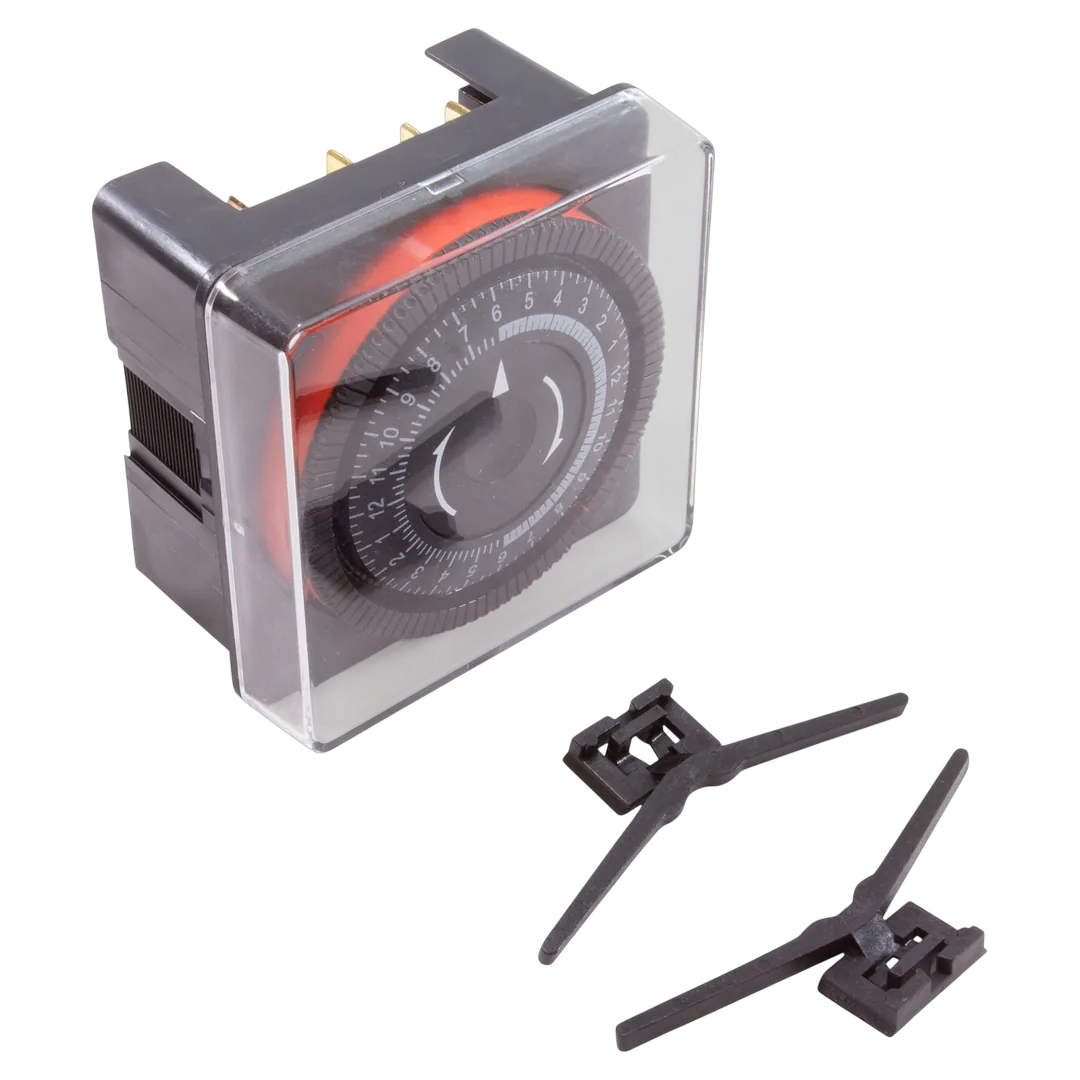

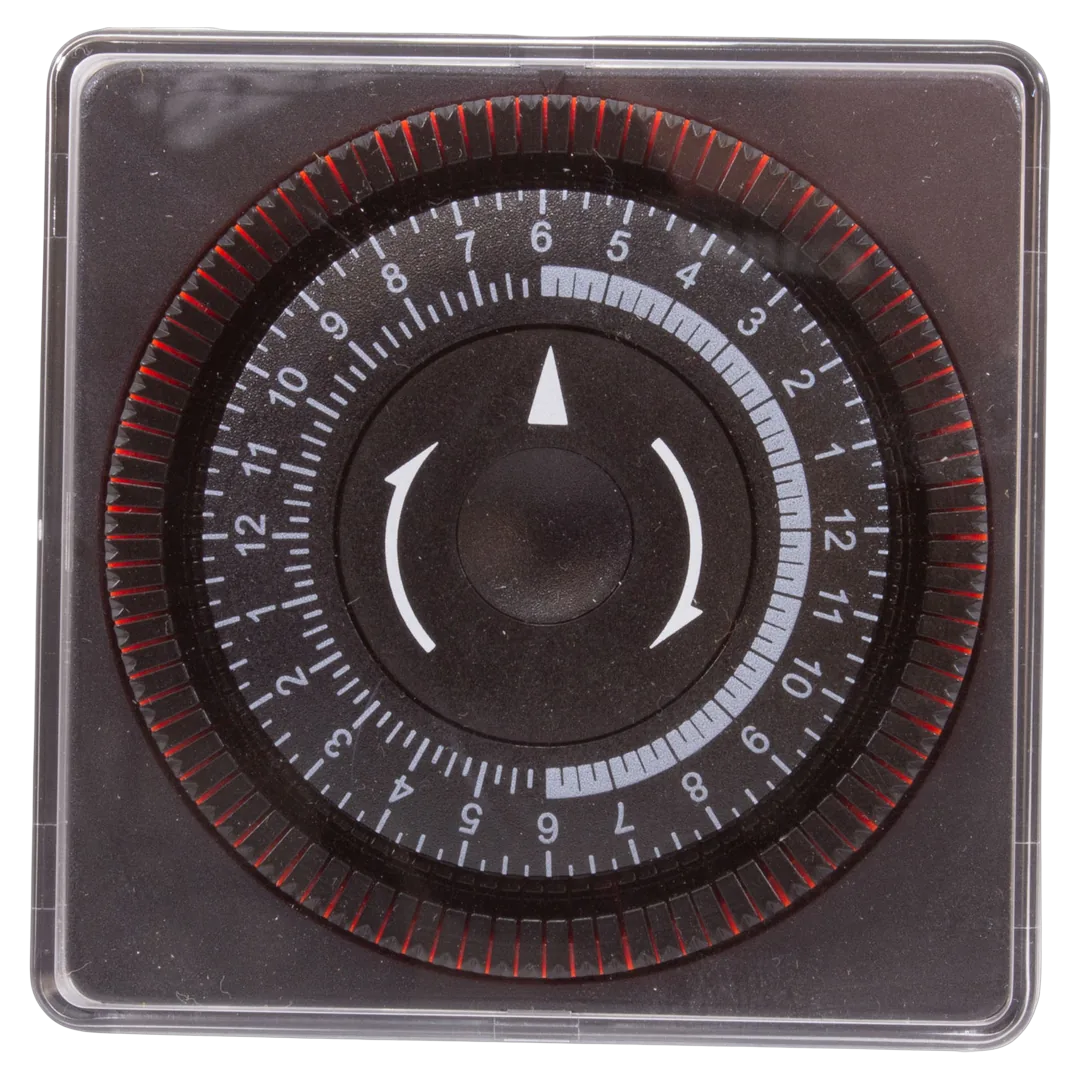

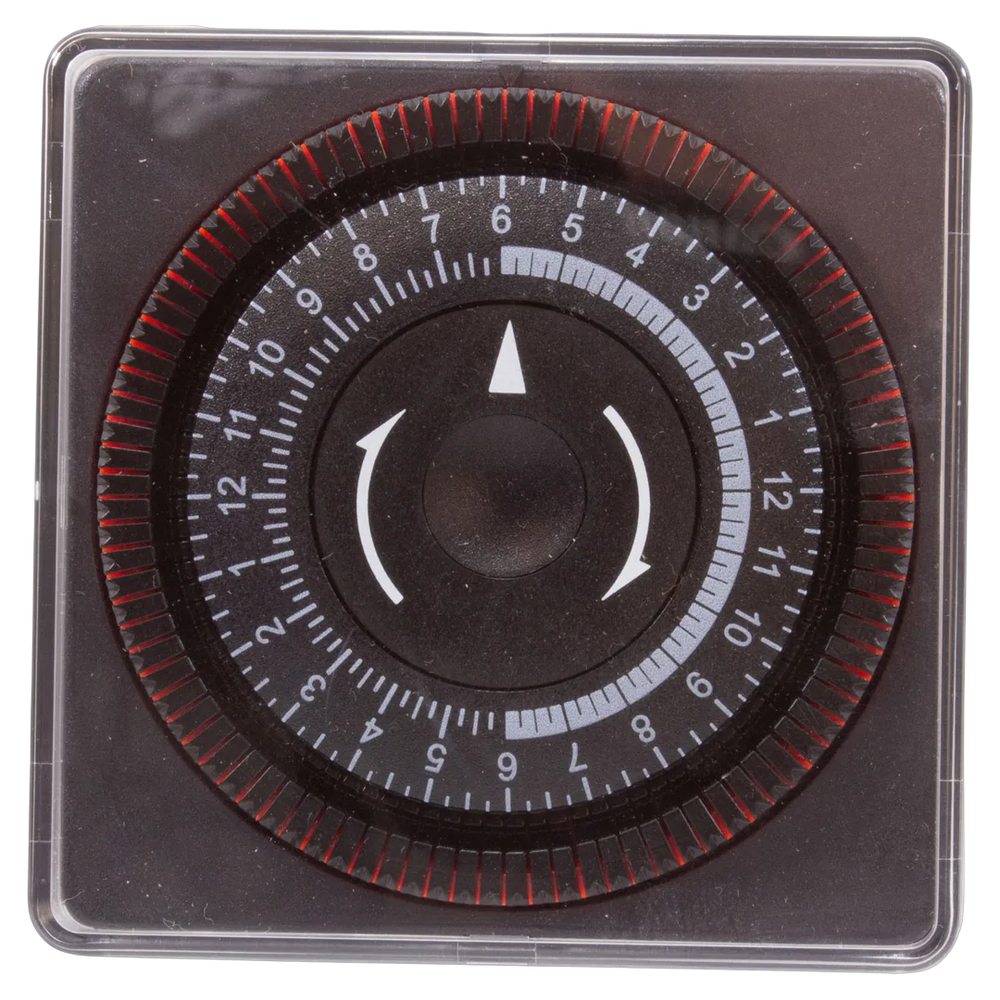

Diehl TA-4164 24-Hour SPST Panel Mount Timer, 230V 20A, with Housing
Borg/Diehl Controls | SKU:
TA-4164
$8200/ea
Unit price
/
Unavailable
Diehl TA-4164 24-Hour SPST Panel Mount Timer, 230V 20A, with Housing is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Replacement 24-hour panel-mount time clock for Diehl Series 800 systems (Borg/Diehl Controls TA-4164). It uses an SPST switch to automate a single circuit-commonly a spa pump, blower, or light-on a daily schedule. The assembly includes the panel housing and arrives as an OEM unit ready to wire into your control pack.
Includes: Timer with housing
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Borg General TA-4164 Timer, Diehl, SPST, Panel Mount, 230V, 20A, with Housing, 24-Hour |
| Part Number | TA-4164 |
| Part Type | Timer |
| Includes | Timer with housing |
| Material | Not specified |
| Voltage | 230V |
| Current Rating | 20A |
| Switch Type | Single Pole Single Throw (SPST) |
| Mount Type | Panel Mount |
| Time Setting | 24-Hour |
| Product Weight | Not specified |
