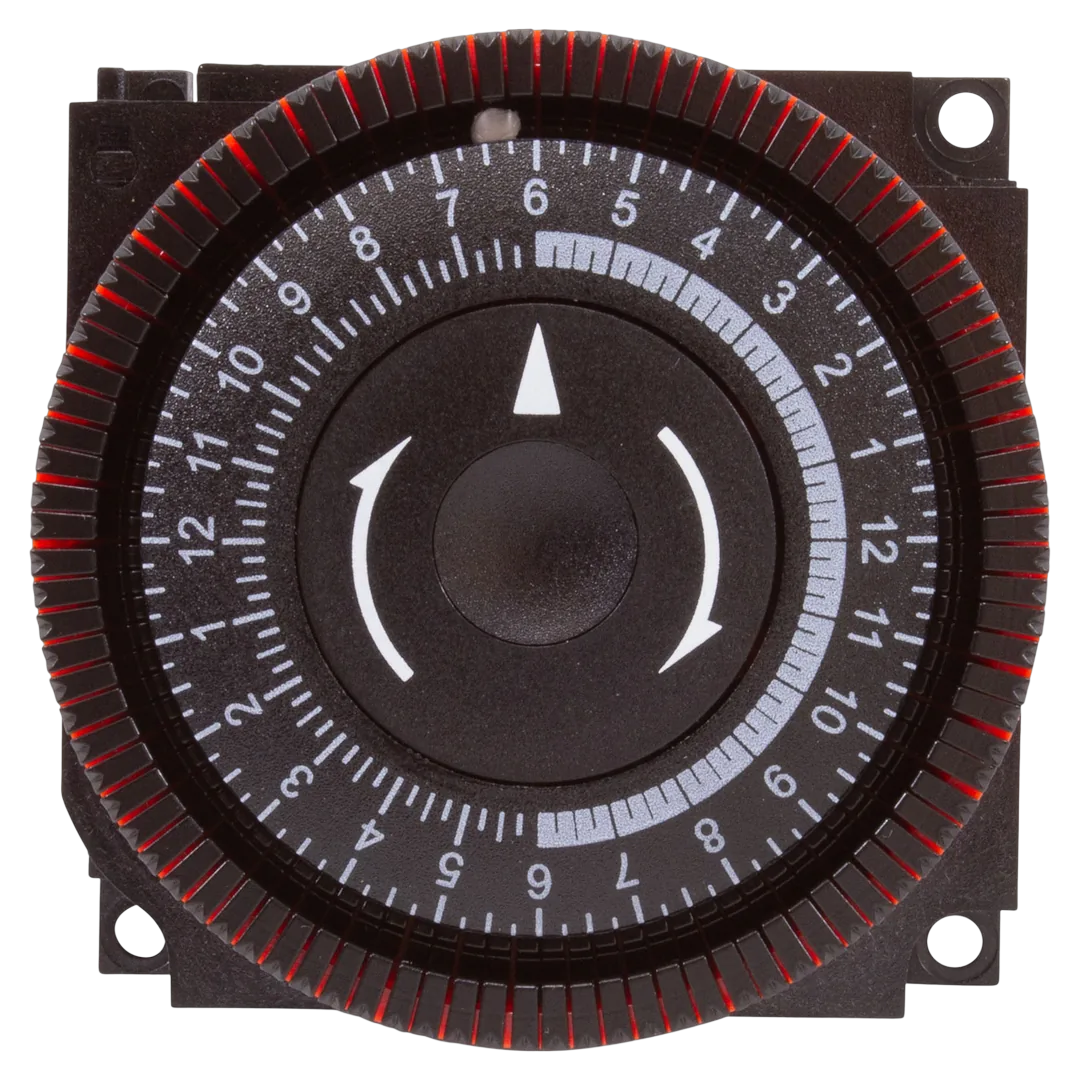

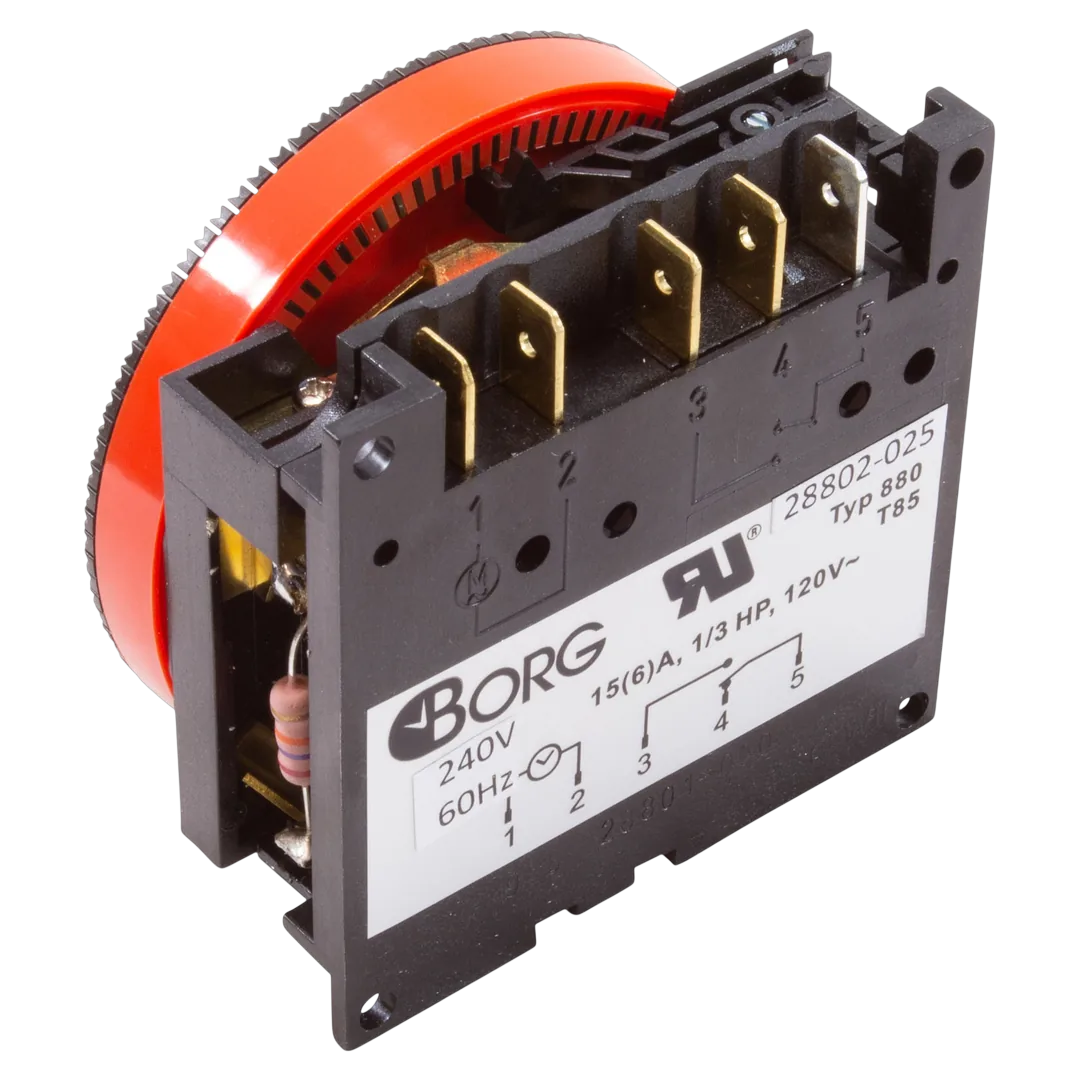

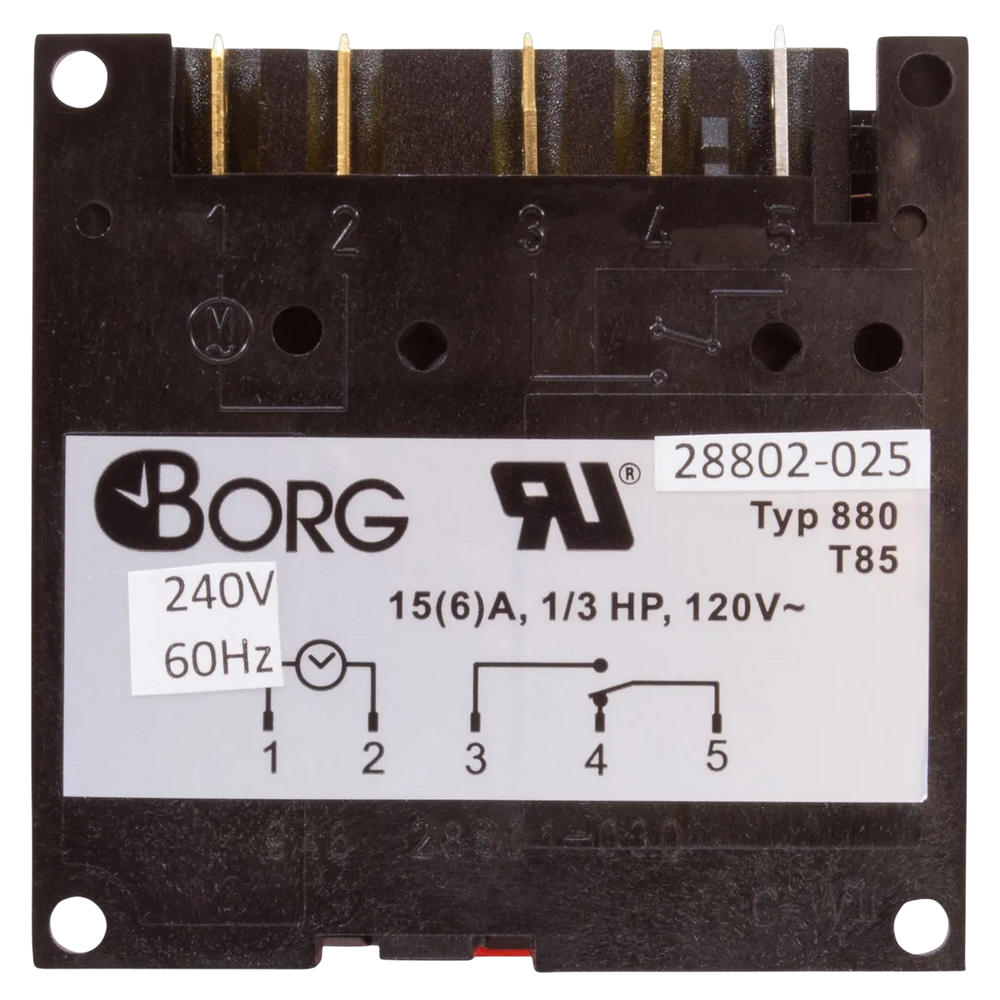

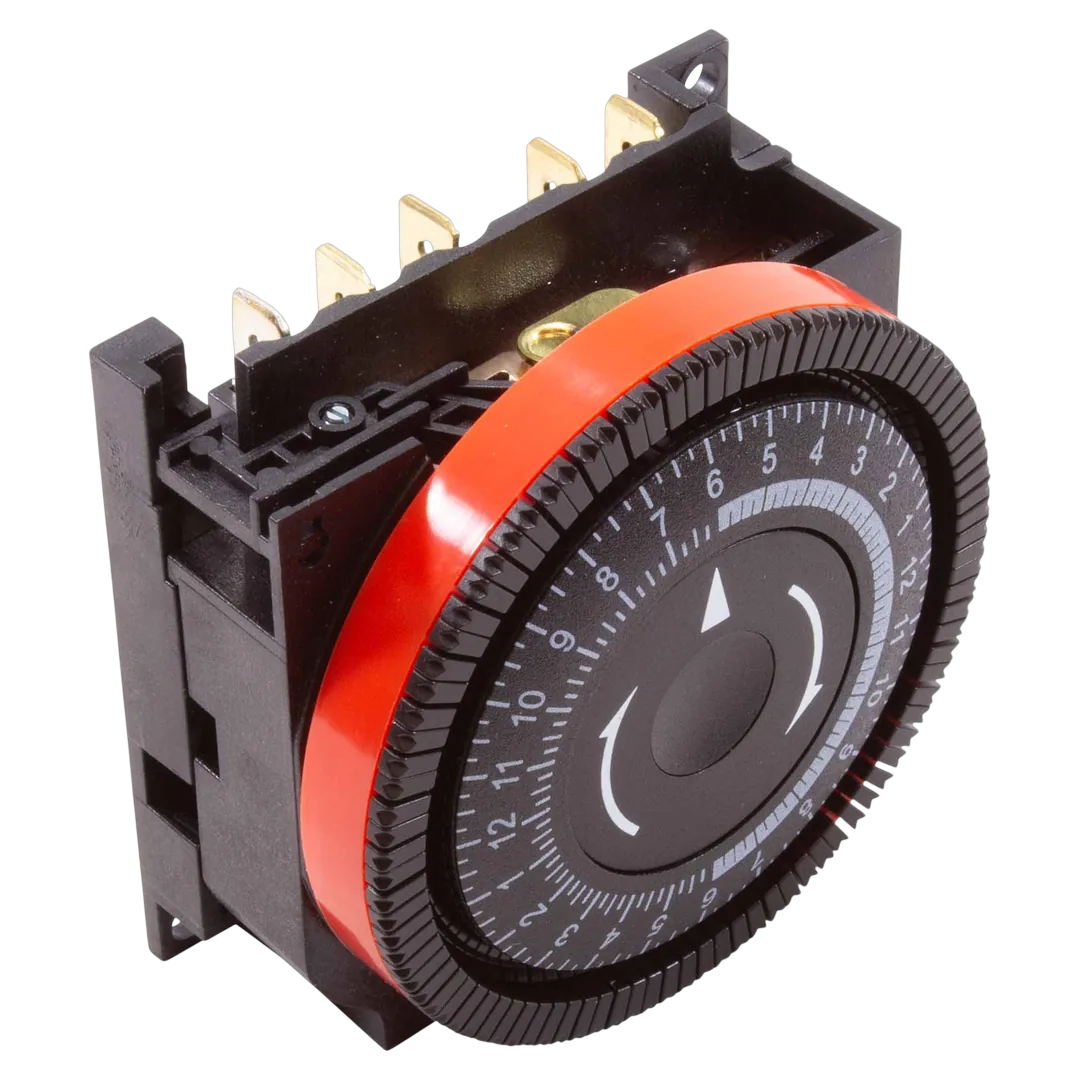

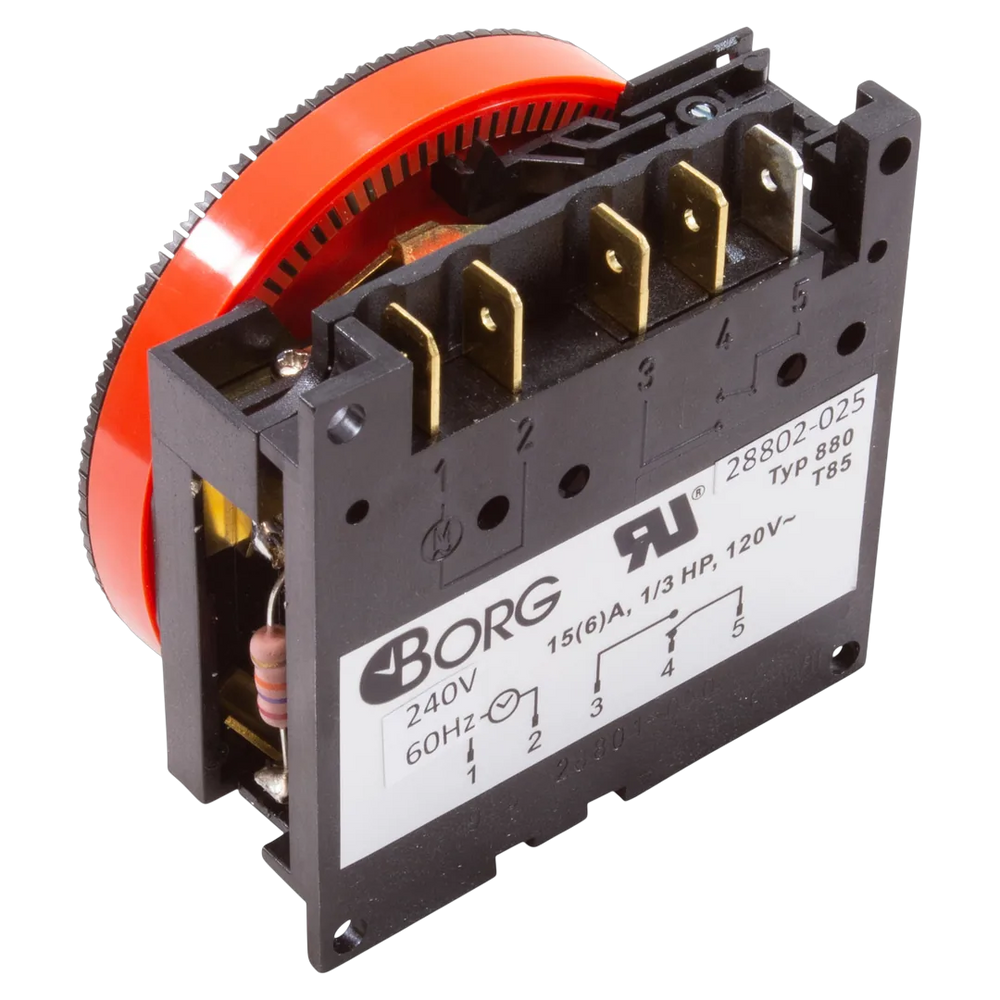

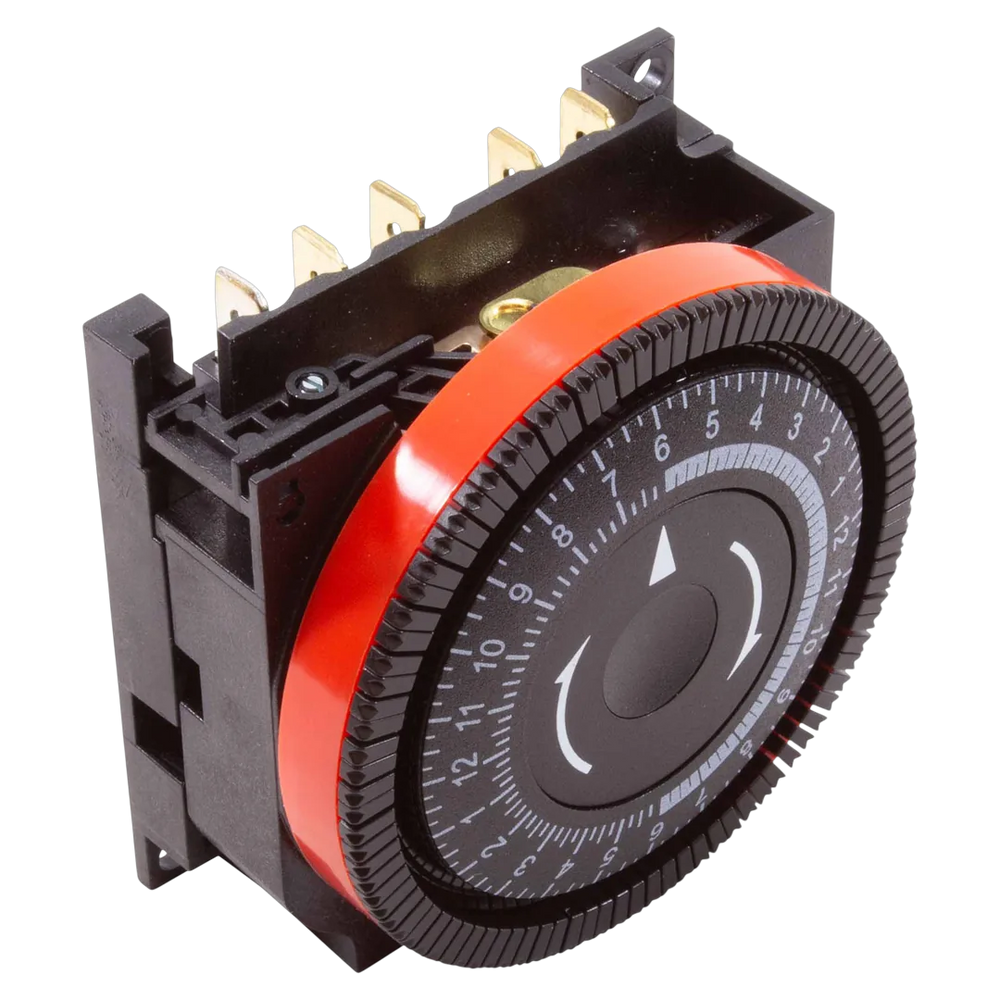

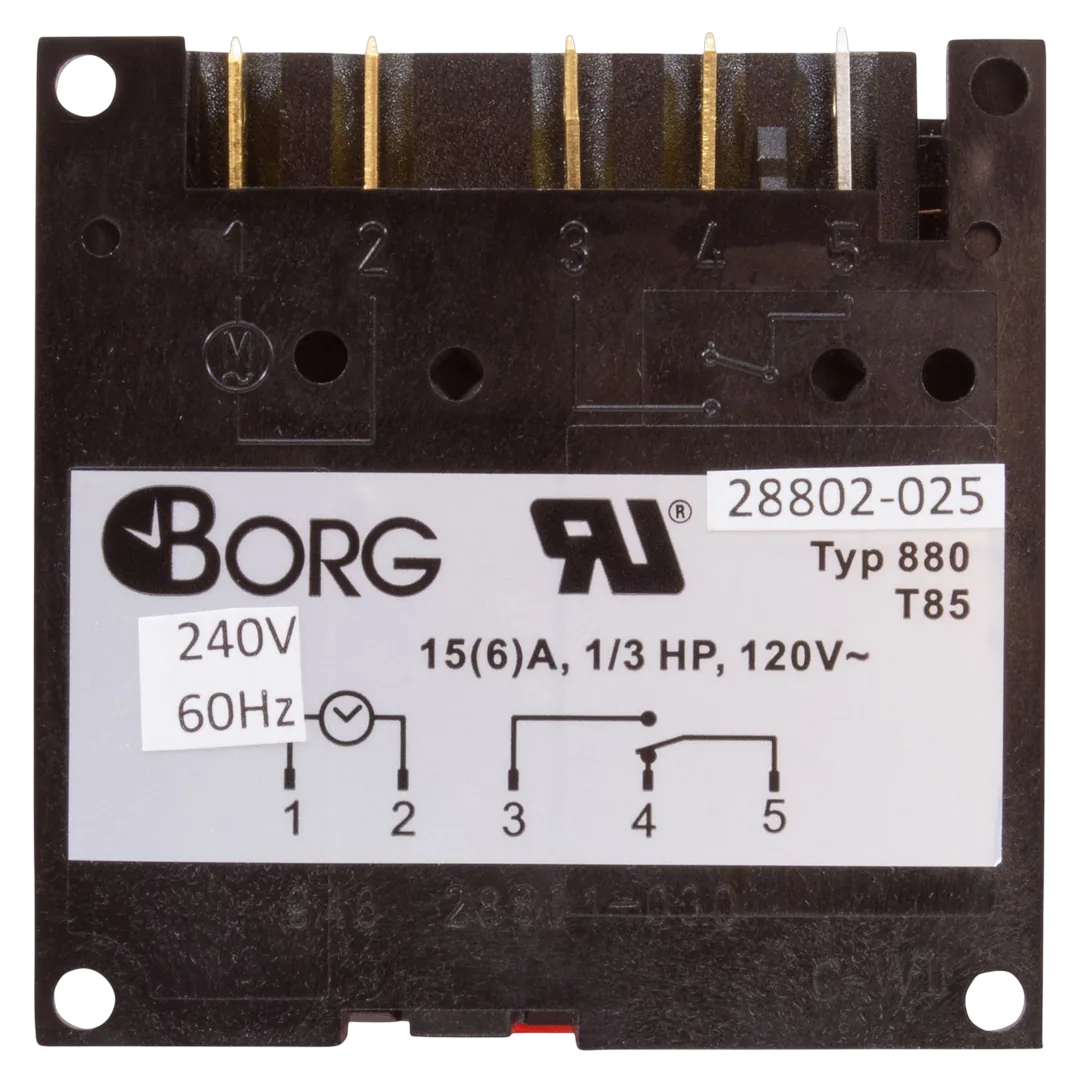

Diehl TA-4074 SPDT Panel Mount Timer
Borg/Diehl Controls | SKU:
TA-4074
$6800/ea
Unit price
/
Unavailable
Diehl TA-4074 SPDT Panel Mount Timer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Replacement panel-mount time clock for many spa, hot tub, and pool control packs (Borg/Diehl Controls TA-4074). It provides selectable 24-hour or 7-day scheduling with an SPDT output to switch a single load. This OEM Diehl Series 800 dial has a gray face; verify your pack's panel cutout and SPDT wiring match before ordering.
Includes: Timer unit only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Diehl 24-Hour Spa Timer, SPDT 240V, 5-Terminal Orange Panel Mount |
| Part Number | TA-4074 |
| Part Type | Timer |
| Compatibility | Suitable for various spa, hot tub, and pool control systems |
| Includes | Timer unit only |
| Material | Plastic |
| Voltage | 230V |
| Current Rating | 15 Amp |
| Switch Type | Single Pole Double Throw (SPDT) |
| Number of Terminals | 5 |
| Mount Type | Panel Mount |
| Program Type | 24-Hour |
| Shipping Dimensions | 6 x 6 x 6 inch |
| Product Weight | 0.5 pound |
