DEL Ozone EC-10 Ozone Generator
Del Ozone | SKU:
EC-10
$66600/ea
Unit price
/
Unavailable
DEL Ozone EC-10 Ozone Generator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

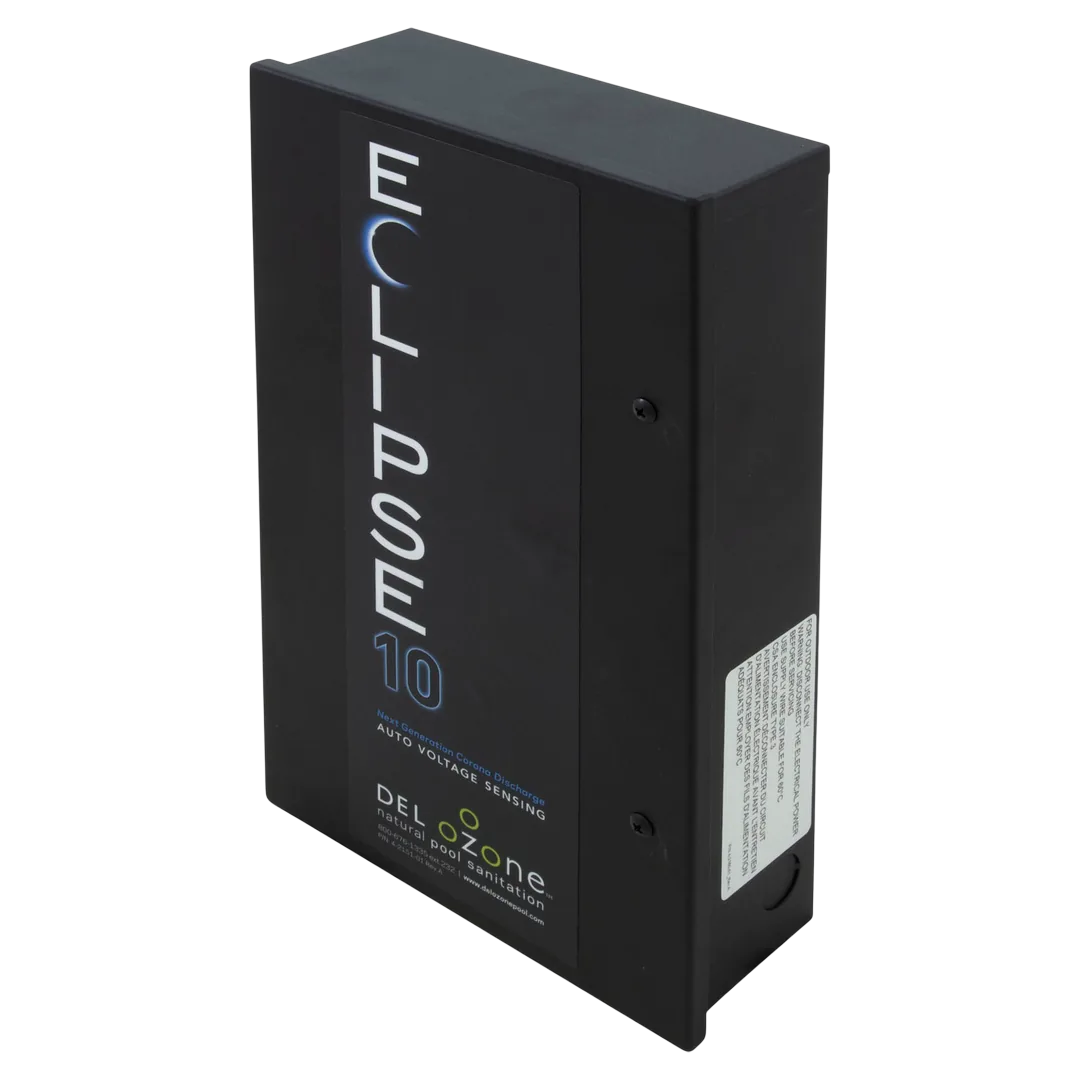

The DEL Ozone EC-10, also referred to as the Eclipse 10, is an ozone generator engineered for treating pools with a capacity of up to 25,000 gallons. This system employs Corona Discharge (CD) technology coupled with a Mazzei venturi injector for airflow management, allowing it to function efficiently without the requirement of an air dryer. It operates on a versatile voltage range of 110/240 V and is specifically designed for in-ground pool applications.
Includes: Ozone generator unit
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | OZONE 25 |
| Part Number | EC-10 |
| Part Type | Ozone Generator |
| Compatibility | Pools up to 25,000 gallons |
| Includes | Ozone generator unit |
| Certifications | UL, cUL |
| Material | Powder-coated galvannealed steel |
| Mount Type | Wall Mount |
| Ozone Output | 0.25 grams per hour |
| Power Consumption | 12 Watts |
| Voltage | 120/240 VAC |
| Frequency | 50/60 Hz |
| Operating Temperature | 30 to 120 degrees Fahrenheit |
| Air Flow | 15 standard cubic feet per hour |
| Ozone Cell Life | 5+ years |
| Shipping Dimensions | 19.75 x 10 x 7 inch |
| Product Weight | 8.65 pound |
