Pump Motor 3HP 1Ph 56J Frame
Century | SKU:
ST1302V1
$71299/ea
Unit price
/
Unavailable
Pump Motor 3HP 1Ph 56J Frame is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Pump Motor 3HP 1Ph 56J Frame

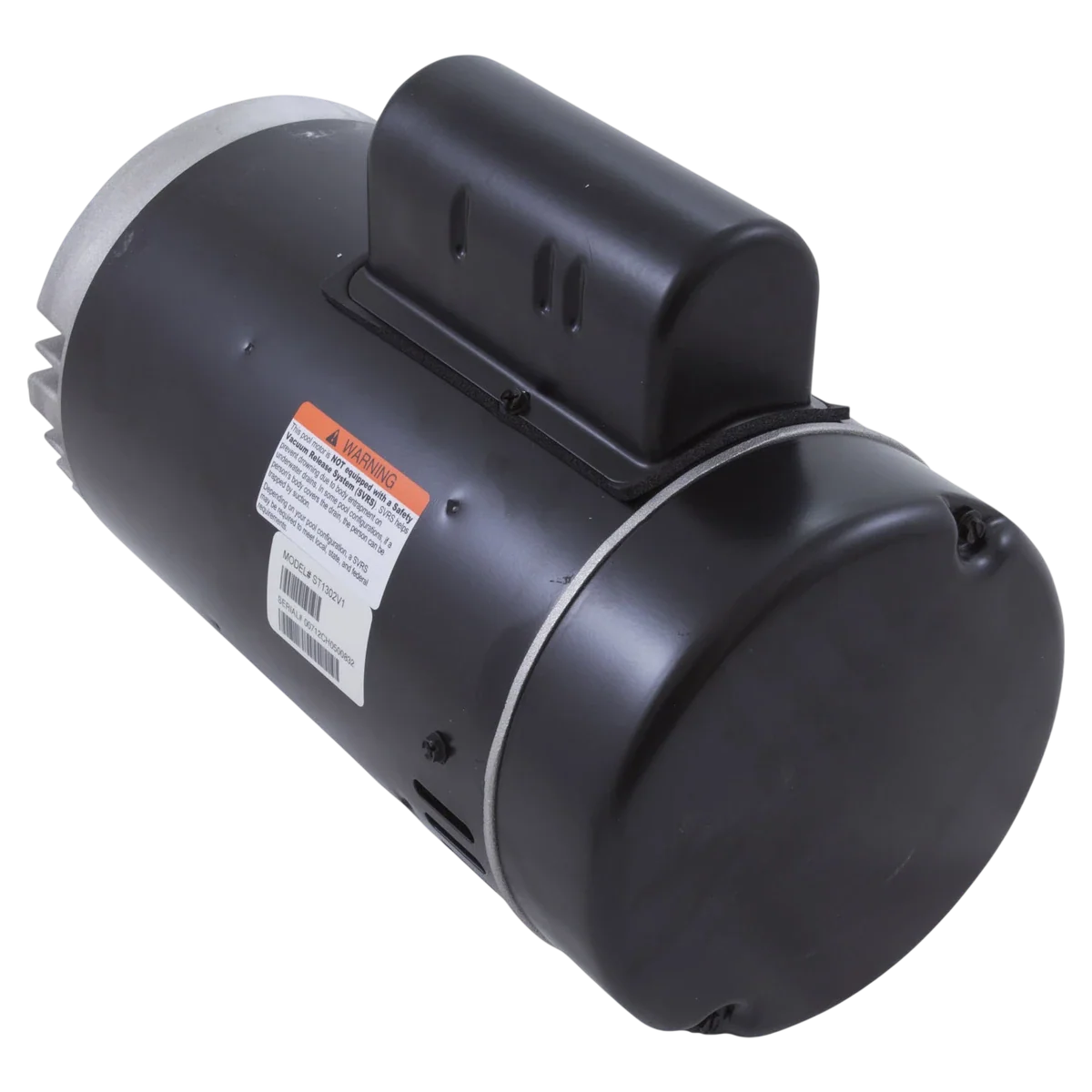

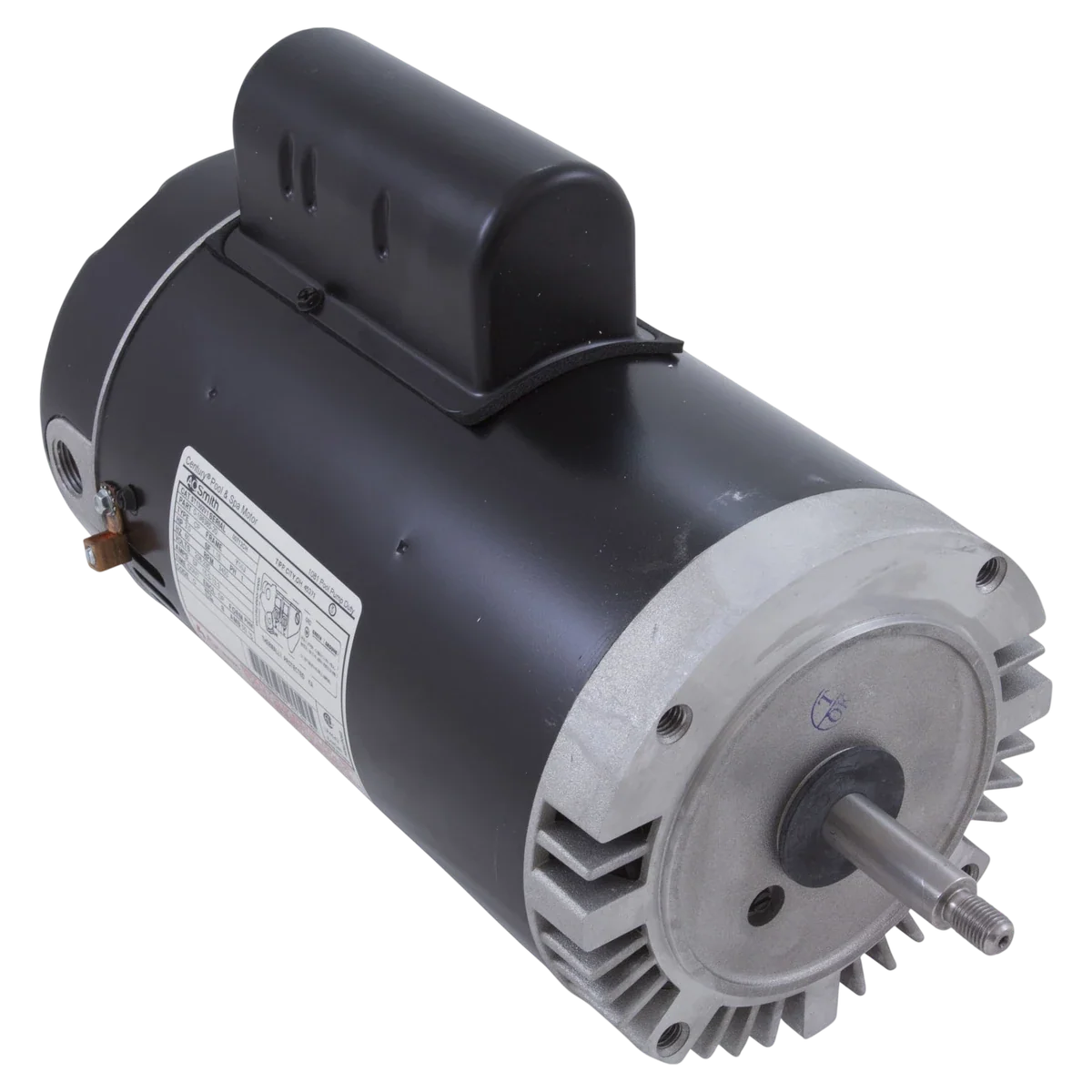

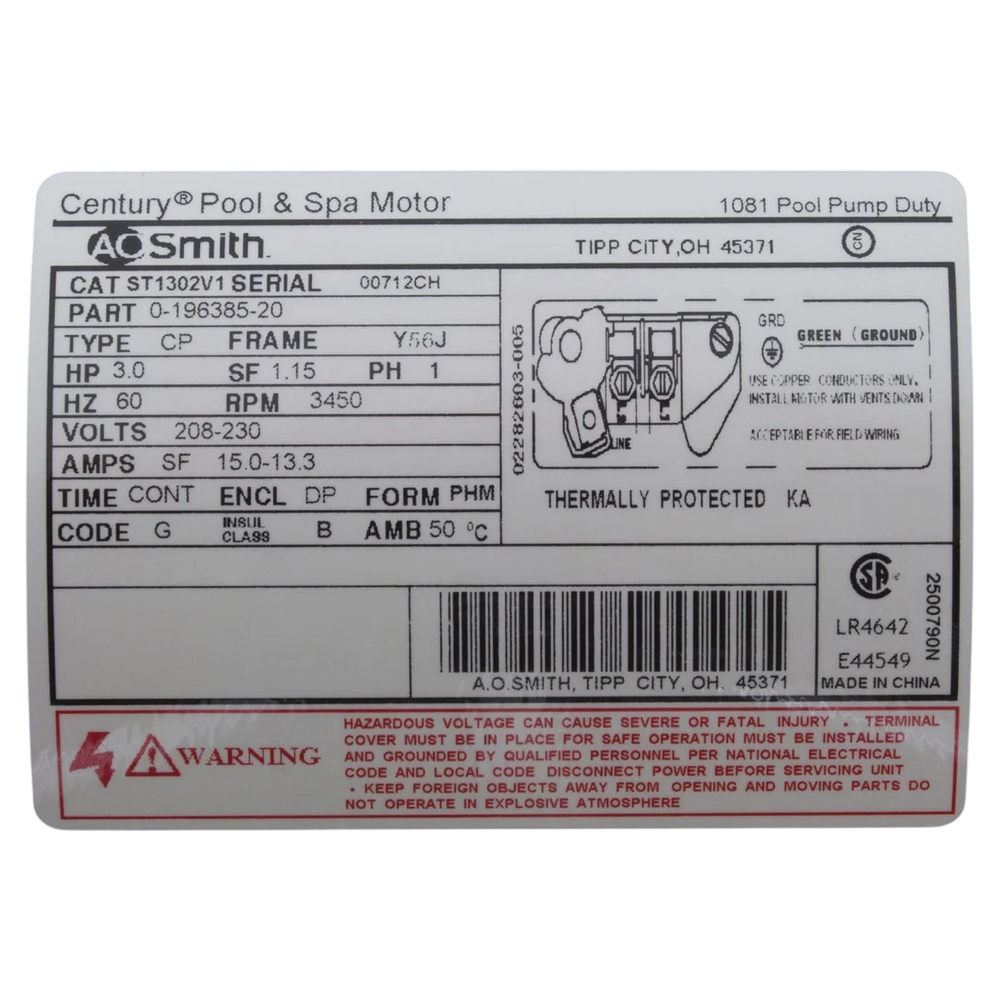

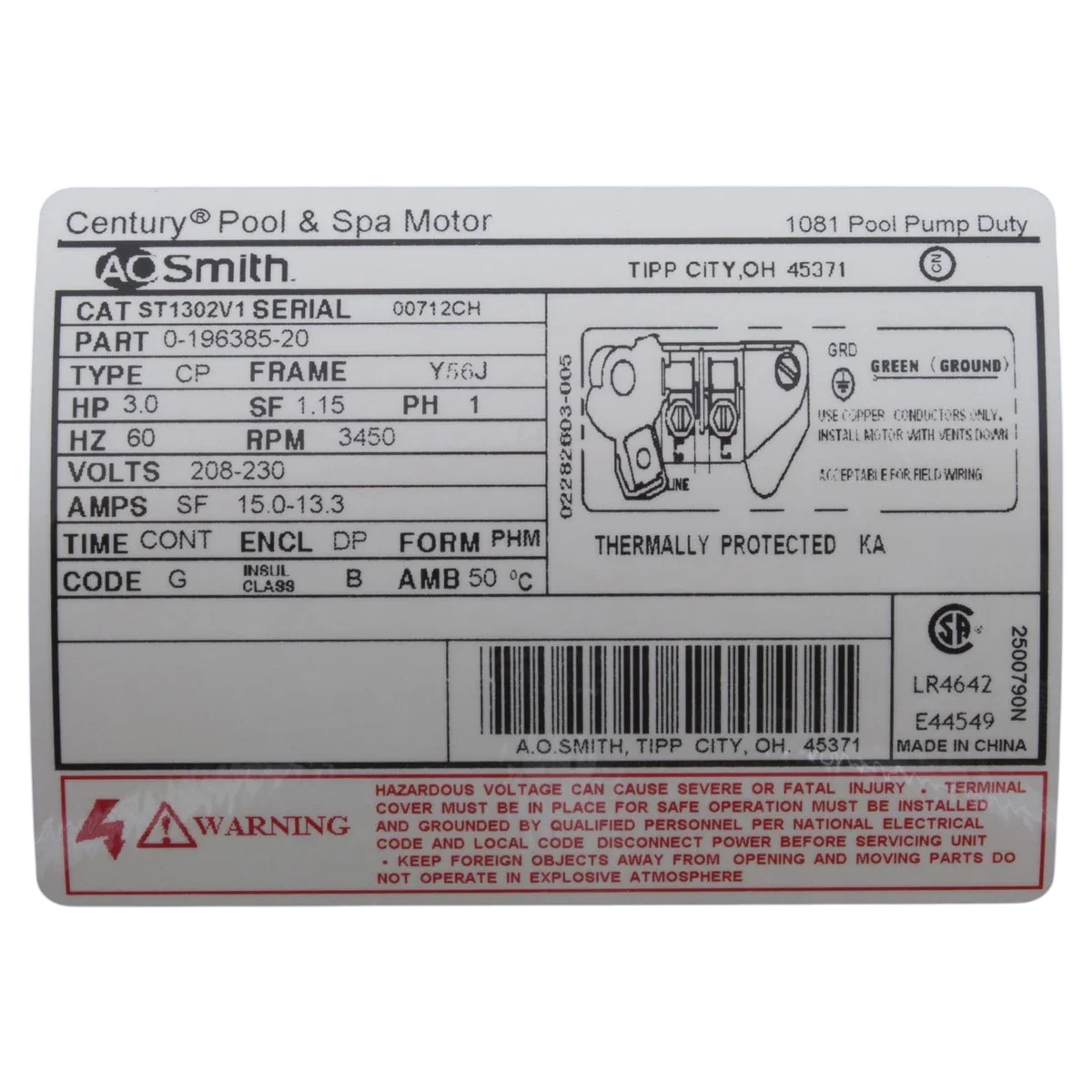

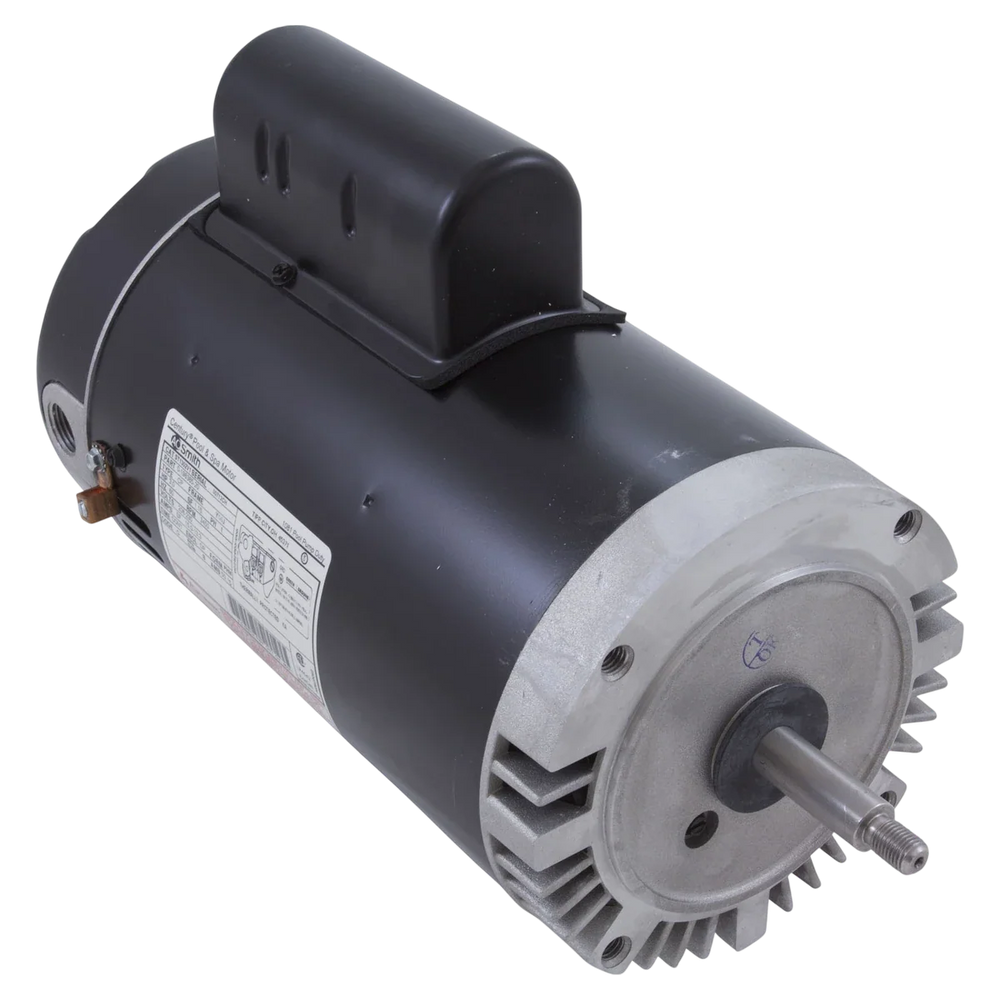

The Century ST1302V1 is a 3 HP, single-phase, 56J-frame threaded-shaft replacement motor for residential pool pumps running on 208-230V, 60Hz.
Key Features

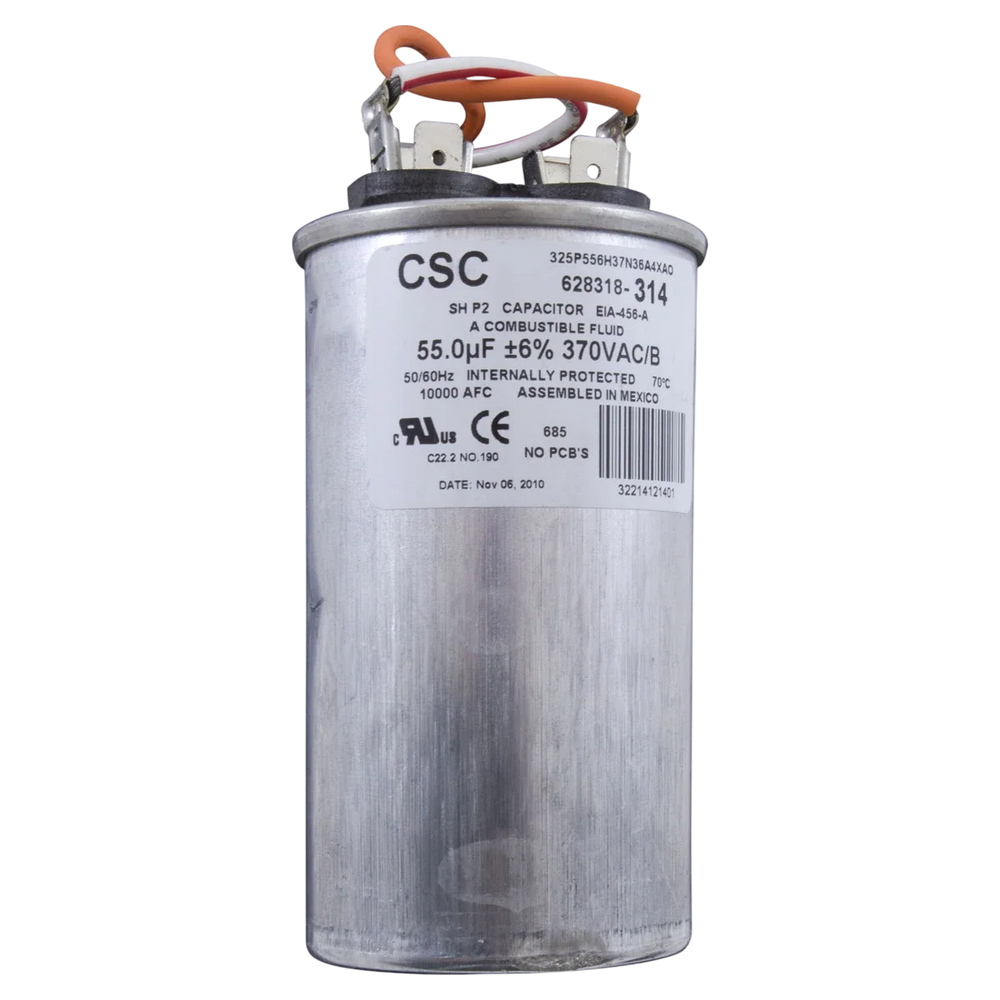

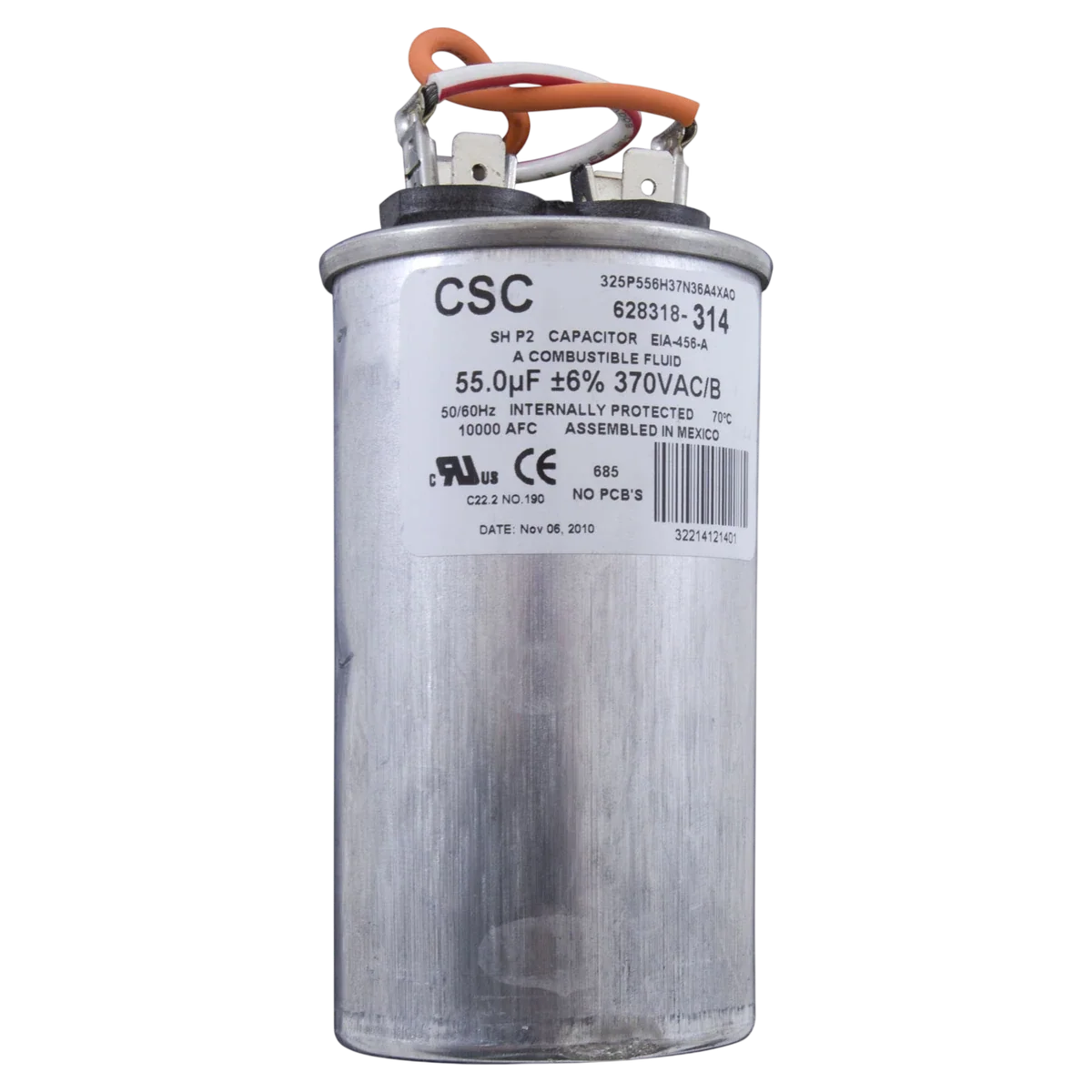

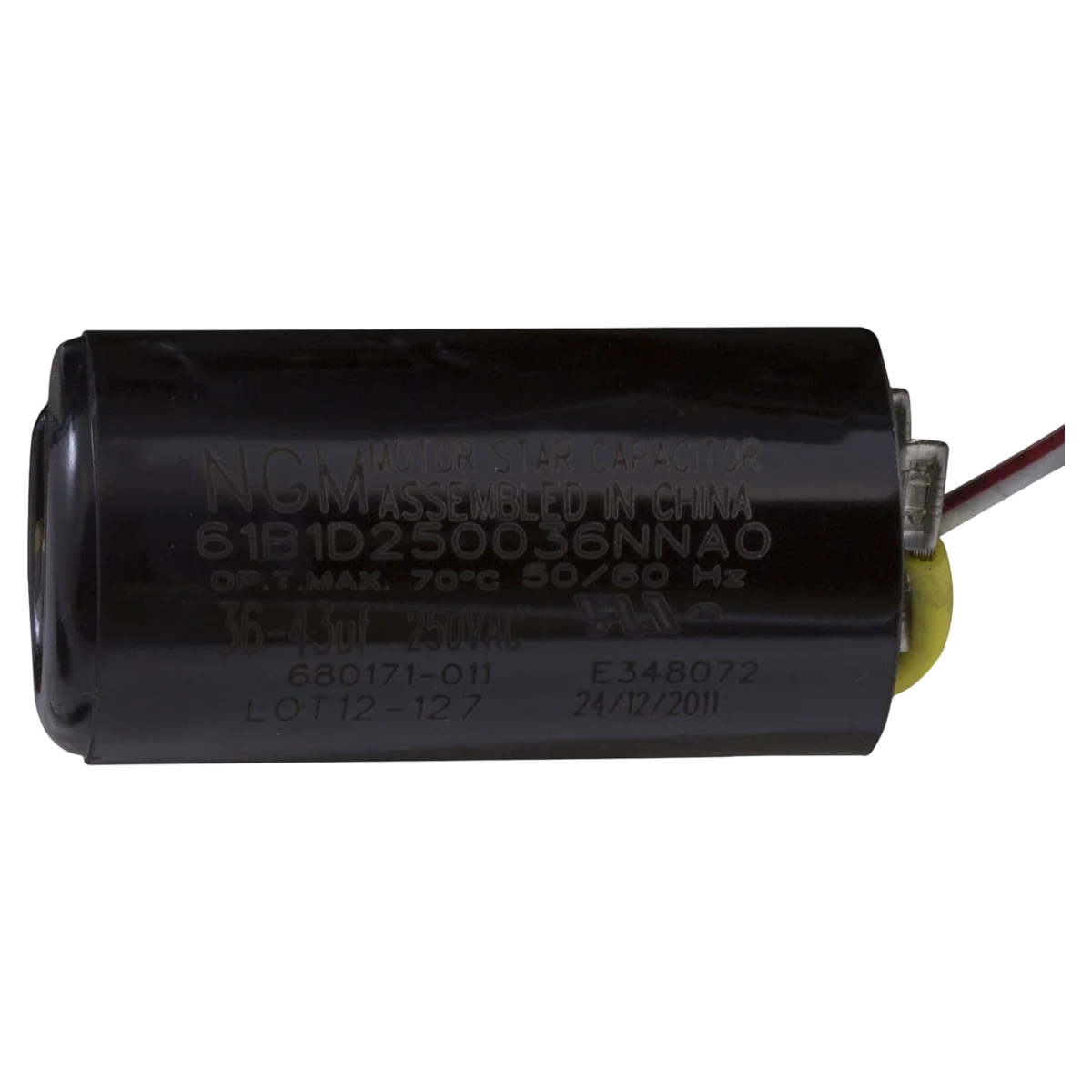

- Capacitor-start/capacitor-run design
- 303 stainless steel threaded shaft
- Sealed ball bearings
- Automatic-reset thermal overload protector
- Energy-efficient rating
Compatibility
- Jacuzzi Magnum, Magnum Plus, Magnum Force, P, PC, EP, PH, UPH, Ring-Lok, and RC model pumps
- Hayward Northstar SP4000/SP4000X and Super II SP3000/SP3000X Series
- Waterco HydroStorm, HydroStorm Plus, and HydroStar pumps
- Jandy JHP, JHPU, HHP, and HHPU pumps
This is the 56J threaded-shaft version; it does not interchange with 56C-face, 56Y-frame, or three-phase motor variants sold under related part numbers.
Supercedes
670068, 78667400383, AOSST1302V1, ST1302V1, K5040, ST1302V1
Color
Black
Shipping Dimensions
20.25 x 11 x 9.25 inch
Weight
42.65 pound
Warranty - General
1 years
This product ships free via FedEx Home Delivery.
Owner's Manuals
Technical Information
Find it on the parts diagram
Hayward Northstar SP4000/SP4000X Pump, w/mhbt Unions, 2008+ Replacement Parts
Show it on the diagram →
