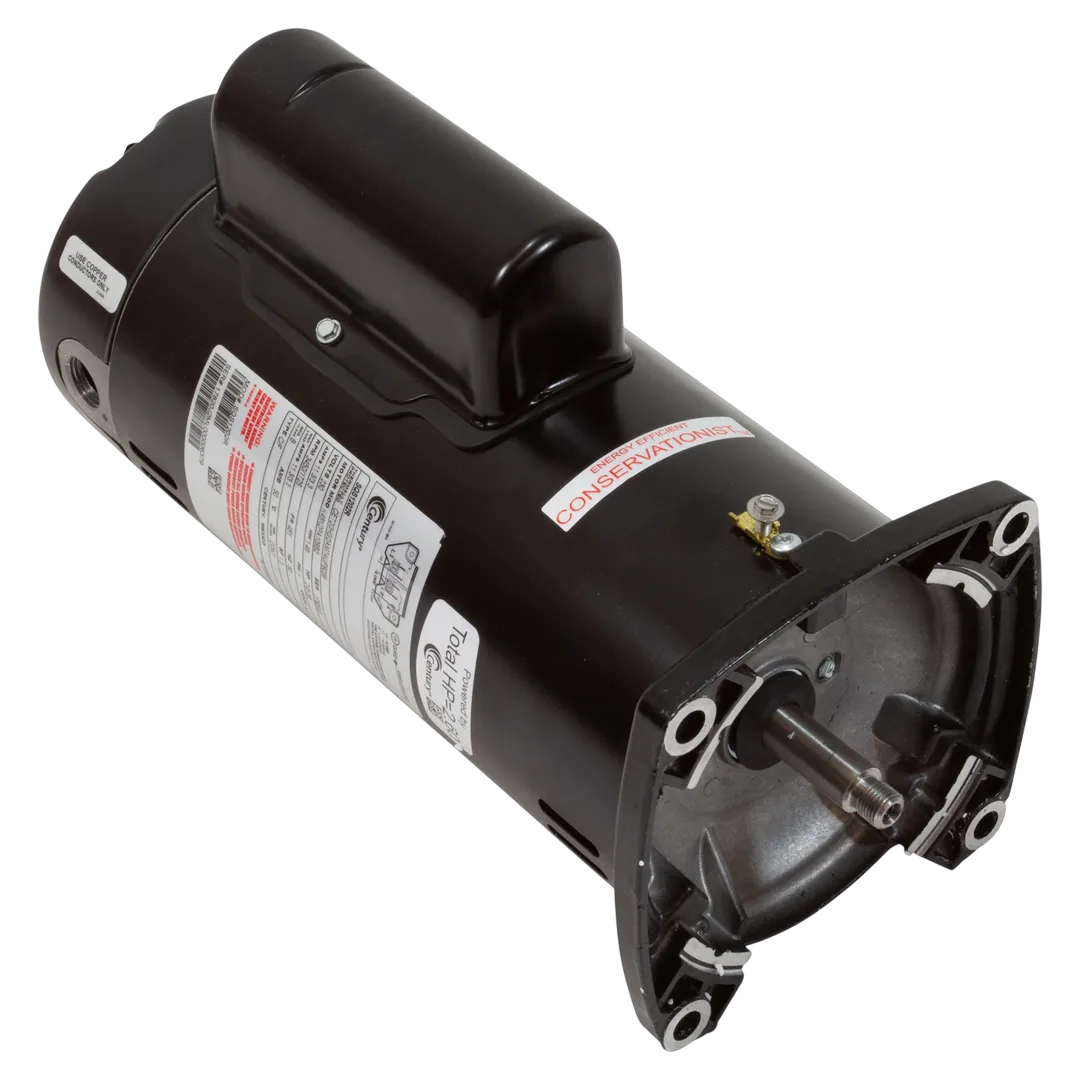

Century SQS1202R Square Flange 2 HP Dual-Speed Pool Pump Motor
Century | SKU:
SQS1202R
$84700/ea
Unit price
/
Unavailable
Century SQS1202R Square Flange 2 HP Dual-Speed Pool Pump Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Replacement dual-speed, full-rated 2 HP square-flange motor for 48Y-frame pool pumps (Century SQS1202R). It runs high for vacuuming and low for everyday circulation to reduce noise and power draw. This 230V-only motor has a threaded shaft and standard CCW pump-end rotation; replace the pump's shaft seal during install.
Includes: Motor only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Century SQS1202R |
| Part Number | SQS1202R |
| Part Type | Pump Motor |
| Compatibility | Sta-Rite Dura-Glas, Max-E-Glas I & II, Max-E-Pro |
| Substitute Part Numbers | AOS-60-5078 |
| Includes | Motor only |
| Certifications | UL 1081 Design |
| Material | Rolled Steel |
| Voltage | 230 V |
| Speed | Dual (3450/1725 RPM) |
| Amps | 11.3/3.3 A |
| Service Factor | 1.3 |
| Total HP | 2.6 HP |
| Frame | 48Y |
| Shaft | Threaded |
| Flange | Square |
| Phase | Single |
| Thermal Protection | Thermally Protected |
| Ambient Temperature | 50°C |
| Frequency | 60 Hz |
| Duty | Continuous |
| Insulation Class | B |
| Rotation | Counterclockwise Pump End |
| Mounting | Round |
| Drive End Bearing | Ball |
| Opp Drive End Bearing | Ball |
| Shaft Diameter | 0.625 inch |
| Shaft Extension | 0.906 inch |
| Shipping Dimensions | 10.75 x 9 x 22 inch |
| Product Weight | 32.15 pound |
