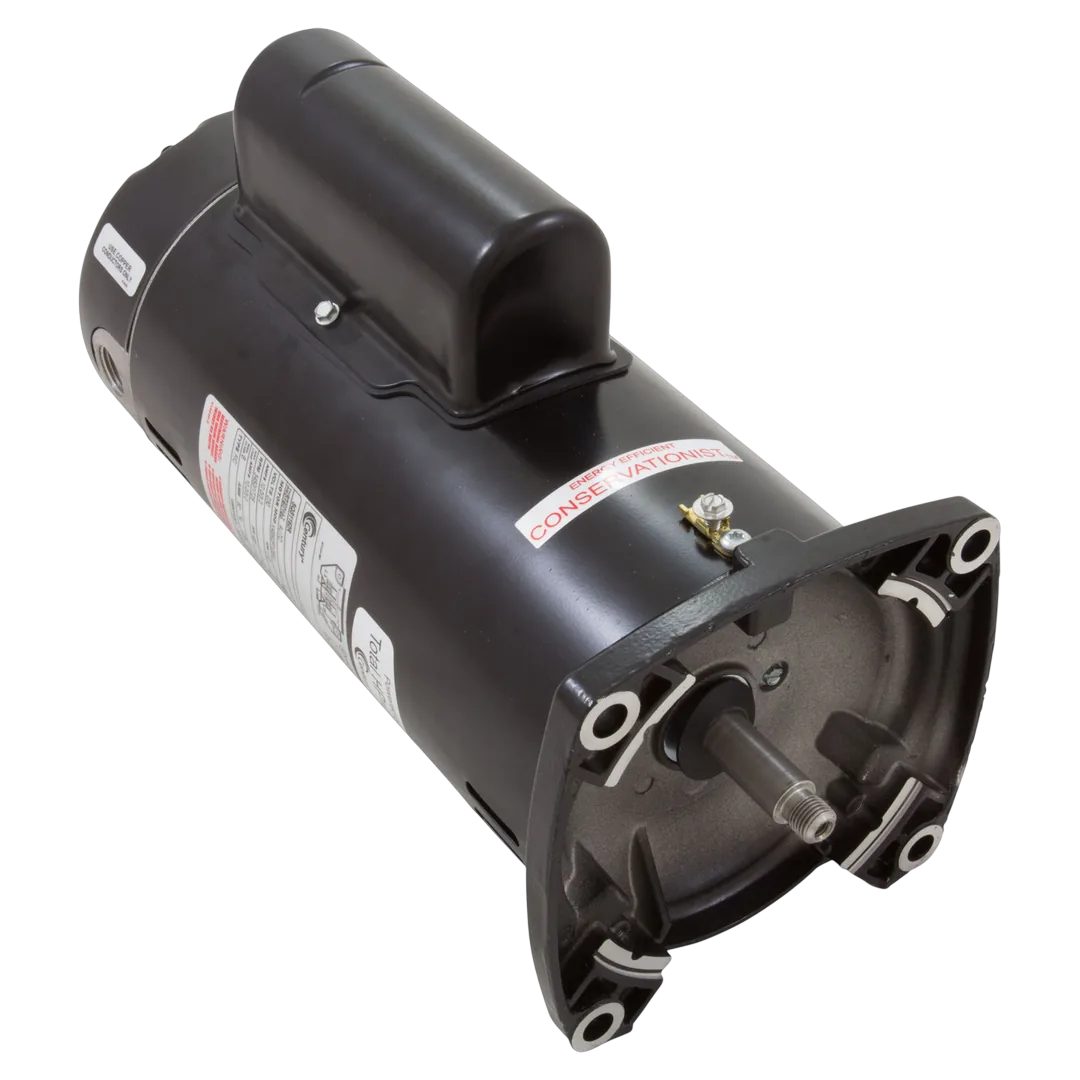

Century SQS1152R 1.5 HP 2-Speed Square Flange Pool Pump Motor

Century  |  SKU: SQS1152R
$68000/ea
5-digit zip required

Description

Direct-replacement 2-speed, full-rate square-flange pump motor for 48Y-frame pool and spa pumps - Century SQS1152R, 1.5 HP (2.2 THP). It runs high for priming or vacuuming and low for daily circulation when paired with a two-speed switch or automation. This unit is 230-volt only with a 48Y square-flange bolt pattern and CCW pump-end rotation.


Includes: Motor only

Technical Specifications

Specification Details
Part Name Century SQS1152R
Part Number SQS1152R
Part Type Pump Motor
Compatibility Sta-Rite Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max Pentair WhisperFlo, Pinnacle Anthony AR2 Series
Substitute Part Numbers AOS-60-5222
Includes Motor only
Certifications CSA Certified
Material Rolled Steel
Voltage 230 V
Amperage 10.0 A (high speed), 3.0 A (low speed)
Horsepower 1.5 HP (high speed), 0.19 HP (low speed)
Service Factor 1.47
Total Horsepower 2.21 HP
Speed 3450 RPM (high speed), 1725 RPM (low speed)
Phase Single
Frame 48Y
Flange Type Square

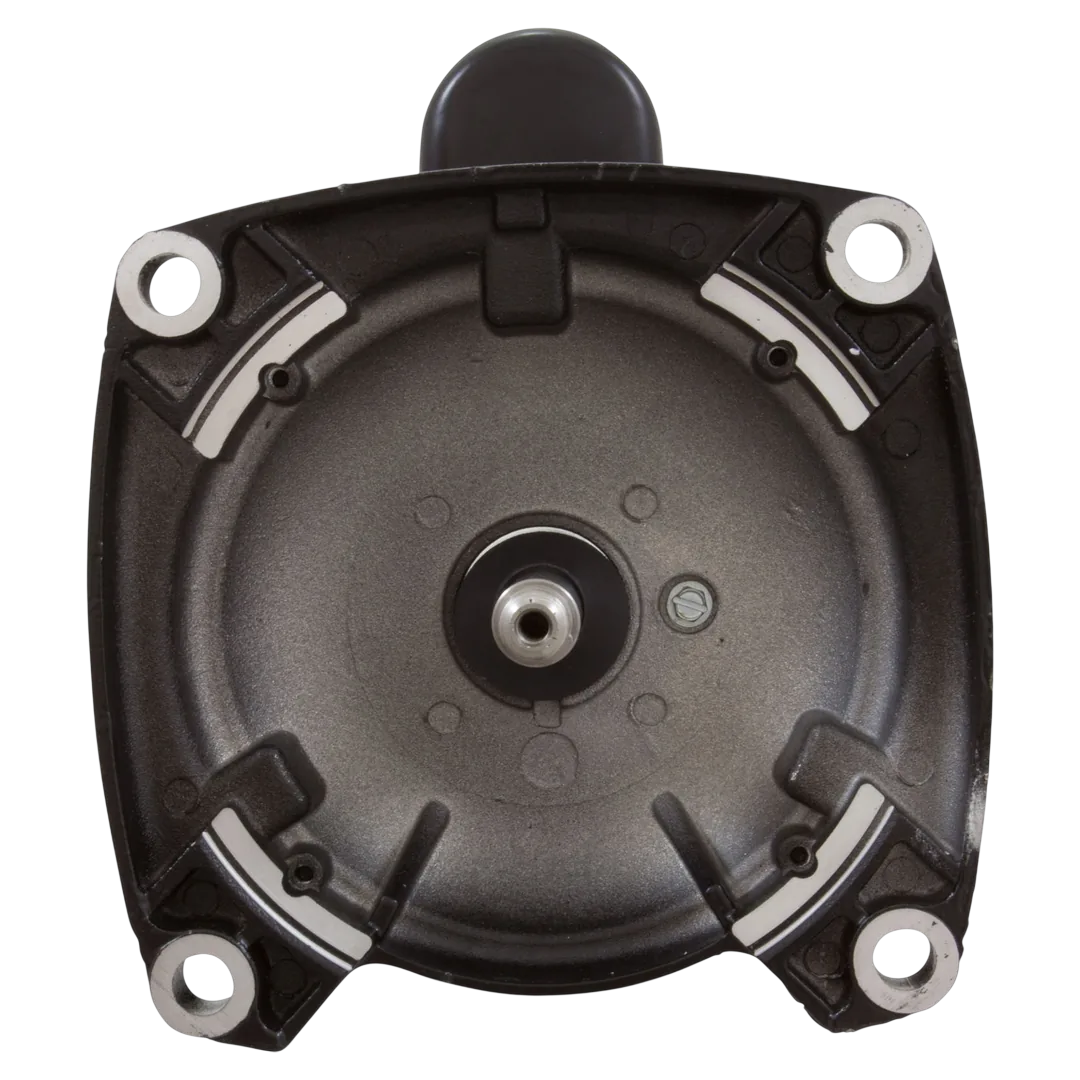

Shaft Type Threaded
Shaft Material 303 Stainless Steel
Shaft Diameter 0.625 inch
Overall Length 13.67 inch
Diameter 5.625 inch
Motor Thermal Protection Automatic Reset
Insulation Class B
Bearing Type Ball
Ambient Temperature 50°C
Motor Enclosure Type Open Drip Proof
Motor Shaft Rotation Counterclockwise Pump End
Duty Cycle Continuous
Shipping Dimensions 20.5 x 9.5 x 11.25 inch
Product Weight 30.6 pound
