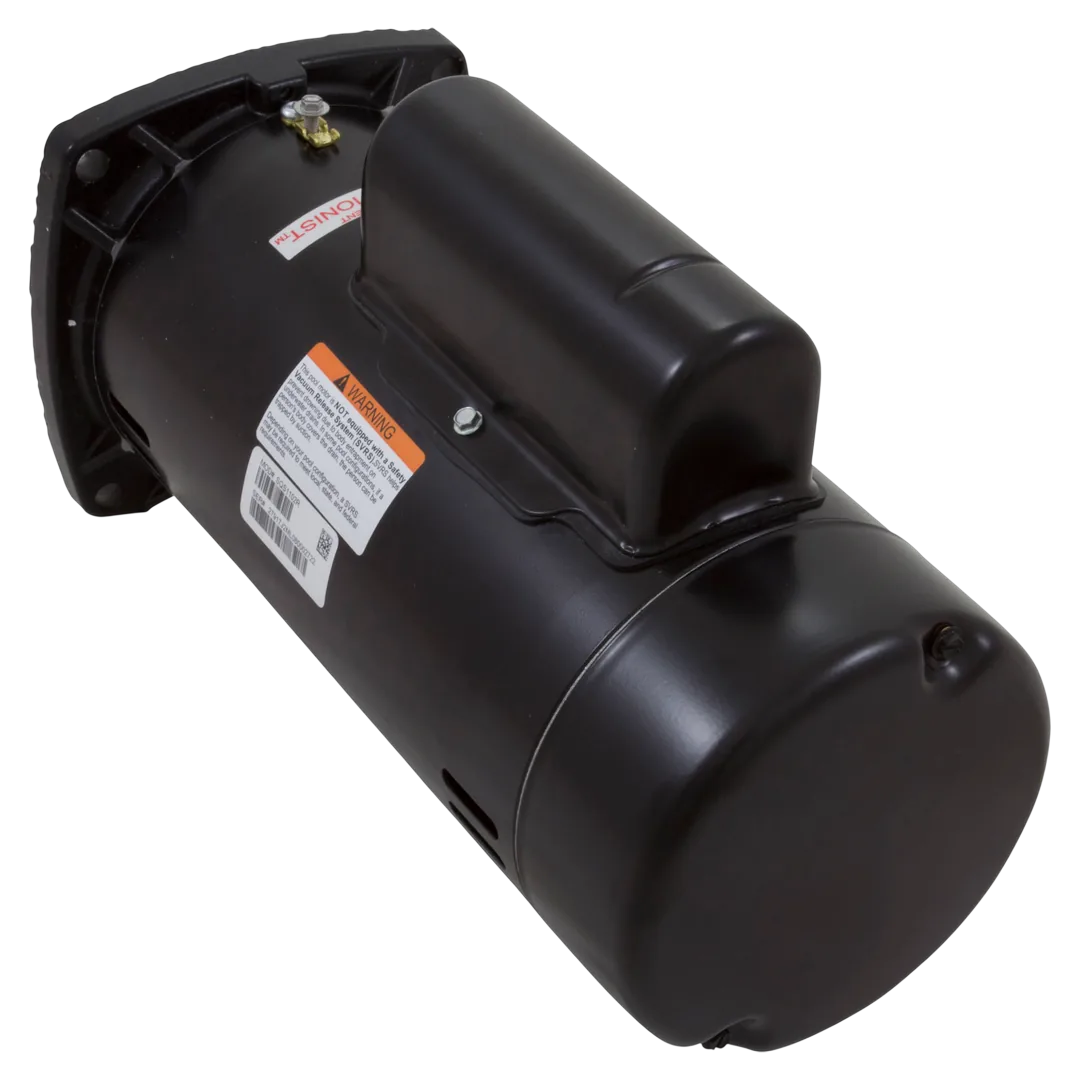

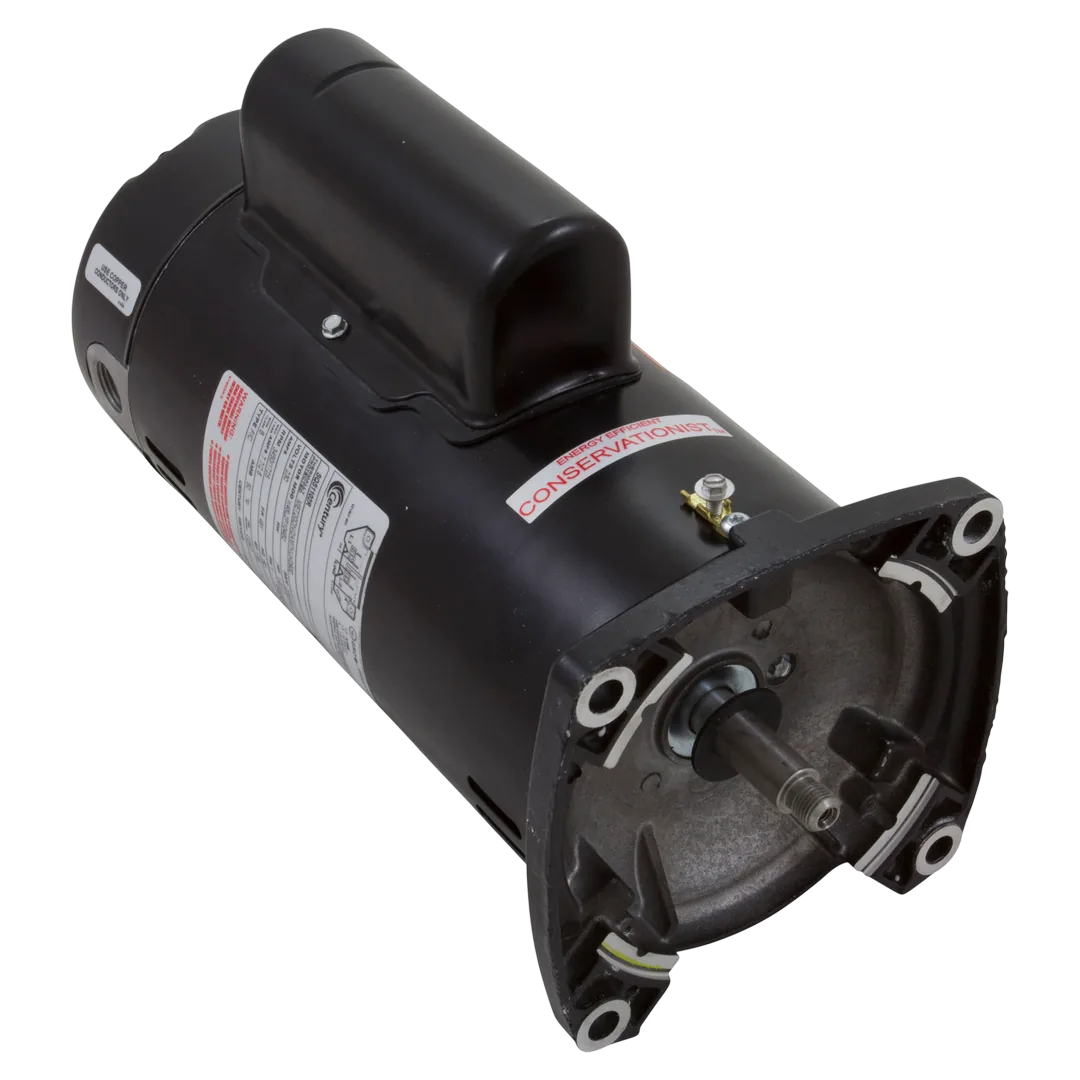

Century SQS1102R Square Flange 1 HP 2-Speed Pool Pump Motor
Century | SKU:
SQS1102R
$56900/ea
Unit price
/
Unavailable
Century SQS1102R Square Flange 1 HP 2-Speed Pool Pump Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

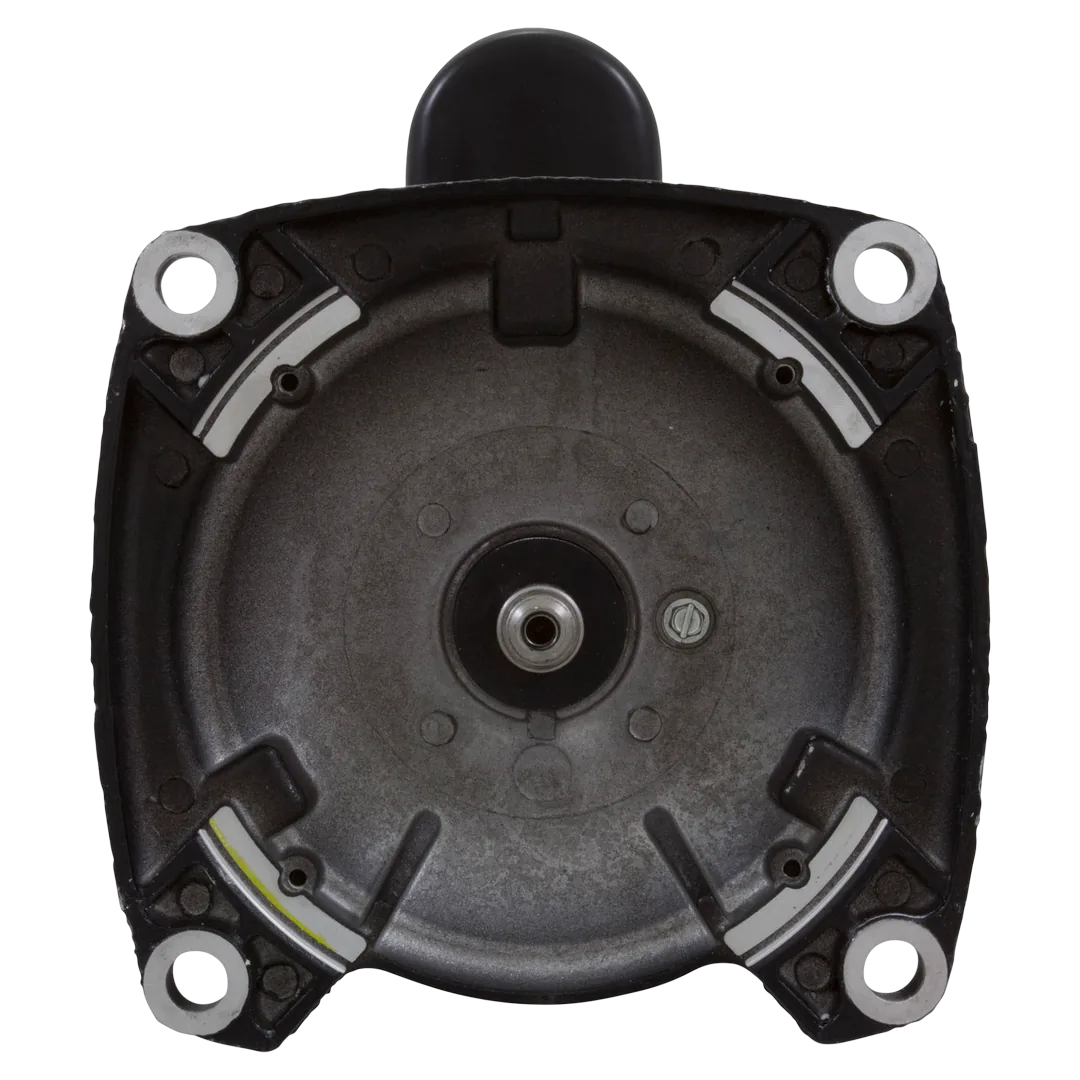

Replacement dual-speed, full-rated 1 HP square-flange motor for Pentair WhisperFlo, Challenger, and other 48Y pumps (Century SQS1102R). It lets you run high for vacuuming and low for daily circulation to cut noise and energy use. Square-flange 48Y frame with a threaded 5/8-in shaft; requires an external two-speed switch or timer to change speeds.
Includes: Motor only Hi-Lo switch sold separately (Part #1011431-001)
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Century SQS1102R 1.0 HP Square Flange Dual Speed Full Rated Pool and Spa Pump Motor |
| Part Number | SQS1102R |
| Part Type | Pump Motor |
| Compatibility | Sta-Rite Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max, Pentair WhisperFlo, Pinnacle, Anthony AR2 Series |
| Substitute Part Numbers | AOS-60-5221 |
| Includes | Motor only Hi-Lo switch sold separately (Part #1011431-001) |
| Certifications | UL 1081 |
| Material | 303 Stainless Steel Shaft |
| Voltage | 230V |
| Horsepower | 1.0 HP (High Speed), 0.17 HP (Low Speed) |
| Amperage | 7.7A (High Speed), 2.8A (Low Speed) |
| Service Factor | 1.65 |
| Frame | 48Y |
| Speed | Dual Speed (3450 RPM High, 1725 RPM Low) |
| Shaft Type | Threaded |
| Enclosure | Open Drip Proof (ODP) |
| Thermal Protection | Automatic Reset |
| Ambient Temperature | 50°C |
| Shipping Dimensions | 21.75 x 9.5 x 9.5 inch |
| Product Weight | 33 pound |
