Century Motors  |  SKU: ST1102

1 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Full-Rated

$294.11
5 In Stock


Description

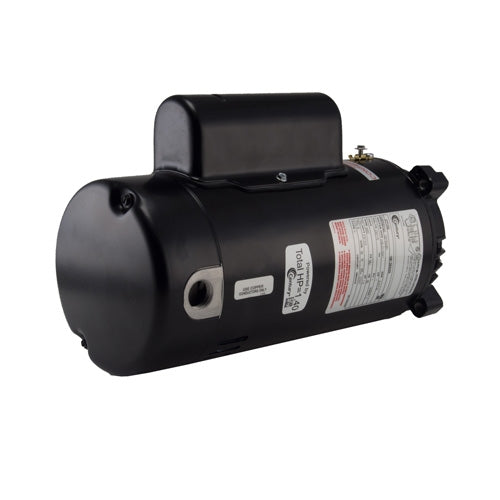

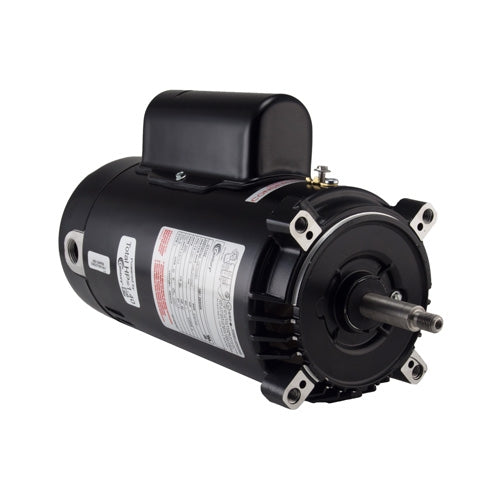

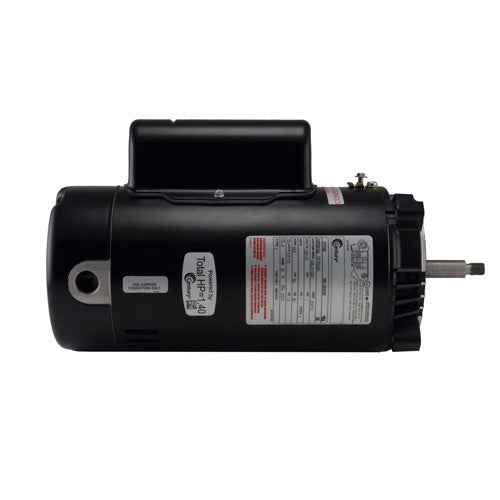

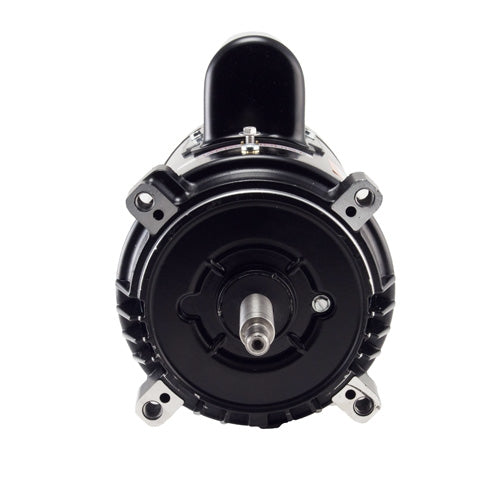

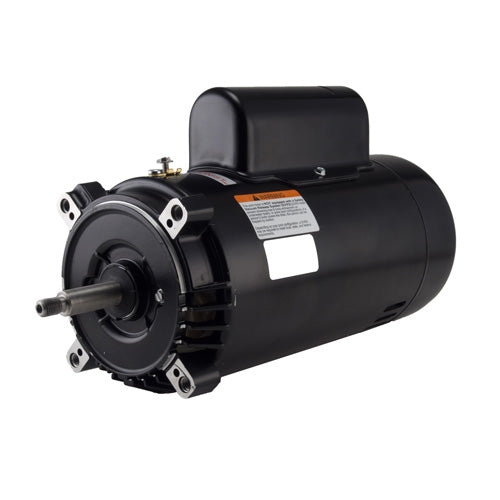

This is a Regal Beloit Century ST1102 Full-Rated Pool Pump Motor, 1 HP, 3450 RPM, 115/230V, with a 56J Threaded Shaft, ideal for demanding pool and spa applications.

This motor is a suitable substitute for Hayward SPX1607Z1M, ideal for 1 HP MaxFlo, Super Pumps, and Super Pump II's with 56J frames.

Motor Specifications

Horsepower 1 HP
Max Amps 18.6/9.3 A
Voltage 115/230V
Motor Frame Size 56J
Service Factor 1.5
Motor Speed 1-Speed
Phase Single
Shipping Dimensions 18.75 x 9 x 9.5 inch
Product Weight 25.55 pounds
Horsepower 1 HP
Max Amps 18.6/9.3 A
Voltage 115/230V
Motor Frame Size 56J
Service Factor 1.5
Motor Speed 1-Speed
Phase Single
Shipping Dimensions 18.75 x 9 x 9.5 inch
Product Weight 25.55 pounds

Shipping Details

Shipping Dimensions 18.75 x 9 x 9.5 inch
Product Weight 25.55 pounds
This product ships free via UPS Ground.

Part of the following Schematics:

Hayward Super Pump Replacement Parts
Hayward Super Pump Replacement Parts
(11 products)
