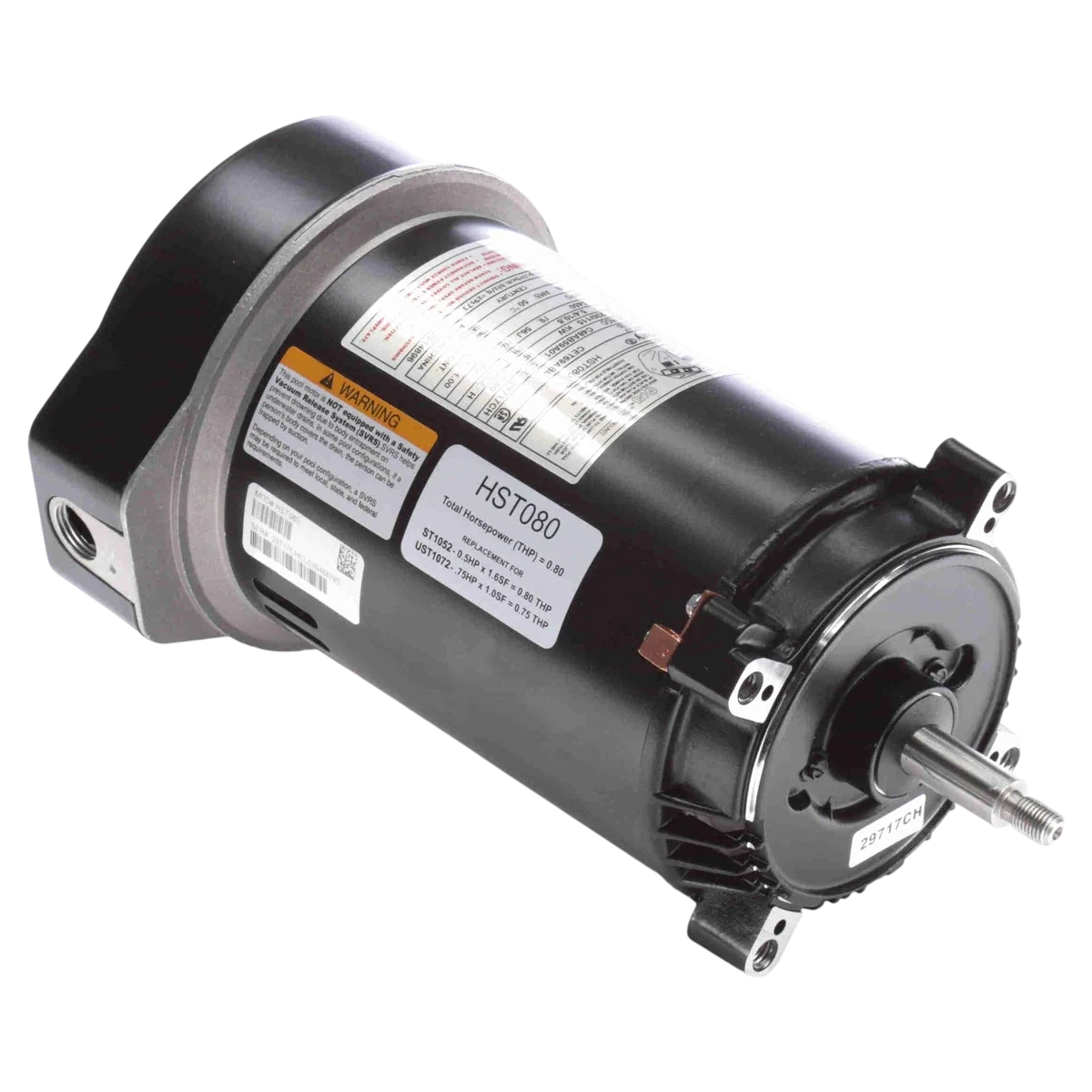

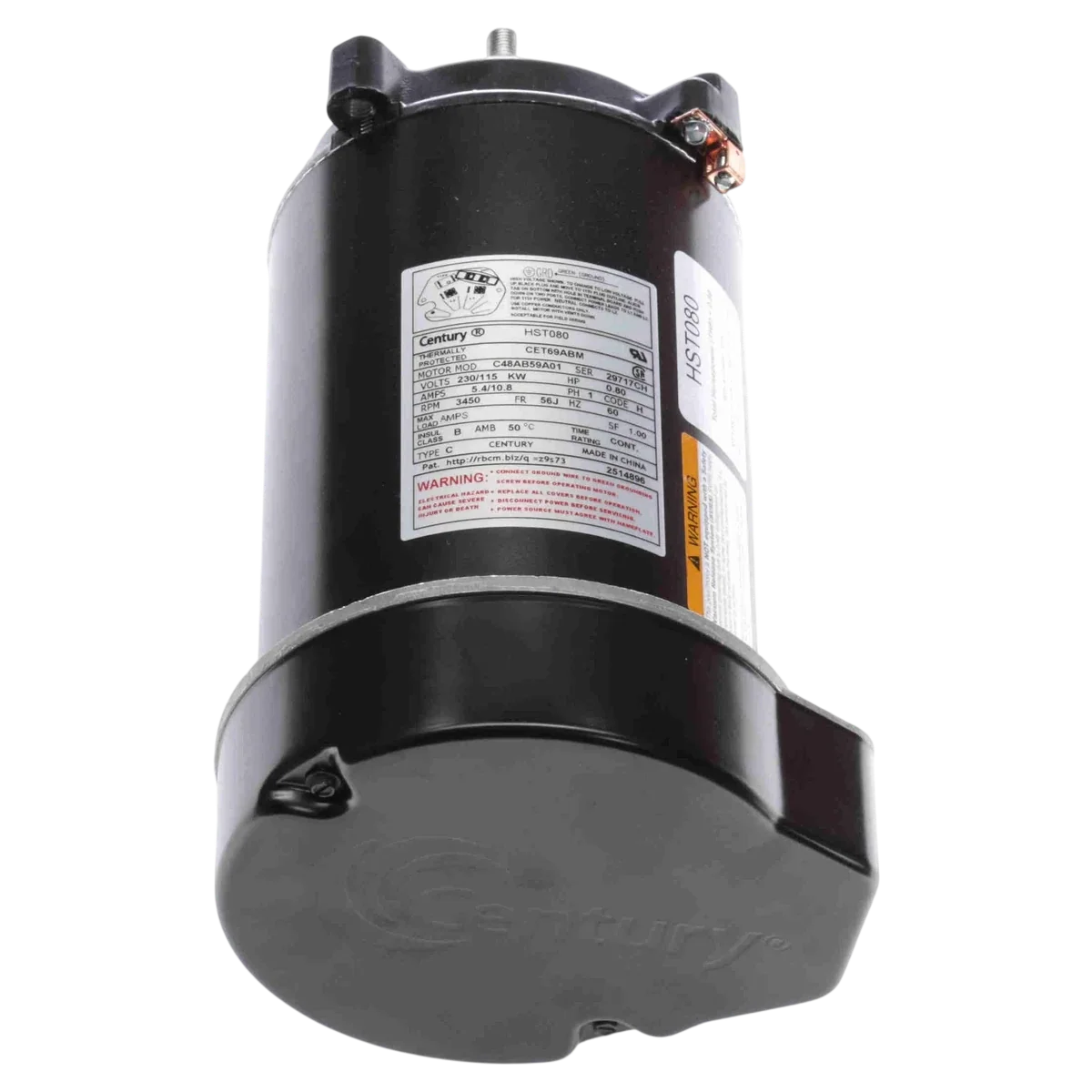

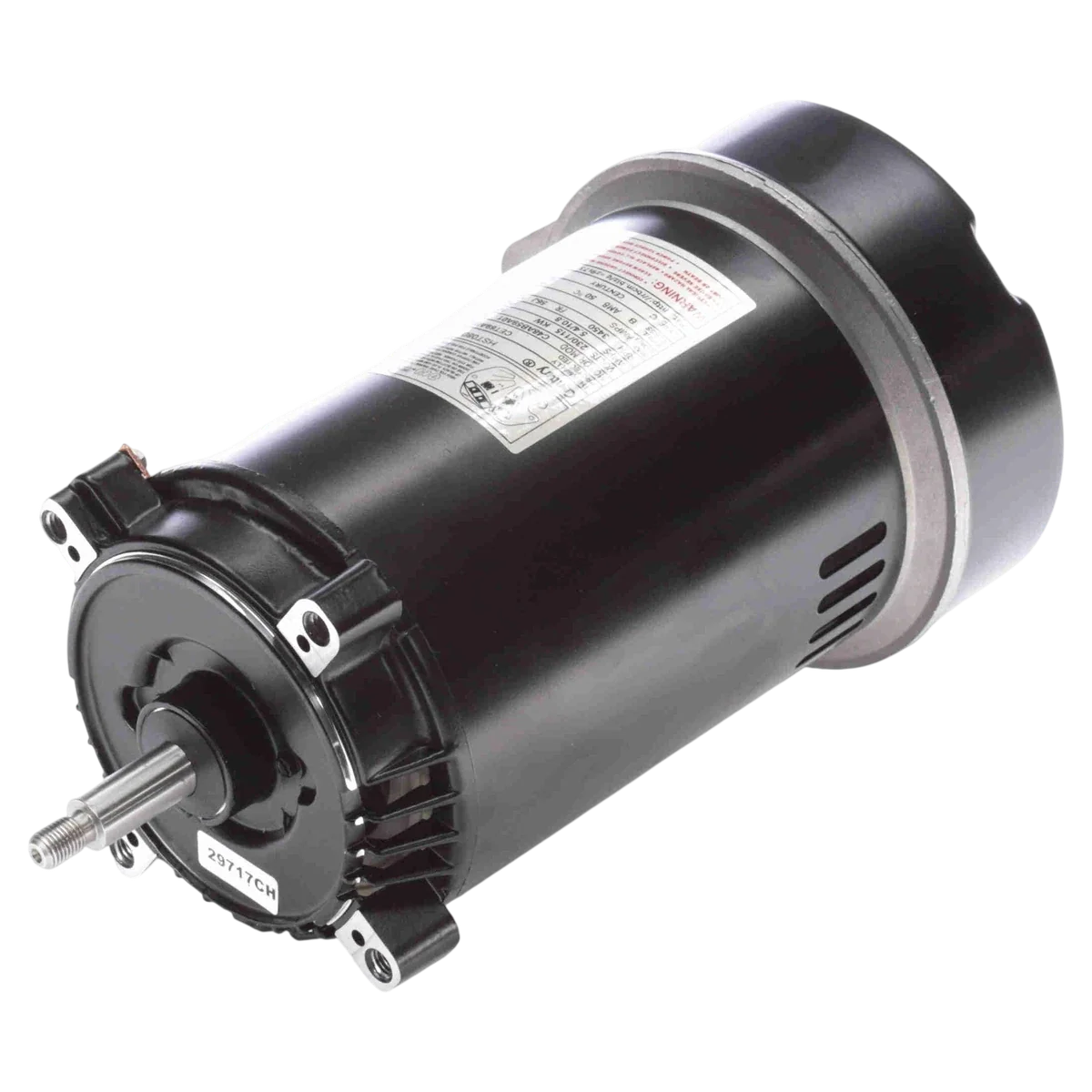

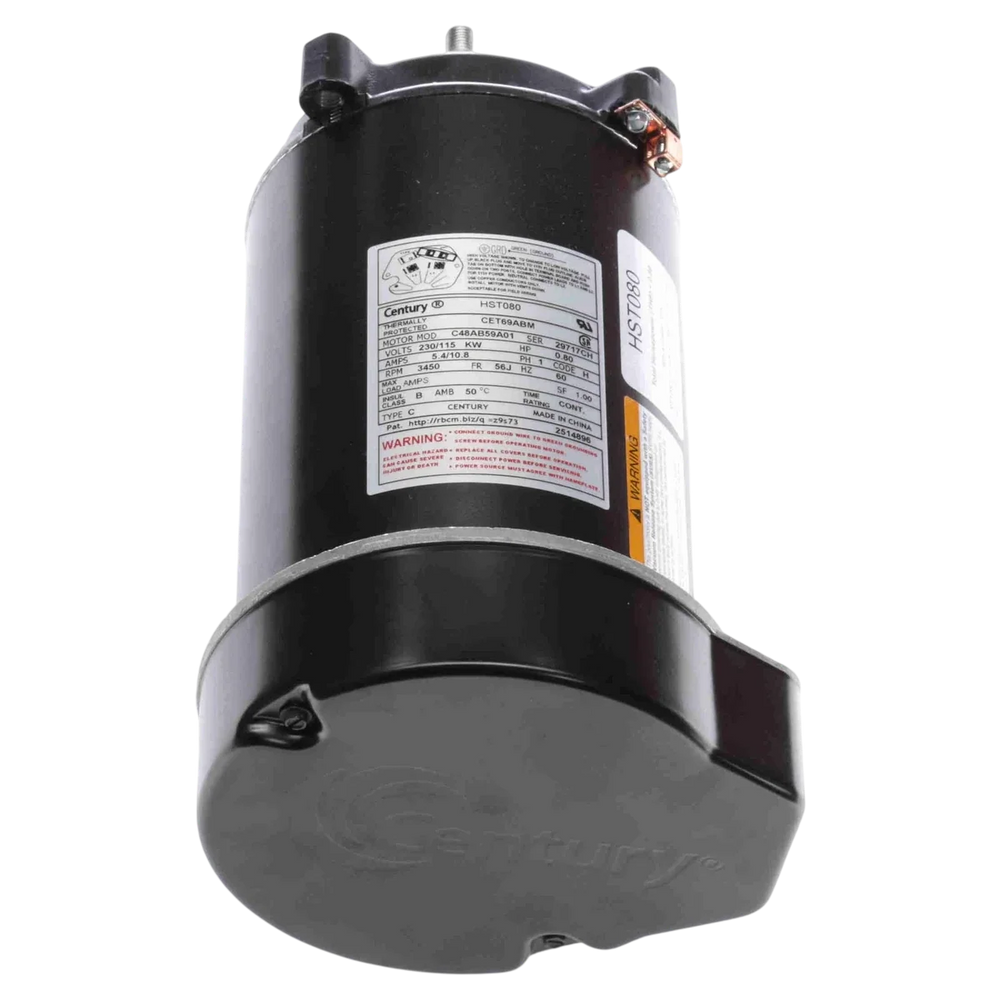

Centurion Pro 0.8 HP Pump Motor

A single-phase, dual-voltage pump motor rated 0.80 THP in a 56J round frame, built to replace an existing pump motor on the same frame size without swapping the whole pump.

Key Features

• Sealed 203 ball bearings at both ends
• Triple seal on pump-end bearing
• Built-in voltage change device, 115/230V
• 303 stainless steel shaft, 7/16" threaded
• Automatic-reset thermal protection

Compatibility

• 56J round-frame mount, general Centurion Pro replacement
• Hayward Super II Pump 1.5HP
• Does not fit Century HST110, HST150, HST225 or HST275 motors

The terminal board and wiring compartment are open and accessible, making it easier to switch between 115V and 230V in the field during installation.
