Centurion Pro C-Face Pump Motor

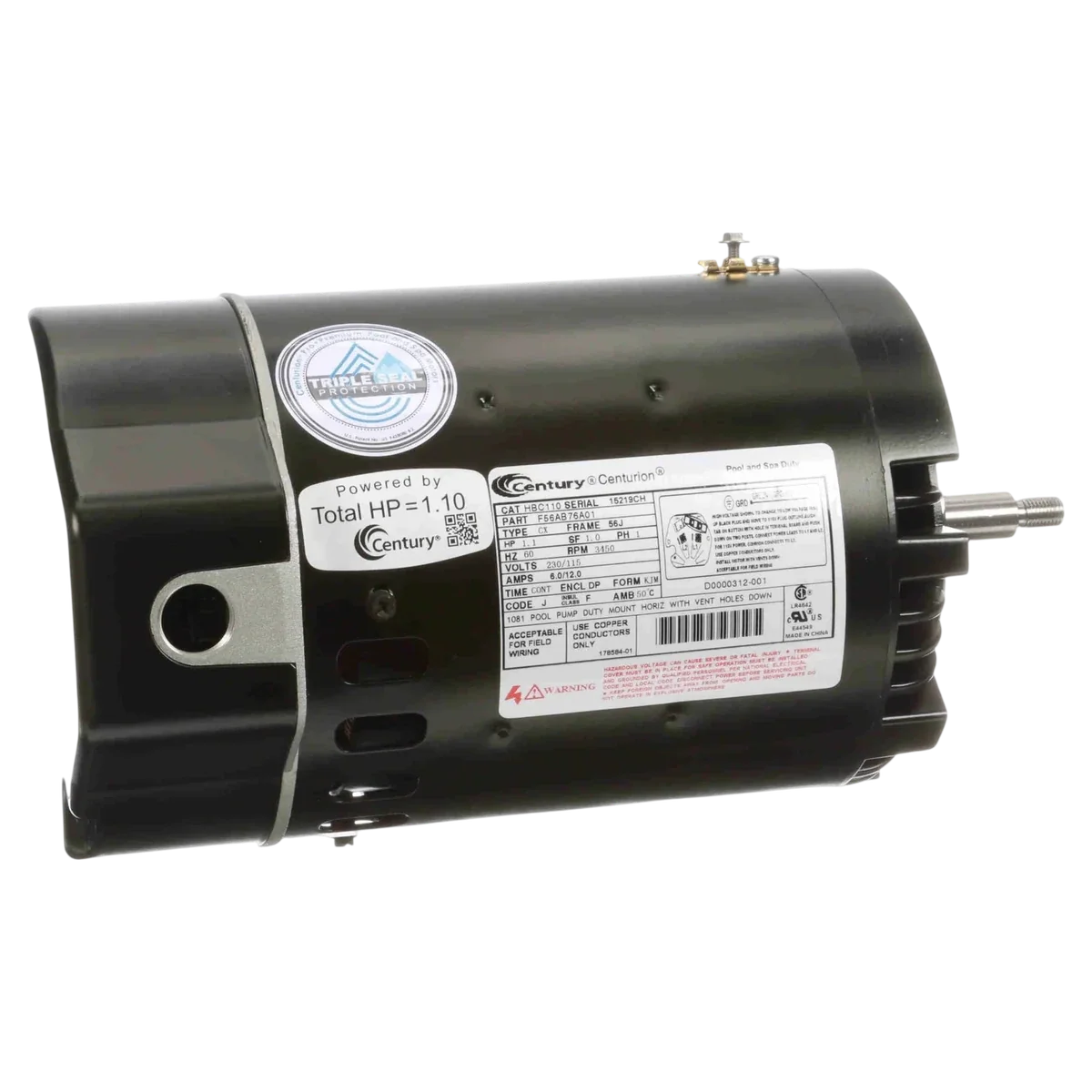

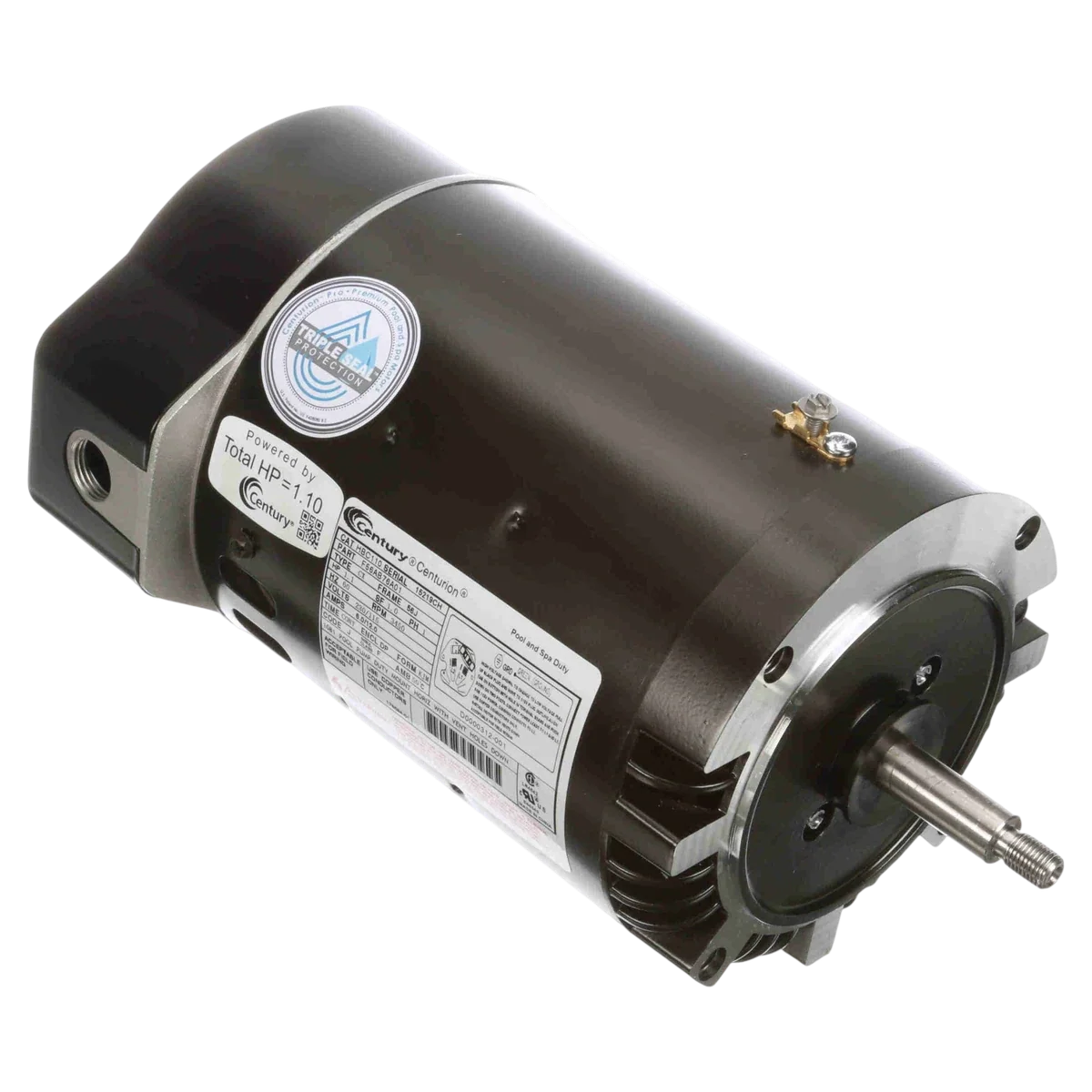

A single-phase, single-speed C-face motor with a 56J frame that powers residential pool and spa pumps, rated 1.1 HP at 115/230V. It replaces worn-out Century/Regal Rexnord motors (formerly sold under the A.O. Smith brand) of the same spec.
Key Features
- Triple Seal moisture protection
- Open, accessible wiring compartment
- Field-switchable 115V/230V voltage
- 7/16" wrench-flat shaft
- Sealed 203-size ball bearings
Horsepower, voltage, frame size and shaft type need to match the motor being replaced for a proper fit.
Regal Rexnord lists this motor as thermally protected, but at least one distributor's data sheet lists thermal protection as none.
This product ships free via FedEx Home Delivery.
