2HP 230V 2-Speed 48Y Motor

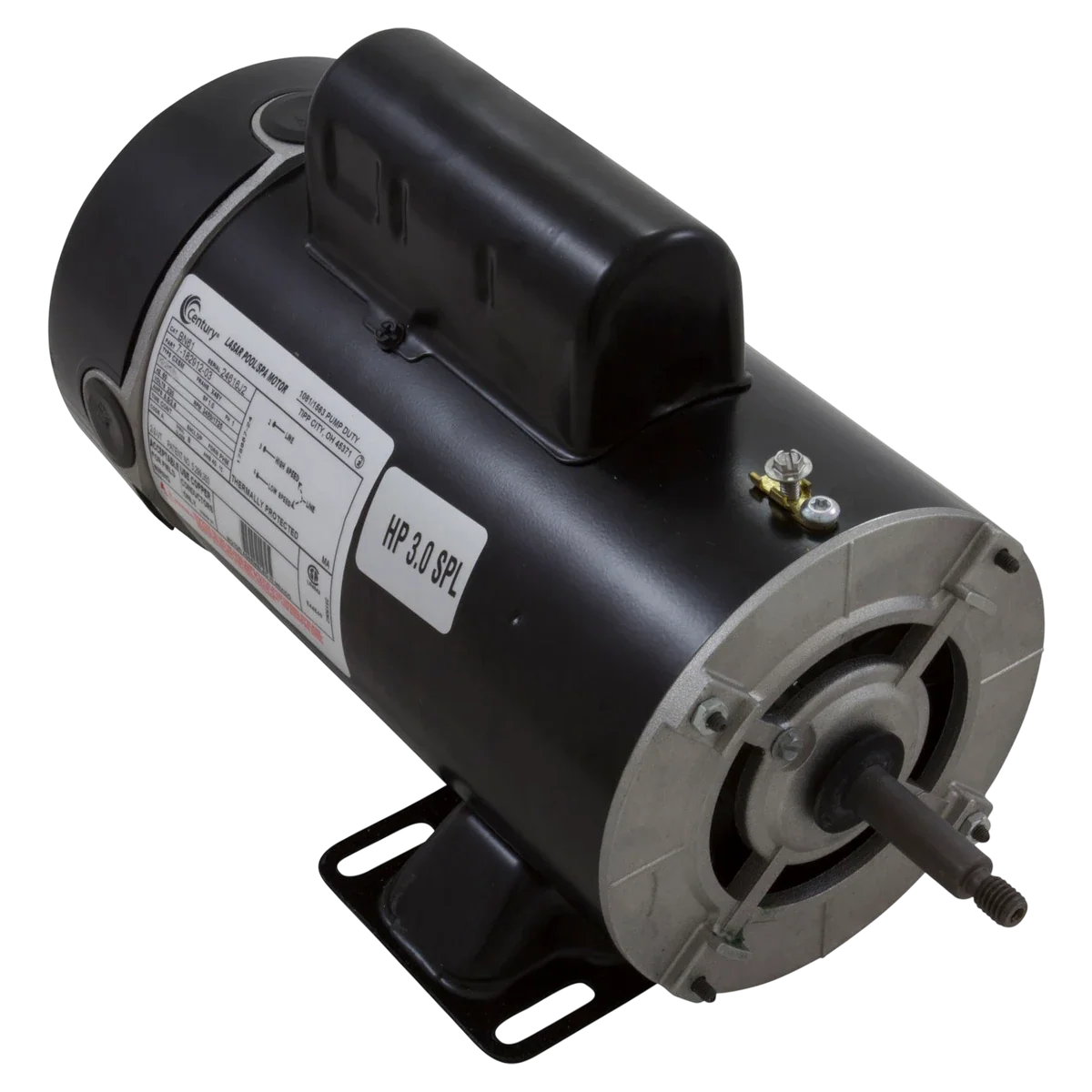

The Century BN61 is a 230V, two-speed pool and spa pump motor built on a 48Y frame with a threaded shaft for direct impeller mounting, used to replace failed OEM motors across many 48-frame pump brands.
Key Features
- Flex-48 LASAR-XL low-amp design
- Two-speed PSC, 3450/1725 RPM
- 230V, single phase, 60 Hz

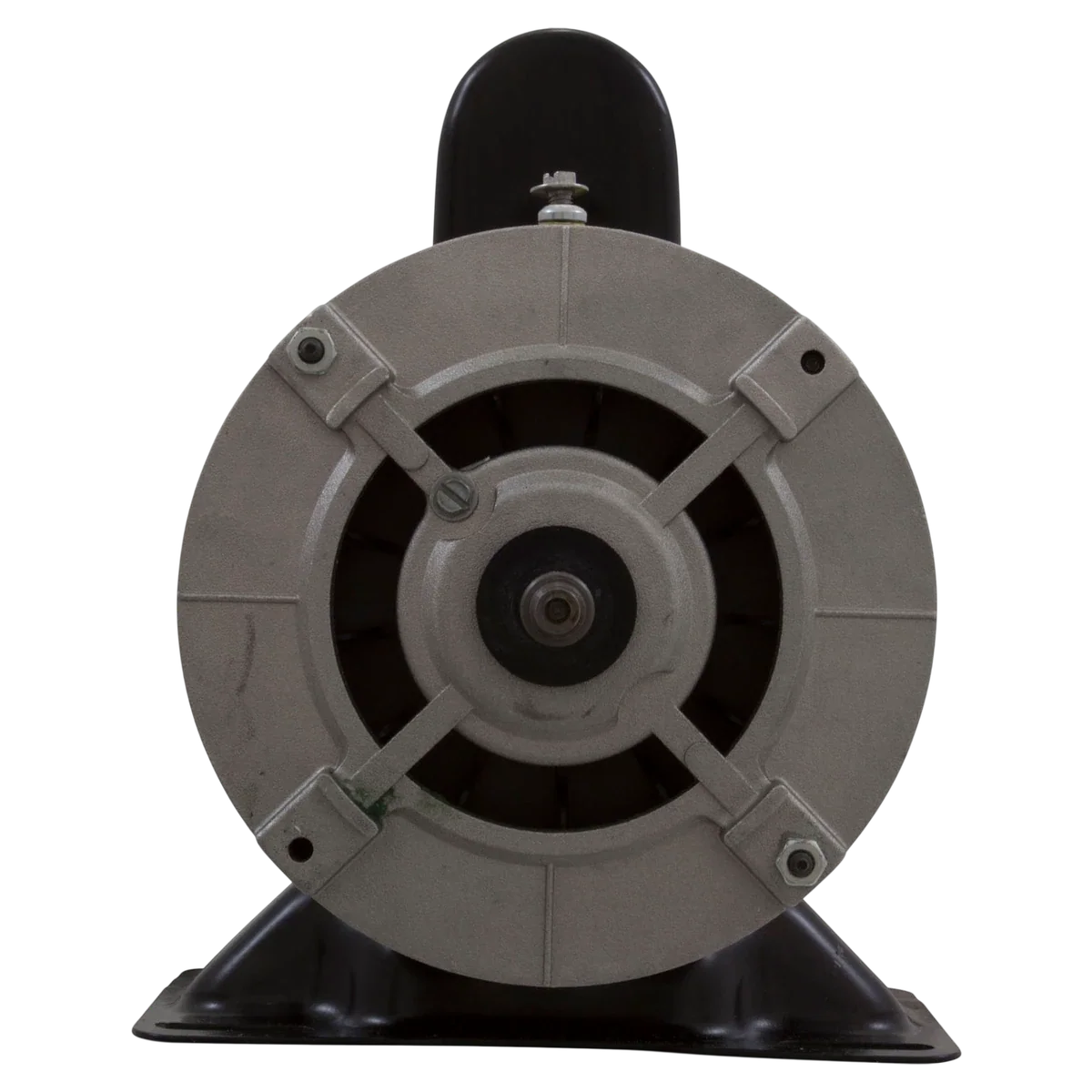

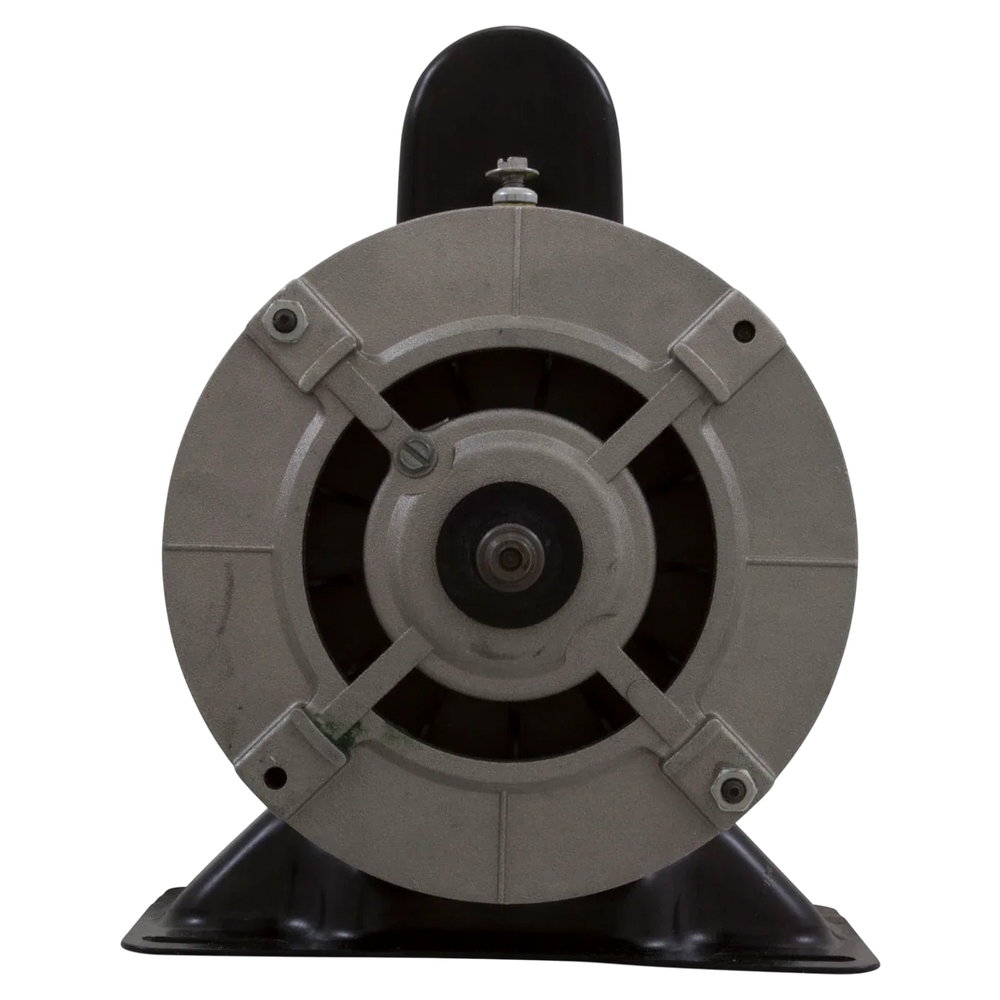

- 3/8" threaded shaft
- Drip-proof, thermally protected
Compatibility
- Waterway Executive, EX2, Spa Flo/Iron Might, Supreme, Workman 48-frame pumps
- Balboa Dura-Jet DJ Series
- Jacuzzi J, JCM, K, KM, Piranha "A" pumps
- Pentair/Pac Fab Dynamo
- Hayward SP1580 Power-Flo LX
- Gecko Aqua Flo Flo-Master XP2/XP2E/XP/FMHP/FMCP
- Vico UltraFlo/Ultima 48-frame pumps

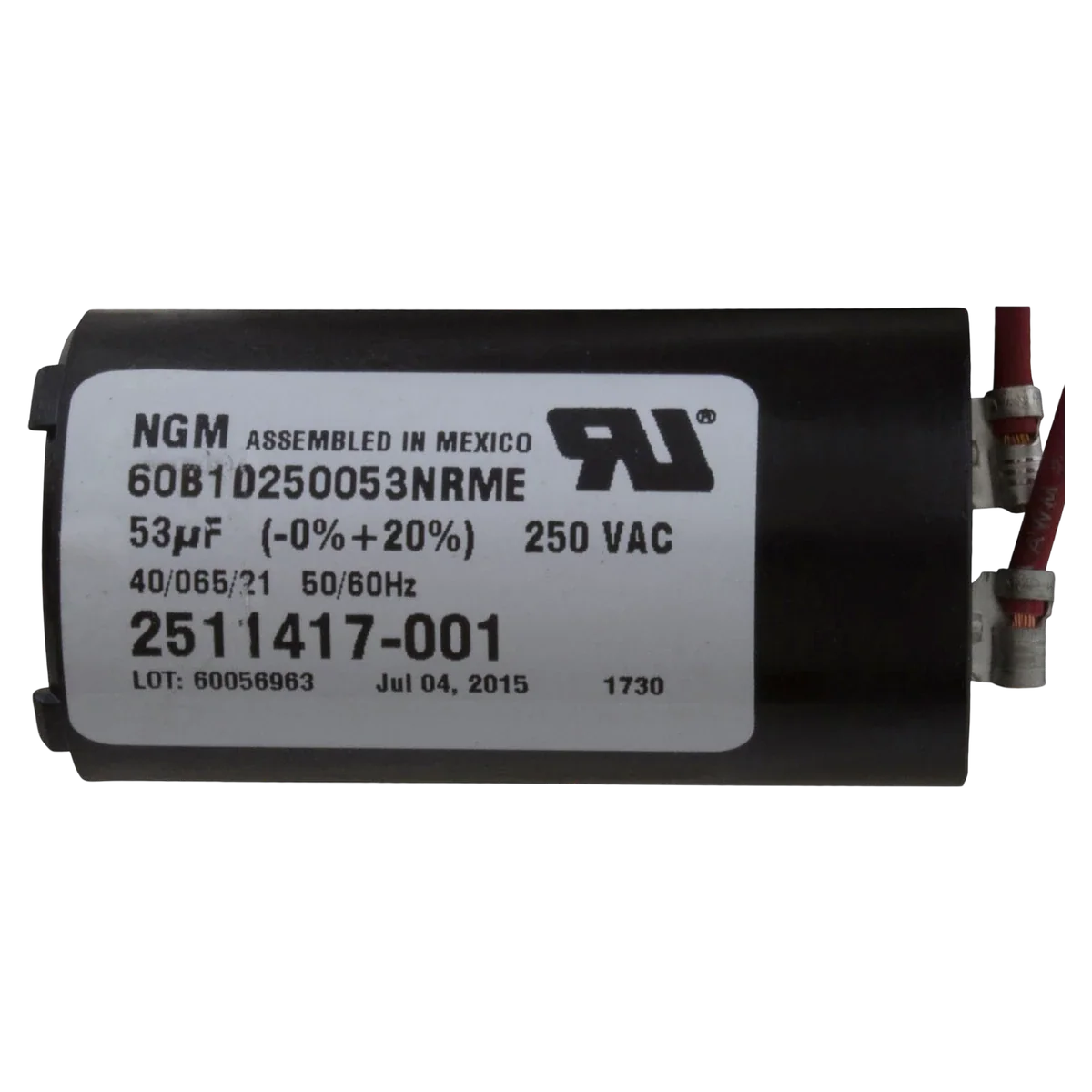

Conduit entries sit at the 12 and 3 o'clock positions, and the run capacitor mounts externally on top of the motor shell rather than inside the housing.

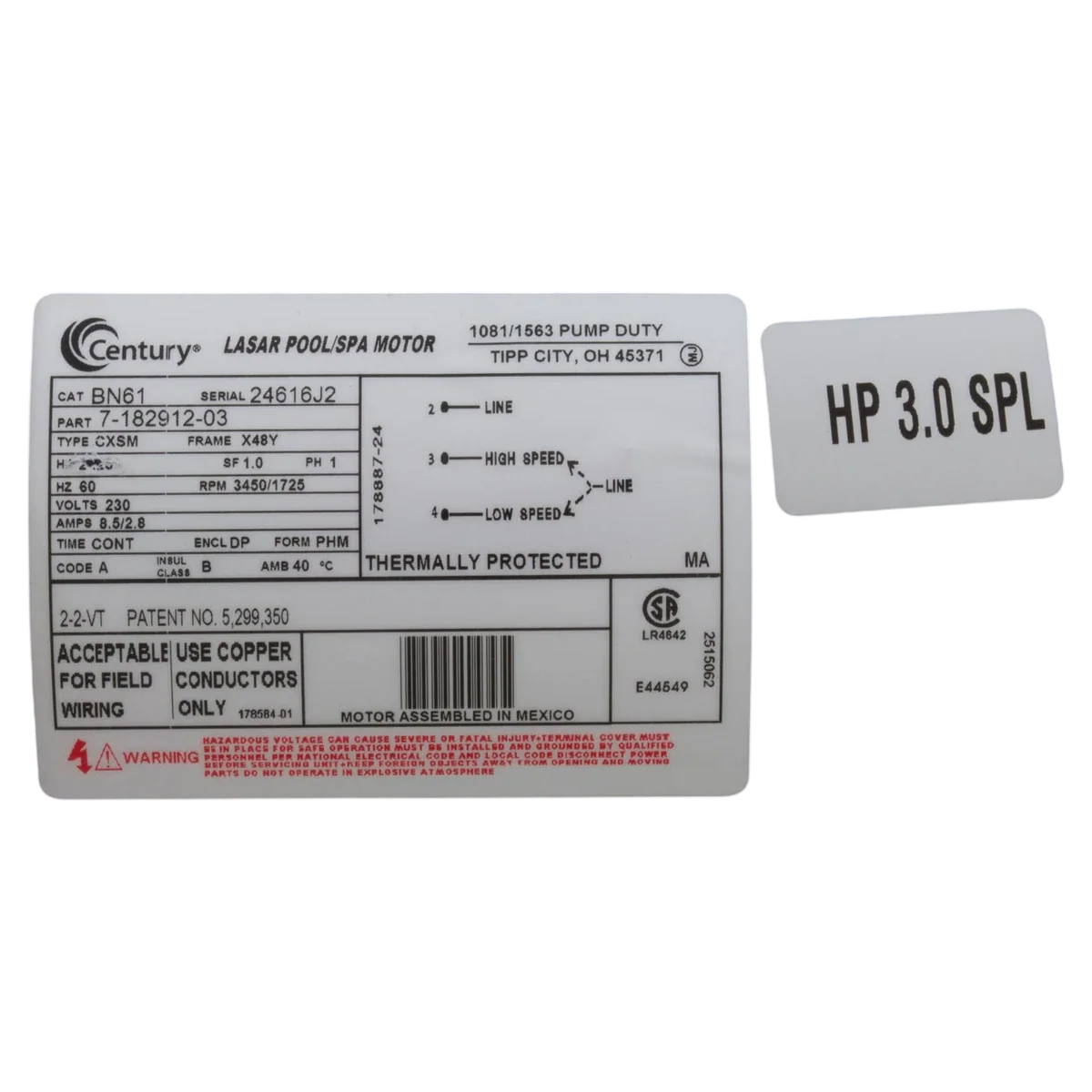

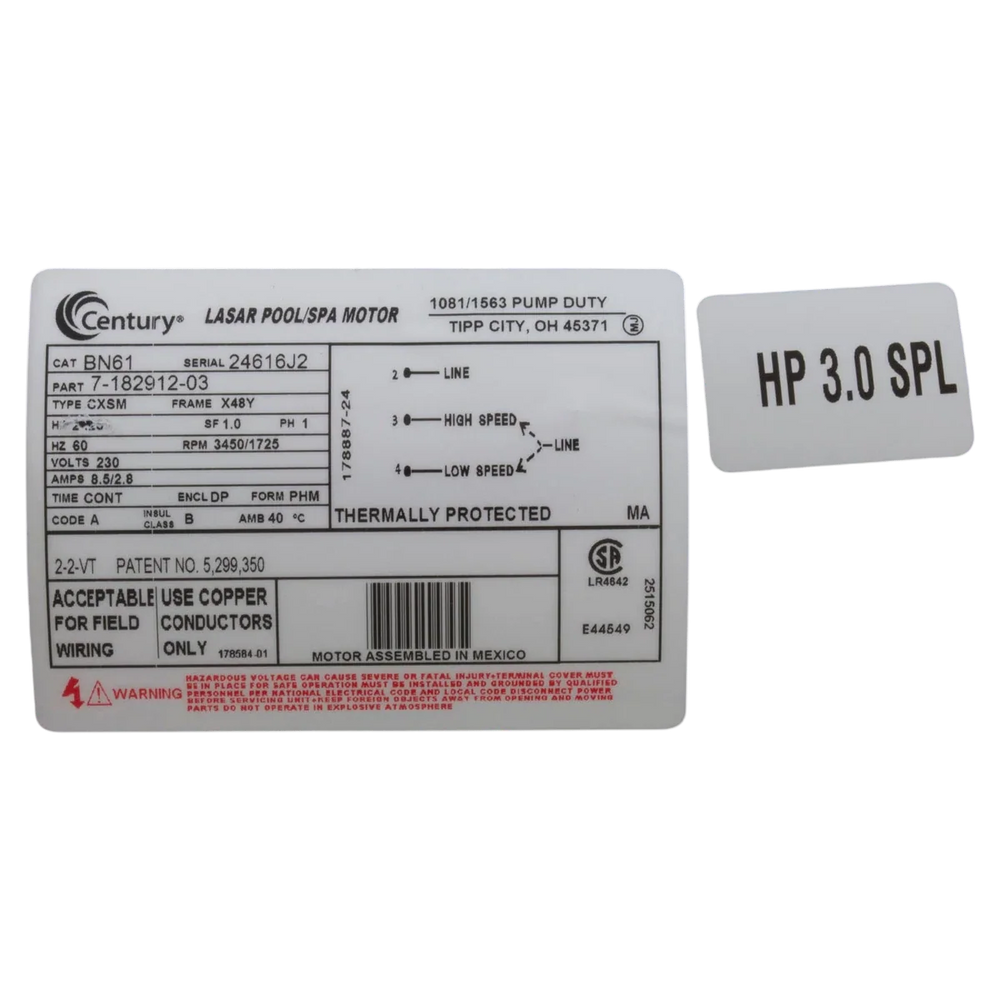

The "3.0 SPL" designation some listings use refers to a peak/service-factor rating, not continuous horsepower; the nameplate rating is 2 HP high speed, 1/4 HP low speed.
