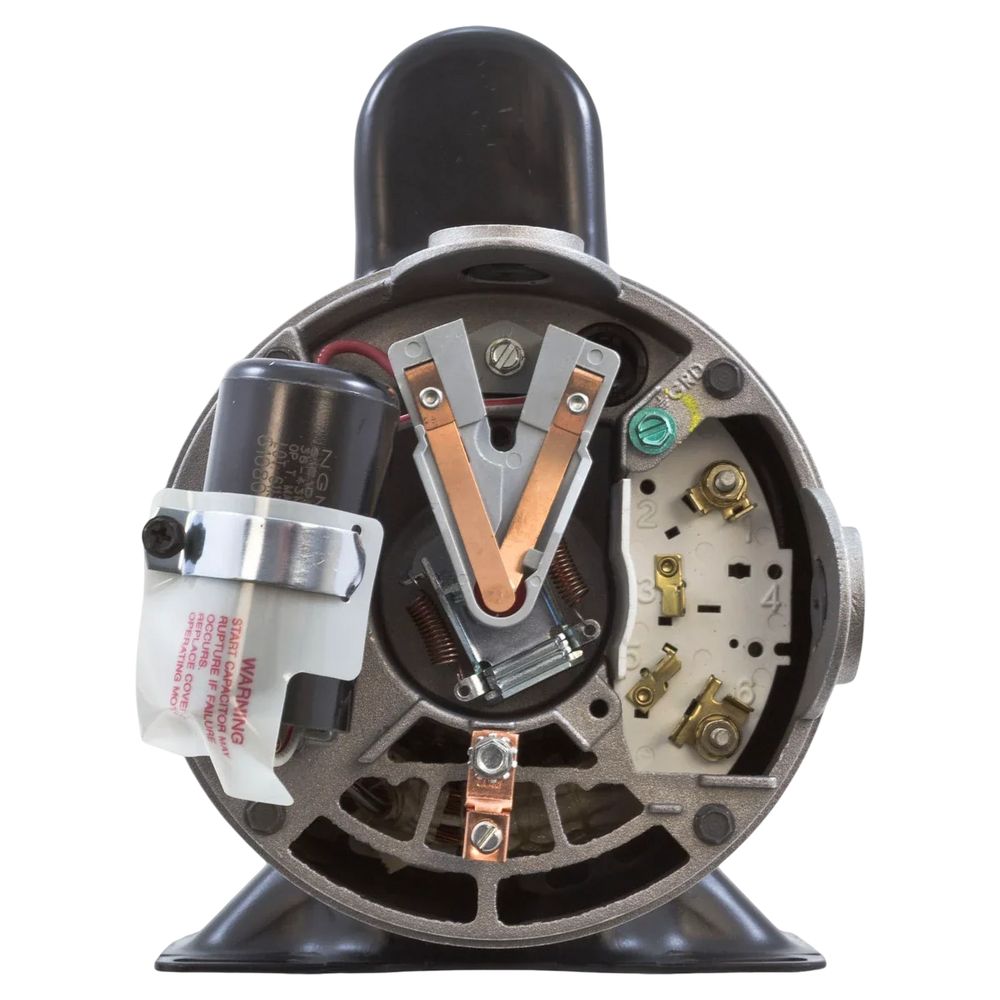

1.5HP 2-Speed 48Y Pump Motor

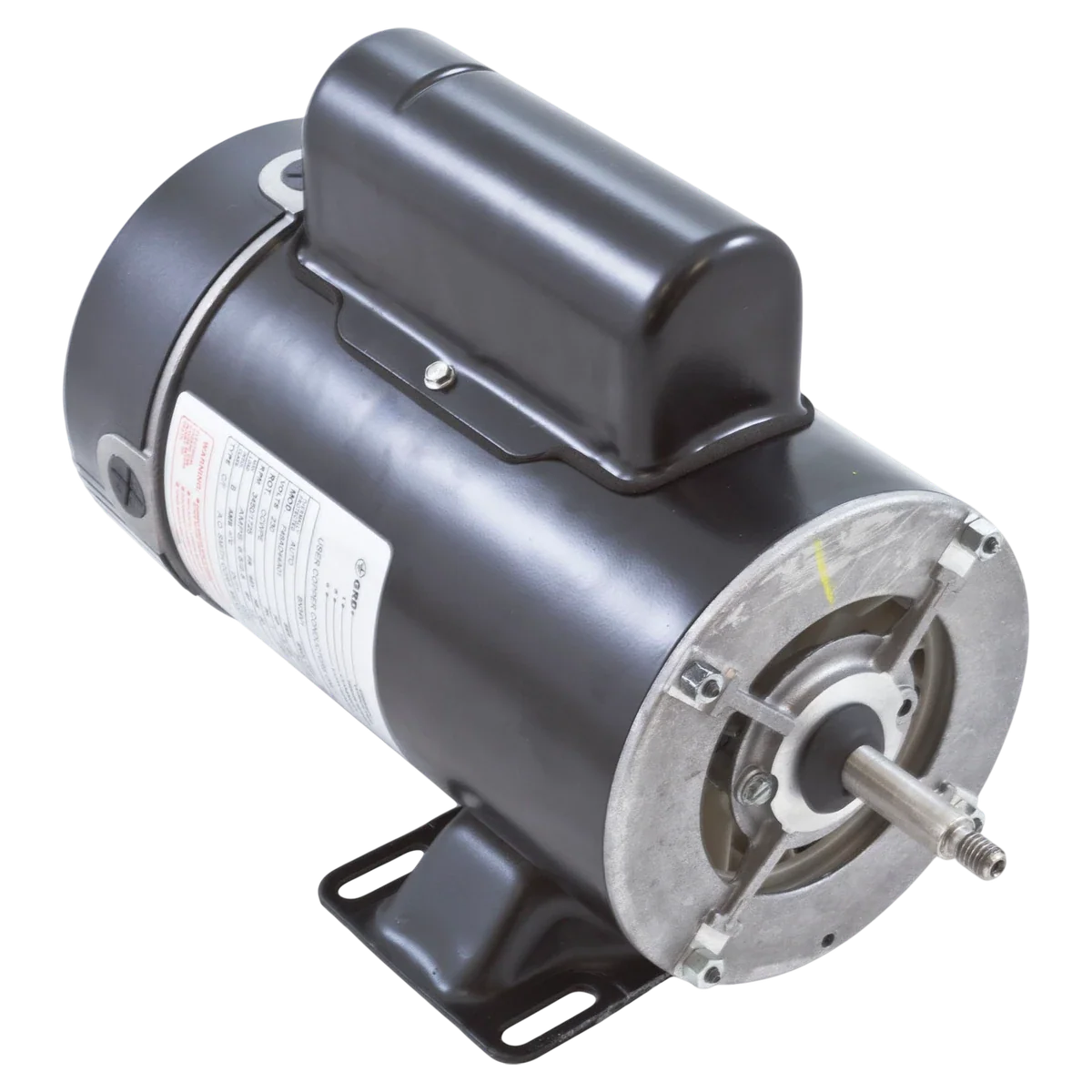

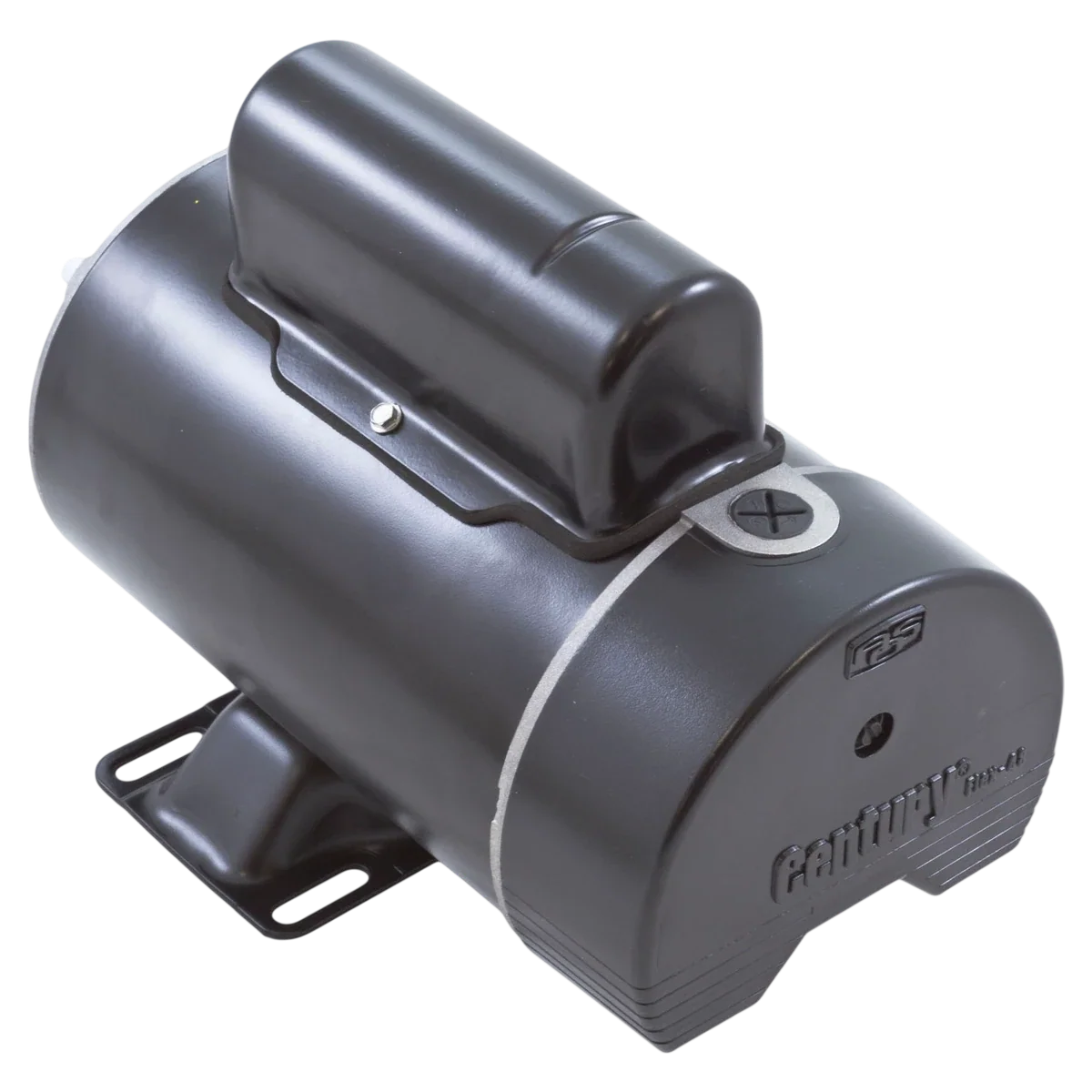

The BN34V1 is a 1.5 HP, two-speed 230V motor with a 48Y thru-bolt frame and threaded shaft, used to replace worn motors on above-ground pool and spa pump wet ends.

Key Features

• Two-speed operation, high and low
• Threaded shaft, thru-bolt flat rigid base

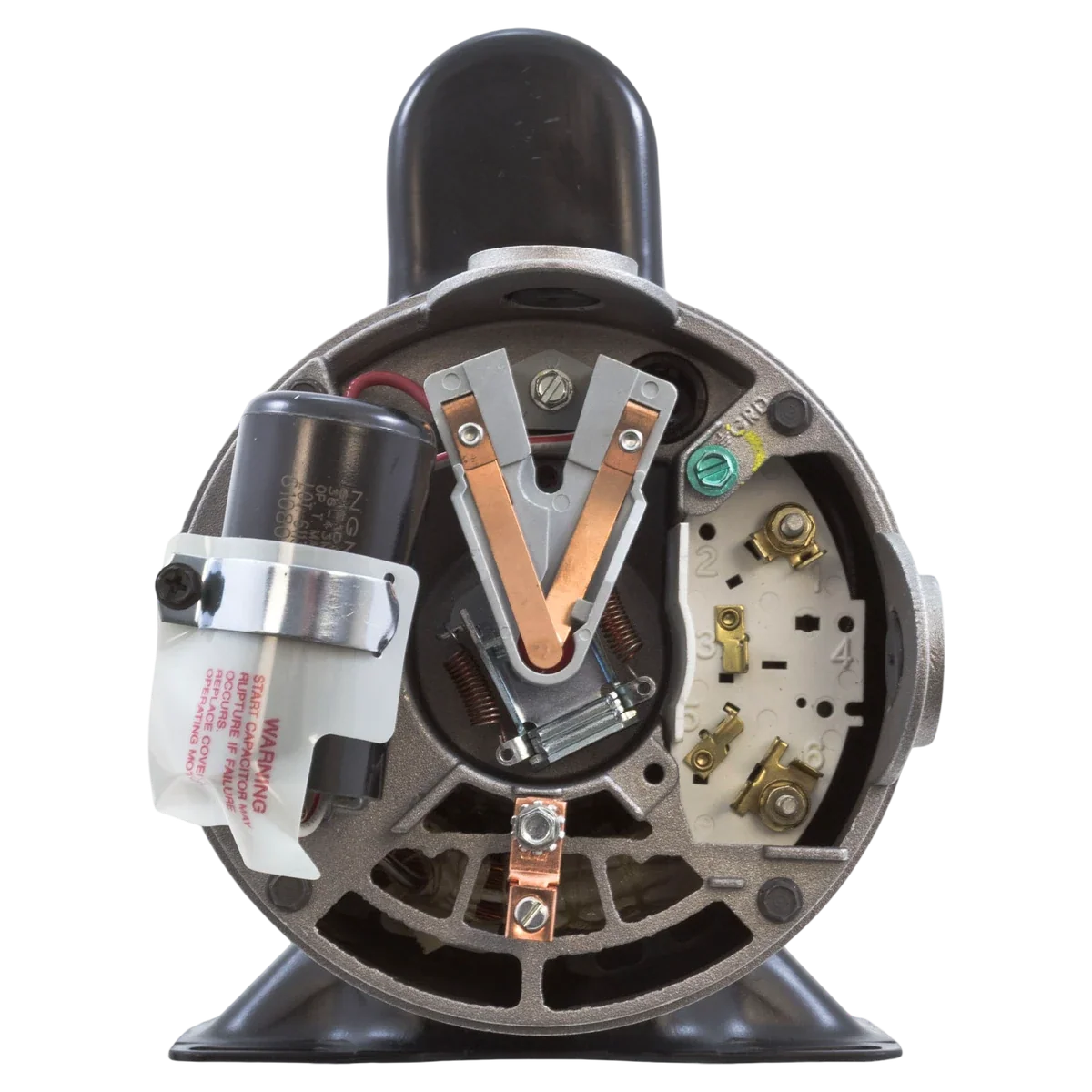

• 12 and 3 o'clock conduit entries
• Automatic-reset thermal overload protection
• Low-amp start and run design

Compatibility

• Hayward Power-Flo, Power-Flo II and LX pumps
• Waterway HiFlo, Executive, Supreme, Workman, Spa Flo and EX2 pumps
• Jacuzzi J, K, L, LR and Piranha Series pumps
• Balboa Dura-Jet and StaRite Dura-Jet/JW pumps
• Pentair Dynamo and Maxim pumps, Gecko Aqua Flo Flo-Master and Tub-Master pumps
• Does not fit BN50V1 (115V) or BN37V1 (1 HP, 115V) motors

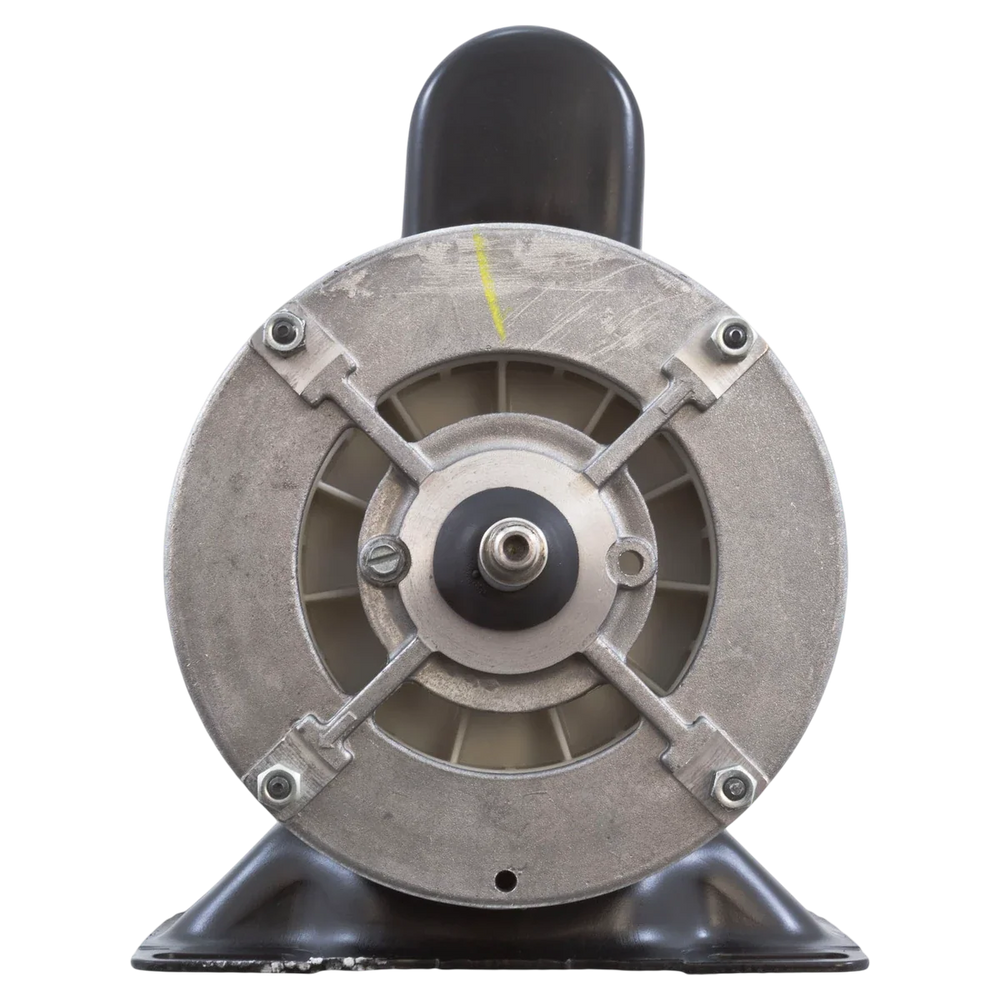

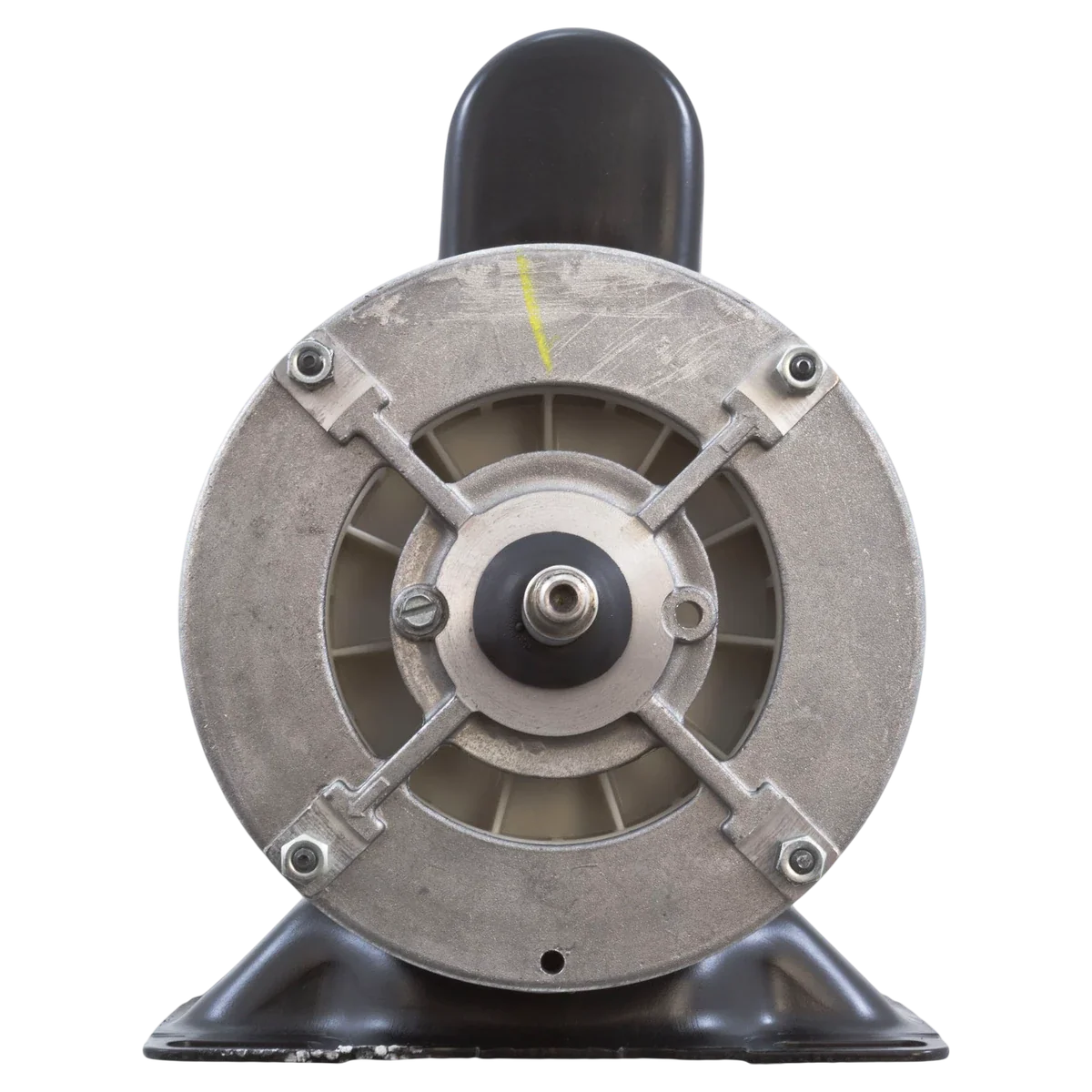

Mounting uses 4 thru bolts on a 5.146-inch bolt circle, and shaft height is 3.5 inches, so a pump needing a different shaft height won't line up with this motor.

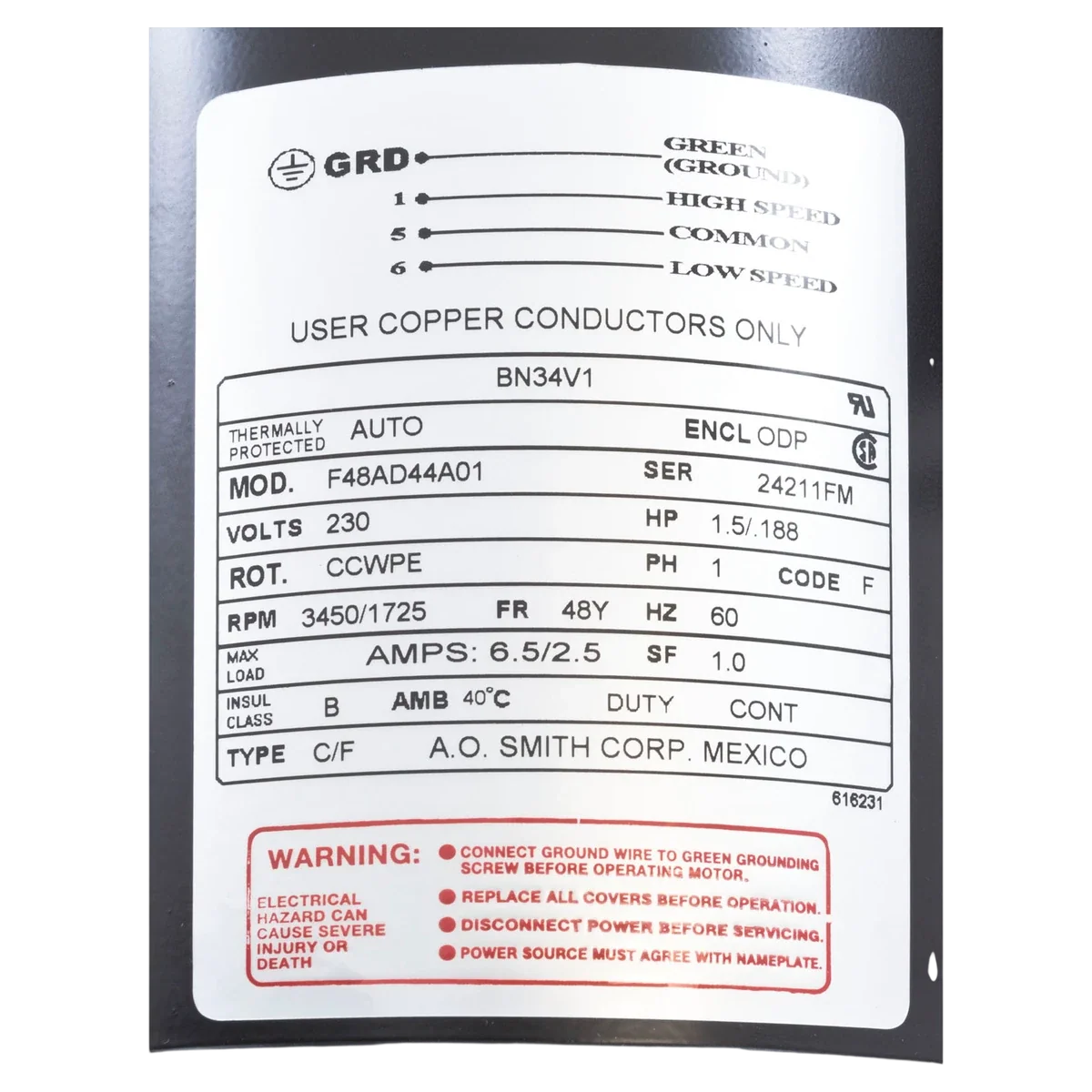

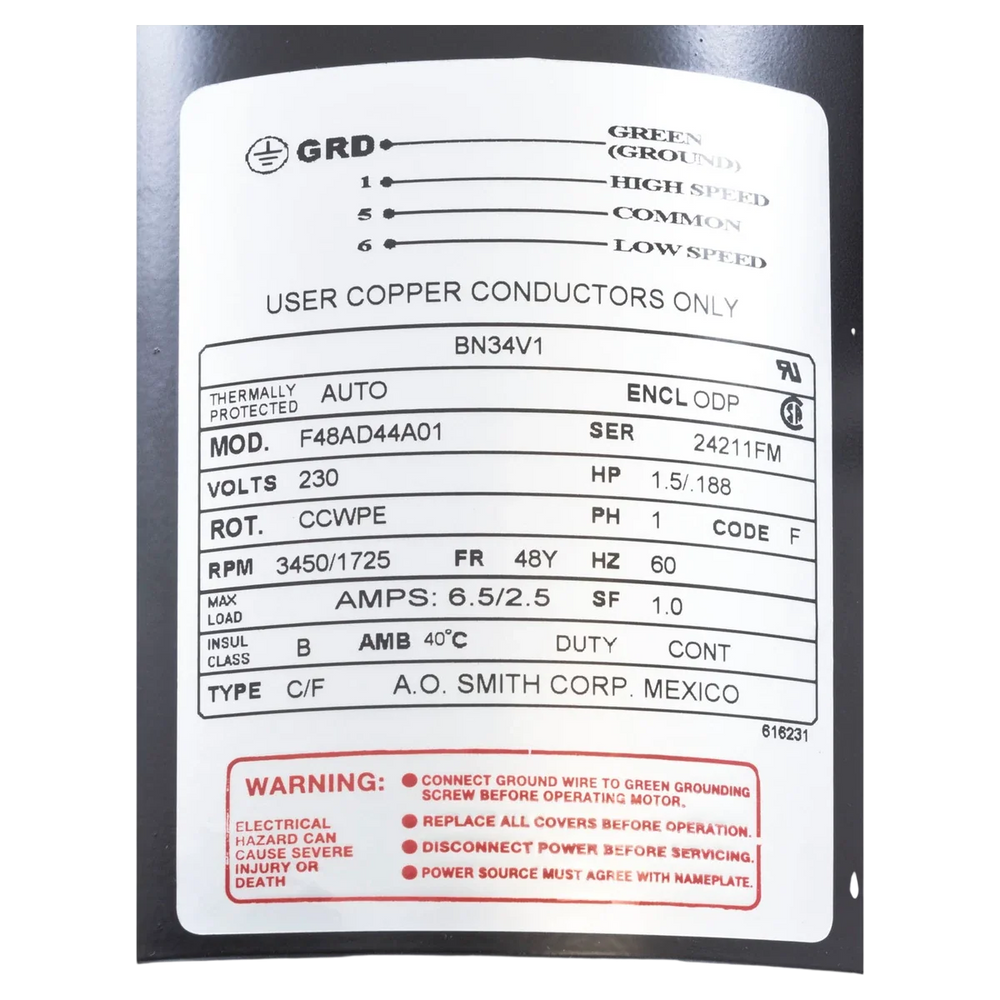

Listed amperage differs between sources for this motor: 6.5A high/2.5A low versus 8.0A high/2.6A low.
