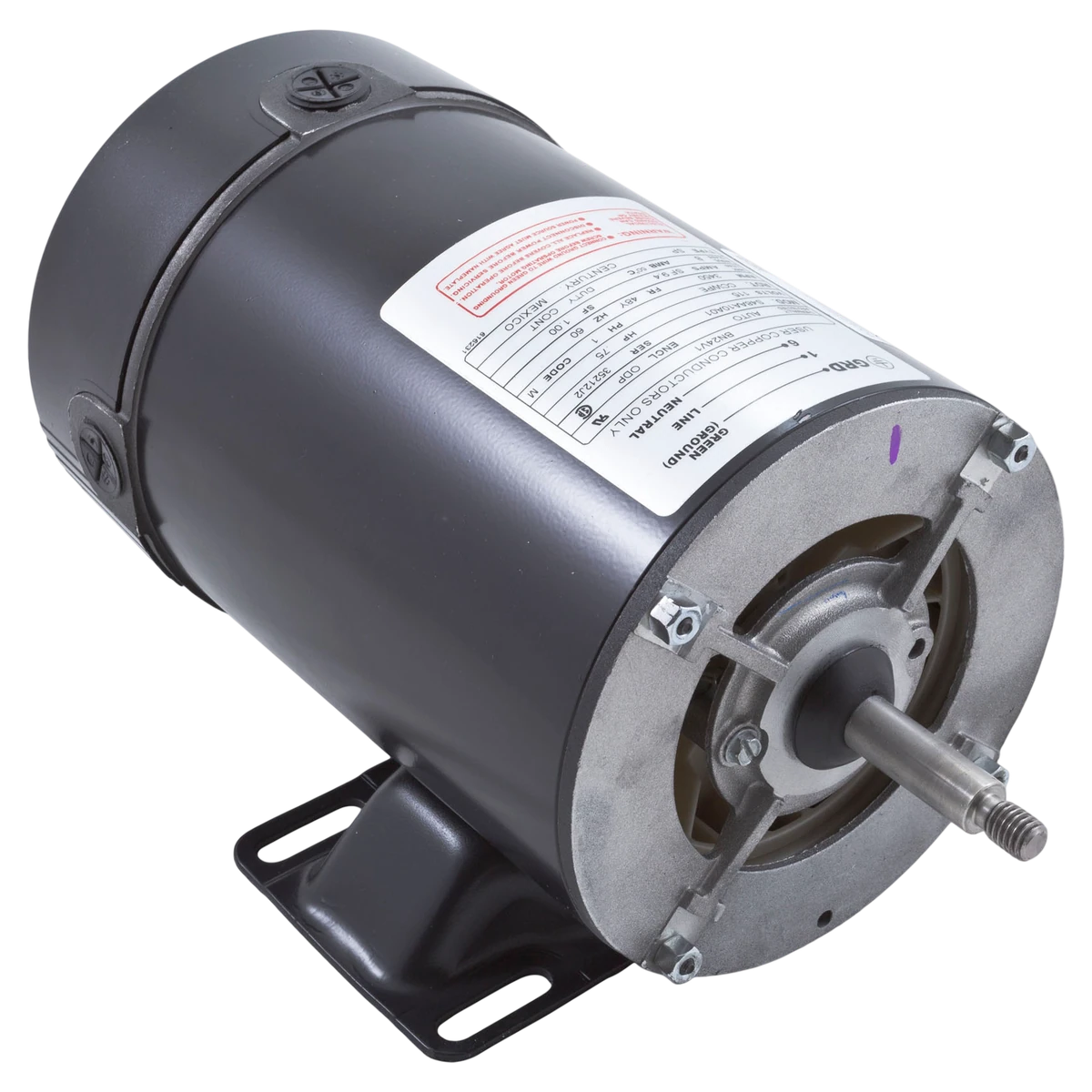

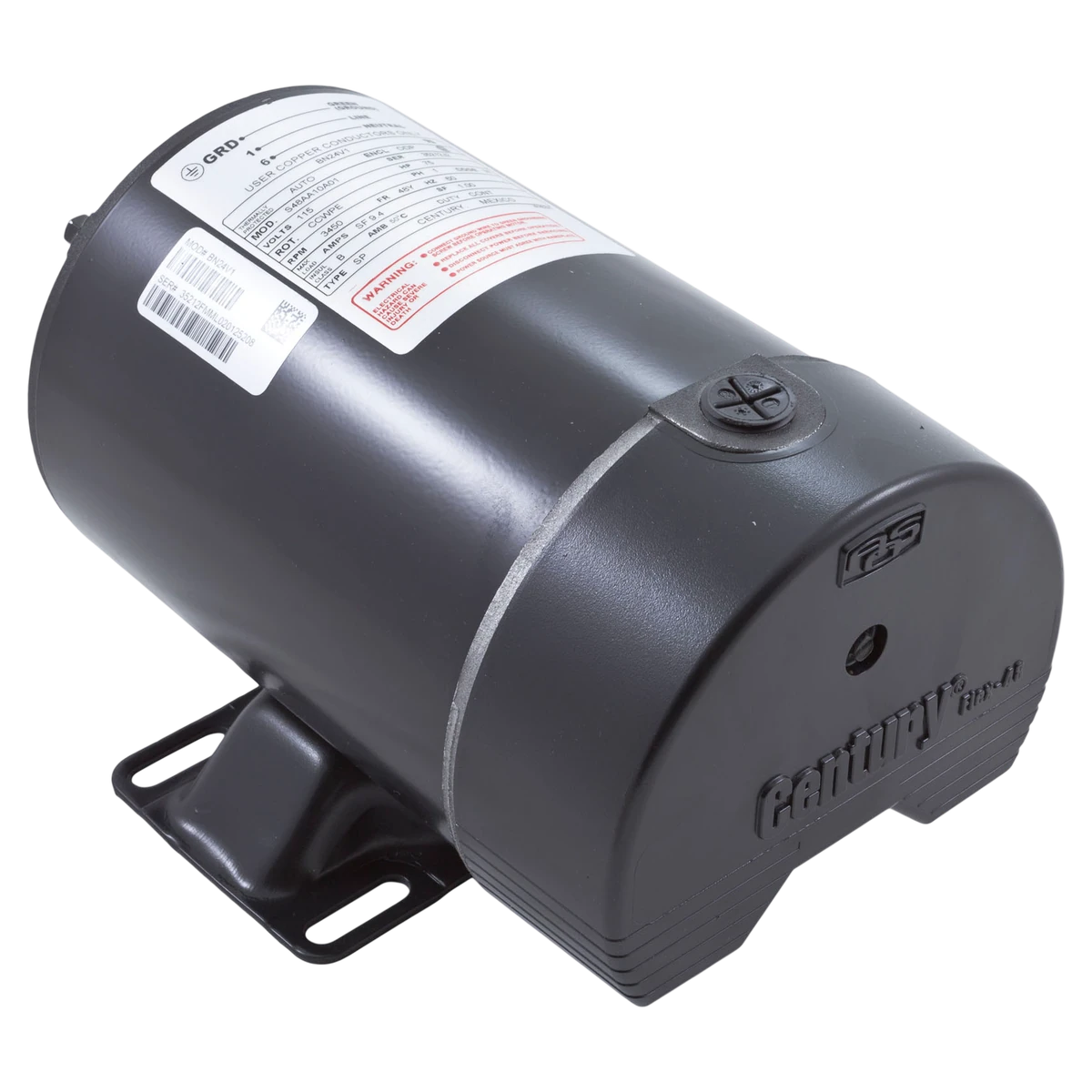

Flex 48 Pump Motor 3/4 HP

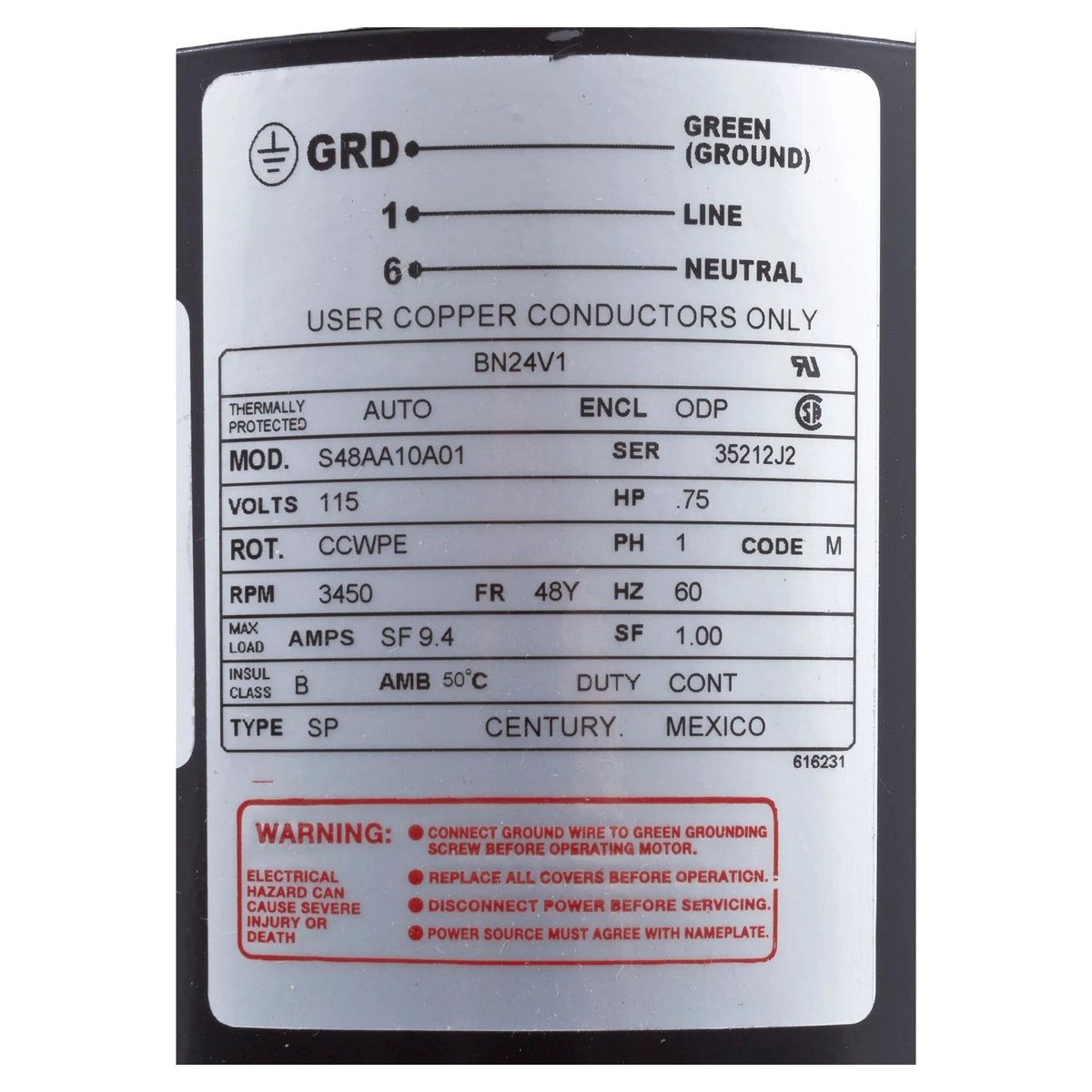

The BN24V1 is a 3/4 HP, 115V single-phase replacement motor built on the Century Flex 48Y frame, used to replace failed motors on many above-ground, in-ground, and spa pumps.

Key Features

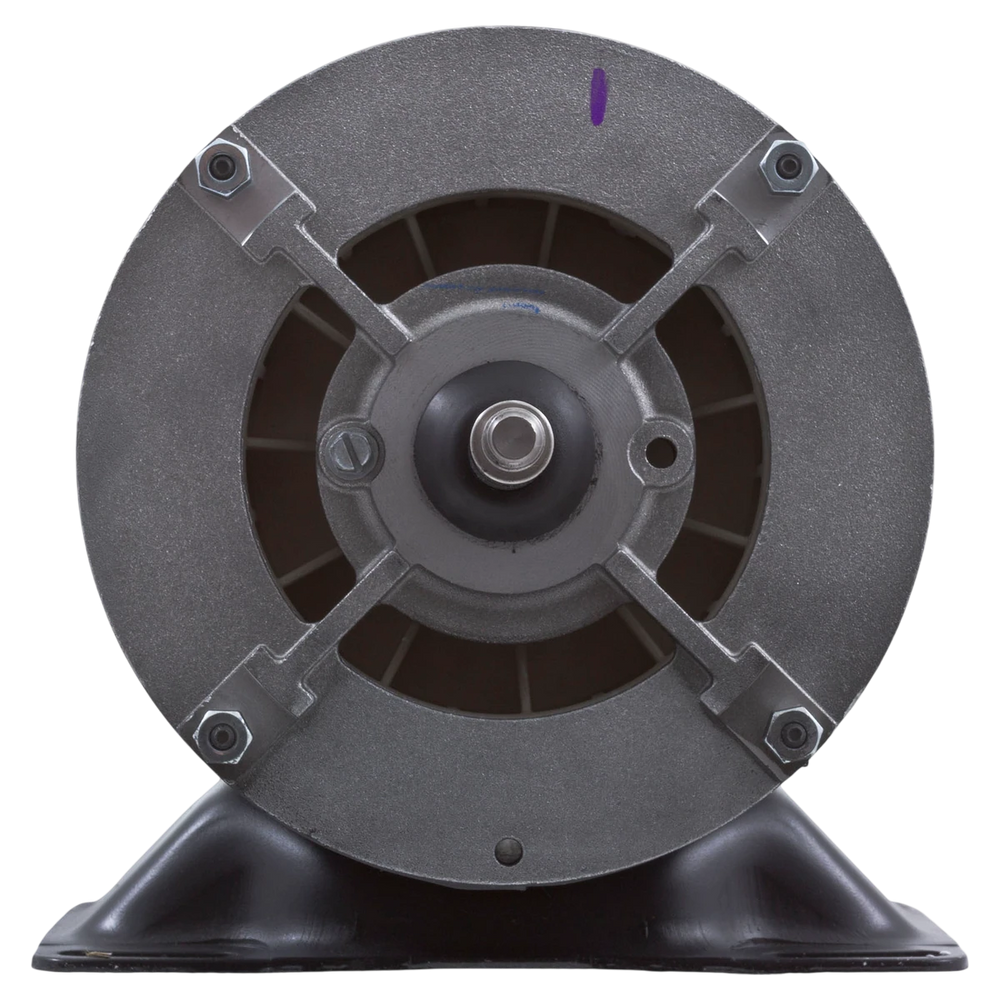

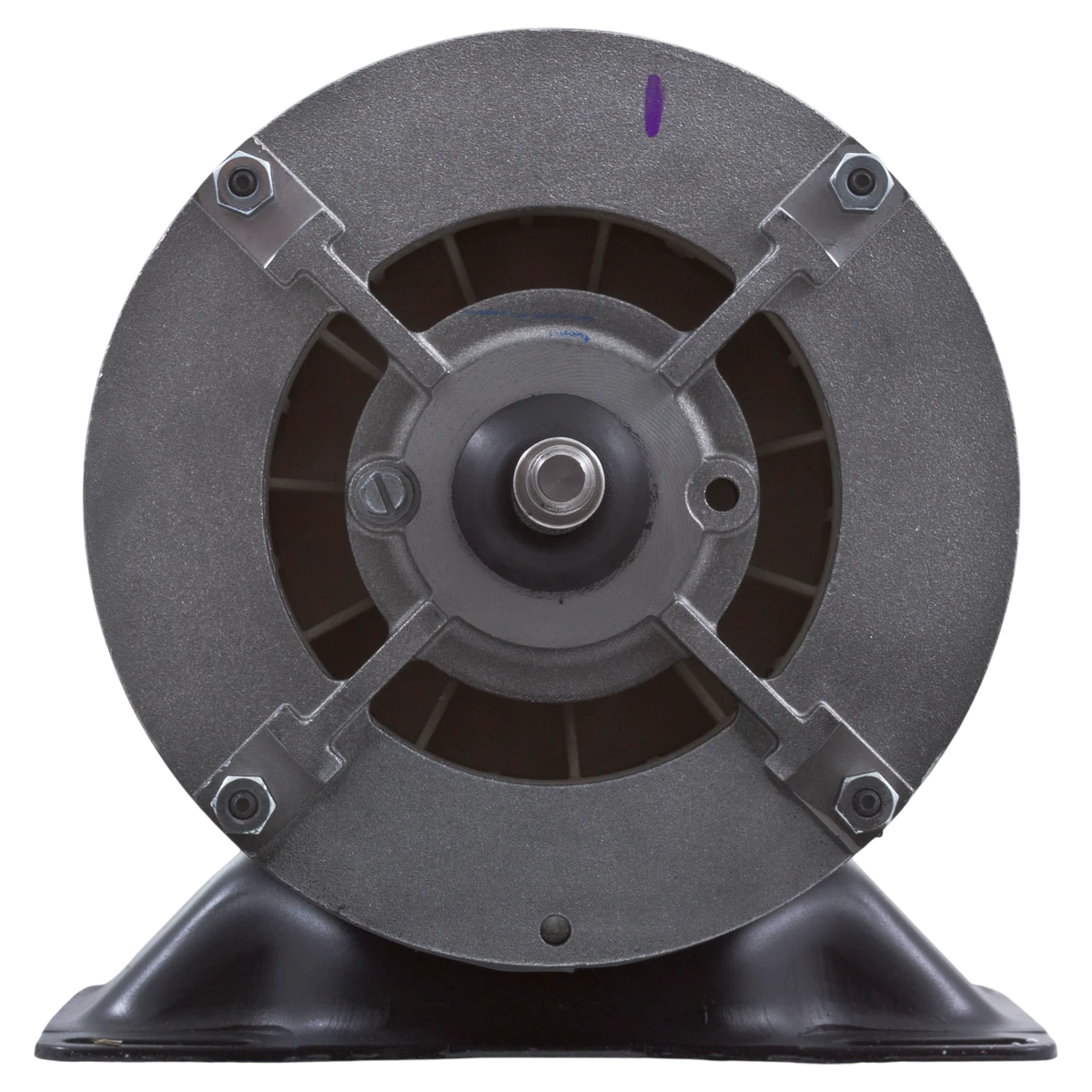

• Threaded stainless steel shaft
• Thru-bolt mounting, 5.146" bolt circle
• Dual conduit entries, 12 and 3 o'clock
• 3450 RPM, ODP enclosure
• 48/56 base mounting compatibility

Compatibility

• Hayward Power-Flo and Power-Flo II pumps
• Jacuzzi J, L, LR, and LH Series pumps
• Sta-Rite JW, LT, and Dura-Jet JT Series pumps
• Pentair American Products Maxim and PacFab Dynamo pumps
• Waterway Center Discharge, Supreme, and Workman 48-frame pumps
• Aqua-Flo Flo-Master and Tub-Master spa pumps

The shaft seal kit is not included and must be matched to the specific pump this motor is installed on.
