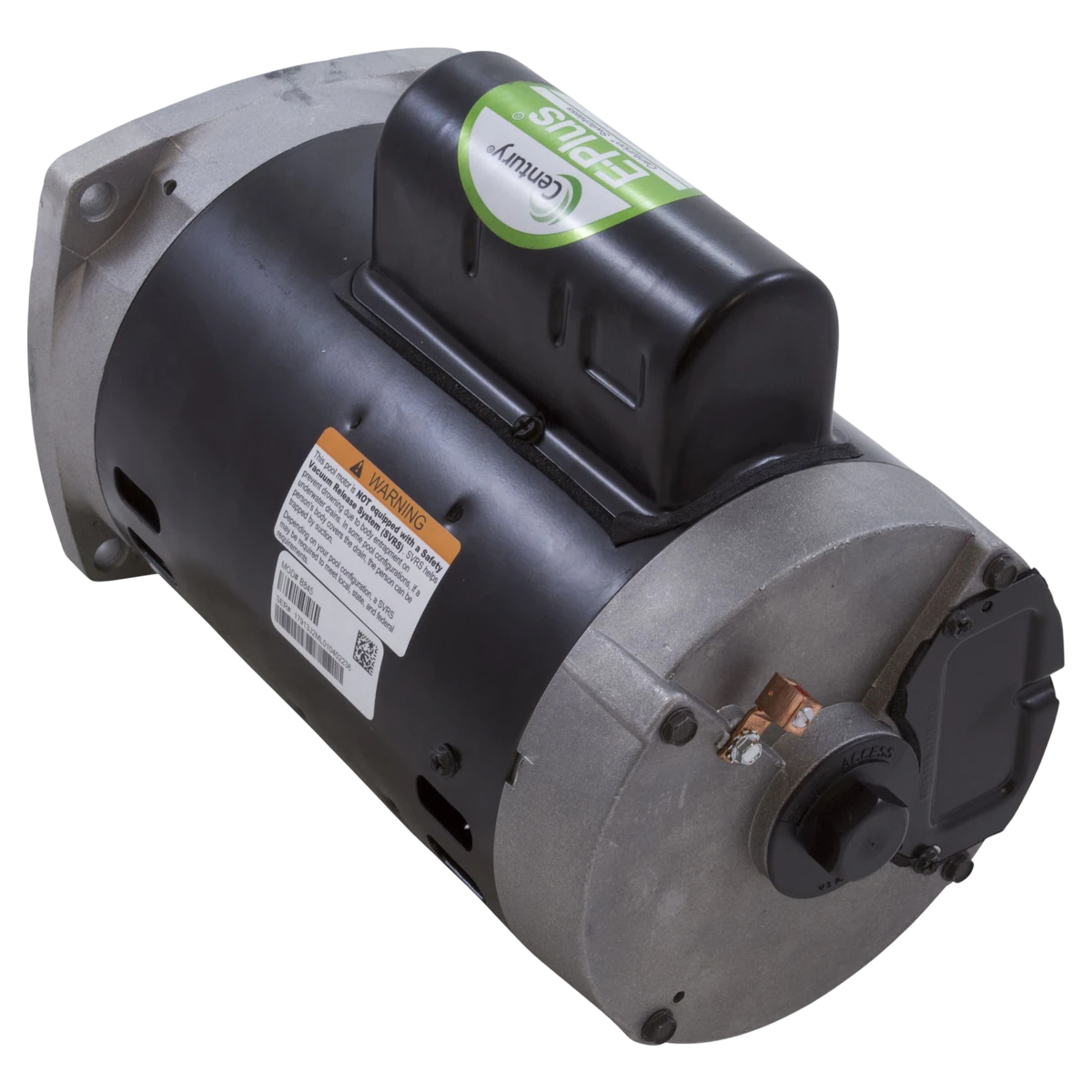

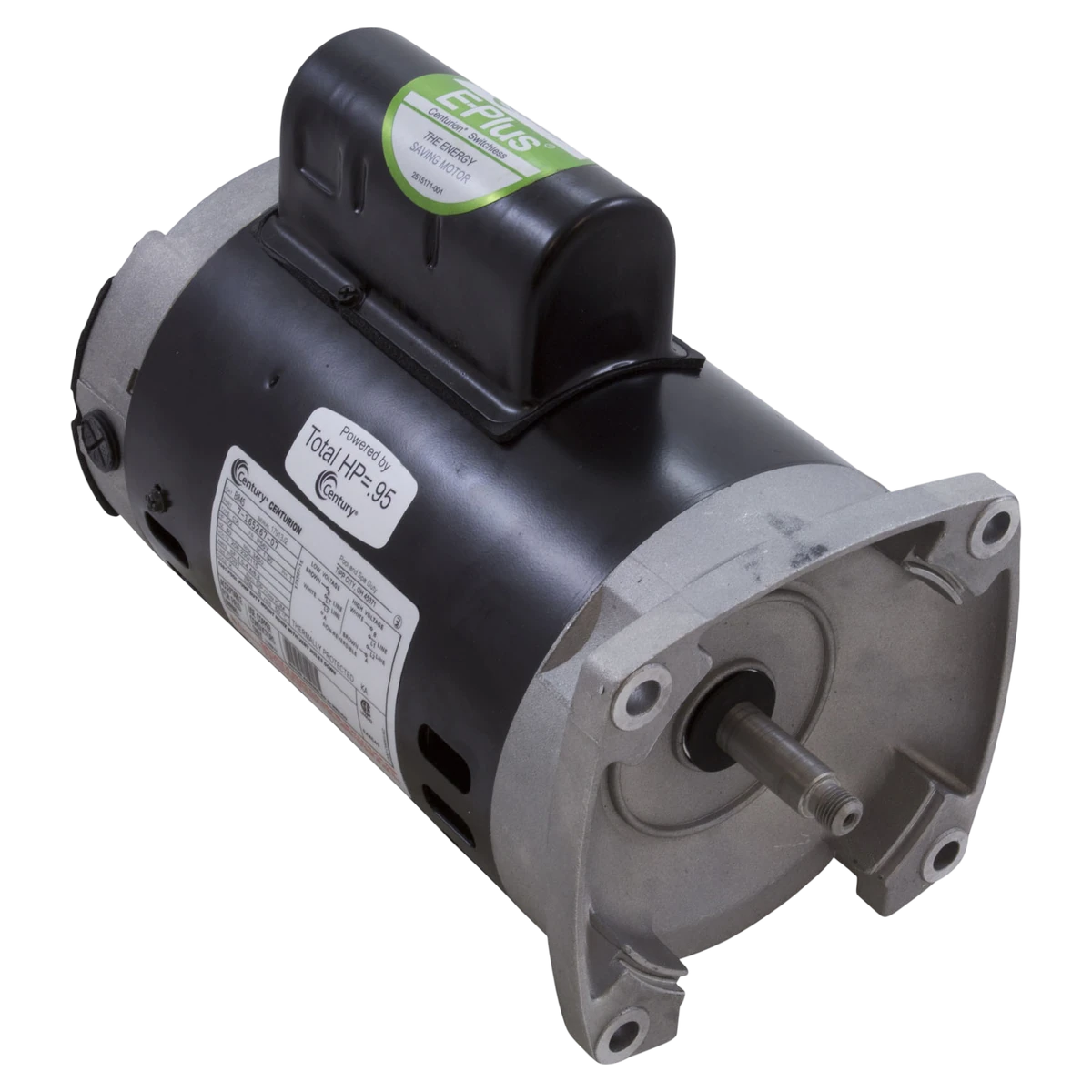

Centurion 1/2 HP Square Flange Motor

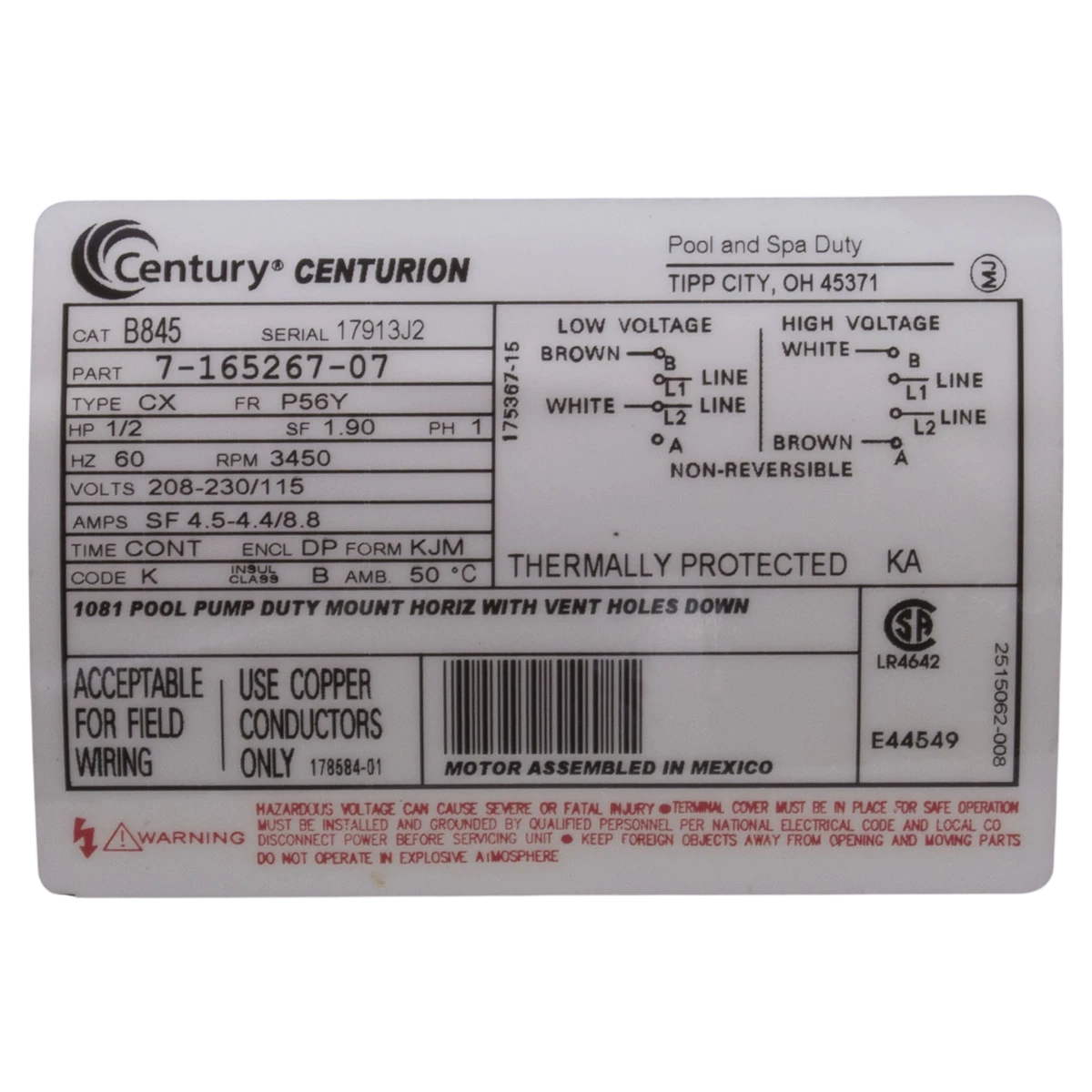

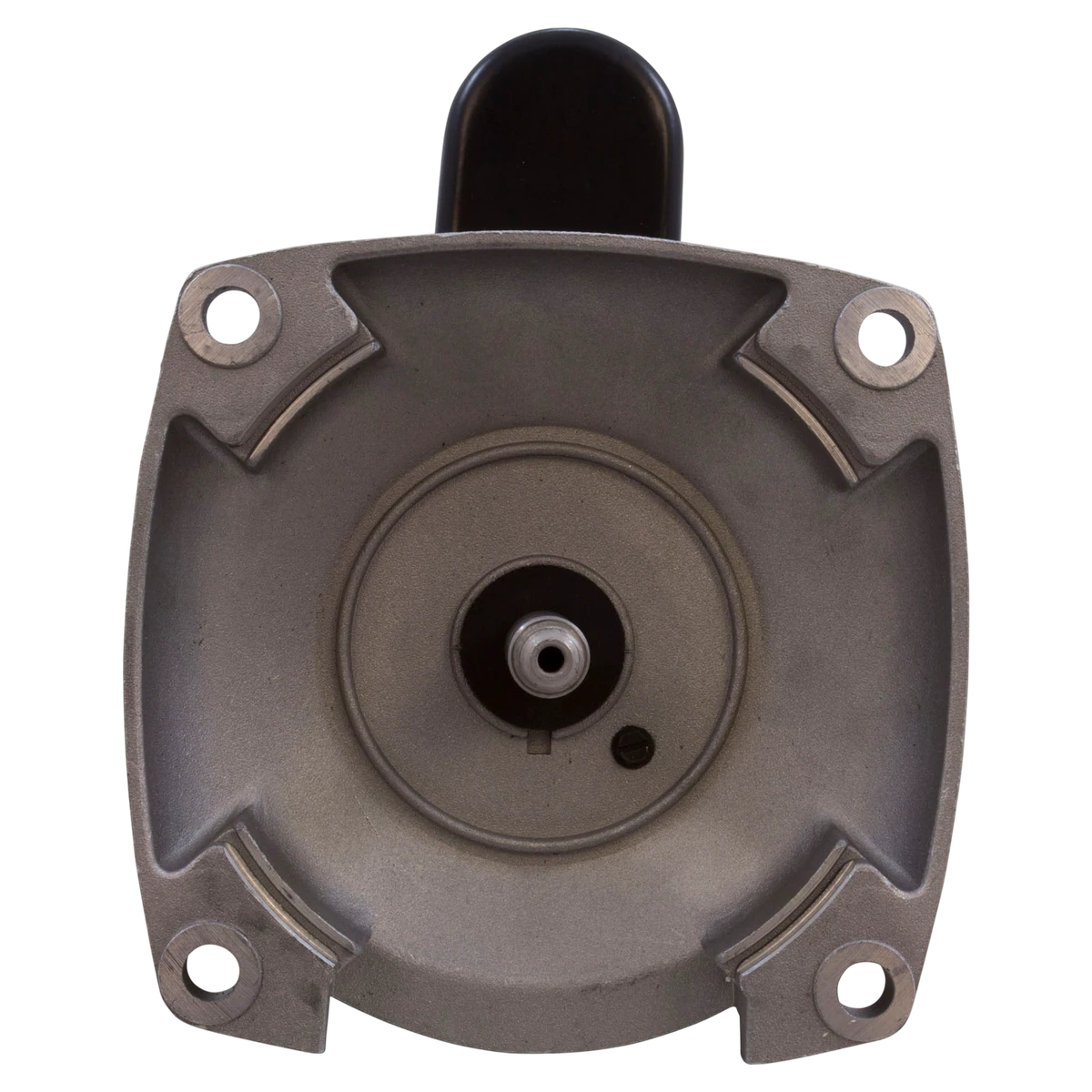

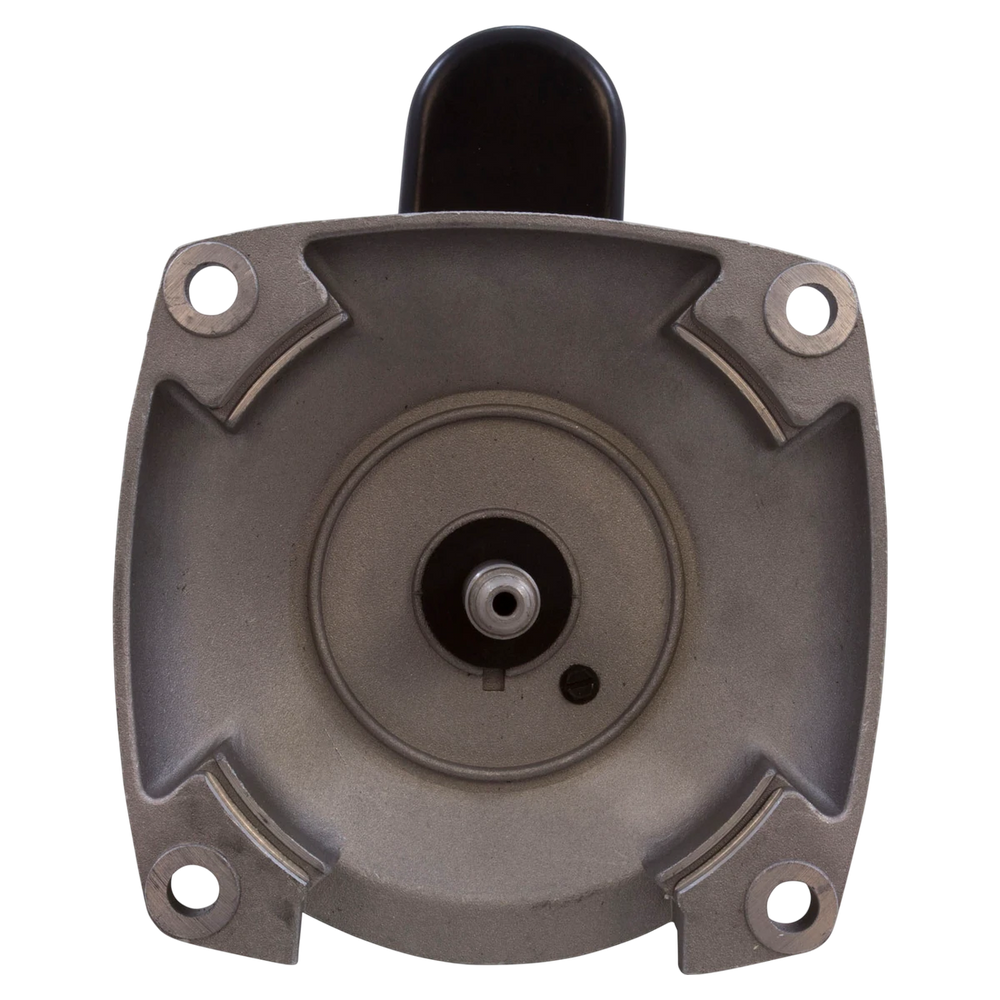

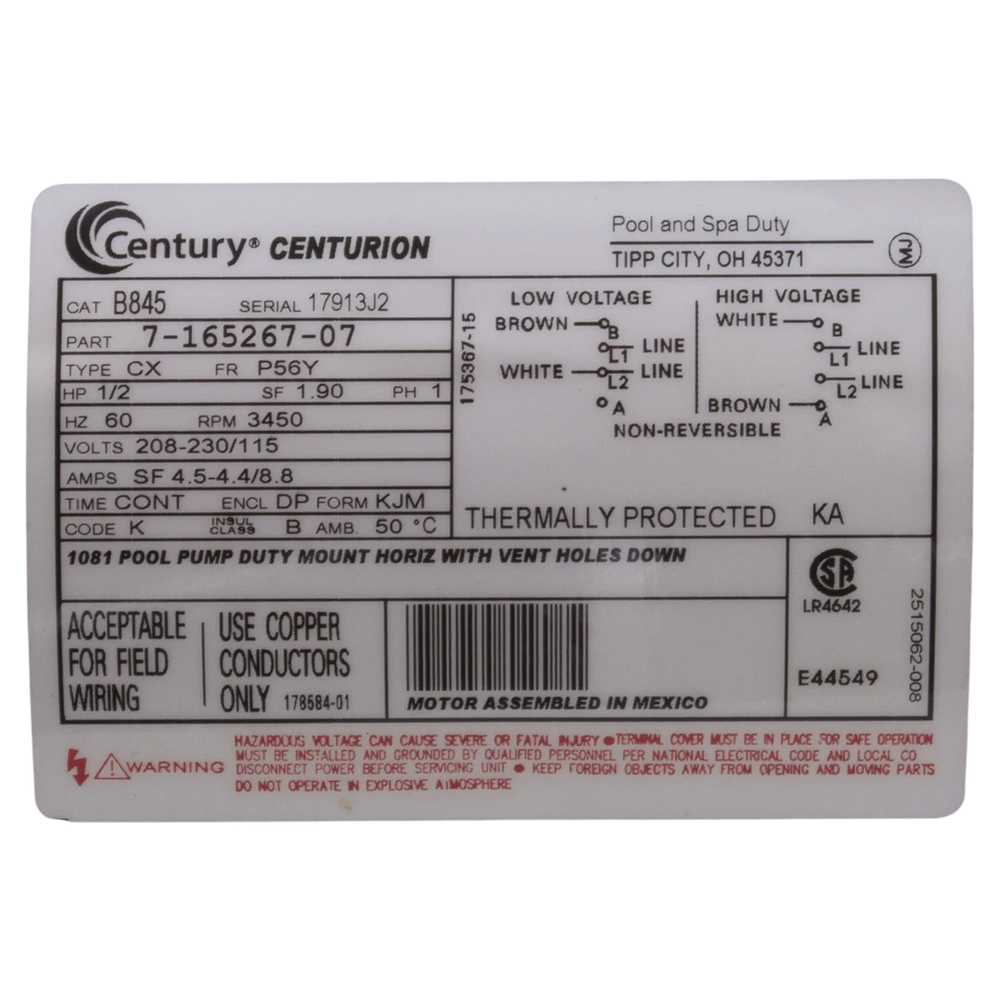

A single-phase, dual-voltage (115/208-230V) 1/2 HP motor with a P56Y square flange and threaded shaft, built to replace failed motors on 56Y-frame pool and spa pumps.

Key Features

• Dual-voltage with built-in voltage change device

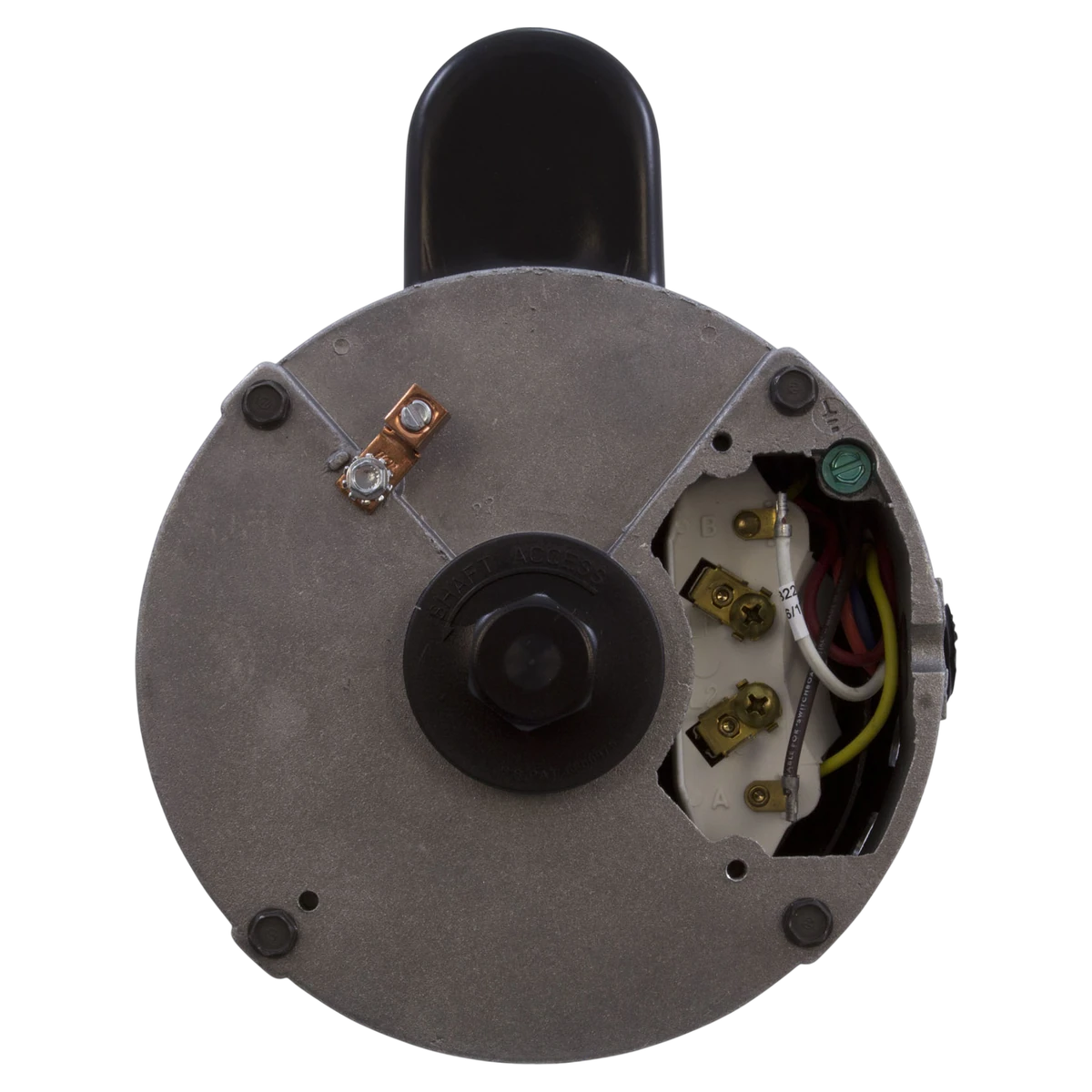

• Open, accessible terminal board
• Sealed ball bearings, both ends
• Automatic thermal overload protection
• Rated to 50°C ambient temperature

Compatibility

• Pentair WhisperFlo, SuperMax and SuperFlo pumps
• Sta-Rite Max-E-Glas and Dura-Glas pumps
• PacFab Challenger and Pinnacle High Flow pumps
• Hayward TriStar SP3200, SP3200EE and SP3600
• Waterway SVL56 and Champion CHAMPE/CHAMPS pumps
• Jandy Stealth SHPF/SHPM and PlusHP PHPF/PHPM pumps

Replace the pump's shaft seal whenever this motor is installed; water migrating down the shaft into the motor will damage the bearings and can void the motor warranty.

This motor does not meet California Title 20 or New York NYSERDA pump-motor efficiency regulations and cannot be sold or installed in those states.
