1.5 HP 56J Pool Pump Motor

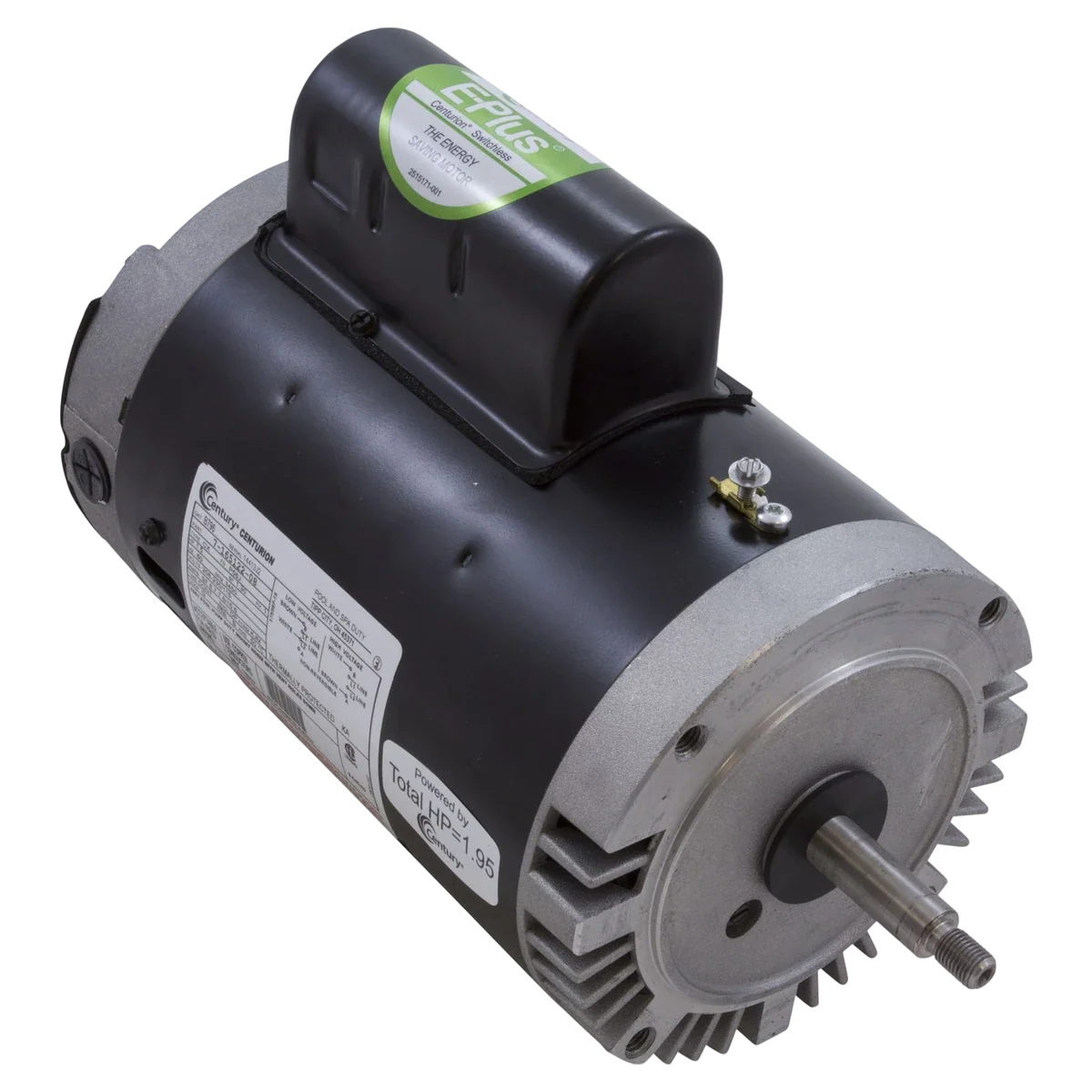

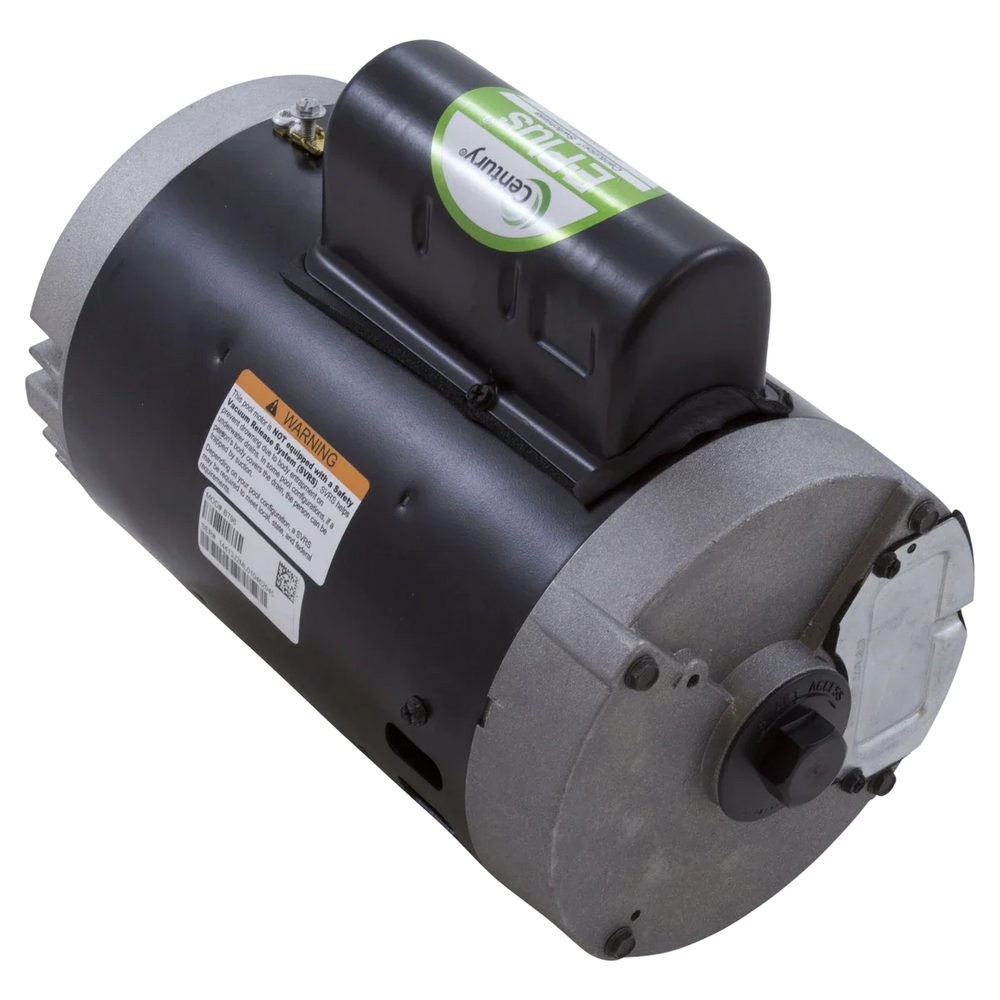

The B796 is a 1.5 HP, single-phase permanent split capacitor motor on a 56J C-face frame, built to replace the motor on an existing inground pool pump rather than the whole pump.

Key Features

• PSC design, 1.3 service factor
• Switchless design, no internal start/run switch

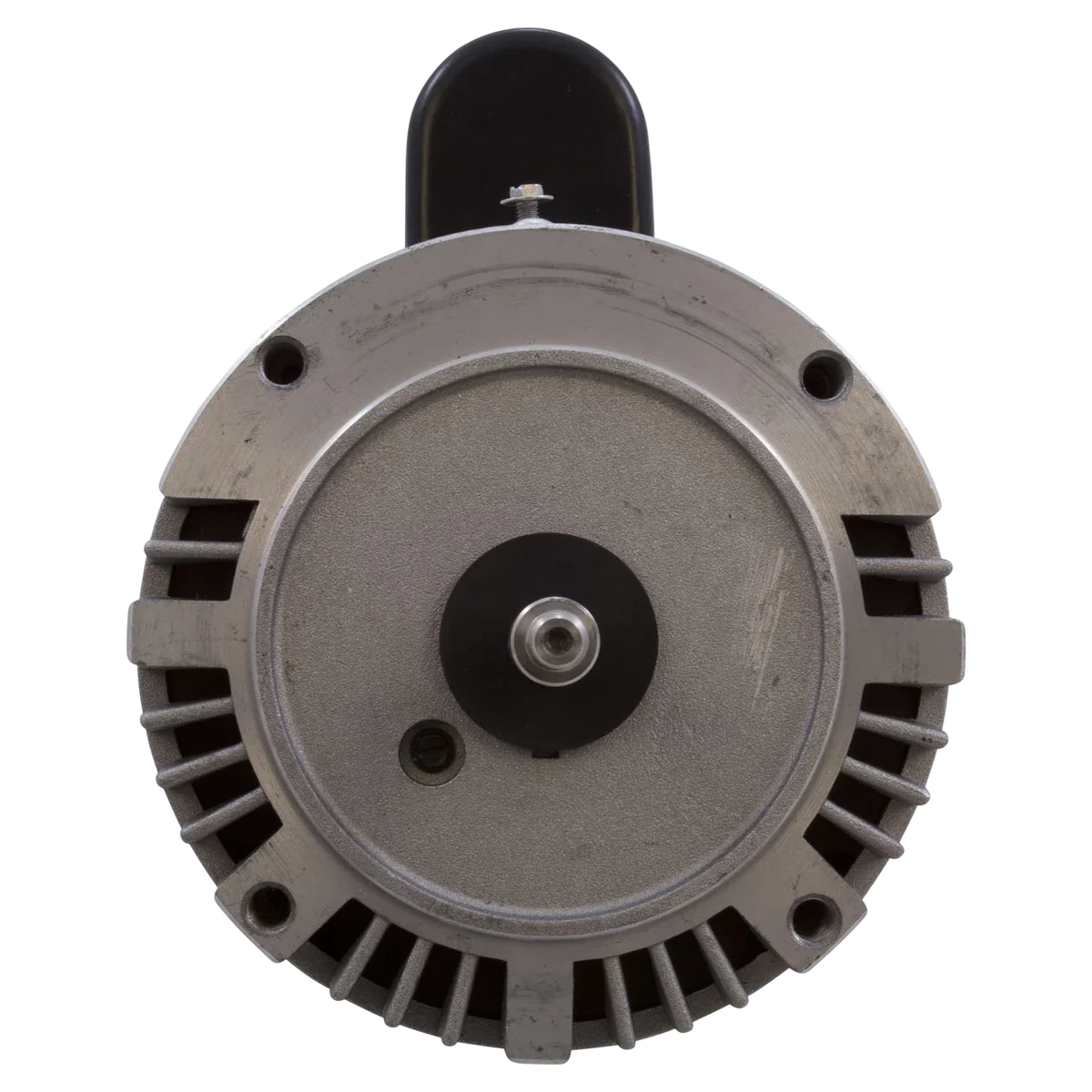

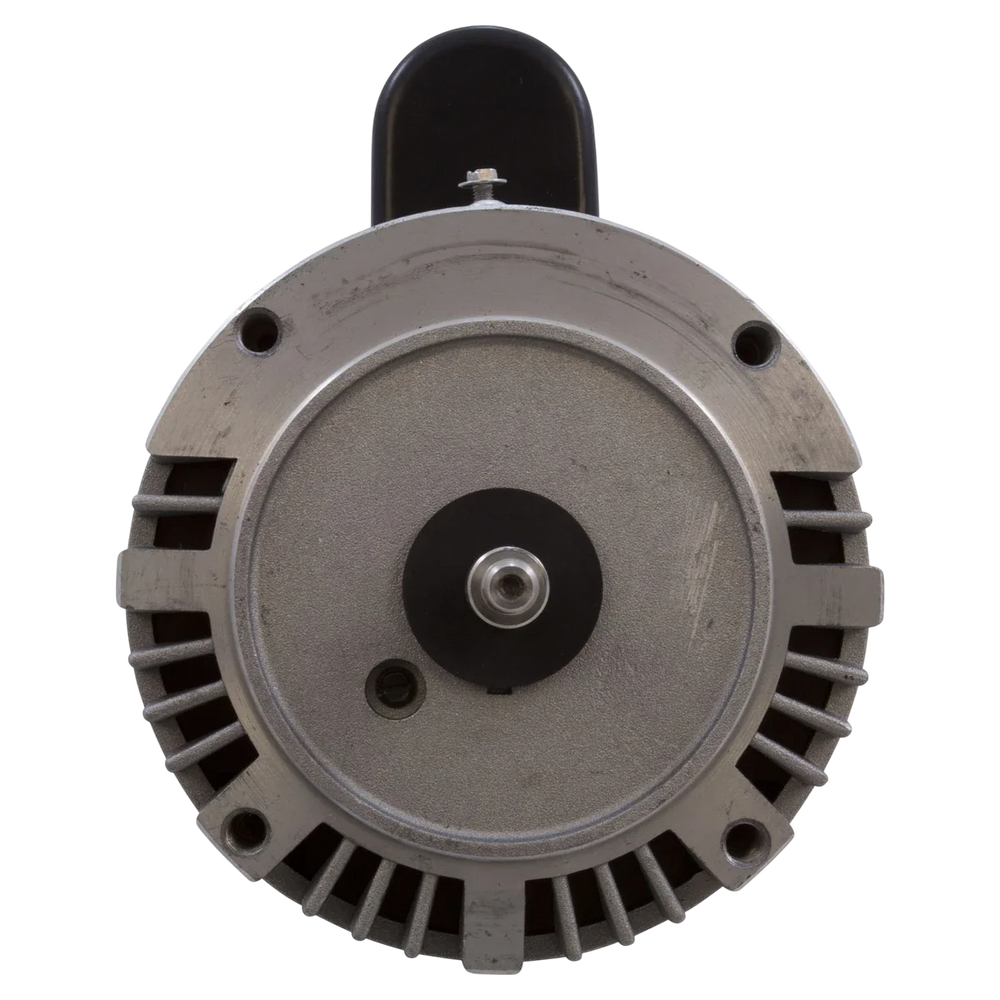

• 303 stainless steel threaded shaft
• Sealed ball bearings

Compatibility

• Hayward Super Pump (SP1600X/SP2600/SP2600X)
• Hayward Max-Flo (SP1800X/SP2800X)
• Hayward Super II (SP3000/SP3000X)
• Hayward Northstar SP4000/SP4000X
• Jacuzzi Cygnet, Magnum/Magnum Plus/Magnum Force, P/PC/EP, PH/UPH, Ring-Lok and RC series pumps
• Pentair Purex Quietflo/Aquatron pumps
• Waterco HydroStorm/HydroStorm Plus/HydroStar pumps
• Jandy JHP/JHPU and HHP/HHPU pumps
• Val-Pak/AquaFlo Dominator Medium and High Head pump

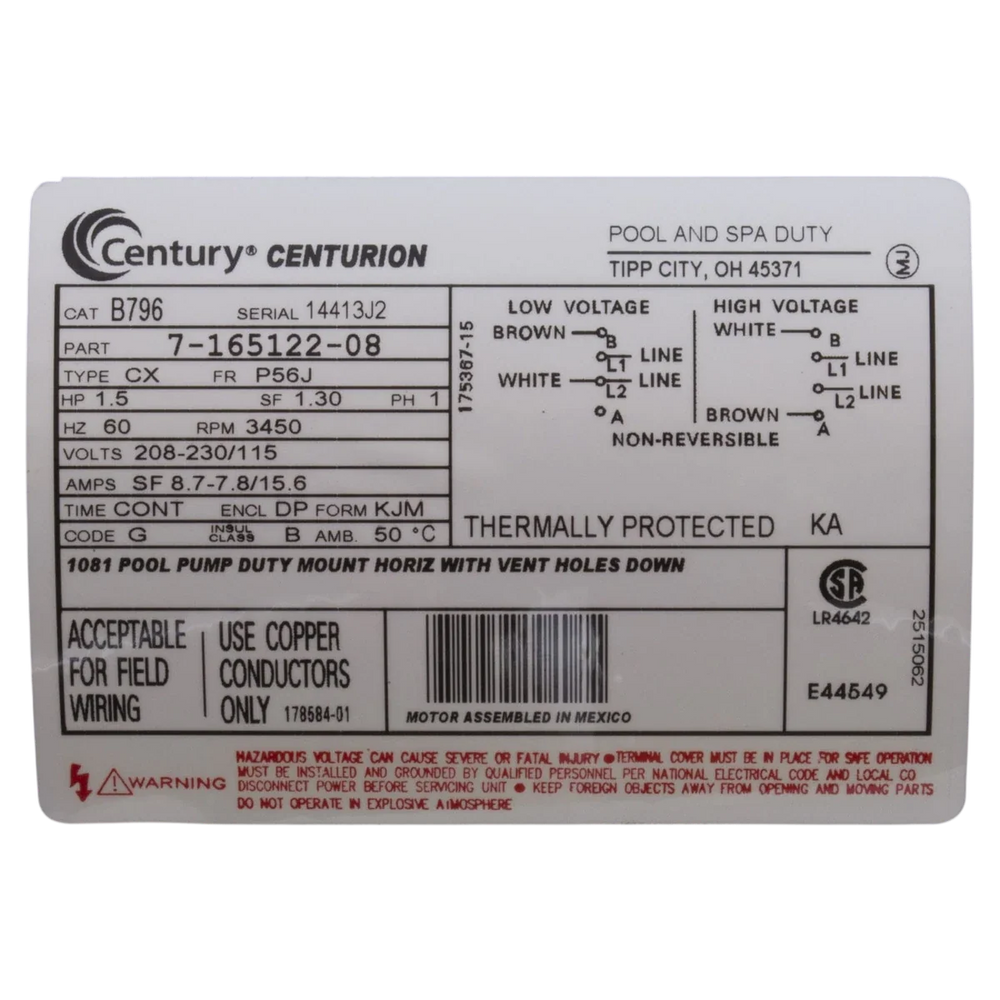

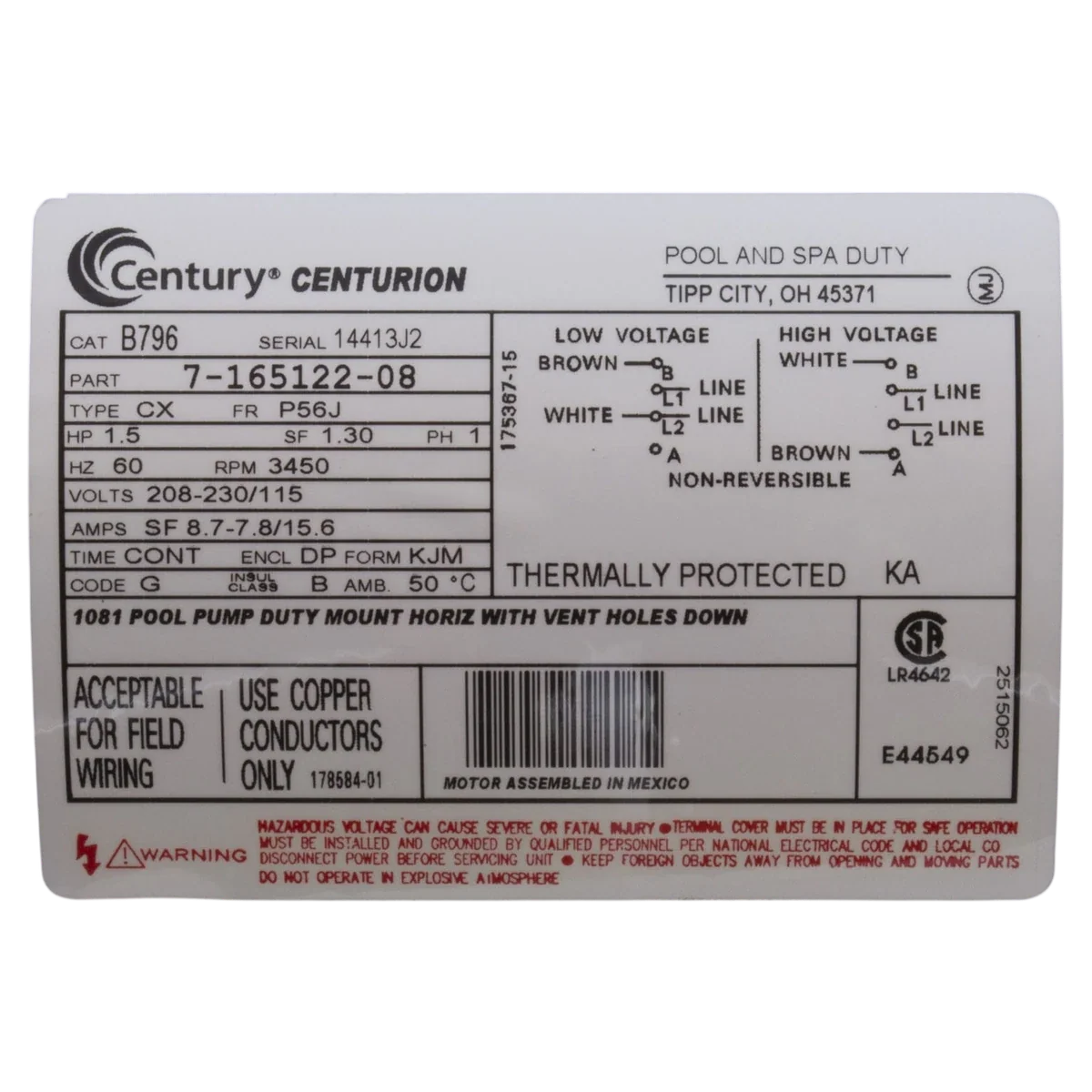

The nameplate shows the wiring diagram for selecting 115V or 208-230V operation.

This single-speed motor does not meet California Title 20 or New York NYSERDA Section 509.23 pool pump motor efficiency rules, which require a variable-speed motor for replacements in those states.
