1.5 HP 2-Speed 56Y Pump Motor

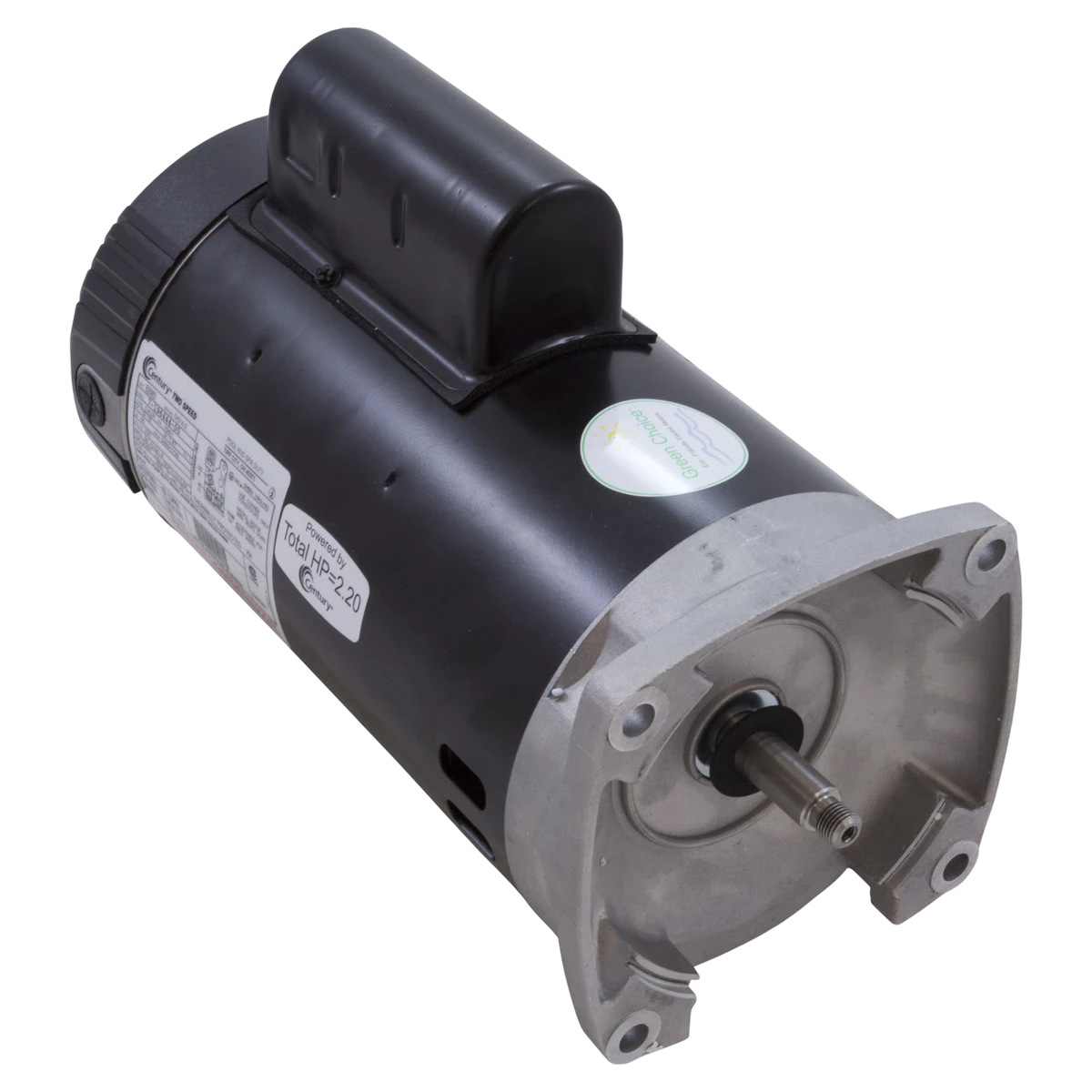

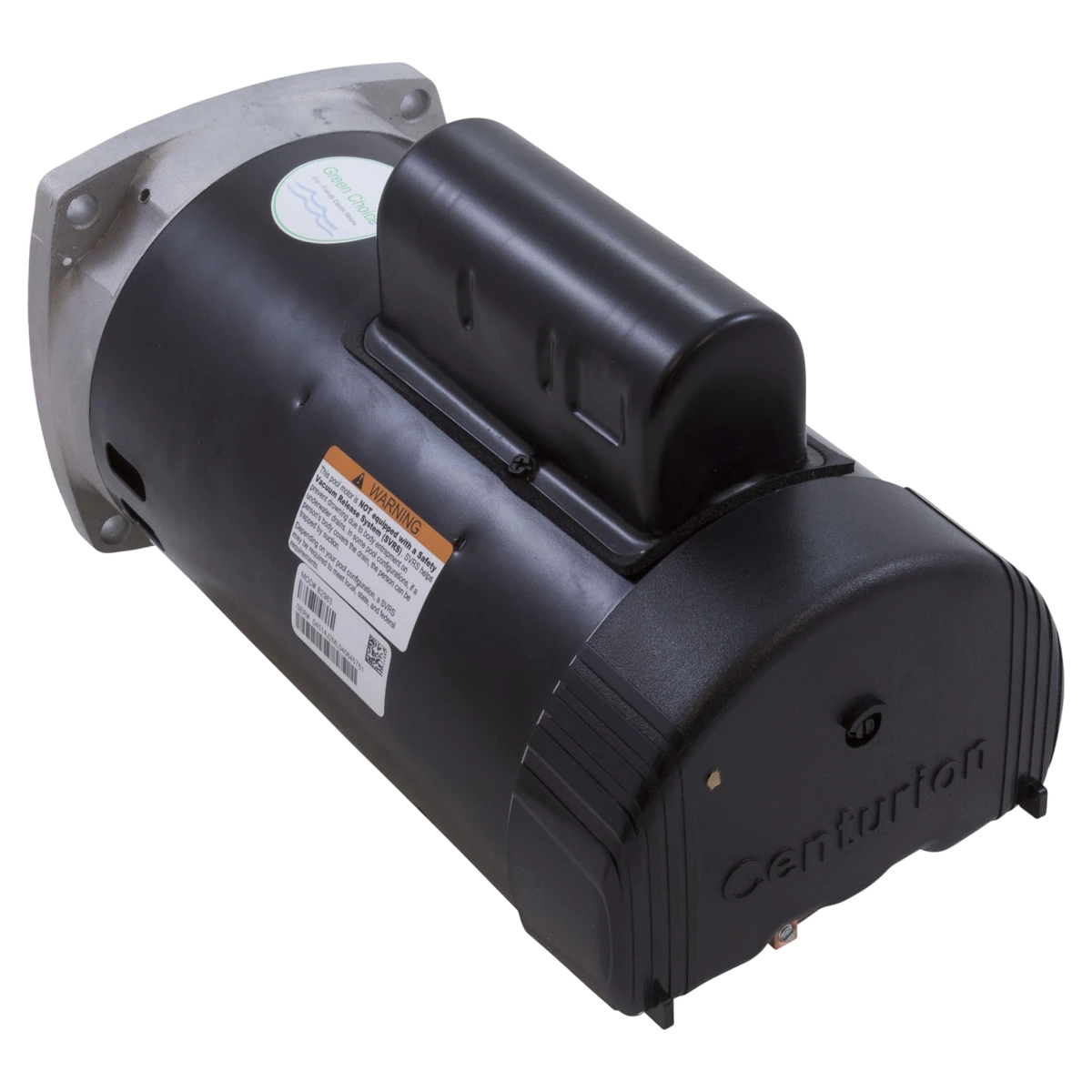

The B2983 is a 1.5 HP two-speed, 230V single-phase 56Y square flange motor with a threaded shaft, built to power in-ground pool and spa pump impellers on pumps using this frame and mount style.

Key Features

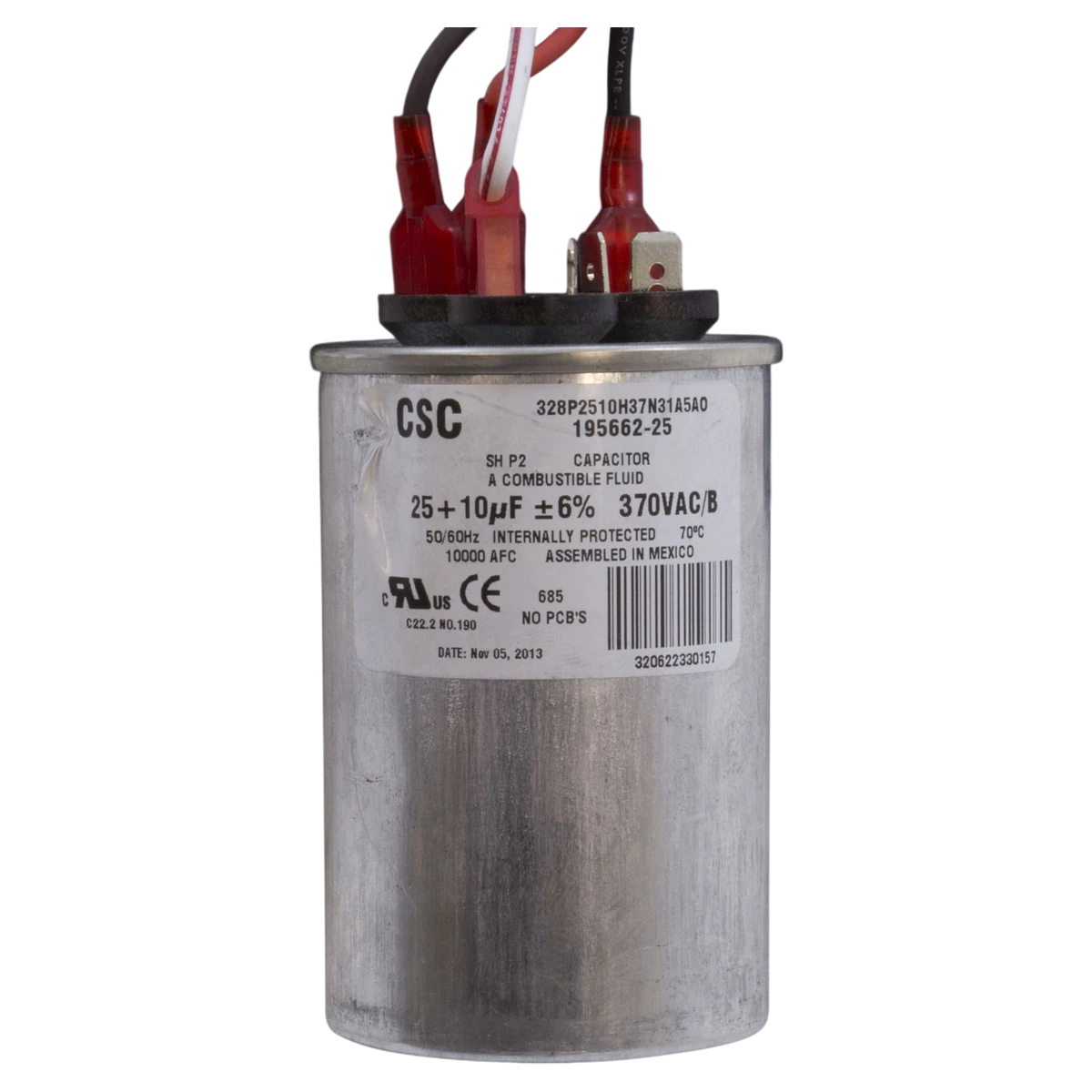

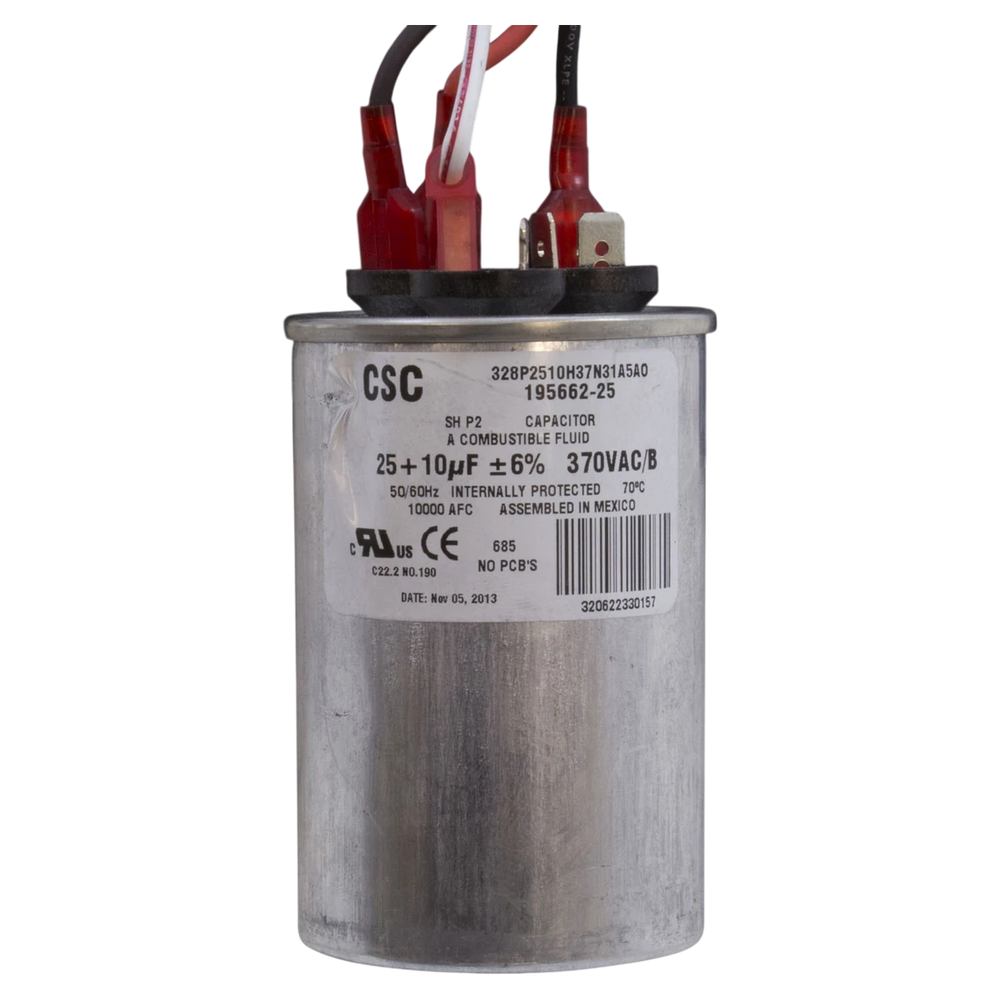

• Two-speed via permanent split capacitor

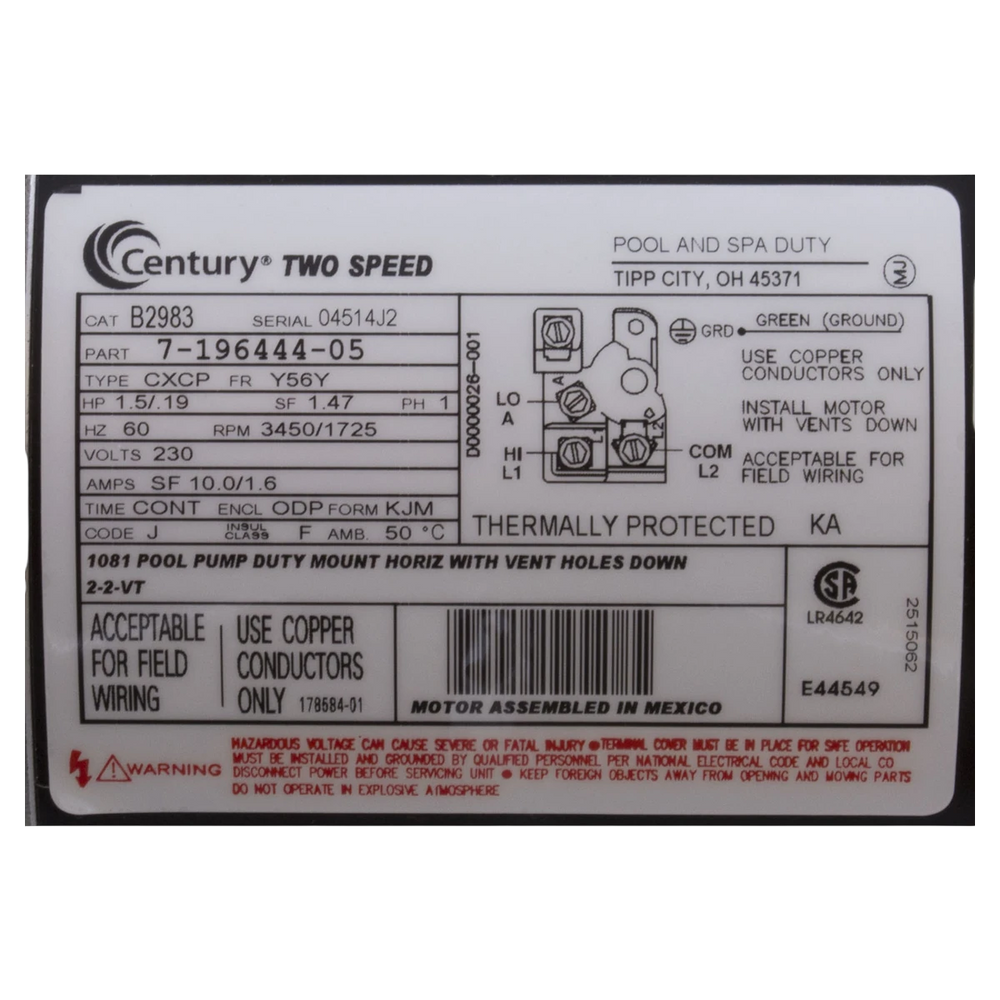

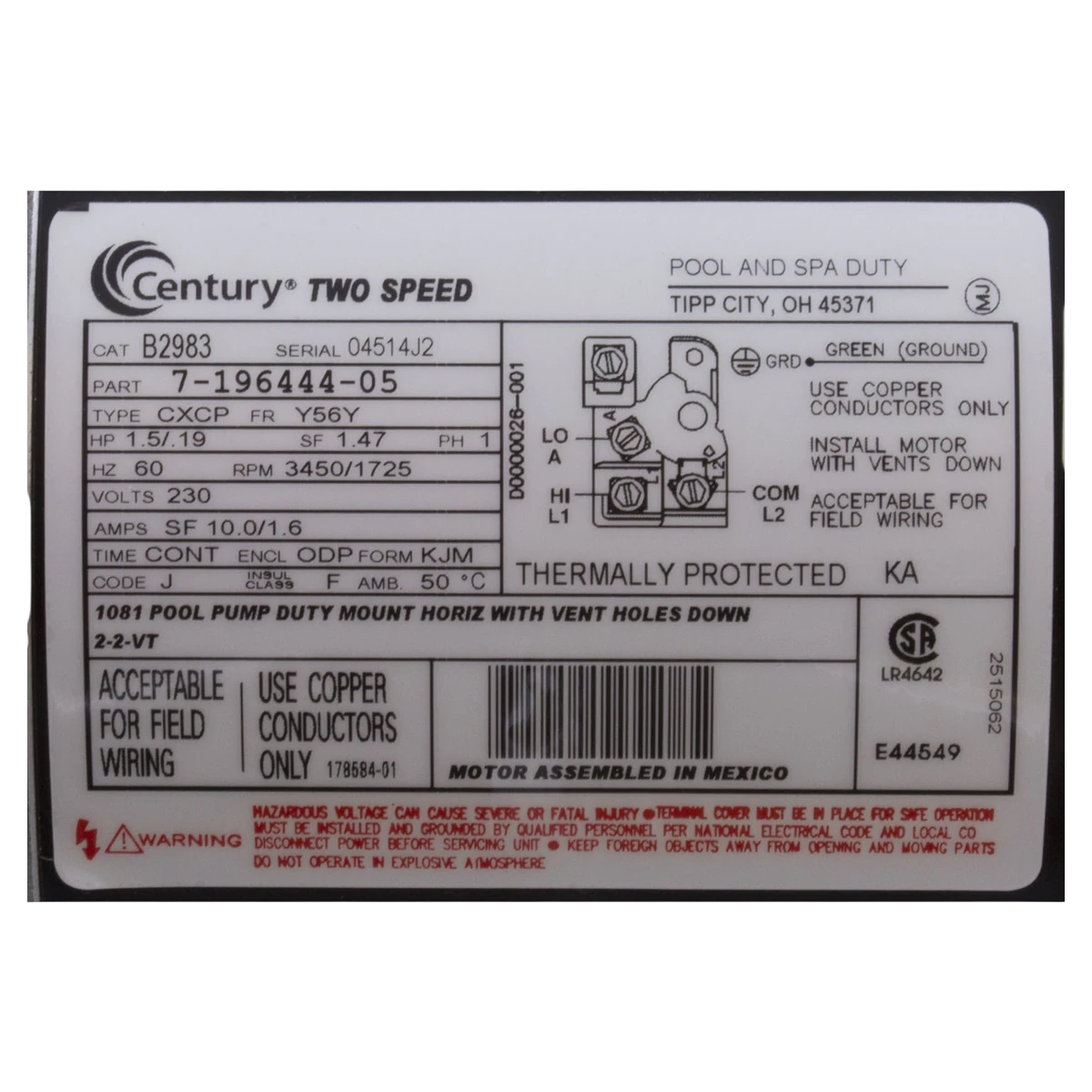

• 1.47 service factor, auto-reset overload protector
• Sealed ball bearings, 303 stainless shaft

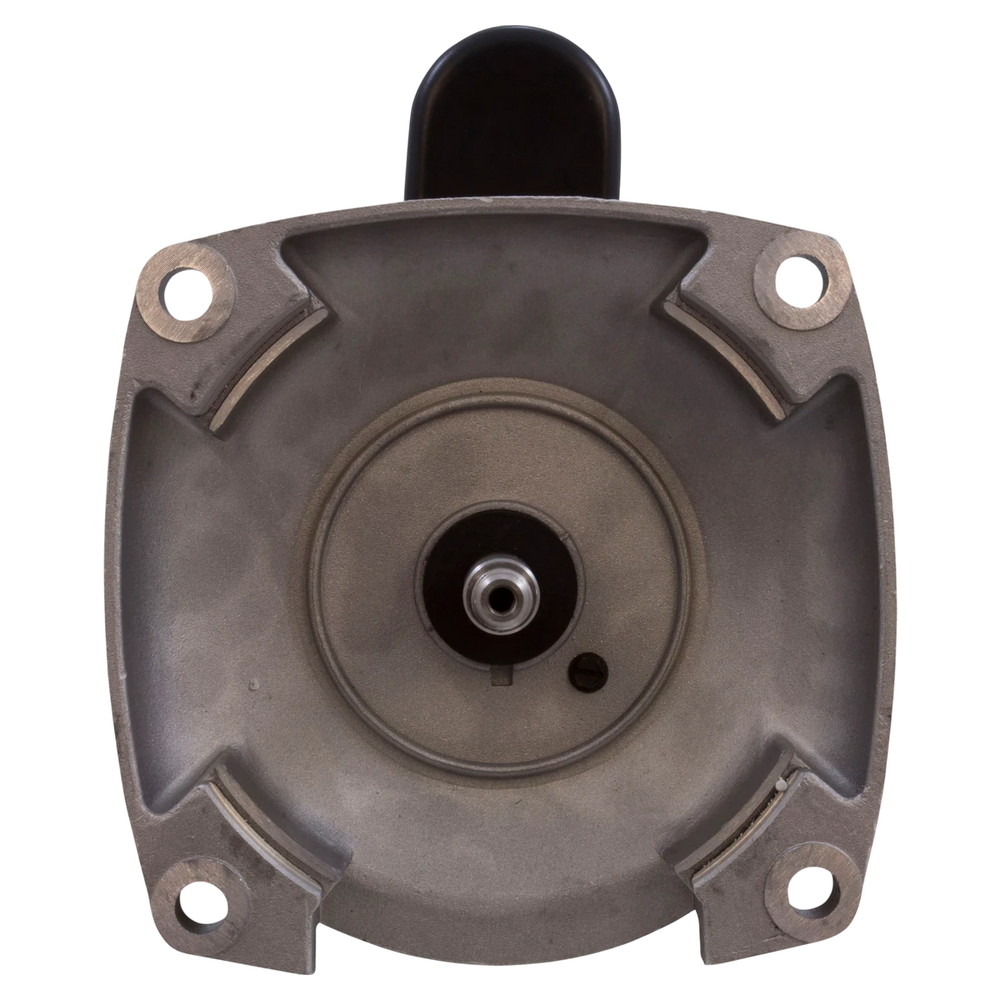

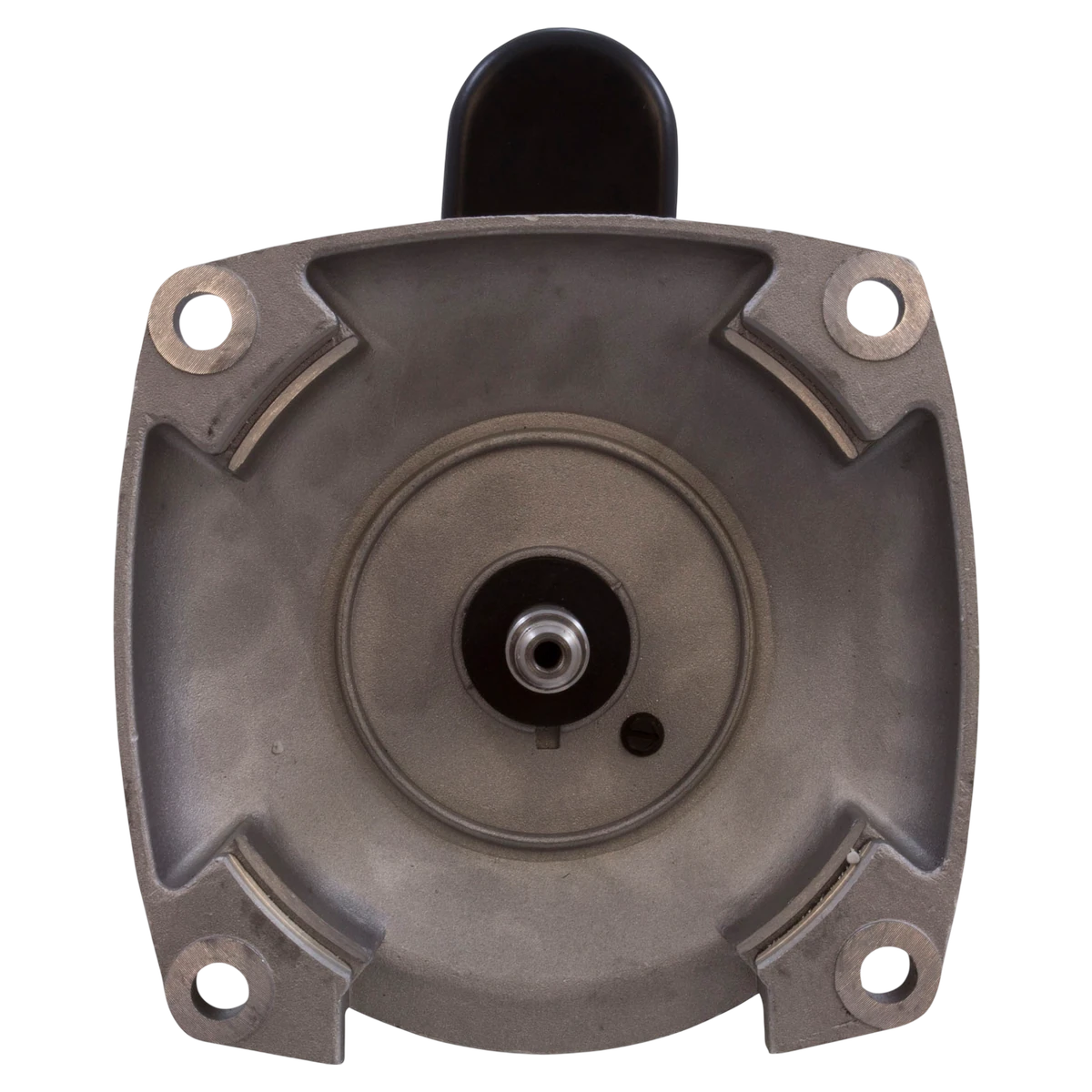

• 56Y square flange, threaded mount

Compatibility

• PacFab Challenger High Flow and High Pressure pumps
• Pentair WhisperFlo, Sta-Rite Dyna-Glas/Dyna-Max, Max-E-Glas/Dura-Glas, Max-E-Pro, SuperMax/SuperFlo
• Hayward TriStar SP3200/SP3600 and Super Pump/Super II
• Waterway SVL56 and Champion 56-frame pumps
• Jandy MHP, FloPro, Stealth, and PlusHP series pumps
• Jacuzzi Magnum pumps
• Does not fit Century B2980 (3/4 HP), B2842 (single-speed), or 48Y-frame motors like SQS1152R/SQS1202R

Replace worn bearings or the shaft coupling at the same time as the motor swap to protect the new motor from premature wear.
