Centurion 3/4 HP 2-Speed Pump Motor

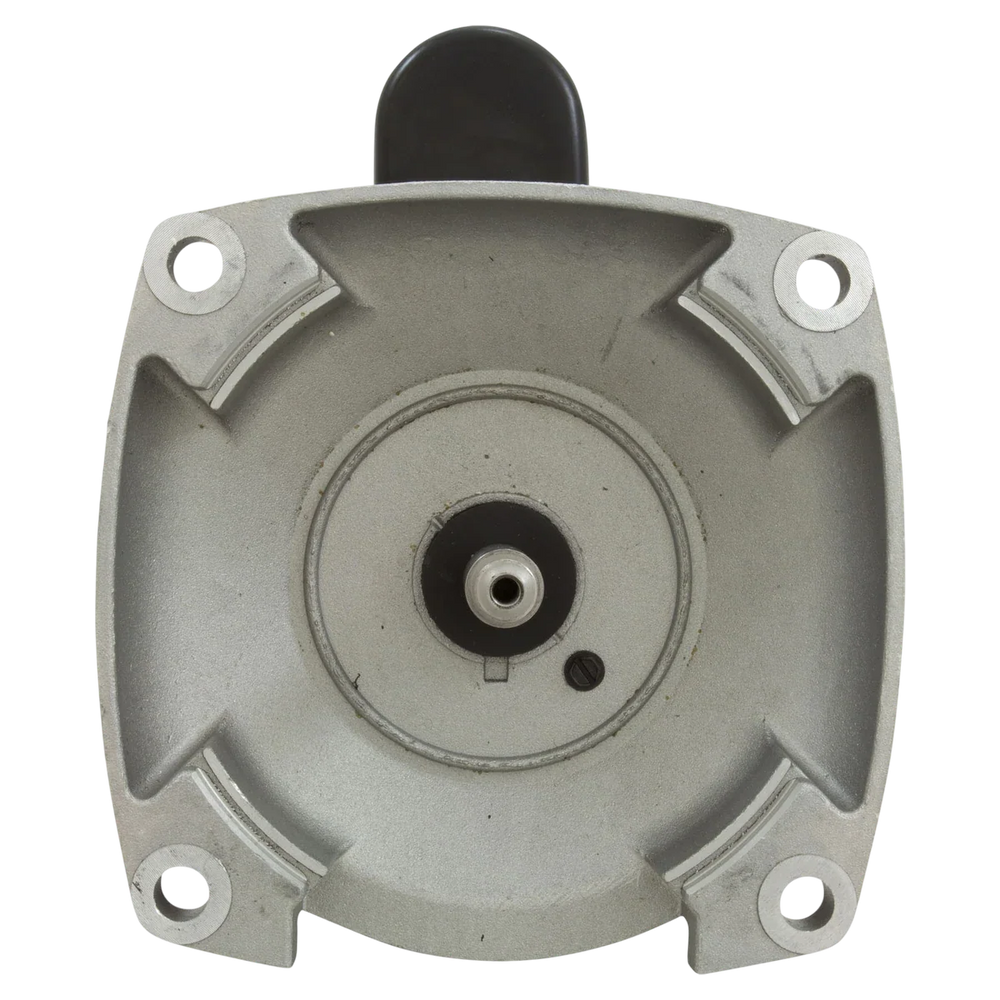

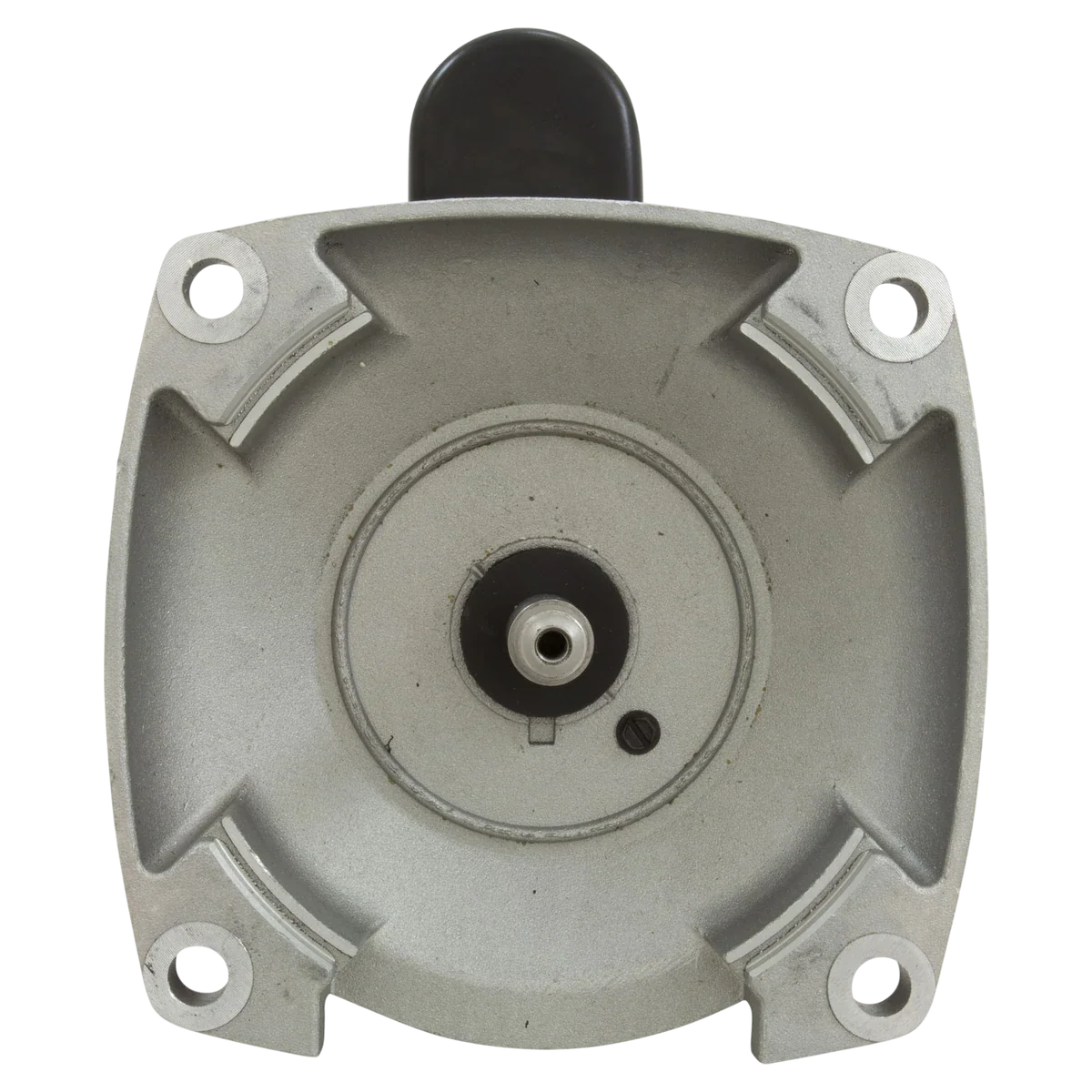

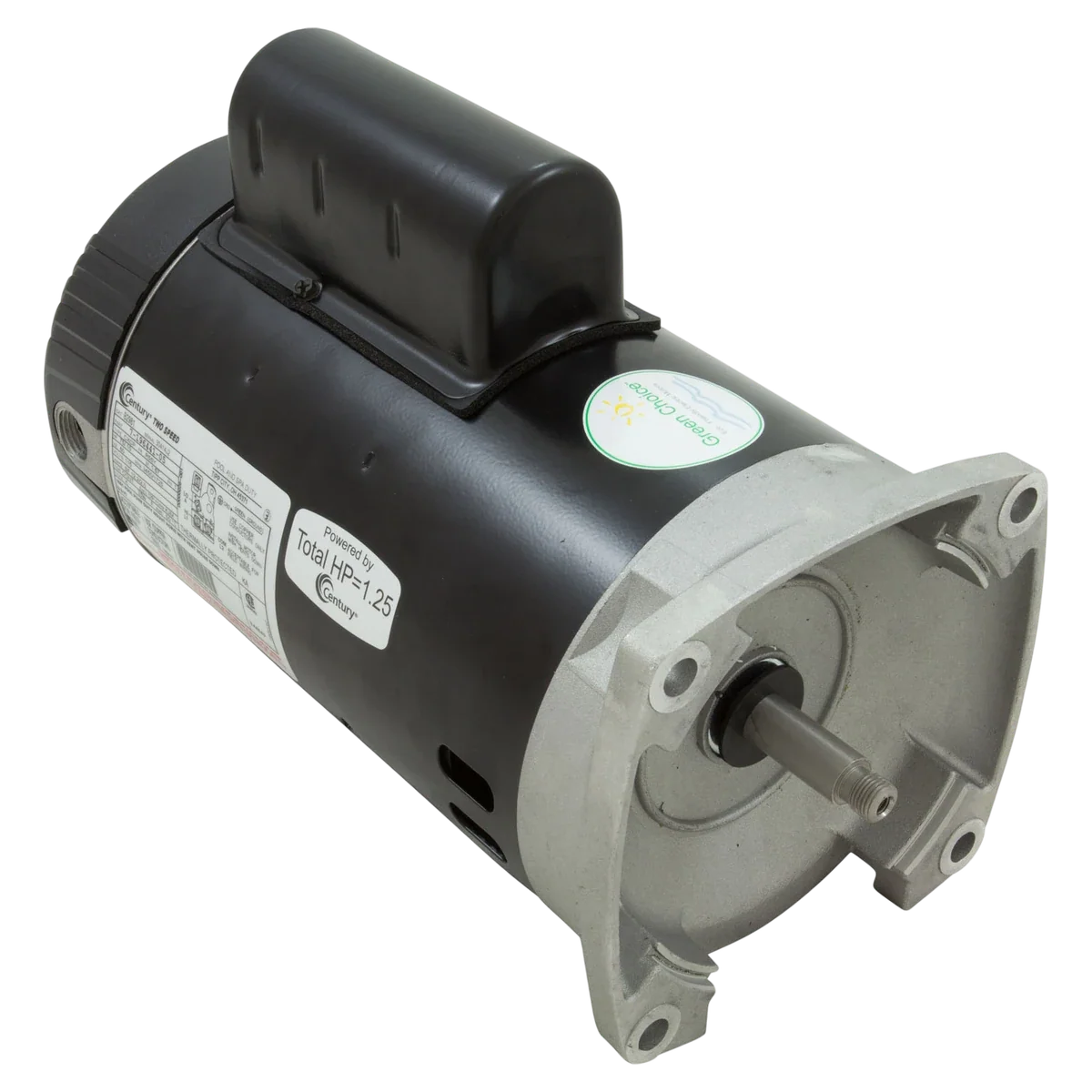

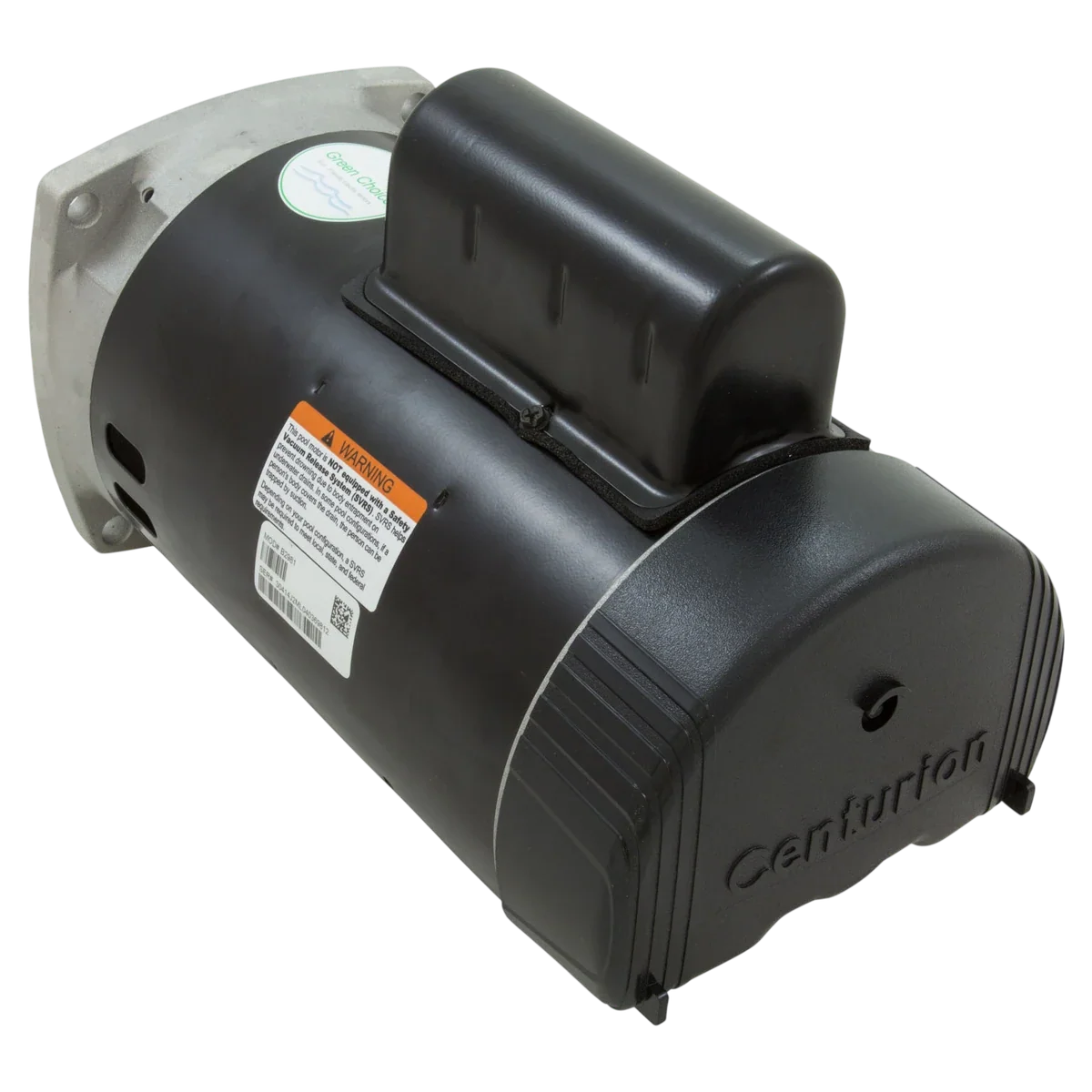

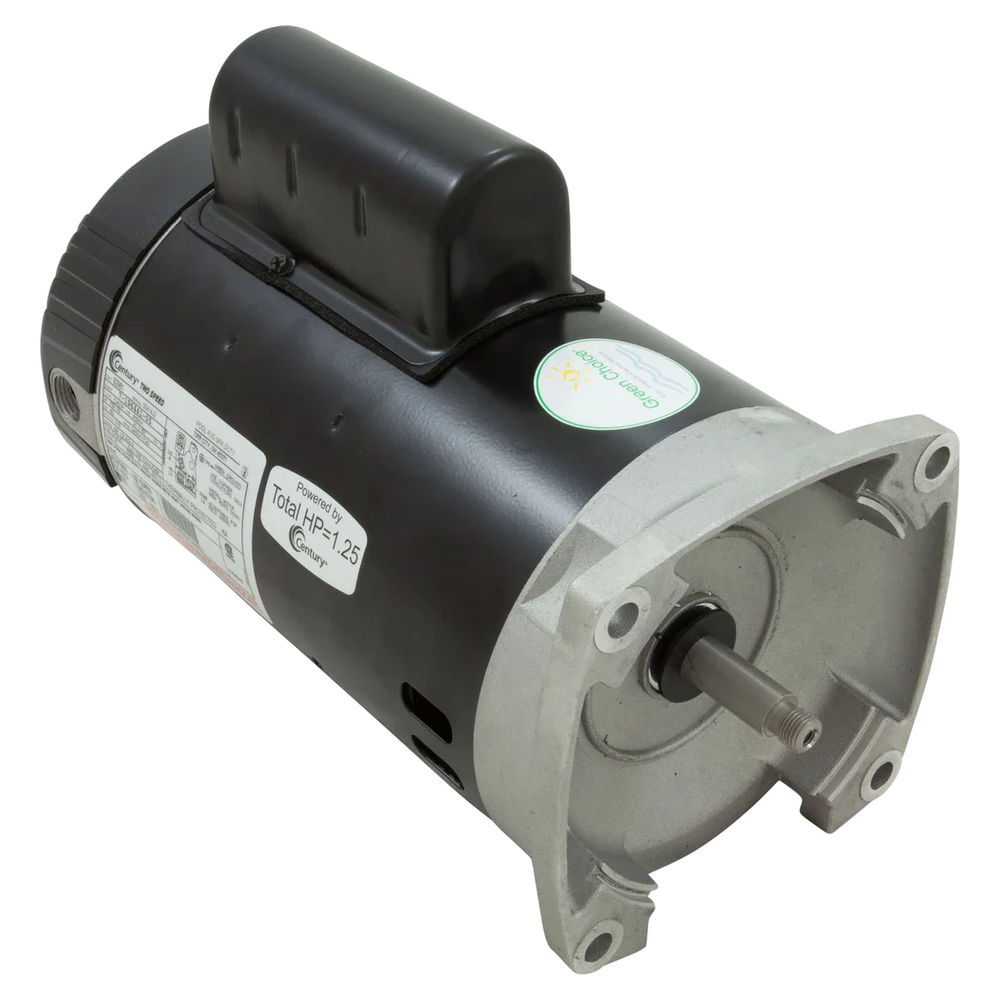

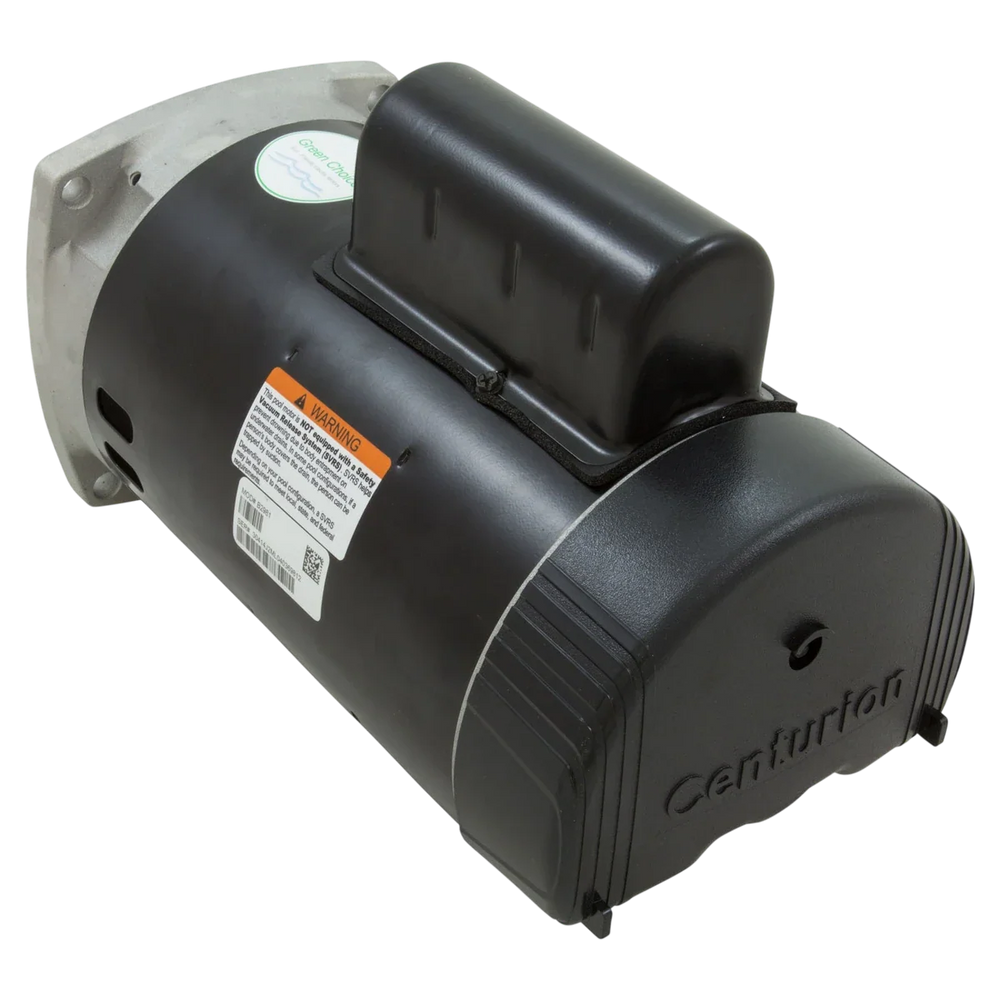

The Century Centurion B2981 is a 3/4 HP, two-speed, 115V single-phase motor on a 56Y square flange frame, built to replace the drive motor on in-ground pool pumps.
Key Features
- Two-speed PSC design
- Automatic-reset thermal overload protector
- Sealed ball bearings
- Threaded 5/8 in 303 stainless steel shaft
- CSA Certified
Compatibility
- PacFab Challenger High Flow/High Pressure pumps
- Pentair Sta-Rite SuperMax, SuperFlo, Max-E-Pro and WhisperFlo pumps
- PacFab Pinnacle High Flow pump
- Sta-Rite Dyna-Glas, Dyna-Max, Max-E-Glas, Dura-Glas and Dyna-Pro pumps
- Hayward TriStar SP3200, SP3200EE and SP3600
- Waterway SVL56 and Champion 56-frame pumps (CHAMPE, CHAMPS)
- Jandy MHP, MHPU, FloPro, Stealth and PlusHP series pumps
- Sonfarrel/Martec Pool Master pump

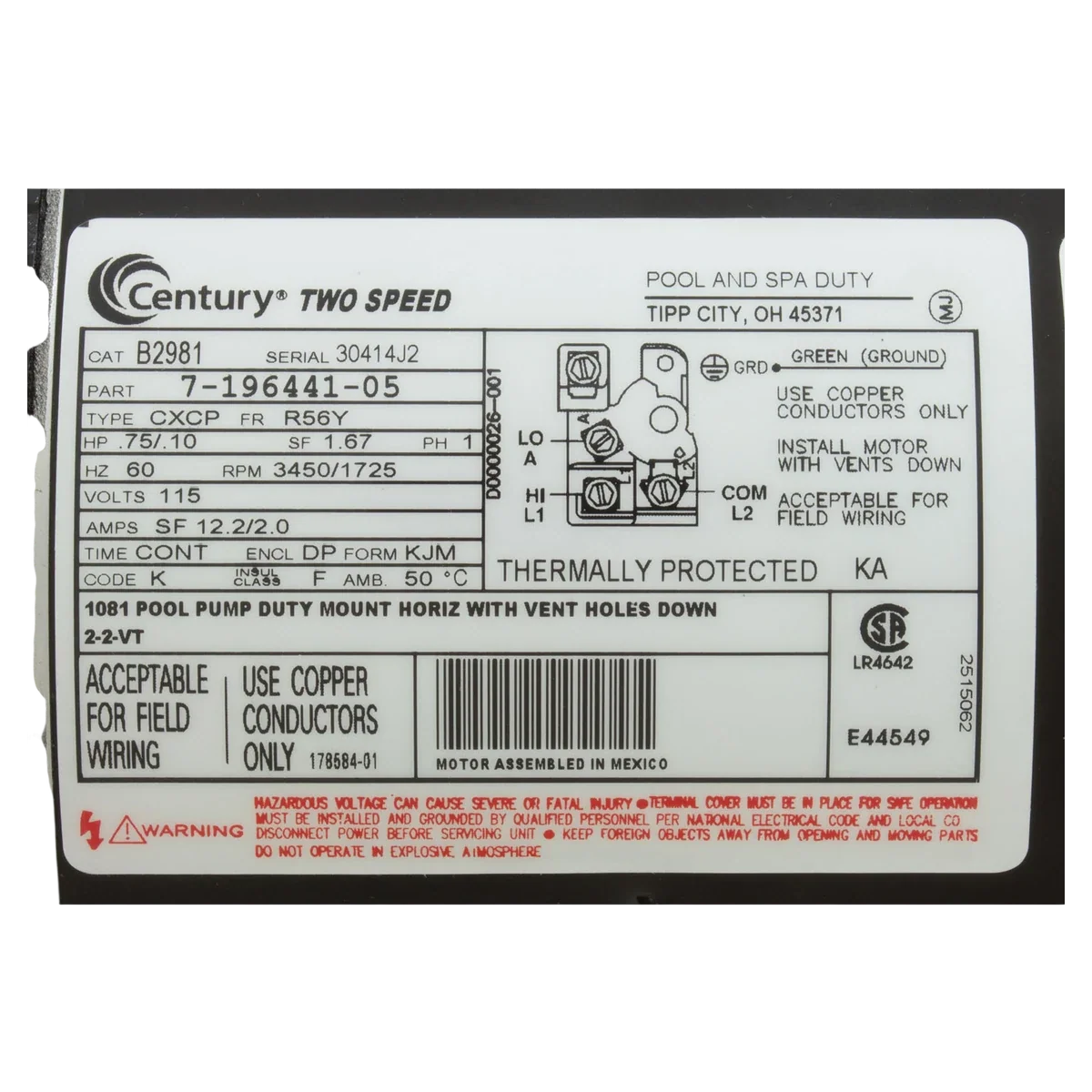

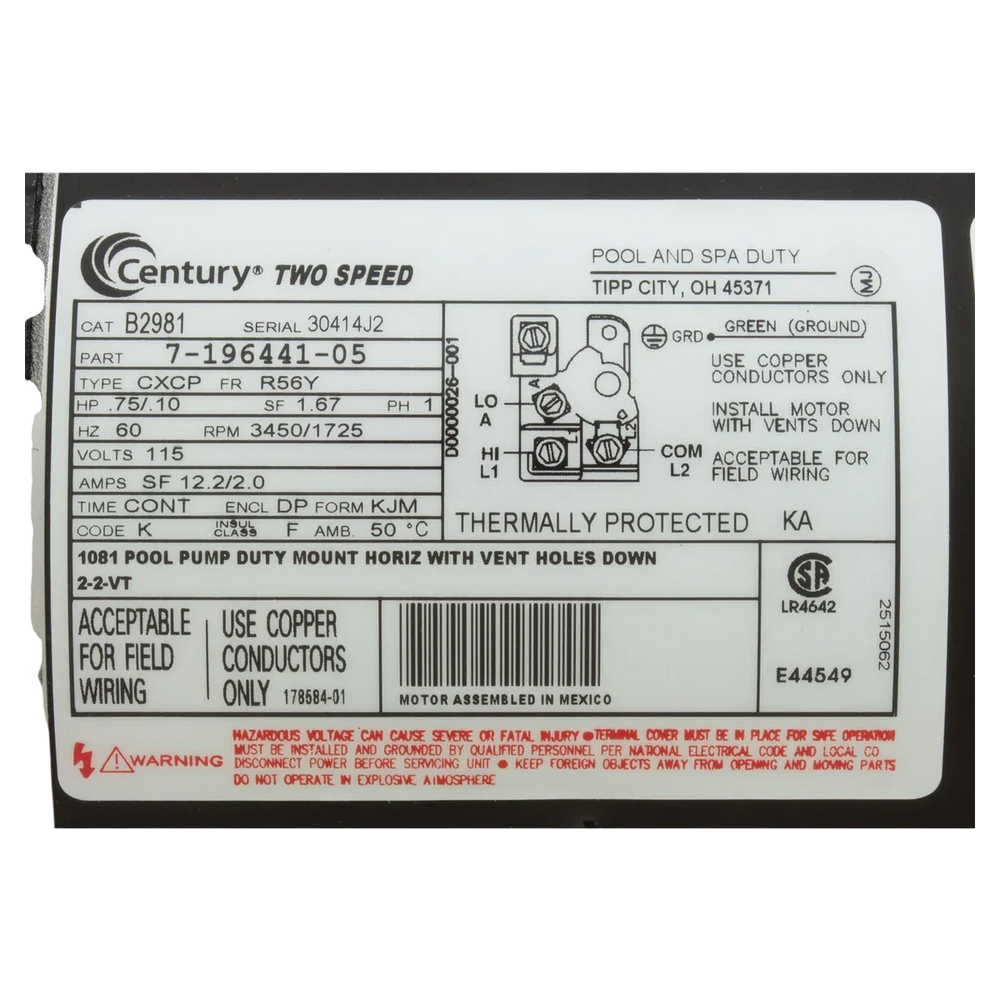

The motor ships without a power cord or hi/low speed toggle switch; wire it using the diagram printed on the motor nameplate.
This motor does not meet Title 20 (California) or NYSERDA (New York) variable-speed requirements; those applications call for a motor like the Century EVQ130.
This product ships free via FedEx Home Delivery.
