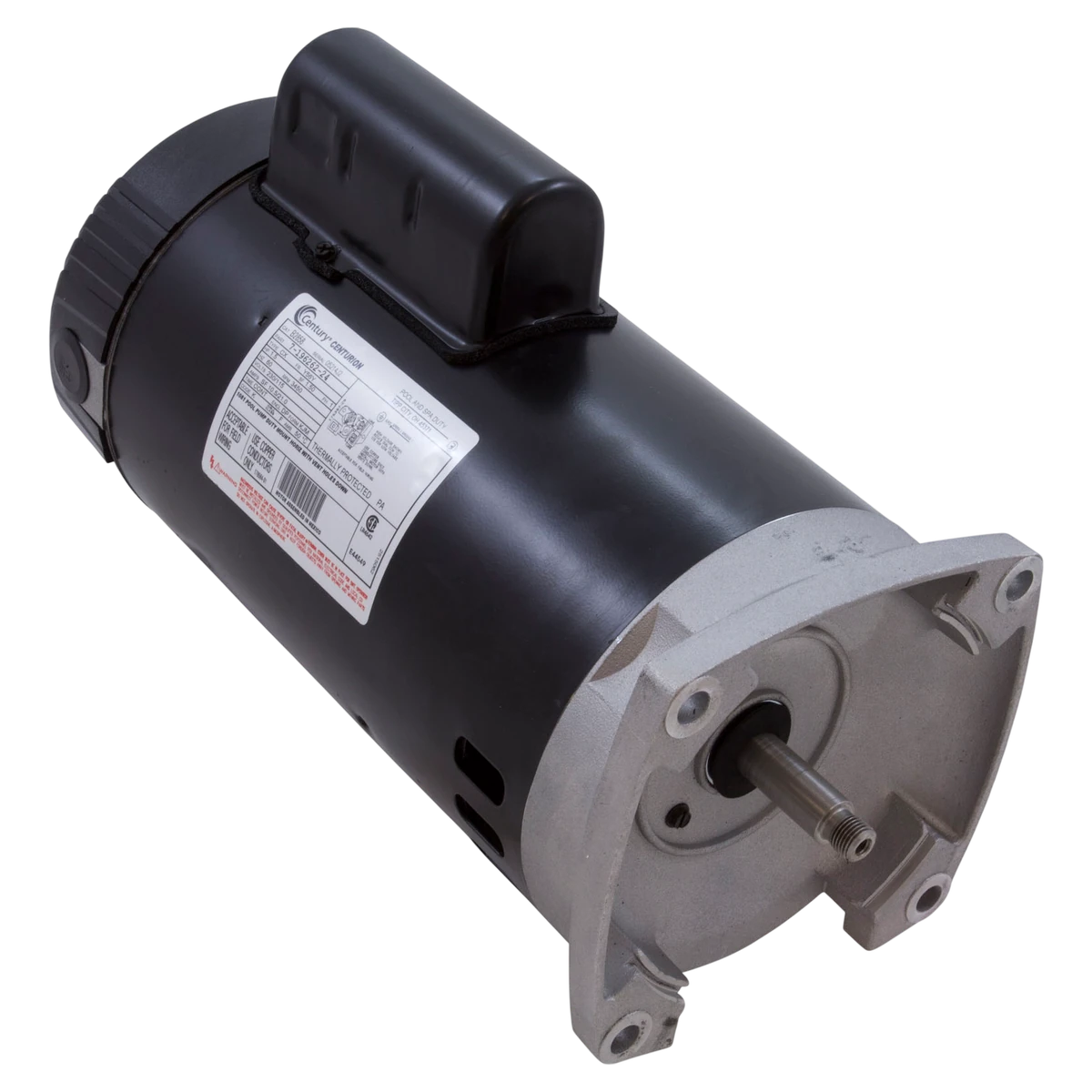

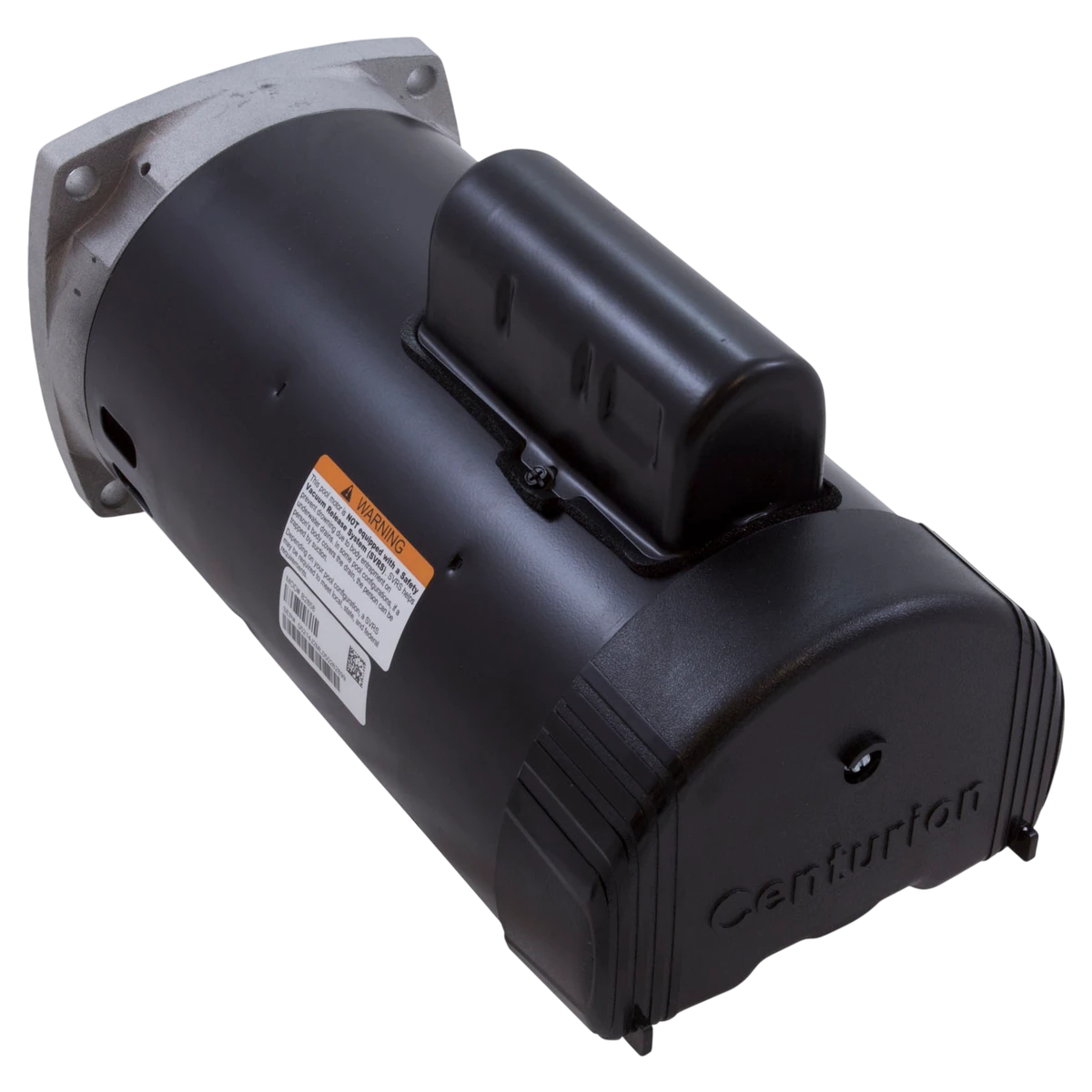

1.5HP Full-Rate Pool Pump Motor

A single-speed, single-phase 1.5 HP full-rated (2.25 THP) pool pump motor on a 56Y square-flange frame, built to replace the drive motor on Pentair/Sta-Rite, Jandy, Hayward and Waterway 56Y-frame pumps.

Key Features

• Sealed ball bearings
• Switchless PSC design
• 303 stainless steel threaded shaft
• 50°C ambient temperature rating
• UL 1081 certified design

Compatibility

• Pentair Sta-Rite/PacFab/Jandy Challenger, WhisperFlo and Ultra-Flow pumps
• Sta-Rite Dyna-Glas, Dyna-Max and Dyna-Jet-TPE pumps
• Sta-Rite Max-E-Glas, Dura-Glas, Max-E-Pro and SuperMax/SuperFlo pumps
• Hayward TriStar SP3200 and SP3600 pumps
• Waterway SVL56 and Champion 56-frame pumps
• Jandy MHP, FloPro, Stealth and PlusHP pumps
• Waterco SupaTuf and SupaStream pumps

What's Included

• Rubber spacer for fitting either 56Y or 48Y frame motors on pumps built for either frame

Replace the pump's shaft seal and other wear seals at the same time as installing this motor.

Shaft rotation is counterclockwise viewed from the pump/pulley end; pumps requiring clockwise rotation are not compatible.
