Square Flange 56Y Motor

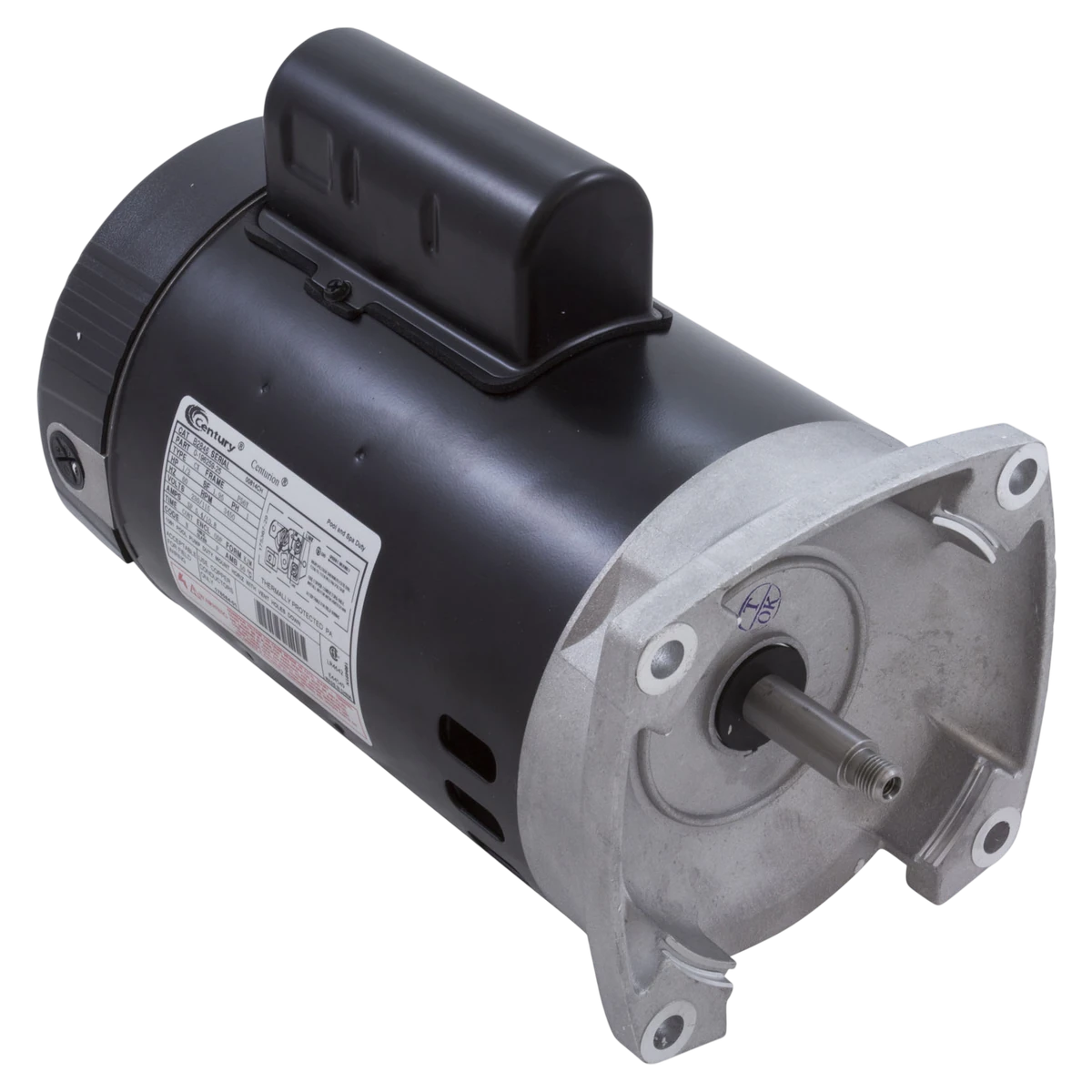

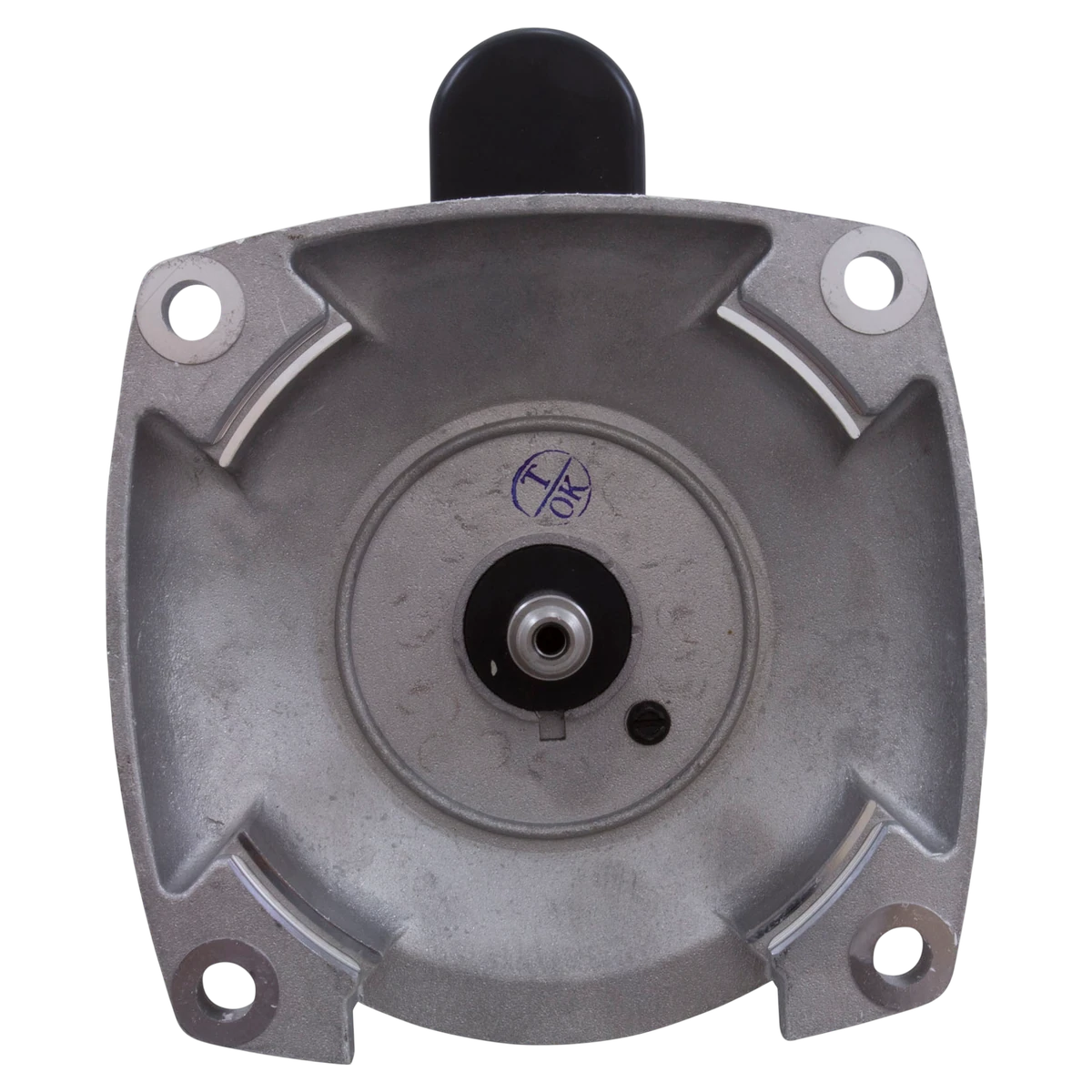

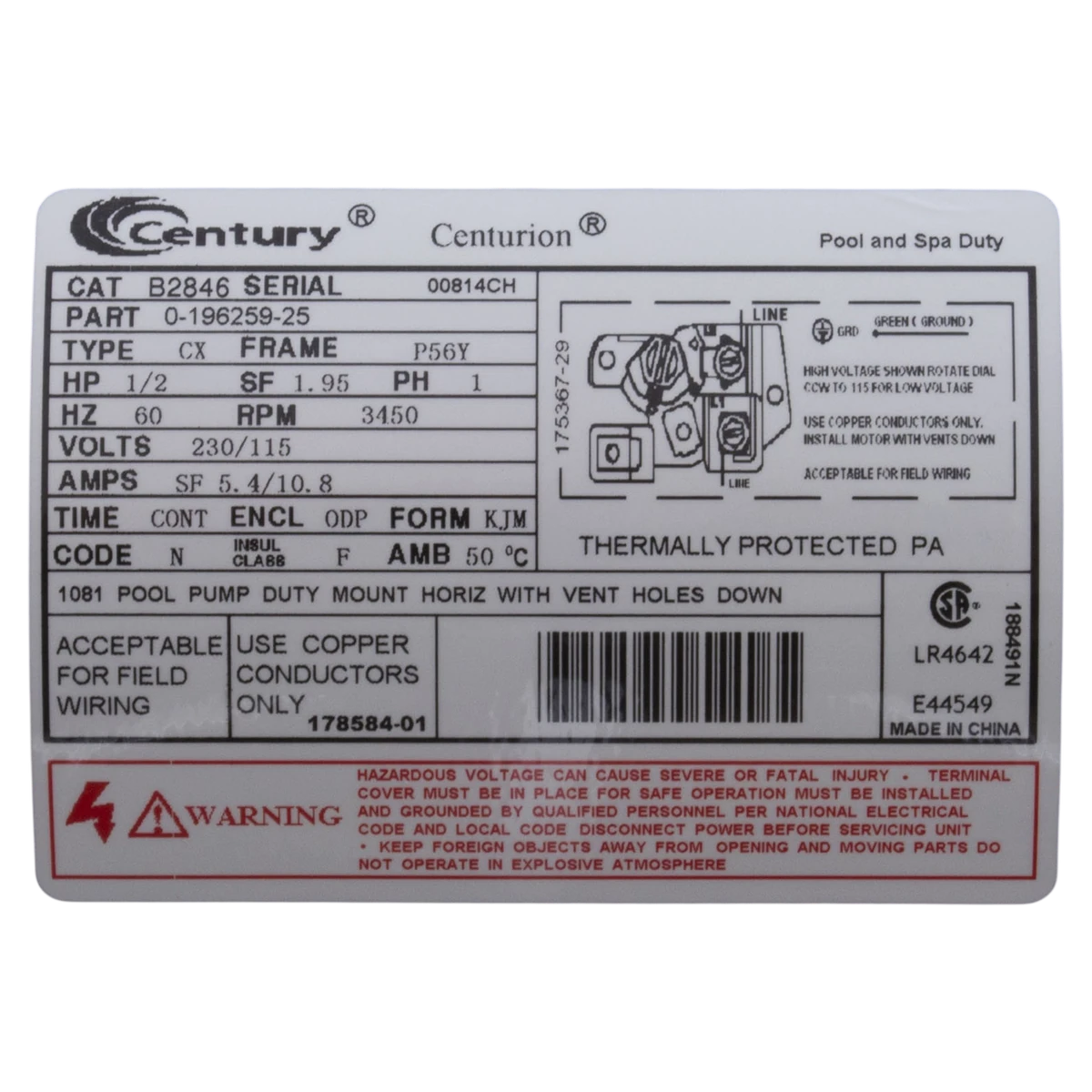

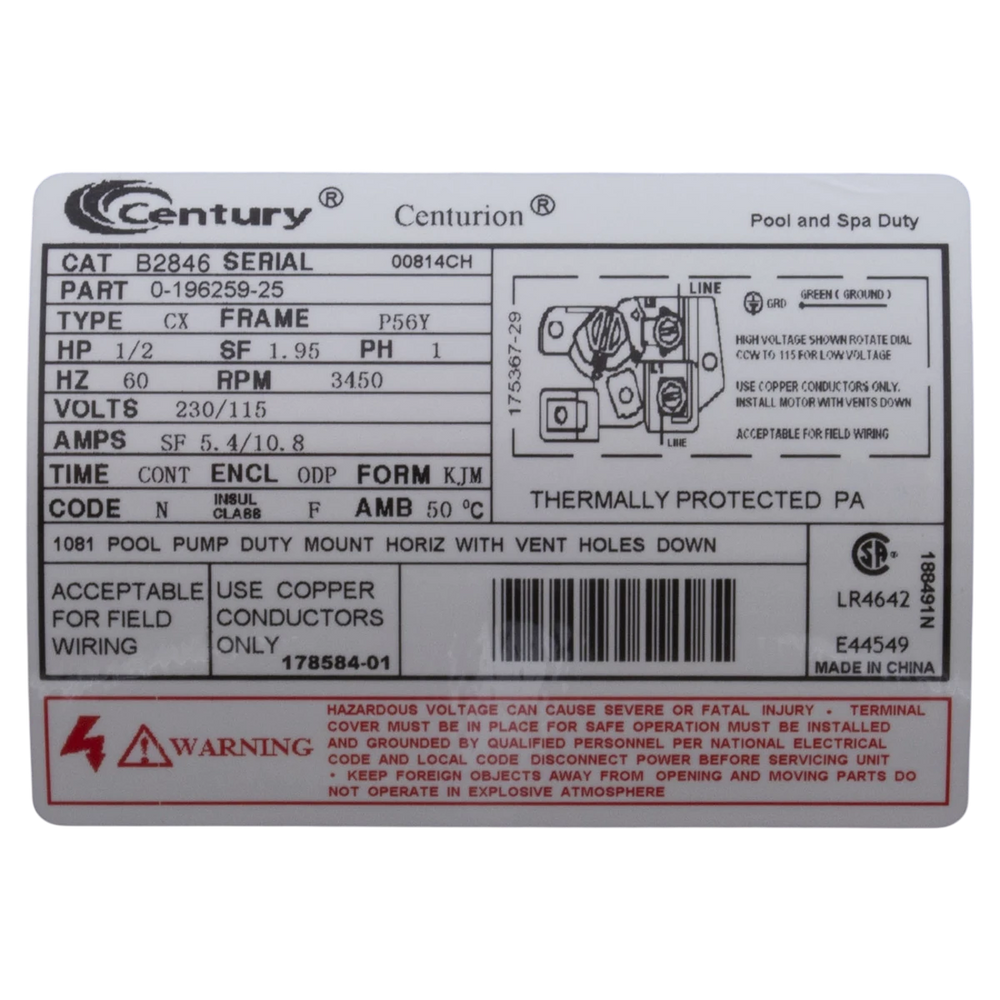

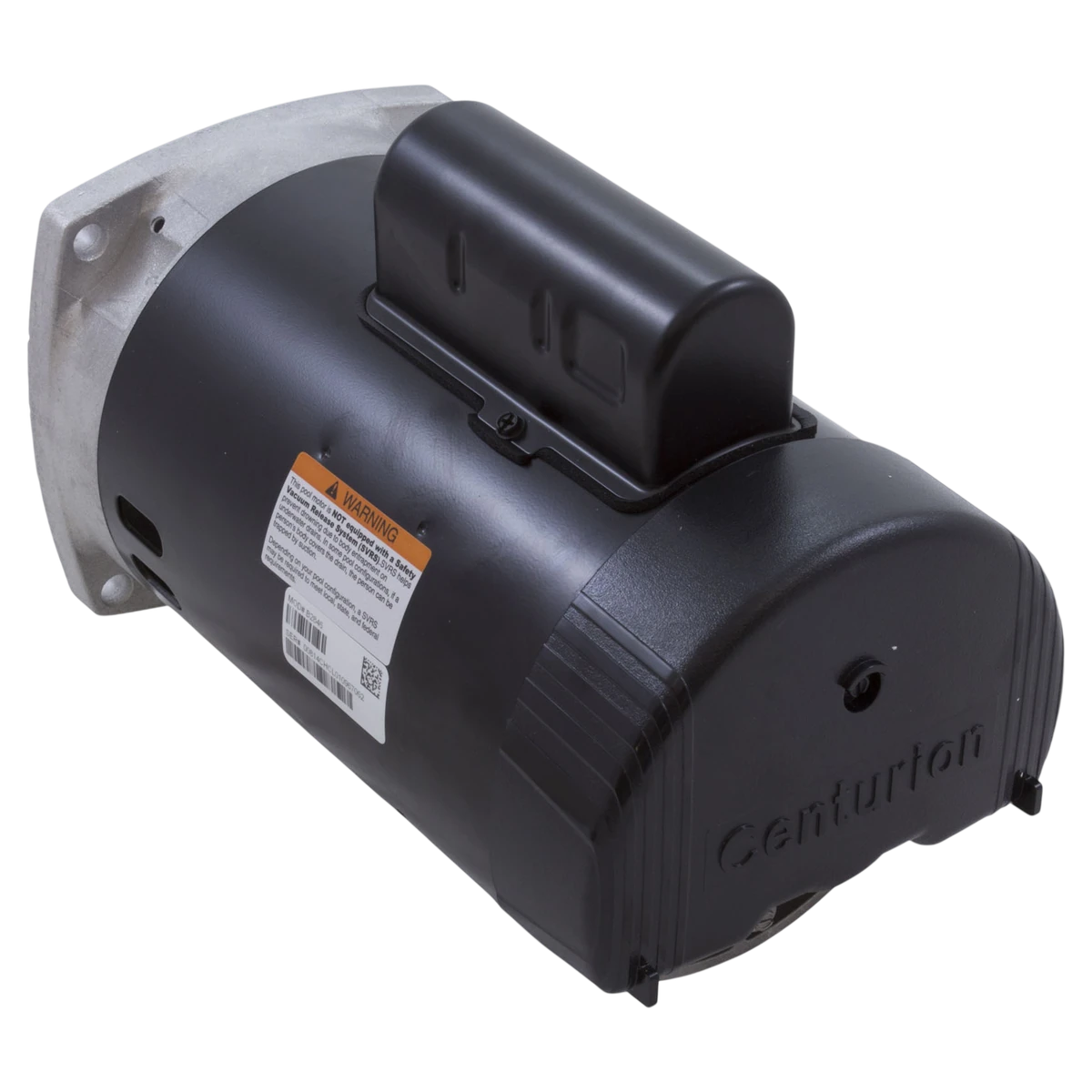

The Century B2846 is a 1/2 HP, single-speed, dual-voltage (115/230V) square flange 56Y motor with a threaded shaft, used to replace the motor on full-rated in-ground pump housings such as Pentair WhisperFlo and Challenger.

Key Features

• Sealed ball bearings, both ends

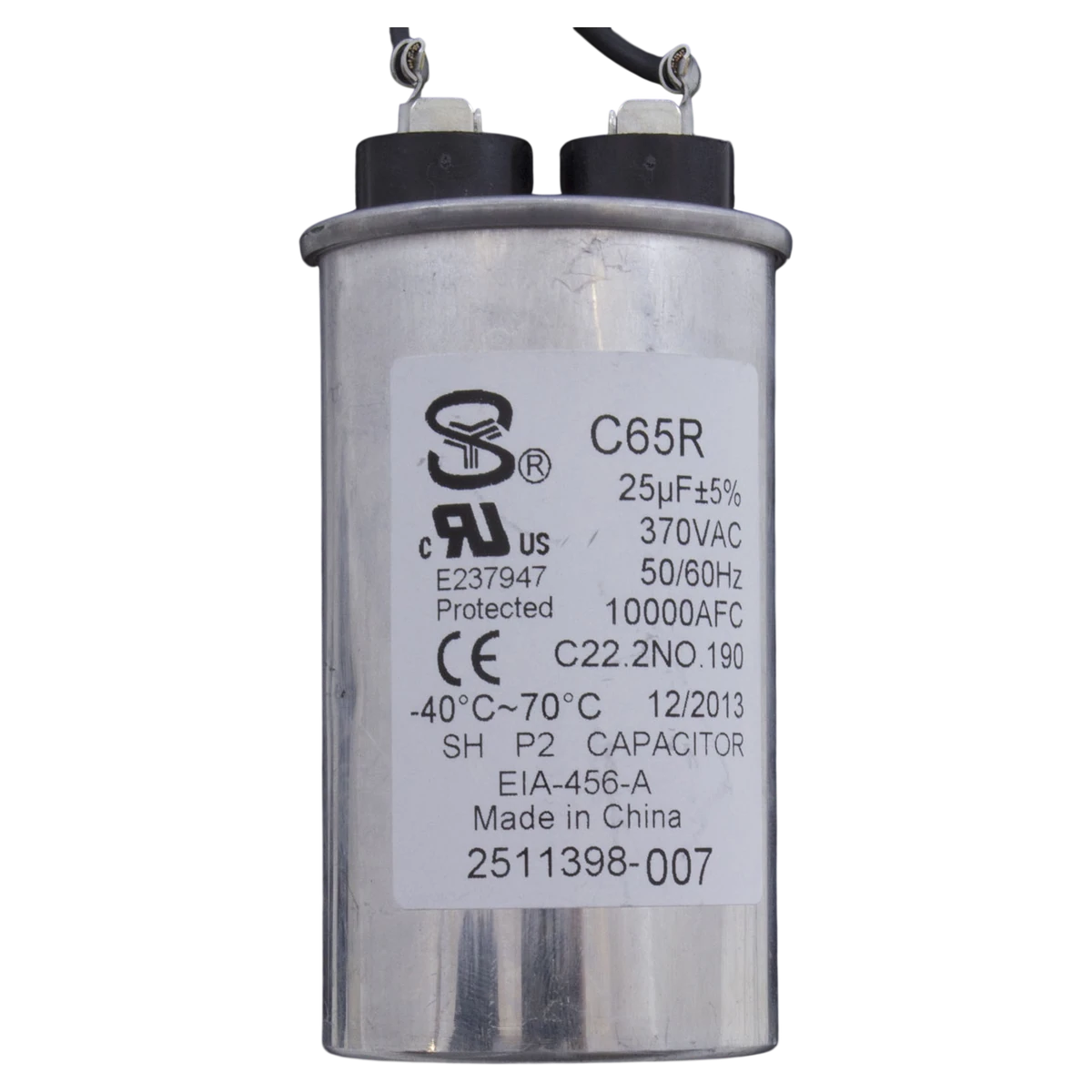

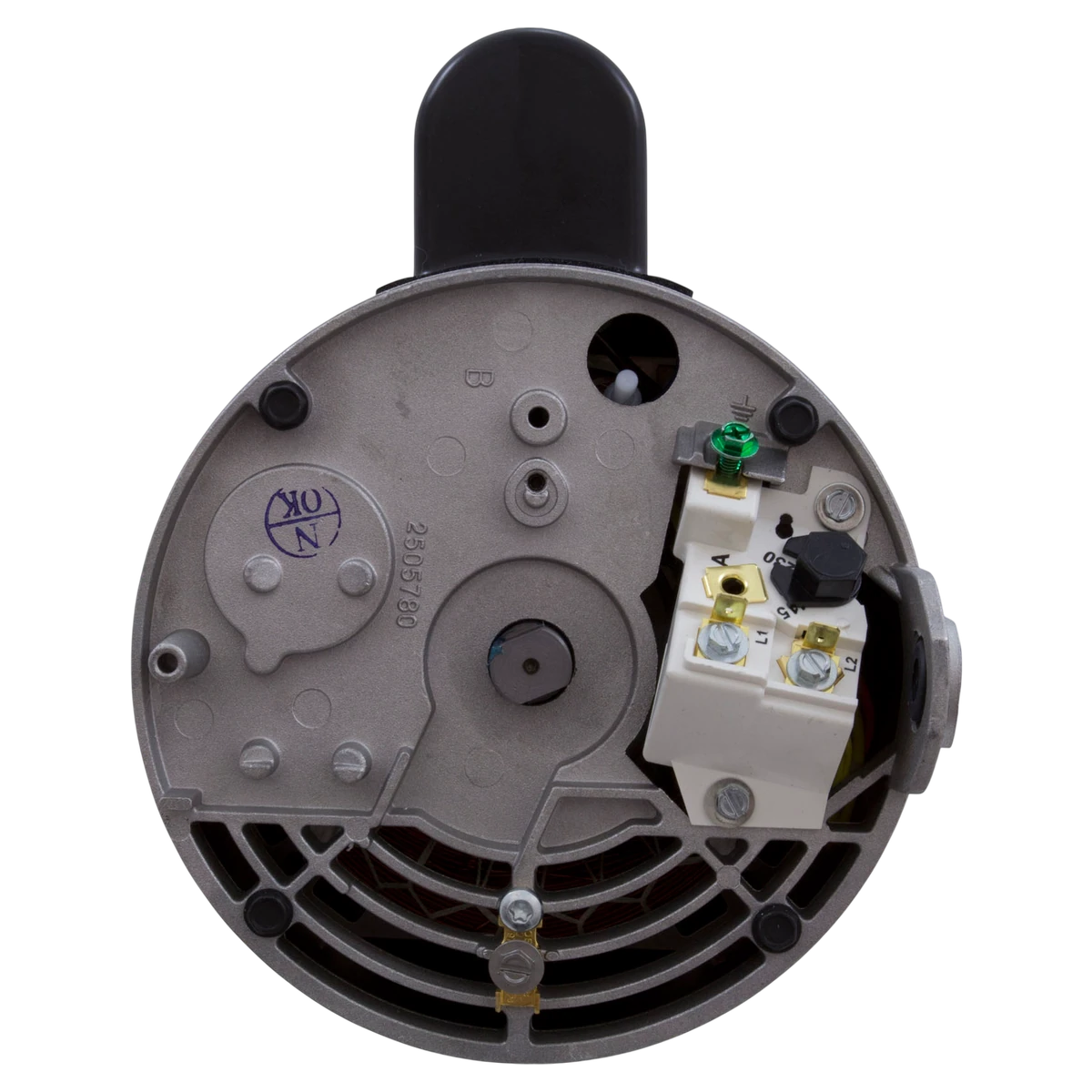

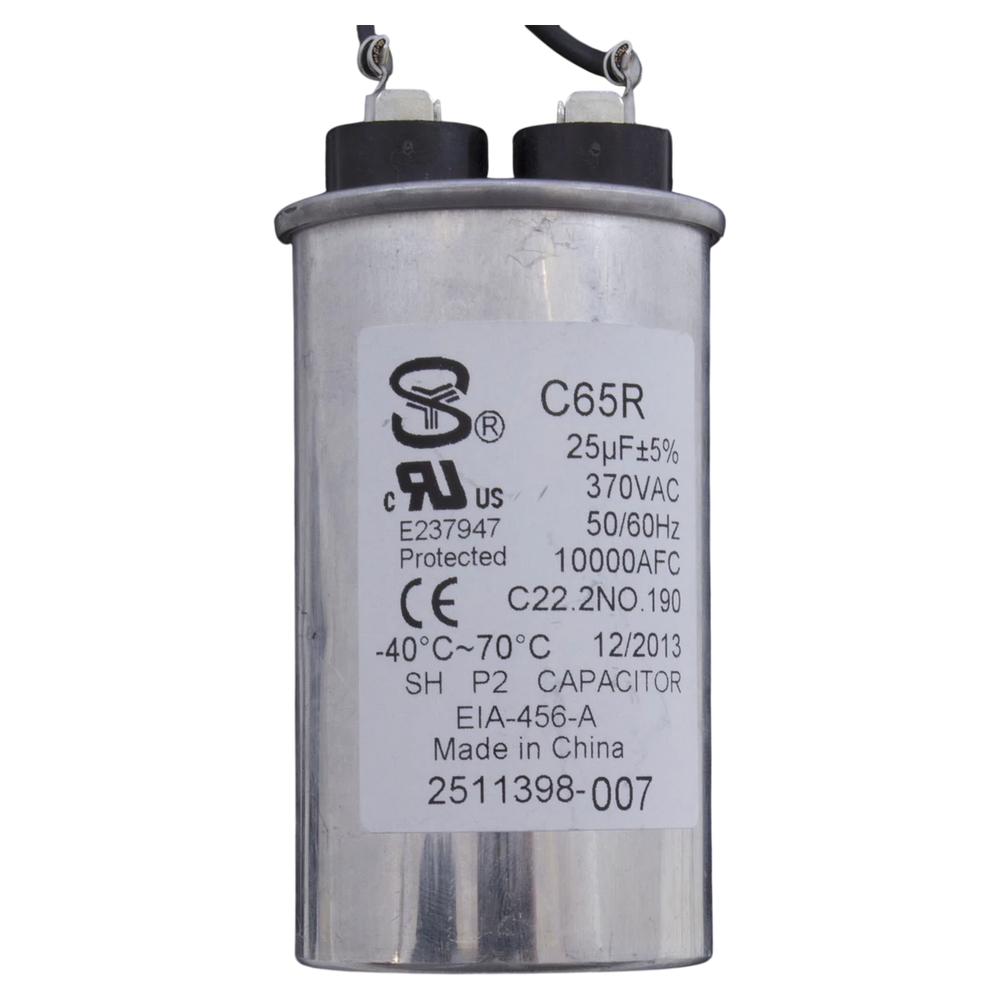

• Permanent split capacitor, dual voltage
• 3450 RPM, 1.95 service factor
• Thermally protected, 50°C rated
• Rolled steel frame

Compatibility

• Pentair WhisperFlo and Challenger (full-rated)
• Pentair Pinnacle High Flow Pump
• Jandy Stealth SHPF/SHPM and PlusHP PHPF/PHPM
• Sta-Rite SuperMax, SuperFlo, Max-E-Glas, Dura-Glas

Replace the pump's shaft seal when installing this motor; a worn seal lets water reach the new bearings and can void the motor warranty.

This motor is not Title 20 compliant and cannot be sold, shipped, or installed in California or New York.
