2HP Square Flange Pump Motor
2HP Square Flange Pump Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
2HP Square Flange Pump Motor

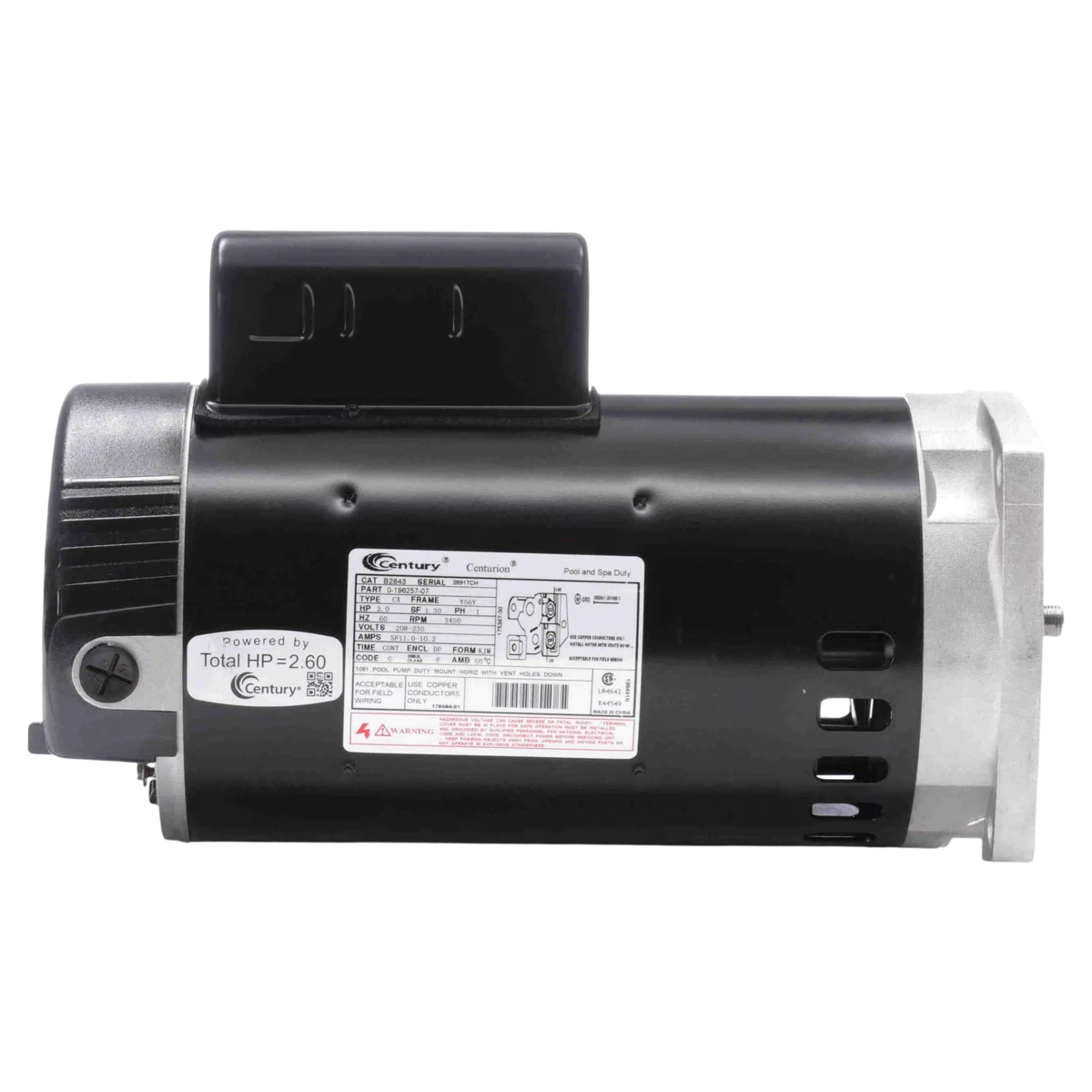

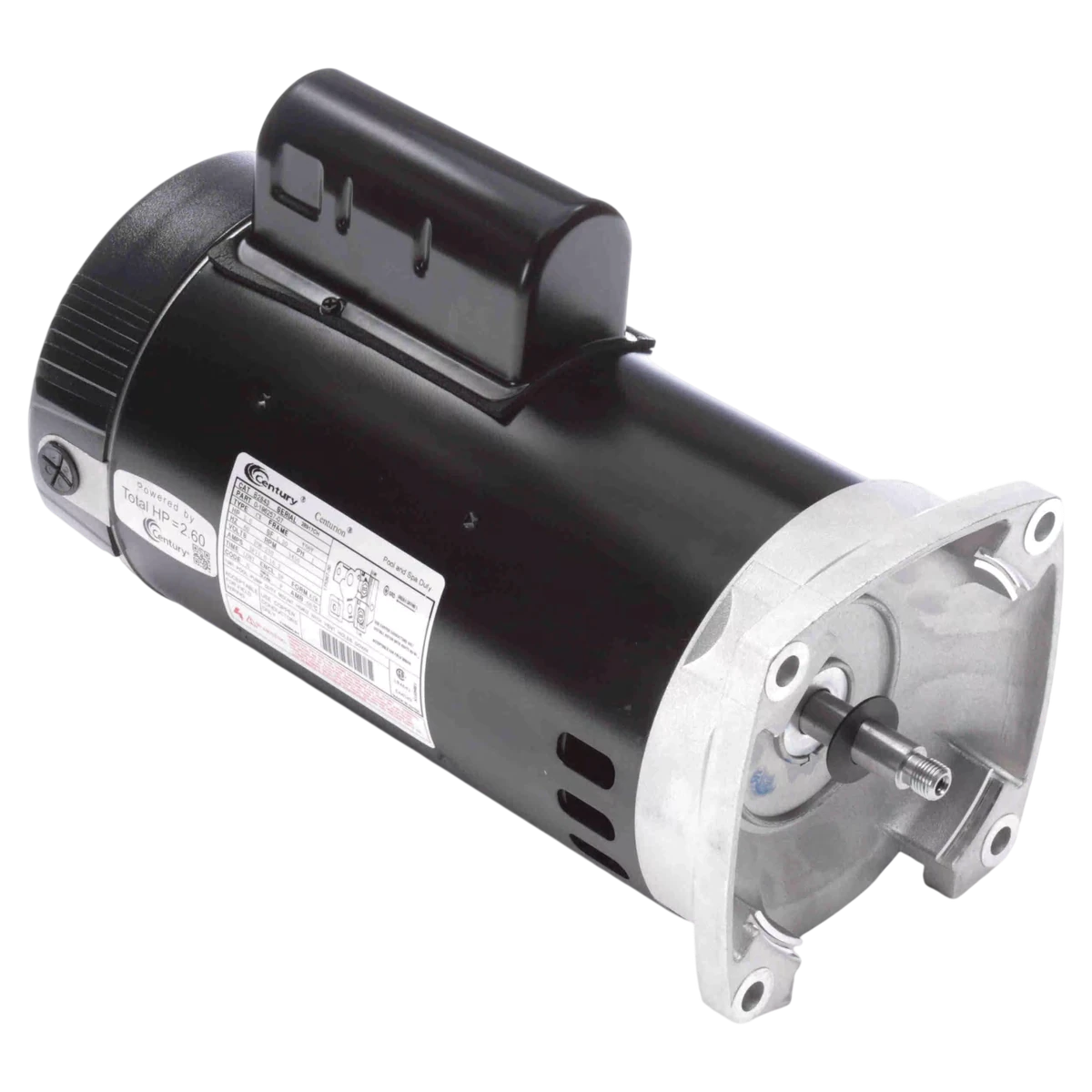

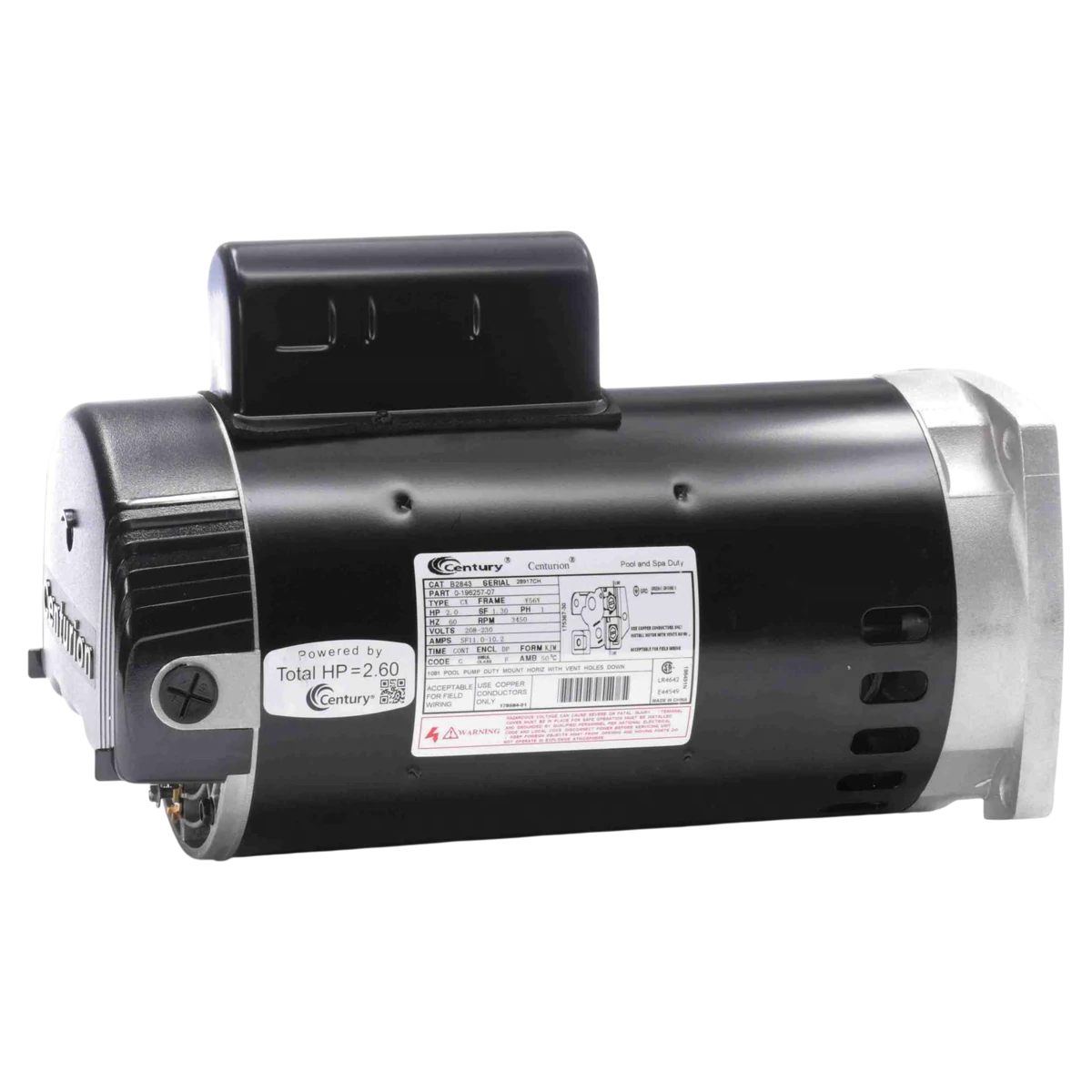

The B2843 is a single-speed, single-phase 2 HP square flange motor built on a 56Y frame for in-ground pool and spa pumps, running at 3450 RPM on 208-230V.
Key Features
- Permanent split capacitor design
- Dual-voltage 208V/230V wiring
- Sealed ball bearings both ends
- Stainless steel threaded shaft
- Open, accessible terminal board
Compatibility
- Pentair WhisperFlo and SuperFlo pumps
- Pentair/Purex and PacFab Challenger pumps
- Jandy SHPF/SHPM Stealth 1-Speed pumps
- Waterway Champion and SVL56 pumps
- Replaces Century/AO Smith B843 and US Electric EB843
Replace the pump's shaft seal when installing this motor, since a worn seal lets water reach the bearings and can void the motor warranty.
This single-speed motor does not meet California Title 20 or New York NYSERDA energy-efficiency rules, so sale and installation are restricted in those states.
This product ships free via FedEx Home Delivery.
Owner's Manuals
Technical Information
Find it on the parts diagram
Pentair PacFab Challenger High Pressure Pump Replacement Parts
Show it on the diagram →
