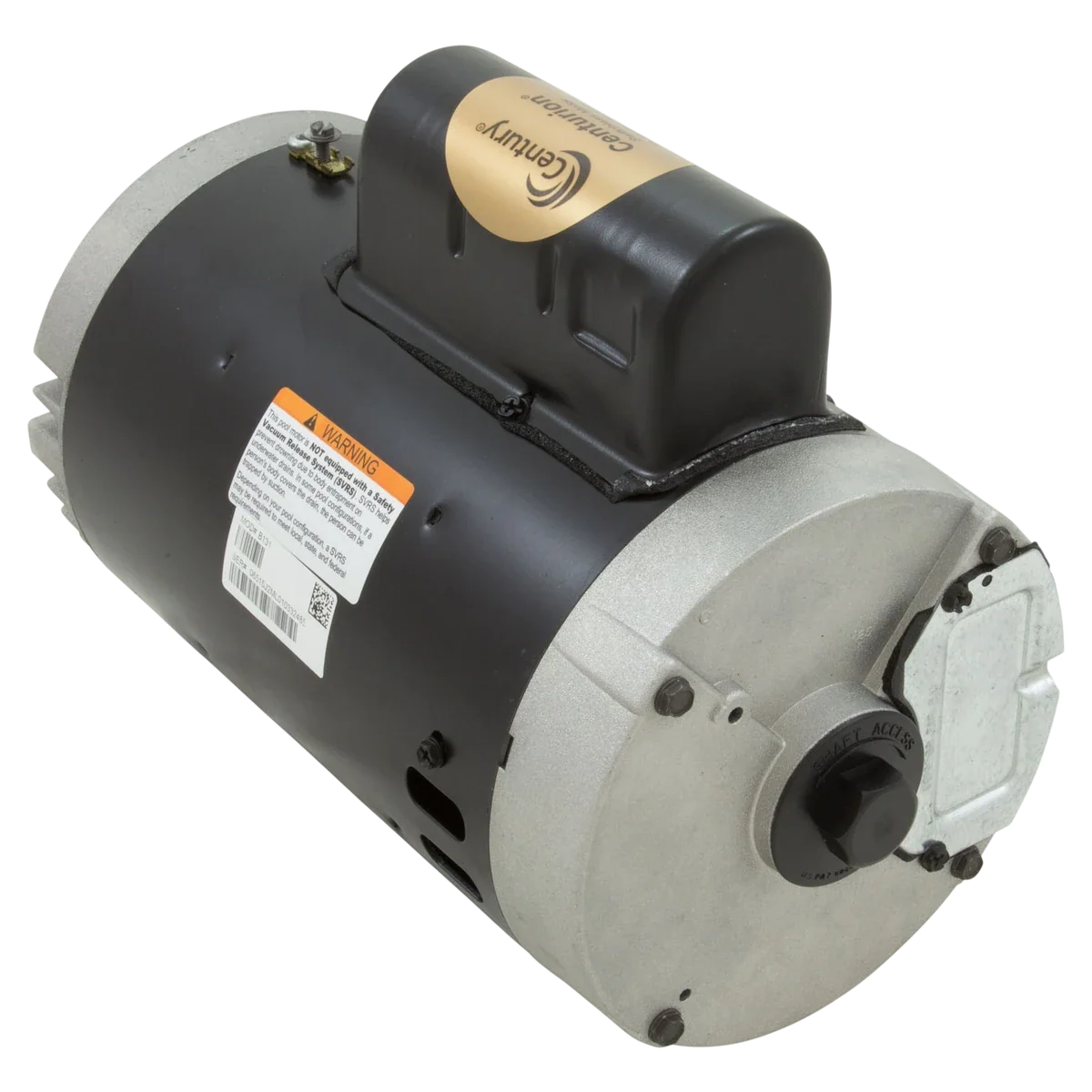

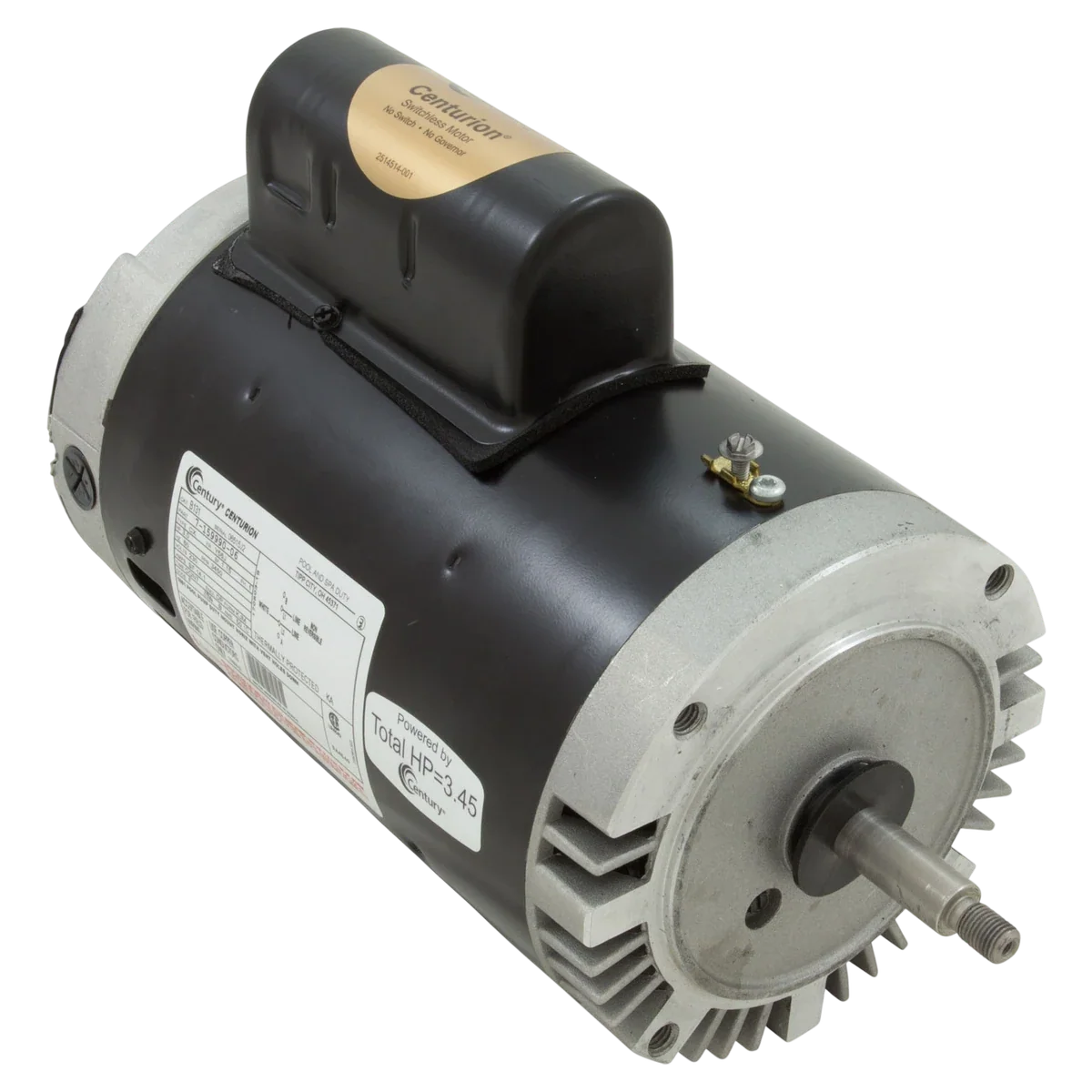

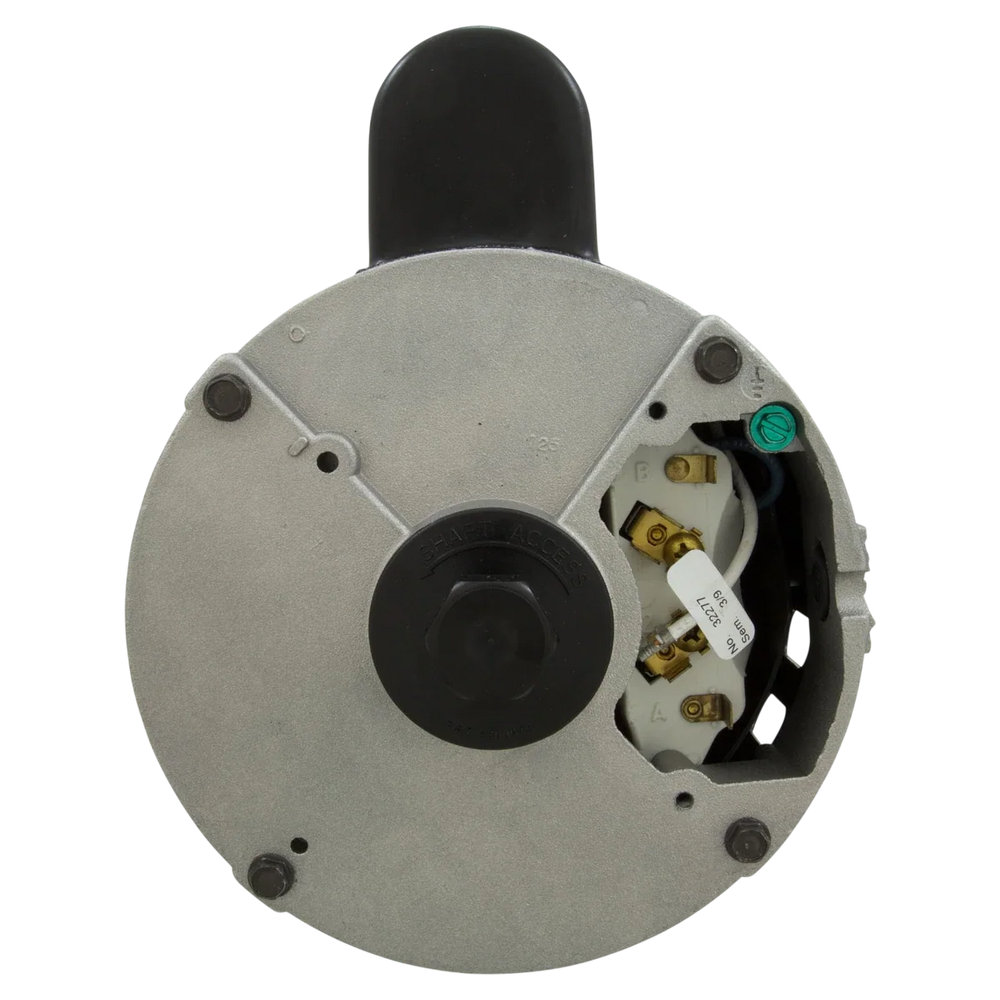

Centurion 3 HP Y56J Round Pump Motor

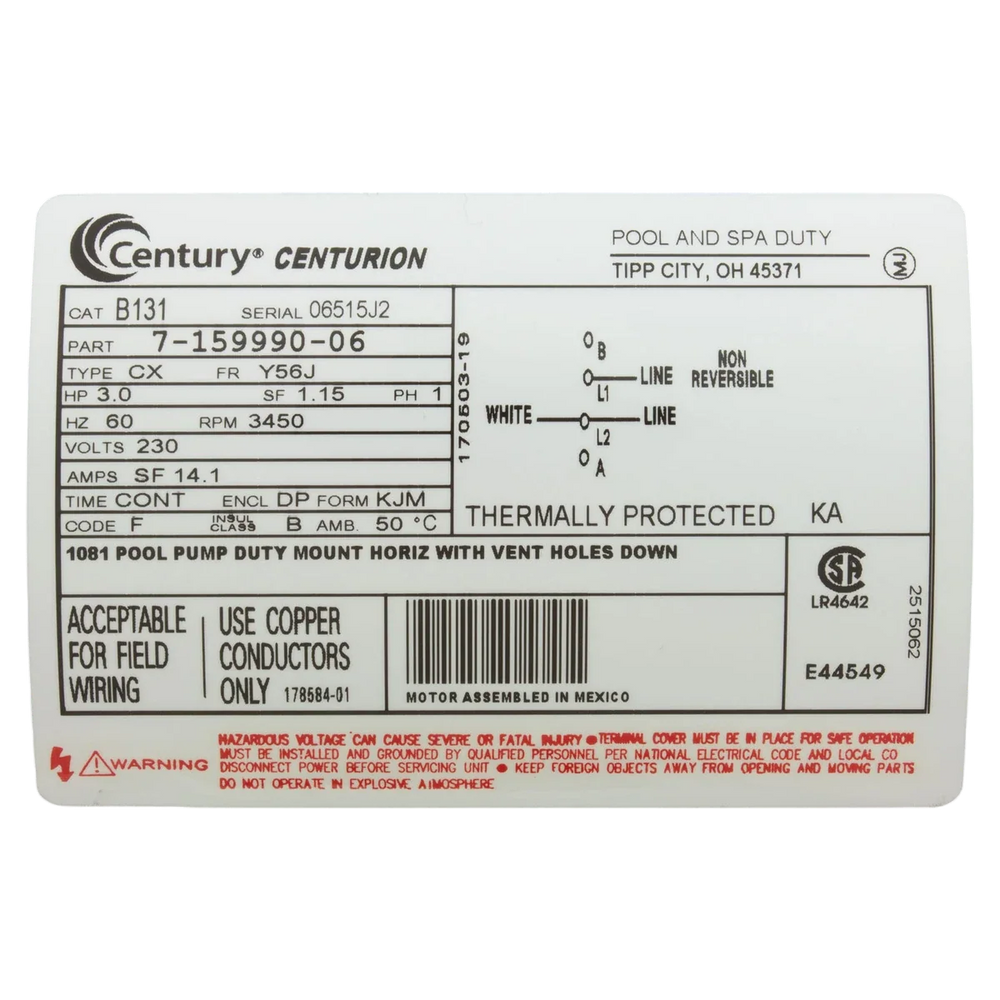

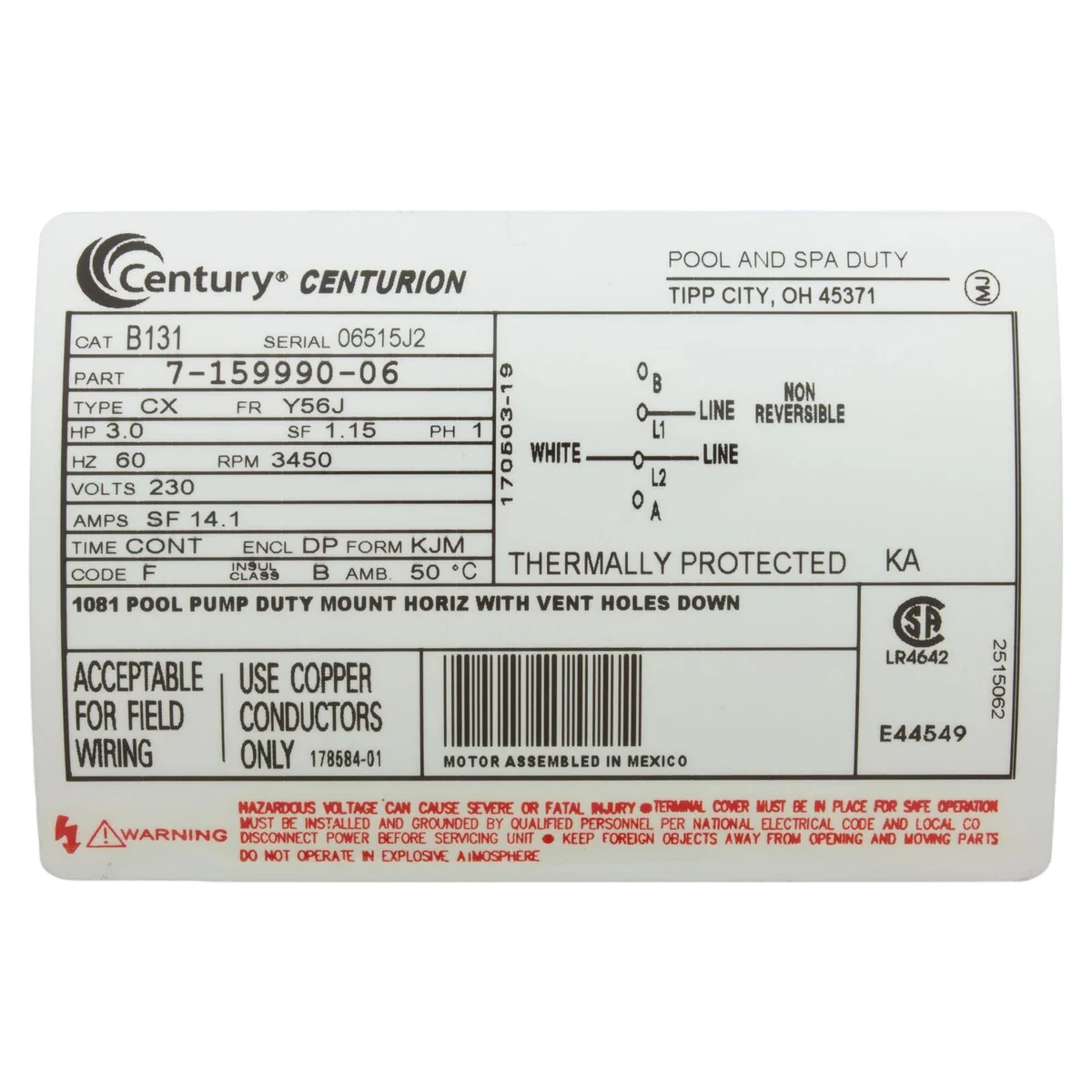

The Century Centurion B131 is a 3 HP, 230V single-phase motor with a round, no-base Y56J frame and threaded shaft, used to replace a failed drive motor on 56J-frame inground pool pumps.

Key Features

• Switchless, permanent split capacitor design

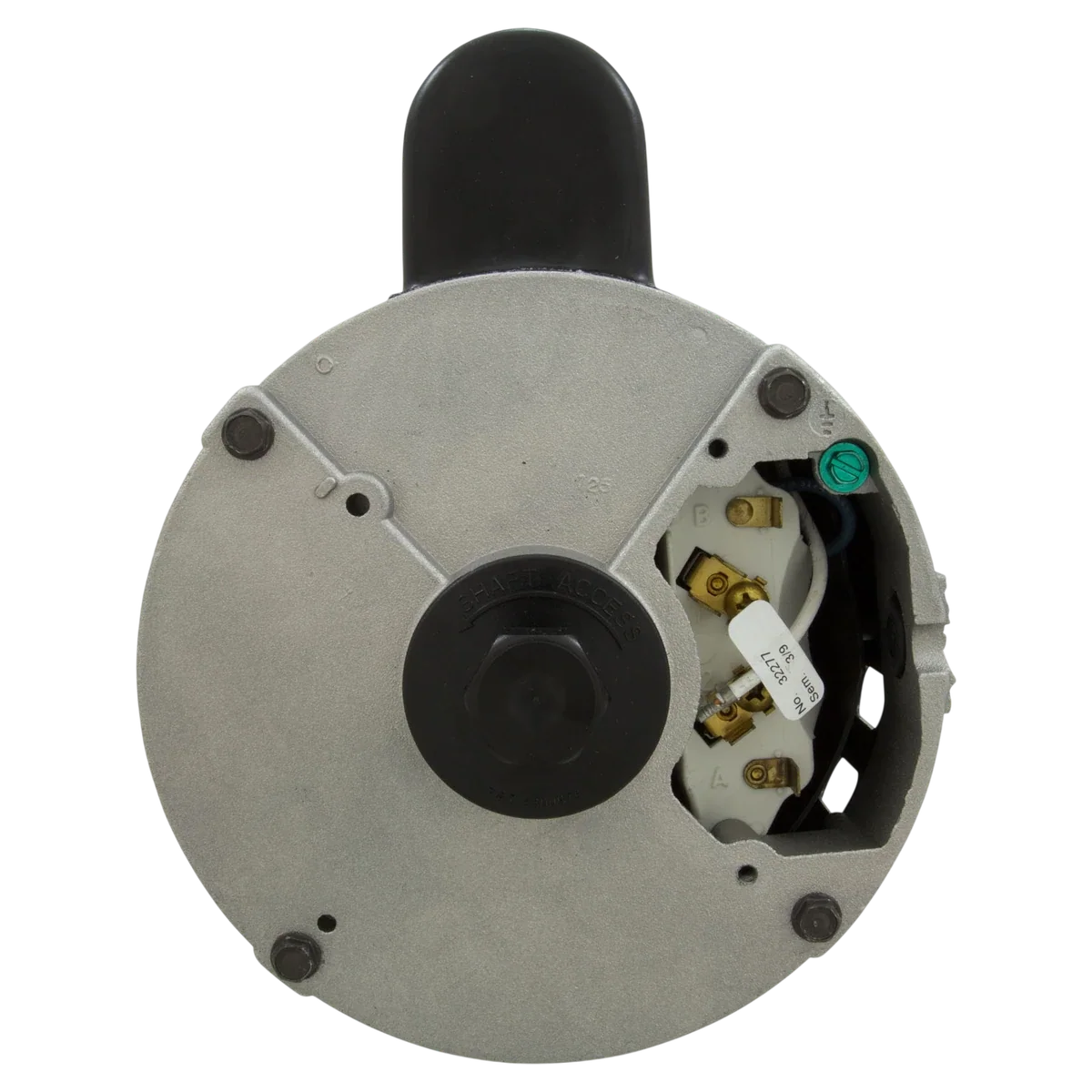

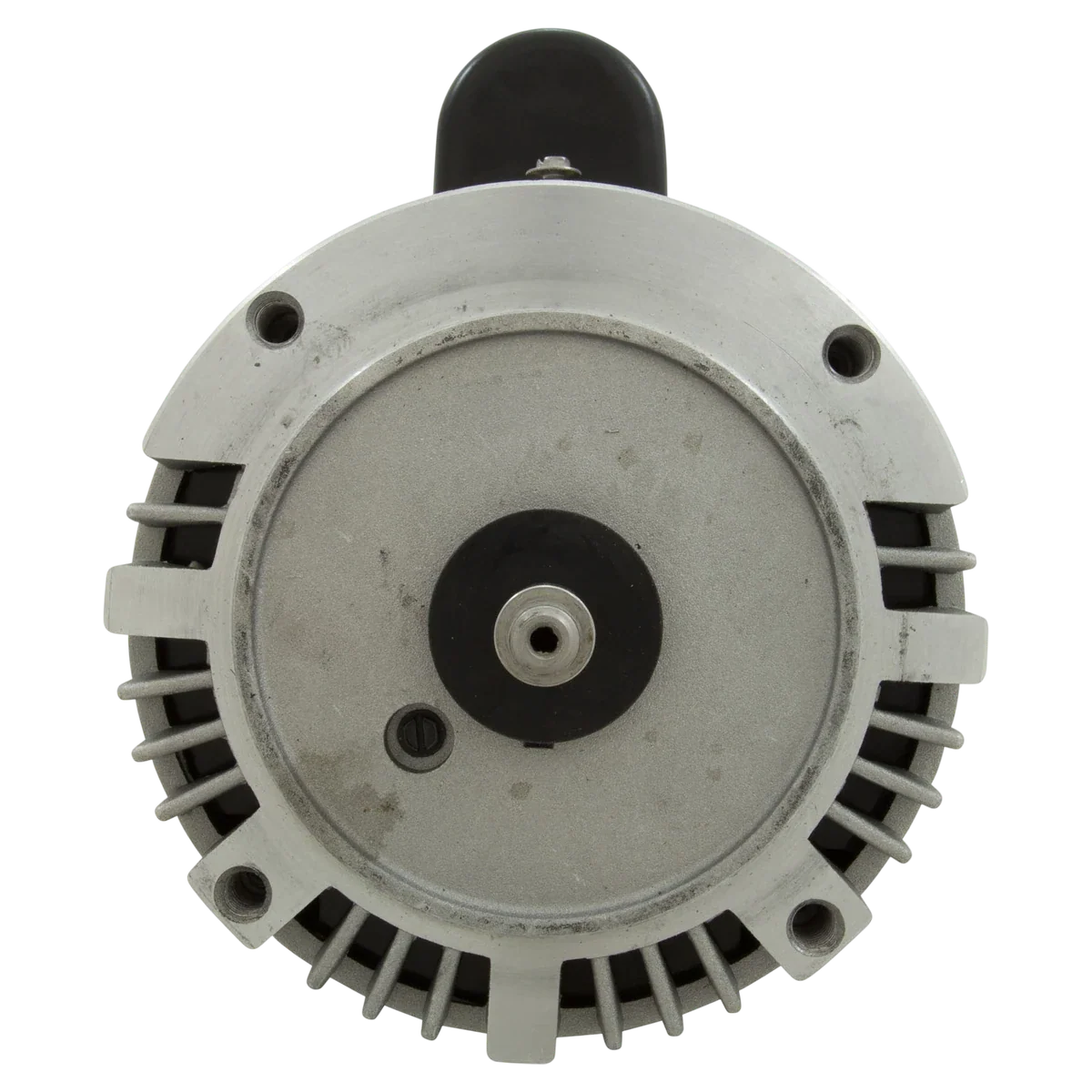

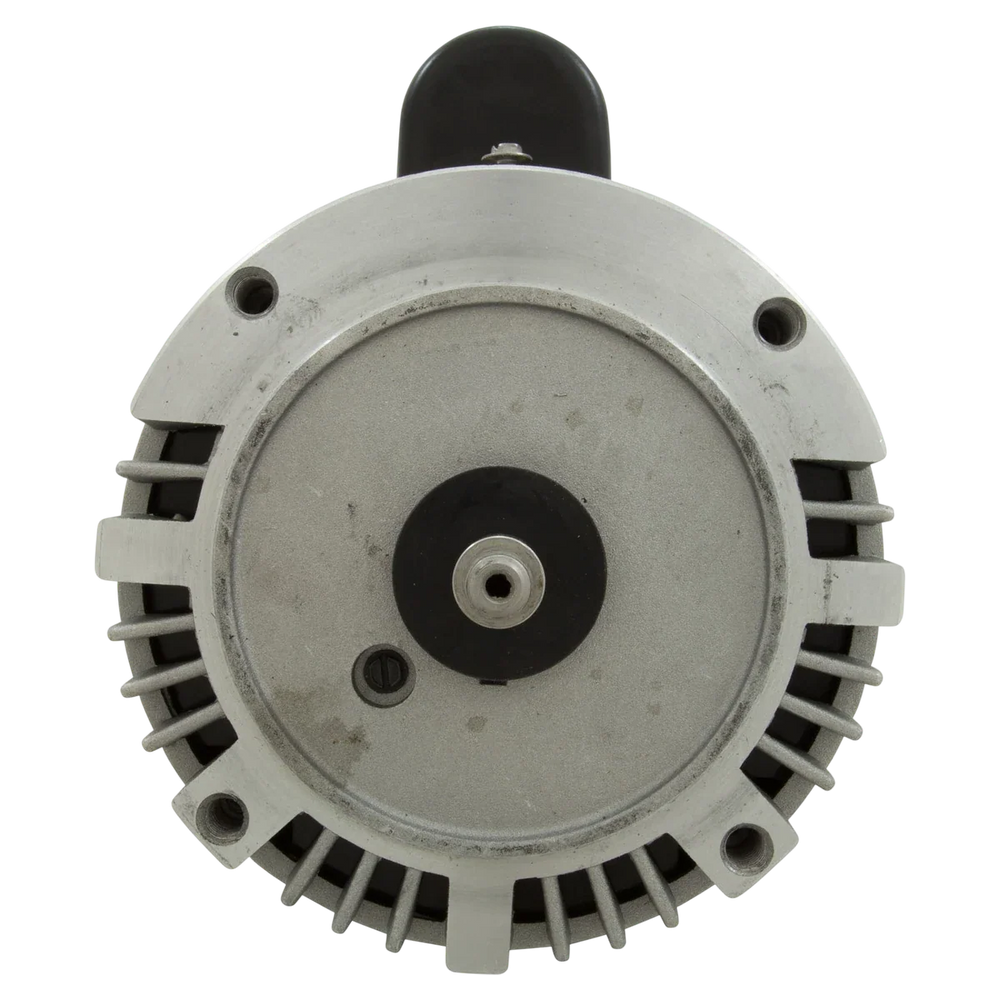

• Round, no-base C-face body with threaded shaft
• 303 stainless steel shaft with 304 bearing
• Thermally protected, continuous duty rating
• UL 1081 Centurion full-rate, high service factor

Compatibility

• Jacuzzi Magnum, Magnum Plus, Magnum Force, P, PC, EP, PH, UPH, Ring-Lok, and RC pumps
• Hayward Northstar SP4000/SP4000X and Super II SP3000/SP3000X pumps
• Waterco HydroStorm, HydroStorm Plus, and HydroStar pumps
• Jandy JHP, JHPU, HHP, and HHPU pumps
• Hayward Super Pump and other standard 56J-frame inground pool pumps

This motor does not meet California Title 20 or New York NYSERDA efficiency rules, which require a variable-speed replacement in those states.
