1.5HP Pool Pump Motor 56J Frame
1.5HP Pool Pump Motor 56J Frame is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
1.5HP Pool Pump Motor 56J Frame

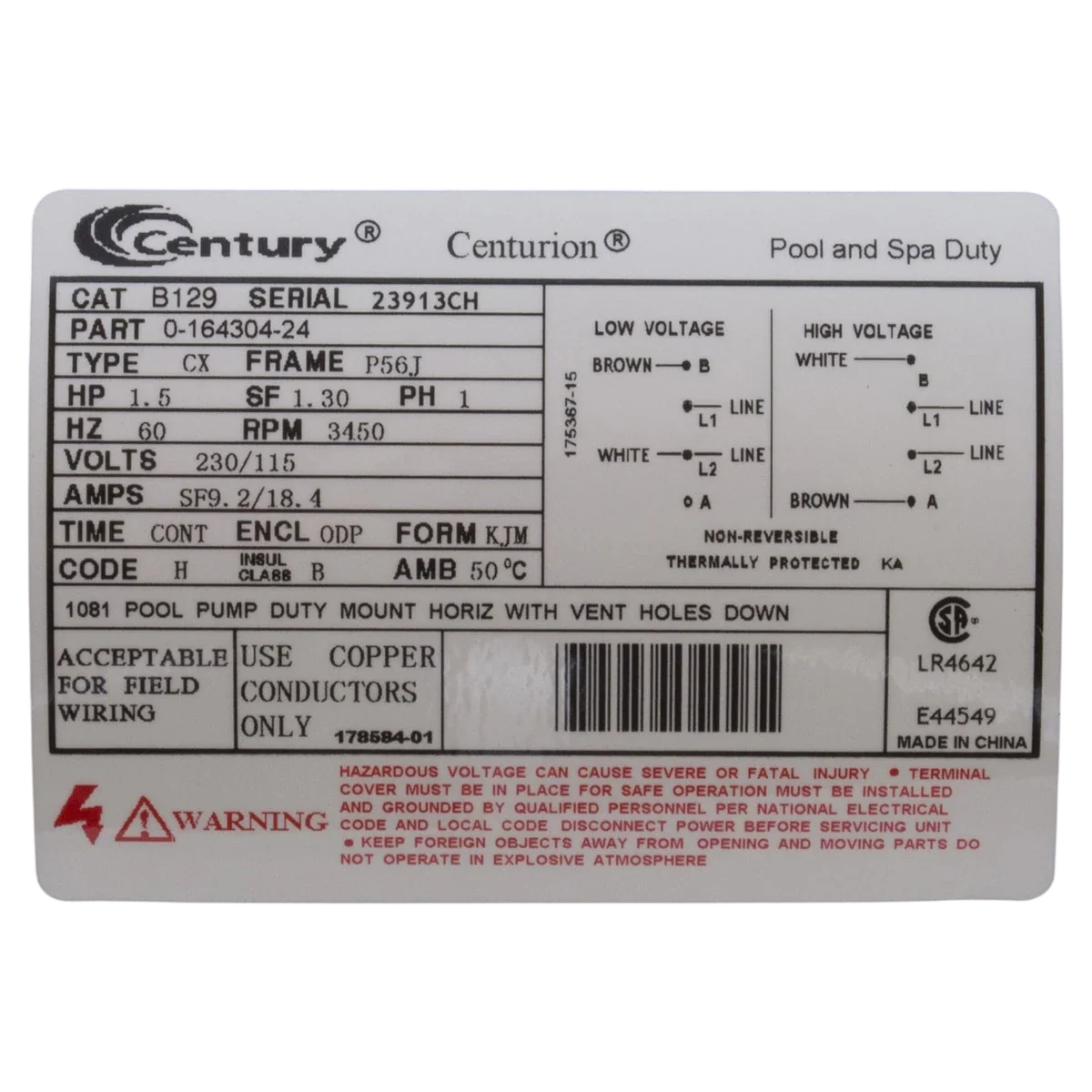

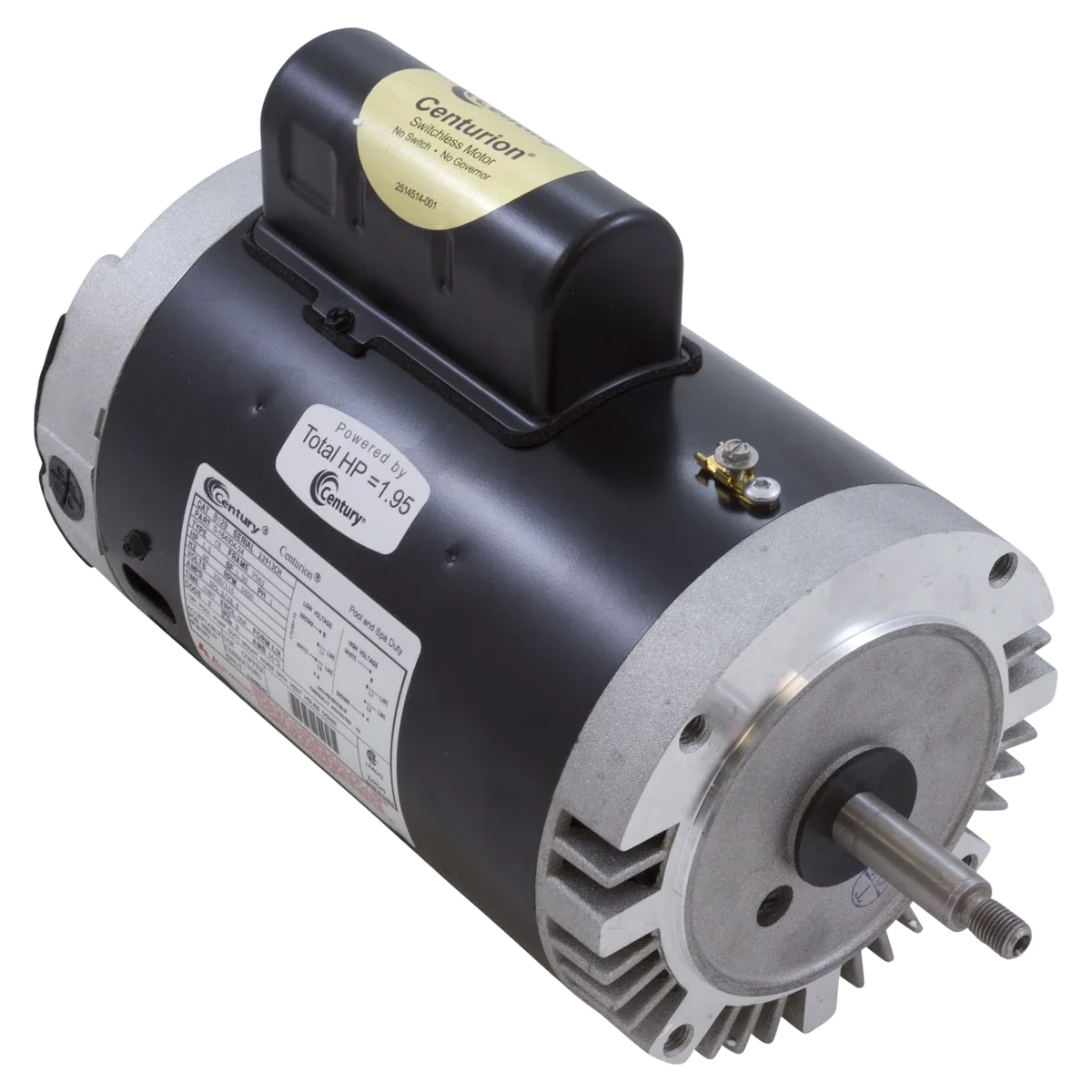

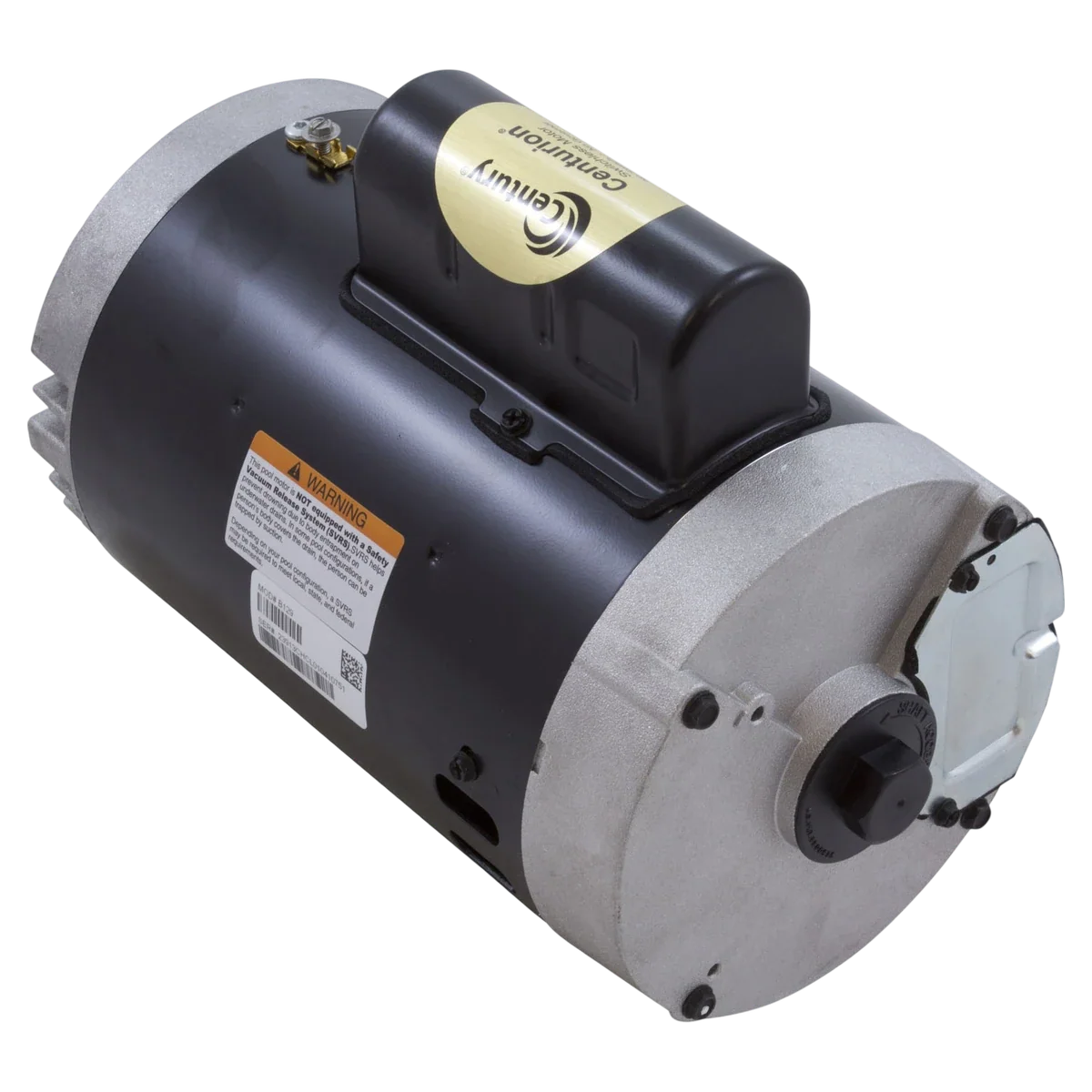

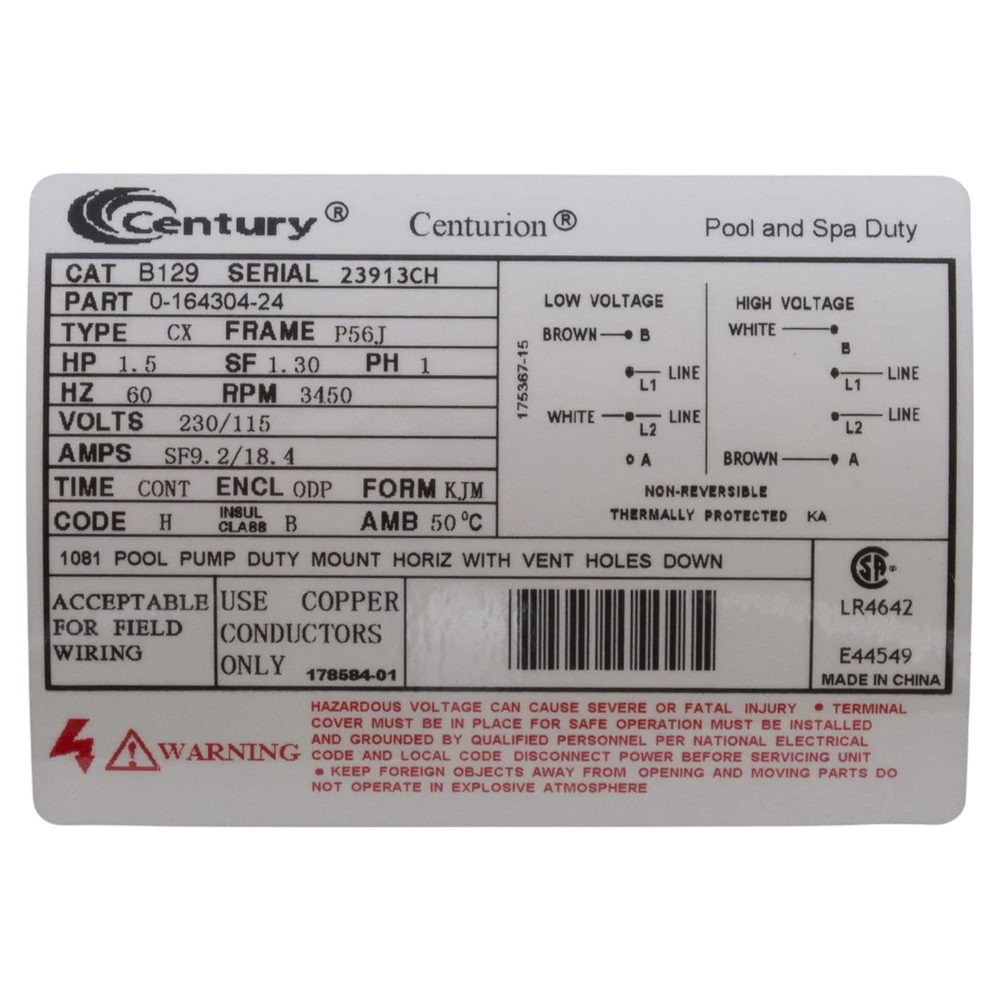

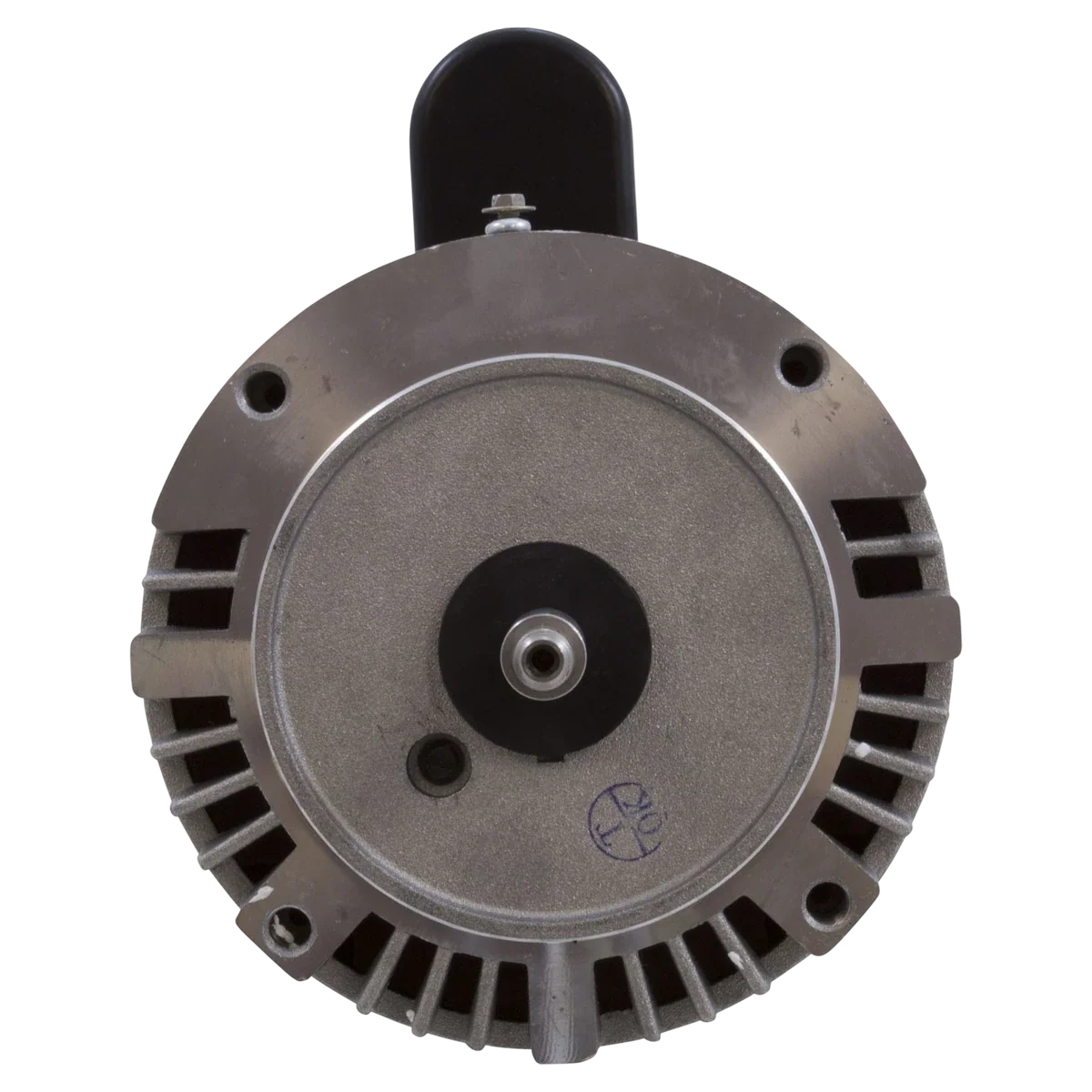

The Century B129 is a 1.5 HP, single-phase, 56J-frame threaded-shaft pump motor that replaces failed OEM motors on many pool pump brands.
Key Features
- 1.5 HP full-rated, 3450 RPM
- Dual voltage, 230/115V, 60 Hz
- Permanent split capacitor, top-mounted
- Automatic-reset thermal overload protection
- Rated for 50°C ambient operation
Compatibility
- Hayward Super II, Super Pump, Max-Flo and Northstar series
- Jacuzzi Magnum, P/PC/EP/PH/UPH/RC, Ring-Lok and Cygnet pumps
- Pentair/Purex Quietflo and Aquatron, American Eagle pumps
- Waterco HydroStorm, HydroStorm Plus, HydroStar pumps
- Jandy JHP/JHPU and HHP/HHPU pumps
When replacing this motor on a Hayward Super II, plan to replace the seal and gasket set at the same time since the wet end has to come apart for the swap.

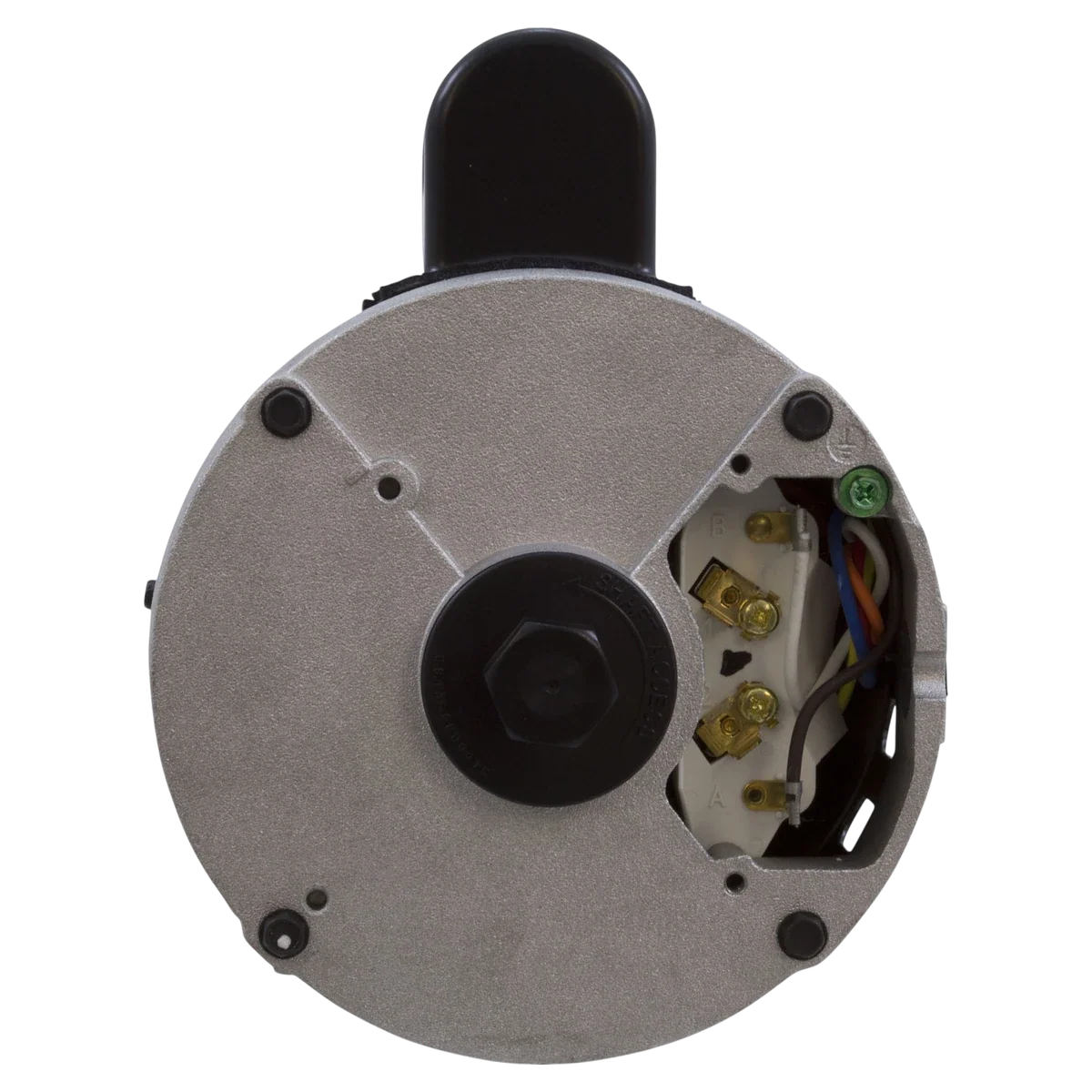

The motor has no built-in voltage switch, so 115V or 230V operation must be selected by wiring rather than a toggle.
This product ships free via FedEx Home Delivery.
Owner's Manuals
Technical Information
Warranty
Find it on the parts diagram
Hayward Northstar SP4000/SP4000X Pump, w/mhbt Unions, 2008+ Replacement Parts
Show it on the diagram →
