Pool Pump Motor 1HP M56J
Pool Pump Motor 1HP M56J is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Pool Pump Motor 1HP M56J

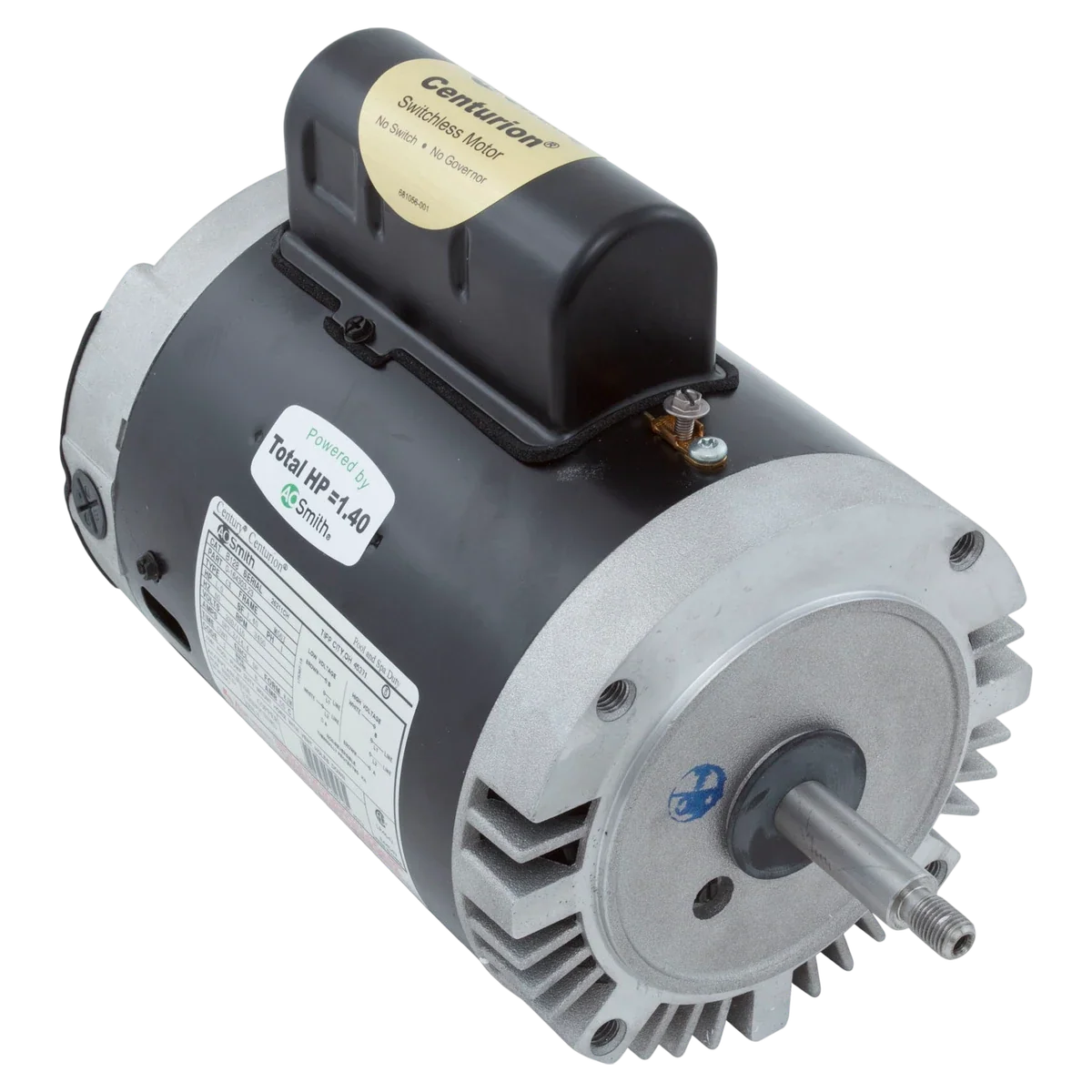

The B128 is a single-speed, single-phase AC induction motor in a C-face 56J frame that drives the impeller on pool and spa pumps. It replaces a failed or worn original motor without swapping the whole pump.
Key Features
- Full-rated, 1.4 service factor
- 303 stainless steel threaded shaft
- 304 stainless bearing at shaft end
- Open Drip Proof enclosure

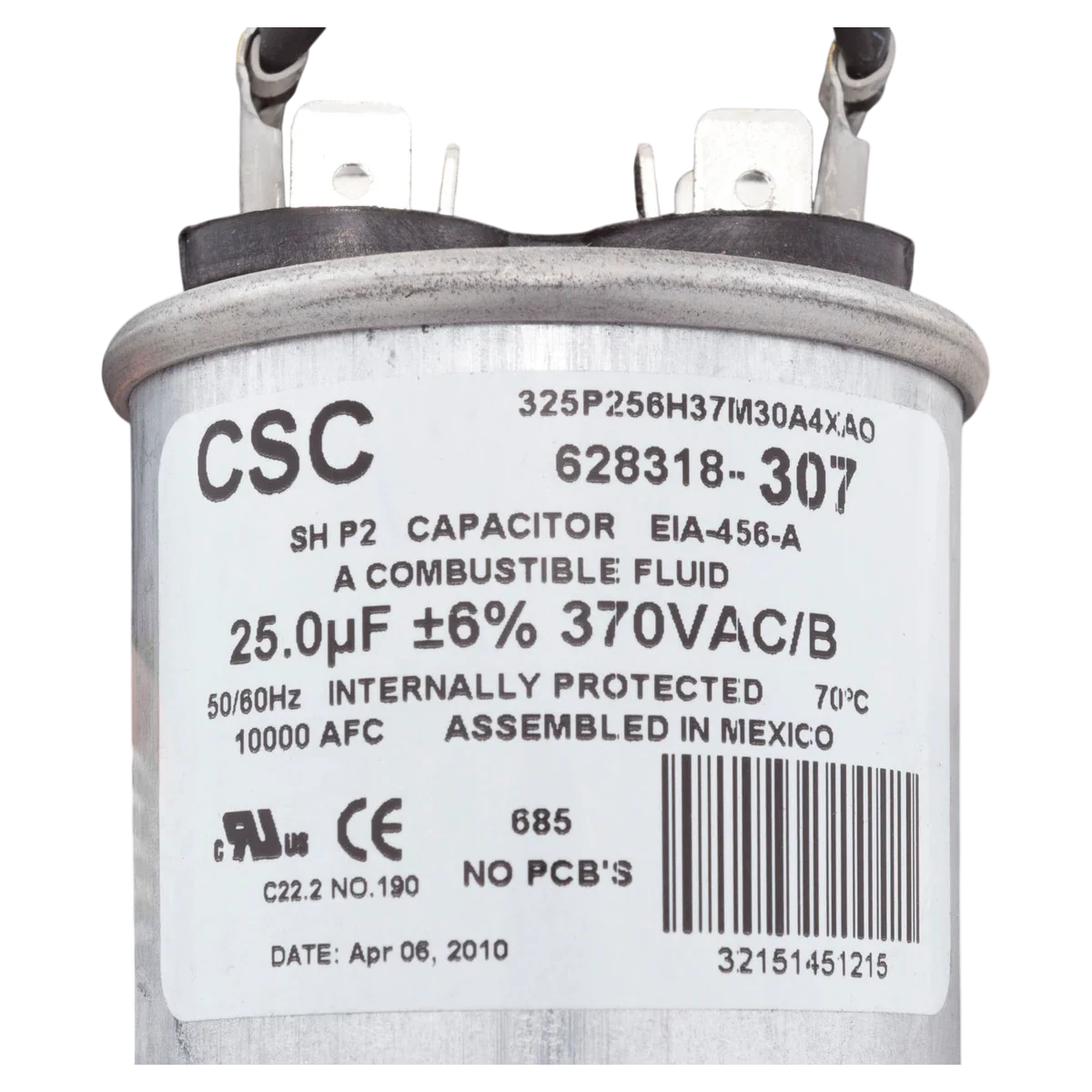

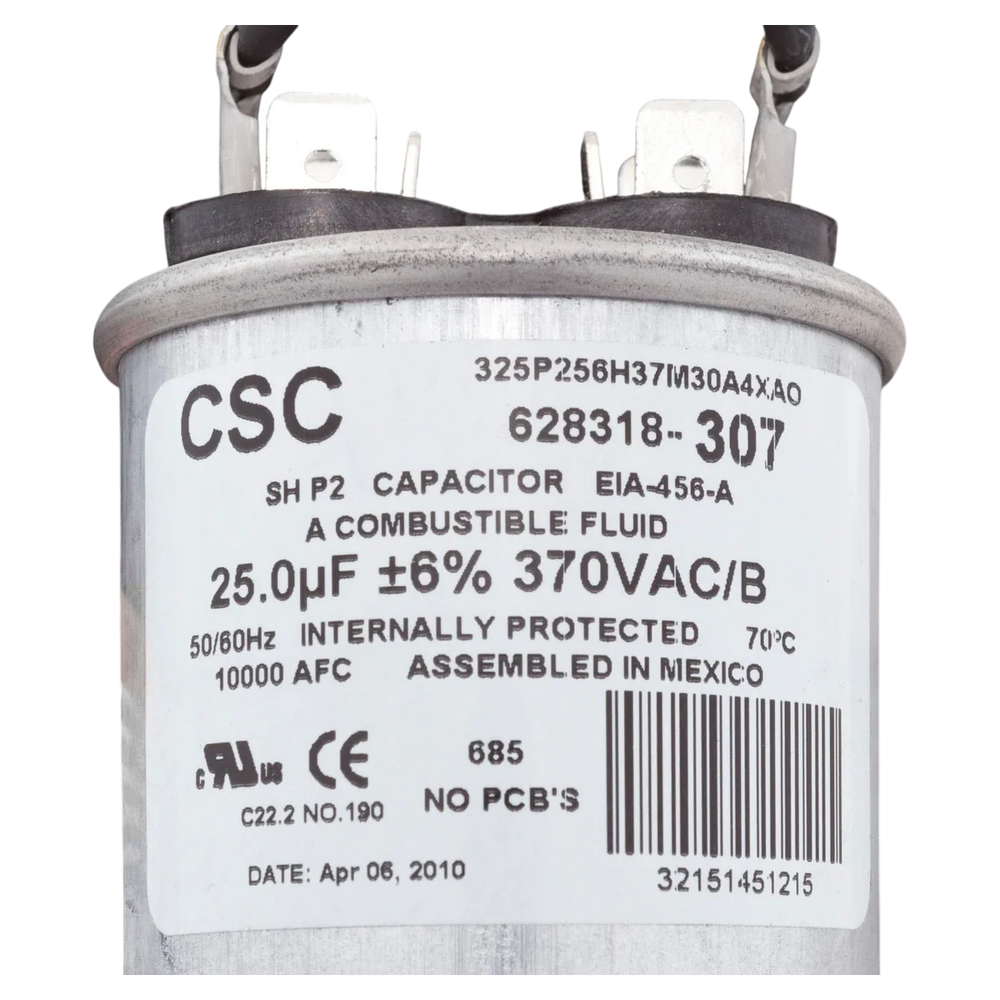

- 25 MF/370V run capacitor on top
Compatibility
- Jandy JHP1.0, JHP/JHPU, HHP/HHPU pumps
- Marlow Argonaut and Mardur pumps
- Waterco HydroStorm, HydroStorm Plus, HydroStar pumps
- Hayward Super II SP3000, Northstar SP4000/SP4000X, Super Pump SP1600X/SP2600/SP2600X
- Jacuzzi Magnum, Magnum Plus, Magnum Force, P/PC/EP, PH/UPH pumps
- Pentair Purex Quietflo/Aquatron, Pent Am American Eagle pumps
Replace the pump's shaft seal when installing this motor; a worn seal lets water reach the bearings and can void the motor warranty.
This motor cannot be sold or installed in New York or California per the manufacturer's distribution policy.
This product ships free via FedEx Home Delivery.
Owner's Manuals
Technical Information
Find it on the parts diagram
Hayward Northstar SP4000/SP4000X Pump, w/mhbt Unions, 2008+ Replacement Parts
Show it on the diagram →
