Pump Motor .75HP 56J Frame

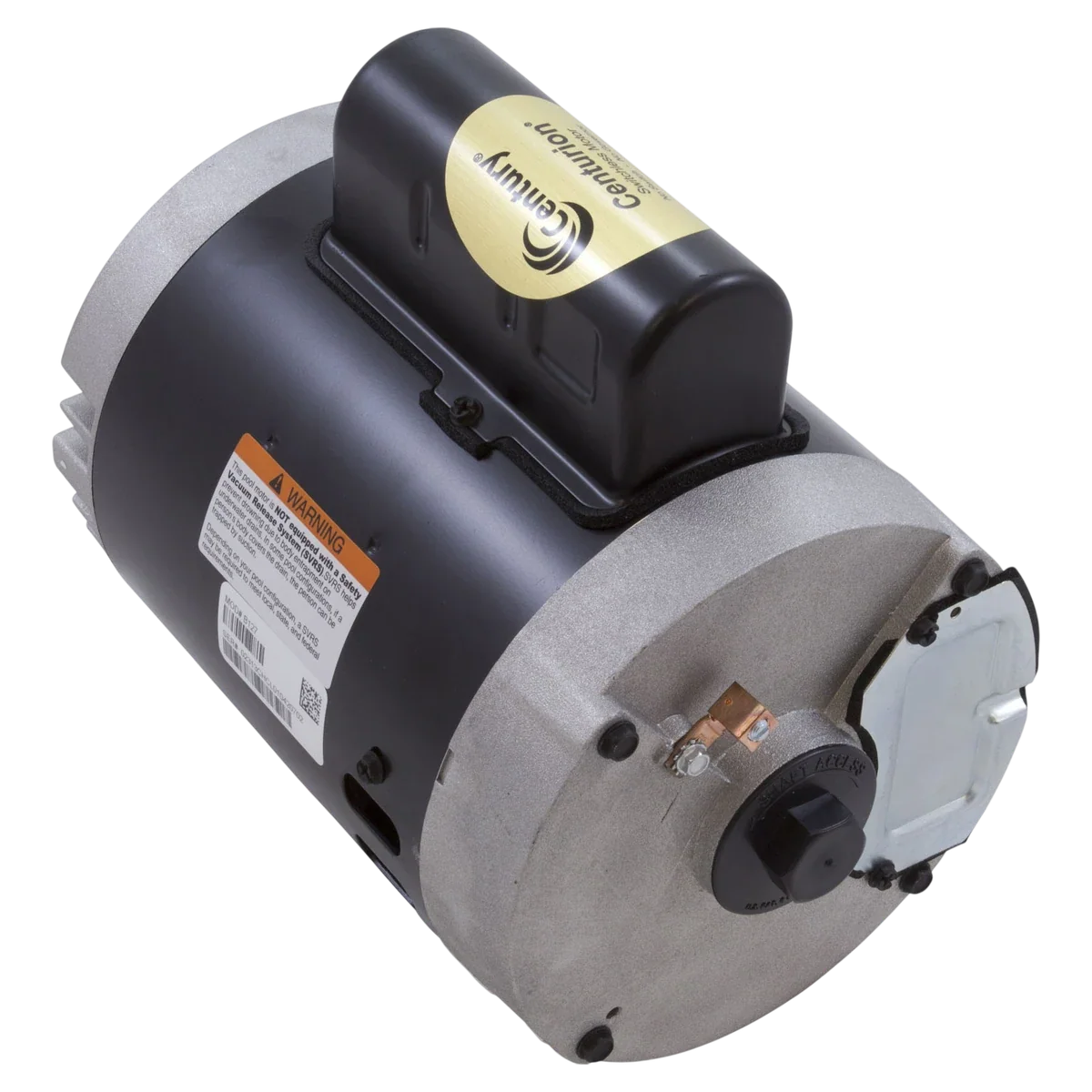

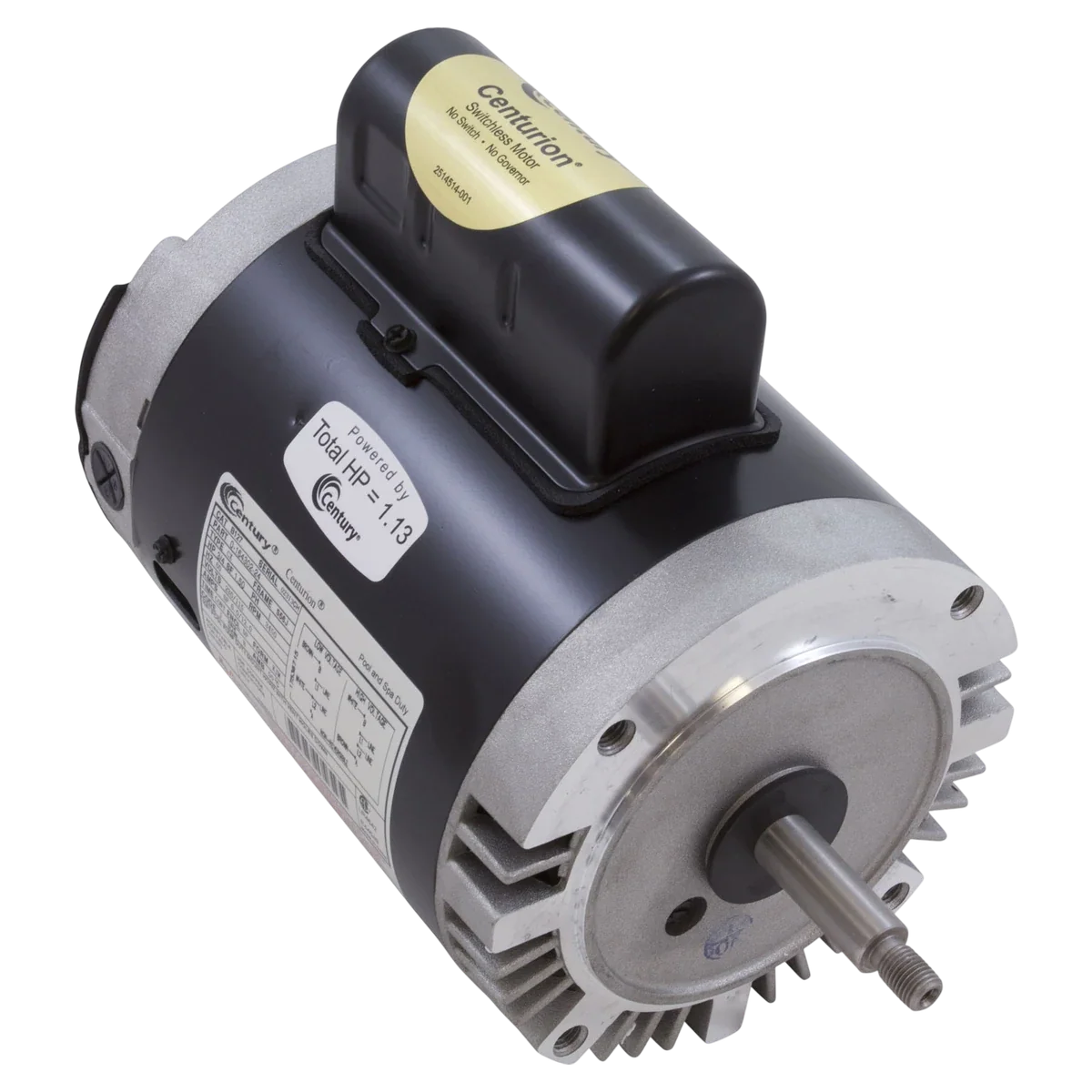

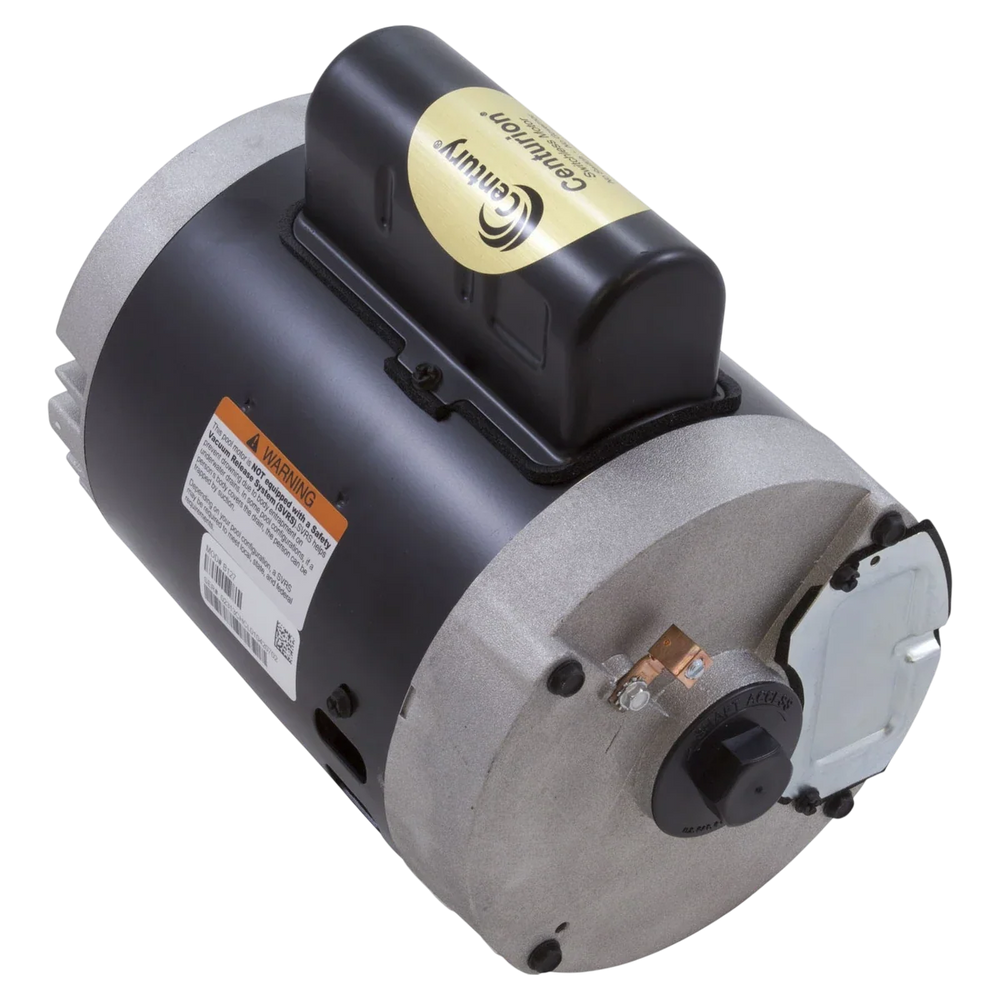

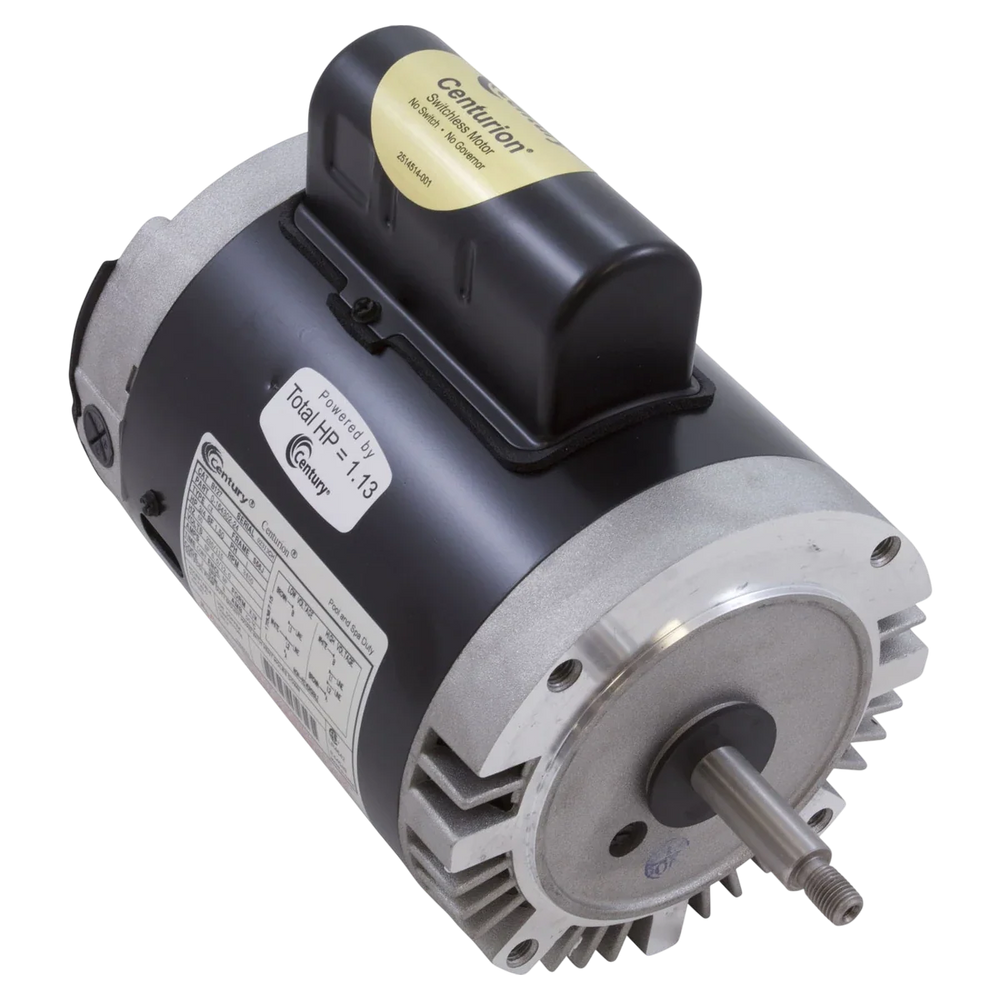

The B127 is a single-speed, C-face pool and spa pump motor that bolts to an existing pump's seal plate. It replaces a failed or worn-out motor while keeping the existing wet end, housing, impeller and plumbing.

Key Features

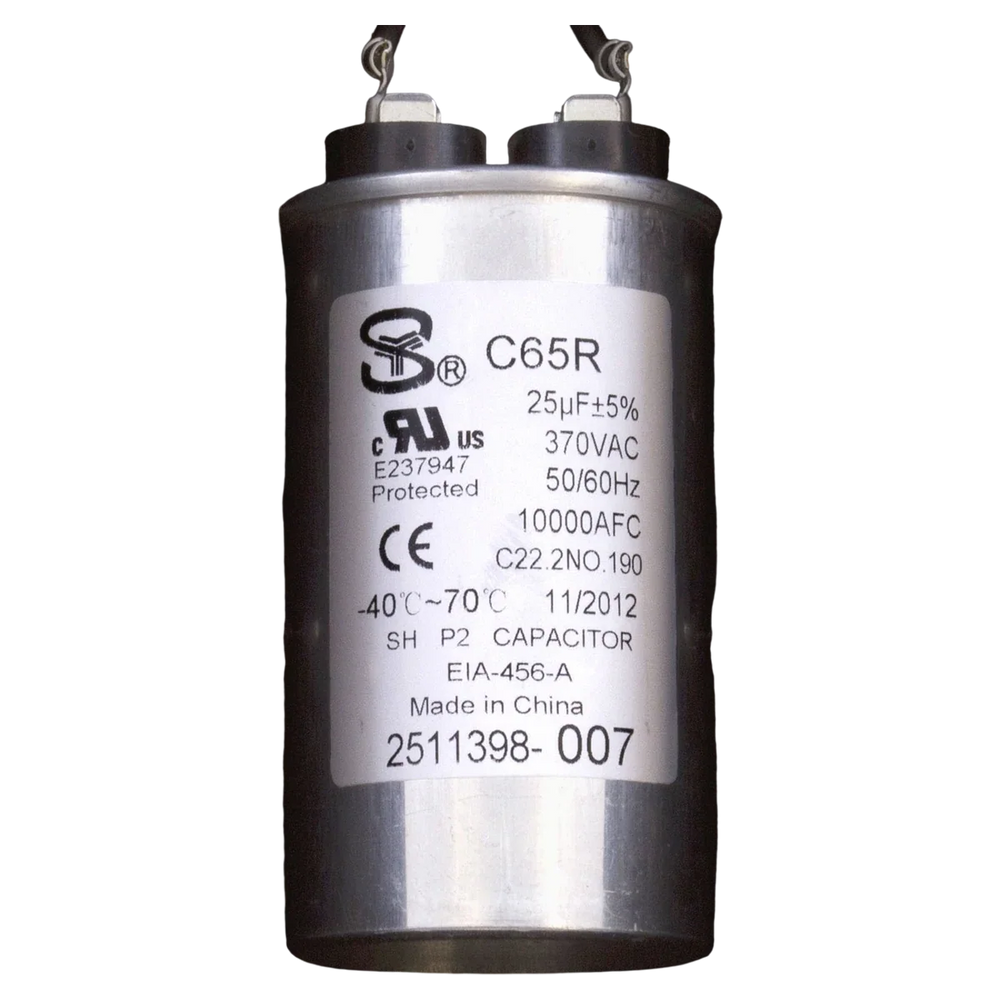

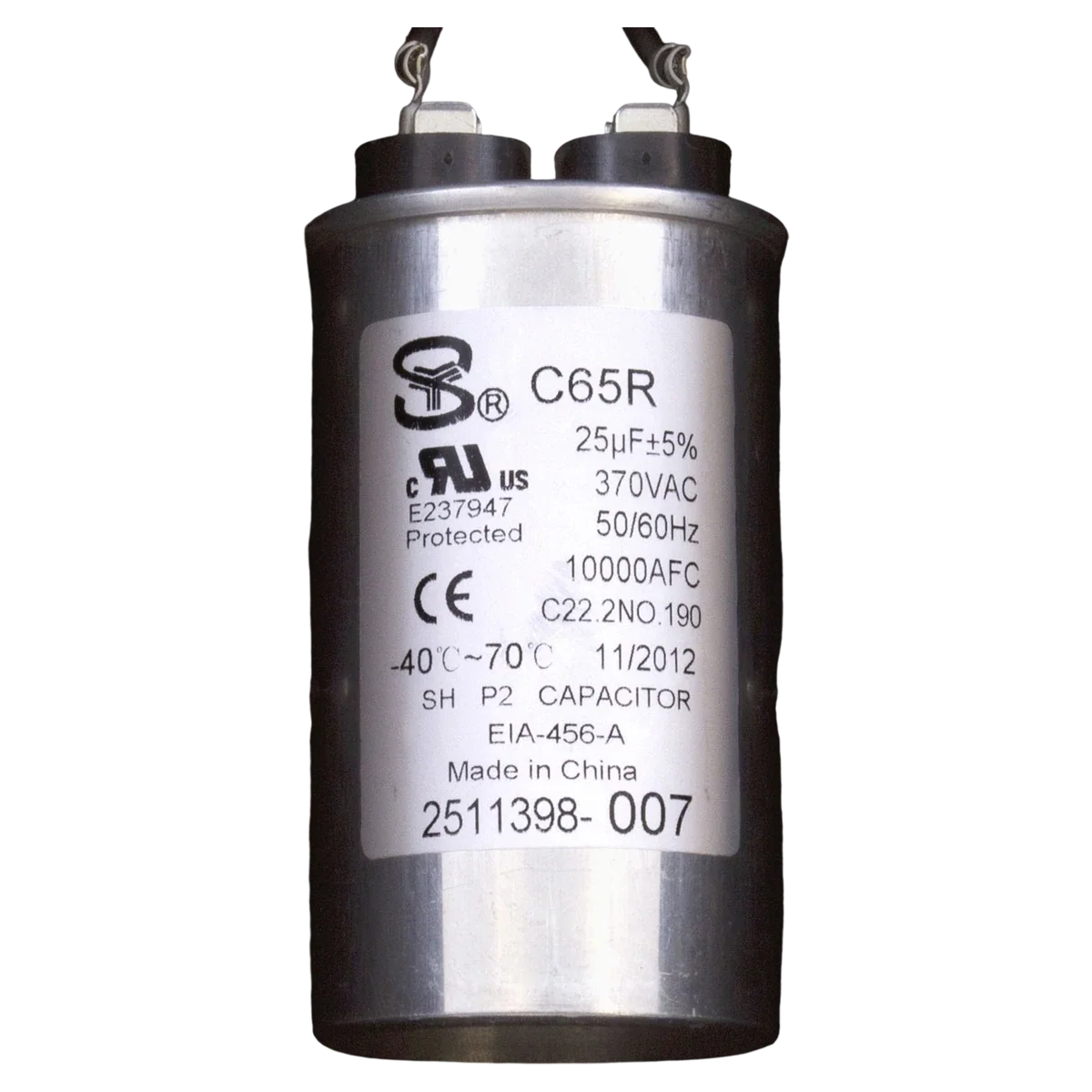

• Permanent split capacitor, switchless design
• Open drip-proof enclosure, auto-reset thermal protection
• 303 stainless steel threaded shaft, ball bearings
• NEMA C aluminum mounting brackets
• UL 1081 design, CSA certified

Compatibility

• Hayward Super Pump, Super II, Northstar and Max-Flo series
• Jacuzzi Magnum, Cygnet, P/PC/EP, PH/UPH and Ring-Lok pumps
• Jandy JHP/JHPU and HHP/HHPU pumps
• Pentair American Eagle and Purex Quietflo/Aquatron pumps
• Waterco HydroStorm and HydroStar, Speck S90/72/EasyFit, Val-Pak/AquaFlo Dominator pumps
• Does not fit square flange wet ends (e.g. 48Y frame square flange pumps)

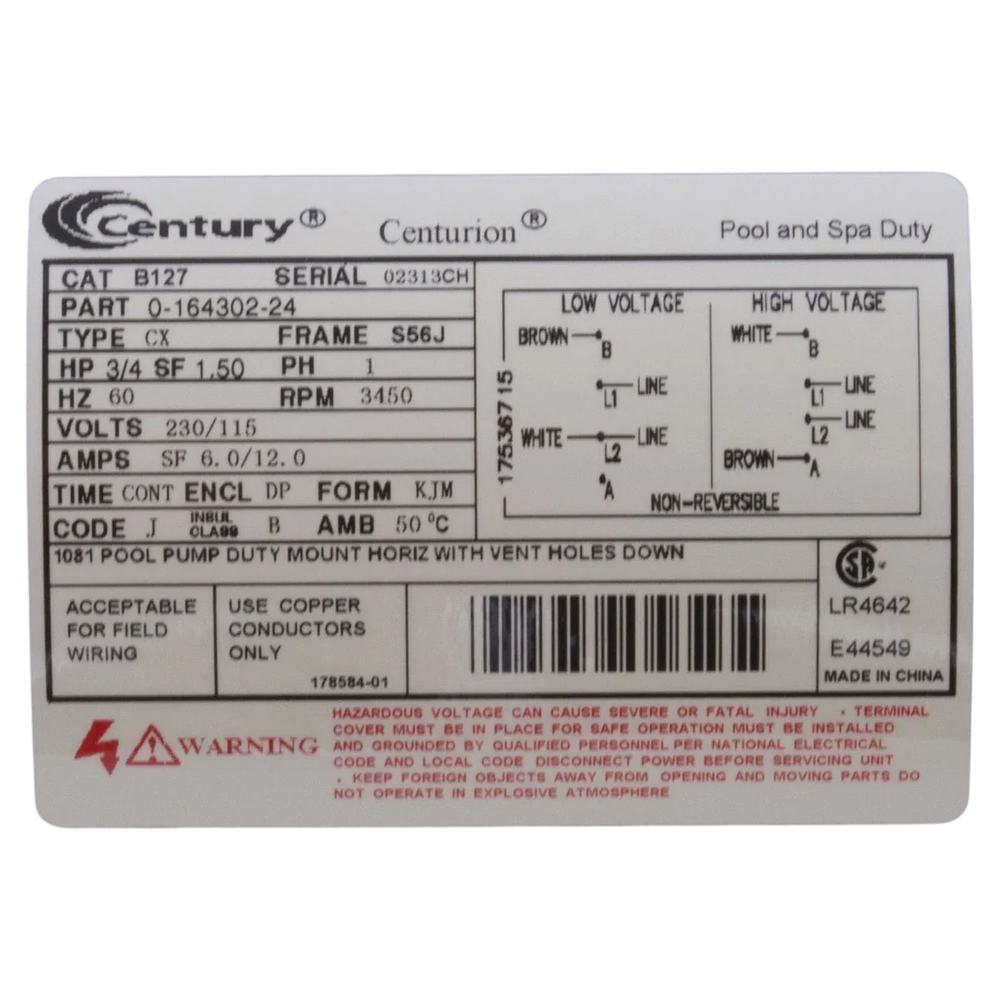

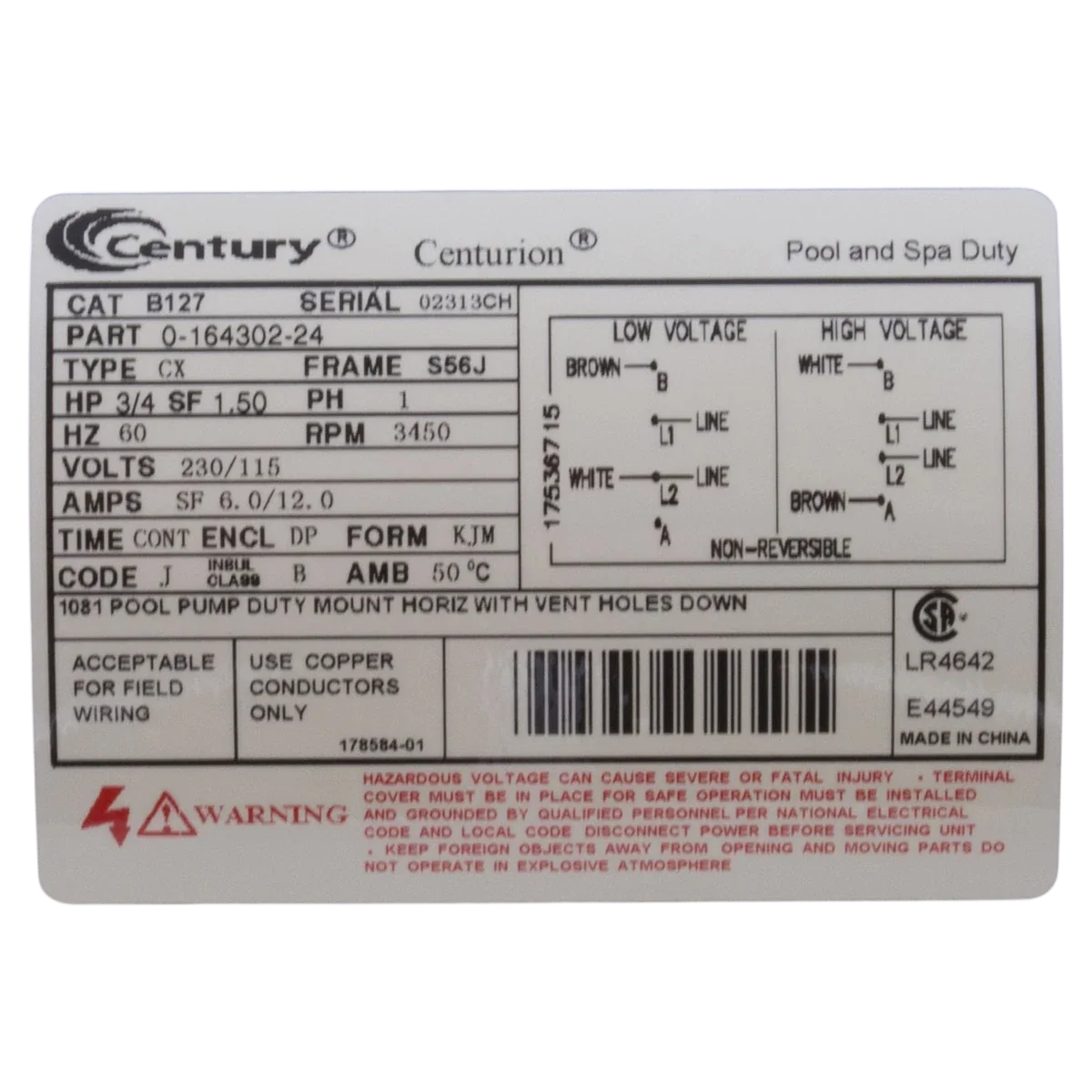

Compare total horsepower (nameplate HP × service factor) rather than nameplate HP alone when matching to an old motor — this one is labeled 0.75 HP but rated 1.1 THP; fit a new shaft seal at the same time since a worn seal is the most common cause of motor failure.

This is a C-face motor and will not mount to a square flange wet end; no adapter exists.
