Carvin Magnum Impeller 05038401R
Carvin | SKU:
05038401R
$6700/ea
Unit price
/
Unavailable
Carvin Magnum Impeller 05038401R is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

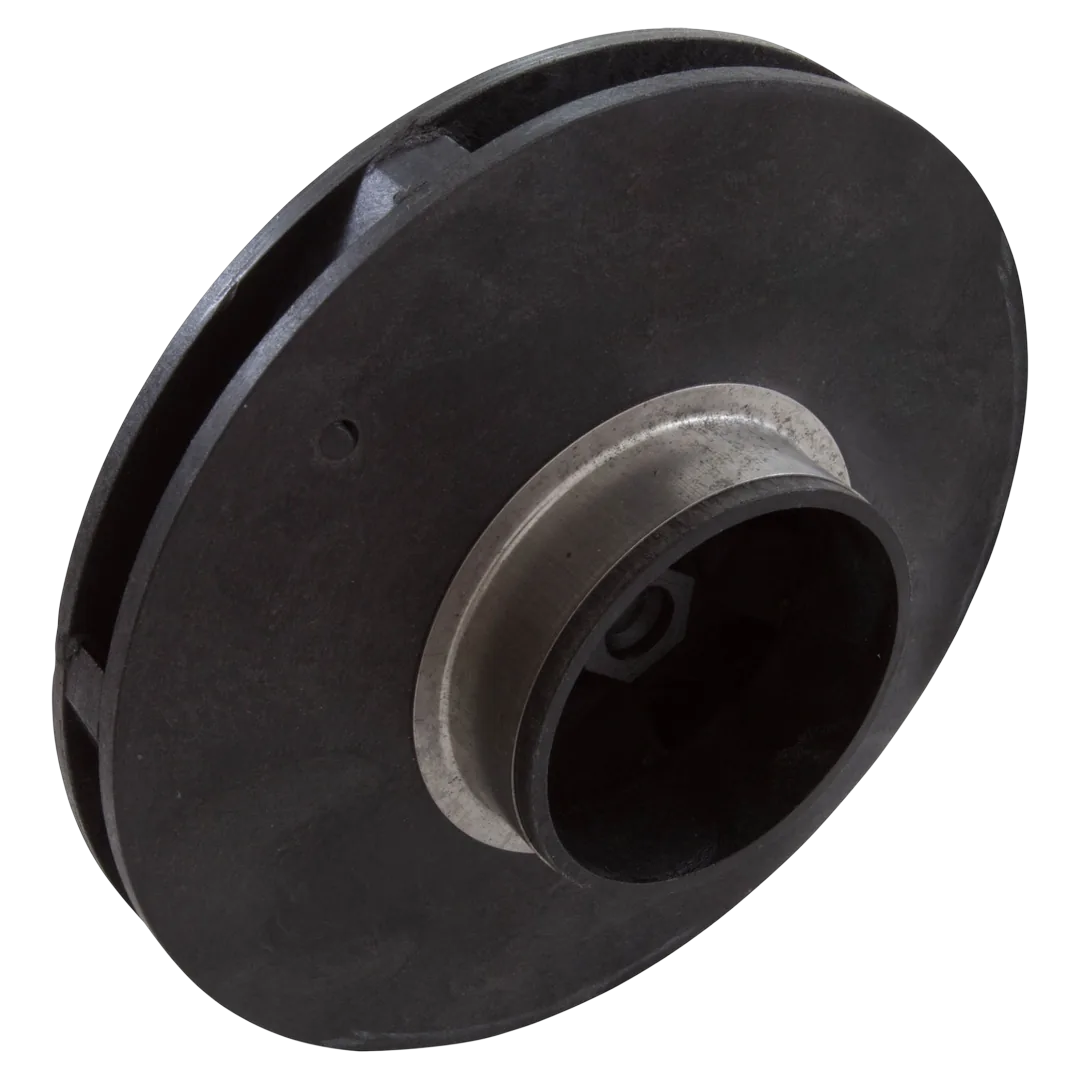

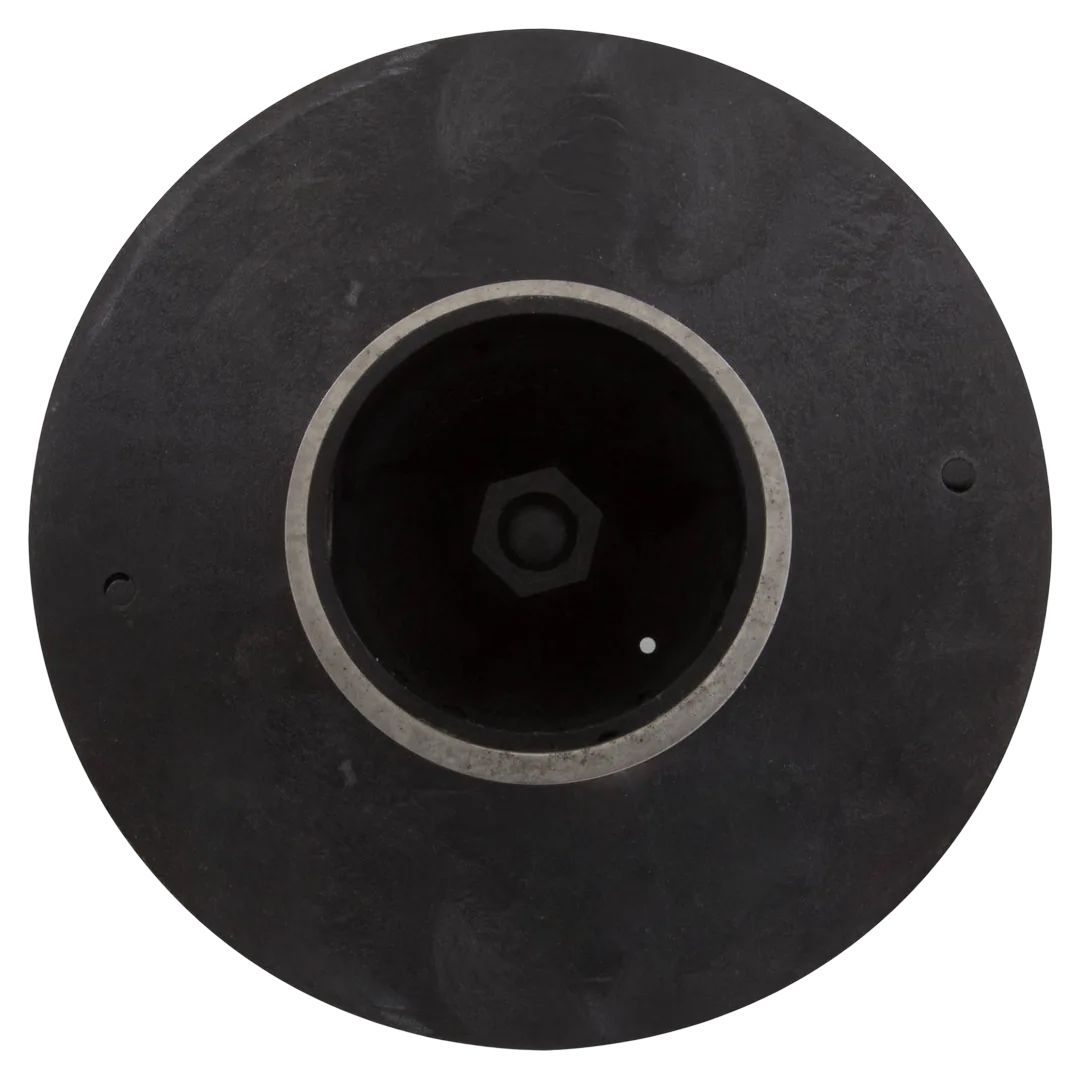

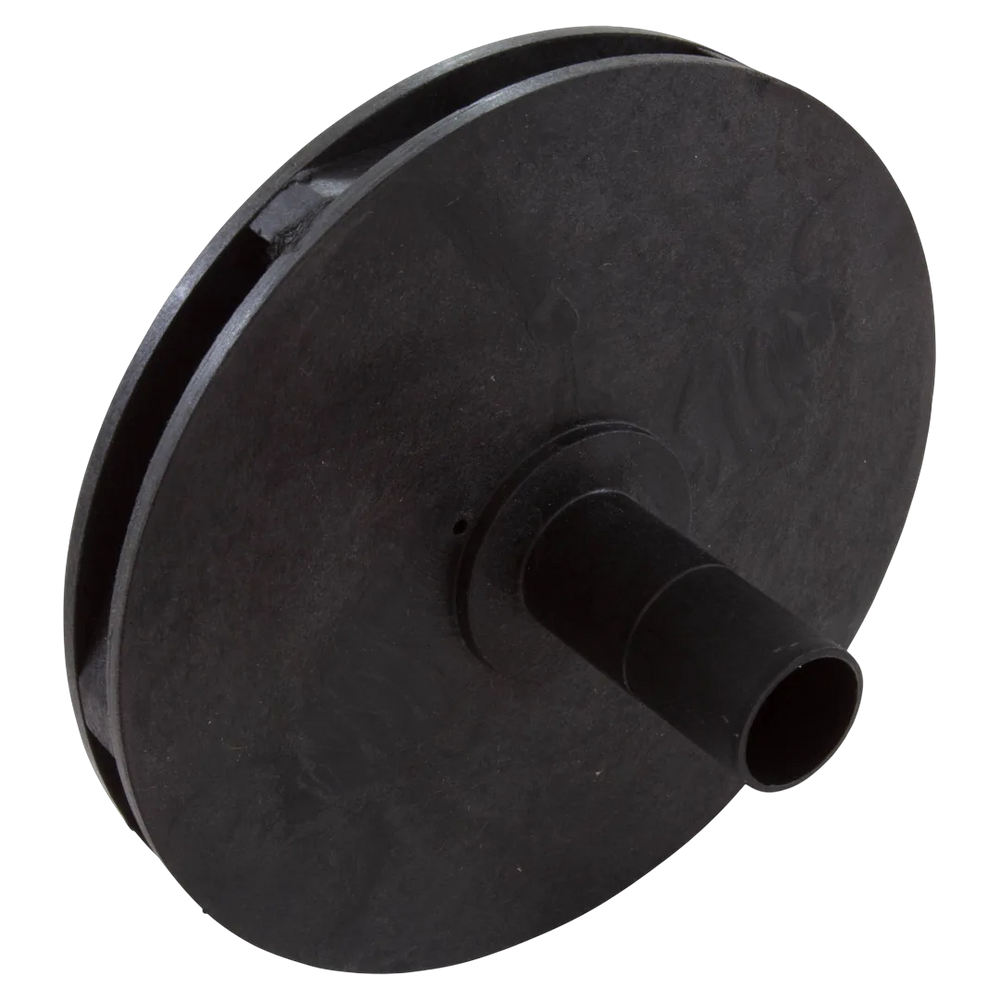

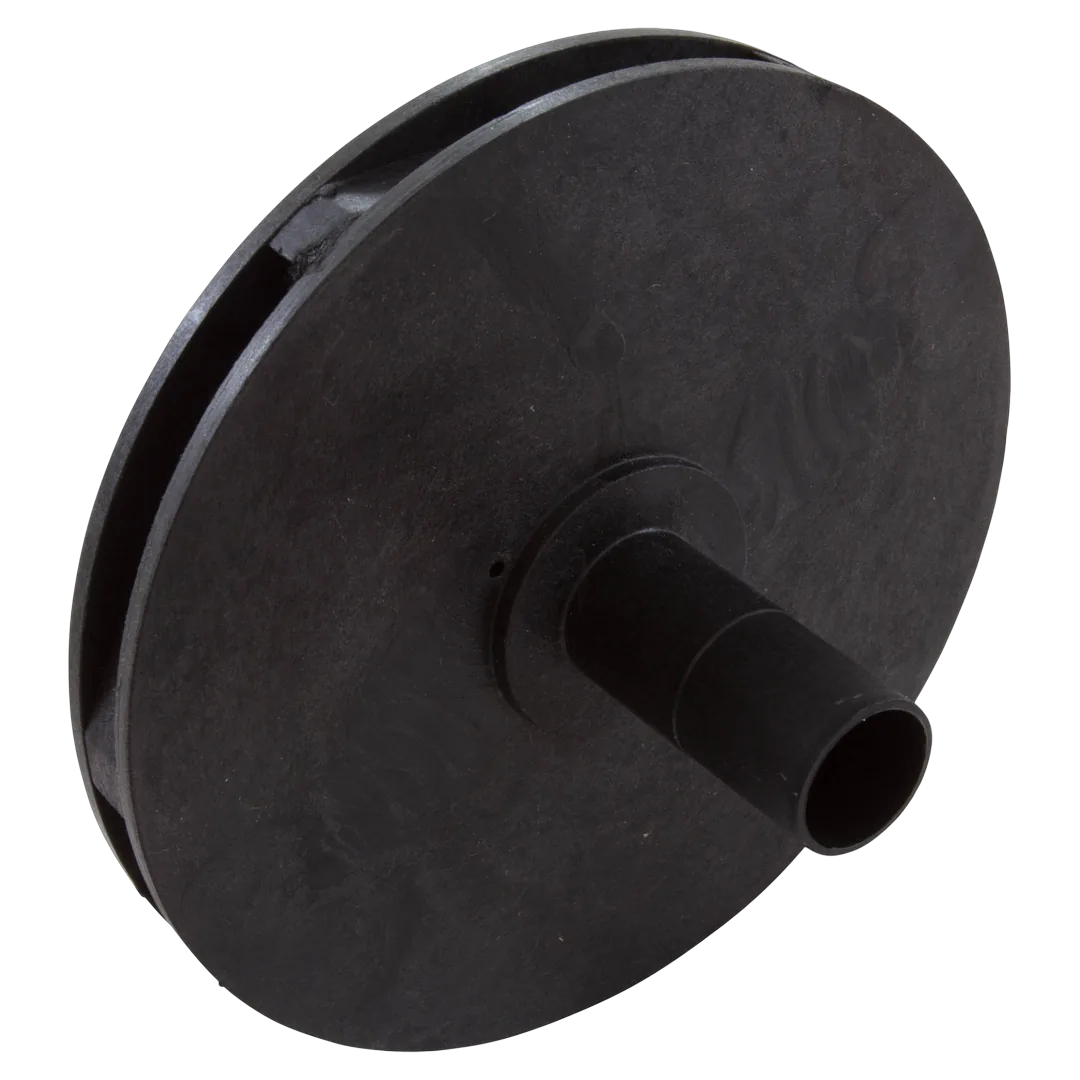

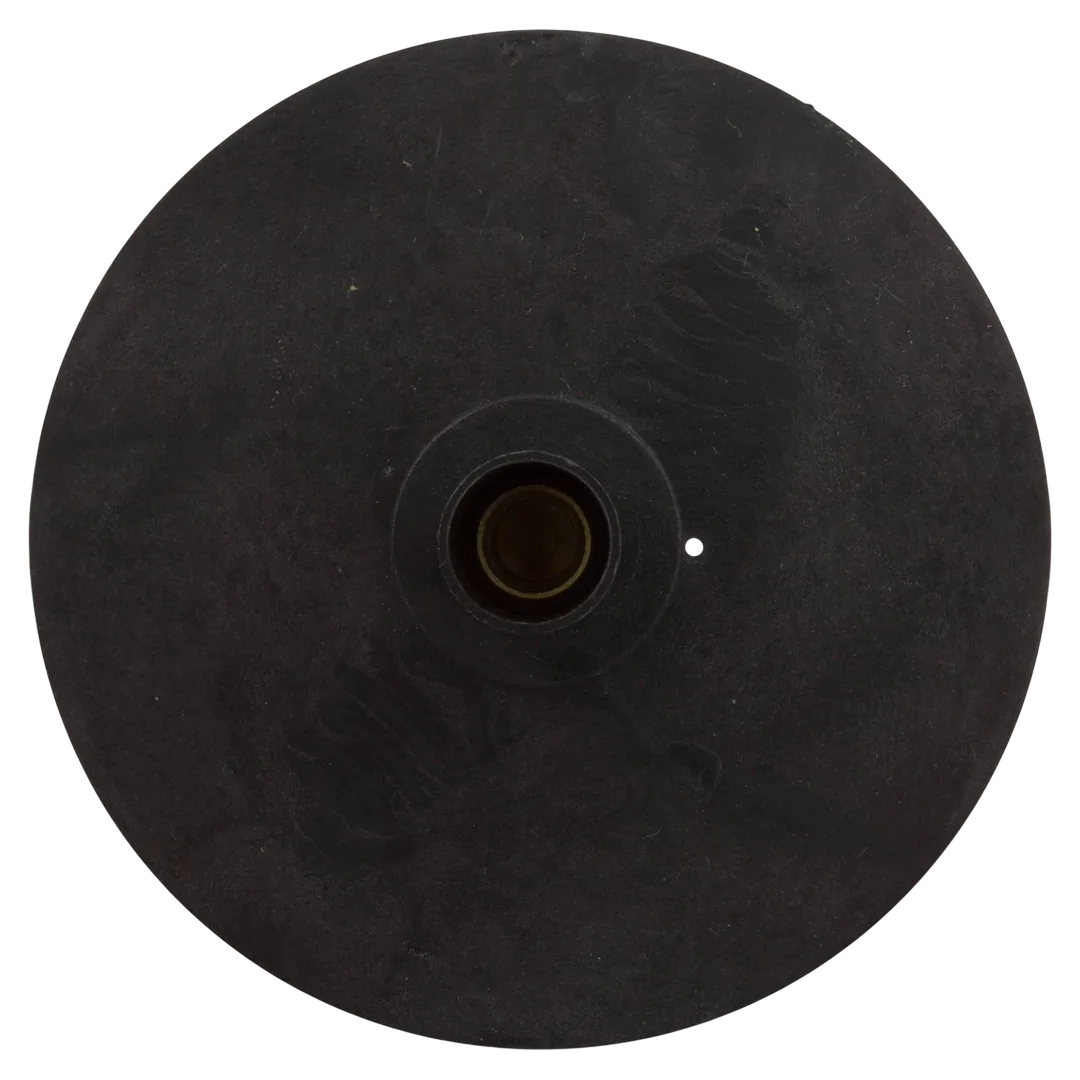

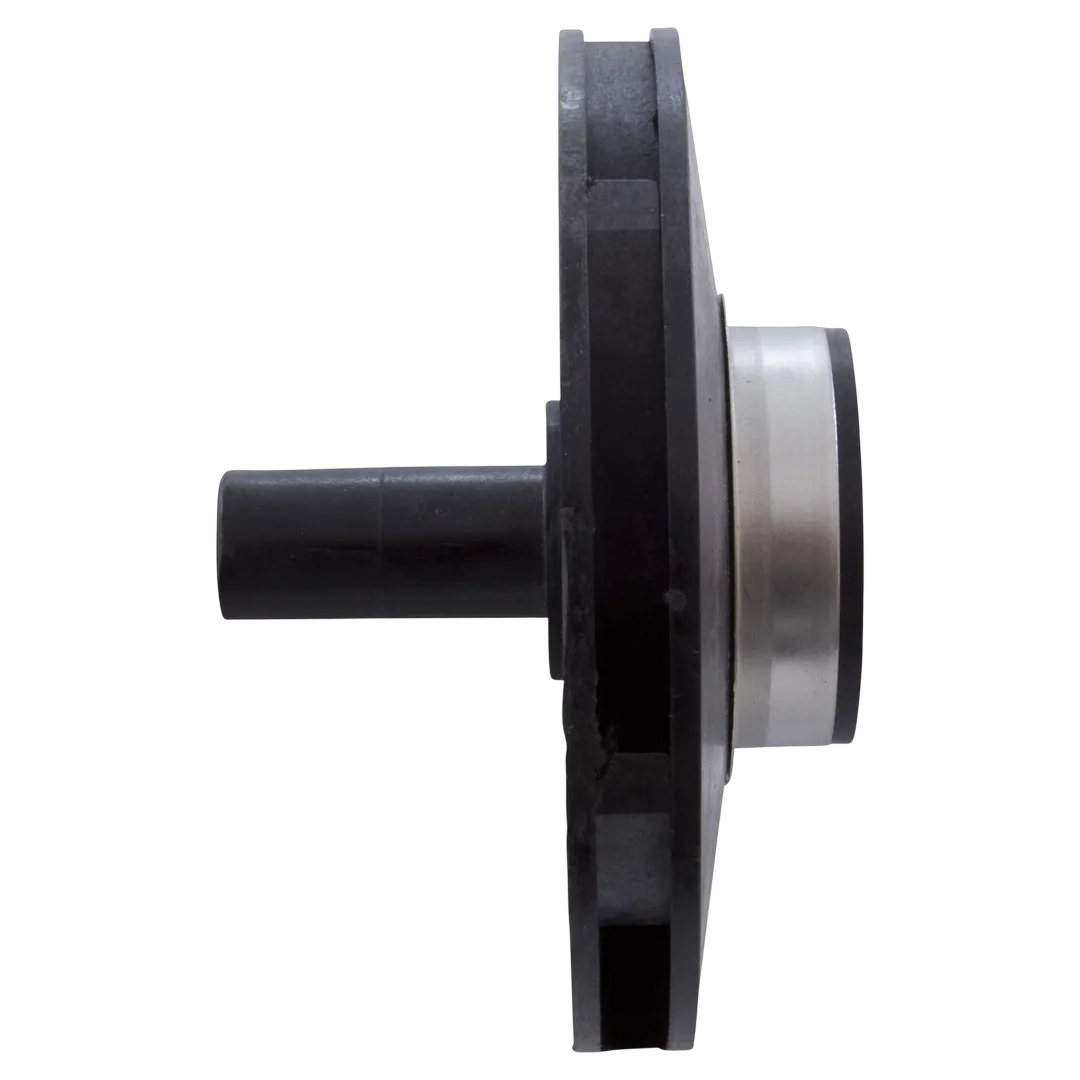

The Carvin 05038401R is an impeller designed for Magnum pool pumps. It is a closed face impeller, operating at 2.0 horsepower, suitable for applications requiring 2 HP full and 2-1/2 uprate after 12/1/04. This component is compatible with Magnum and Magnum Plus pump systems.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Carvin 2 HP Impeller |
| Part Number | 05038401R |
| Part Type | Impeller |
| Compatibility | Magnum, Magnum Plus, Magnum Force, Magnum Force 3 pumps |
| Substitute Part Numbers | 35-105-1088, 05-0384-01-R, 05-0384-01R, 314956, 5064-133 |
| Includes | Impeller only shaft seal sold separately |
| Material | Thermoplastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4-11/16 inches |
| Vane Width ID | 5/16 inch |
| Eye Diameter OD | 2 inches |
| Eye Length | 9/16 inch |
| Impeller Width OD | 9/16 inch |
| Seal Seat Depth | 1/8 inch |
| Shaft Length | 1-9/16 inches |
| Shaft Diameter OD | 3/4 inch |
| Seal Seat Diameter OD | 1-3/8 inches |
| Shipping Dimensions | 5 x 5 x 1 inch |
| Product Weight | 0.25 pound |
