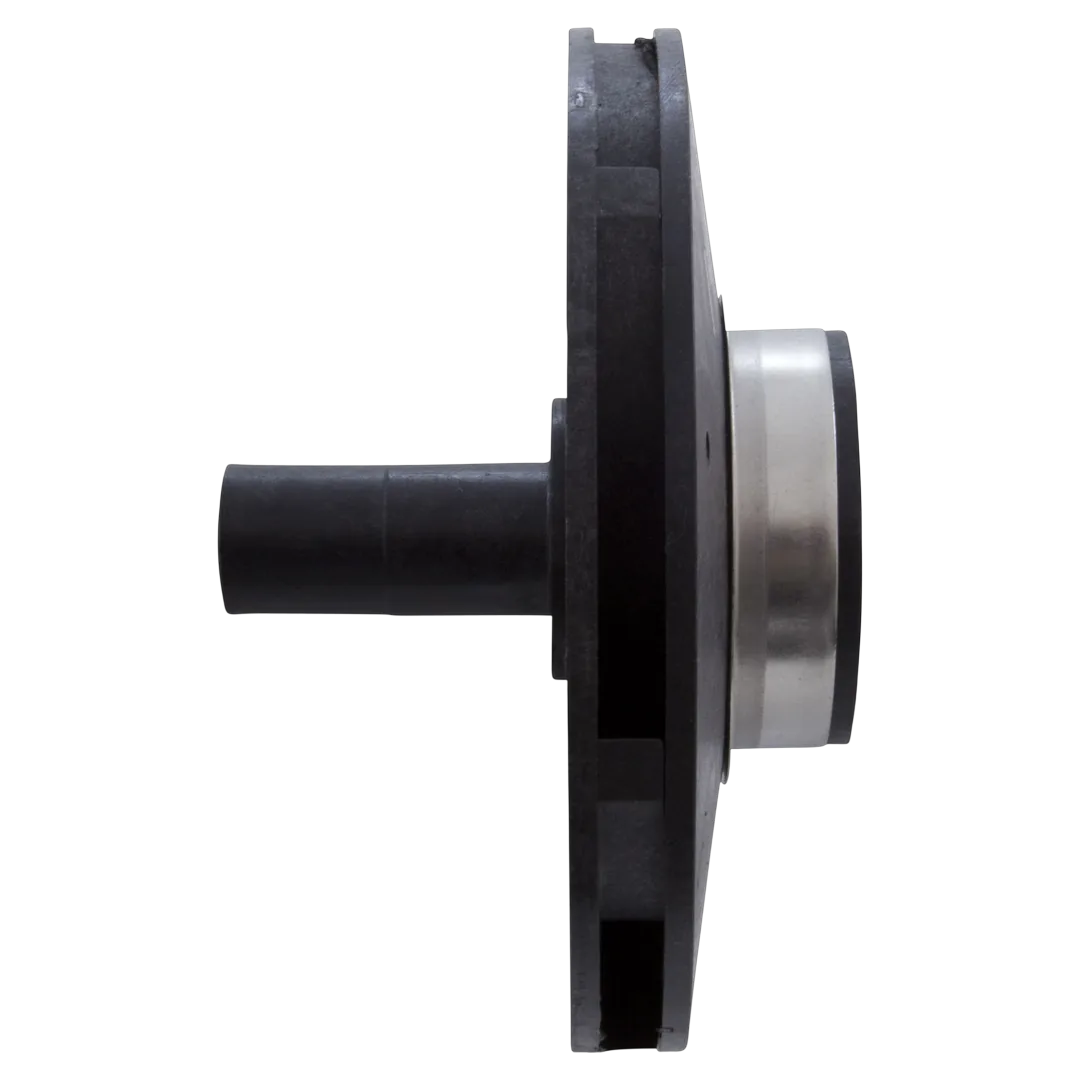

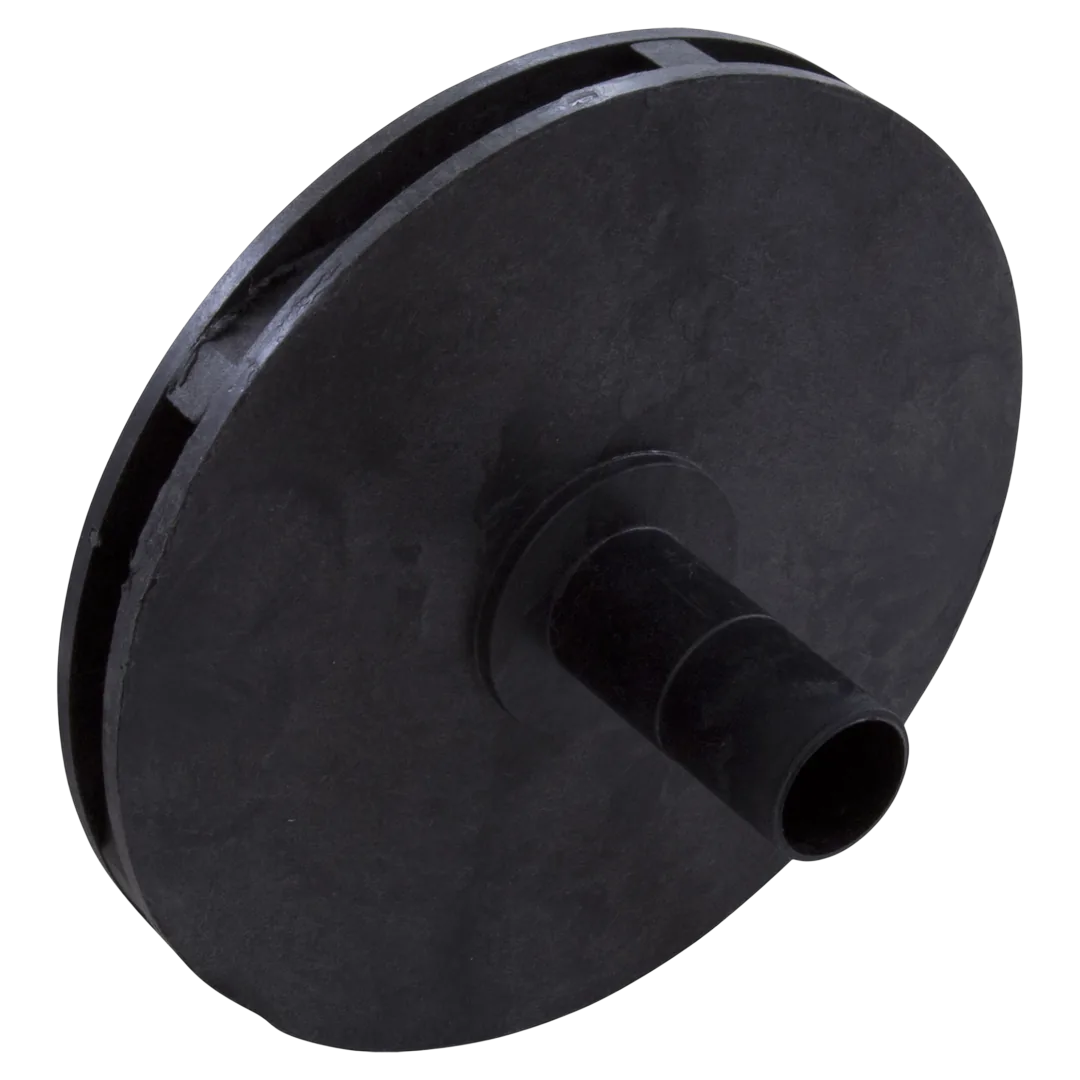

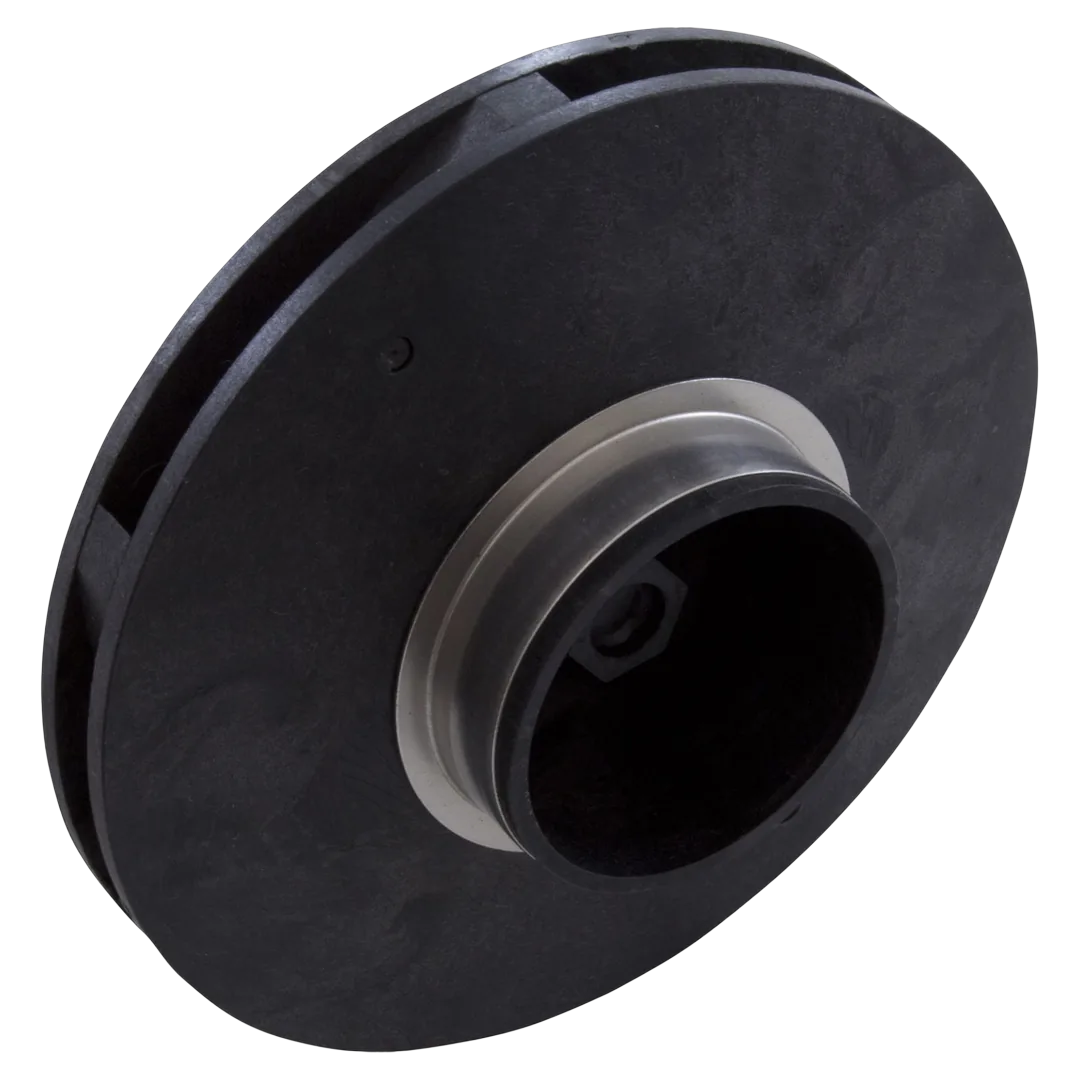

Carvin Magnum Impeller 05038302R
Carvin | SKU:
05038302R
$6700/ea
Unit price
/
Unavailable
Carvin Magnum Impeller 05038302R is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Carvin 05038302R is an impeller designed for the Carvin Magnum pool pump. It features a closed-face configuration and is crafted from durable thermoplastic material. This impeller is suitable for pumps rated at 1.5 horsepower and uprated to 2.0 horsepower for models manufactured after December 1, 2004.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Impeller, Carvin Magnum, 1.5ohp/2.0thp, 04+ |
| Part Number | 05038302R |
| Part Type | Impeller |
| Compatibility | Jacuzzi Magnum, Magnum Plus, Magnum Force, Magnum Force 3 pumps |
| Substitute Part Numbers | 05-0383-02-R, 35-105-1087 |
| Includes | Impeller only |
| Material | Corrosion-Resistant Thermoplastic |
| Impeller Diameter | 4.875 inch |
| Intake Diameter | 2 inch |
| Number of Vanes | 6 |
| Outside Edge Thickness | 0.5625 inch |
| Shipping Dimensions | 7.15 x 5.5 x 3.35 inch |
| Product Weight | 0.36 pound |
