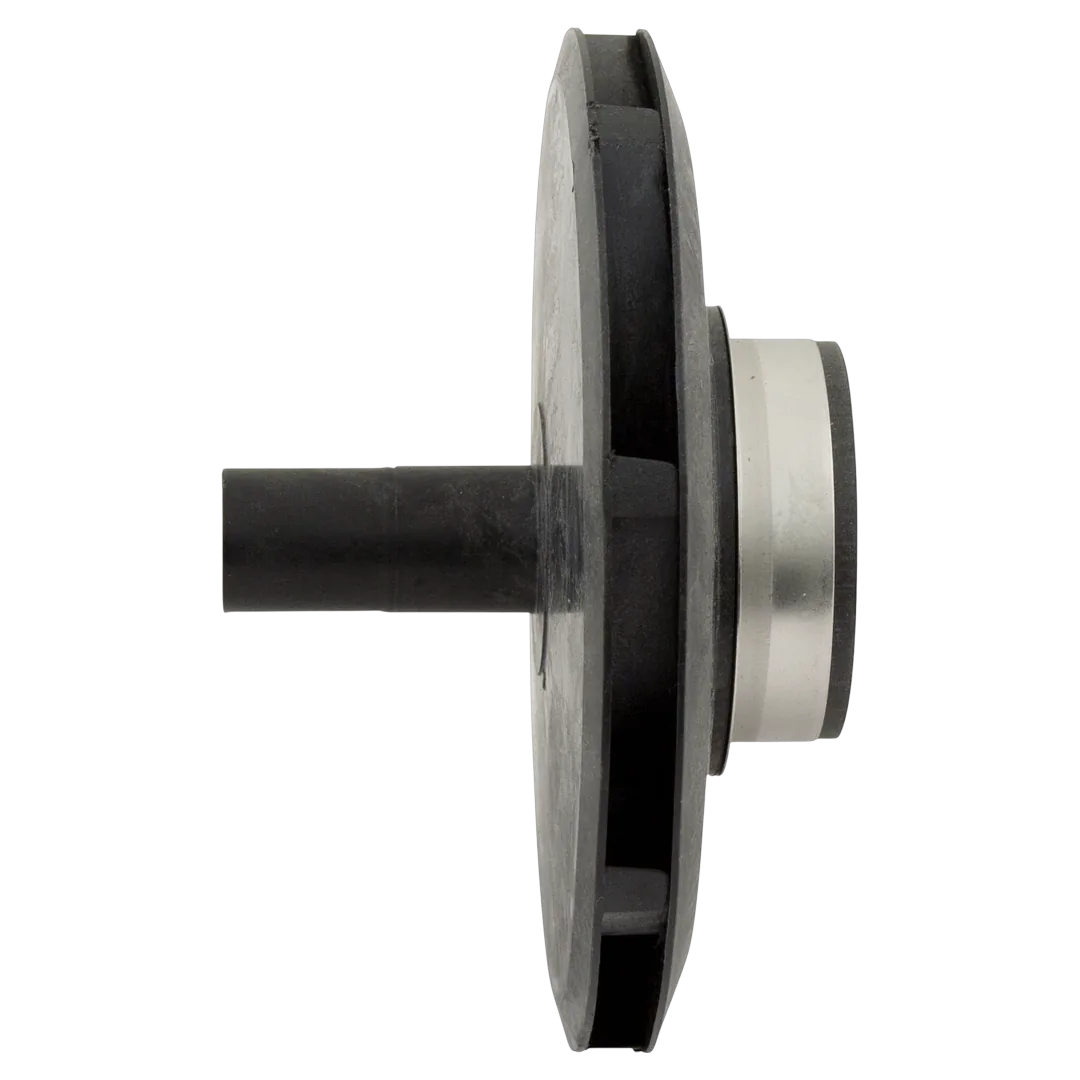

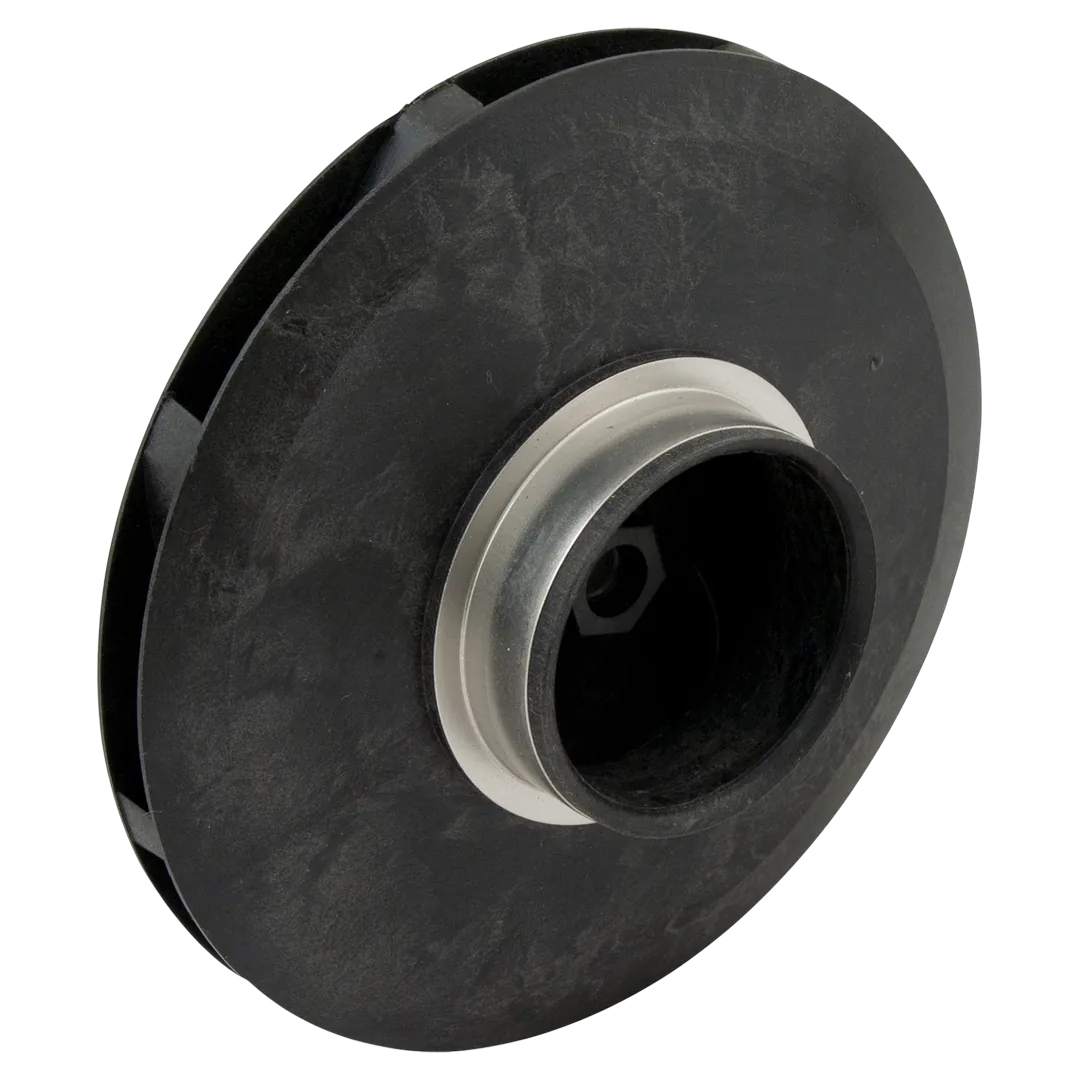

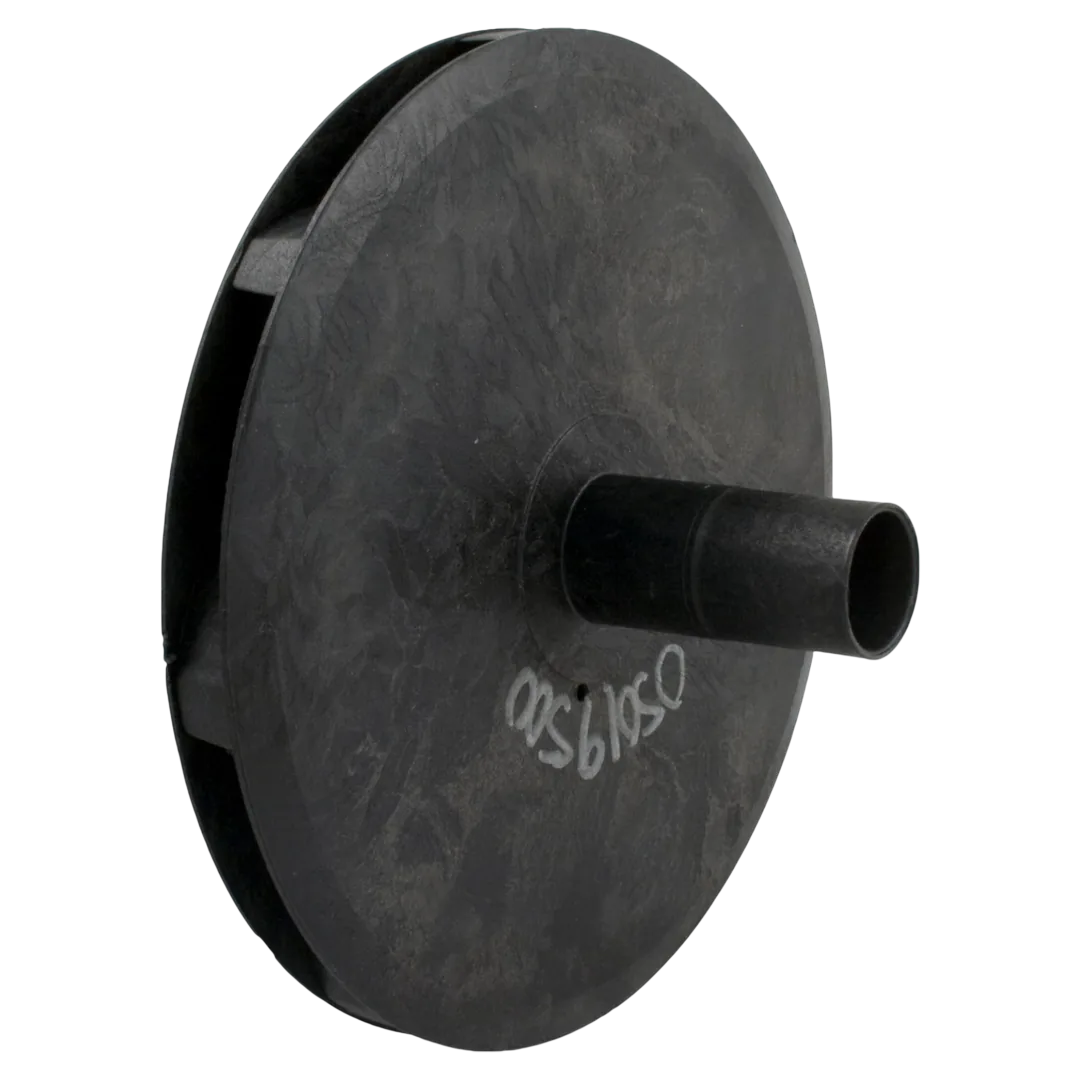

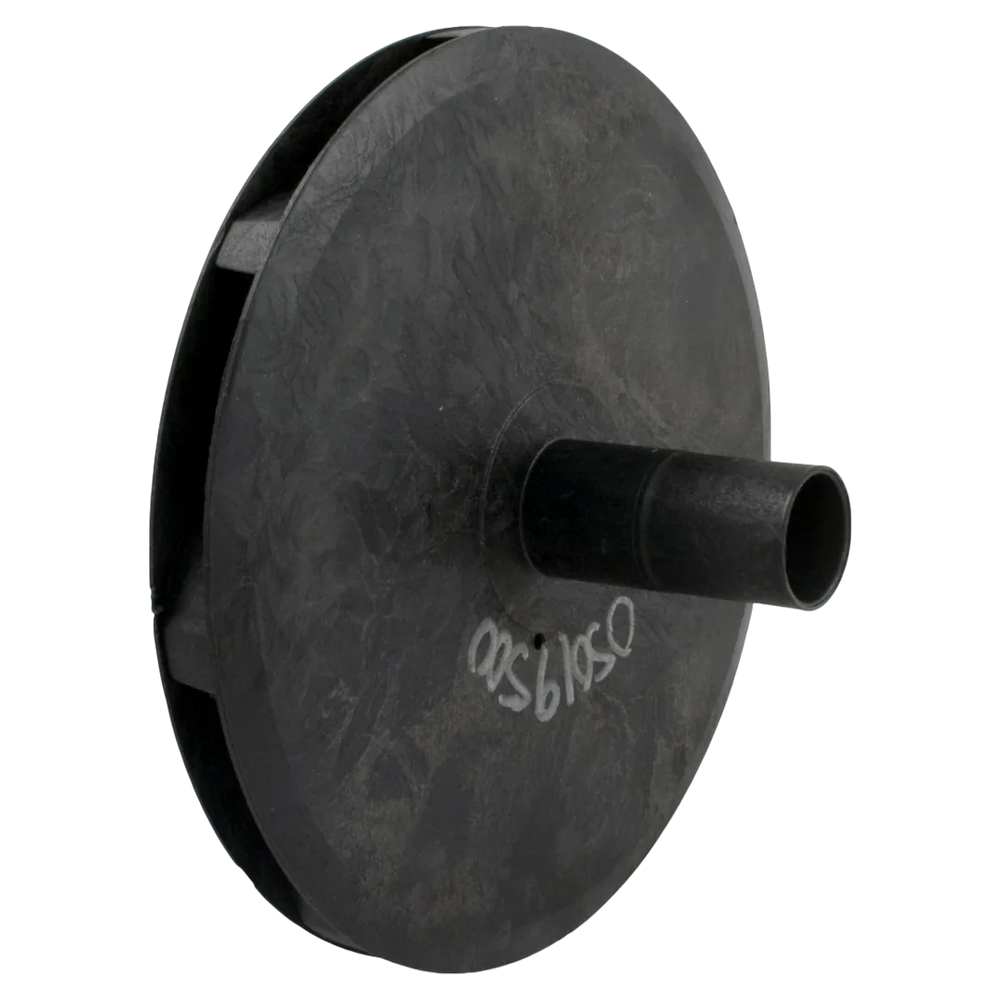

Carvin Magnum 3HP Impeller
Carvin | SKU:
05-0195-00-R
$6400/ea
Unit price
/
Unavailable
Carvin Magnum 3HP Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Carvin 05-0195-00-R is a closed face impeller specifically designed for the Magnum and Magnum Force series pool pumps. It is engineered for a three horsepower pump and measures five and one-half inches in diameter. This impeller is compatible with all dates of Carvin Magnum and Magnum Force 3.0 THP pool pump models.
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 05-0195-00-R |
| Part Type | Impeller |
| Compatibility | Carvin Magnum, Magnum Force, Magnum Force 3, Magnum Plus, P Series, PC Series, R Series, RC Series, UP Series, UPH Series |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter | 4.1875 inches |
| Vane Width | 0.125 inch |
| Eye Diameter | 2 inches |
| Eye Length | 0.625 inch |
| Impeller Width | 0.5 inch |
| Seal Seat Depth | 0.0625 inch |
| Shaft Length | 1.5625 inches |
| Shaft Diameter | 0.75 inch |
| Seal Seat Diameter | 1.375 inches |
