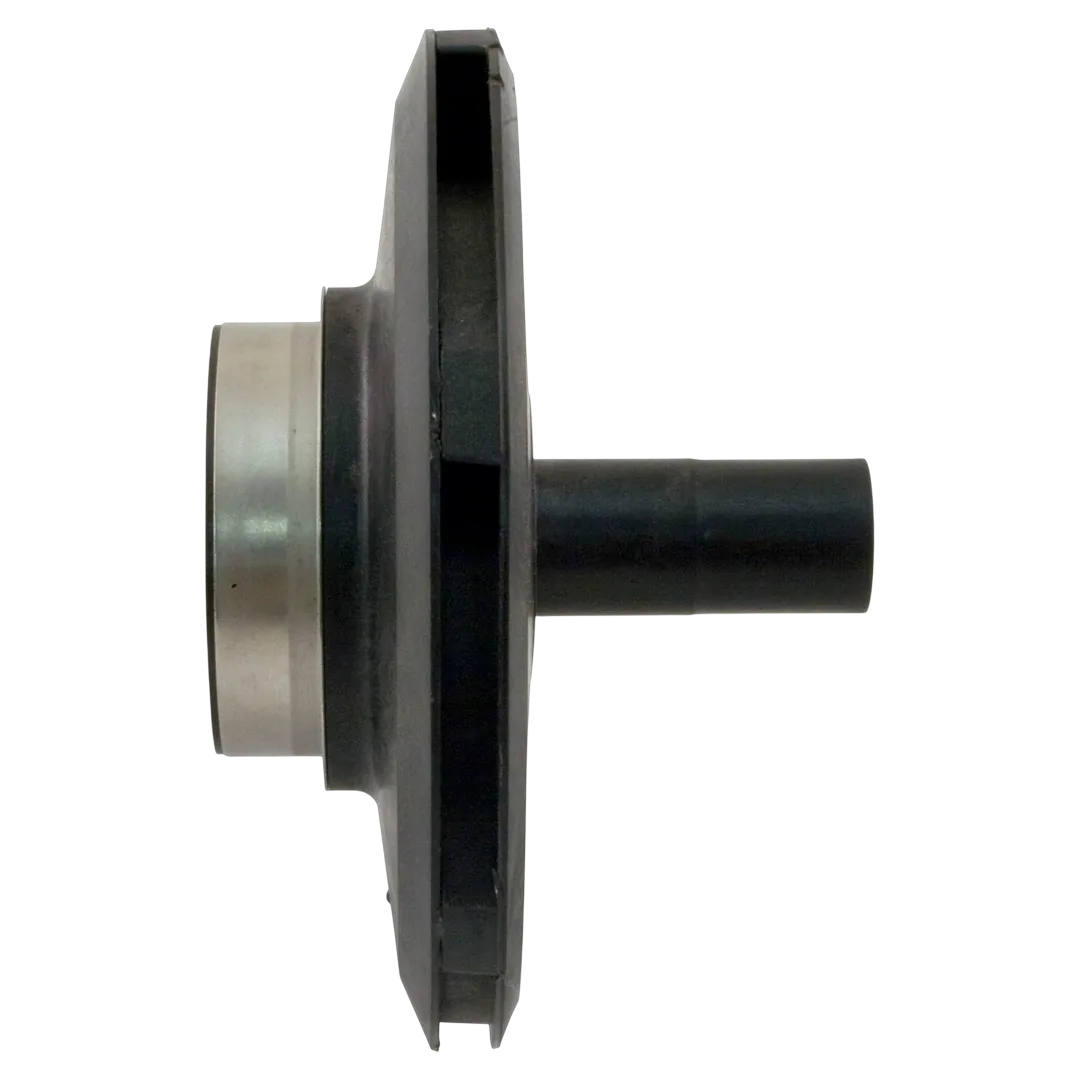

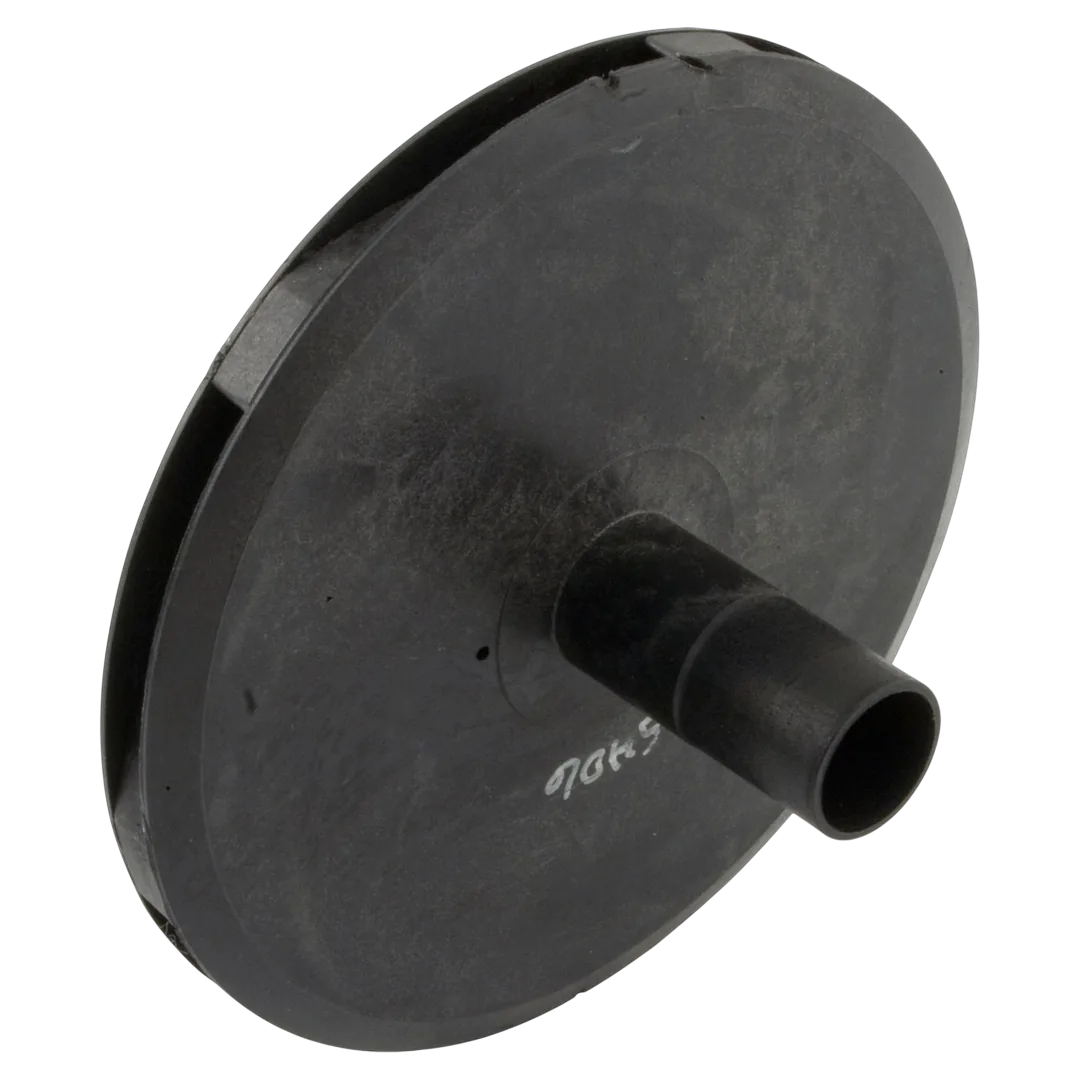

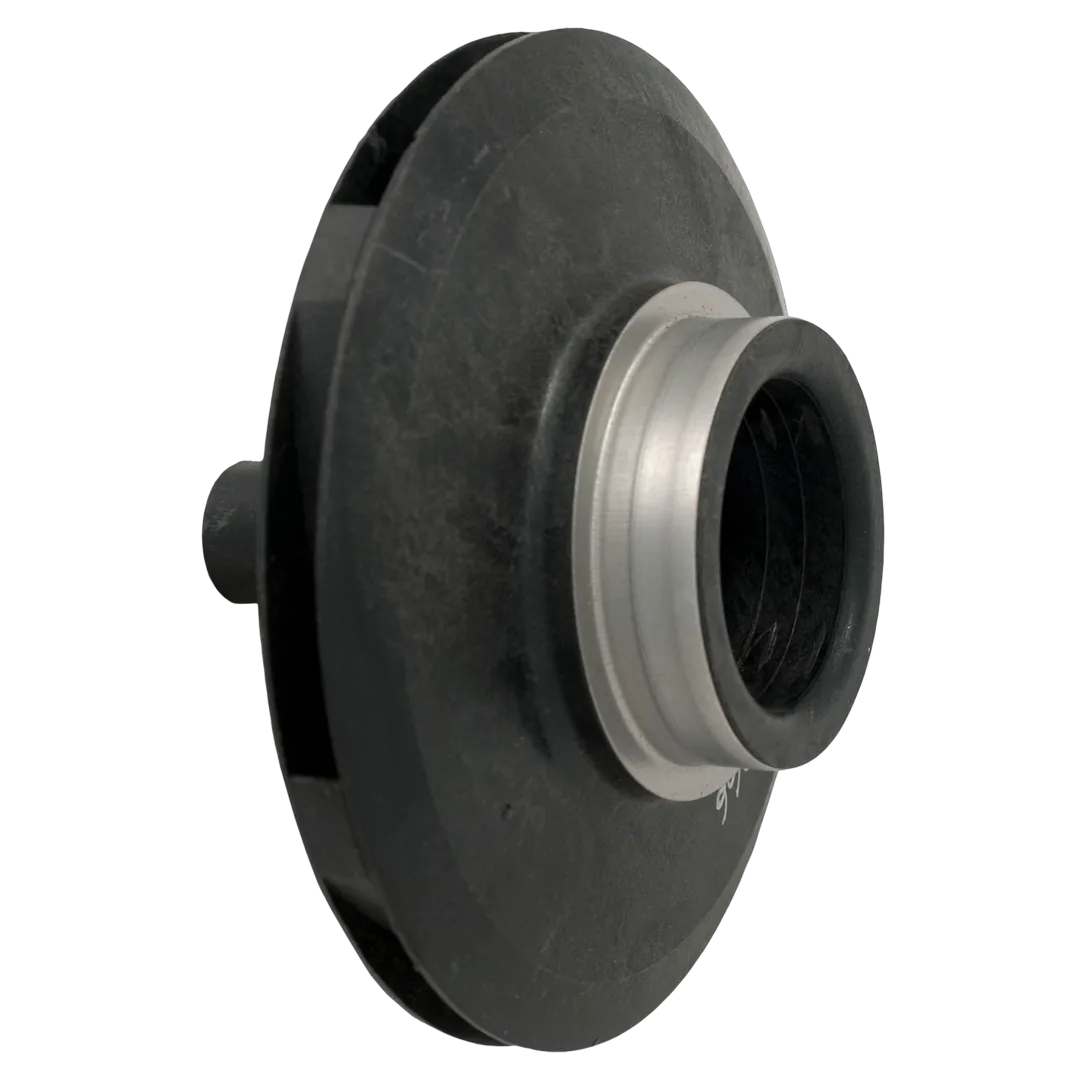

Carvin Magnum 1 HP Impeller
Carvin | SKU:
05-3854-06-R
$6400/ea
Unit price
/
Unavailable
Carvin Magnum 1 HP Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Carvin 05-3854-06-R is an impeller specifically designed for the Carvin Magnum pump series, rated at 1.0 to 1.5 total horsepower. It is a closed face impeller that requires a C-face motor of equal or greater horsepower for installation. Compatible models include the Magnum, Magnum Plus, Magnum Force, and Magnum Force 3 series models manufactured prior to 2004.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Carvin/Jacuzzi Magnum 1.0 OHP/1.5 THP Impeller (Pre-2004) |
| Part Number | 05-3854-06-R |
| Part Type | Impeller |
| Compatibility | Carvin/Jacuzzi Magnum, Magnum Plus, Magnum Force, and Magnum Force 3 pumps manufactured before 2004 |
| Substitute Part Numbers | 05-3854-06, 05385406-R000, 05385406R, 429532, 5064-15A, 5385406, JAC-101-6463 |
| Includes | Impeller only shaft seal sold separately |
| Material | Corrosion-resistant thermoplastic |
| Impeller Type | Closed Face |
| Impeller Diameter | 4.75 inches |
| Vane Width | 0.25 inch |
| Eye Diameter | 2 inches |
| Eye Length | 0.5 inch |
| Impeller Width | 0.3125 inch |
| Shaft Length | 1.5625 inches |
| Shaft Diameter | 0.6875 inch |
| Seal Seat Diameter | 0.75 inch |
| Product Weight | 0.25 pound |
