Carvin J-Series 2.0 HP Impeller
Carvin | SKU:
05-3865-03-R
$5800/ea
Unit price
/
Unavailable
Carvin J-Series 2.0 HP Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

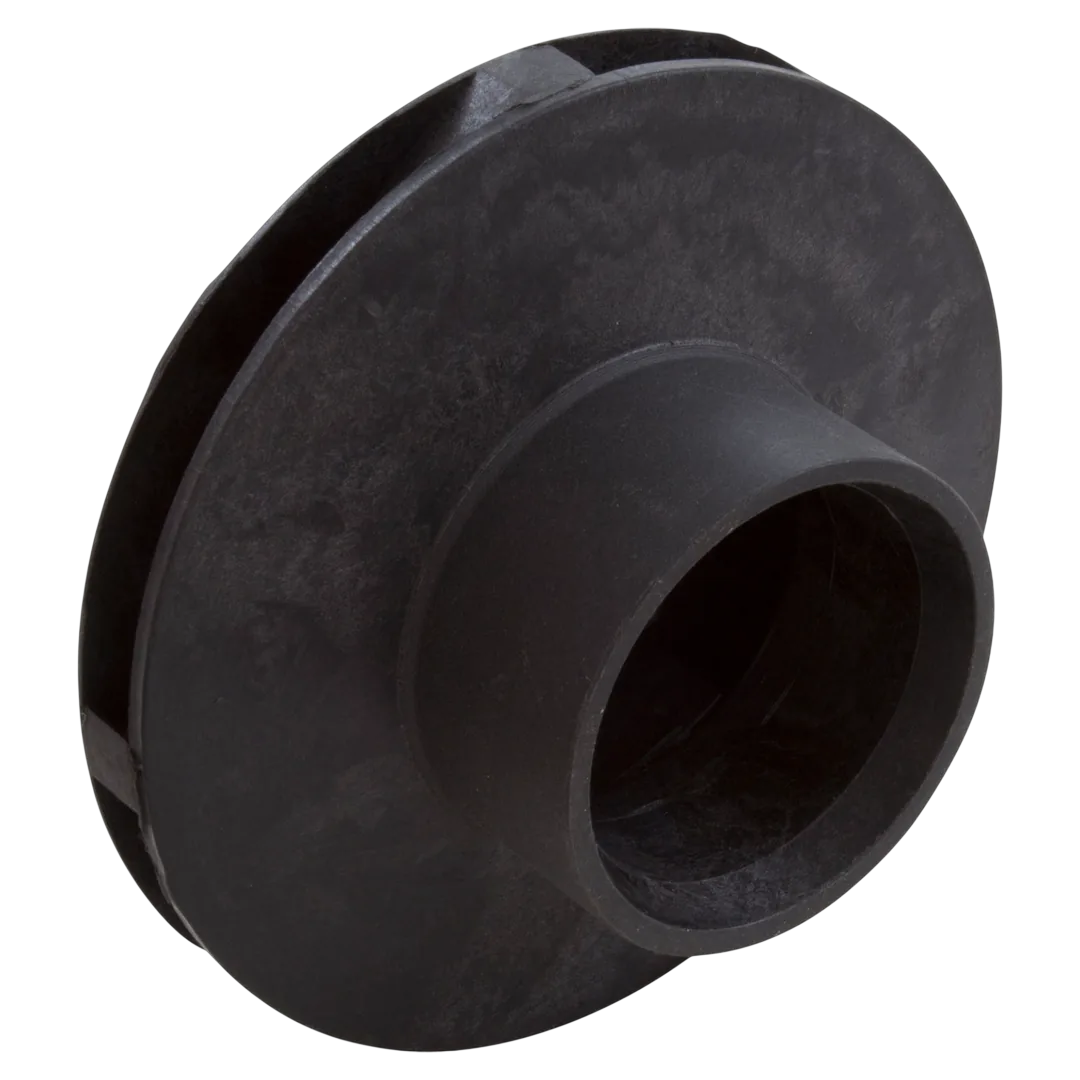

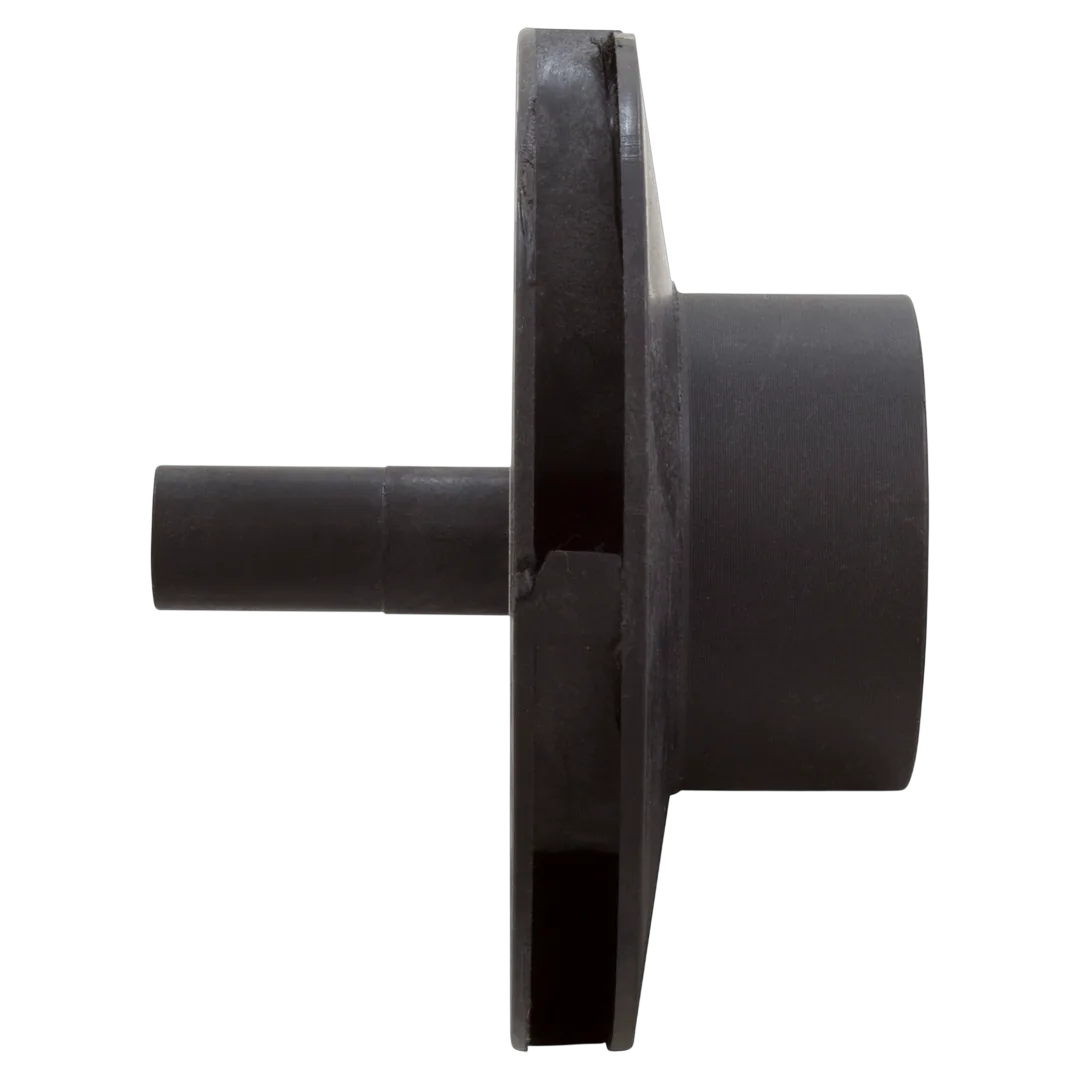

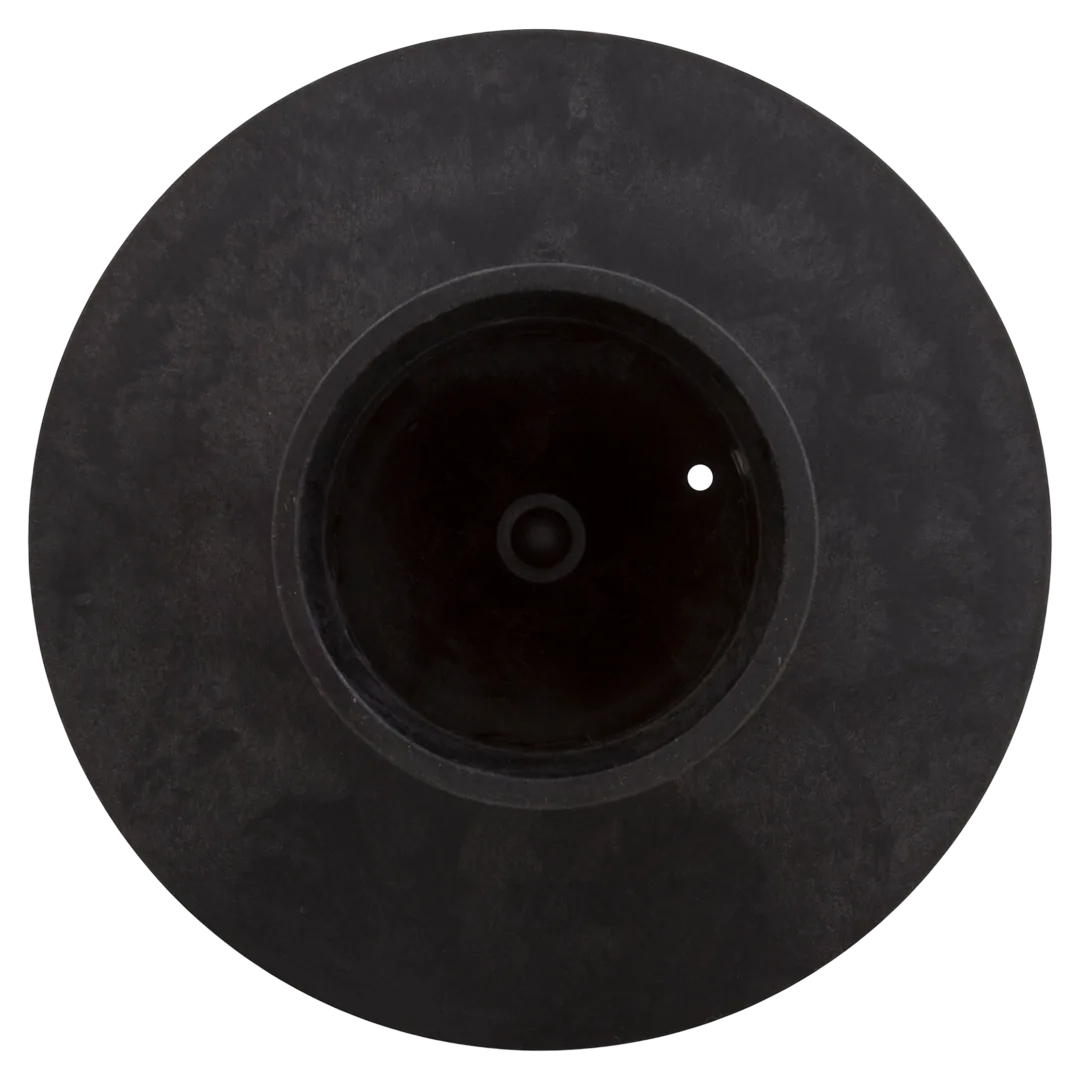

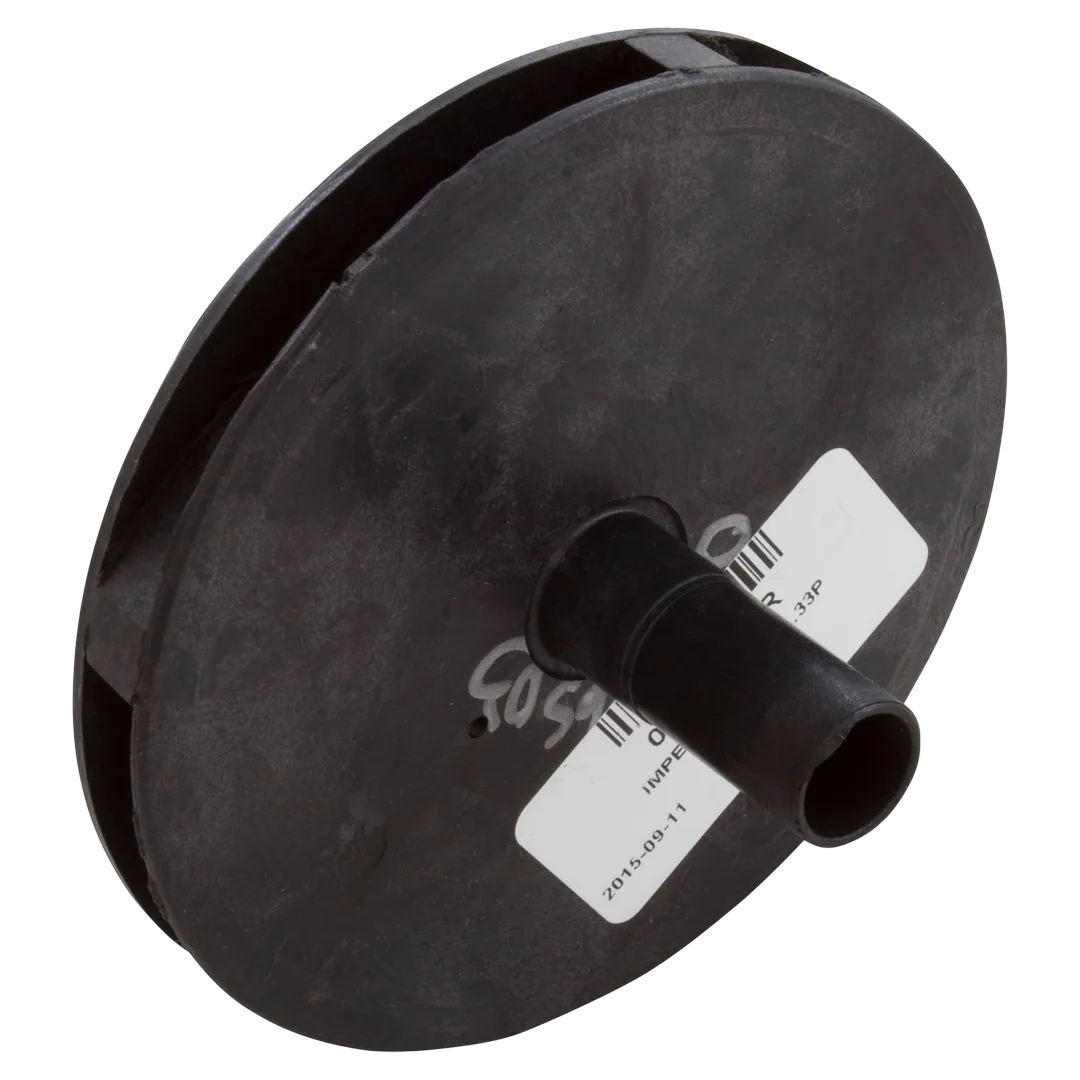

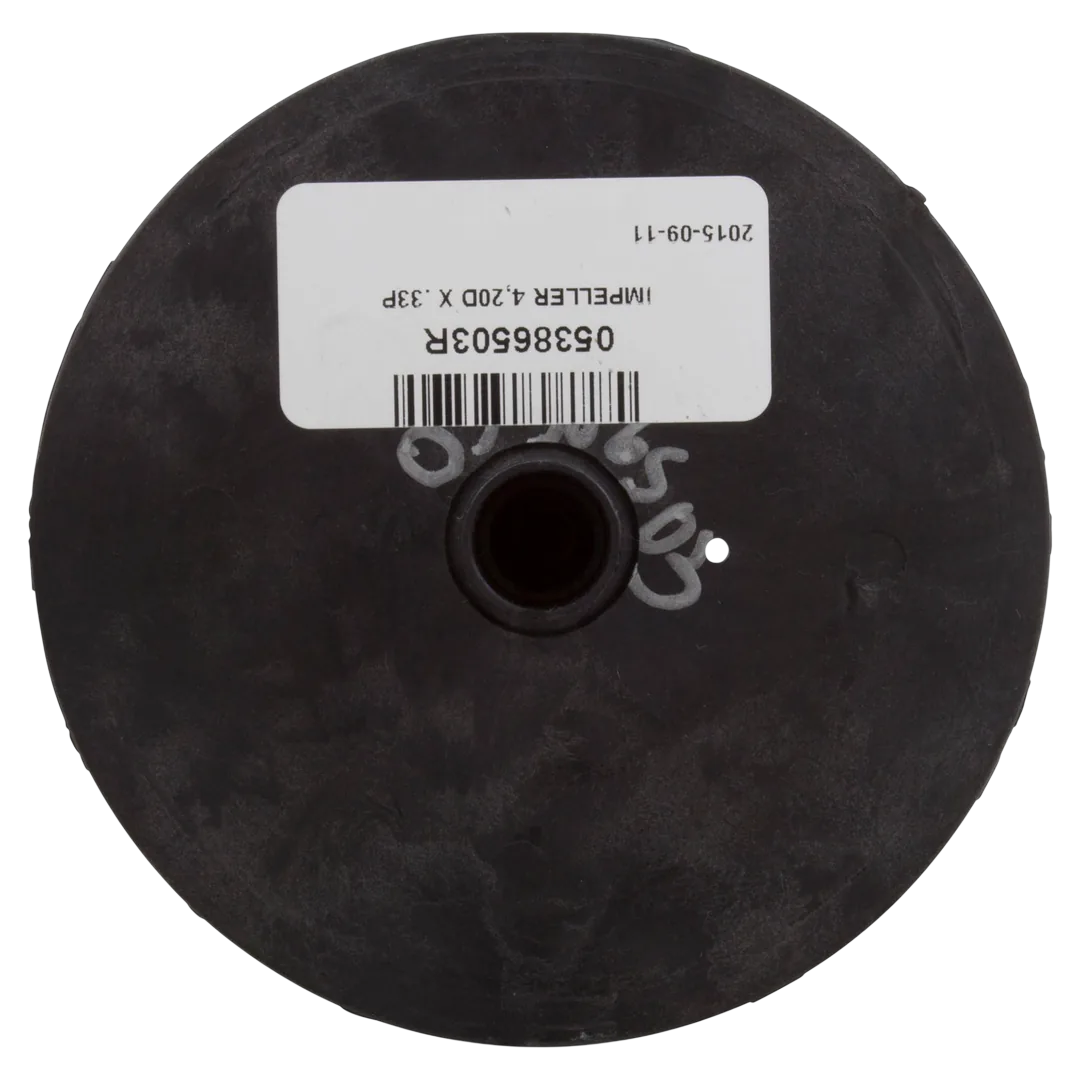

The Carvin 05-3865-03-R is a 2.0 horsepower impeller specifically designed for the Carvin J-Series pumps. It features a closed-face design and is constructed primarily for Jacuzzi/Carvin's spa and pool pump systems. This component is engineered for use with specific wet ends in the J-Series, ensuring a precise fit and optimal system performance.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Carvin Impeller, 2 HP |
| Part Number | 05-3865-03-R |
| Part Type | Impeller |
| Compatibility | Jacuzzi/Carvin J Series, JCM Series, K Series, KM Series pumps |
| Substitute Part Numbers | 05-3865-03, 05386503R, 5069-05C, 5386503, 601126, C145000, JAC-101-6203 |
| Includes | Impeller only shaft seal sold separately |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4.1875 inches |
| Vane Width ID | 0.3125 inches |
| Eye Diameter OD | 2 inches |
| Eye Length | 1 inch |
| Impeller Width OD | 0.5 inches |
| Shaft Length | 1.4375 inches |
| Shaft Diameter OD | 0.625 inches |
| Product Weight | 0.25 pounds |
