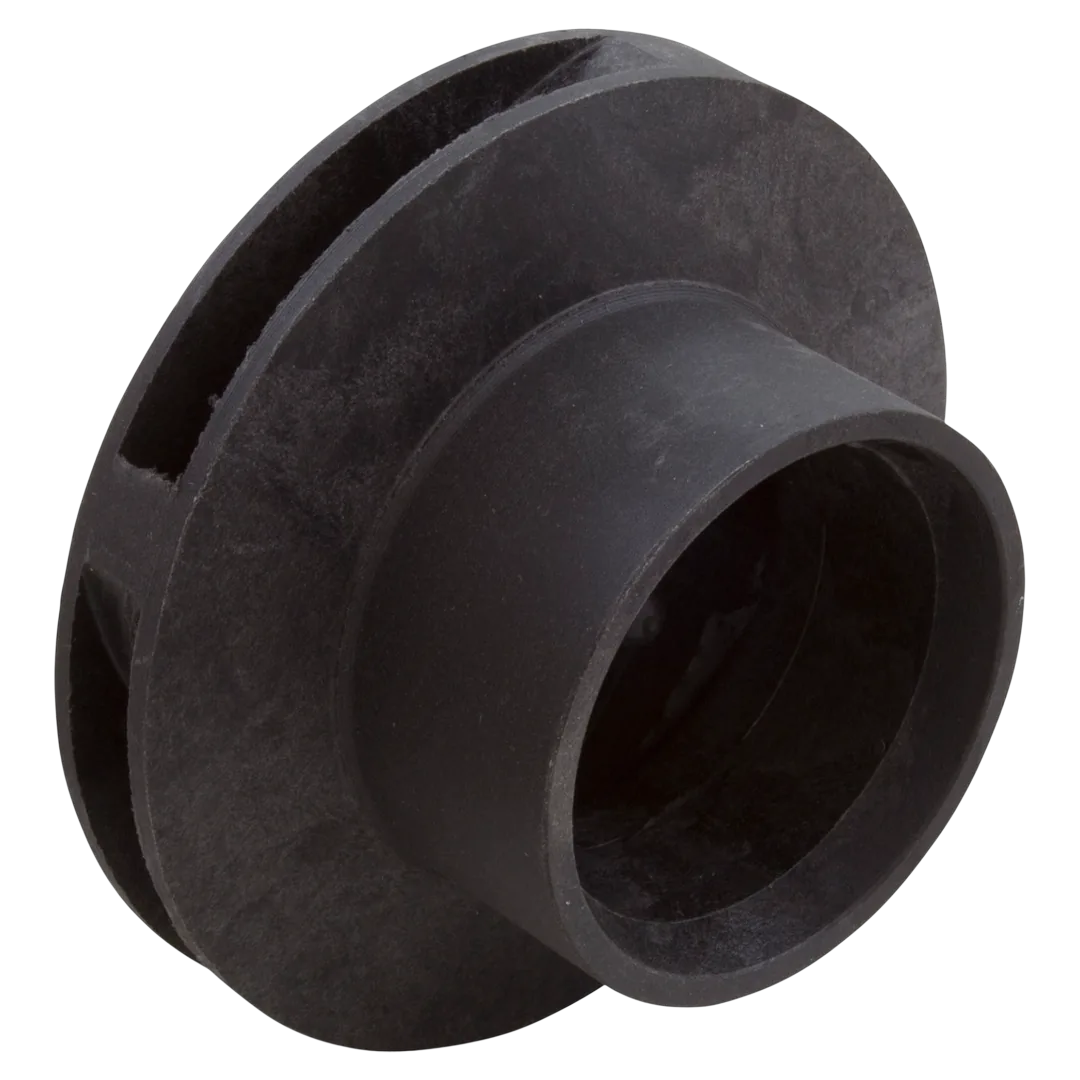

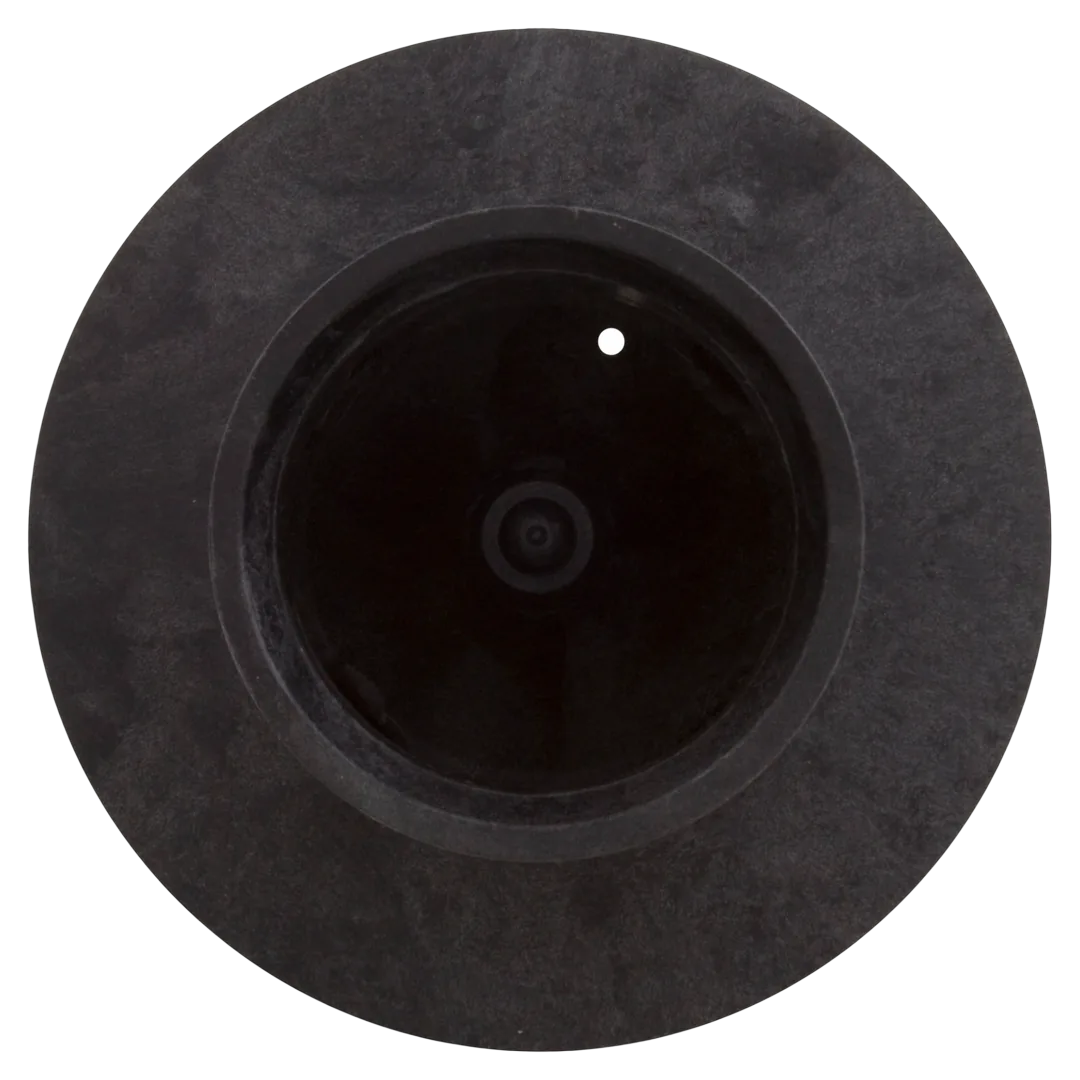

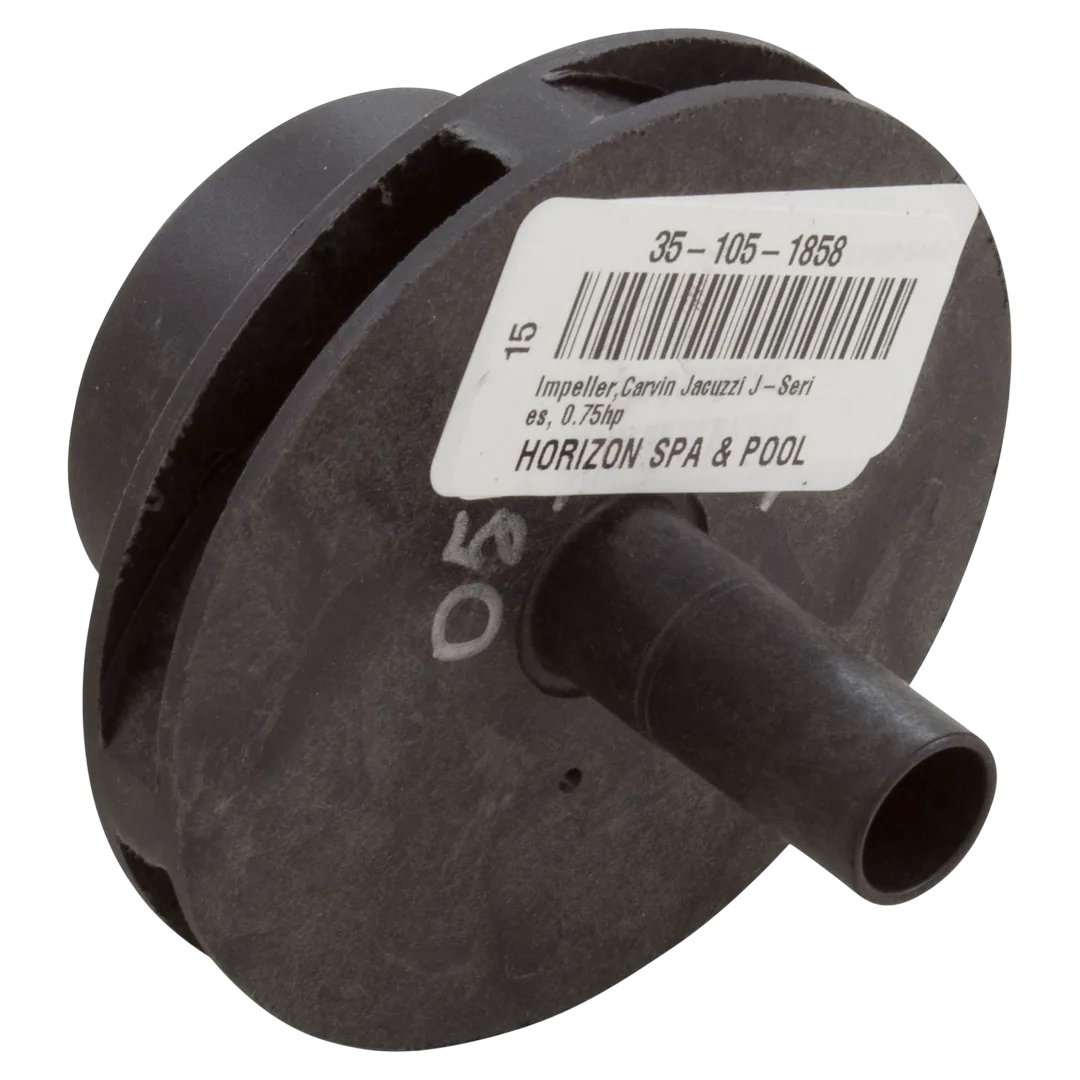

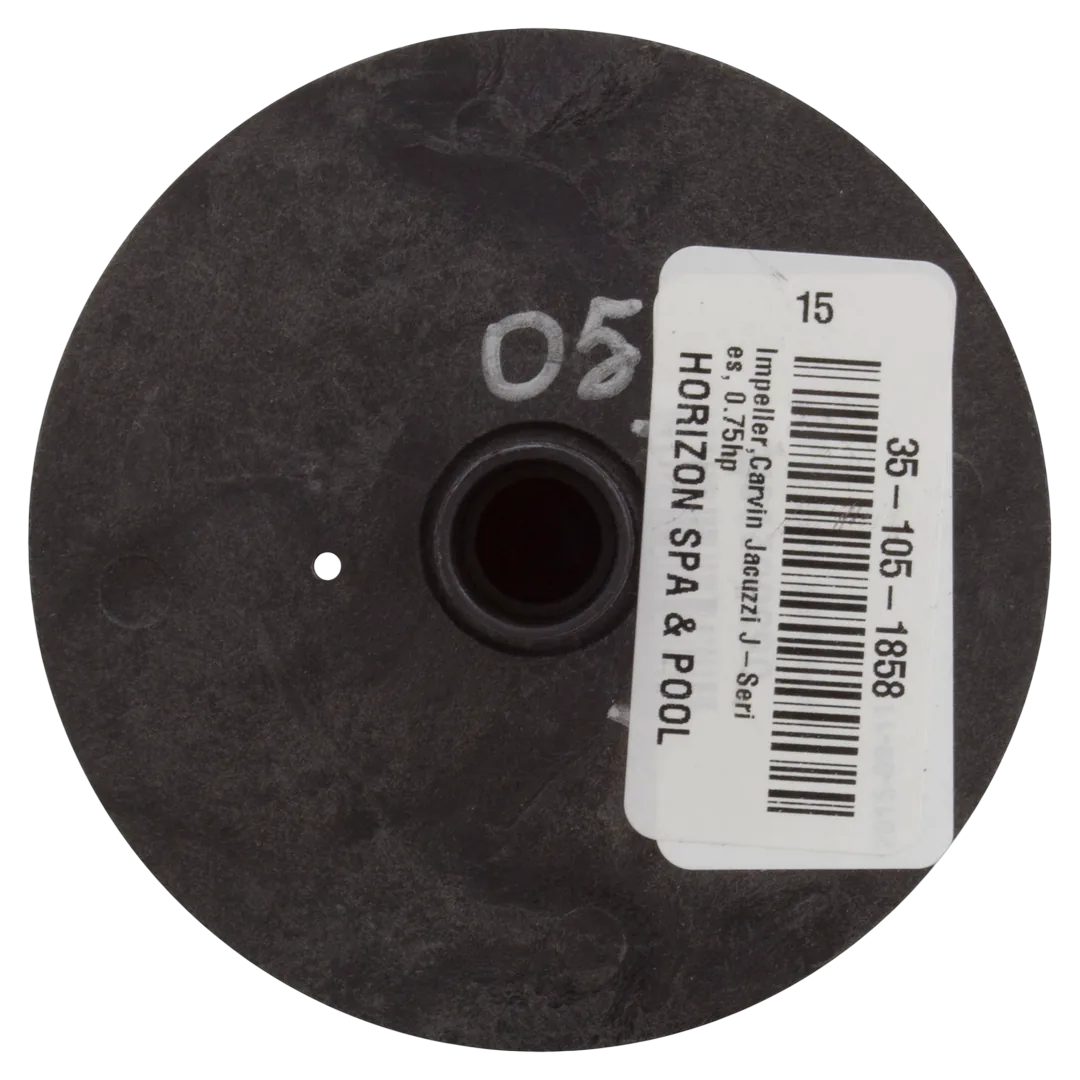

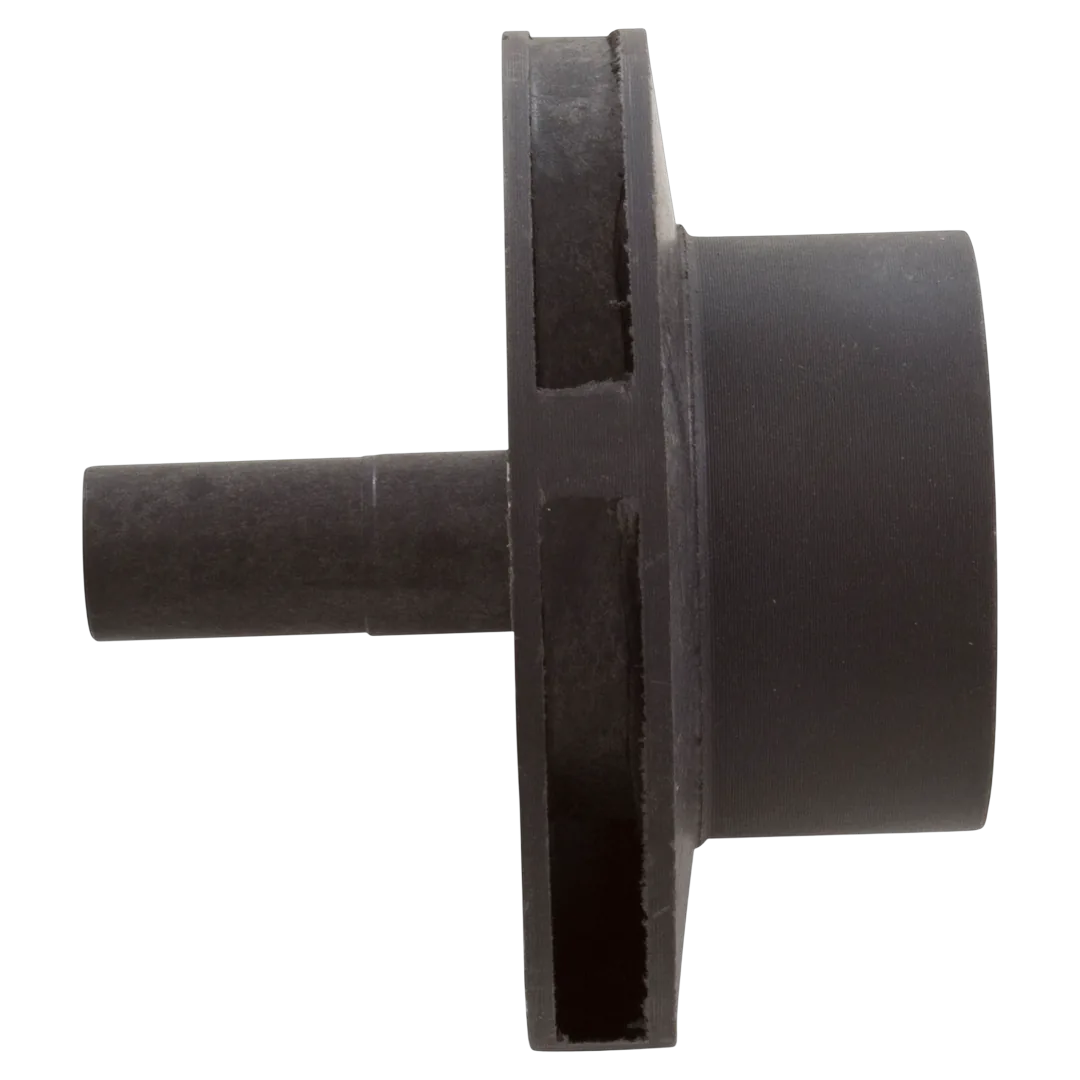

Carvin J-Series 05-3862-06-R Impeller
Carvin | SKU:
05-3862-06-R
$5800/ea
Unit price
/
Unavailable
Carvin J-Series 05-3862-06-R Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Carvin 05-3862-06-R is a closed face impeller designed for the J-Series Spa Pump, specifically rated for 0.75 horsepower. It is constructed to fit within the wet end of these pumps and is compatible with J, JCM, K, and KM series models, utilizing a through-bolt motor of equal or greater horsepower rating.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Carvin Impeller for S7K |
| Part Number | 05-3862-06-R |
| Part Type | Impeller |
| Compatibility | J Series, JCM Series, K Series, KM Series pumps |
| Substitute Part Numbers | 05-3862-06, 05386206R, 5069-24, 5386206, 613272, 9221000 |
| Includes | Impeller only |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 3.45 inches |
| Vane Width ID | 0.31 inch |
| Eye Diameter OD | 2 inches |
| Eye Length | 0.31 inch |
| Impeller Width OD | 0.5 inch |
| Shaft Length | 1.5 inches |
| Shaft Diameter OD | 0.625 inch |
| Shipping Dimensions | 4 x 4 x 2 inch |
| Product Weight | 0.25 pound |
