Carvin 05386404R J-Series Impeller
Carvin | SKU:
05-3864-04-R
$5800/ea
Unit price
/
Unavailable
Carvin 05386404R J-Series Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

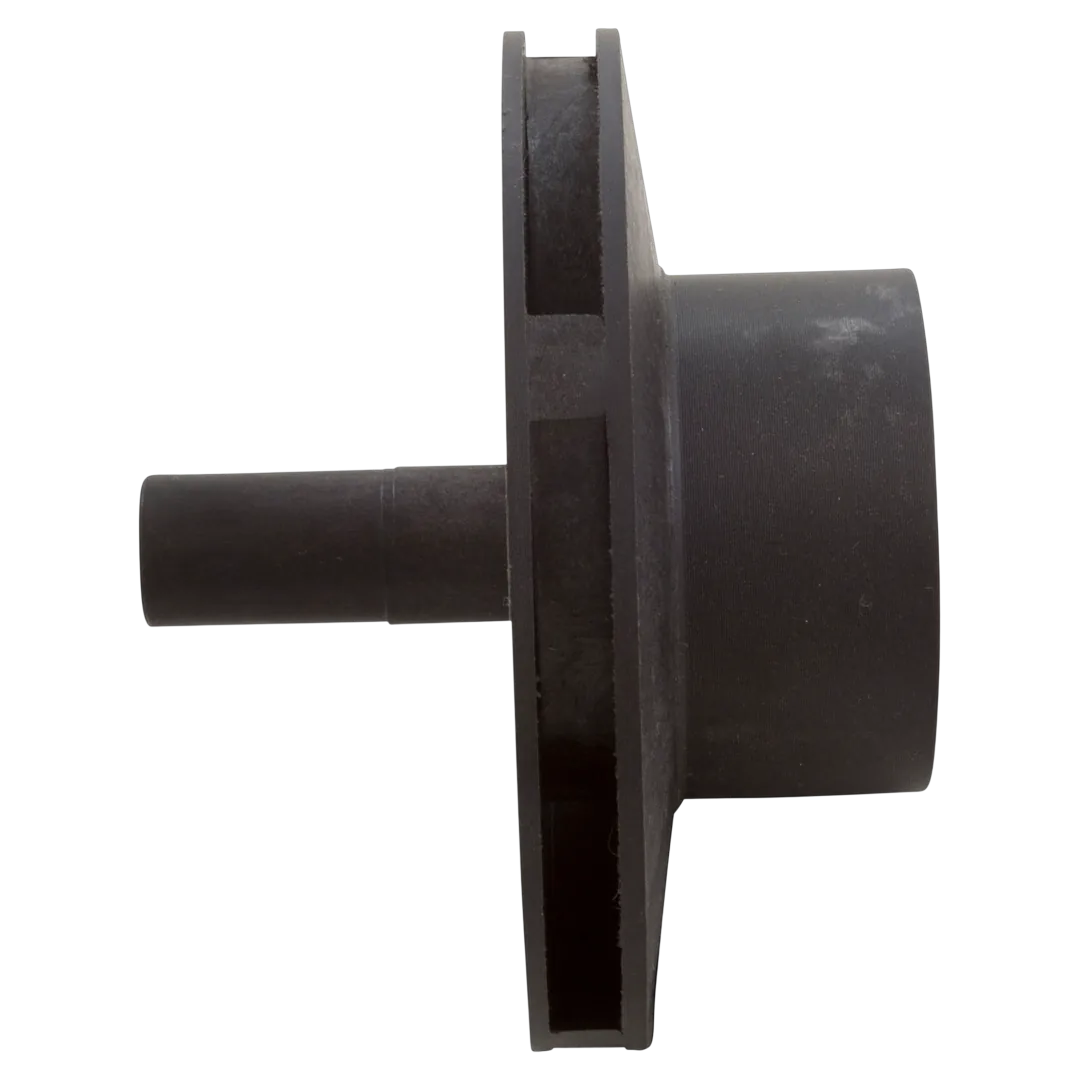

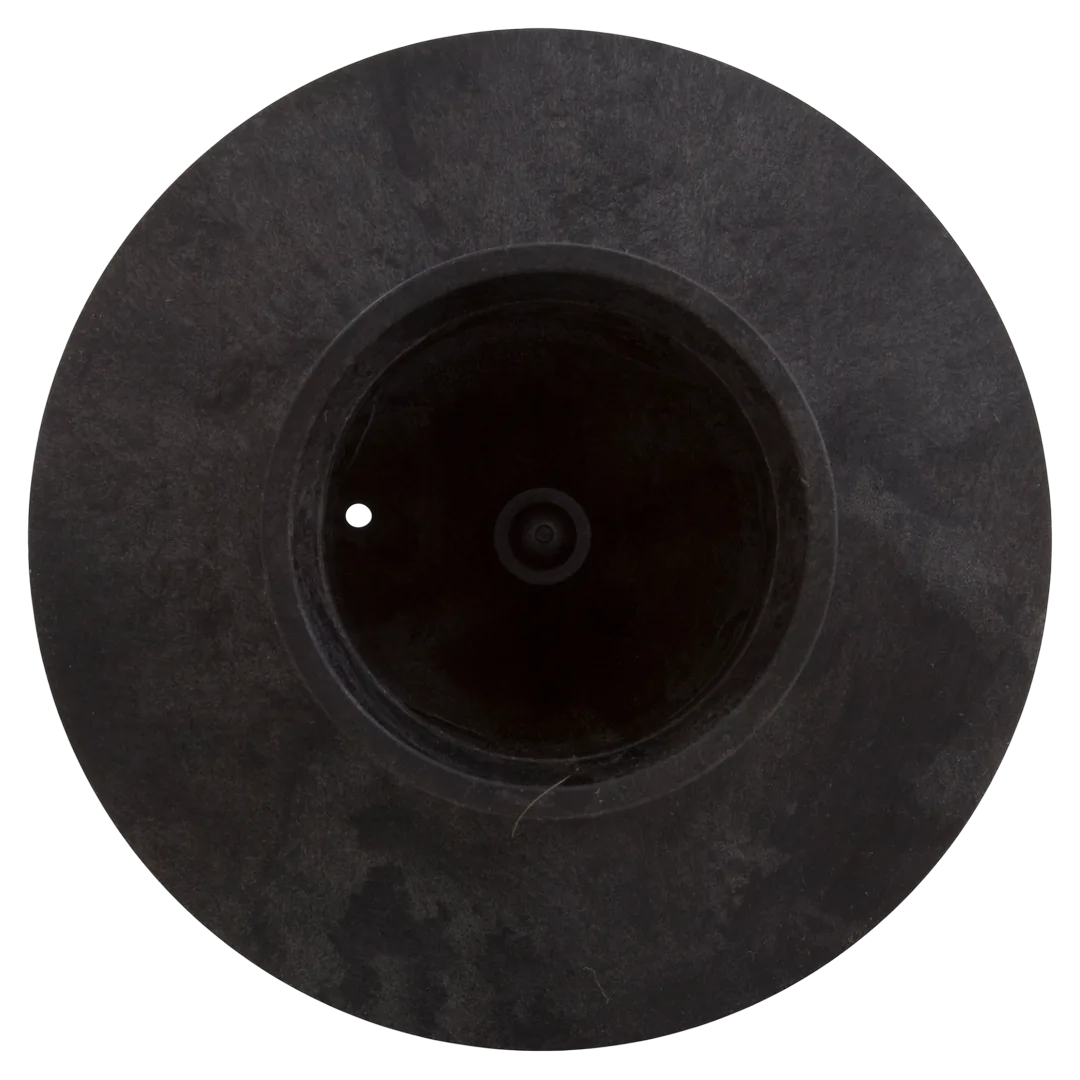

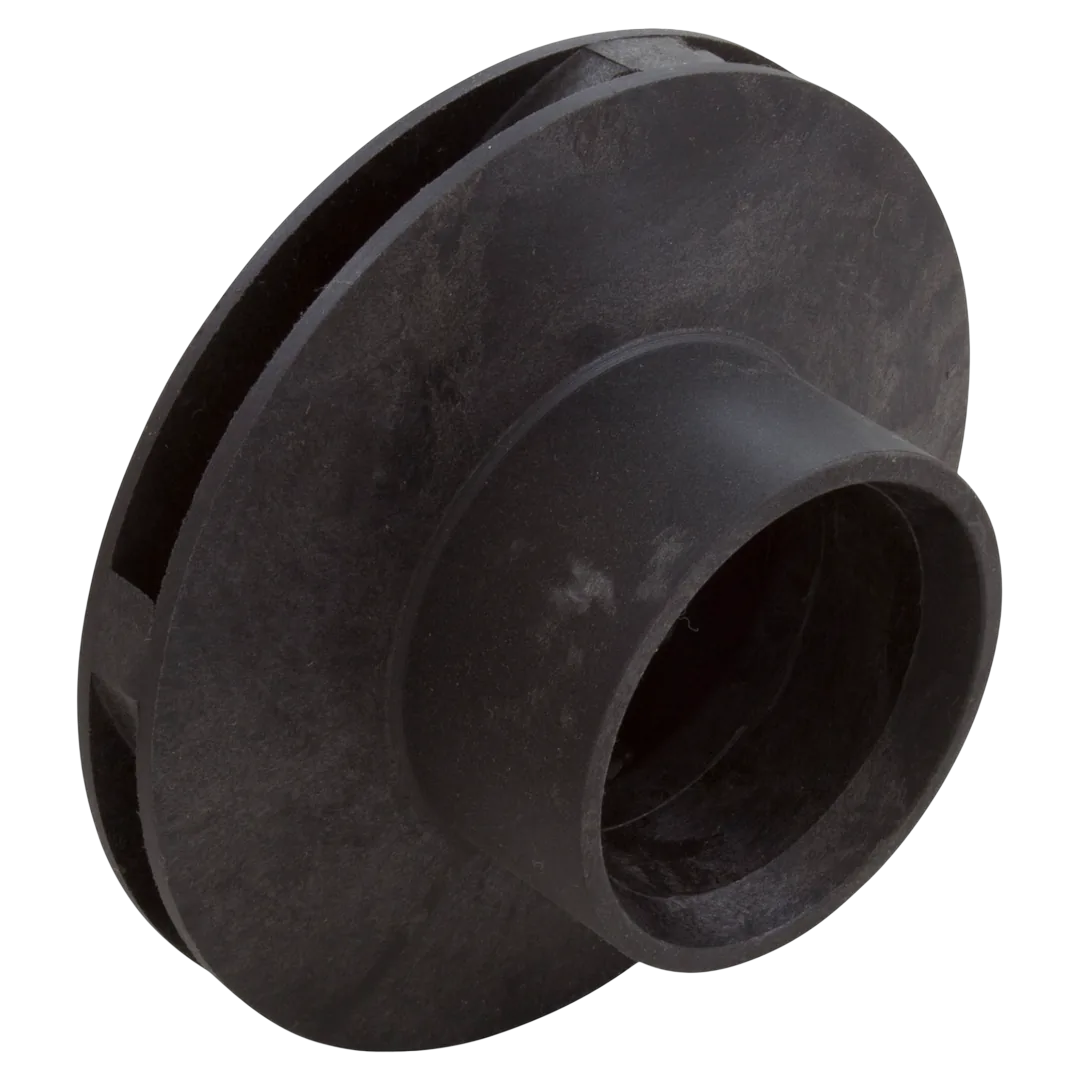

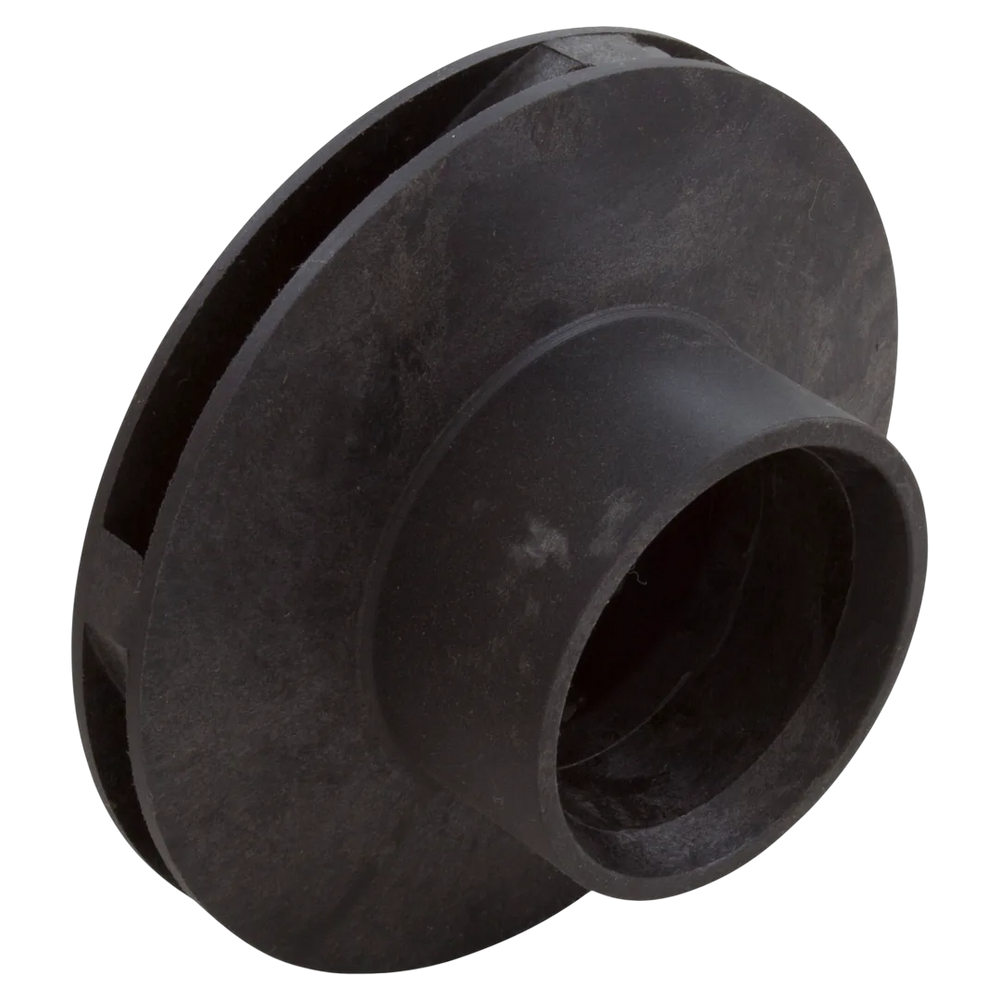

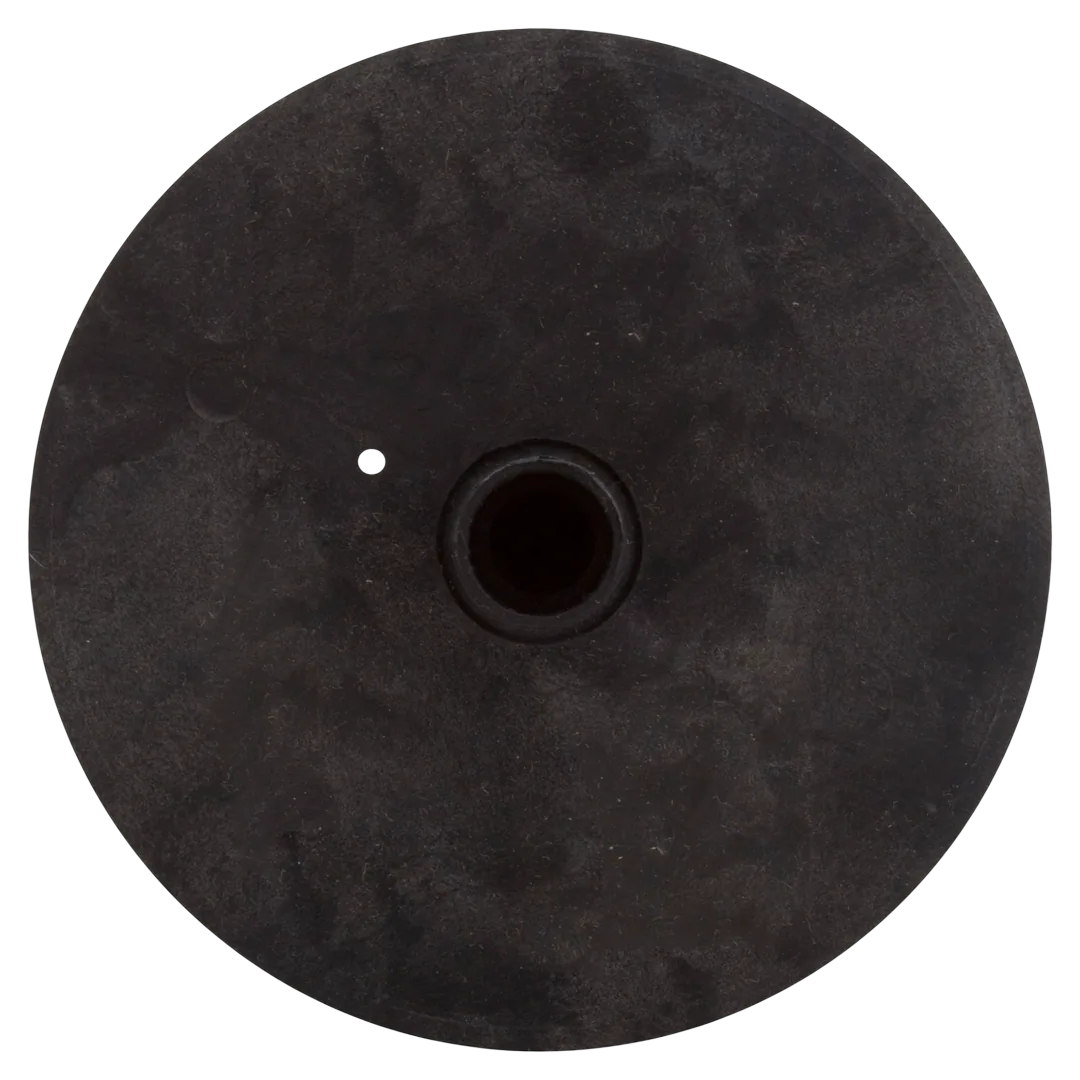

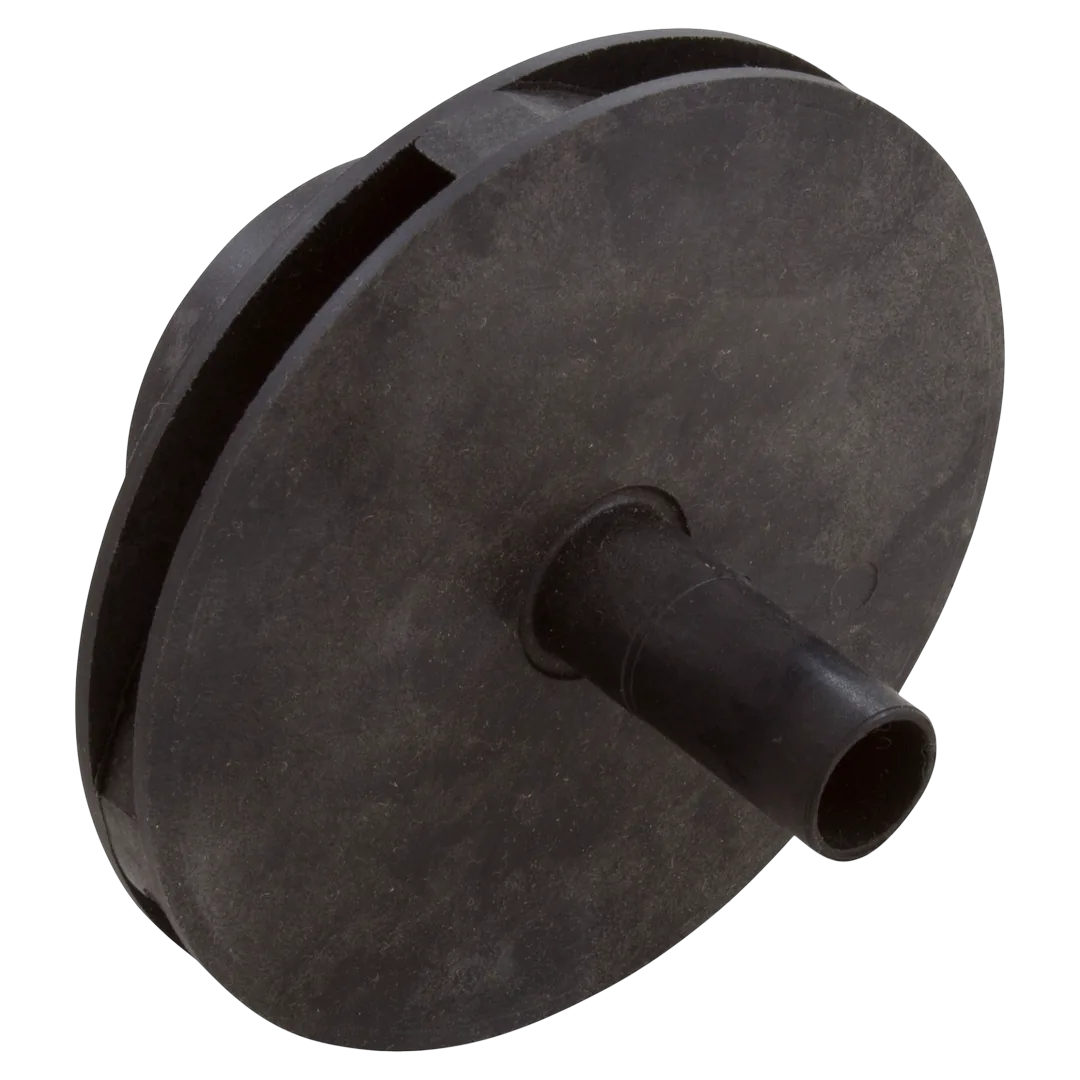

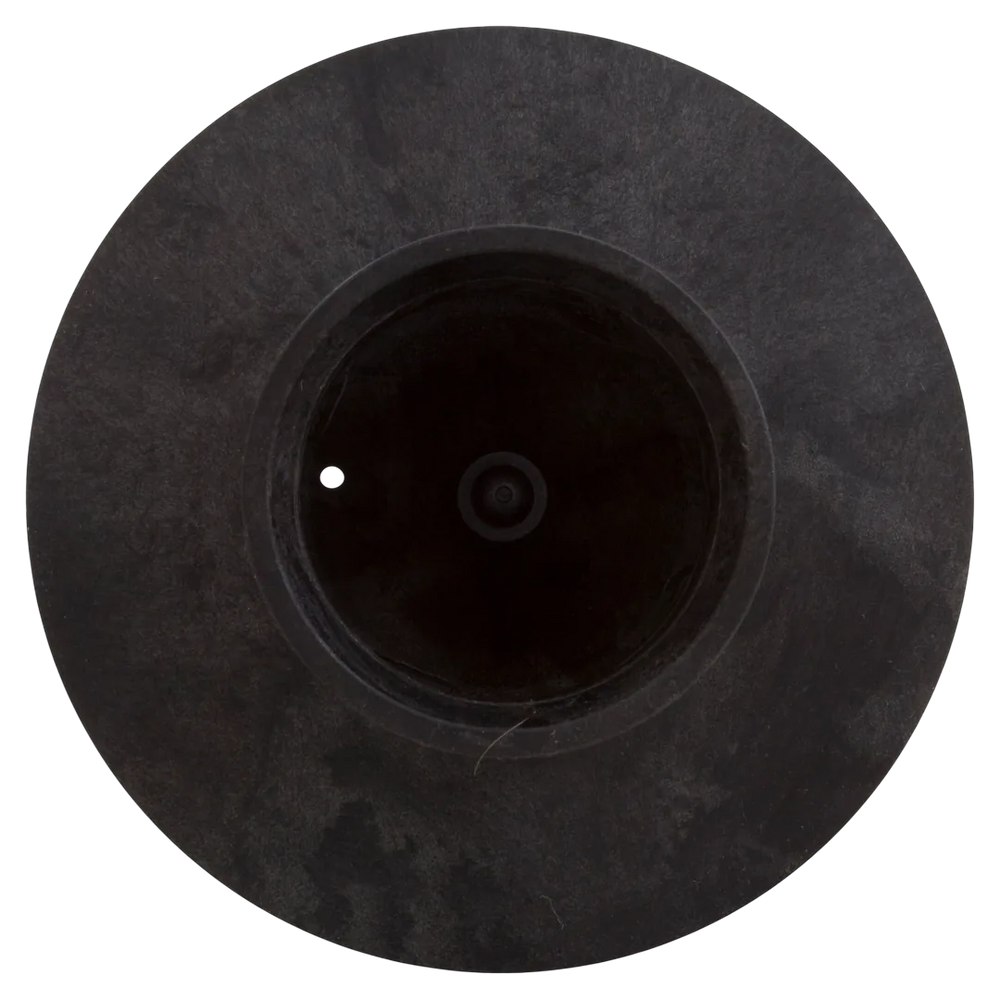

The Carvin 05-3864-04-R is an impeller designed for 1.5 horsepower, uprated for Jacuzzi J-Series spa pumps. It features a closed-face design, measuring 4 inches in diameter, and is typically used in pool and spa pump assemblies. This impeller is compatible with select models in the J-Series, contributing to efficient water circulation within these systems.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Carvin Impeller 1-1/2 HP |
| Part Number | 05-3864-04-R |
| Part Type | Impeller |
| Compatibility | J-Series, JCM, K, and KM series pumps |
| Substitute Part Numbers | 05-3864-04, 05-3914-04, 05386404R, 5069-05B, 5386404, 601130, C117000, JAC-101-6263 |
| Includes | Impeller only shaft seal sold separately |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter | 4.10 inches |
| Vane Width | 0.25 inch |
| Eye Diameter | 2 inches |
| Eye Length | 1 inch |
| Impeller Width | 0.4375 inch |
| Shaft Length | 1.4375 inches |
| Shaft Diameter | 0.625 inch |
| Product Weight | 0.2 pound |
