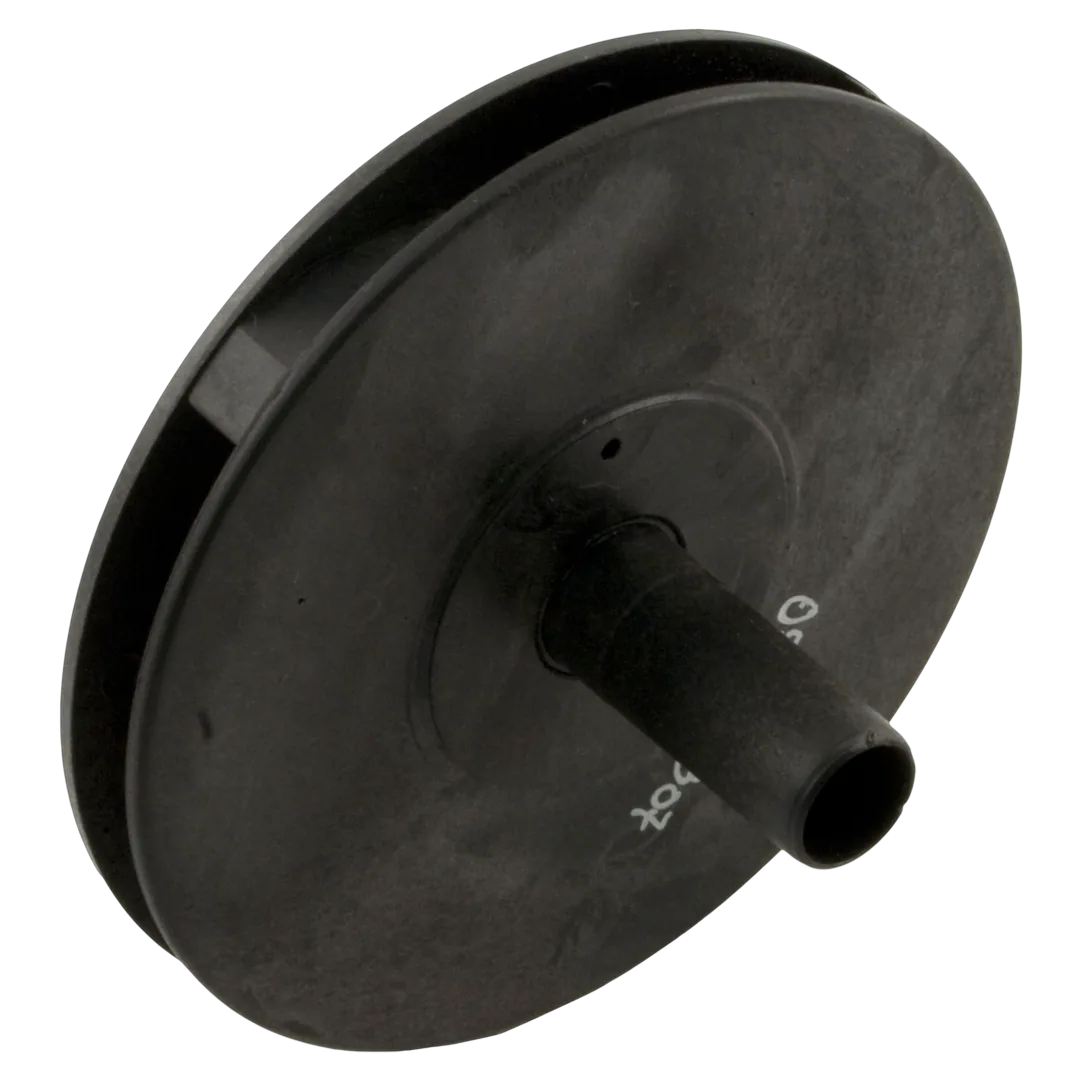

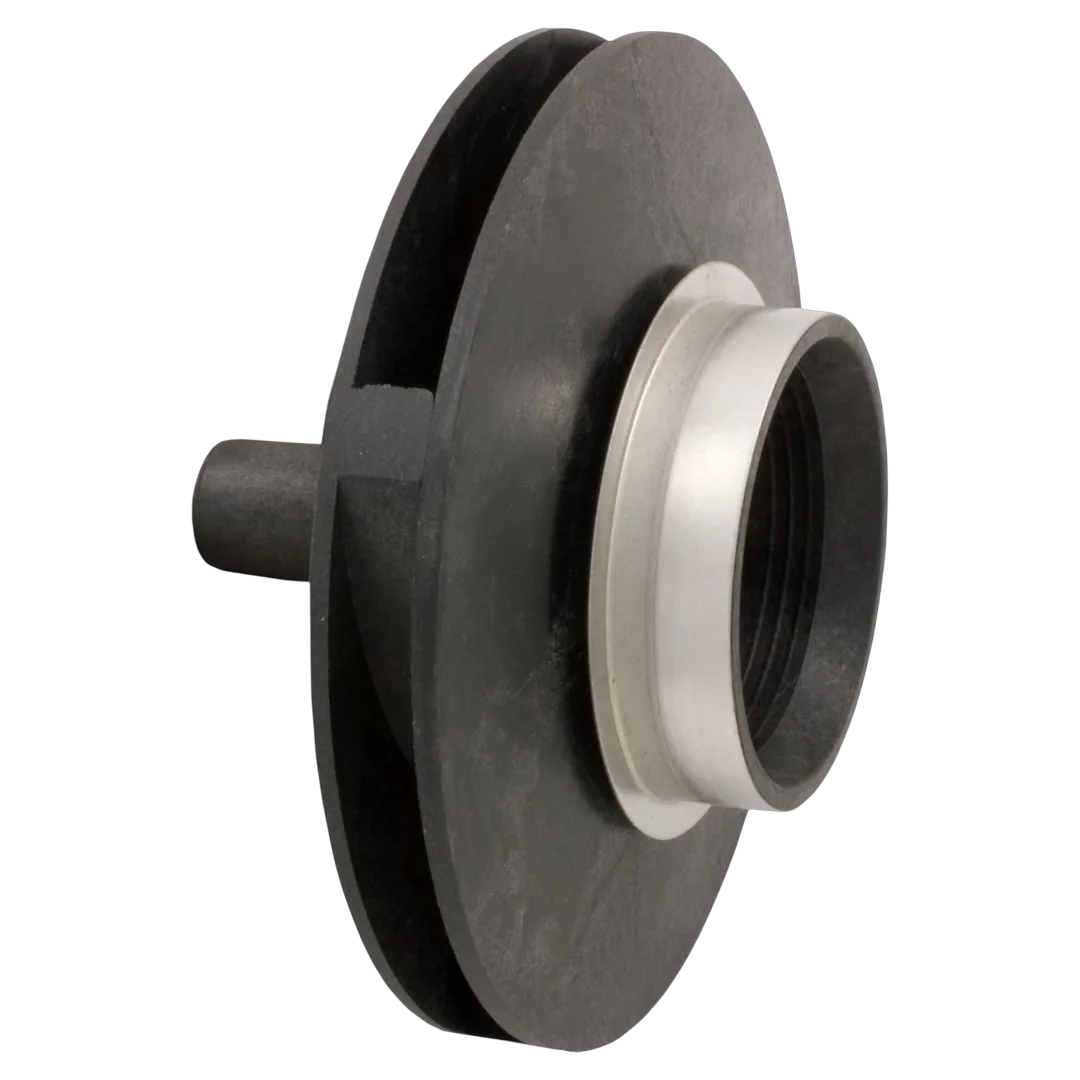

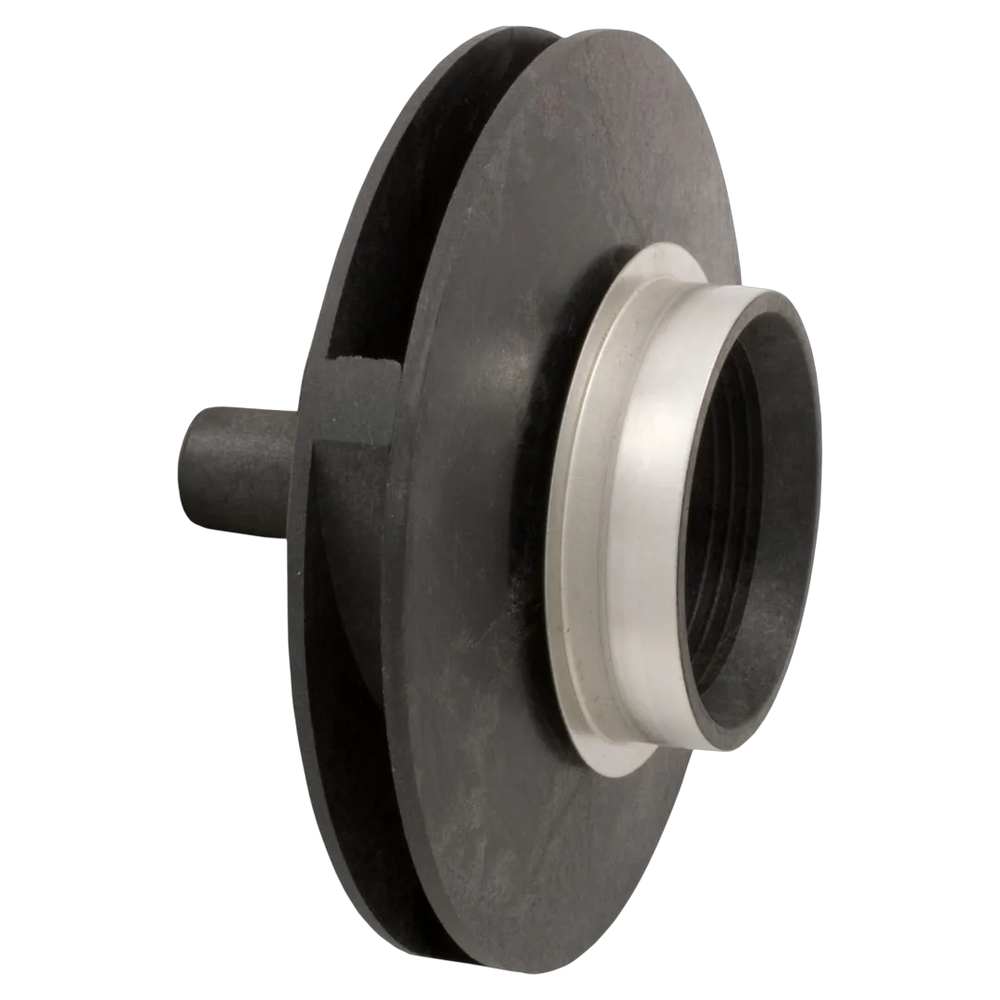

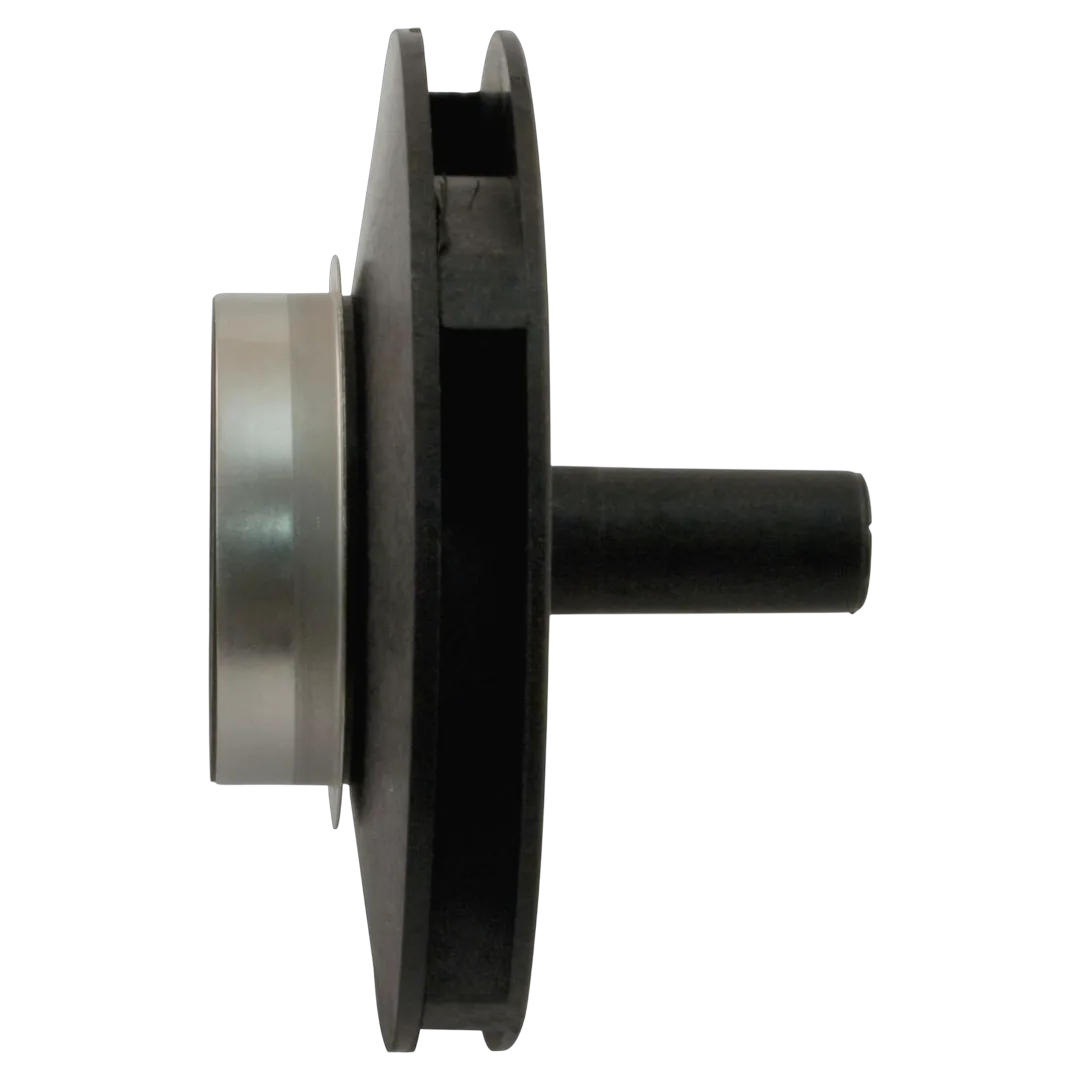

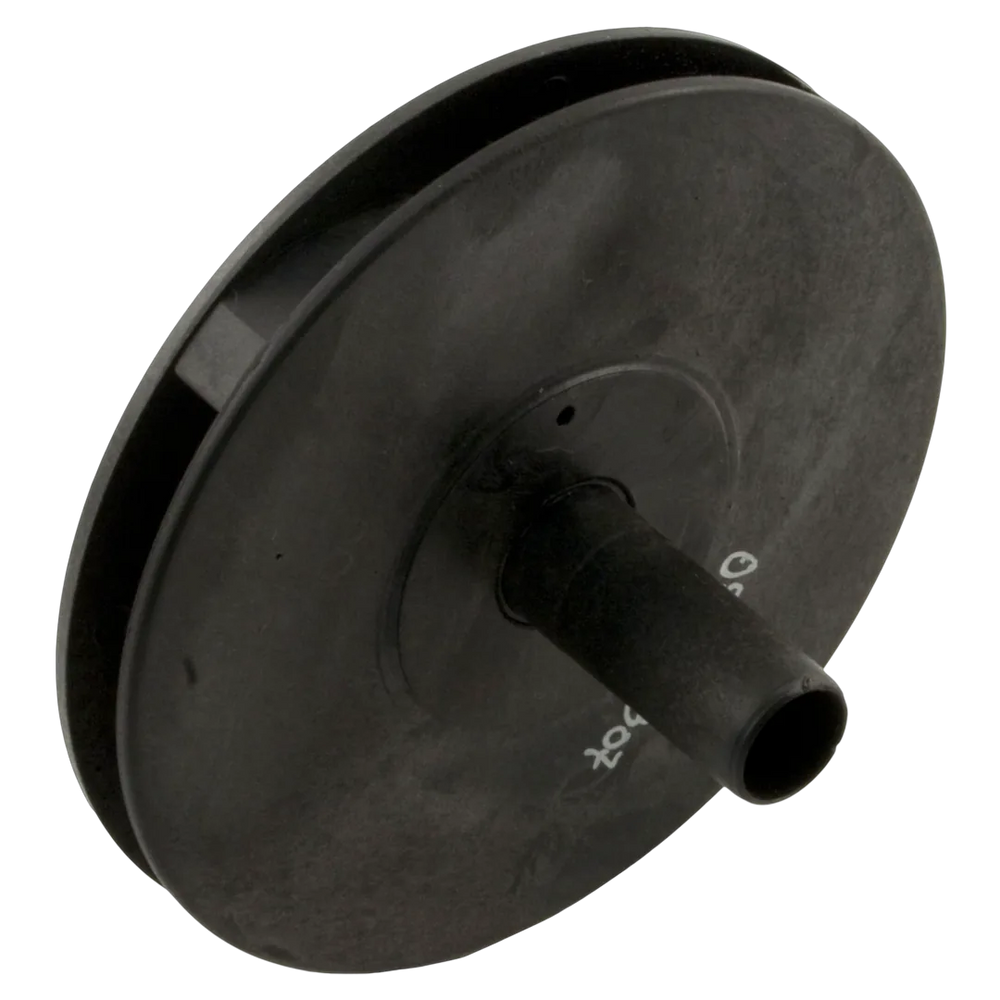

Carvin 05385307R Impeller
Carvin | SKU:
05-3853-07-R
$6500/ea
Unit price
/
Unavailable
Carvin 05385307R Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Carvin 05-3853-07-R Impeller is engineered for use in Jacuzzi and Carvin pool systems, particularly designed for LC series spa pumps. Constructed from metal with an NPT thread type, it is available in a black finish. This impeller is compatible with LC/SharkJet series pumps and supports 1.5 to 2.0 horsepower configurations, as well as Jacuzzi models 15LVL, 15LR, 15LCM, and 15LCU.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Carvin 05-3853-07-R Impeller |
| Part Number | 05-3853-07-R |
| Part Type | Impeller |
| Compatibility | Carvin LC Series, SharkJet Series, UL Series pumps |
| Substitute Part Numbers | 35-105-1930 |
| Includes | Impeller only shaft seal sold separately |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4.25 inch |
| Vane Width ID | 0.3125 inch |
| Eye Diameter OD | 2 inch |
| Eye Length | 0.5 inch |
| Impeller Width OD | 0.5 inch |
| Seal Seat Depth | 0.03125 inch |
| Shaft Length | 1.4375 inch |
| Shaft Diameter OD | 0.625 inch |
| Seal Seat Diameter OD | 1.6875 inch |
| Shipping Dimensions | 4.4 x 0.5 x 4.4 inch |
| Product Weight | 0.25 pound |
