Carvin 05380209K Magnum HF Impeller Kit
Carvin | SKU:
05380209K
$9100/ea
Unit price
/
Unavailable
Carvin 05380209K Magnum HF Impeller Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

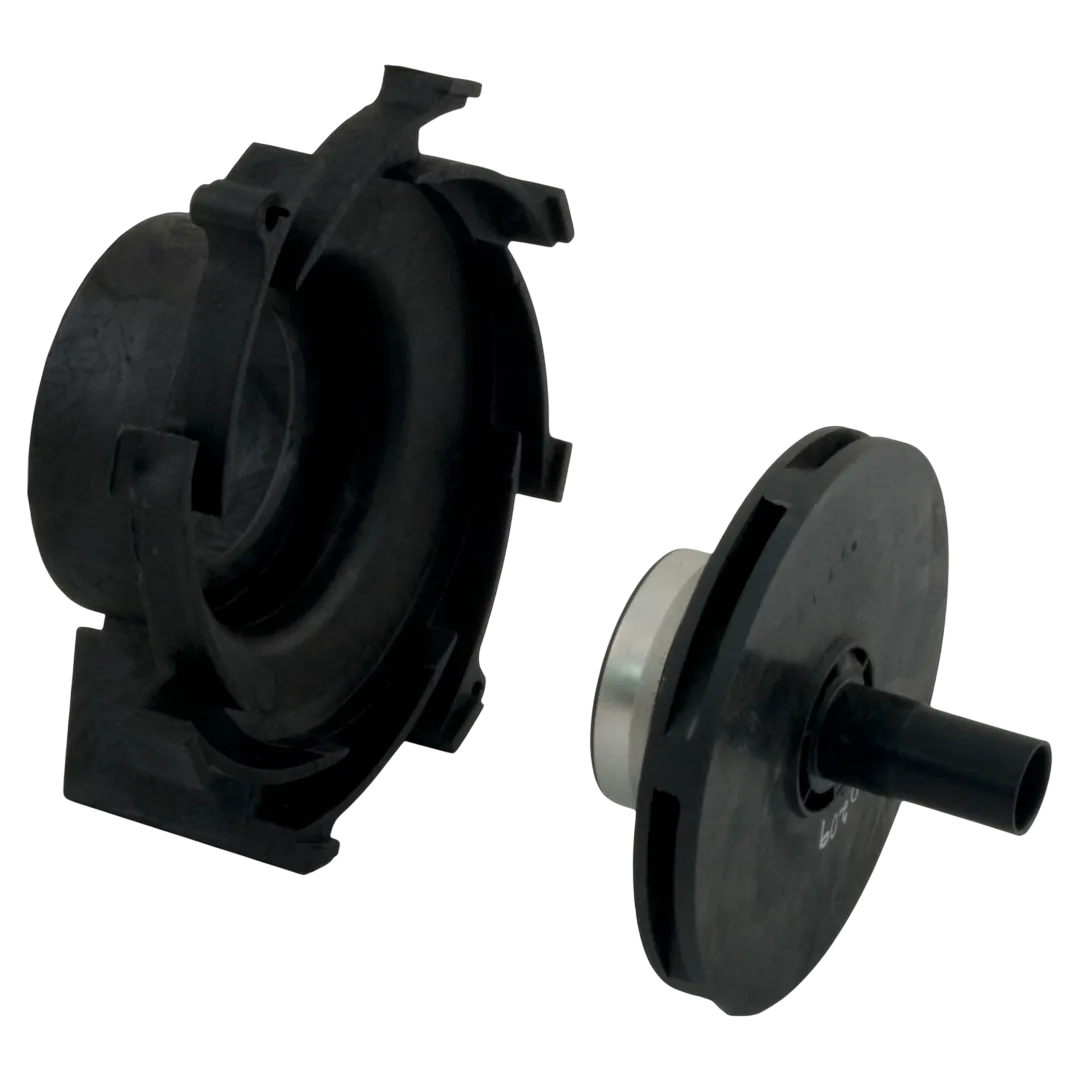

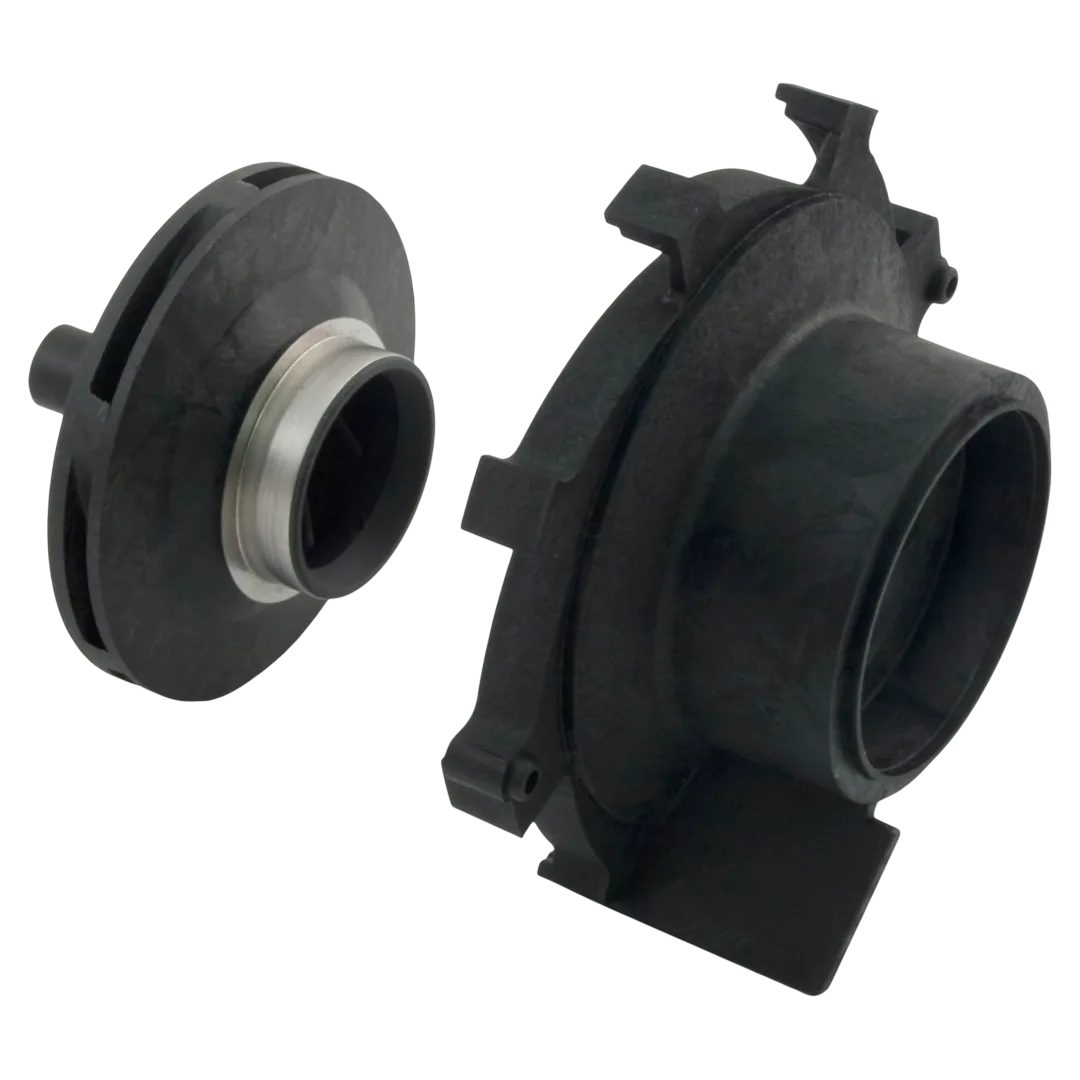

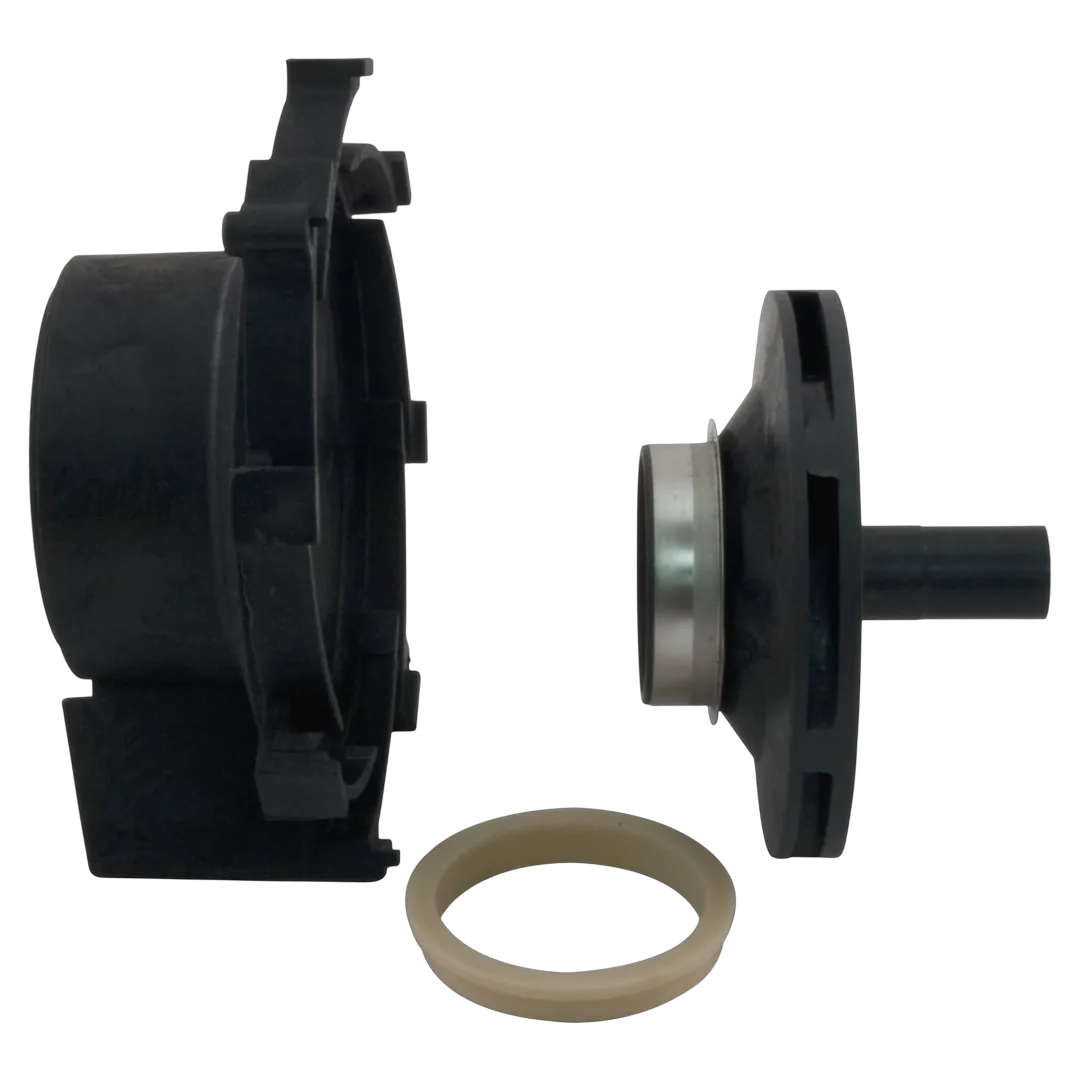

The Carvin 05380209K is an impeller kit specifically designed for use with Magnum HF, P, and R series pumps. It features a closed-face design and measures 4-3/8 inches in outer diameter, with a vane width of 3/16 inches and an eye diameter of 2 inches. This component is compatible with 1.0 horsepower applications, ensuring precise fitment for the specified pump series.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Carvin 05380209K Impeller Kit |
| Part Number | 05380209K |
| Part Type | Impeller Kit |
| Compatibility | Jacuzzi/Carvin HF Series, Magnum, P Series, R Series pumps |
| Substitute Part Numbers | 05-3802-09, 05-3802-09-RKIT, 05-3802-09K, 05-3802-09R, 05380209R, 05380209RKIT, 5062-18C, 5380209, 600062, JAC-101-6427 |
| Includes | Impeller only |
| Material | Thermoplastic |
| Impeller Type | Closed Face |
| Impeller Diameter | 4.4 inches |
| Vane Width | 0.1875 inches |
| Eye Diameter | 2 inches |
| Eye Length | 0.5 inches |
| Impeller Width | 0.5 inches |
| Seal Seat Depth | 0.0625 inches |
| Shaft Length | 1.5625 inches |
| Shaft Diameter | 0.6875 inches |
| Seal Seat Diameter | 1.375 inches |
| Product Weight | 1 pound |
