Balboa VL406U Topside Control Panel G8247
Balboa Water Group | SKU:
G8247
$15500/ea
Unit price
/
Unavailable
Balboa VL406U Topside Control Panel G8247 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

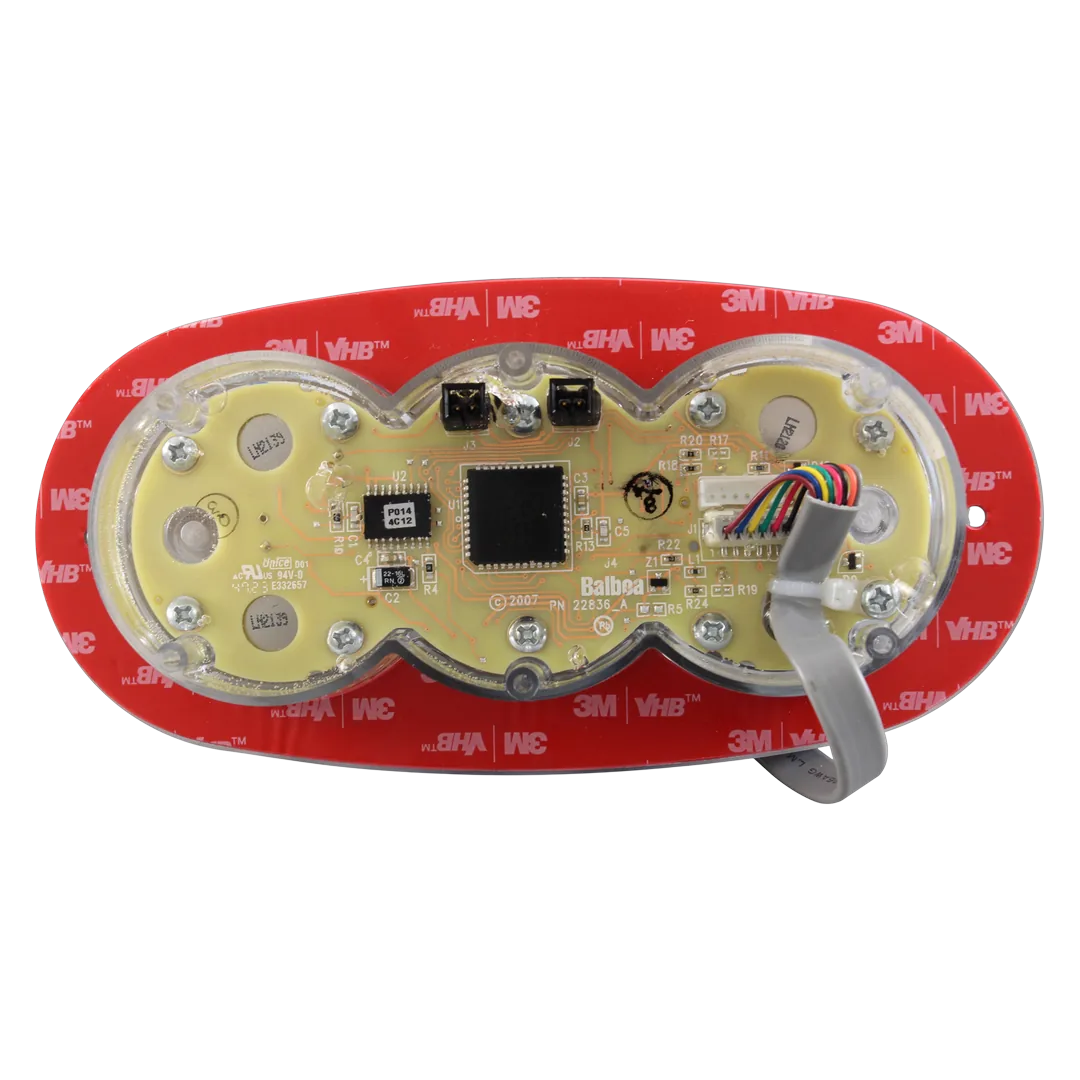

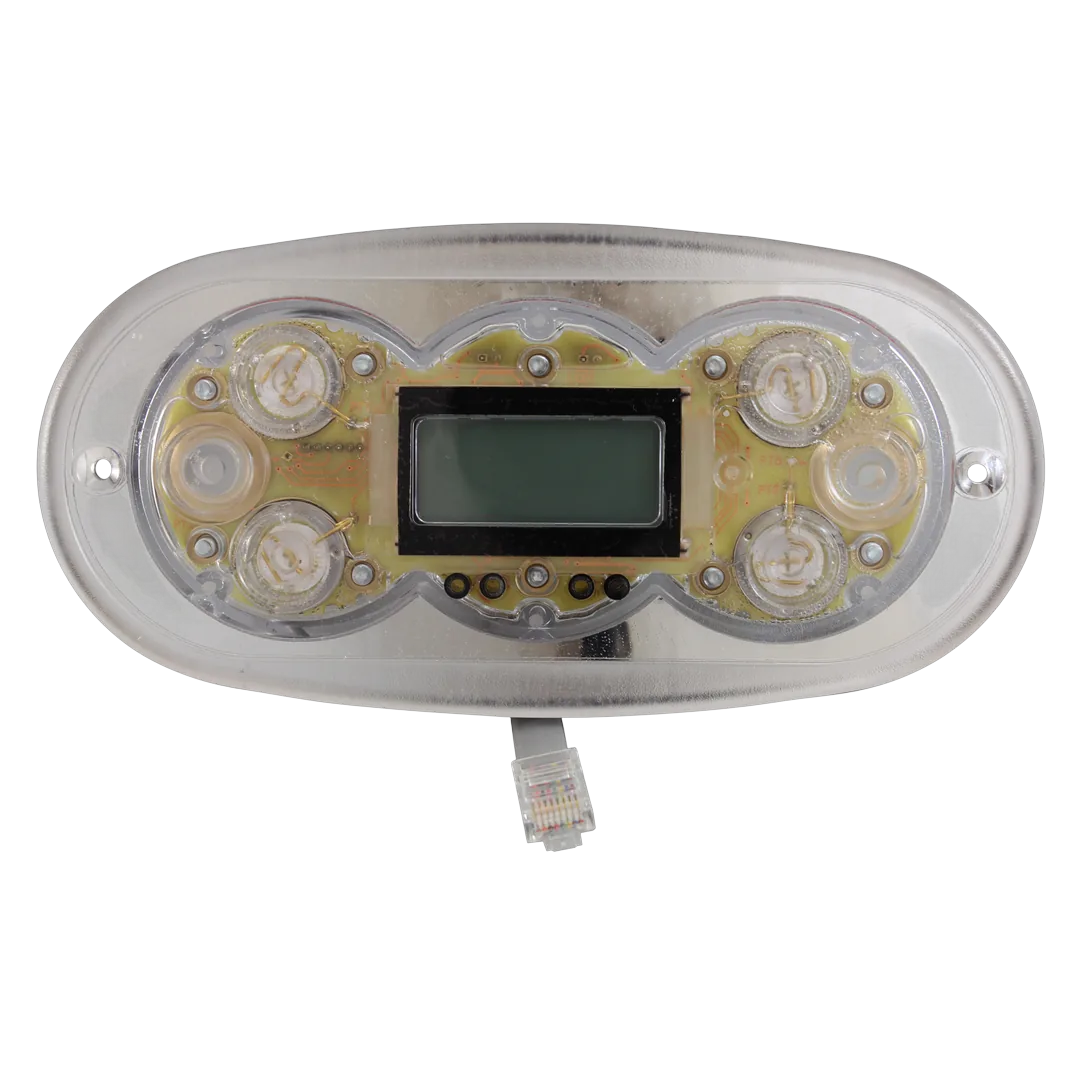

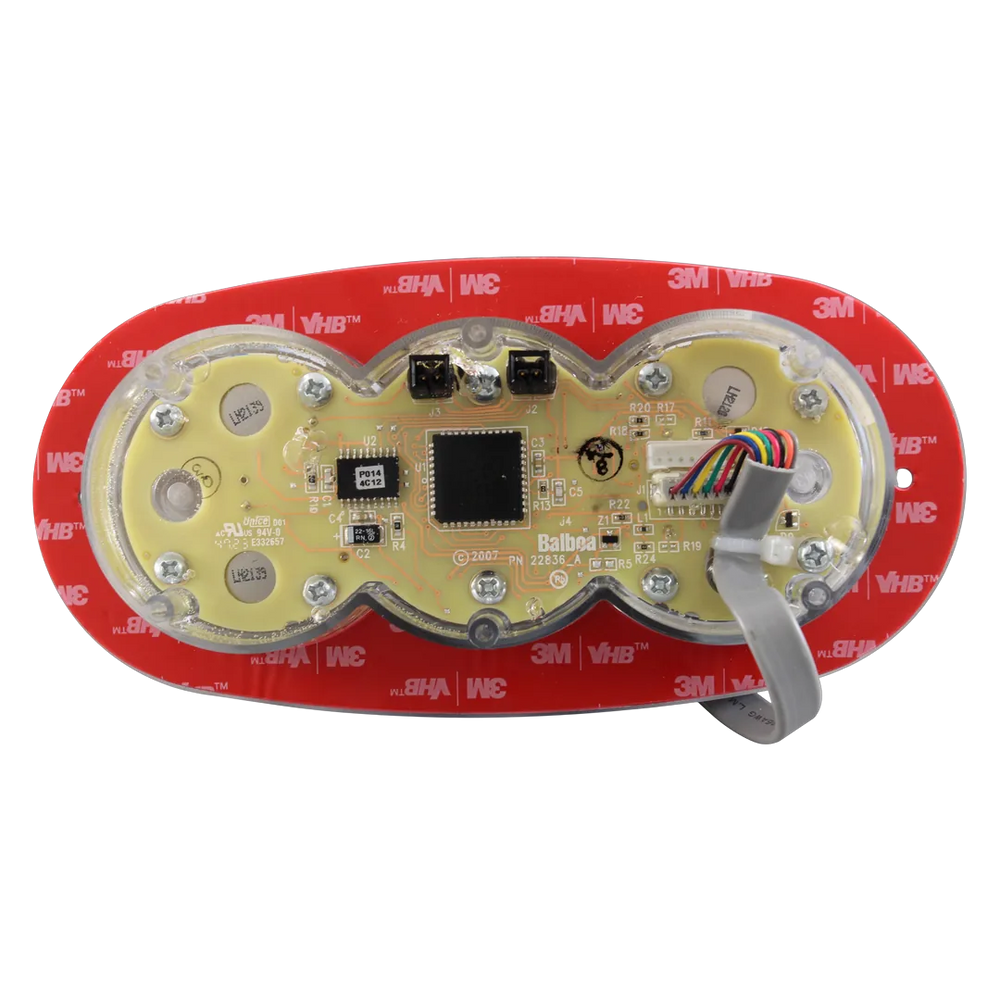

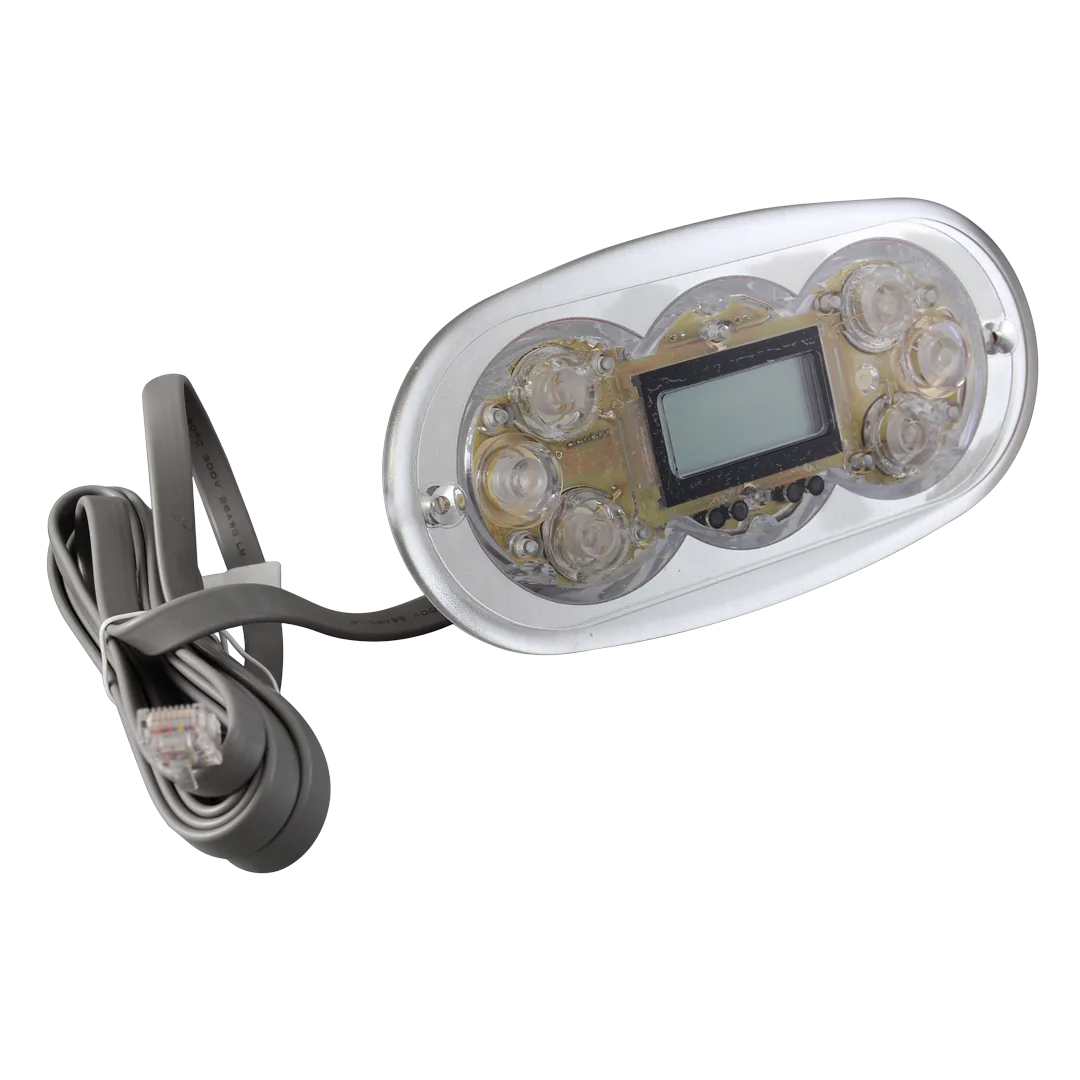

The Balboa Water Group G8247 is a topside control panel identified as the VL406U series, featuring a 4-button oval LCD layout. This component is crafted without an overlay and includes a 7-foot cord with an 8-wire phone jack style plug. It is specifically designed for integration with Balboa spa systems such as the VS100, VS300, VS500Z, VS515Z, and GS500Z.
Includes: Control panel without overlay
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | VL406U |
| Part Number | G8247 |
| Part Type | Topside Panel |
| Compatibility | Compatible with Balboa VS100, VS300, VS500Z, VS515Z, and GS500Z systems |
| Substitute Part Numbers | 55350, 53271, 55417, 55350-01, 55350-02, 50252, ELE09204632, ELECP-AS1P-BW |
| Includes | Control panel without overlay |
| Material | Plastic |
| Dimensions | 7 x 3.4 inch |
| Shipping Dimensions | 8 x 4 x 2 inch |
| Product Weight | 0.5 pound |
