Balboa Water Group VL406T Topside Control
Balboa Water Group | SKU:
55570KIT
$16700/ea
Unit price
/
Unavailable
Balboa Water Group VL406T Topside Control is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

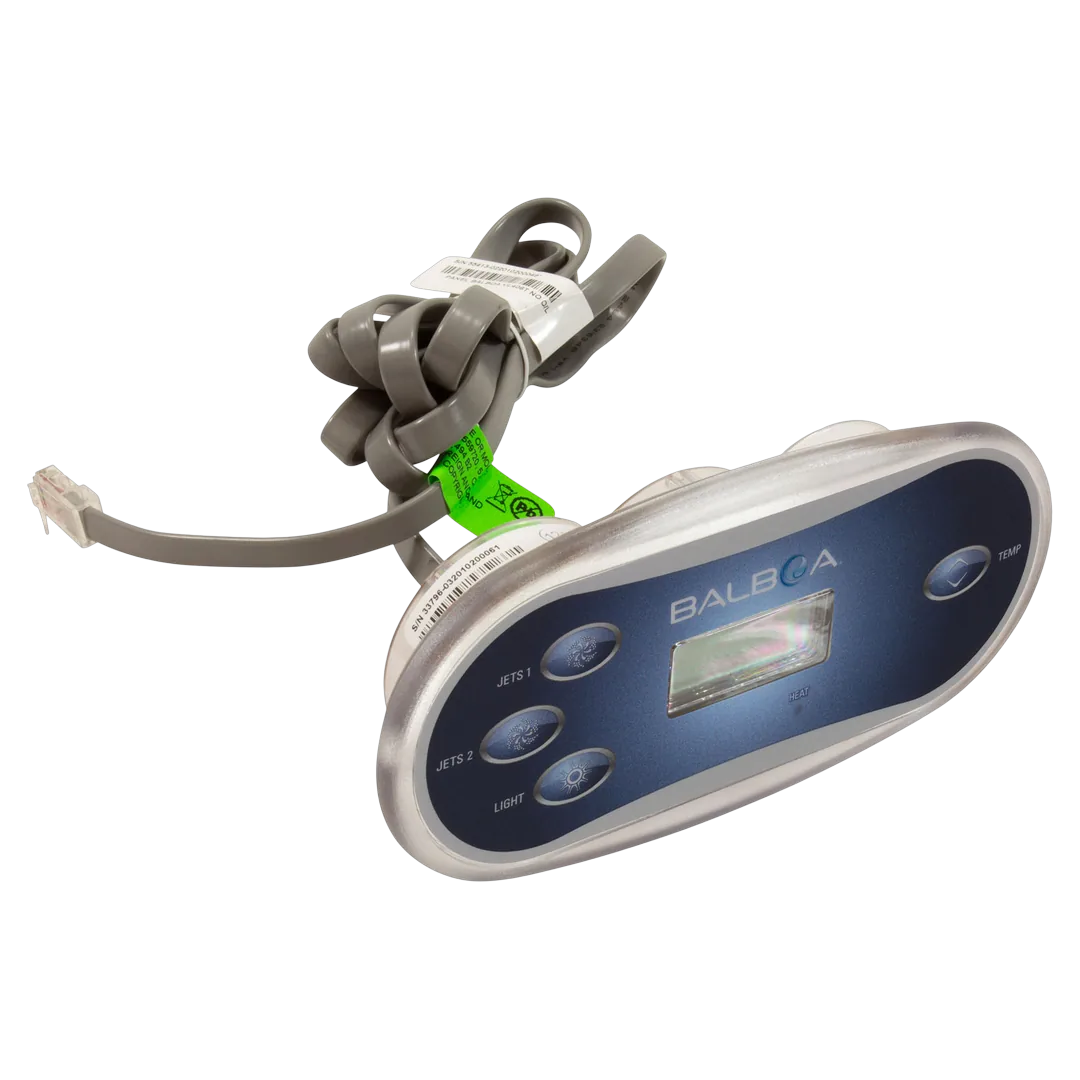

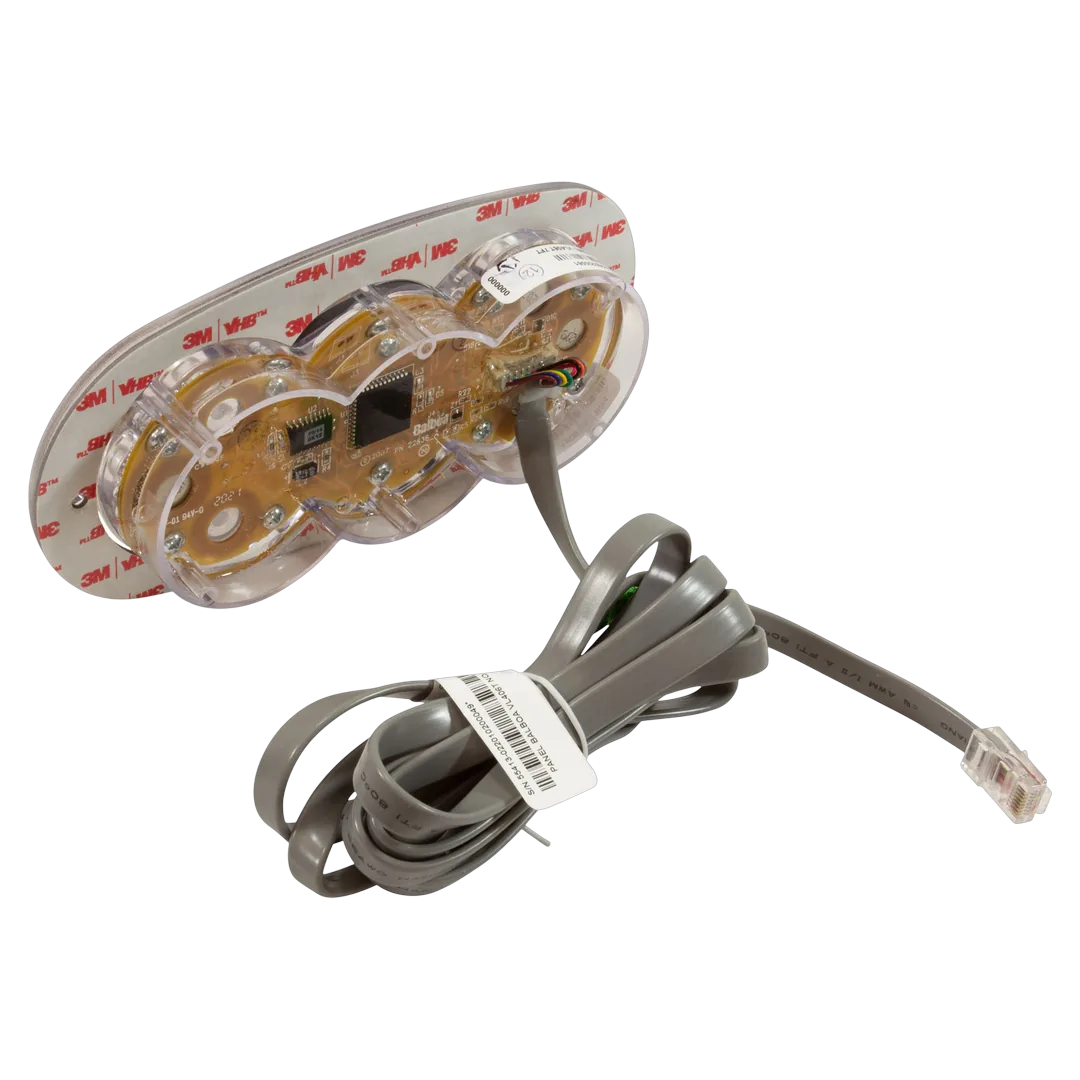

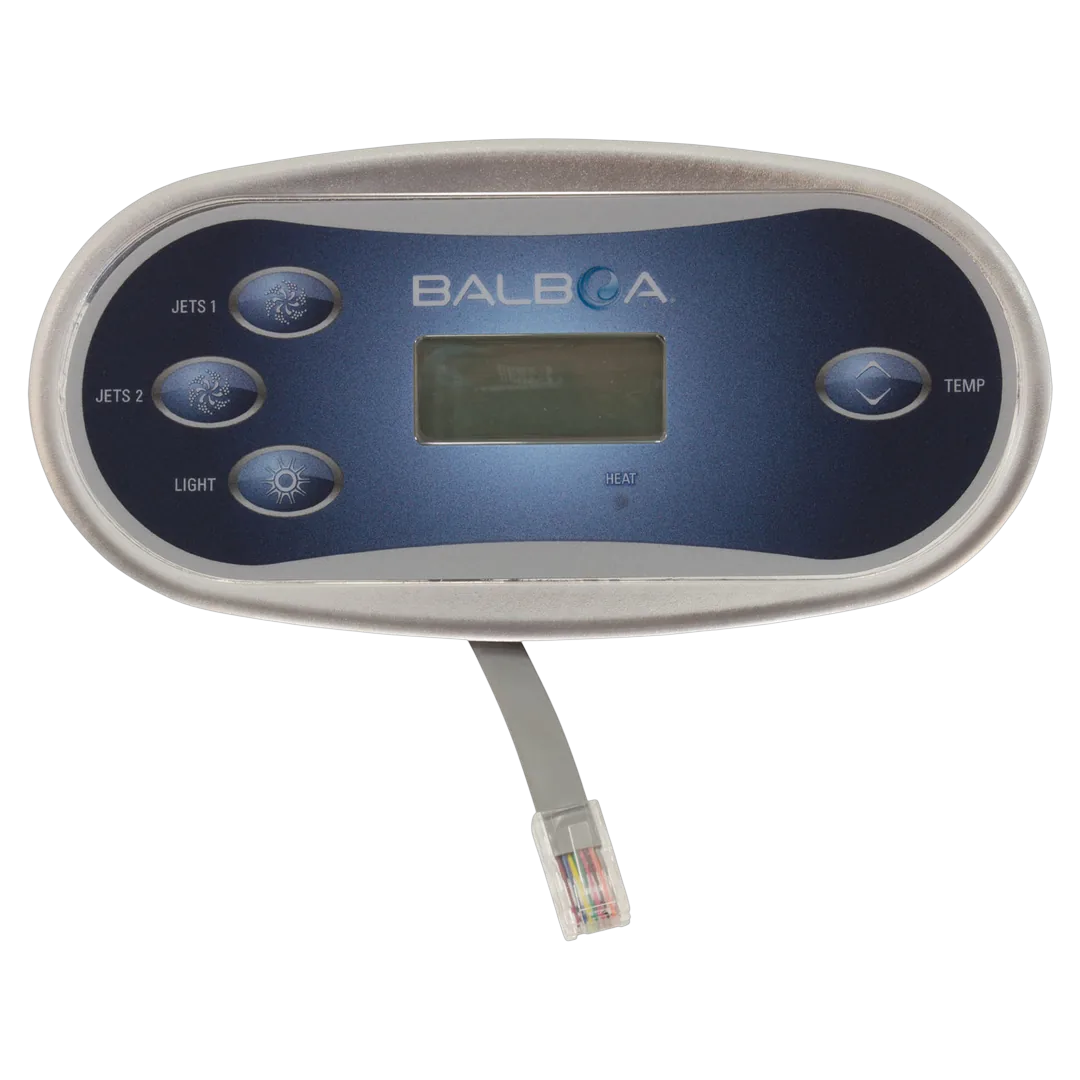

The Balboa Water Group 55570KIT, also known as the VL406T Topside, is a control panel assembly designed with buttons for Jets, Light, and Temperature adjustment. It incorporates a 6-foot cord for connectivity, facilitating integration into various spa systems. This assembly is compatible with systems requiring the VL406T configuration and is identified by the manufacturer part number 55570KIT.
Includes: Control panel with 7-foot RJ45 cable overlay not included
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Balboa Water Group VL406T Topside Control Panel |
| Part Number | 55570KIT |
| Part Type | Topside Control Panel |
| Compatibility | Compatible with Balboa GS500Z, GS501Z, and GS100 control systems |
| Substitute Part Numbers | 55413, 50210, 50217, 50222, 55349, G8246 |
| Includes | Control panel with 7-foot RJ45 cable overlay not included |
| Material | Plastic |
| Dimensions | 7 x 3.4 inch |
| Cut-Out Dimensions | 5.75 x 2.375 inch |
| Cable Length | 7 foot |
| Connector Type | RJ45 (8-wire phone-type) |
| Voltage | 12V |
| Amperage | 0.5 amps |
| Shipping Dimensions | 7 x 3.4 x 1.25 inch |
| Product Weight | 0.5 pound |
