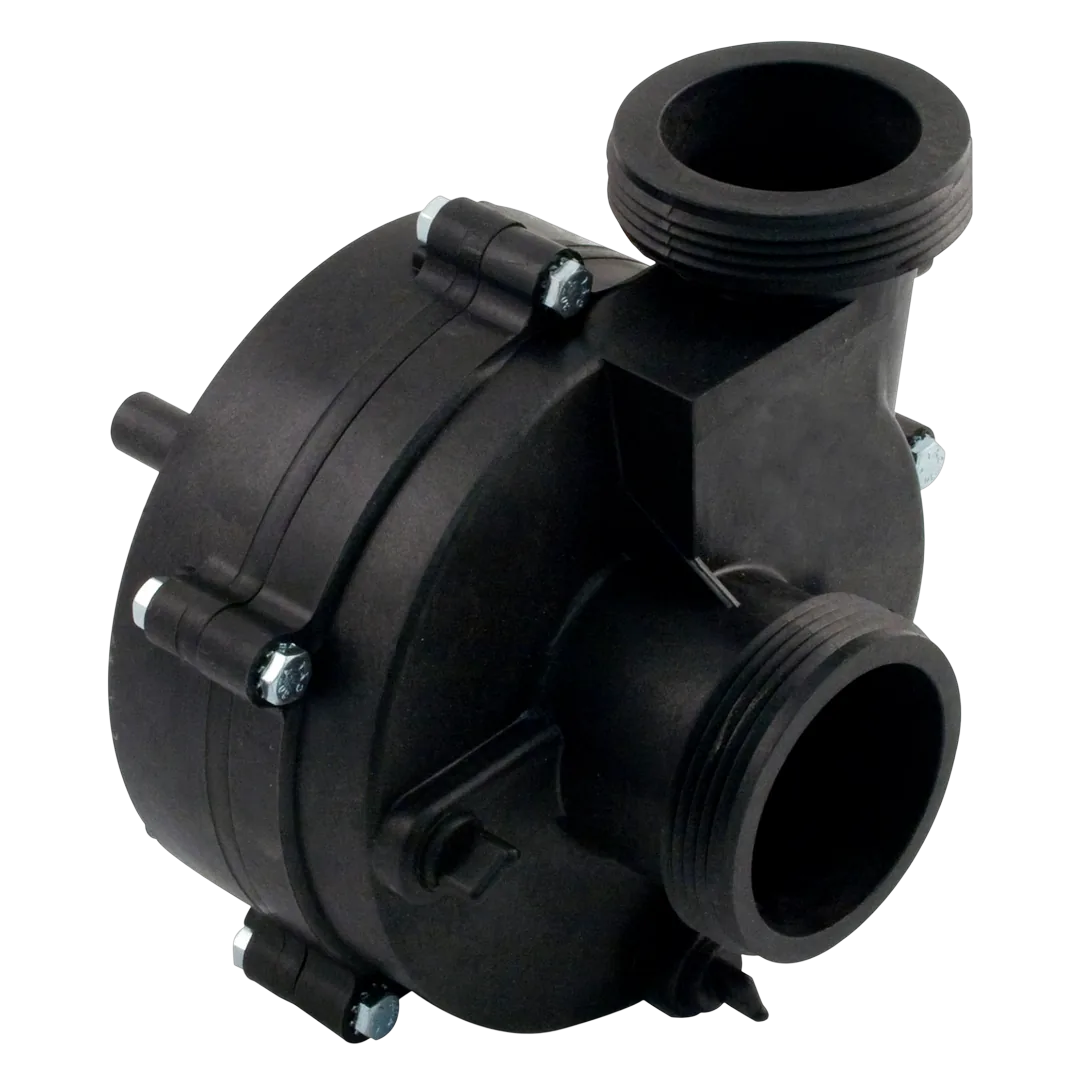

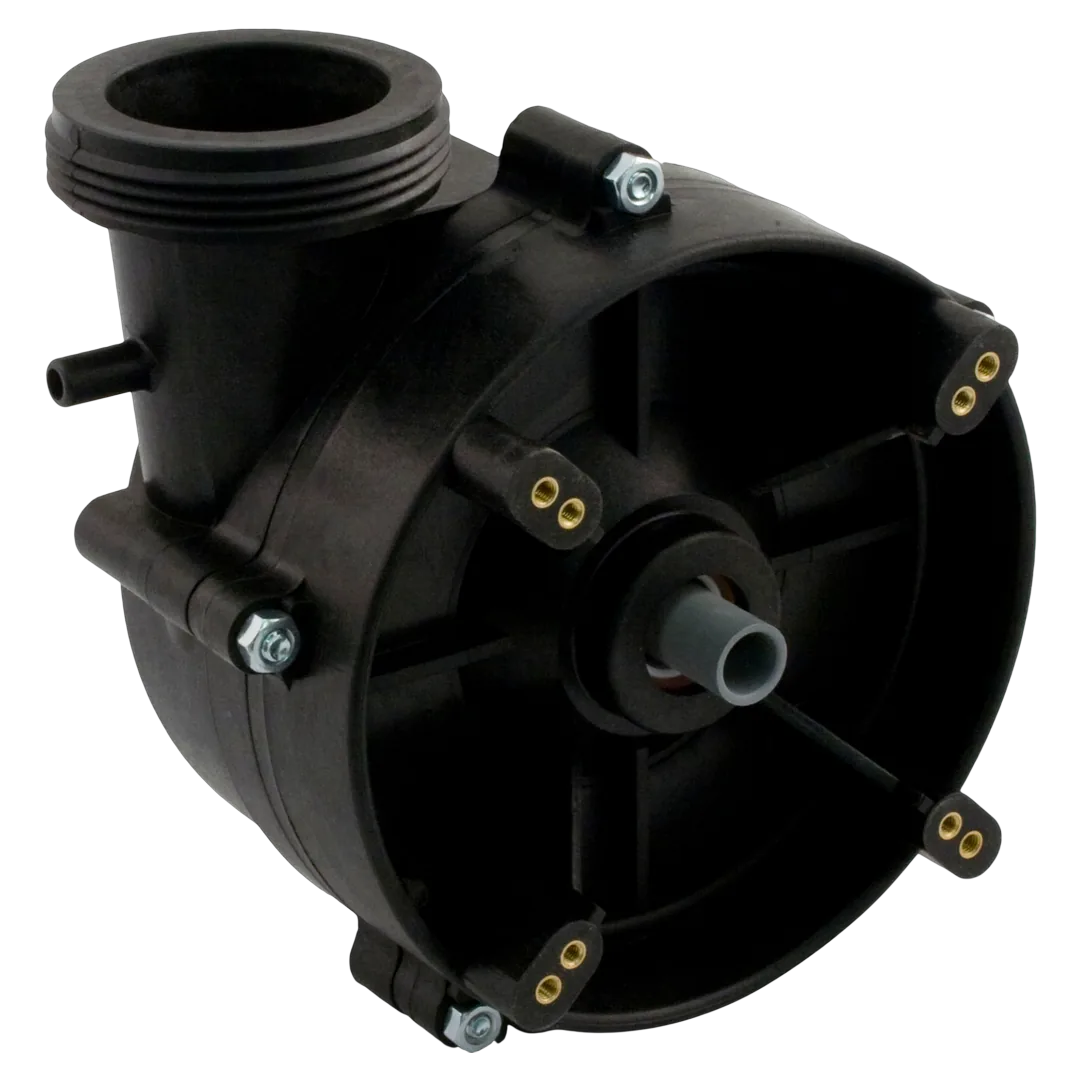

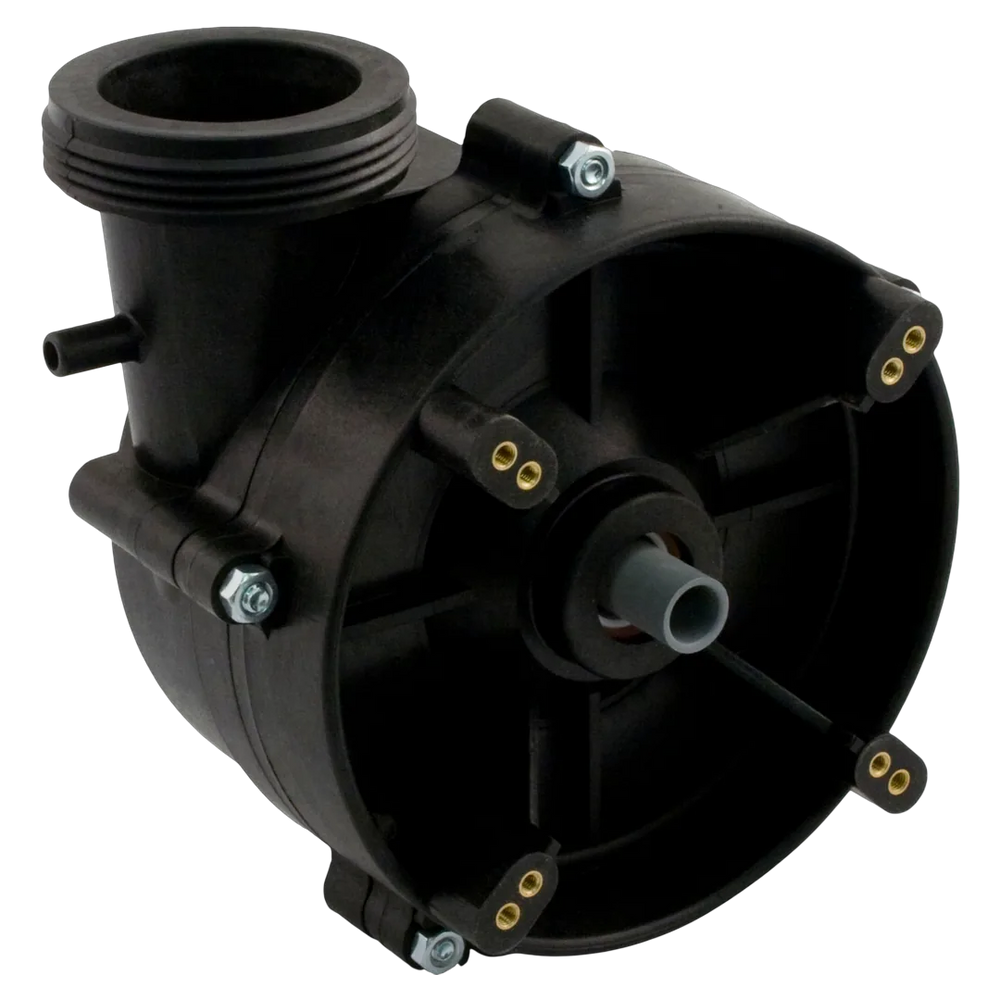

Balboa Vico Ultimax 1215007 Wet End
Vico/Balboa | SKU:
1215007
$11300/ea
Unit price
/
Unavailable
Balboa Vico Ultimax 1215007 Wet End is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Balboa Vico Ultimax 1215007 is a wet end component designed for spa and pool water circulation systems. It is constructed with a 2-inch side discharge and 4.0 horsepower capacity, suitable for both 48-frame and 56-frame thru-bolt motors. Compatible with Vico Ultimax jet pumps, this model features a full assembly that includes the volute, seal, impeller, wear ring, volute O-ring, seal plate, and necessary bolts and nuts.
Includes: Complete wet end assembly including volute, seal, impeller, wear ring, volute o-ring, seal plate, bolts, and nuts
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Vico/Balboa Ultimax 4.0 HP Side Discharge Wet End |
| Part Number | 1215007 |
| Part Type | Pump Part |
| Compatibility | Fits 48 or 56 frame motors |
| Substitute Part Numbers | 1215187, 1-05-0399, 34-430-1340 |
| Includes | Complete wet end assembly including volute, seal, impeller, wear ring, volute o-ring, seal plate, bolts, and nuts |
| Material | High-grade thermoplastic |
| Connection Size | 2" Male Buttress Thread (MBT) inlet and outlet |
| Mount Type | Side discharge |
| Flow Paths | Center suction, side discharge |
| Seal Material | Viton |
| Shipping Dimensions | 21.5 x 12.2 x 11.7 inch |
| Product Weight | 36.8 pound |
