Balboa G8535 SpaTouch3 Control Panel
Balboa Water Group | SKU:
G8535-03
$45000/ea
Unit price
/
Unavailable
Balboa G8535 SpaTouch3 Control Panel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

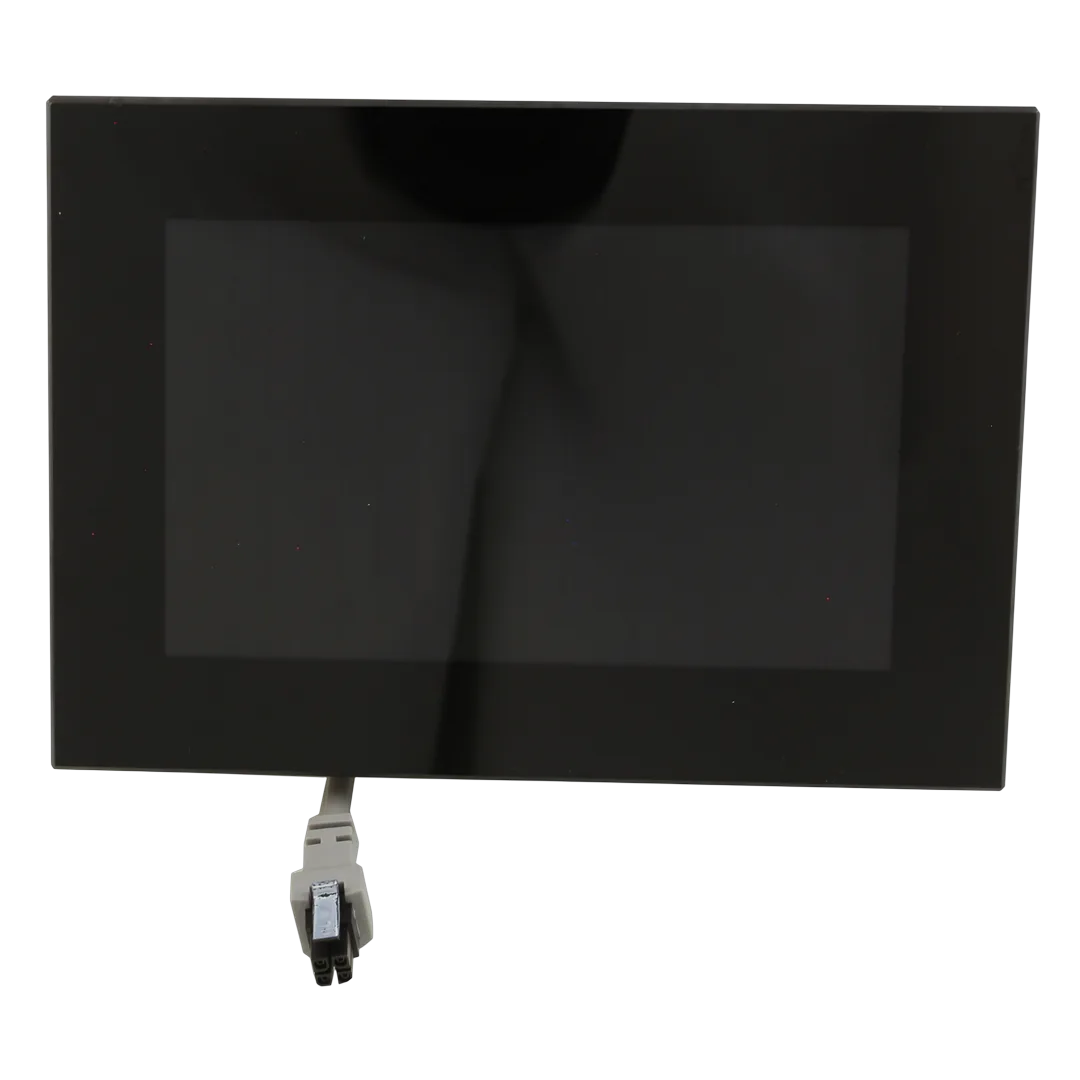

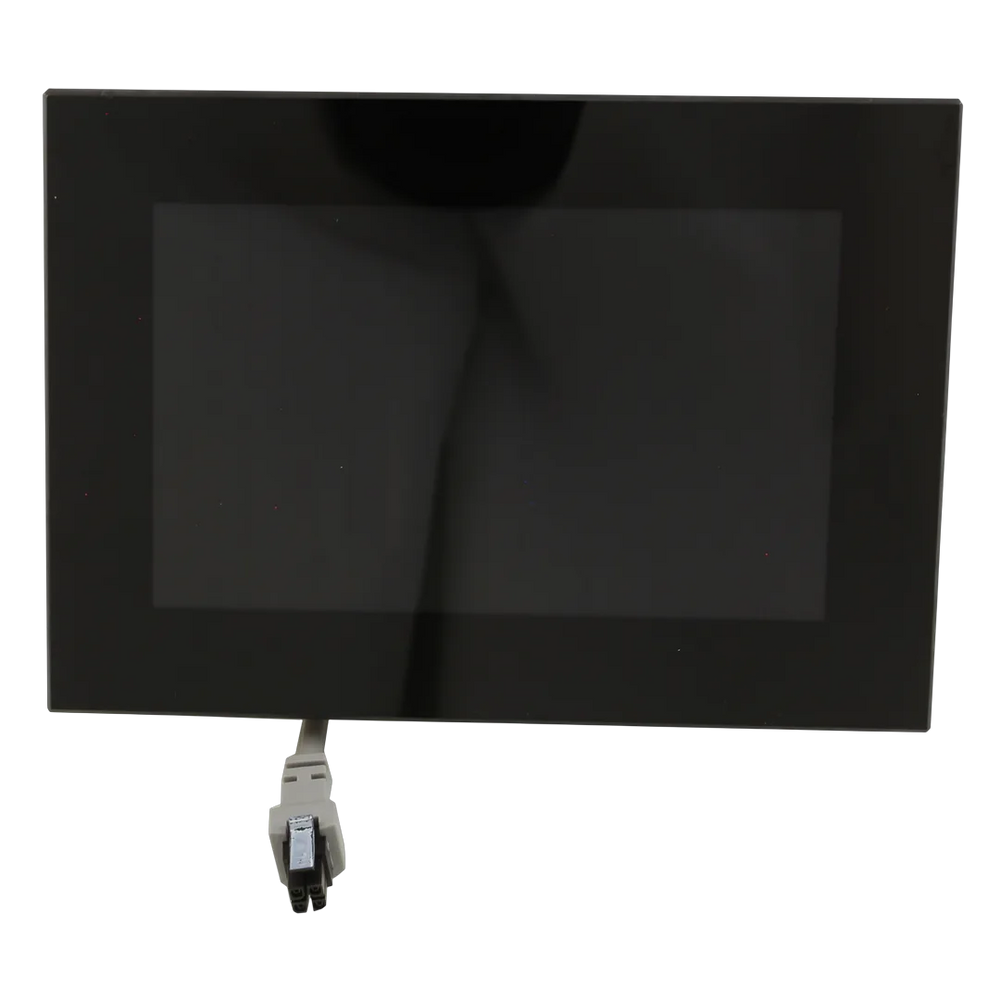

The Balboa Water Group G8535-03 is a SpaTouch3 Topside Control Panel designed for use with spa systems. It features a 5-inch capacitive touchscreen, allowing for user-friendly operation. This panel is compatible with Balboa's BP Series control systems, including the BP501G1, and utilizes a Molex 4-pin cord connector for connections.

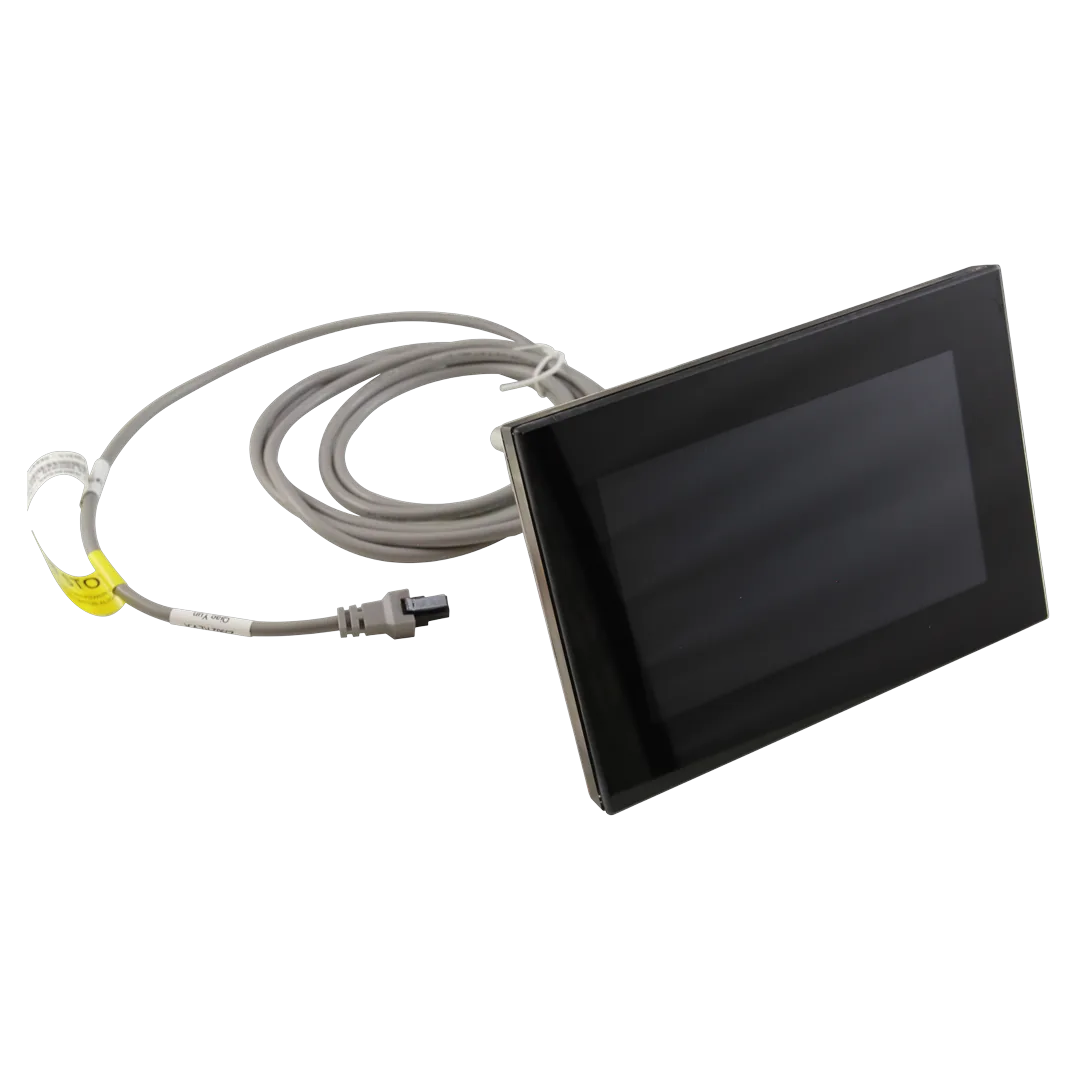

Includes: Complete topside control panel with 15' cable and 4-pin Molex connector
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Balboa Water Group SpaTouch3 Topside Control Panel |
| Part Number | G8535-03 |
| Part Type | Topside Control Panel |
| Compatibility | Compatible with Balboa BP Series control systems, including BP2000G1, G2, G3, BP200UX, BP600, BP6013G1, 3G2, 3G3, and BP2100 G1, G2, G3 |
| Substitute Part Numbers | G8535, 57254, 28317 |
| Includes | Complete topside control panel with 15' cable and 4-pin Molex connector |
| Certifications | CE Marked |
| Material | Plastic |
| Dimensions | 5.75 x 4 x 0.35 inches |
| Cutout Size | 5 x 3.31 inches |
| Cable Length | 15 feet |
| Connector Type | 4-Pin Molex |
| Operating Voltage | 12V DC |
| Display Size | 5 inches |
| Display Type | Capacitive Color Touchscreen |
| Frame Color | Clear/Transparent |
| Panel Shape | Rectangular |
| Backlit Display | Yes |
| Waterproof | Yes |
| Shipping Dimensions | 6 x 5 x 1 inch |
| Product Weight | 0.5 pound |
