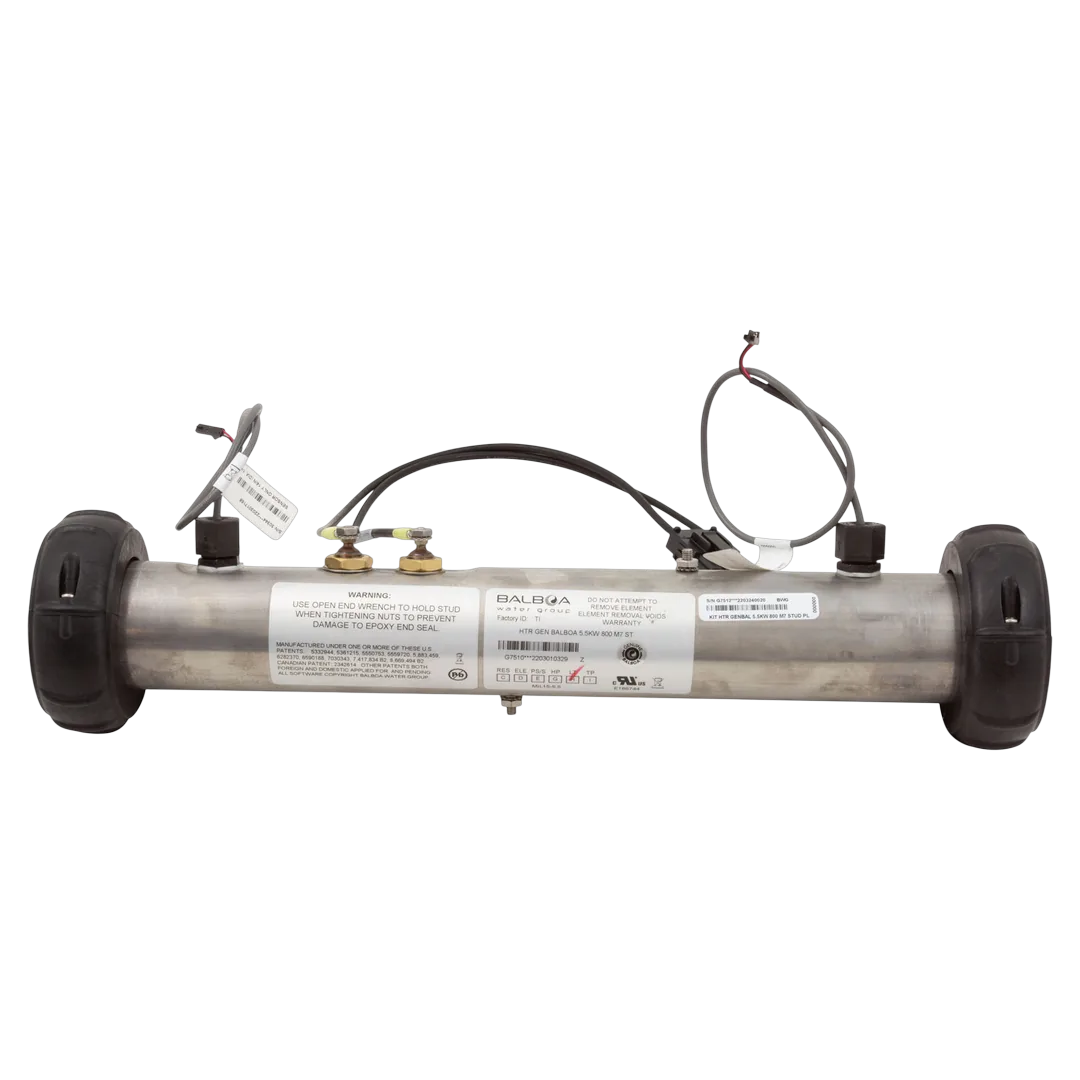

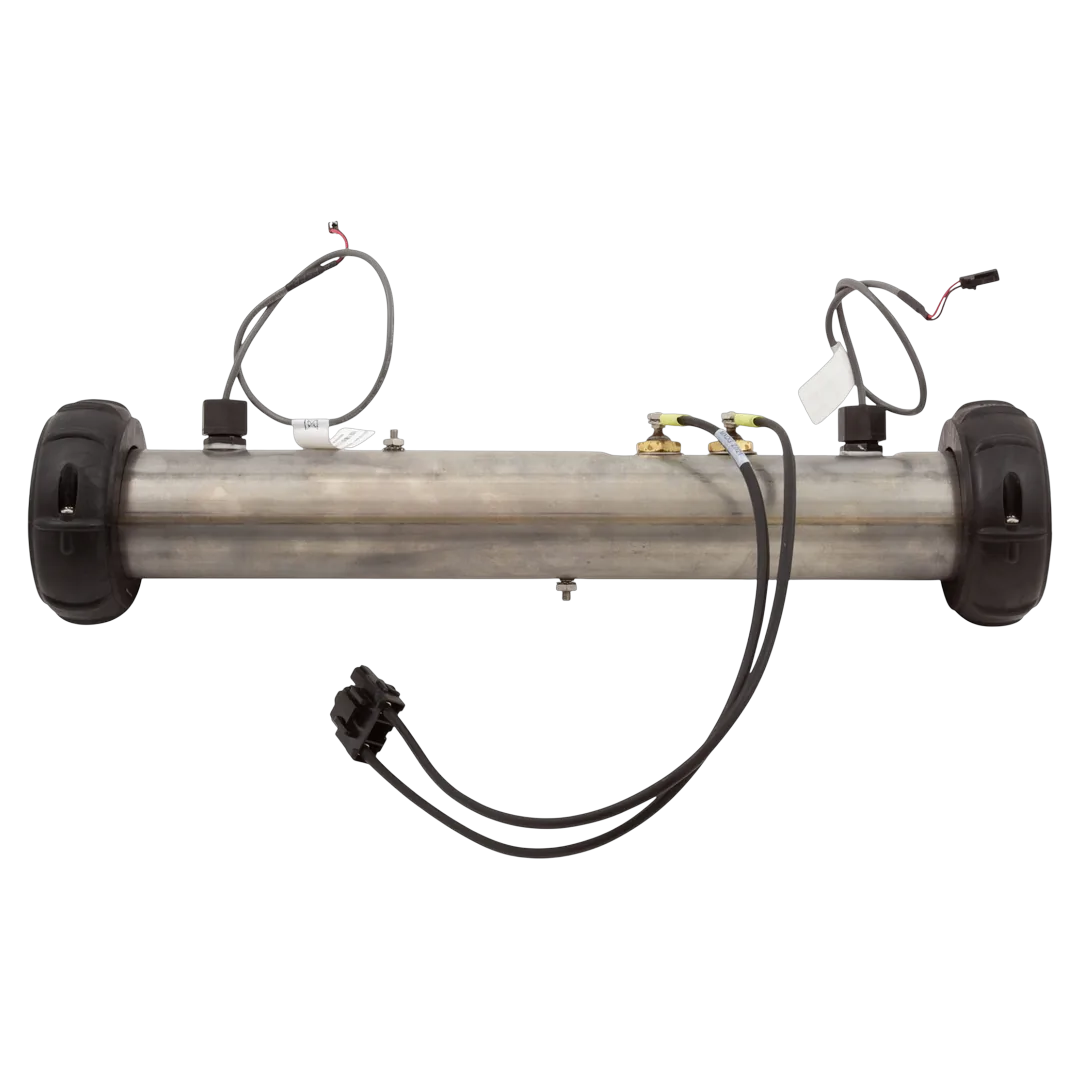

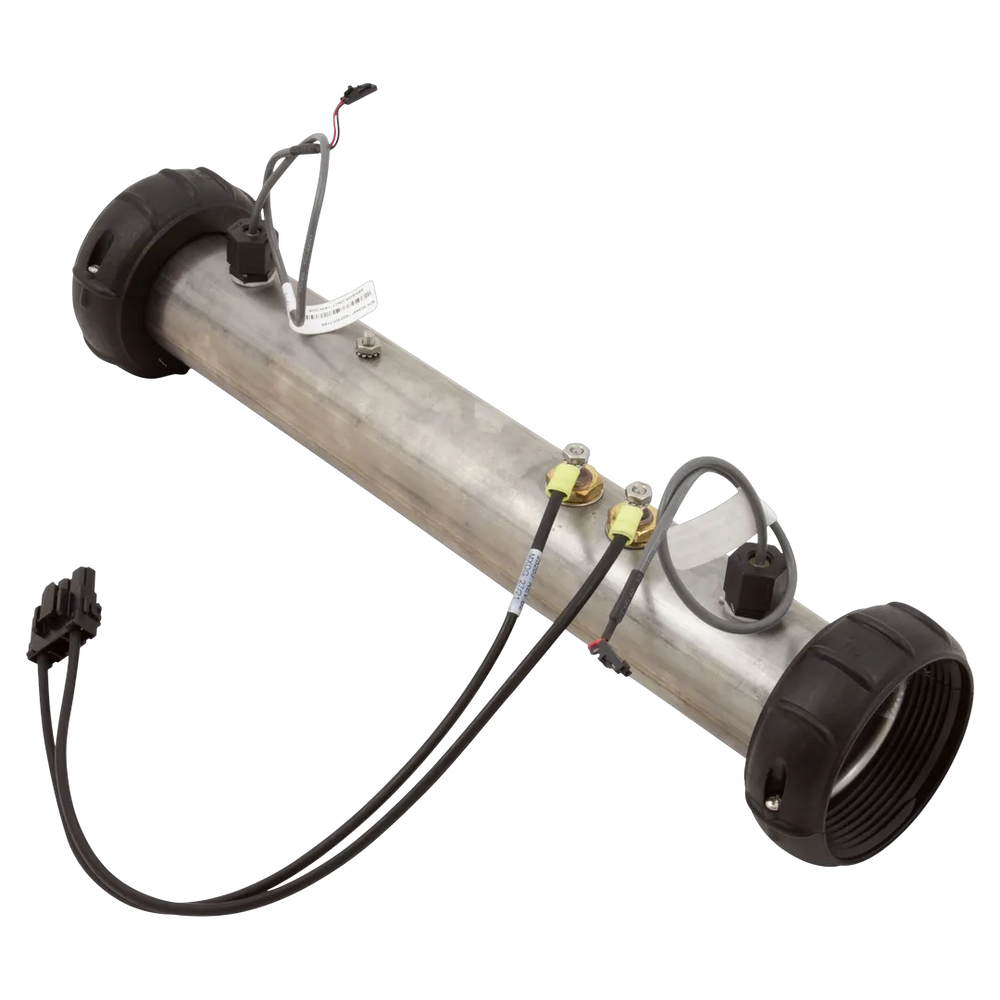

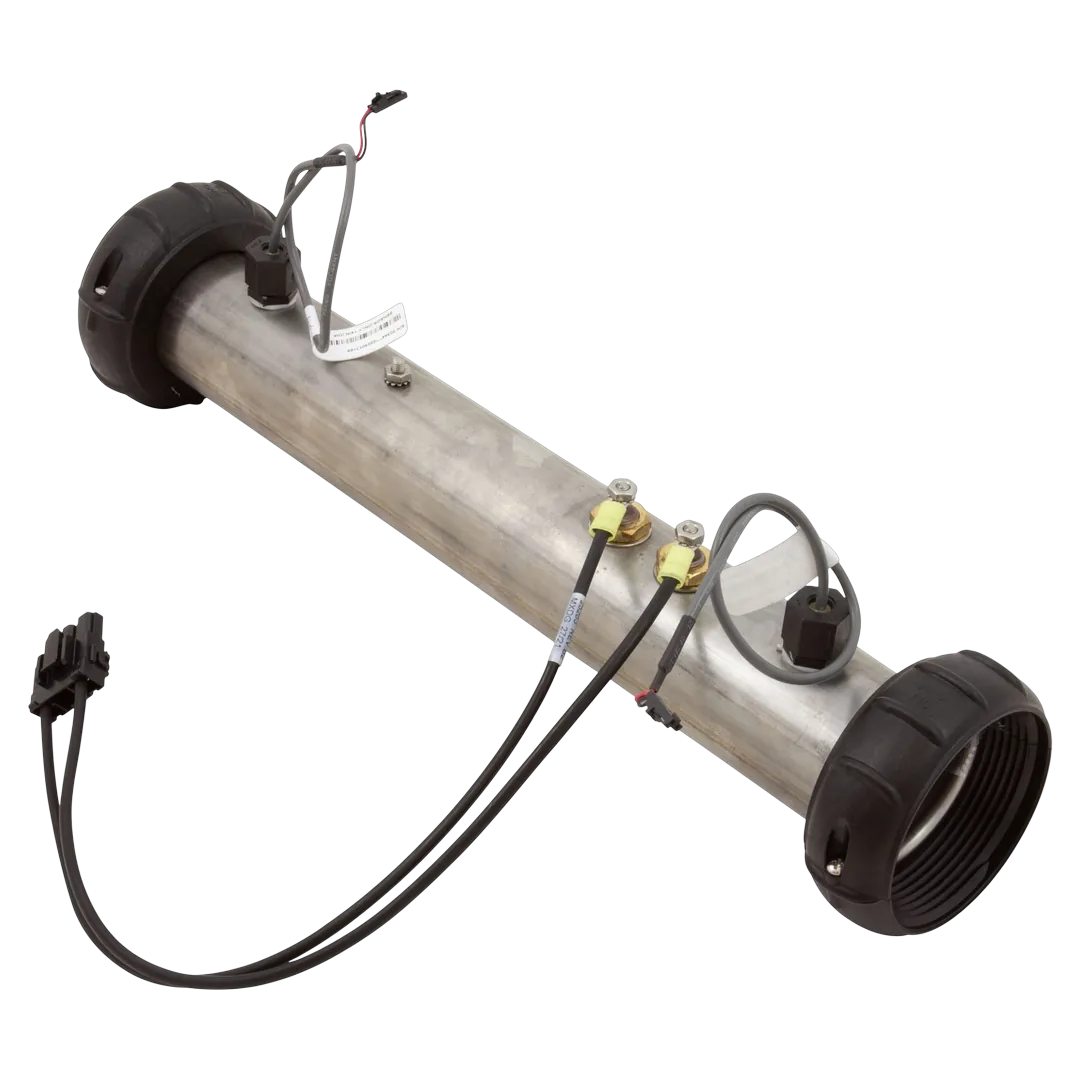

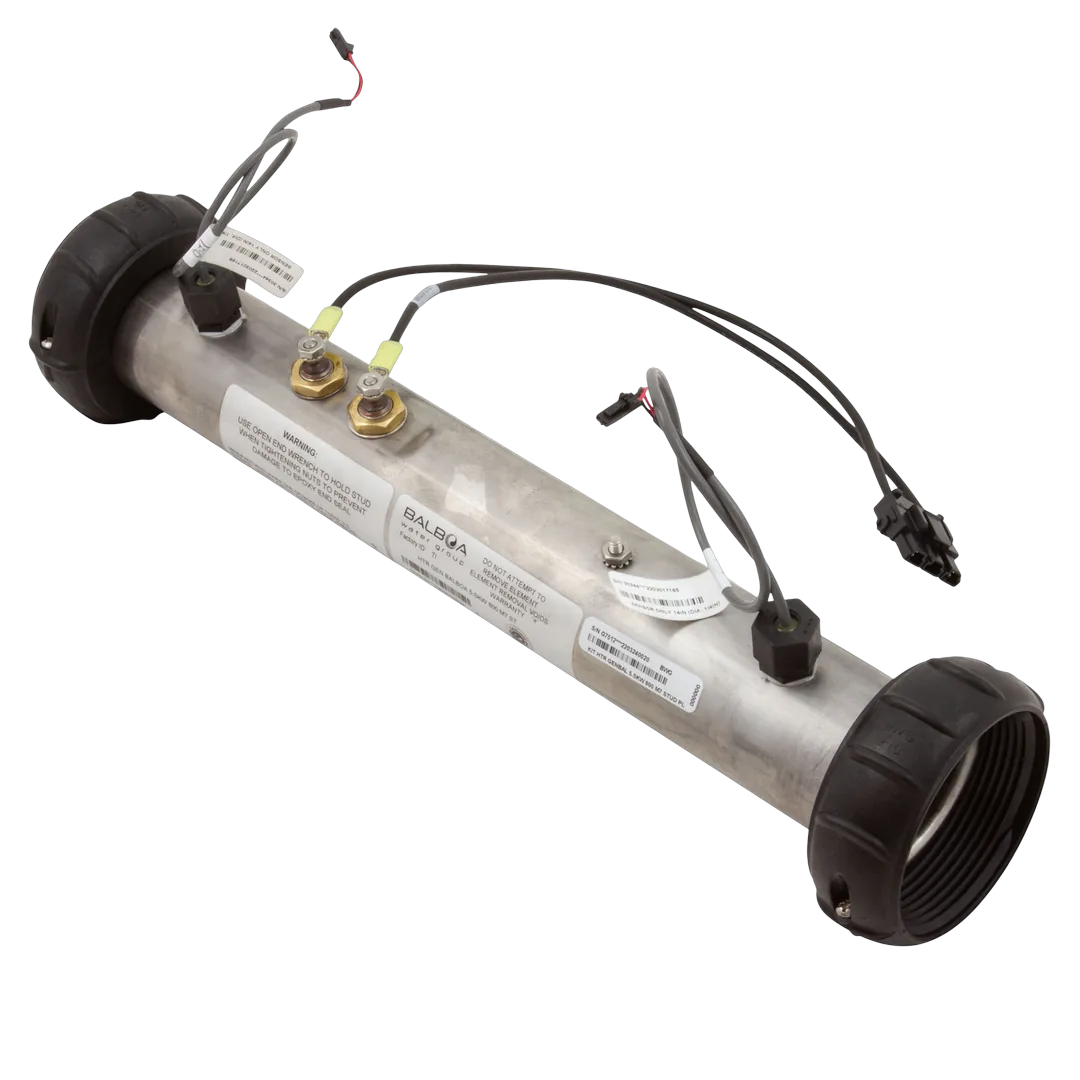

Balboa G7512 FloThru Heater
Balboa Water Group | SKU:
G7512-01
$17200/ea
Unit price
/
Unavailable
Balboa G7512 FloThru Heater is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Balboa Water Group G7512-01 is a flow-thru heater with a power rating of 5.5kW, compatible with 230V systems. It incorporates a stainless steel housing and an Incoloy heating element, featuring dual M7 sensors for thermal regulation and a plug-n-click connector. This unit is designed for compatibility with Balboa BP, VS, and EL Series spa control systems.
Includes: Heater assembly with M7 dual sensors and mounting studs
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Balboa Water Group M7 5.5kW Heater |
| Part Number | G7512-01 |
| Part Type | Heater |
| Compatibility | Compatible with Balboa M7 Control Systems, including BP Series (BP501, BP2000, BP601), VS Series (VS500, VS501, VS510, VS520), EL/GL Series (EL2000, GL2000), and GS Series (GS501, GS510) |
| Substitute Part Numbers | 58083, 58000, 58010, 58121, 58089 |
| Includes | Heater assembly with M7 dual sensors and mounting studs |
| Material | Stainless Steel |
| Voltage | 120V / 240V |
| Kilowatt Rating | 5.5kW at 240V / 1.375kW at 120V |
| Dimensions | 15 x 2 x 2 inch |
| Shipping Dimensions | 15 x 5 x 5 inch |
| Product Weight | 5 pound |
