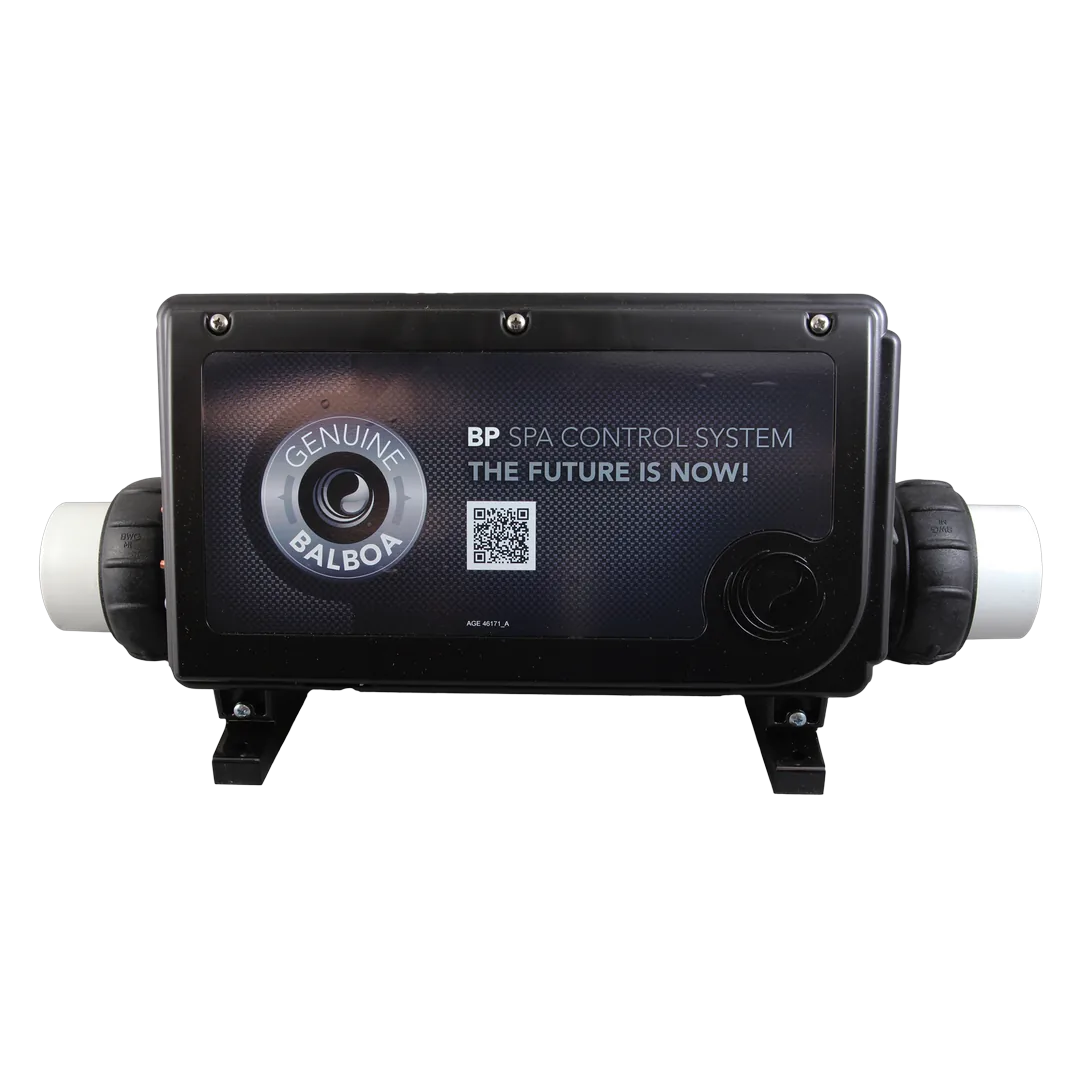

Balboa G6422 BP100G2 Control System
Balboa Water Group | SKU:
G6422-01
$47800/ea
Unit price
/
Unavailable
Balboa G6422 BP100G2 Control System is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

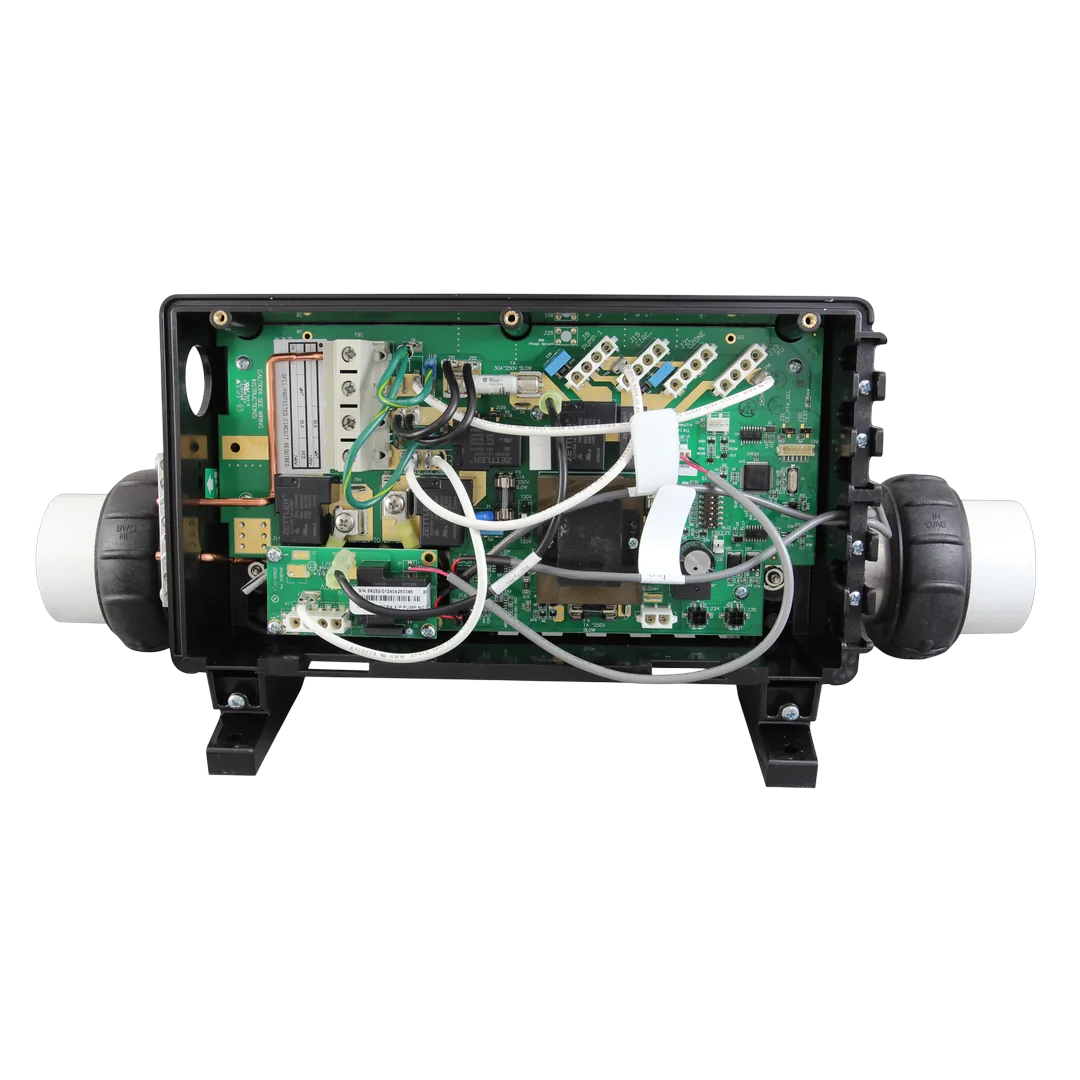

The Balboa Water Group G6422-01 is a spa control system, identified as the BP100G2 series, featuring a 4.0kW heater and a TP260T control panel. It integrates components for controlling spa functions and provides compatibility with a variety of Balboa's TP Panels. This system is suitable for multiple spa applications, accommodating setups with primary (P1) and secondary (P2) pump configurations.

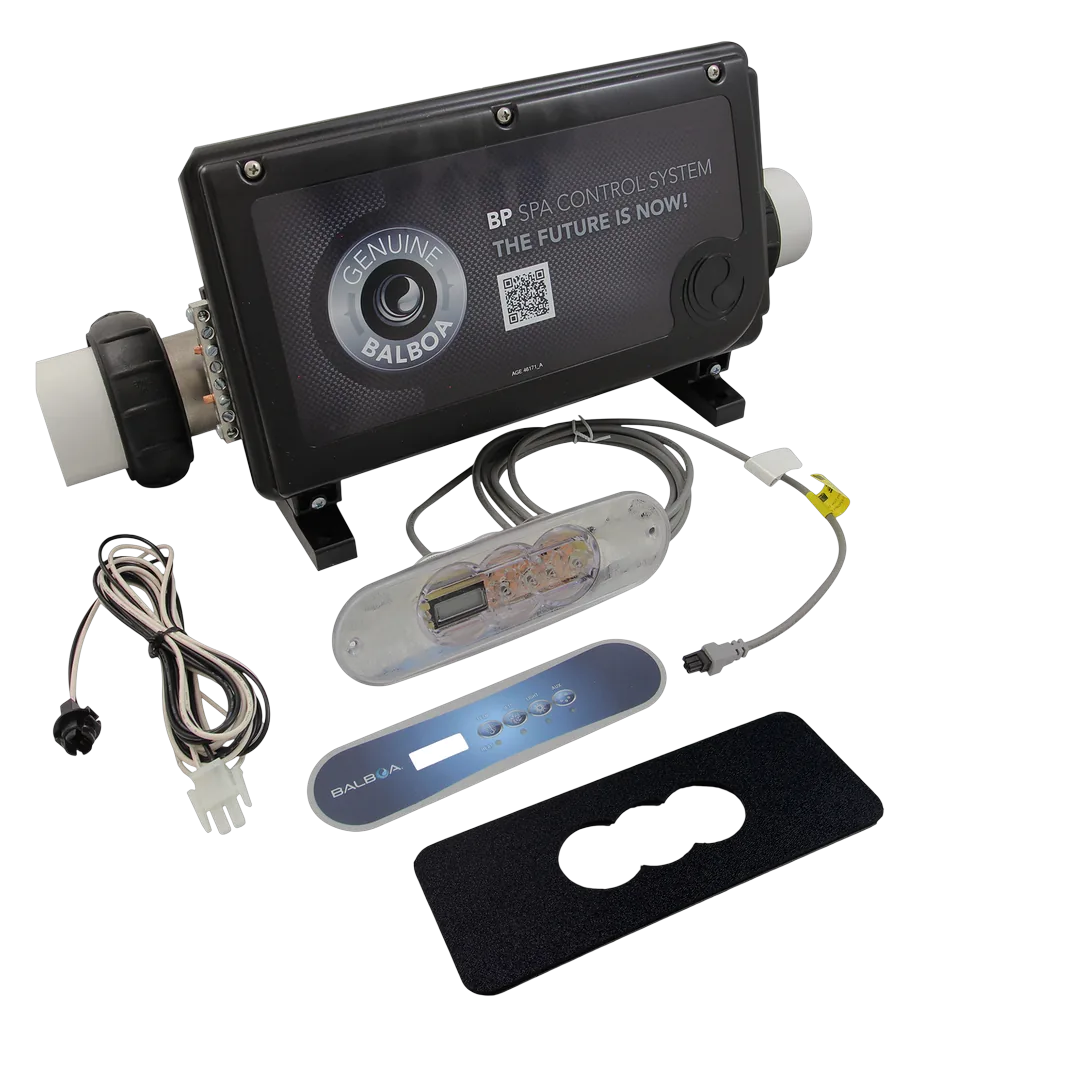

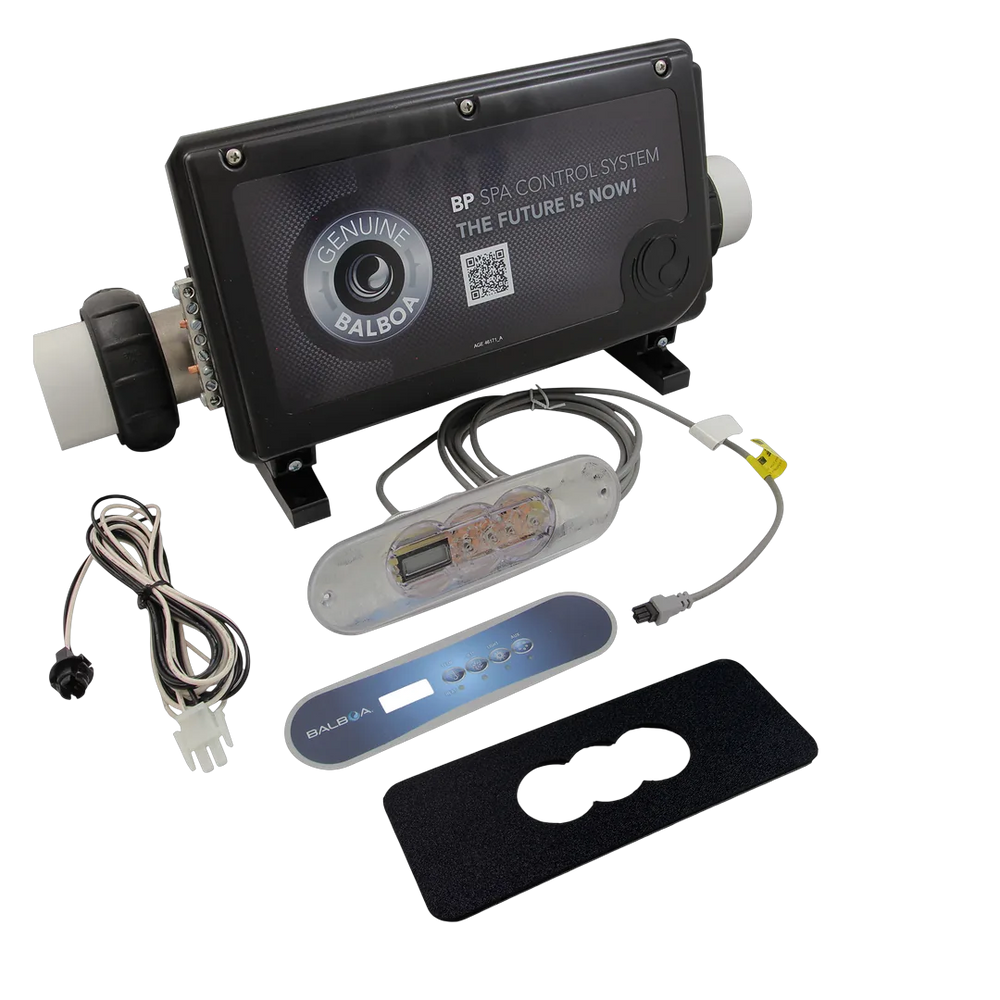

Includes: BP100G2 Control Unit, TP260T Control Panel, Integrated 4.0kW Heater, Necessary Wiring and Sensors
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Balboa Water Group BP100G2 Control System with 4.0kW Heater and TP260T Panel |
| Part Number | G6422-01 |
| Part Type | Control System |
| Includes | BP100G2 Control Unit, TP260T Control Panel, Integrated 4.0kW Heater, Necessary Wiring and Sensors |
| Material | Acrylic, Plastic, Vinyl |
| Supply Voltage | 115V, 230V - 4 Wire |
| Frequency | 50Hz, 60Hz |
| Heater Type | Integrated 4.0kW (Fixed - Bottom 1.0kW, 4.0kW) |

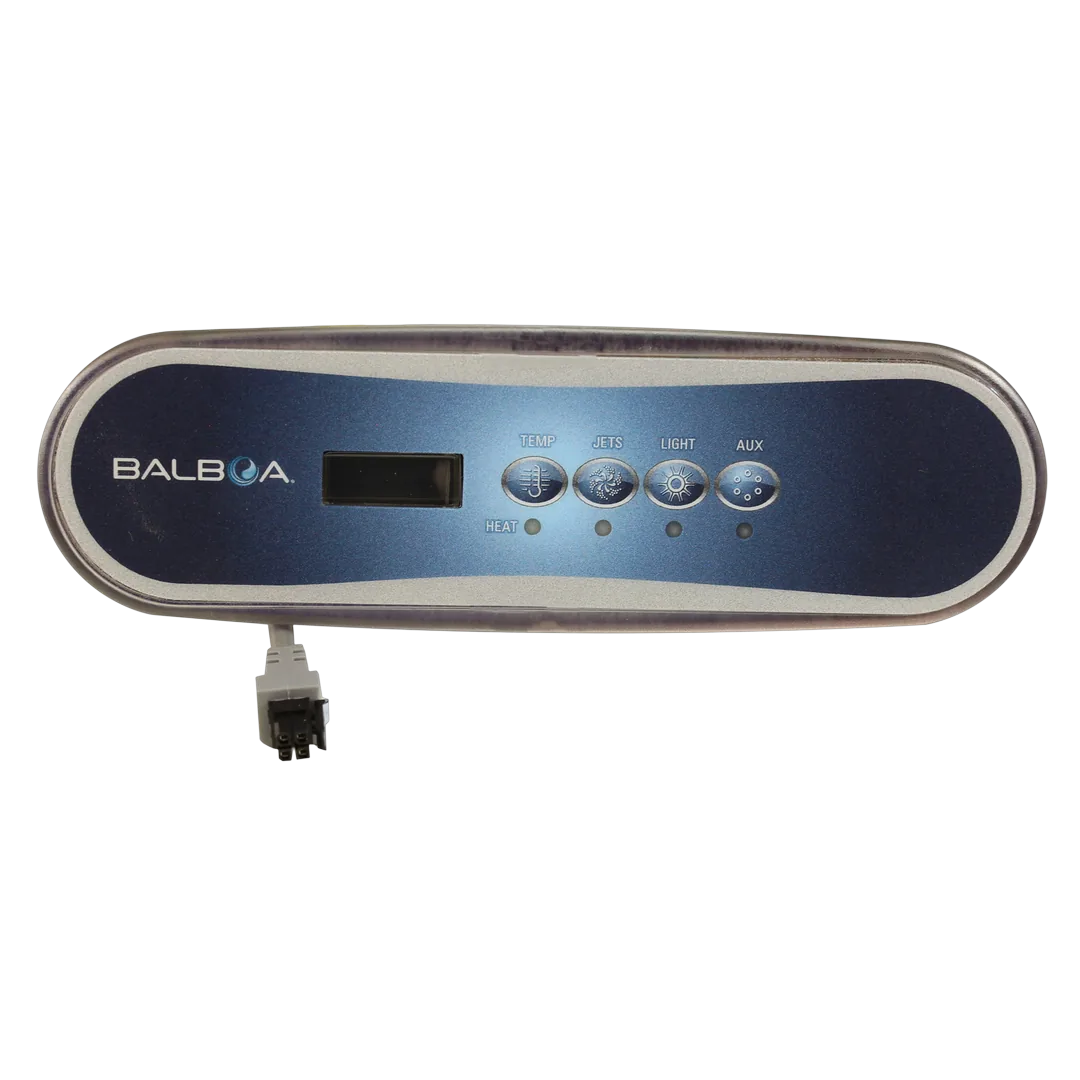

| Control Panel | TP260T |
| Circulation Pump Ready | Optional 115V, Optional 230V |
| Number of Appliances | 2 |
| Wi-Fi Compatible | Yes |
| Accessory Ready | Yes |
| Product Dimensions | 22 x 8.75 x 18.25 inch |
| Product Weight | 10.2 pound |
