Balboa Water Group 6500-343 Spa Pump
Balboa Water Group | SKU:
6500-343
$58600/ea
Unit price
/
Unavailable
Balboa Water Group 6500-343 Spa Pump is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

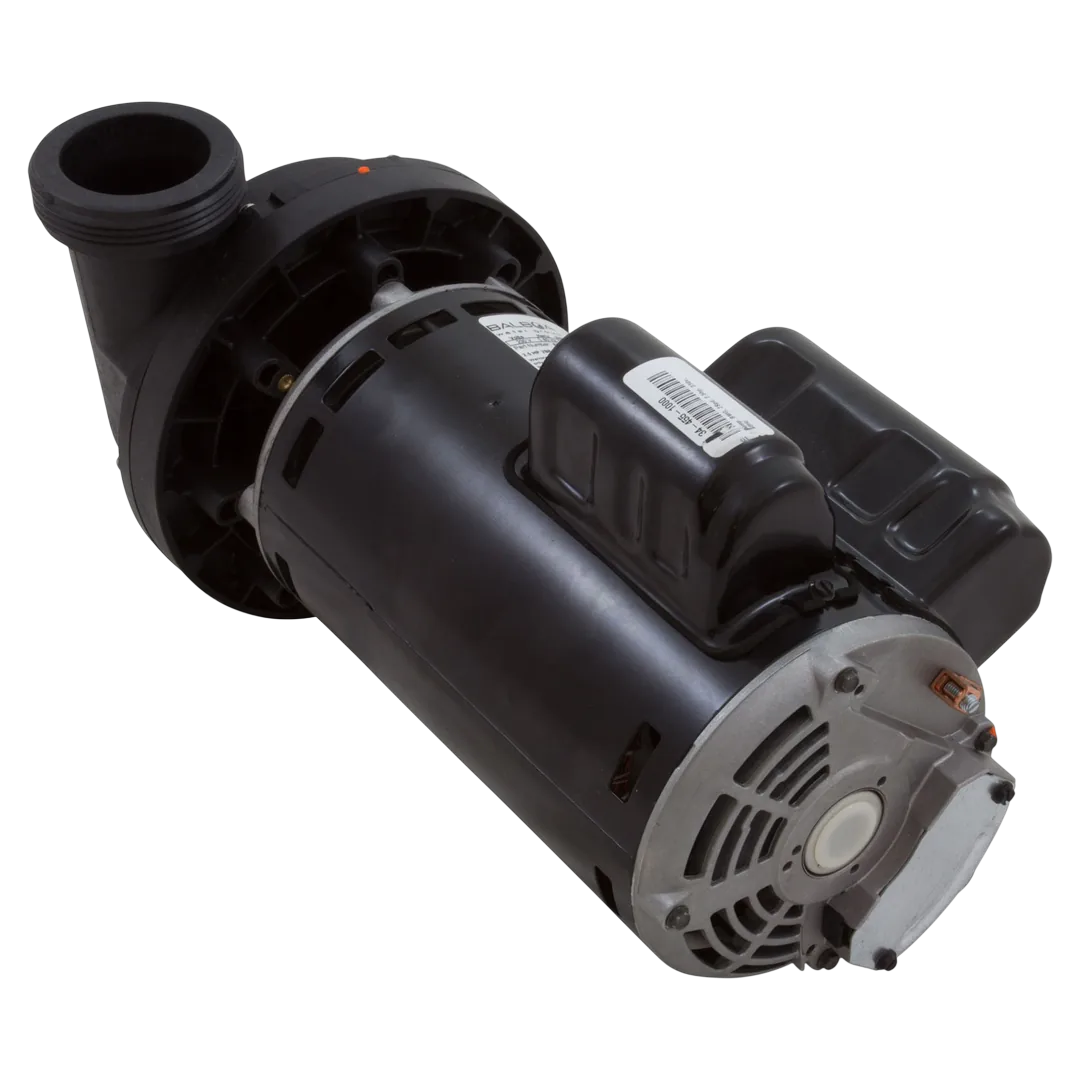

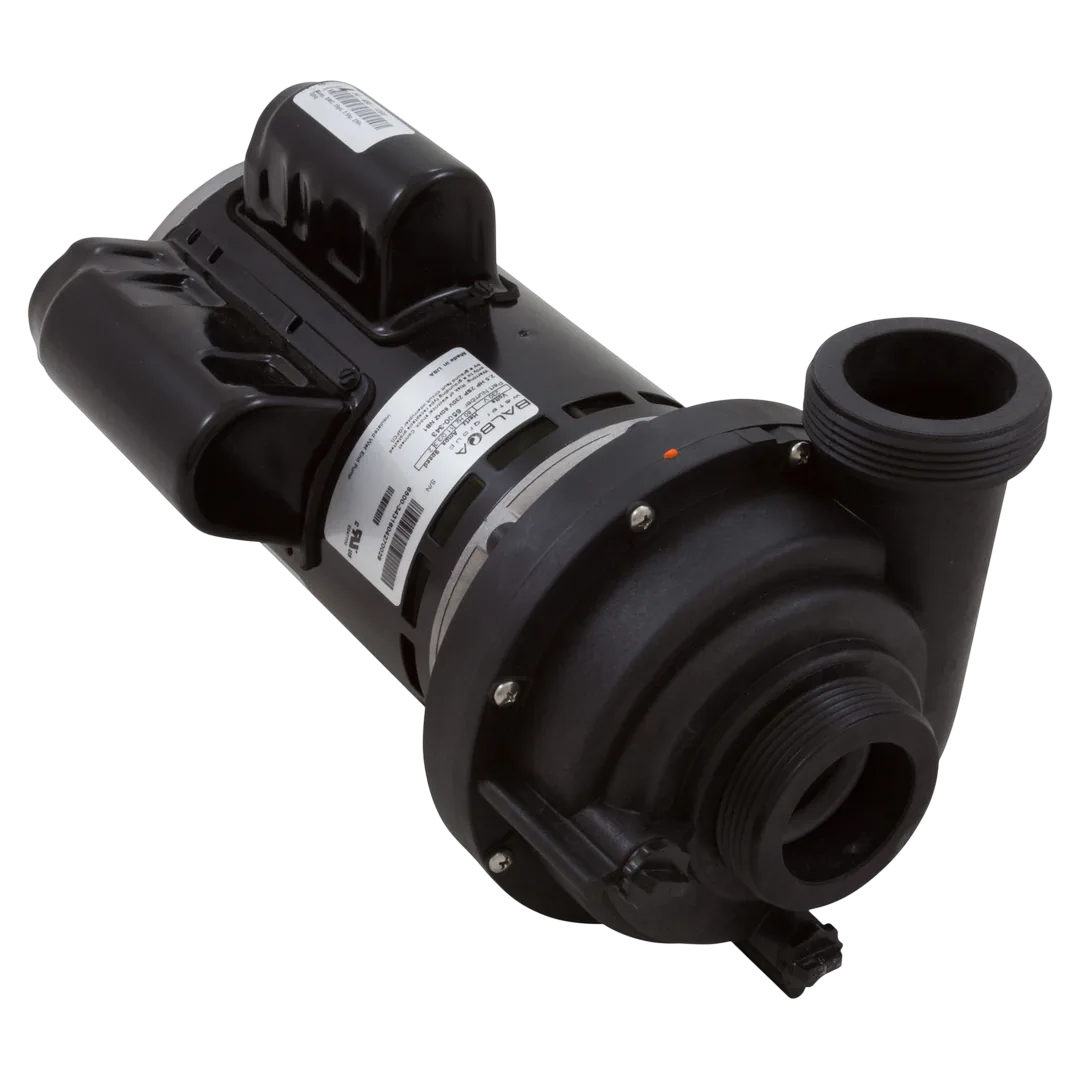

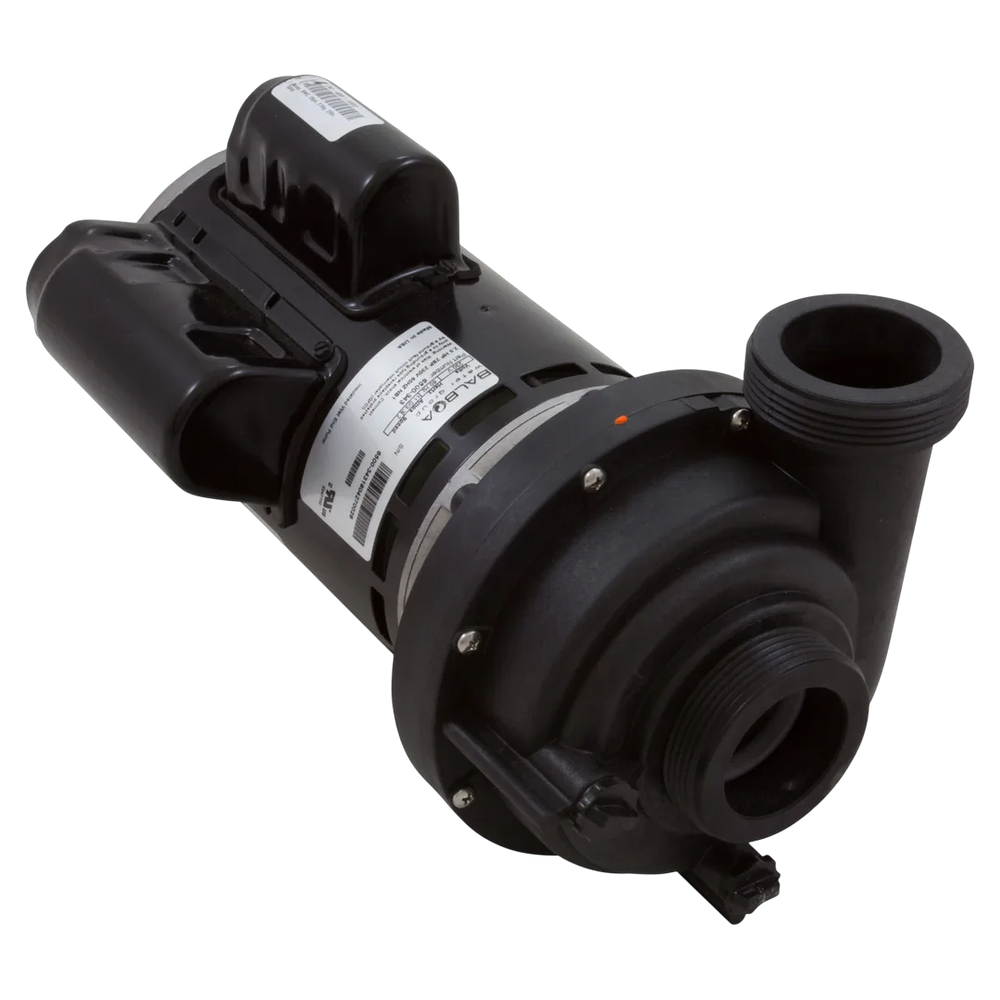

The Balboa Water Group 6500-343 is a two-speed, 2.5 horsepower pump designed for spa and hot tub applications, running on 230 volts and 60 Hz. It is built with a baseless design and features a 48 frame with 2-inch suction and discharge ports. This pump is specifically compatible with Sundance and Jacuzzi spas, replacing several older part numbers such as 4234211-S.
Includes: Pump only does not include electrical cord, unions, or gaskets.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Balboa Water Group 6500-343 2.5 HP 2-Speed Spa Pump |
| Part Number | 6500-343 |
| Part Type | Pump |
| Compatibility | Compatible with various Sundance and Jacuzzi spa models, including Altamar (1998-2003), Bahia (11/2002+), Calypso (1997), Cameo/Optima (1997-2003), Marin (1998-1999 and 2004+), Telluride Model S/N #TL34439+ (1998-4/99), and Maxxus (1999+ for Pump 1). |
| Substitute Part Numbers | 6500-128, 6500-138, 6500-254, 6500-260, 6500-261, 6500-268, 6500-754, 6500-757, 6500-761, 6500-762, 6500-764, 6500-765, 6500-768, 6500-760 |
| Includes | Pump only does not include electrical cord, unions, or gaskets. |
| Material | Plastic |
| Valve Type | None |
| Number of Positions | 2 |
| Connection Size | 2" MBT (Measures 3" OD) |
| Mount Type | Baseless requires separate mounting bracket (P/N 6000-532) |
| Flow Paths | Side Discharge |
| Pressure Rating | Not specified |
| Seal Material | Not specified |
| Shipping Dimensions | 15.5 x 8.4375 x 8.4375 inch |
| Product Weight | Not specified |
