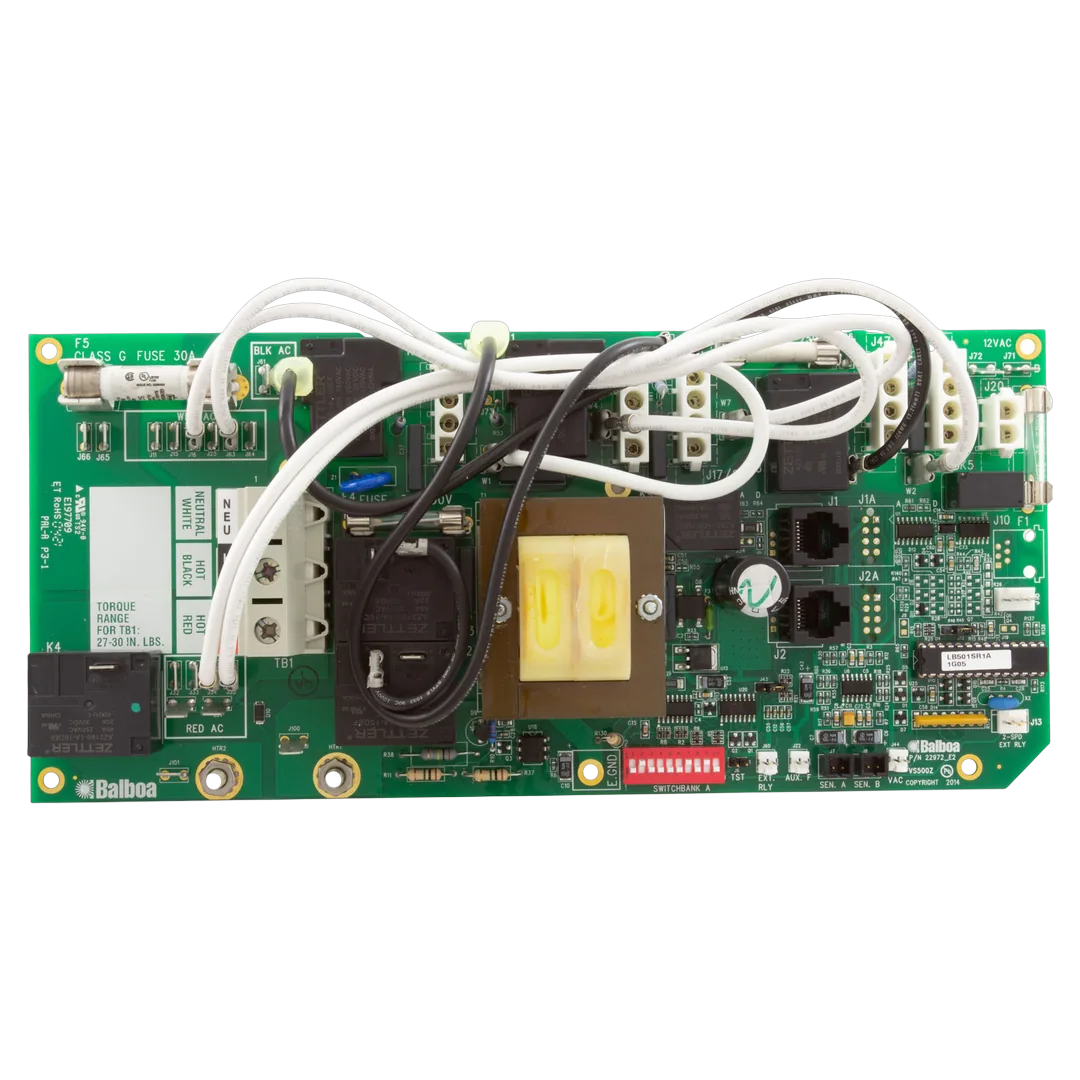

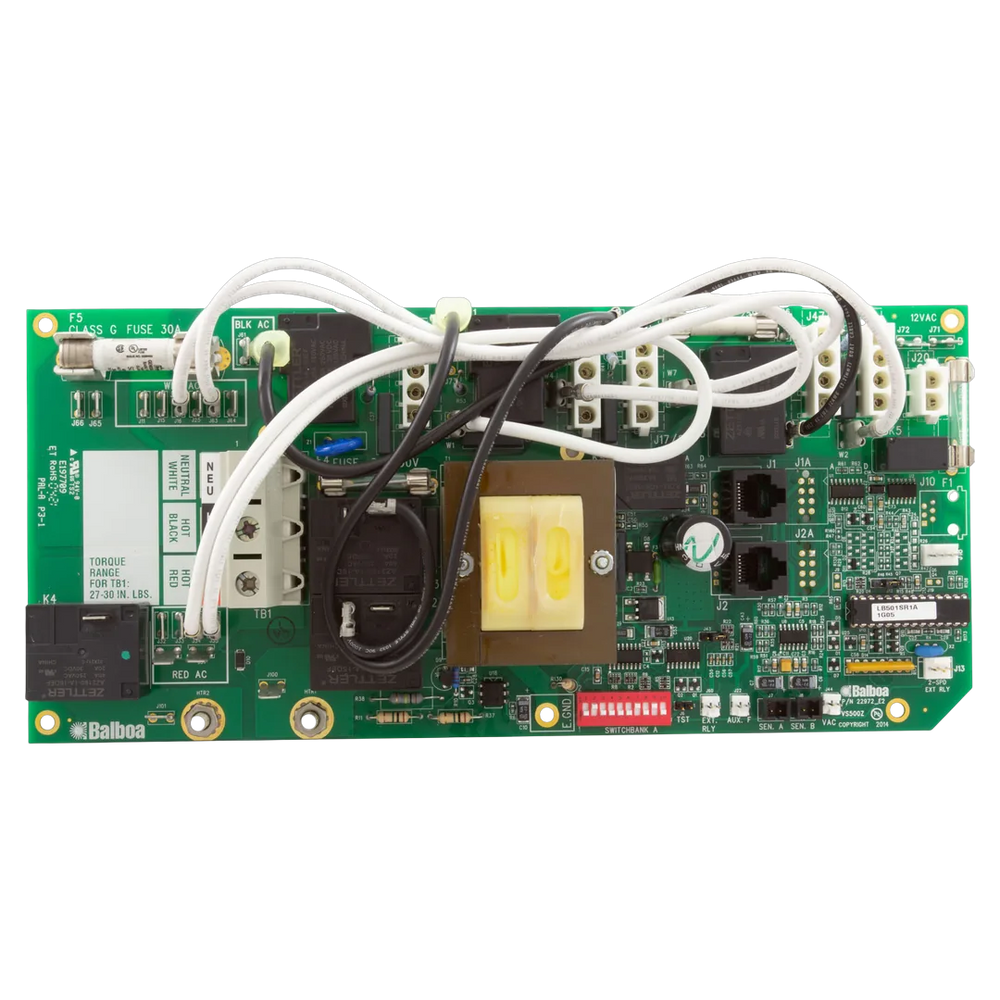

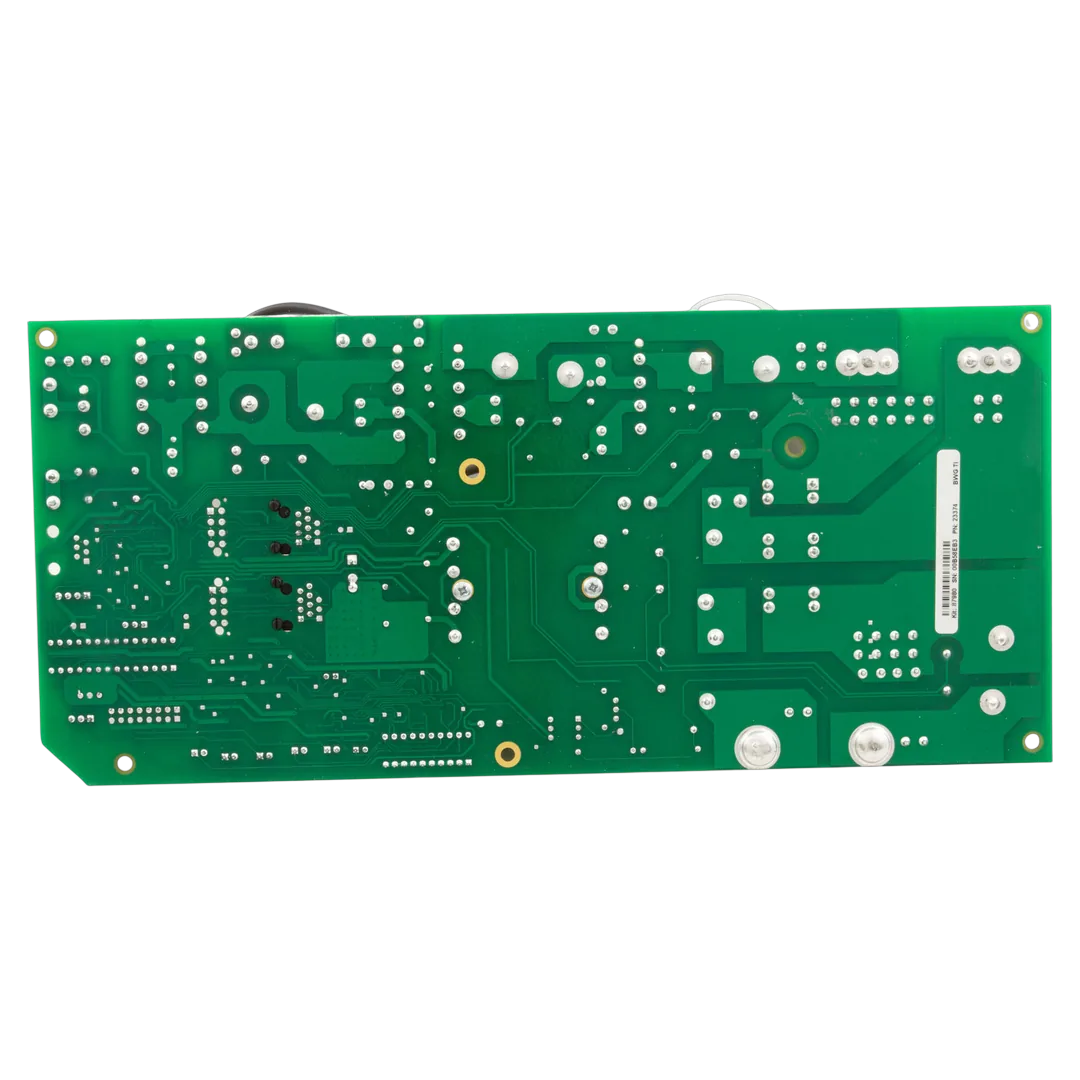

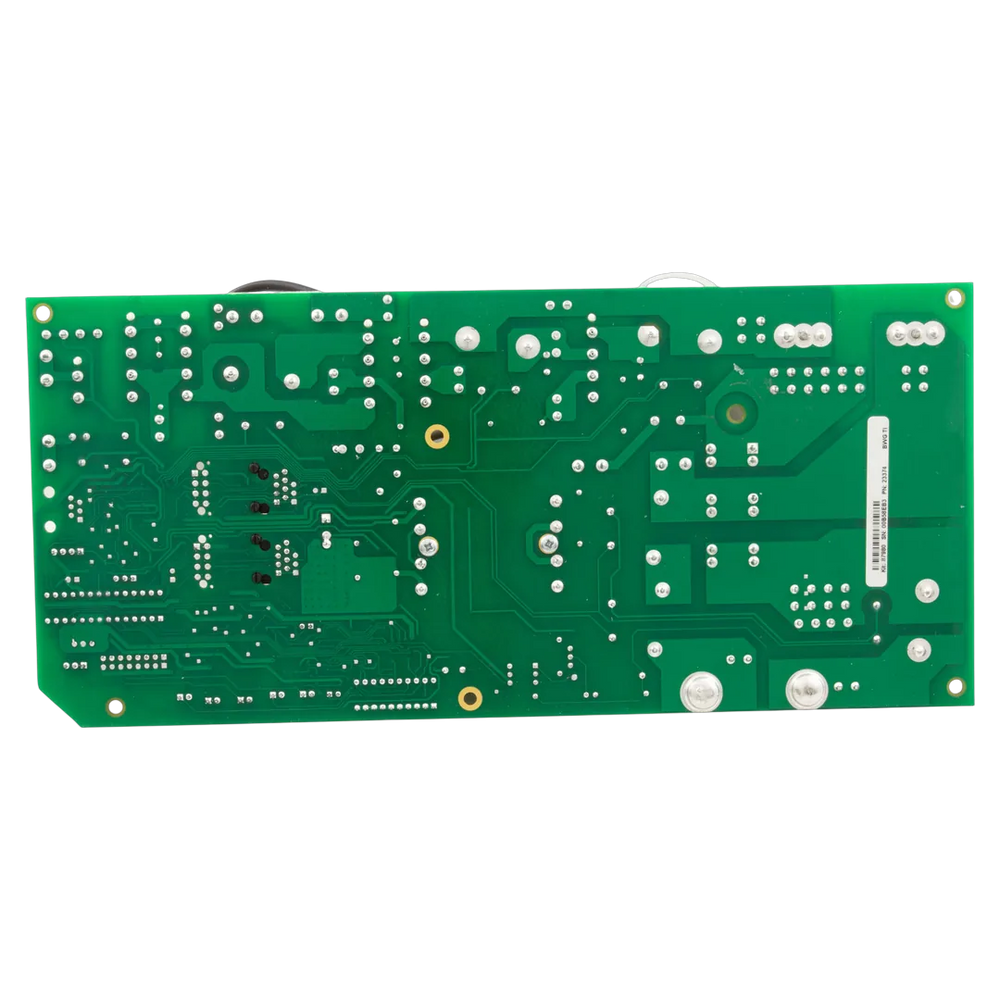

Balboa 54341 Leisure Bay LB501S Circuit Board
Balboa 54341 Leisure Bay LB501S Circuit Board is backordered and will ship as soon as it is back in stock.
10 In Stock
Description
Description
The Balboa Water Group 54341 (054341) is a replacement printed circuit board for Leisure Bay spa control systems. It is configured for P1 and P2 pumps, spa light, ozonator, and a circulation pump (Serial Standard: P1-P2-LT-OZ-CIRC), and identification is by the chip label near the center of the board. Compatible with Leisure Bay S3, G2.5, and G3 series and used with chip numbers LB501S, LB501SR1, LB500SR1, LB50XSR1A, and LB501SR1A; cross-references include 53353-01, 4054341, and 59-138-1752, and it is commonly paired with control box 53352 and part 307014.
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Balboa Circuit Board - Leisure Bay LB501SZR1 |
| Part Number | 54341 |
| Compatibility | Leisure Bay Spas with LB501SZR1 configuration |
| Substitute Part Numbers | 53353, 53409, LB501SR1, LB50XSR1A |
| Part Type | Circuit Board |
| Includes | Circuit board only |
| Certifications | Made in the USA |
| Material | State-of-the-art materials |
| Shipping Dimensions | 13.4 x 10.6 x 2.3 inch |
| Product Weight | 2.56 pound |
Features:
- 8-pin phone style connector
- Chip number: LB501SR1A or LB501SZR1
- Replaces LB500S
