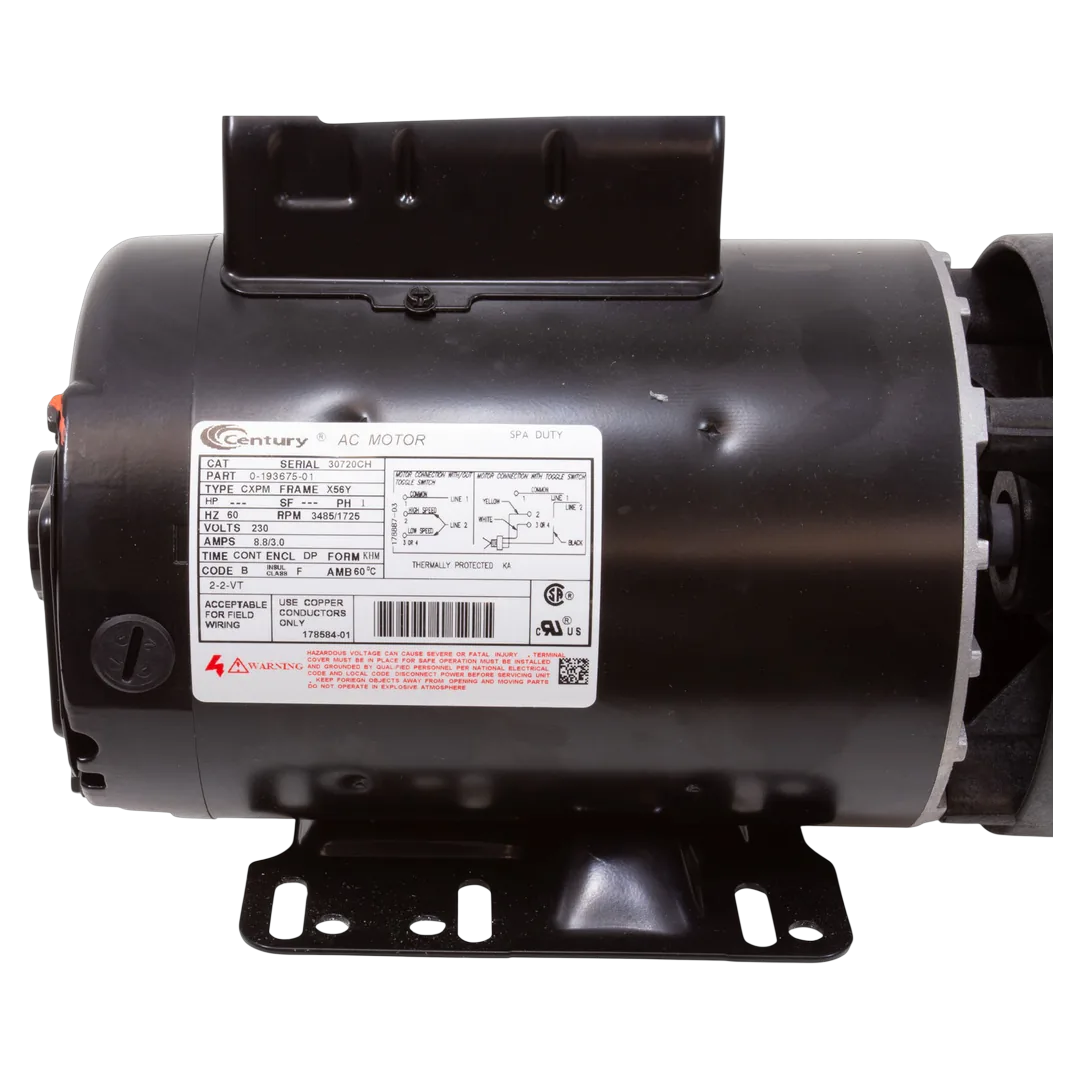

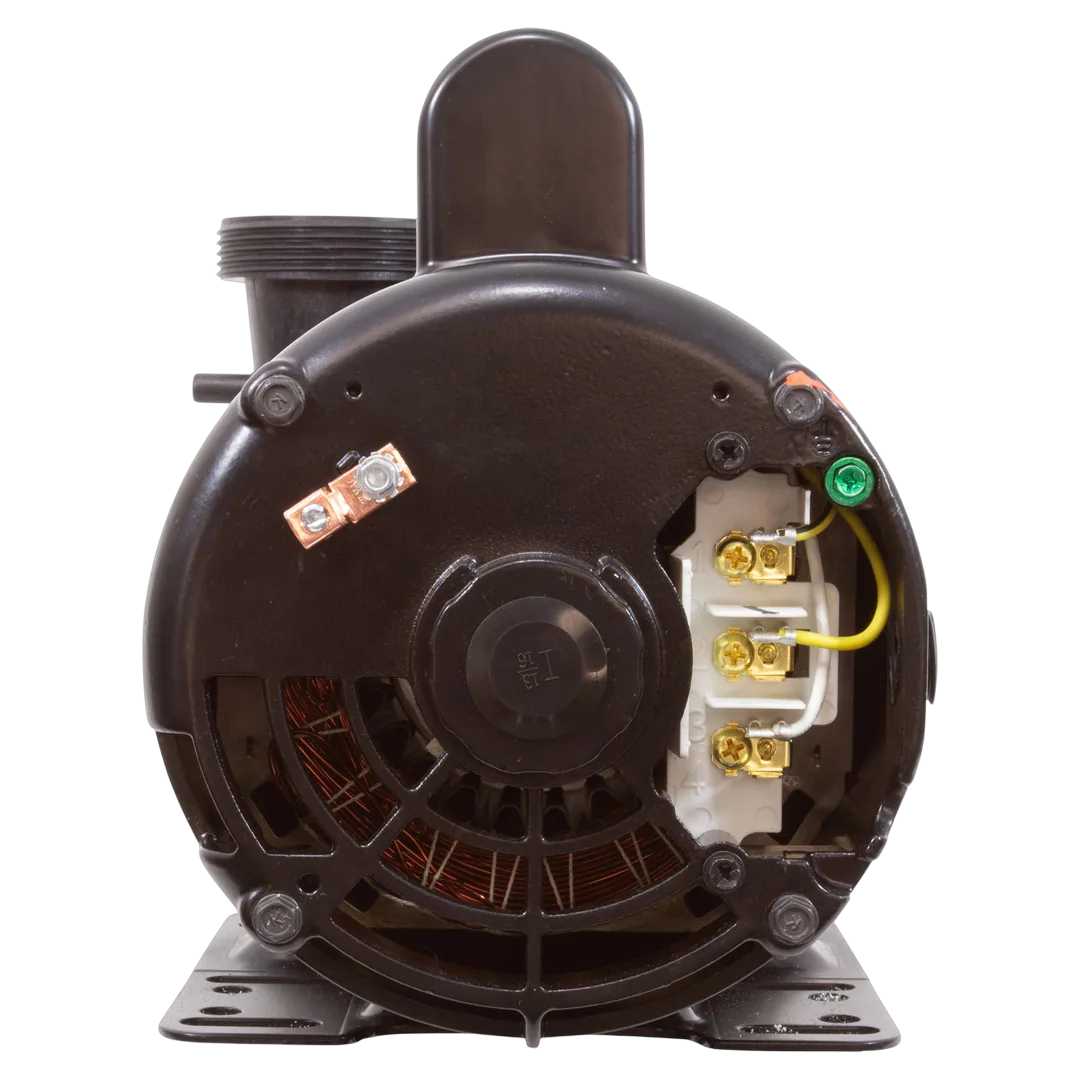

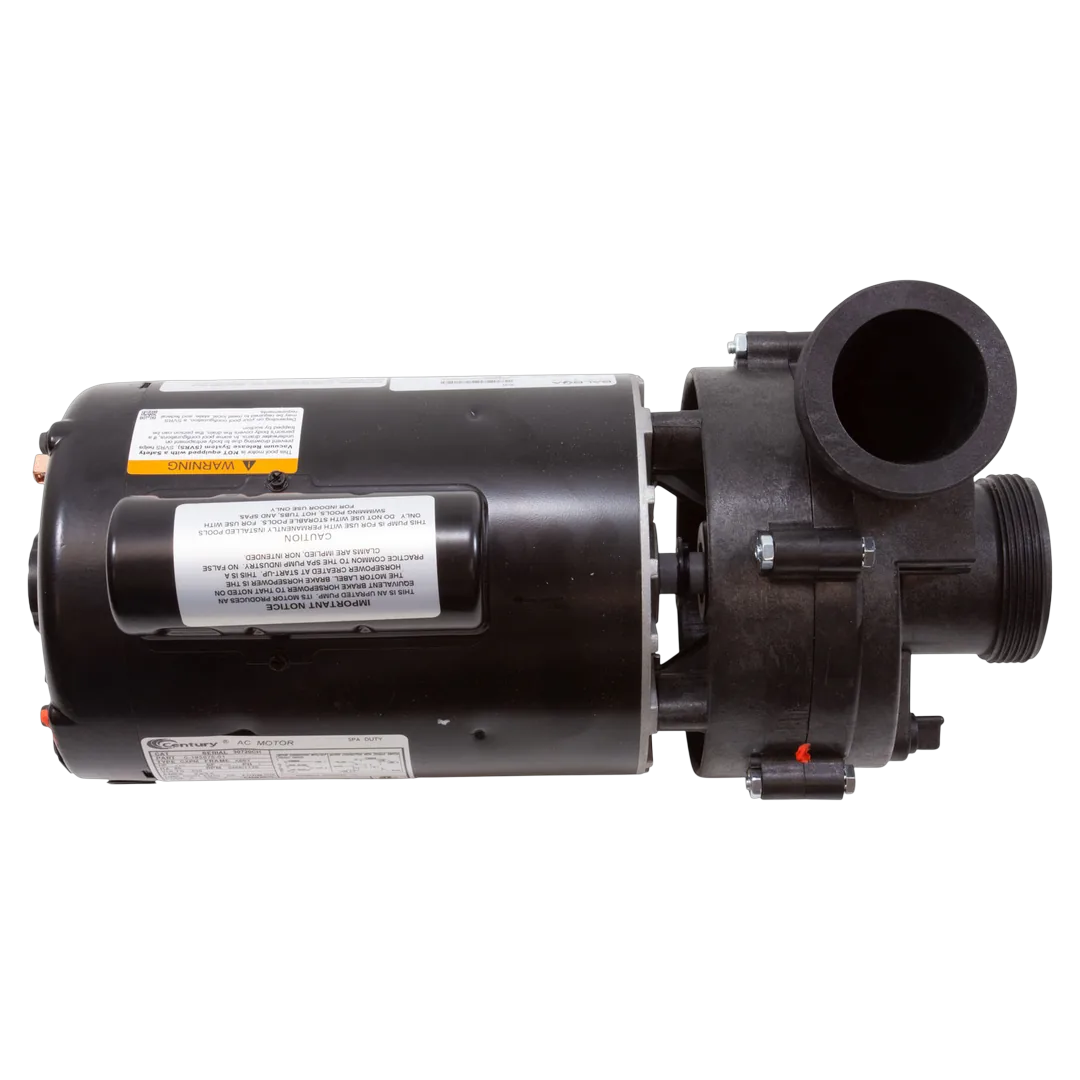

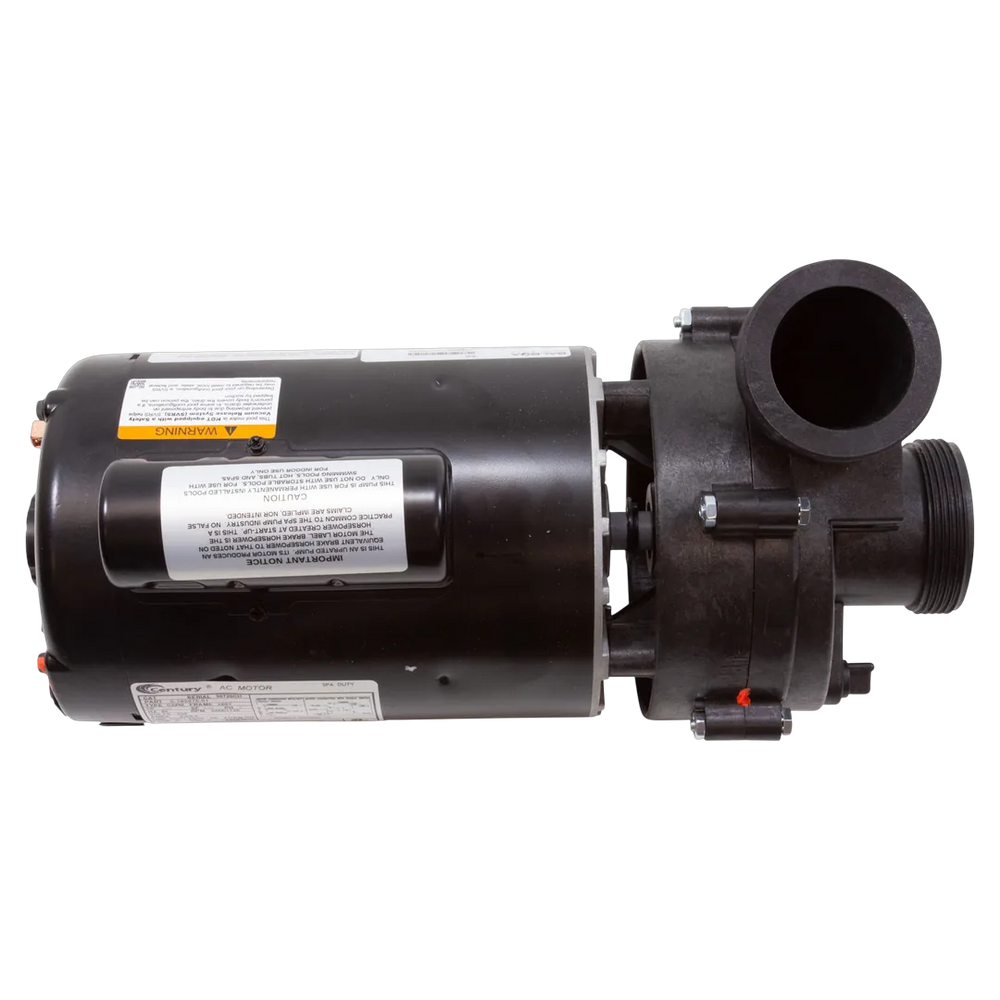

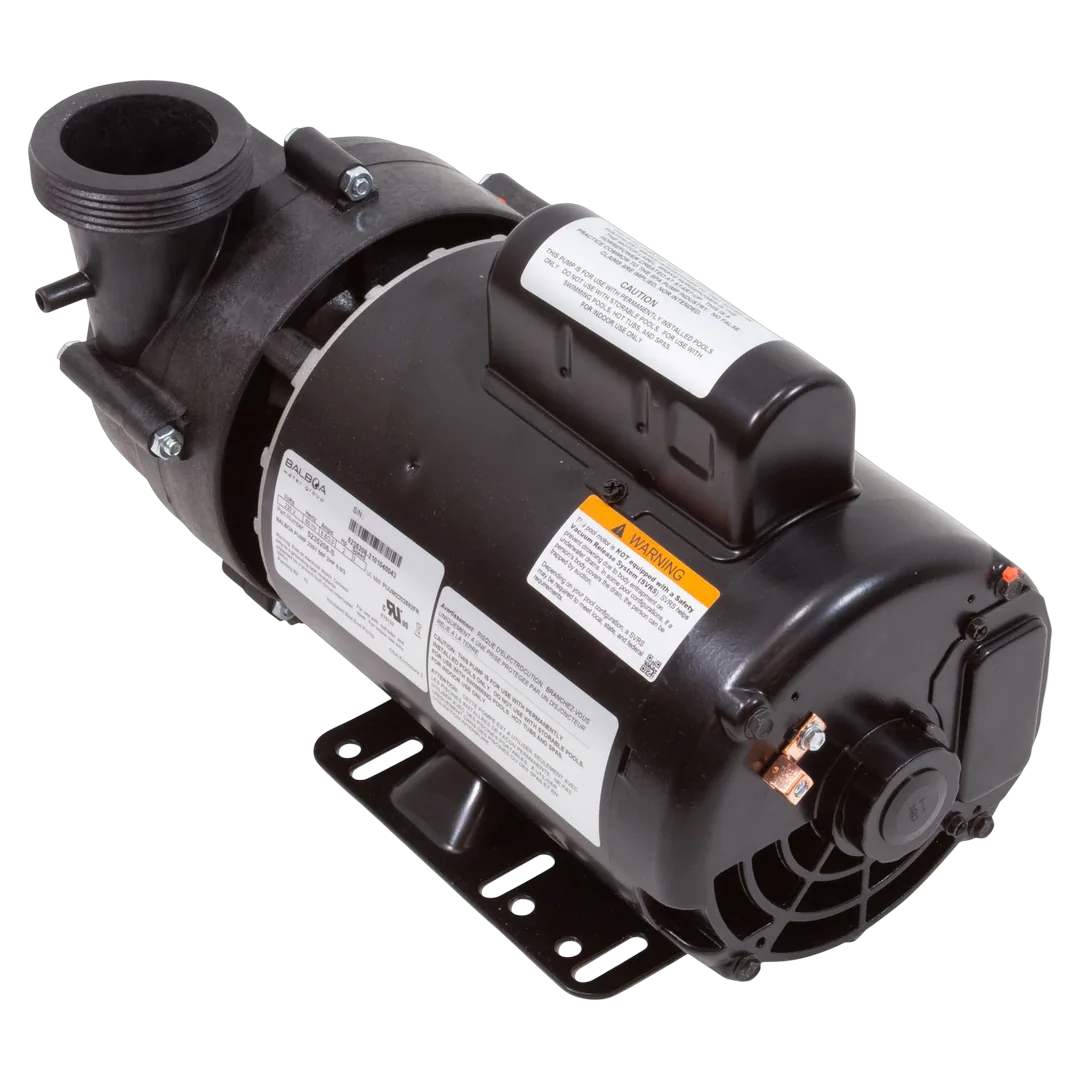

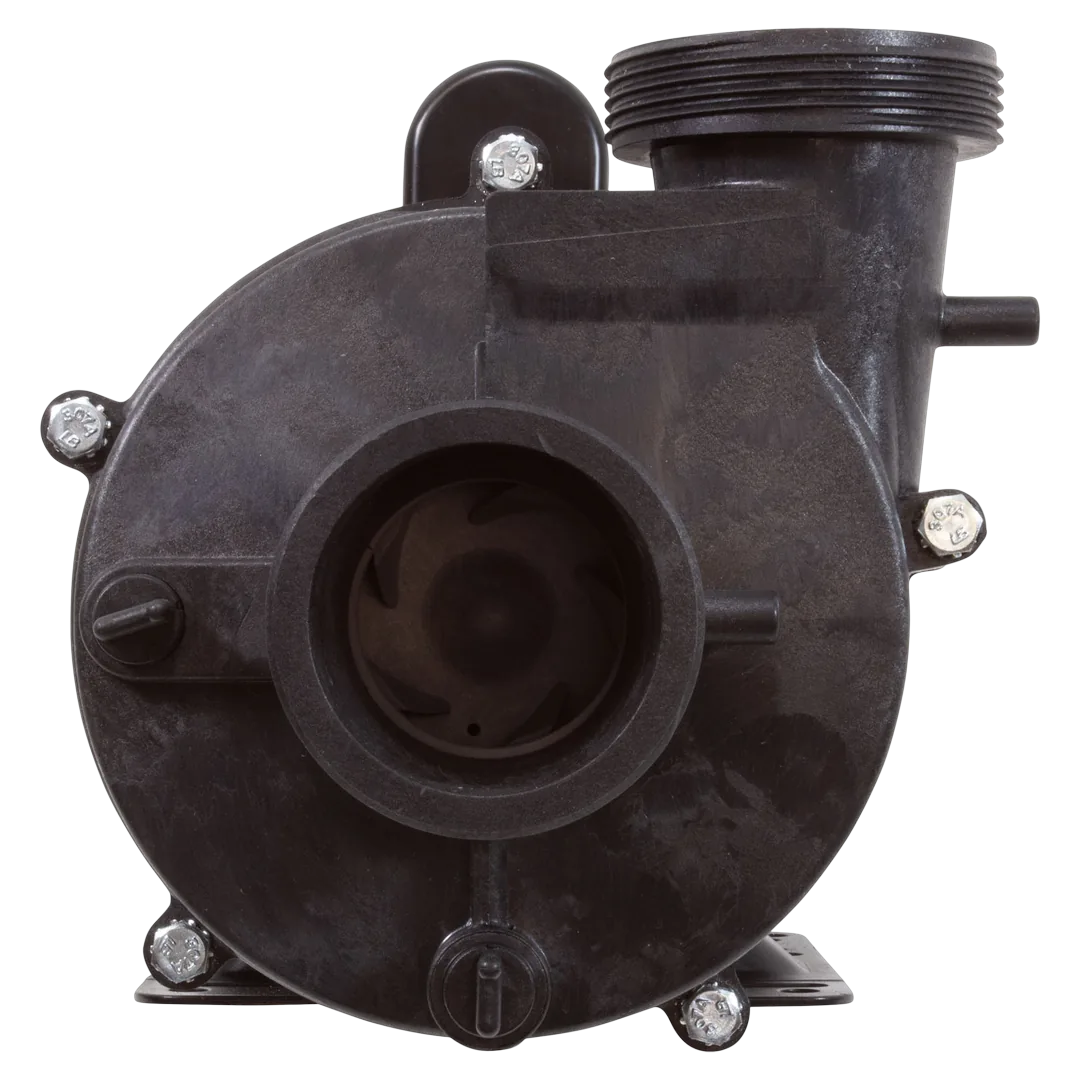

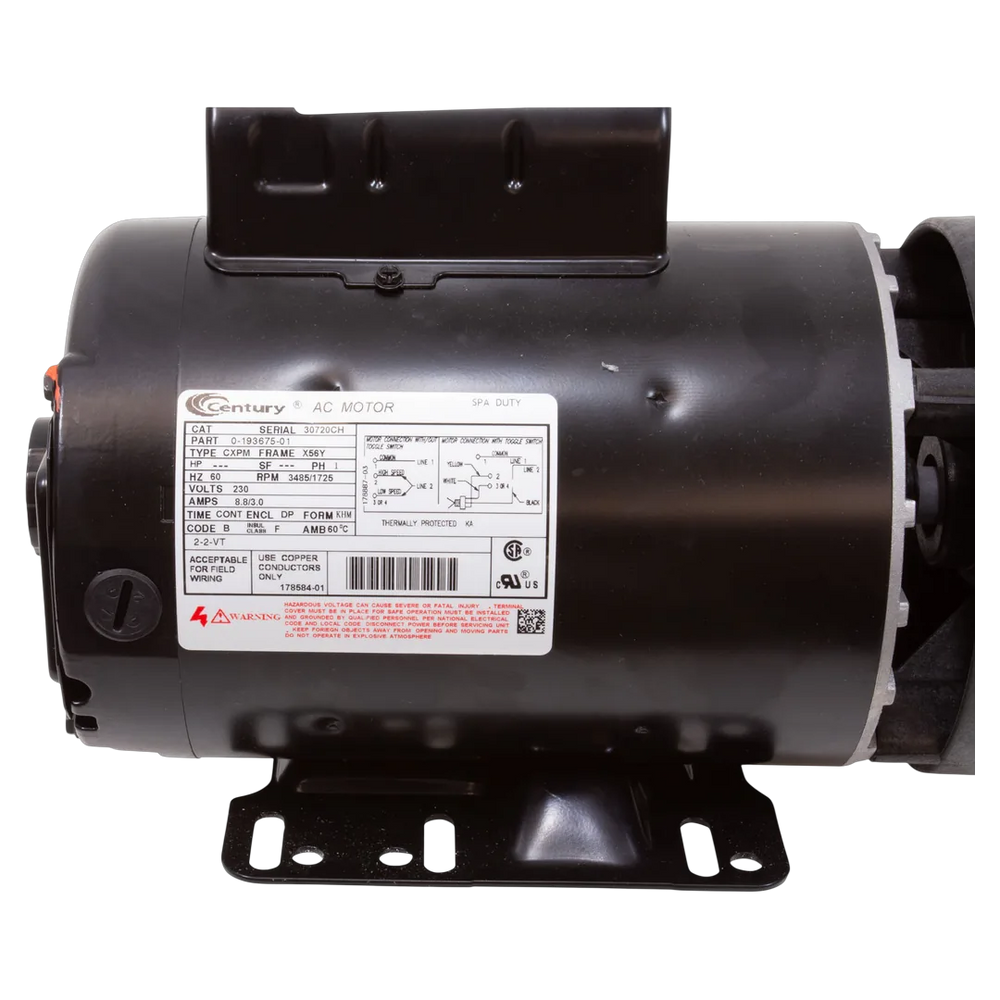

Balboa 5235208-S Ultimax Spa Pump
Balboa Water Group | SKU:
5235208-S
$38300/ea
Unit price
/
Unavailable
Balboa 5235208-S Ultimax Spa Pump is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

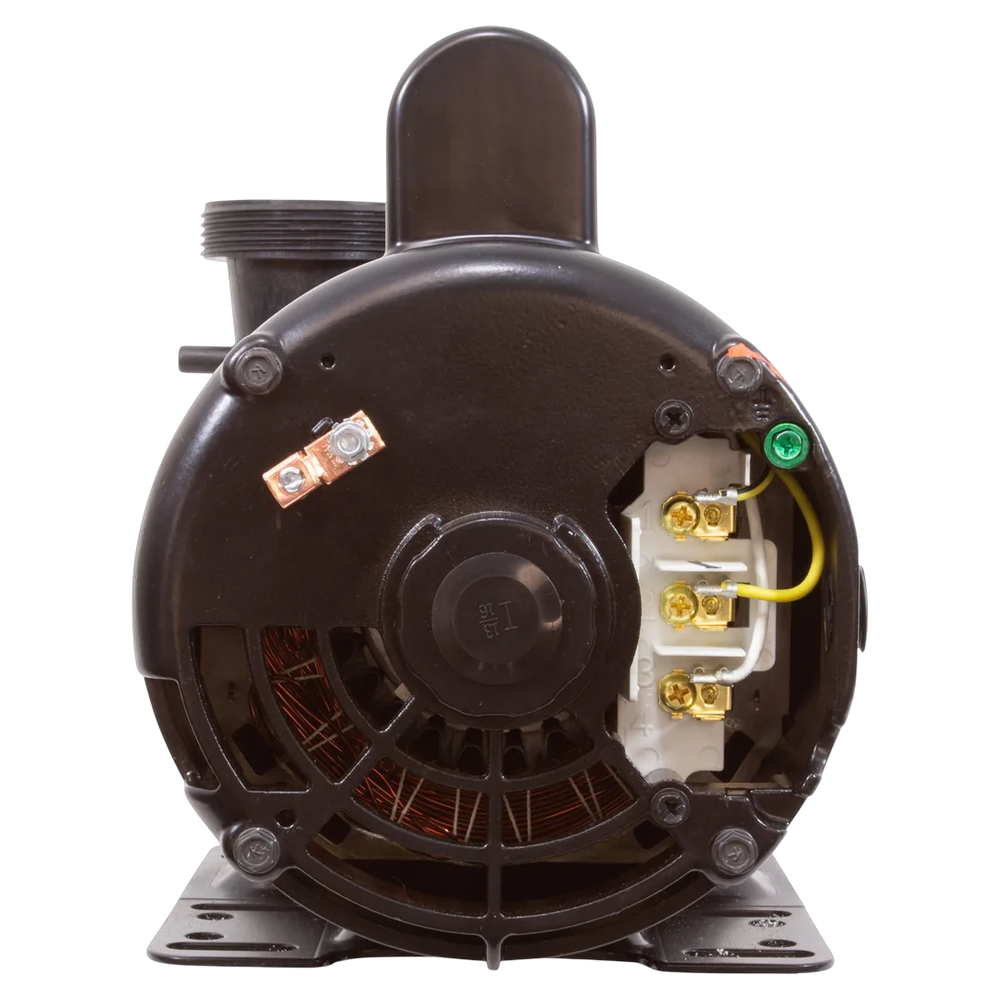

The Balboa Water Group 5235208-S is a Vico Ultimax 2-speed spa pump rated at 2.0 horsepower and suitable for 230-volt systems. It features a 56-frame, thru-bolt design with side discharge and includes 2-inch plumbing connections for both suction and discharge. This pump is commonly used for both circulation/heating on low speed and therapy jets on high speed, making it compatible with various spa applications.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Balboa Water Group Vico Ultimax 2-Speed 2HP 56 Frame Spa Pump |
| Part Number | 5235208-S |
| Part Type | Pump |
| Horsepower | 2.0 HP |
| Voltage | 230V |
| Speed | 2-Speed |
| Frame Size | 56 Frame |
| Amperage | 8.8A (High Speed) / 3.0A (Low Speed) |
| Suction Pipe Size | 2 inch |
| Suction Connection Type | Male Buttress Thread (MBT) |
| Suction Style | Center |
| Discharge Pipe Size | 2 inch |
| Discharge Connection Type | Male Buttress Thread (MBT) |
| Discharge Style | Side |
| Motor Frame | 56 Frame Thru-Bolt |
| Material | Plastic |
| Certifications | UL, TUV, CSA, CE/VDE/GS |
| Shipping Dimensions | 21.5 x 12.2 x 11.7 inch |
| Product Weight | 36.8 pound |
