AquaStar WAV18WRNF101 Suction Outlet Cover Set
Aquastar | SKU:
WAV18WRNF101
$56800/ea
Unit price
/
Unavailable
AquaStar WAV18WRNF101 Suction Outlet Cover Set is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

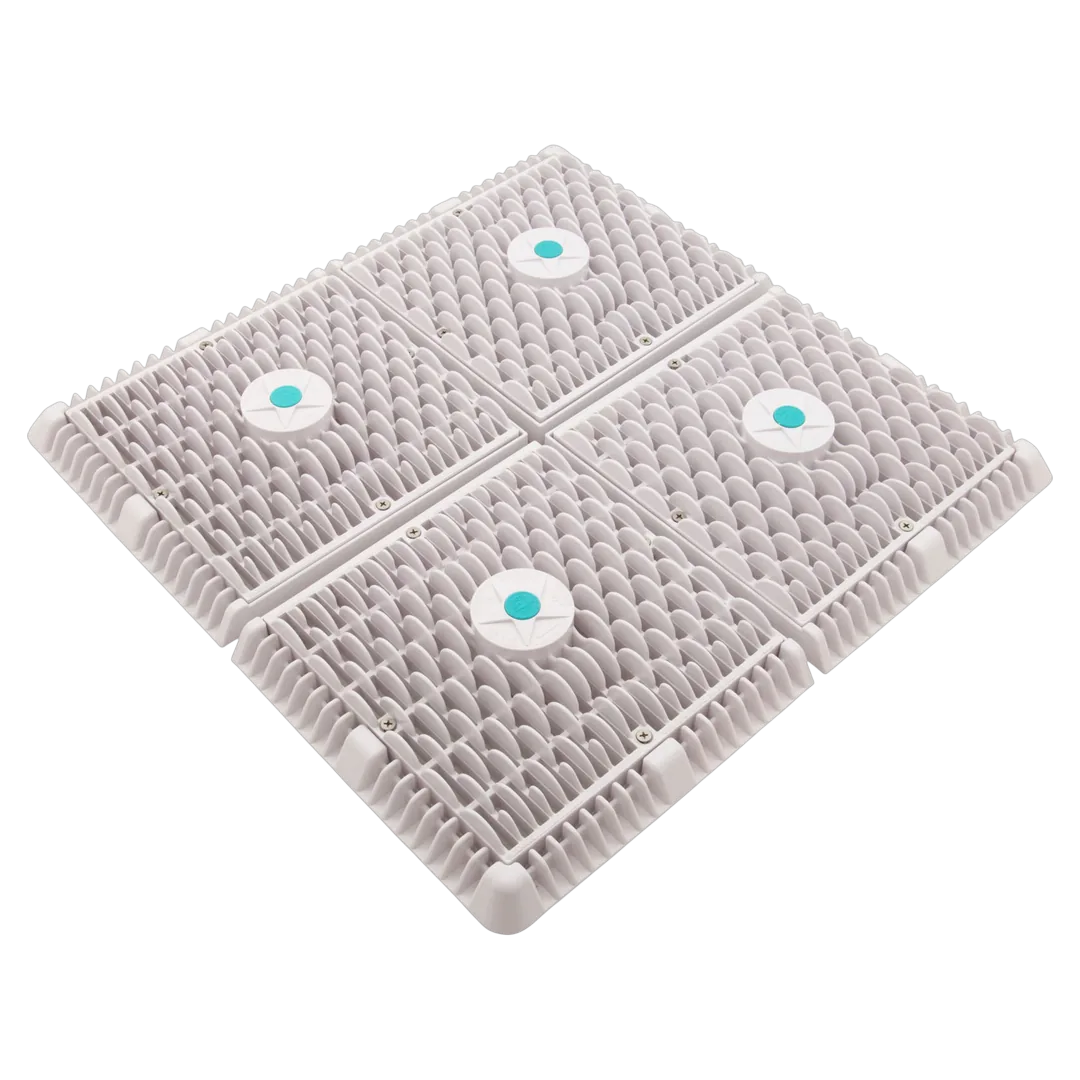

The AquaStar WAV18WRNF101 is a set of anti-entrapment suction outlet covers, consisting of four 9-inch square wave covers, vented riser rings, and screws. This set is constructed to meet the VGBA 2017 certification standards and adheres to ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards. It is designed for retrofitting 18-inch frames and works with AquaStar's standard models.

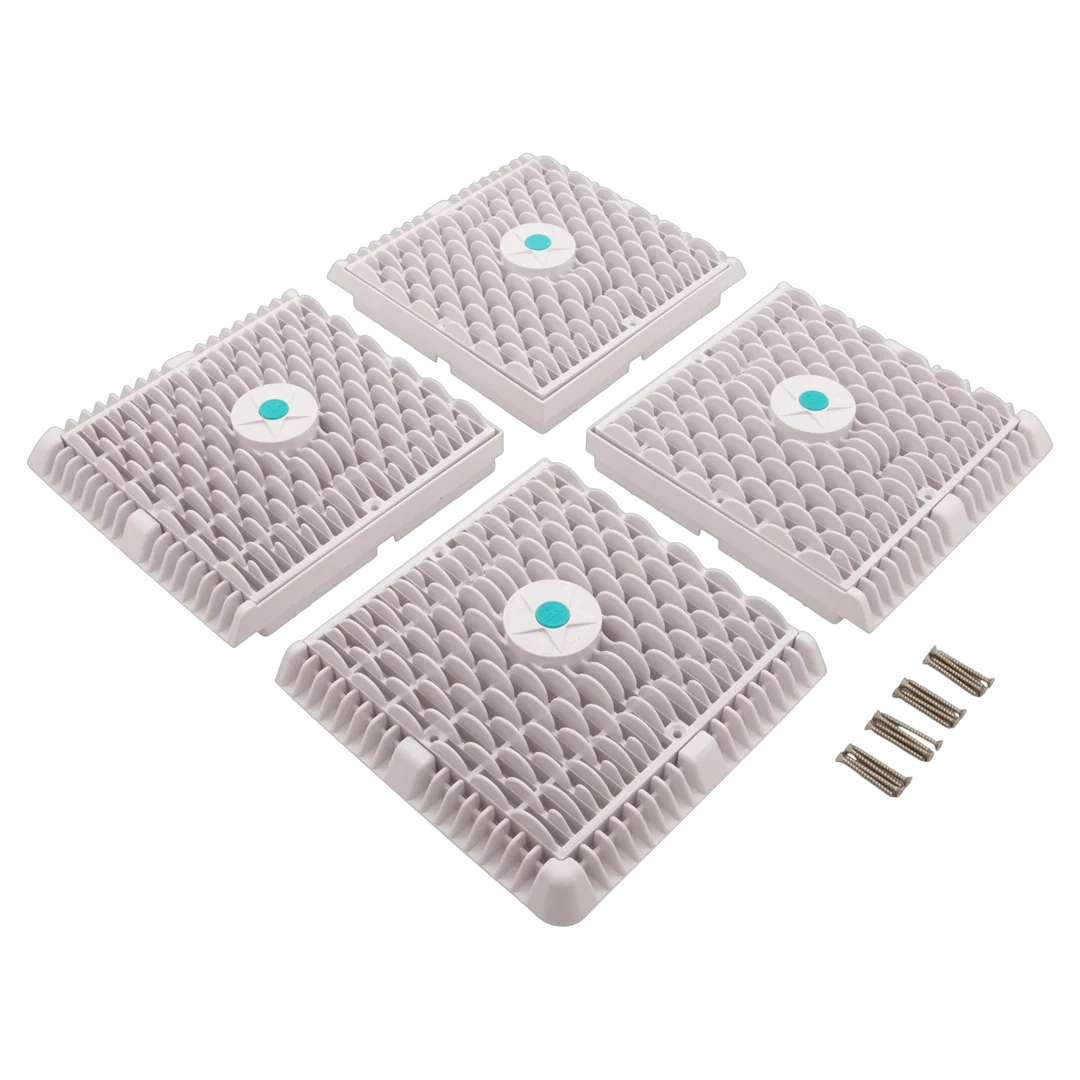

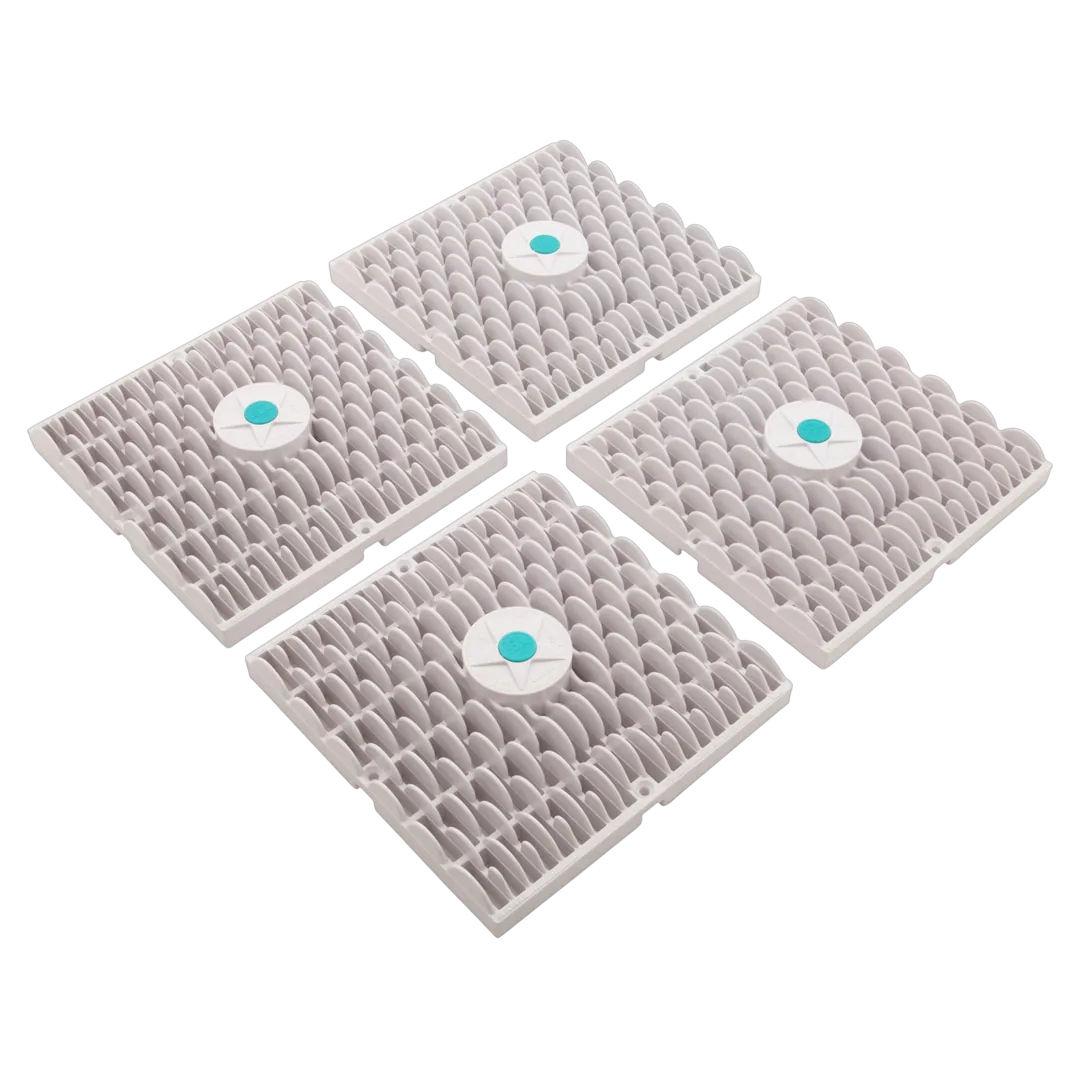

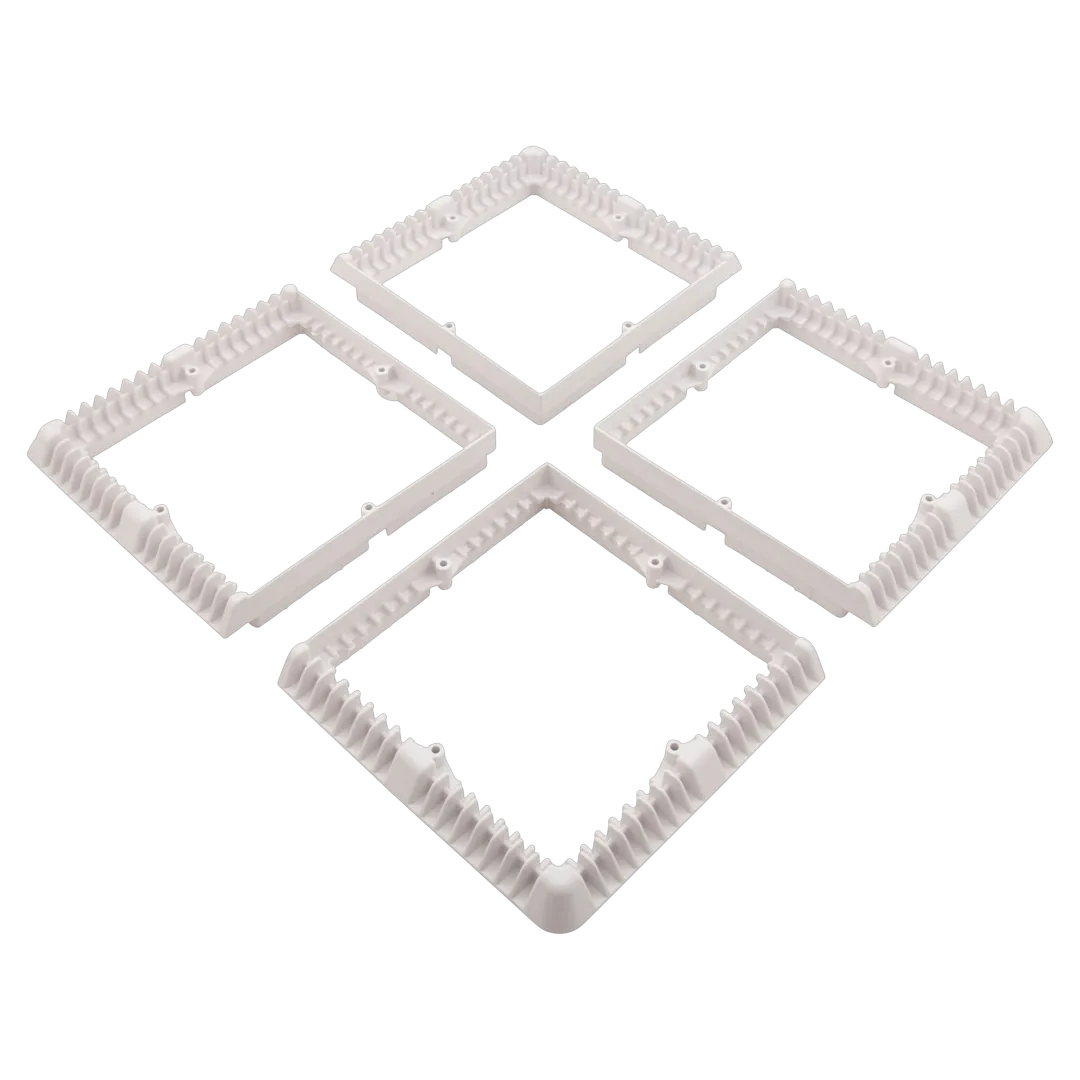

Includes: (4) 9" x 9" Wave Square Drain Covers, (4) 18" Vented Riser Rings, (16) #10 x 1-3/4" Flat Head Phillips Type A 316 Stainless Steel Screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | AquaStar WAV18WRNF101 18" x 18" White Square Wave Suction Outlet Cover Set |
| Part Number | WAV18WRNF101 |
| Part Type | Main Drain Cover |
| Compatibility | Fits AquaStar standard 18" models and American (Pentair) with 3/4" deep existing window grid frames and 4x4 screw hole patterns |
| Includes | (4) 9" x 9" Wave Square Drain Covers, (4) 18" Vented Riser Rings, (16) #10 x 1-3/4" Flat Head Phillips Type A 316 Stainless Steel Screws |
| Certifications | ANSI/APSP 16-2011, NSF/ANSI 50-2009a, ASTM G154 UV testing exposure |
| Material | UV-resistant engineered polymer |
| Flow Paths | 176.8 square inch open area |
| Pressure Rating | Floor/Wall: 628 GPM at 1.1 fps 551.1 GPM at 1.0 fps |
| Shipping Dimensions | 11.25 x 10 x 9.25 inch |
| Product Weight | 7 pound |
