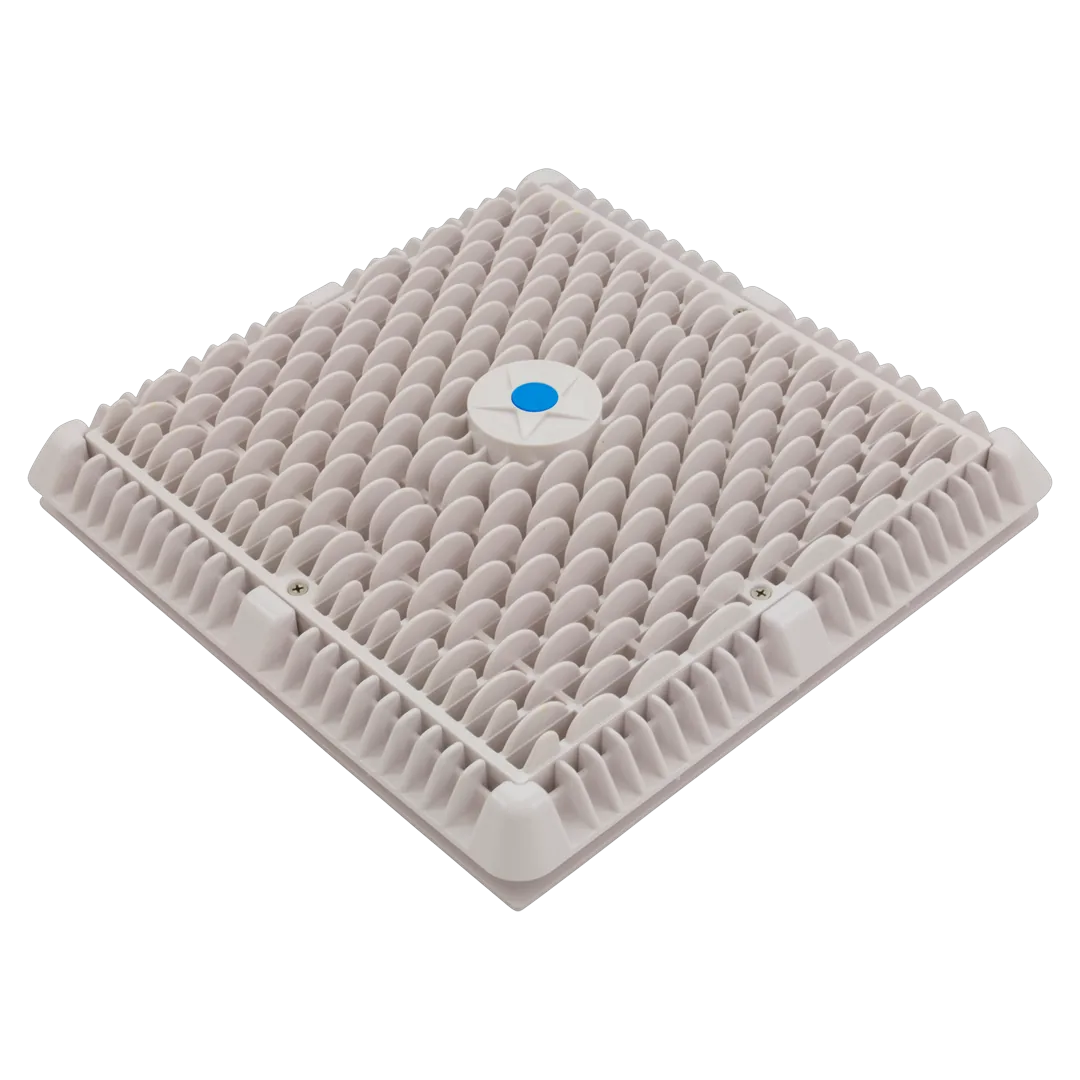

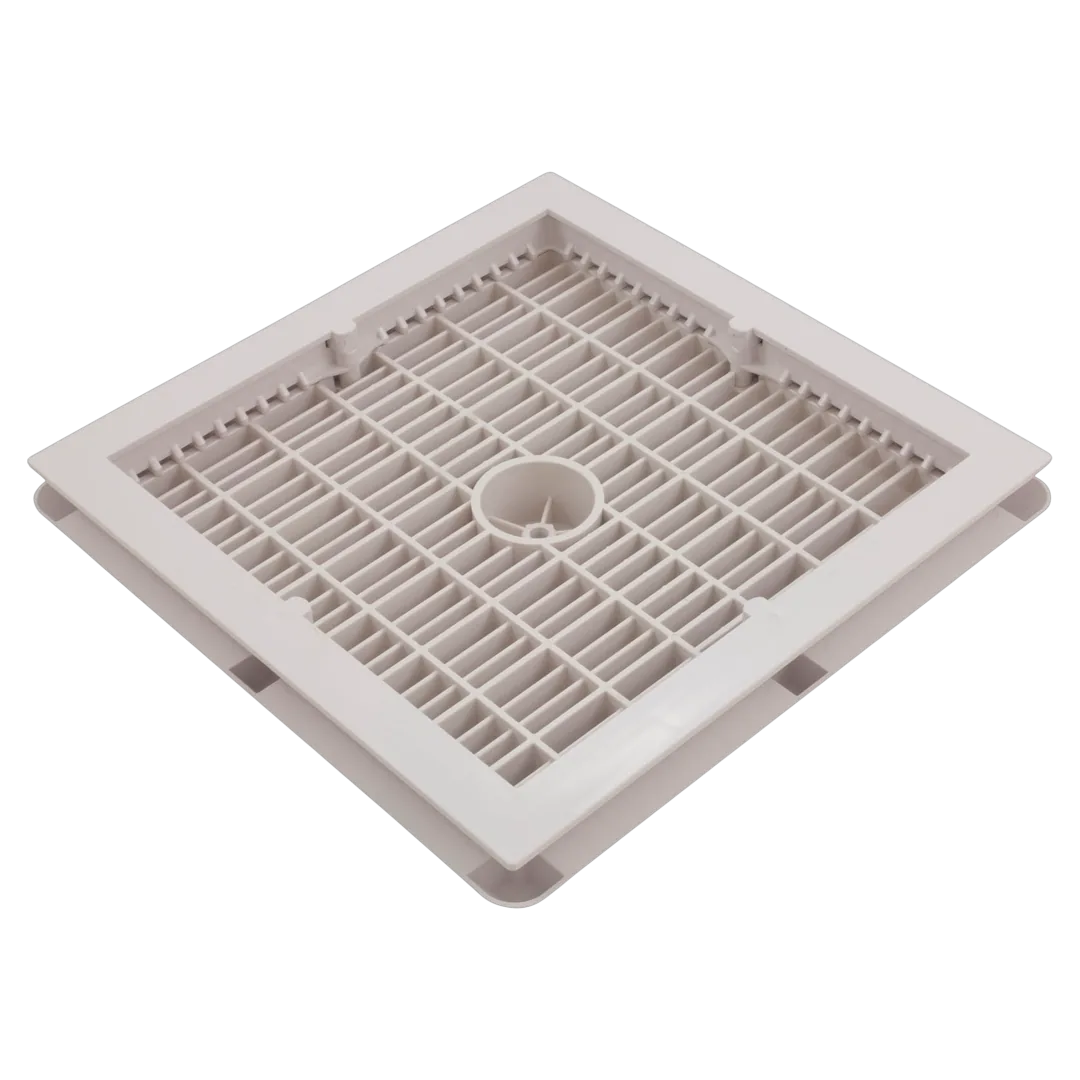

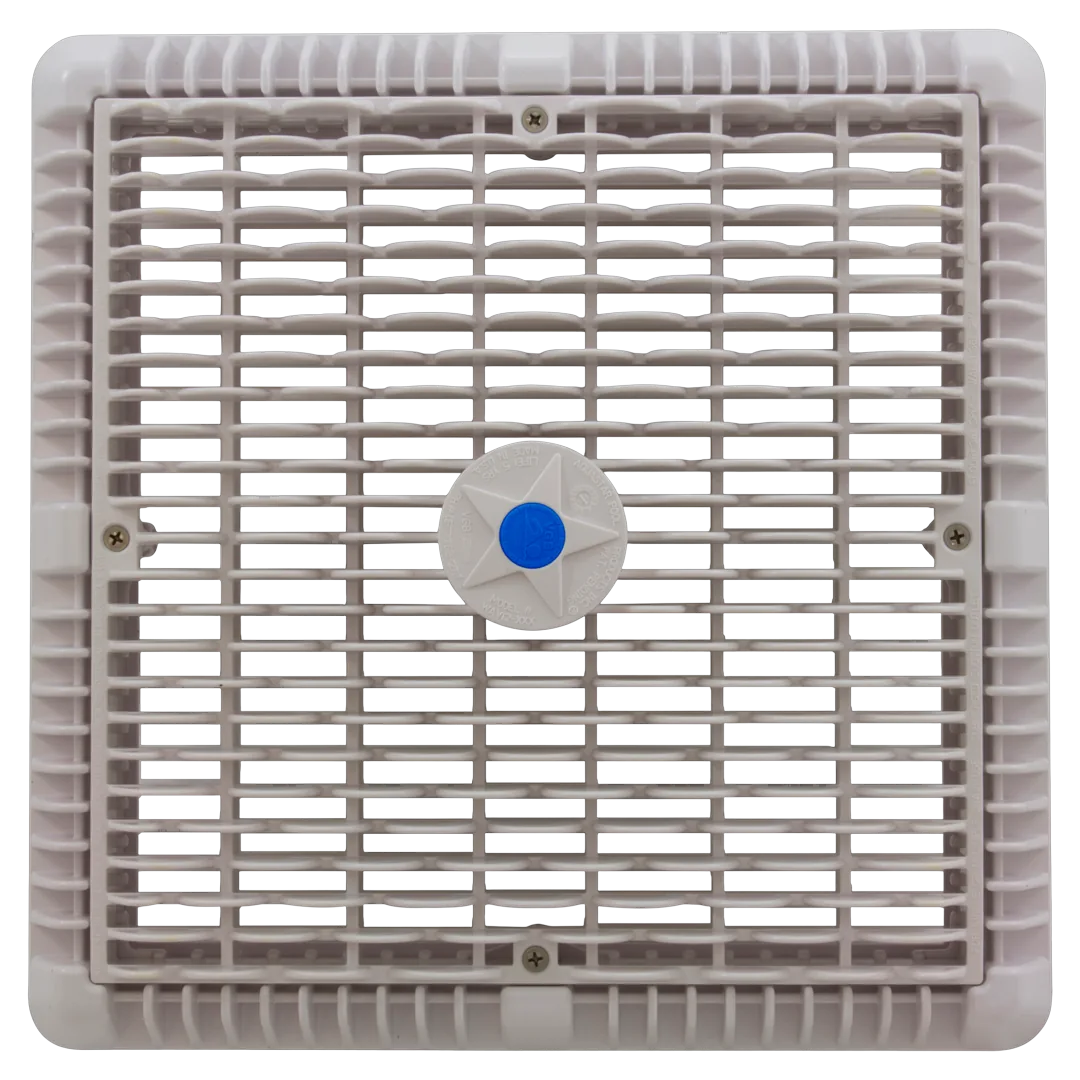

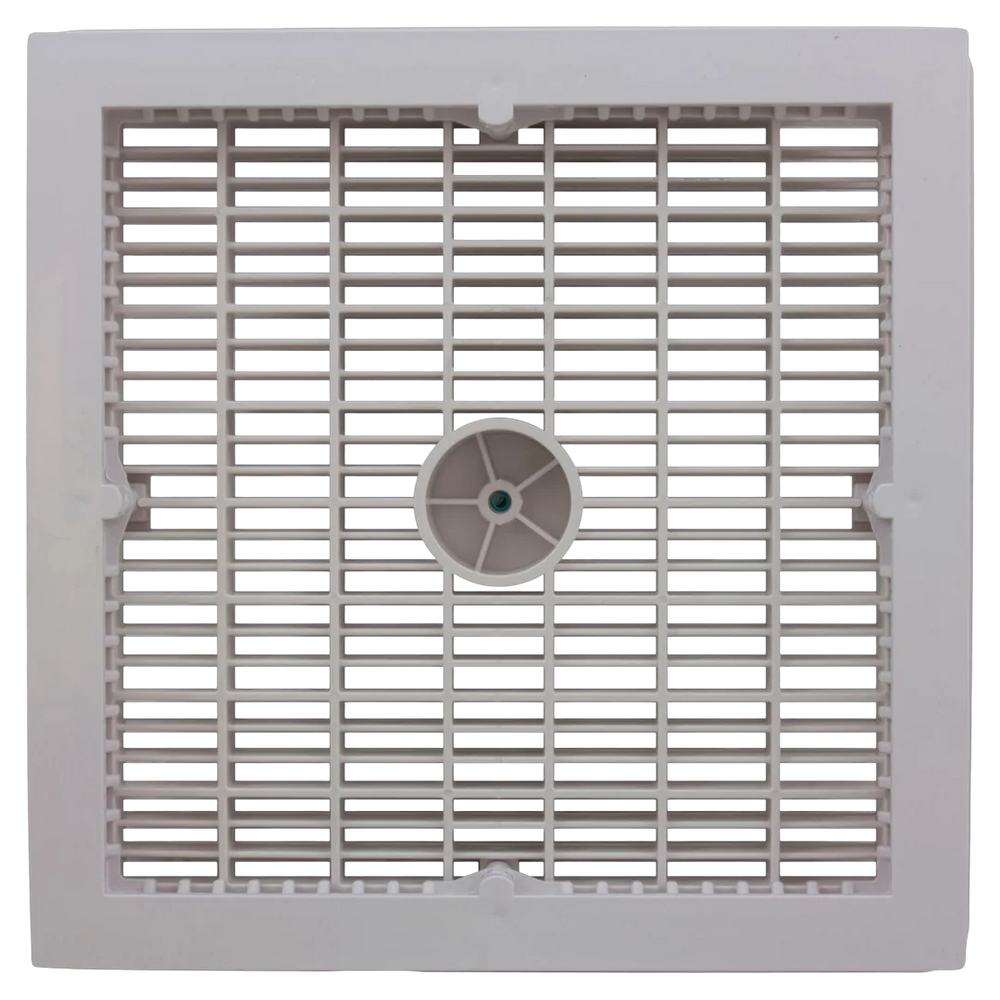

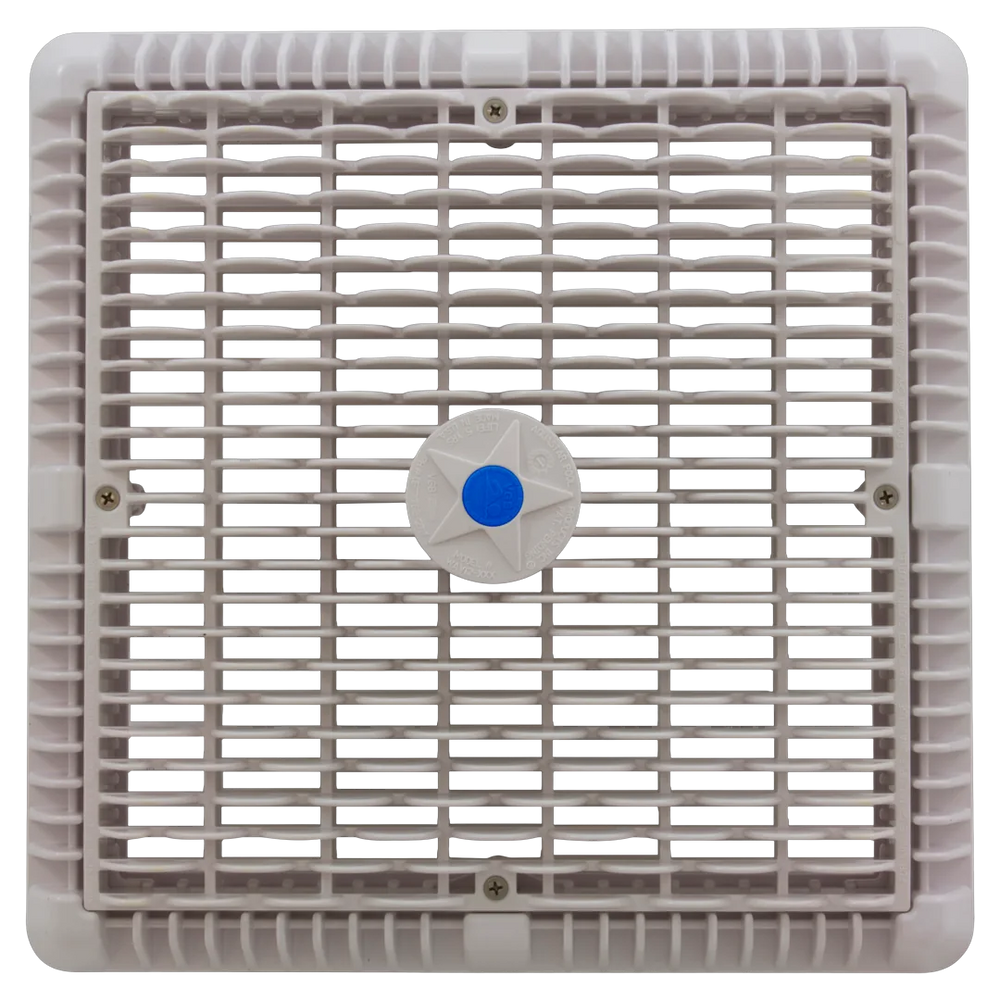

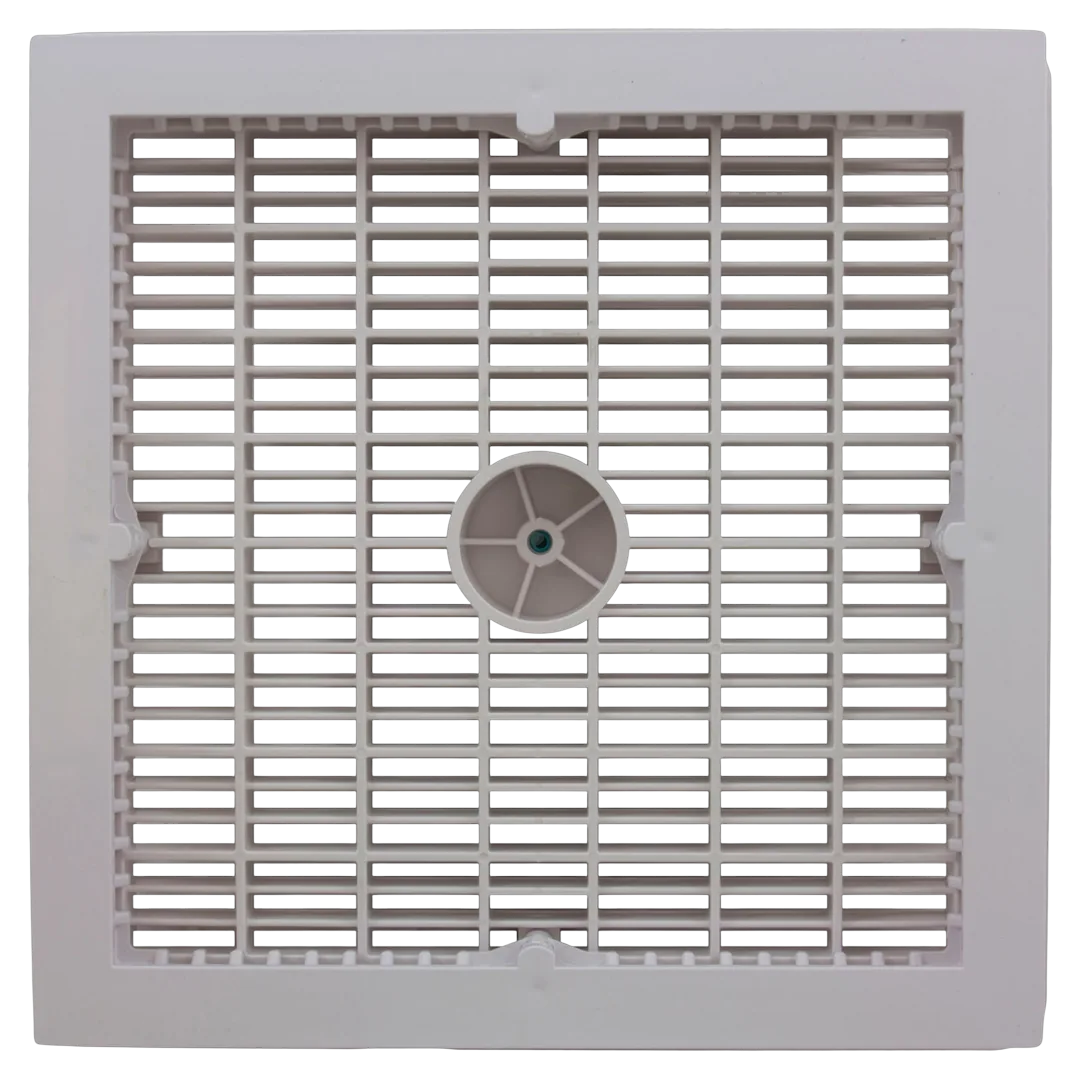

AquaStar WAV12WR101 - 12 in Square Wave Suction Outlet Cover
AquaStar WAV12WR101 - 12 in Square Wave Suction Outlet Cover is backordered and will ship as soon as it is back in stock.
9 In Stock
Description
Description
The AquaStar WAV12WR101 is a 12-inch Square Wave anti-entrapment suction outlet cover (VGB series) supplied with a vented riser ring and mud frame. It is molded from UV-resistant engineered polymer with #316 stainless steel hardware and includes the cover, vented riser/sump and mounting screws; nominal open area is approximately 8 sq in for standard sump installations. Compatible with most 12-inch square drain frames and retrofits common systems including AquaStar "R" 12-inch models, Waterway, Hayward and American Products (Pentair).
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | AquaStar 12" Wave Suction Outlet Cover |
| Part Number | WAV12WR101 |
| Part Type | Suction Outlet Cover |
| Compatibility | Easily retrofits most brands' existing 12" square 3/4" deep frames, including AquaStar, Pentair, and Hayward models |
| Includes | 12" Square Wave Suction Outlet Cover, 12" Vented Riser Ring, 12" Square Drain Frame, (4) #10 x 1-3/4" Flat Head Phillips Type A 316 Stainless Steel Screws |
| Certifications | Meets or exceeds ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards; ASTM G154 UV testing exposure |
| Material | UV-resistant engineered polymer |
| Flow Paths | 361 GPM at 1.3 fps for both floor and wall installations |
| Pressure Rating | 361 GPM at 1.3 fps |
| Shipping Dimensions | 14.5 x 14.5 x 3 inch |
| Product Weight | 3.75 pound |
Features:
- VGB 2008 compliant; UV-resistant engineered polymer; 90.8 square inches open area; Five-year maximum installed life; Trademarked VGB compliance button for easy identification
