AquaStar R8MF105 Main Drain Grate

AquaStar Pool Products  |  SKU: R8MF105
$4300/ea
5-digit zip required

Description

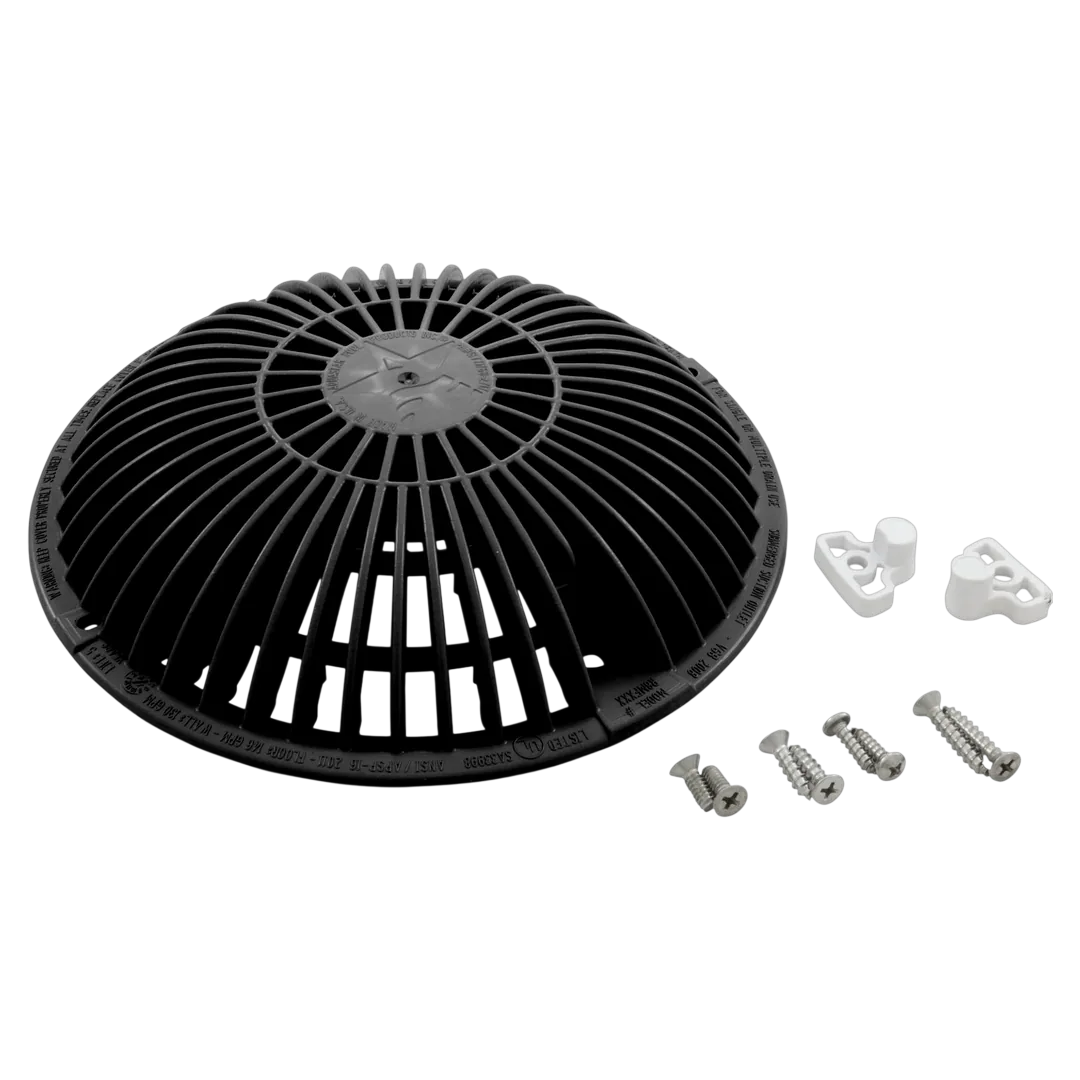

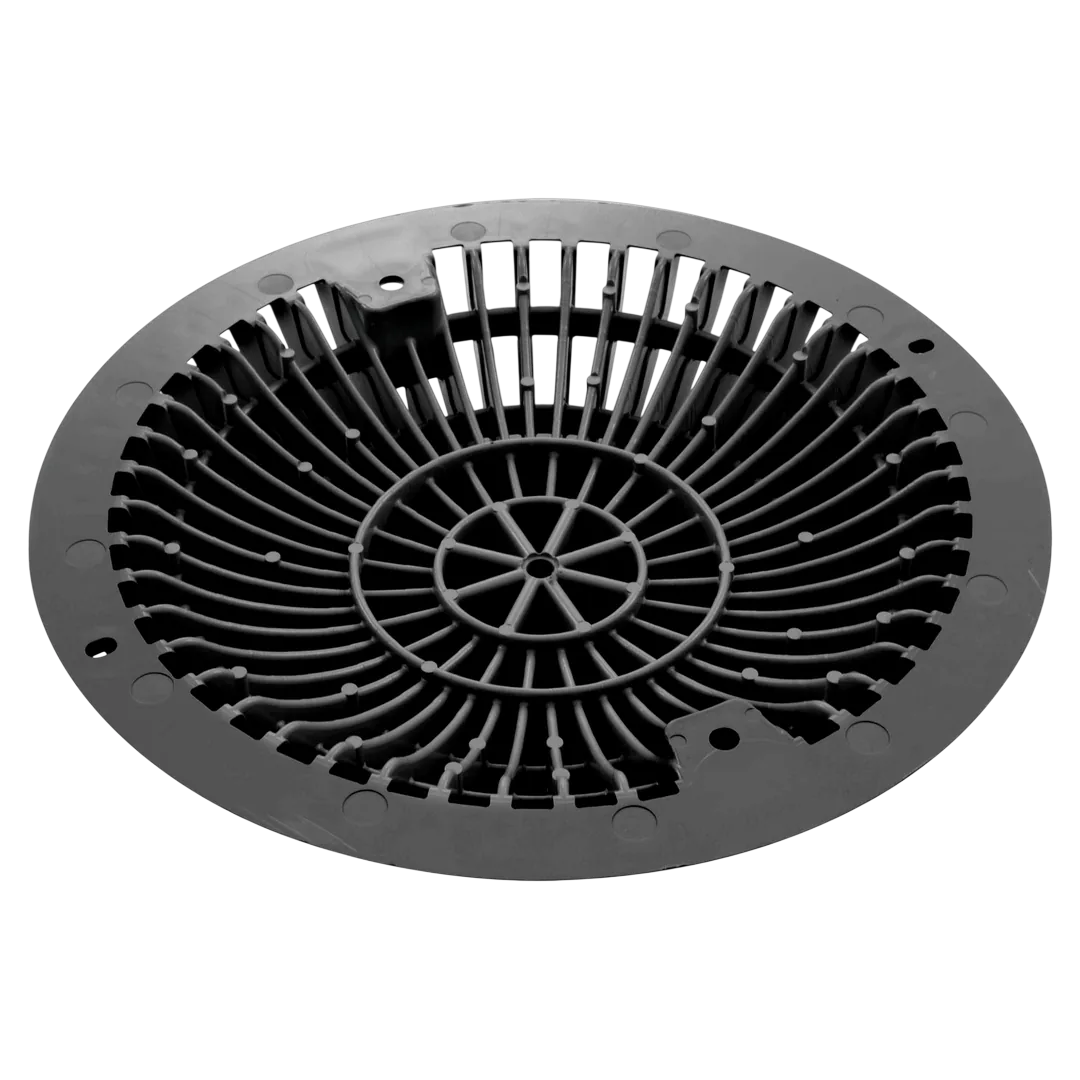

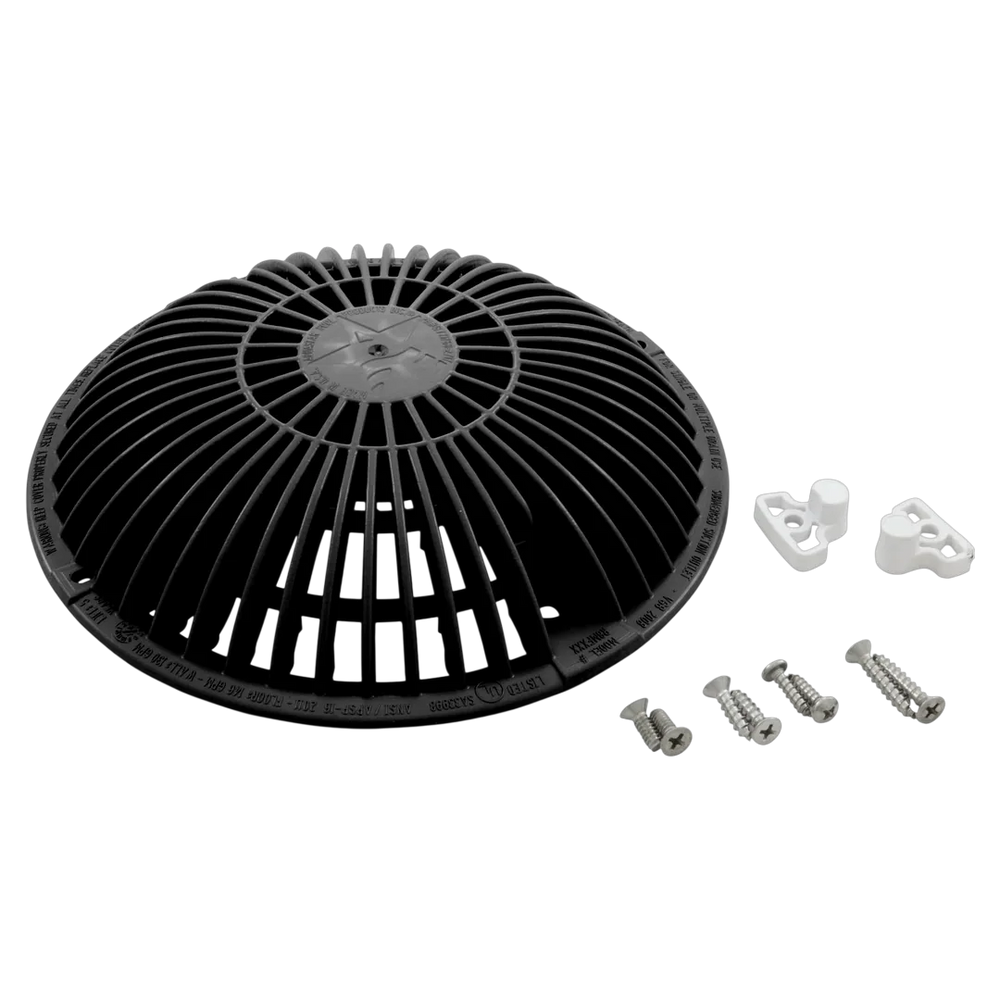

The AquaStar R8MF105 is an 8-inch round retrofit MoFlow suction outlet cover. It is constructed in dark gray and includes a screw and bushing kit for installation. This cover is designed to fit AquaStar "R" 8-inch models and can be used for single or multiple drain systems in existing frames and sumps.

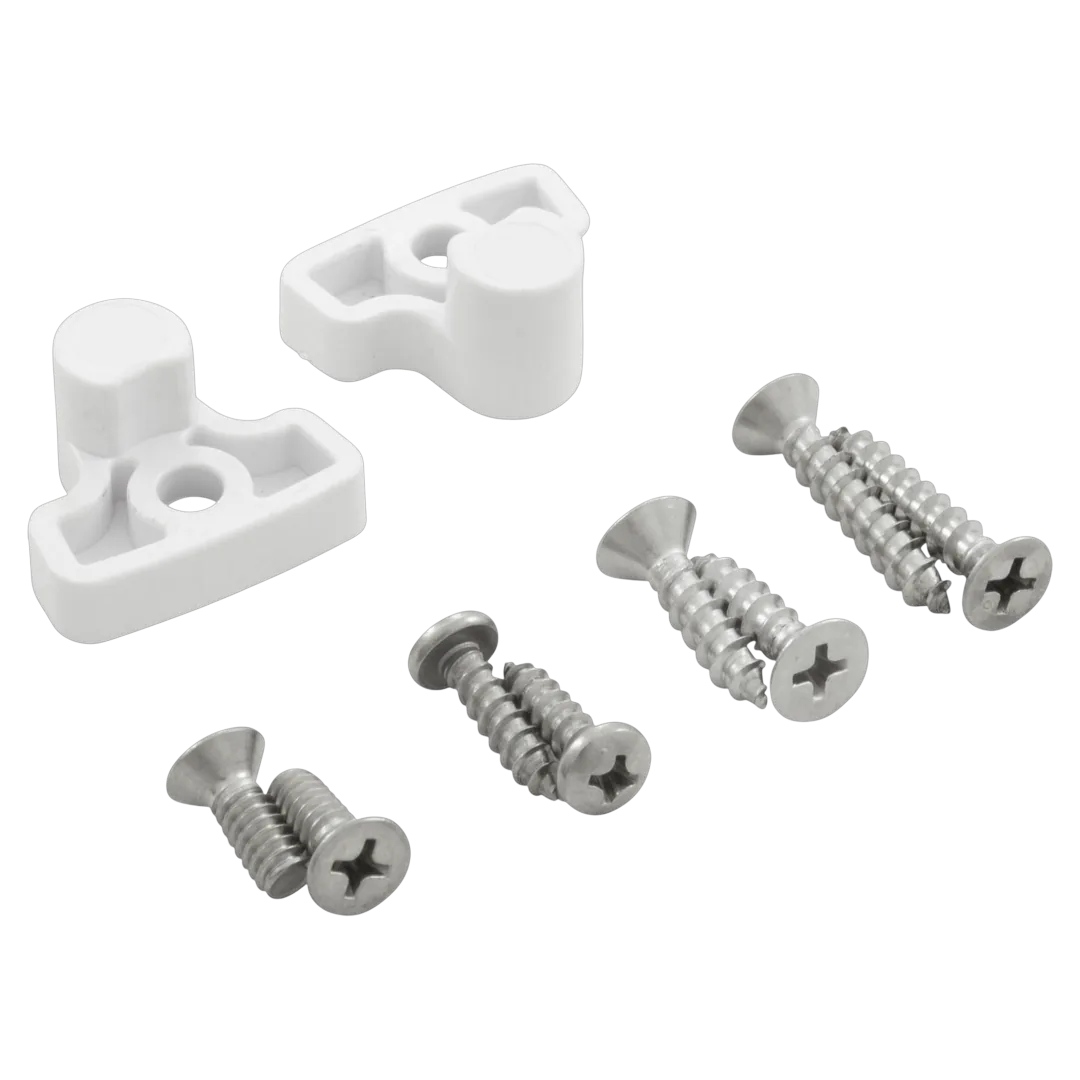

Includes: 8" Round Retrofit MoFlow Suction Outlet Cover, (2) #10 x 3/4" Flat Head Phillips Type A 316 Stainless Steel Screws, (2) 8" Round Retrofit Suction Outlet Adapters, (2) 10-24 x 1/2" Flat Head Machine 316 Stainless Steel Screws, (2) 8-32 x 1/2" Flat Head Machine 316 Stainless Steel Screws

Technical Specifications

Specification Details
Part Name AquaStar MoFlow 8" Dark Gray Round Retrofit Suction Outlet Cover
Part Number R8MF105
Part Type Drain Cover
Compatibility AquaStar "R" 8" models, Alloy Brass Foundry (ABF), Afras, Splash, Sta-Rite, SwimQuip, Caretaker/Polaris, Advanced (APP), Hayward, and certain Custom Molded Products (CMP)
Includes 8" Round Retrofit MoFlow Suction Outlet Cover, (2) #10 x 3/4" Flat Head Phillips Type A 316 Stainless Steel Screws, (2) 8" Round Retrofit Suction Outlet Adapters, (2) 10-24 x 1/2" Flat Head Machine 316 Stainless Steel Screws, (2) 8-32 x 1/2" Flat Head Machine 316 Stainless Steel Screws
Certifications ANSI/APSP 16-2011, NSF/ANSI 50-2009a, ASTM G154 UV testing
Material UV-Resistant Engineered Polymer
Flow Paths 16.1 square inch opening
Pressure Rating Floor: 146 GPM at 2.9 fps Wall: 130 GPM at 2.6 fps Floor/Wall: 75.3 GPM at 1.5 fps Floor/Wall: 50.2 GPM at 1.0 fps
Shipping Dimensions 8.00 x 8.00 x 1.50 inch
Product Weight 0.688 pound
