AquaStar R8MF102 MoFlow Suction Outlet Cover
AquaStar Pool Products | SKU:
R8MF102
$5300/ea
Unit price
/
Unavailable
AquaStar R8MF102 MoFlow Suction Outlet Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

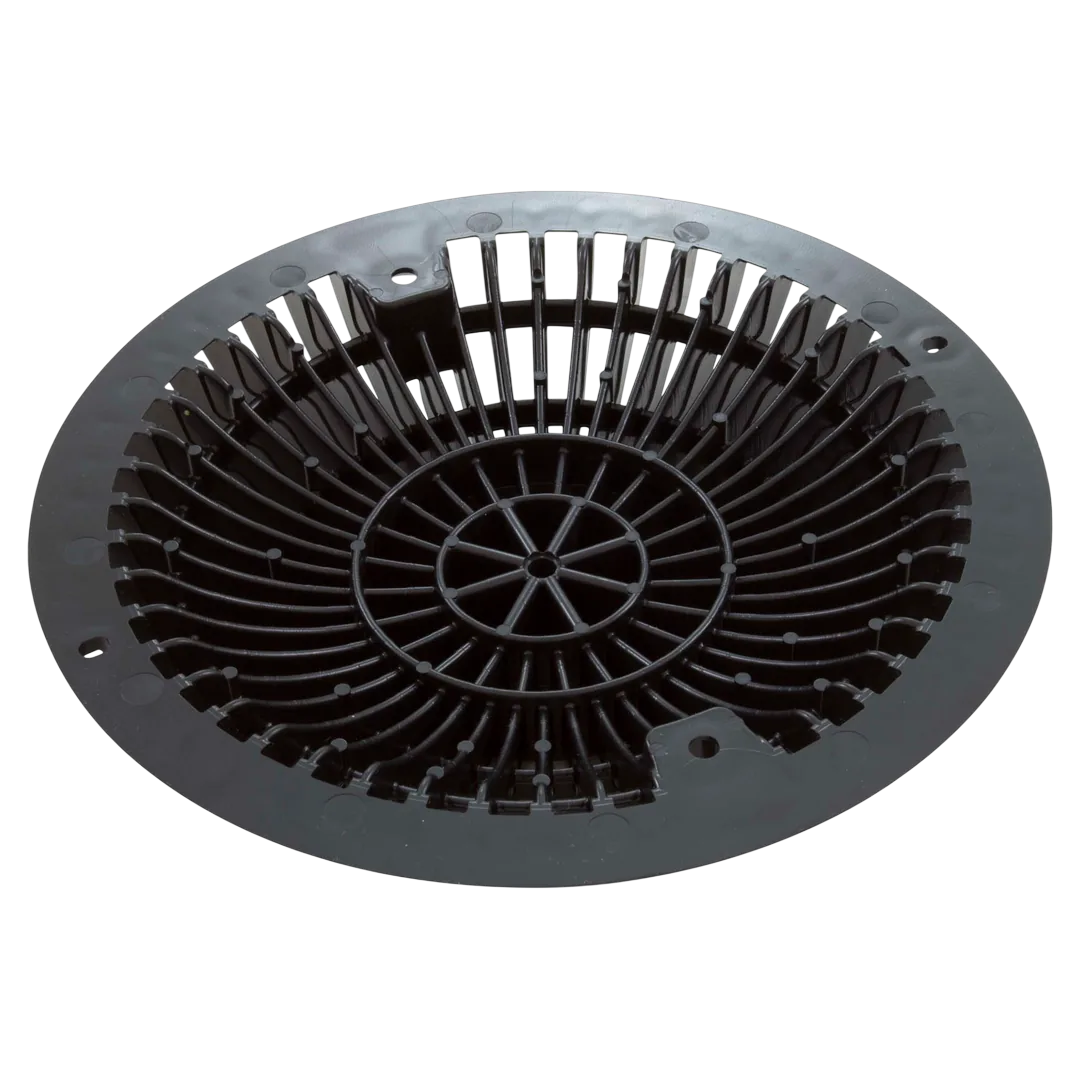

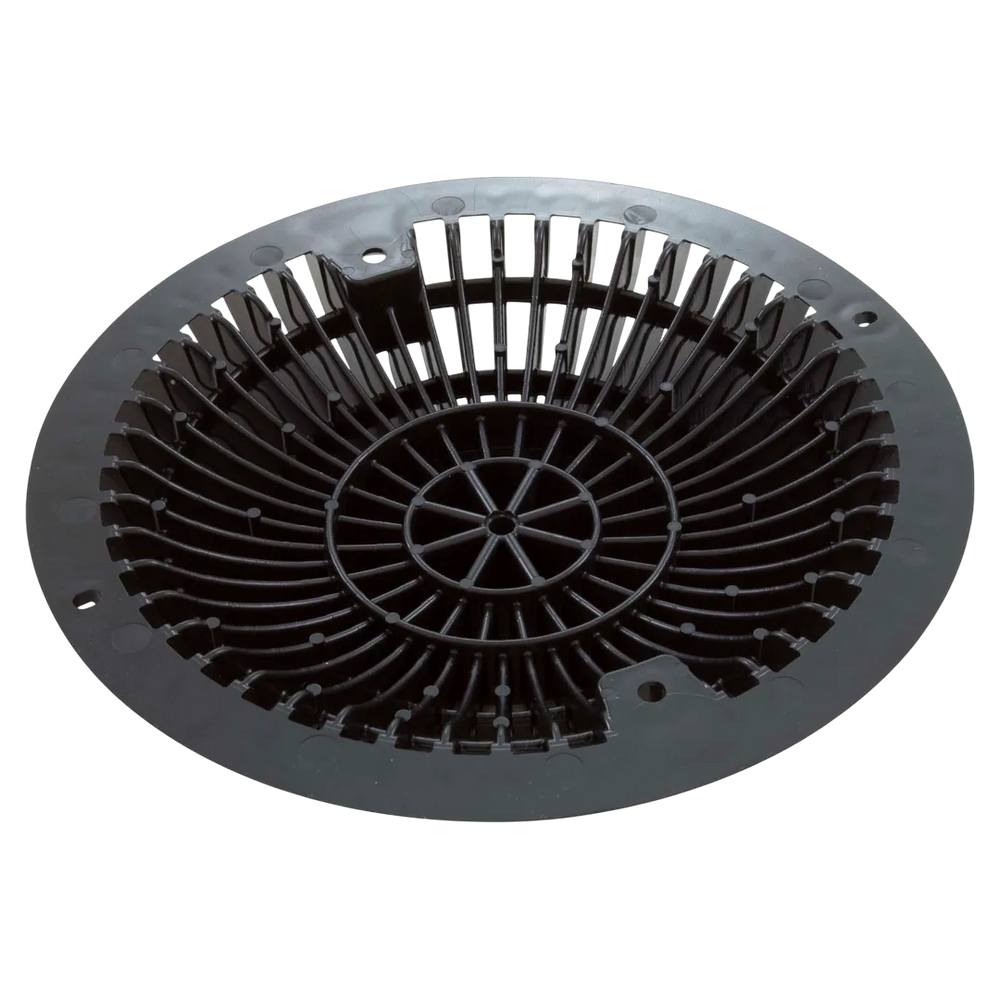

The AquaStar R8MF102 is an 8-inch round MoFlow retrofit suction outlet cover designed for main drain applications. It features a black finish and includes a screw and bushing kit for installation. This part is compatible with AquaStar "R" series 8-inch models and easily retrofits most brands' existing frames and sumps, enhancing water flow management.

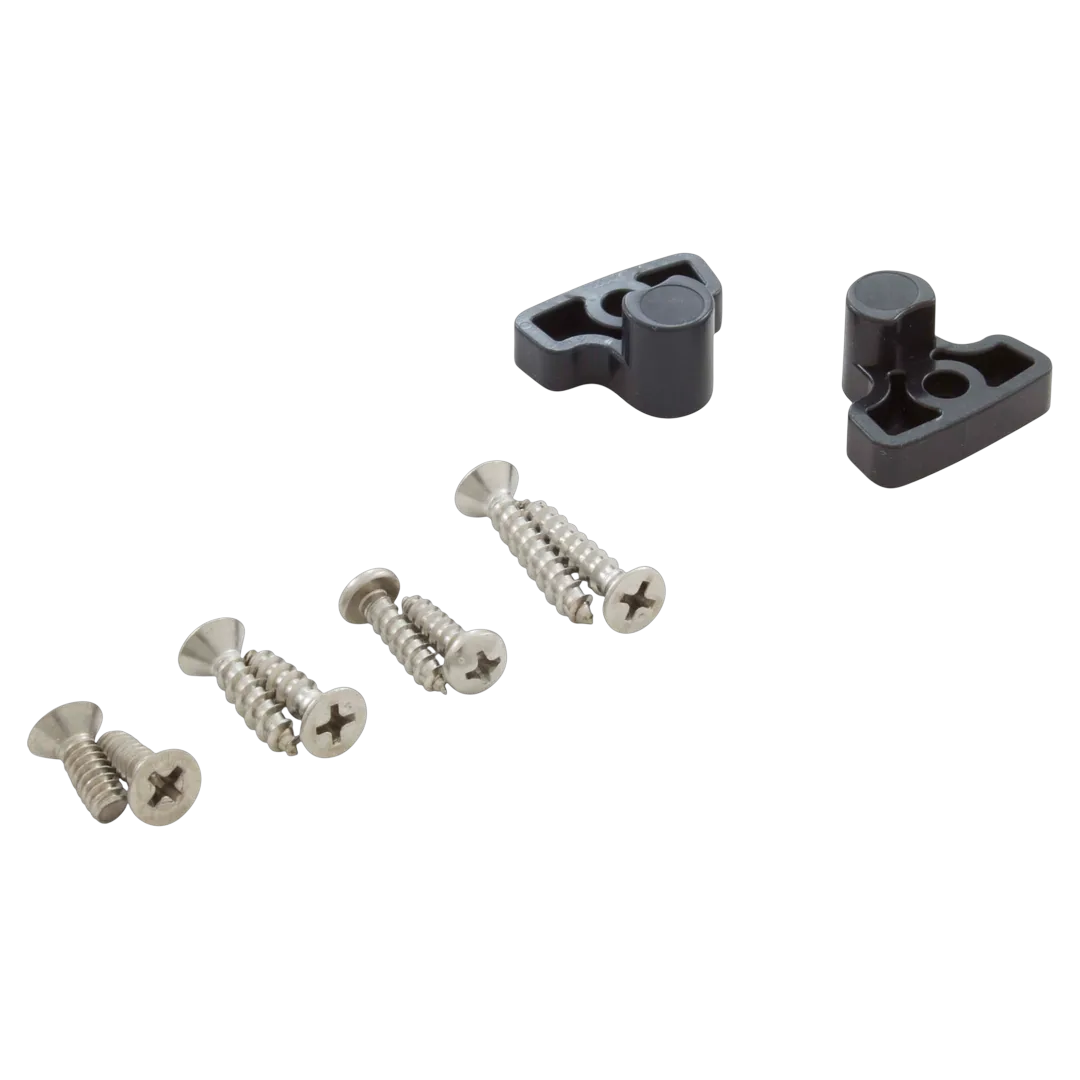

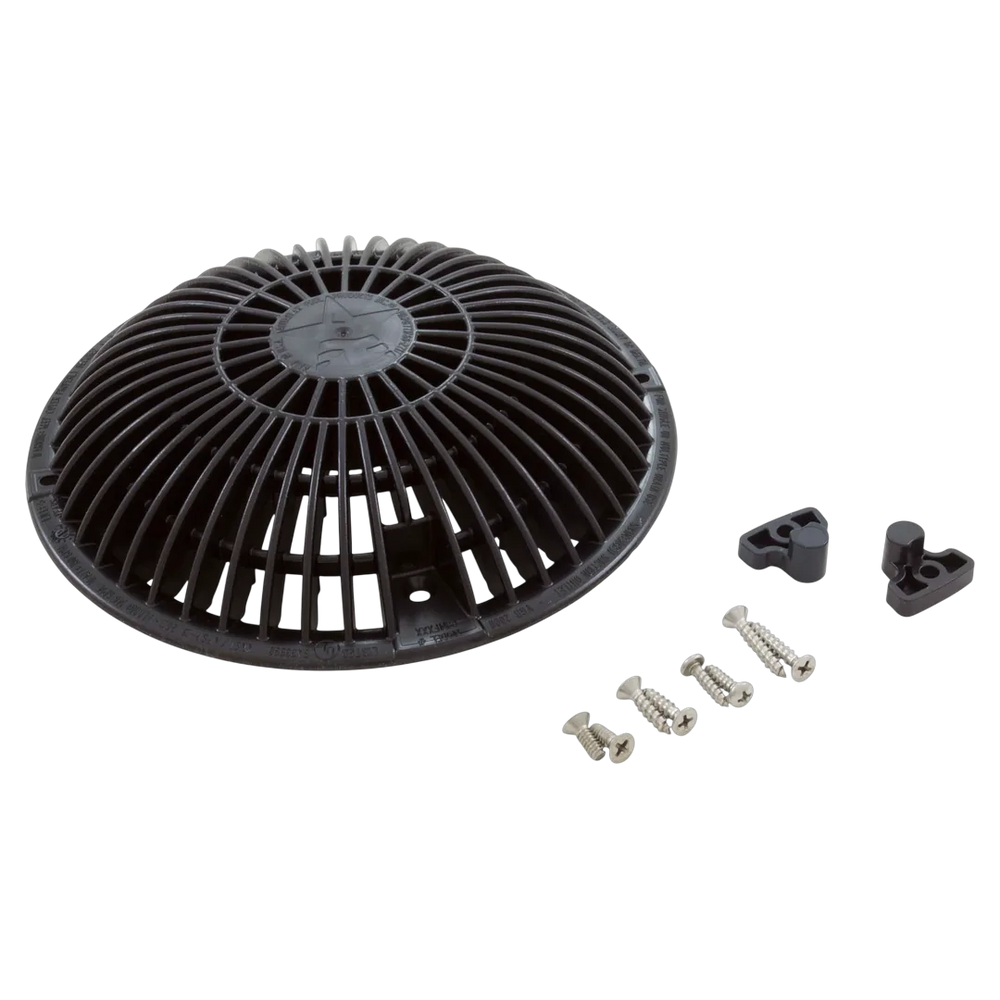

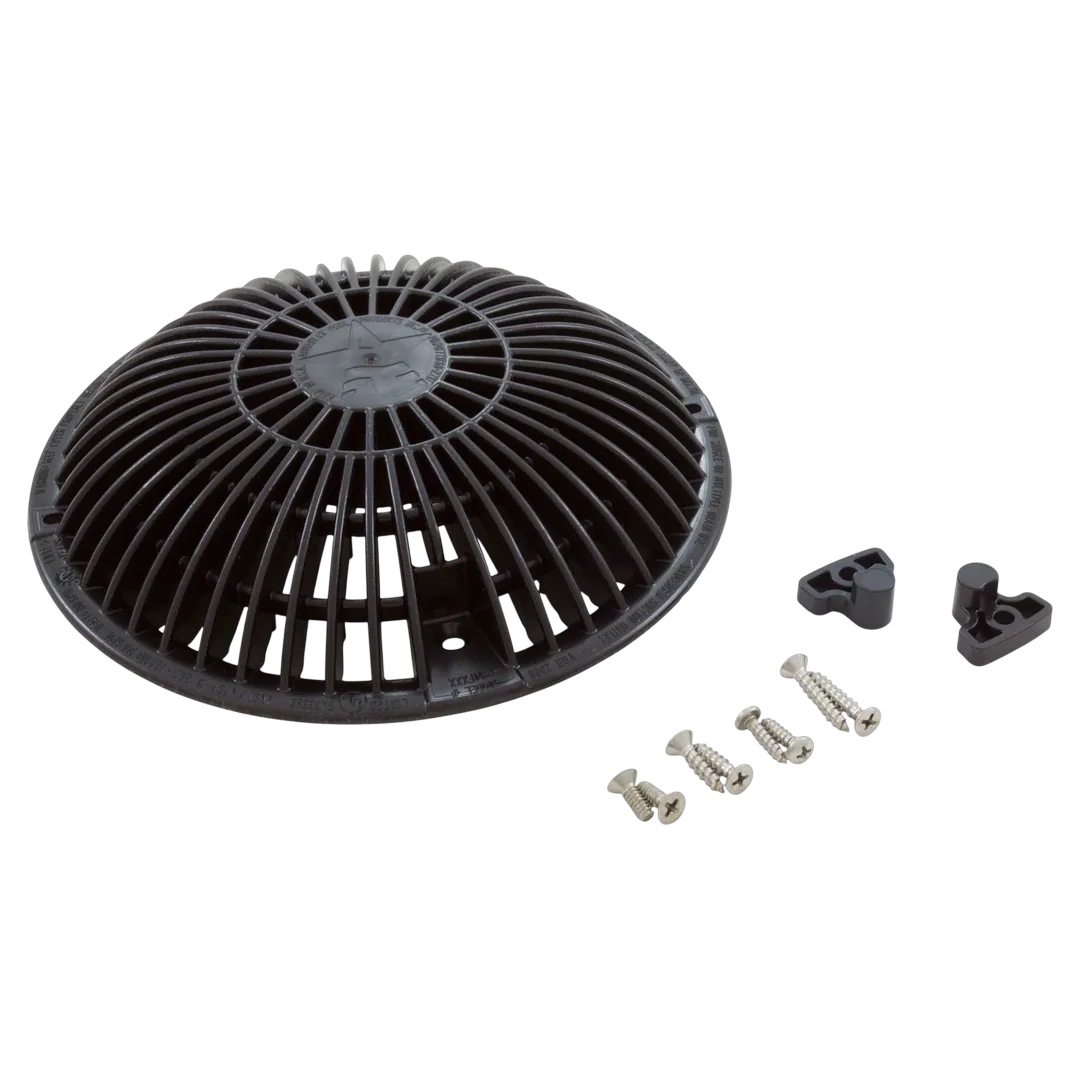

Includes: 8" Round Retrofit MoFlow Suction Outlet Cover, three sets of different stainless steel screws
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | AquaStar MoFlow 8" Black Round Retrofit Suction Outlet Cover |
| Part Number | R8MF102 |
| Part Type | Drain Cover |
| Compatibility | AquaStar “R” 8" models, Alloy Brass Foundry (ABF), Afras, Splash, Sta-Rite, Swimquip, Caretaker/Polaris, Advanced (APP), Hayward, certain Custom Molded Products (CMP) |
| Substitute Part Numbers | RLP8AVxxx |
| Includes | 8" Round Retrofit MoFlow Suction Outlet Cover, three sets of different stainless steel screws |
| Certifications | ANSI/APSP 16-2011, NSF/ANSI 50-2009a, ASTM G154 UV testing |
| Material | UV-resistant engineered polymer |
| Flow Paths | Floor: 146 GPM at 2.9 fps Wall: 130 GPM at 2.6 fps Floor/Wall: 75.3 GPM at 1.5 fps Floor/Wall: 50.2 GPM at 1.0 fps |
| Shipping Dimensions | 8.2 x 2.05 x 8.05 inch |
| Product Weight | 0.53 pound |
