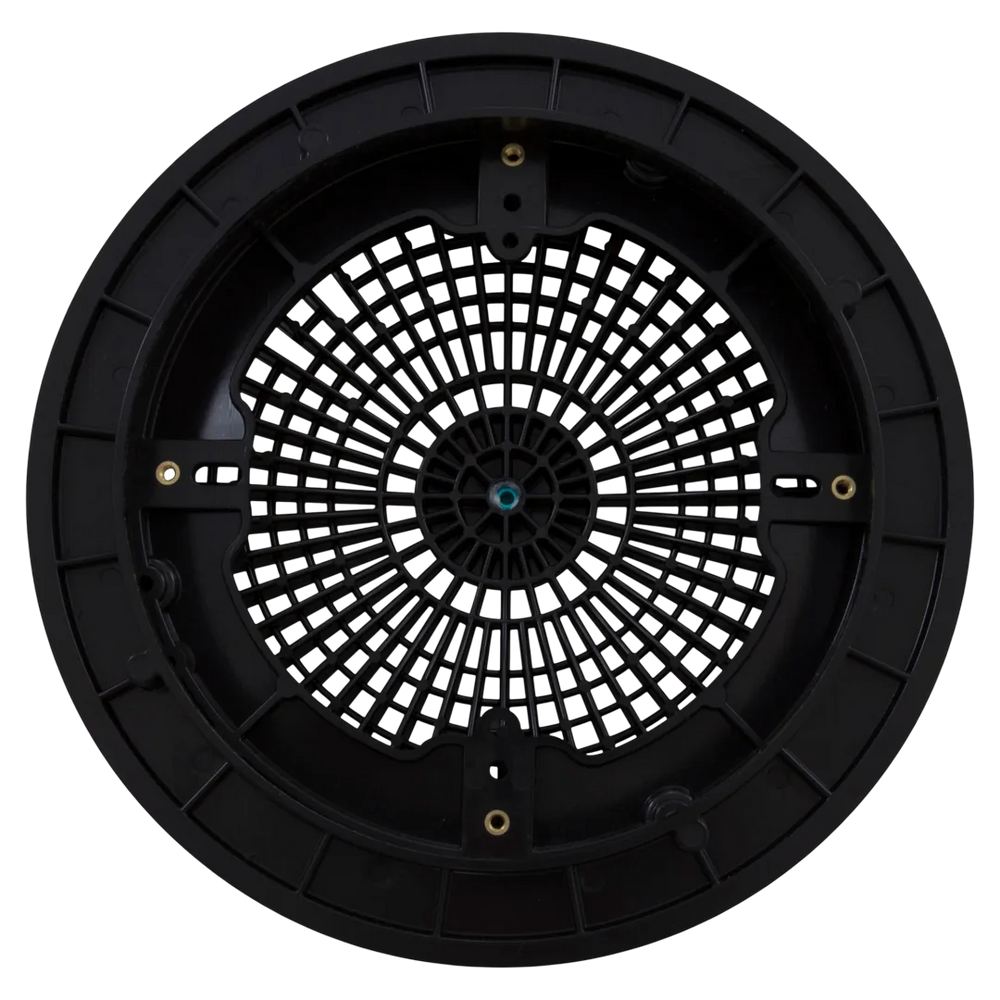

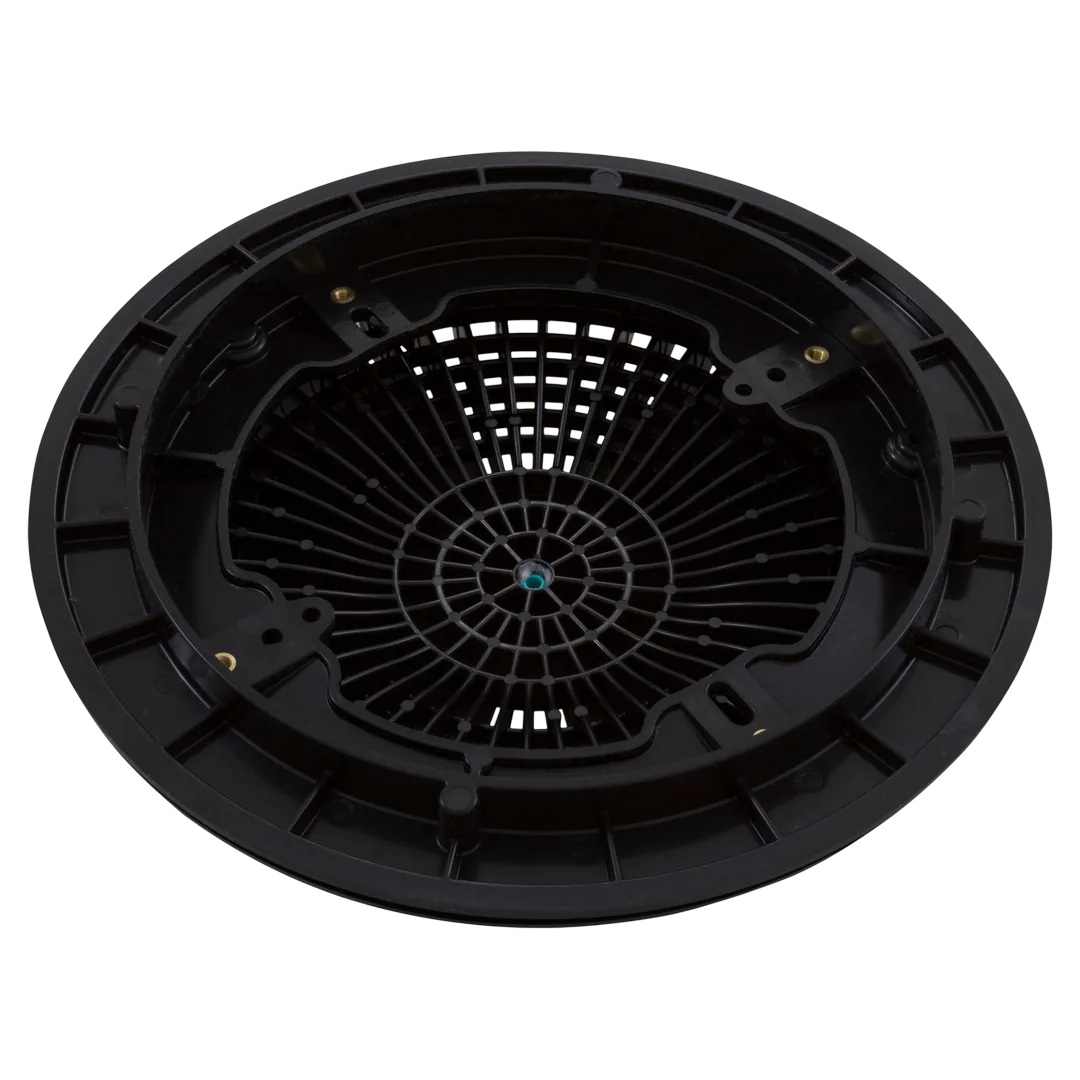

AquaStar A10RCFR102 Suction Outlet Cover
AquaStar Pool Products | SKU:
A10RCFR102
$10000/ea
Unit price
/
Unavailable
AquaStar A10RCFR102 Suction Outlet Cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

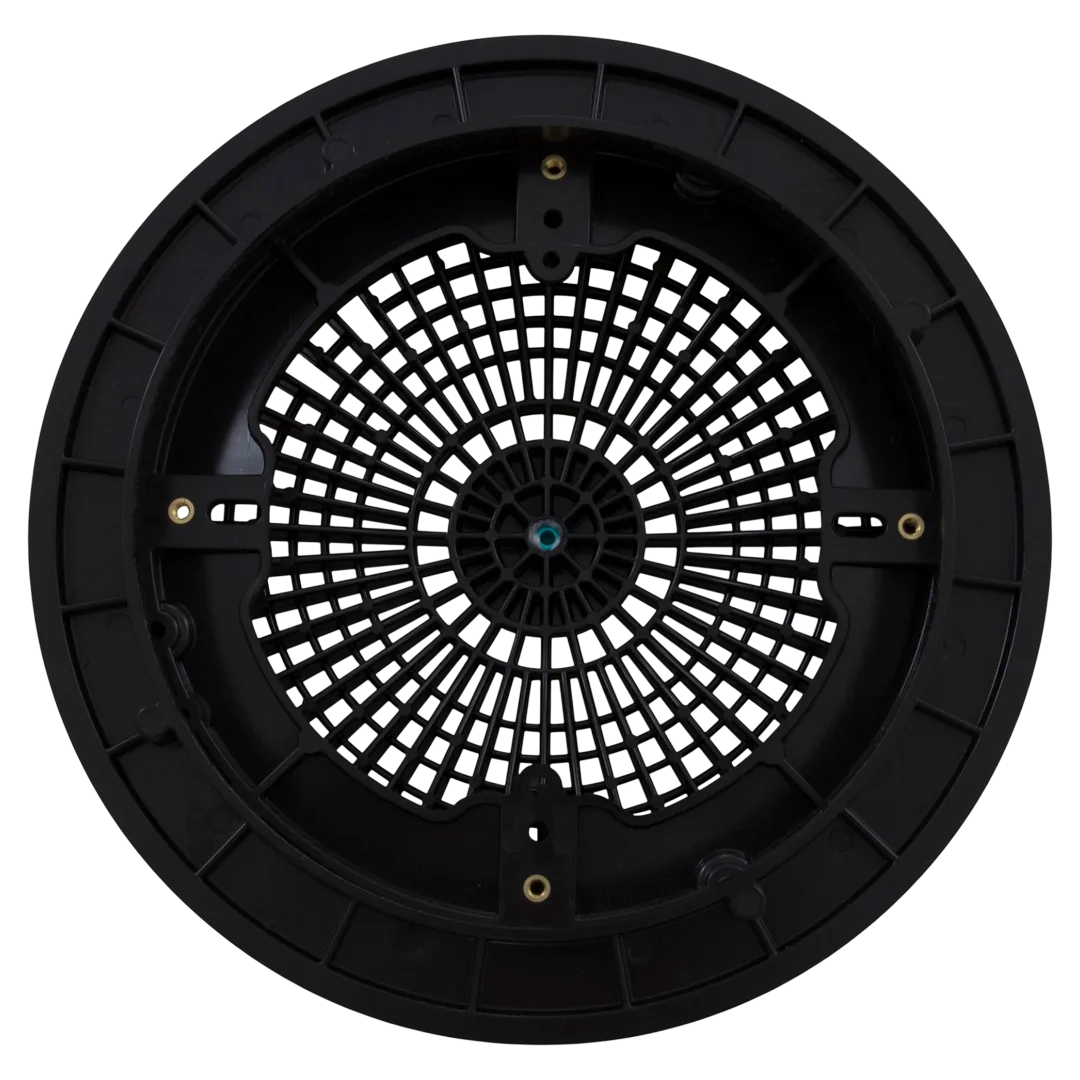

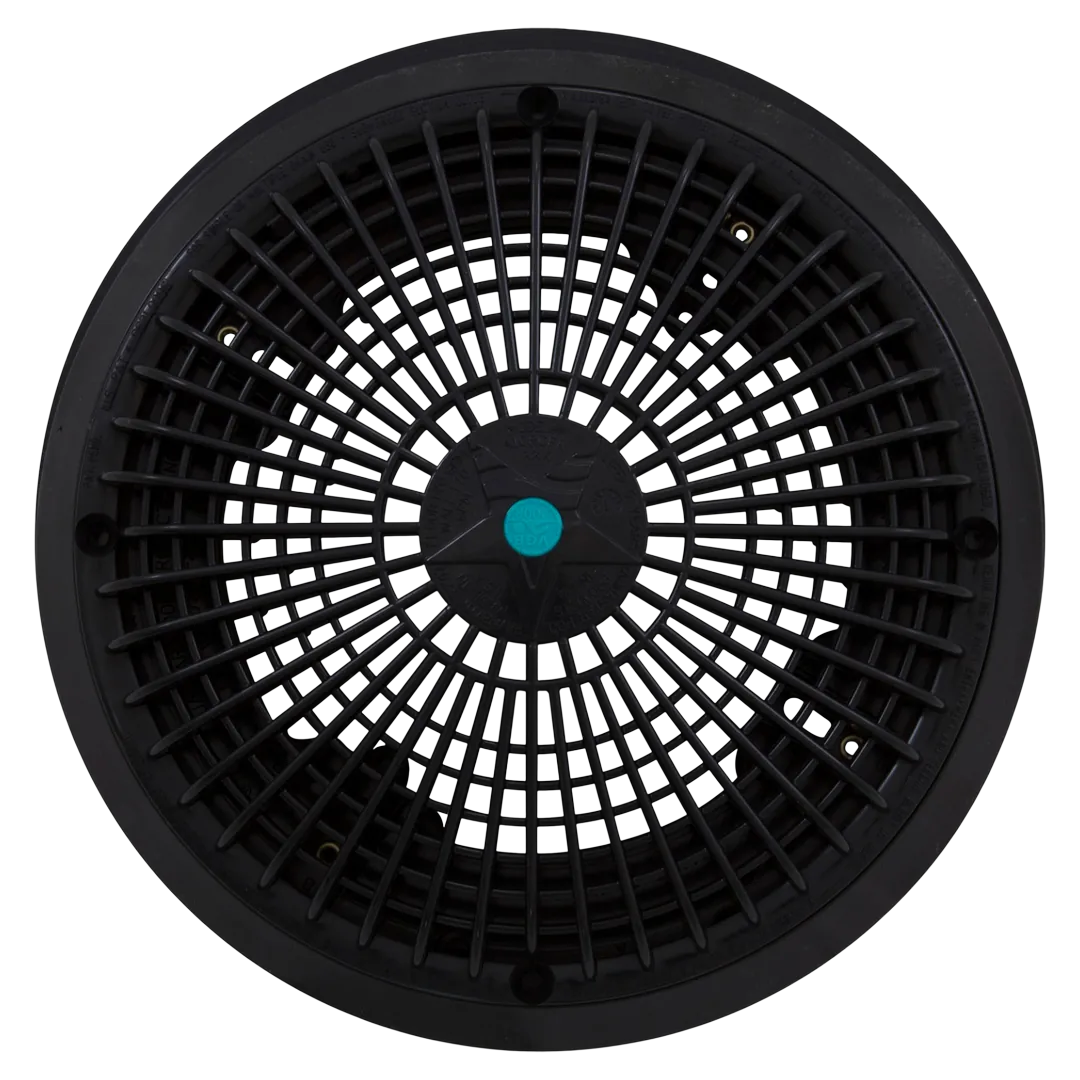

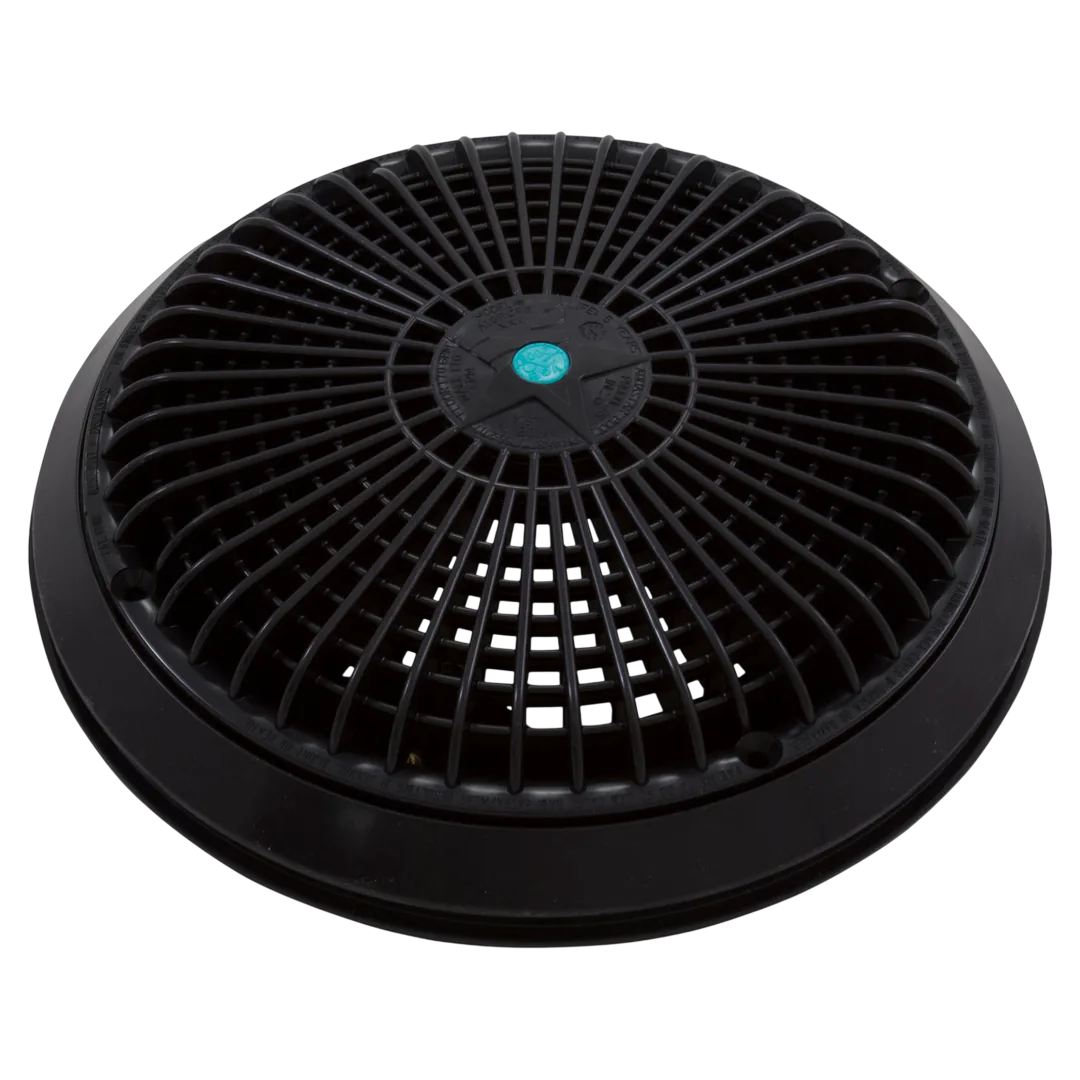

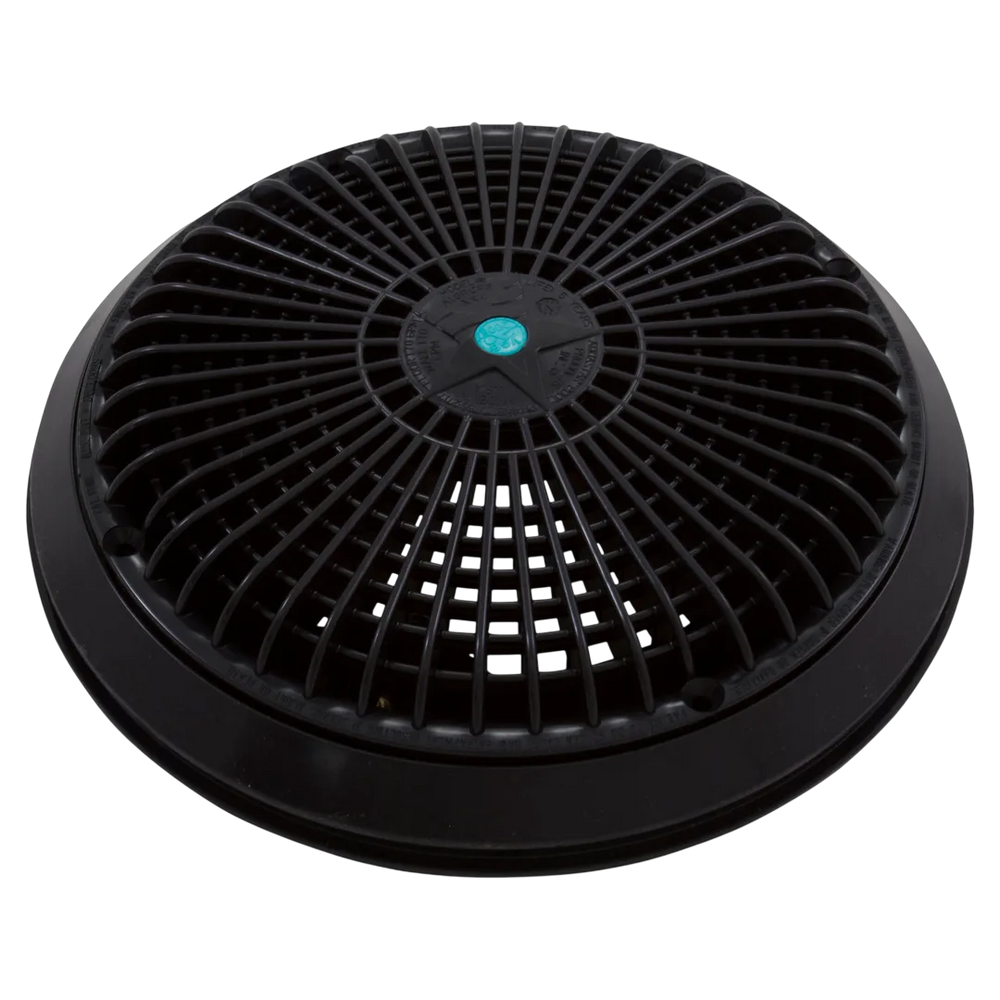

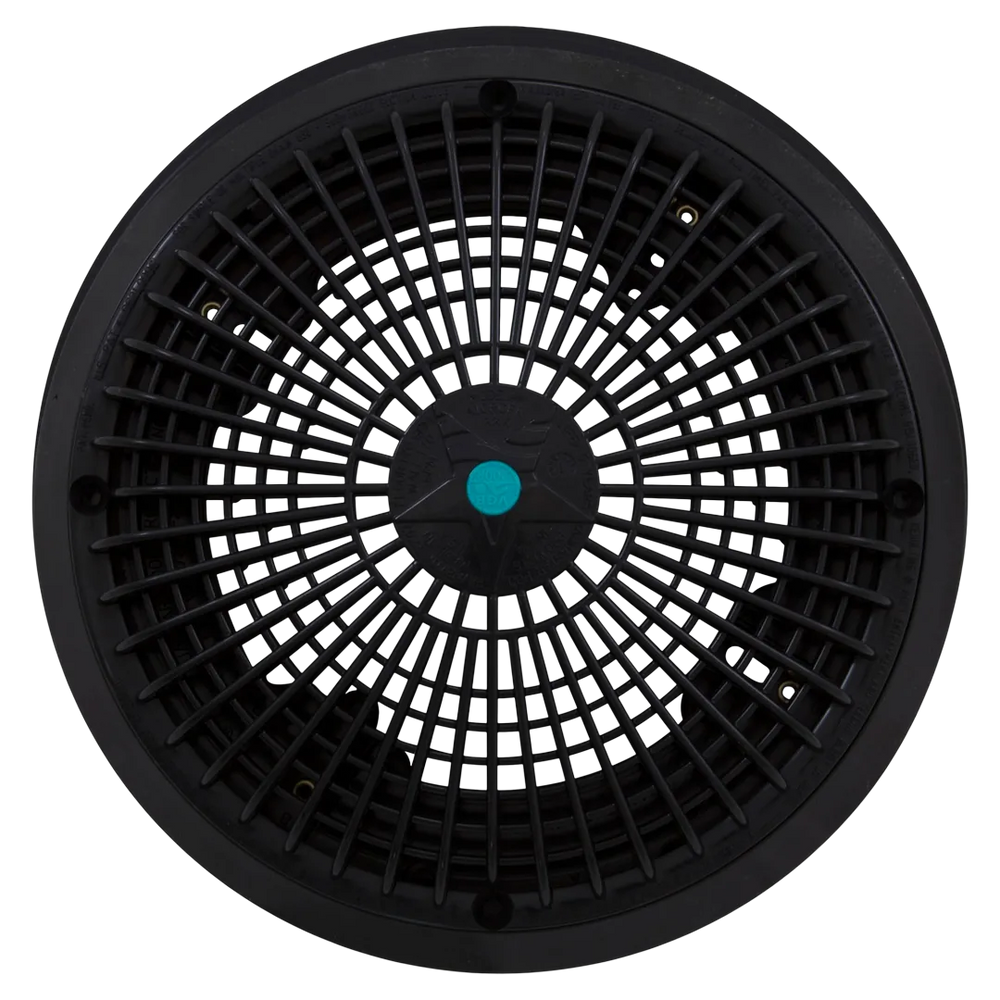

The AquaStar A10RCFR102 is a 10-inch round anti-entrapment main drain cover from the VGB Series. It is fabricated from UV-resistant engineered polymer and includes a universal retrofit adapter and a mud frame, along with frame screws, plastic concrete anchors, and a #316 stainless steel component. This cover is designed for both retrofit and new pool construction, fitting sumps or frames up to 10 inches in diameter without requiring a sump.

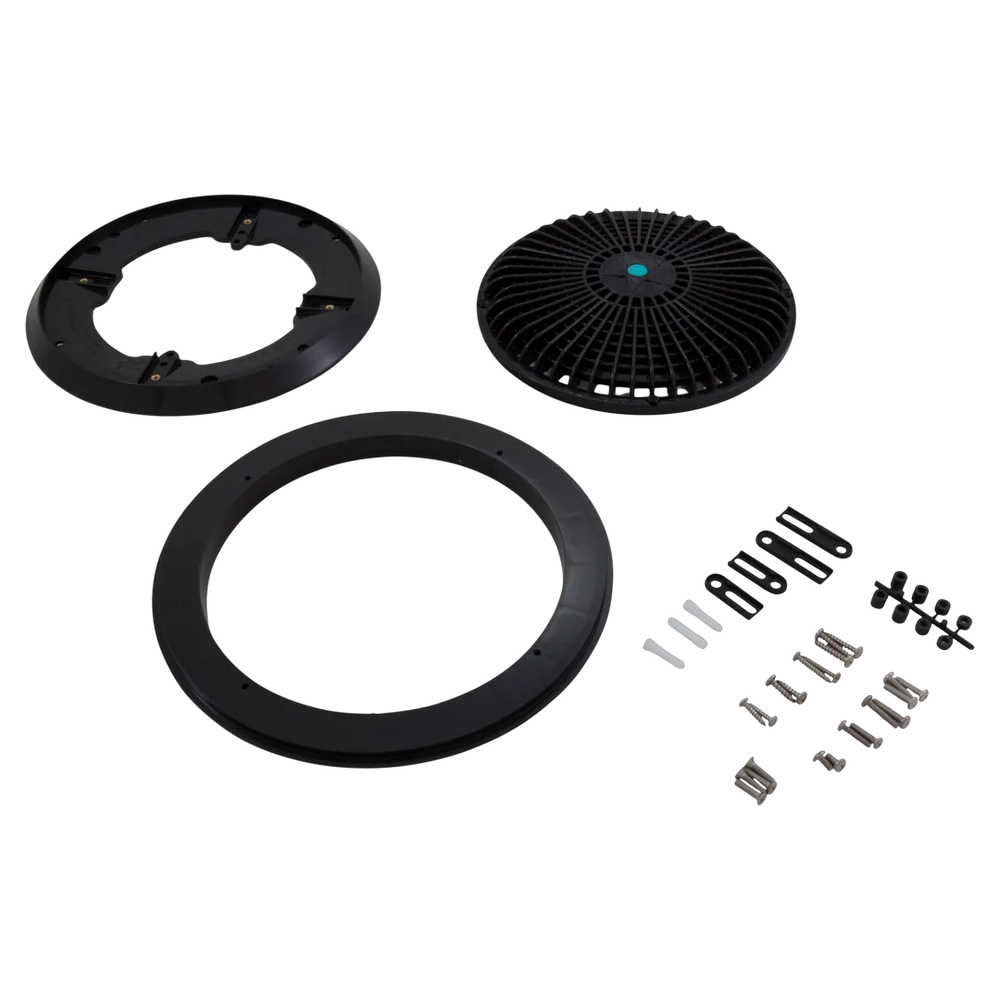

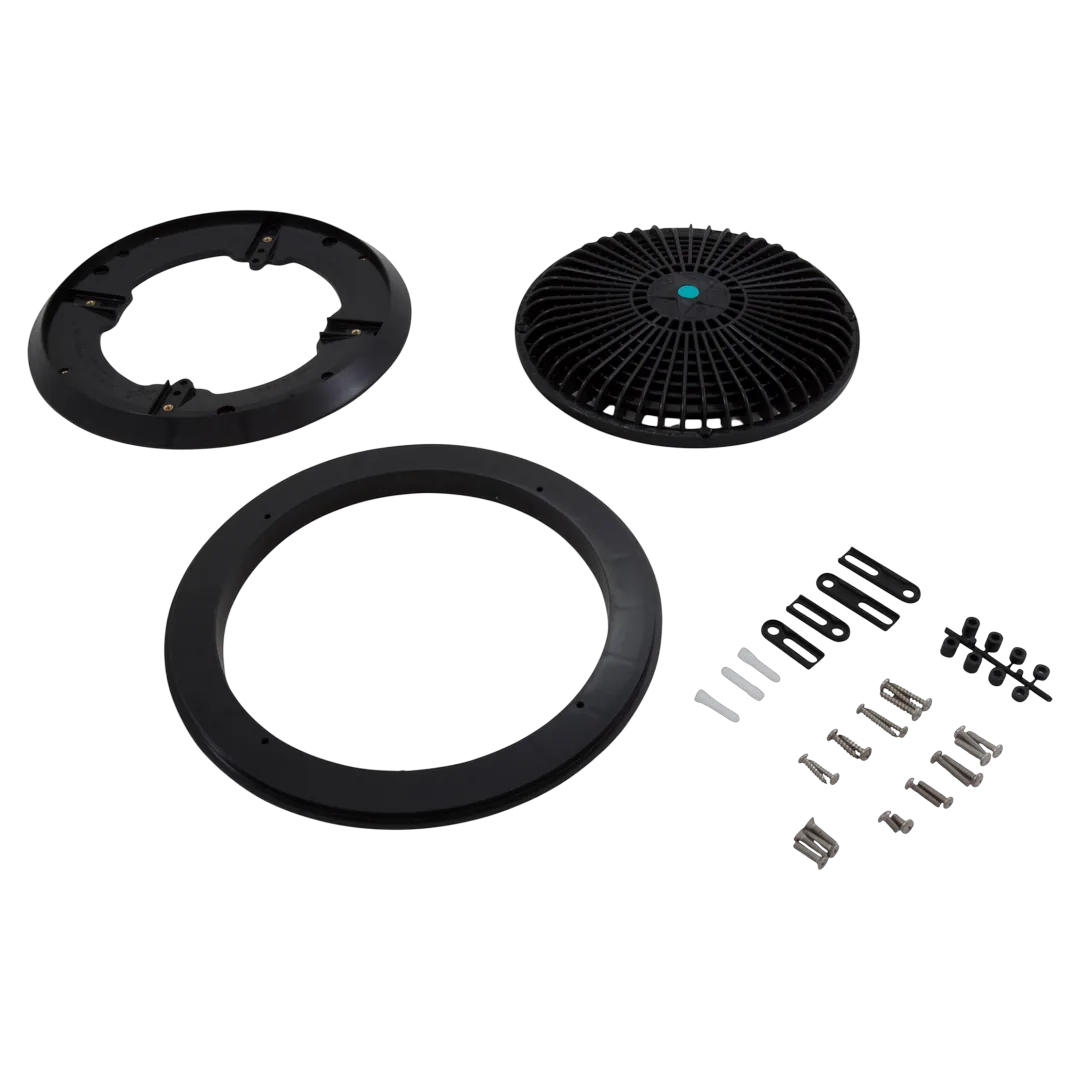

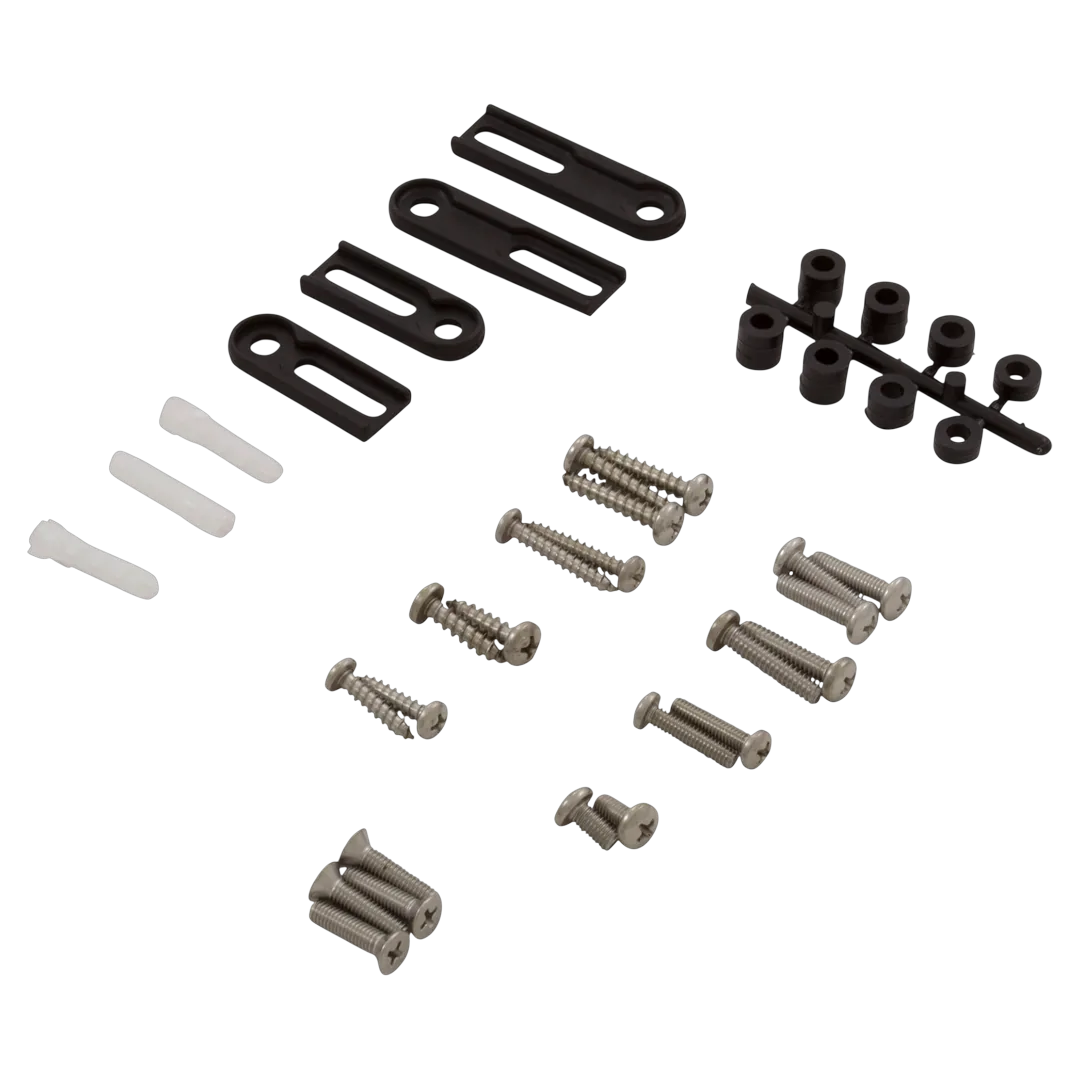

Includes: 10" Universal Adapter Frame, 10" Round Suction Outlet Drain, (4) 10-32 x 5/8" Flat Head Phillips 316 Stainless Steel Screws, (2) Adjustable Slides (Long), (2) Adjustable Slides (Short), 10" Super Low Profile Round Frame, (6) 3/8" Bushings
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | AquaStar 10" Round Sumpless Suction Outlet Cover with Universal Adapter Kit, Black |
| Part Number | A10RCFR102 |
| Part Type | Drain Cover |
| Compatibility | Retrofits over all sumps/frames up to 10" using included plastic concrete anchors |
| Includes | 10" Universal Adapter Frame, 10" Round Suction Outlet Drain, (4) 10-32 x 5/8" Flat Head Phillips 316 Stainless Steel Screws, (2) Adjustable Slides (Long), (2) Adjustable Slides (Short), 10" Super Low Profile Round Frame, (6) 3/8" Bushings |
| Certifications | NSF Certified, ANSI Certified, APSP Certified, ASTM Certified |
| Material | Polymer |
| Flow Paths | 31.5 square inch opening |
| Pressure Rating | Floor: 170 GPM at 1.7 fps Wall: 170 GPM at 1.7 fps |
| Shipping Dimensions | 12.5 x 11.75 x 3.5 inch |
| Product Weight | 2.833 pound |
