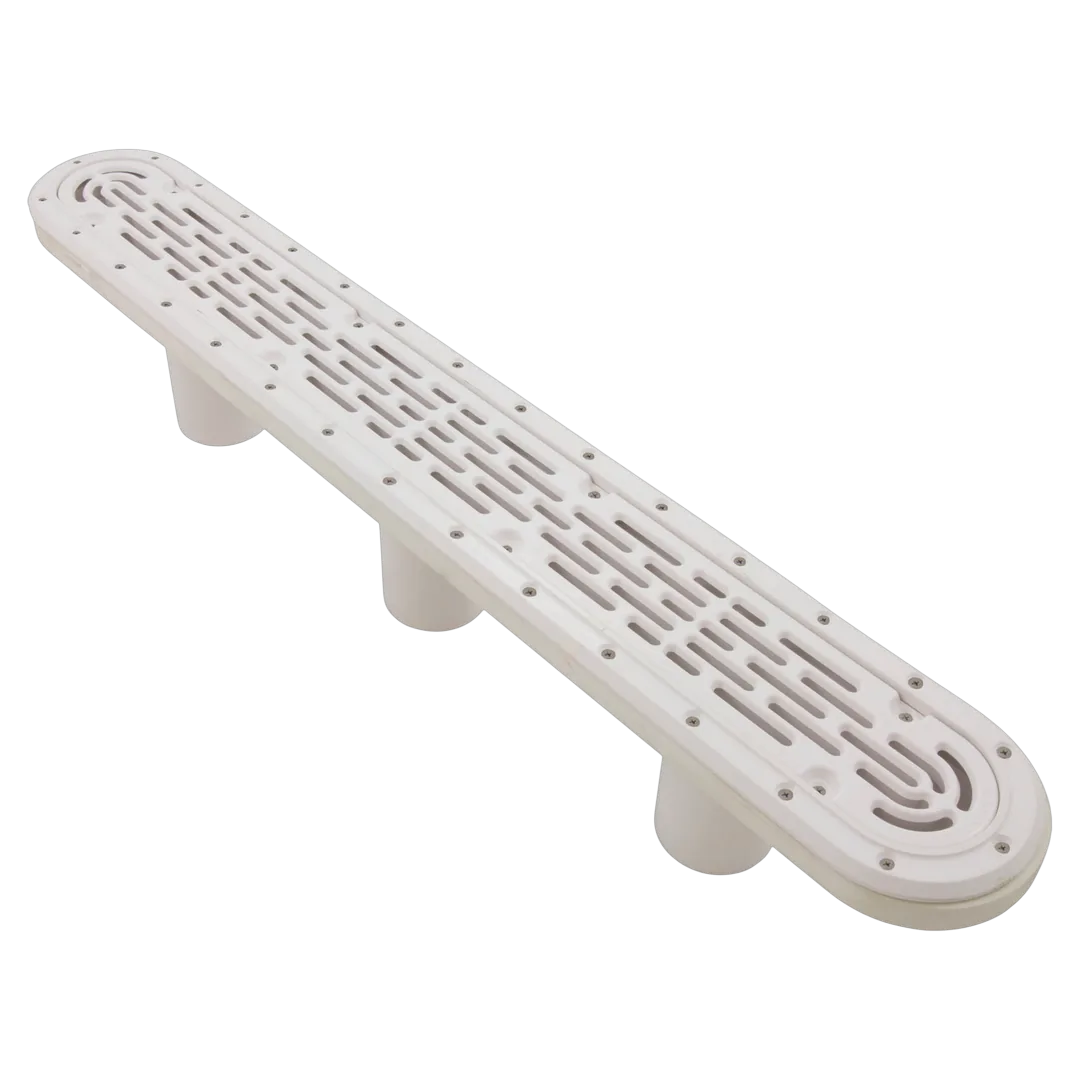

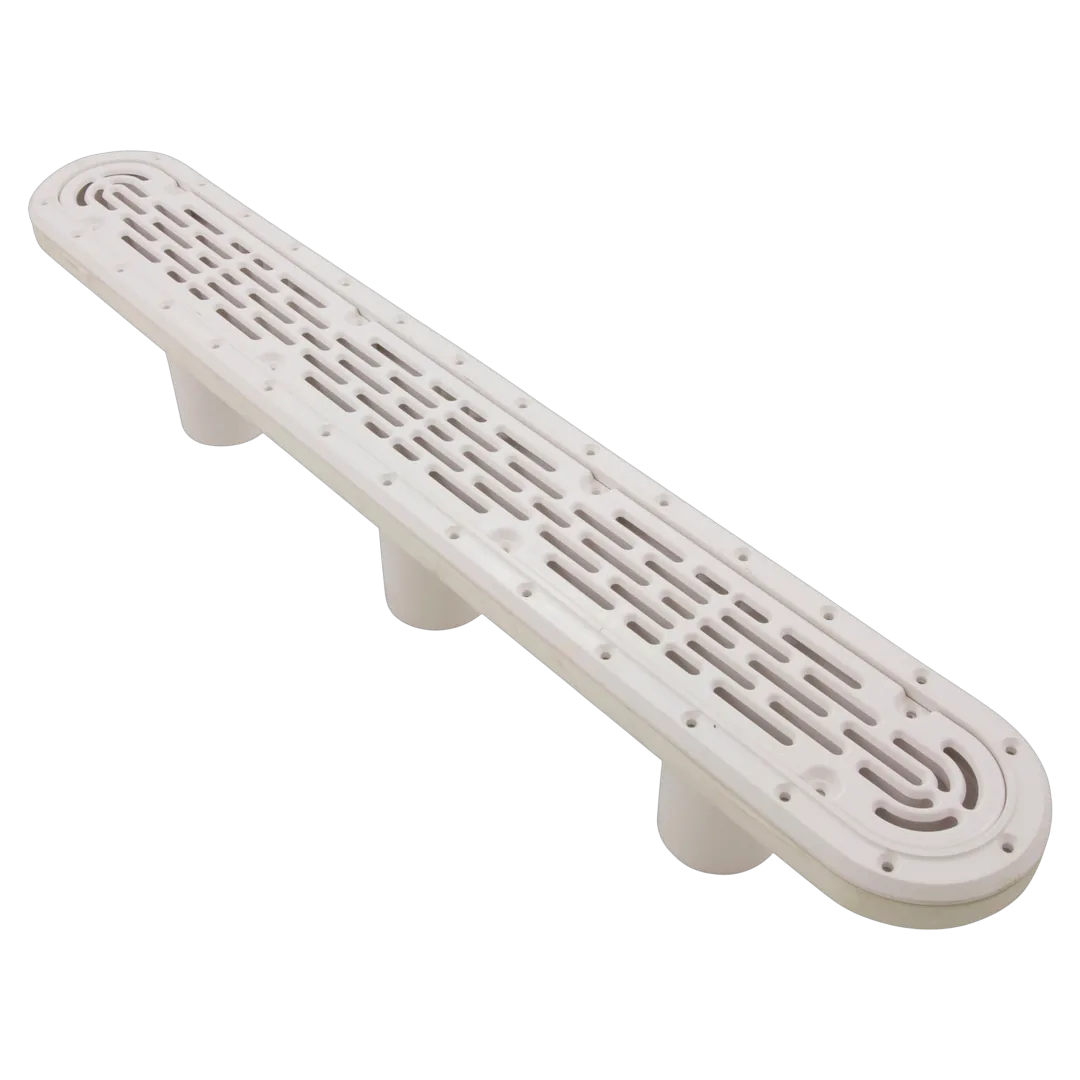

AquaStar 32CDFLV101 32 in Channel Drain Flat Grate with 3-Port Sump
AquaStar 32CDFLV101 32 in Channel Drain Flat Grate with 3-Port Sump is backordered and will ship as soon as it is back in stock.
10 In Stock
Description
Description
The AquaStar 32CDFLV101 is a 32-inch AquaStar channel drain flat-grate anti-entrapment suction outlet cover with an integrated three-port manufactured sump, produced to meet VGB/VGBA anti-entrapment requirements for vinyl and fiberglass pools. It is molded from UV-resistant PVC with a flat-grate cover and a PVC three-port sump assembly in white, providing multiple suction-port connections for standard pool plumbing. Compatible with vinyl and fiberglass pool channel-drain openings sized for 32-inch covers and designed to interface with standard suction plumbing/sump configurations.
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | AquaStar 32" Channel Drain with Sump and Cover for Vinyl Pools, White |
| Part Number | 32CDFLV101 |
| Part Type | Channel Drain |
| Compatibility | Vinyl liner pools |
| Substitute Part Numbers | 313470, 3816-641, API-25-1707 |

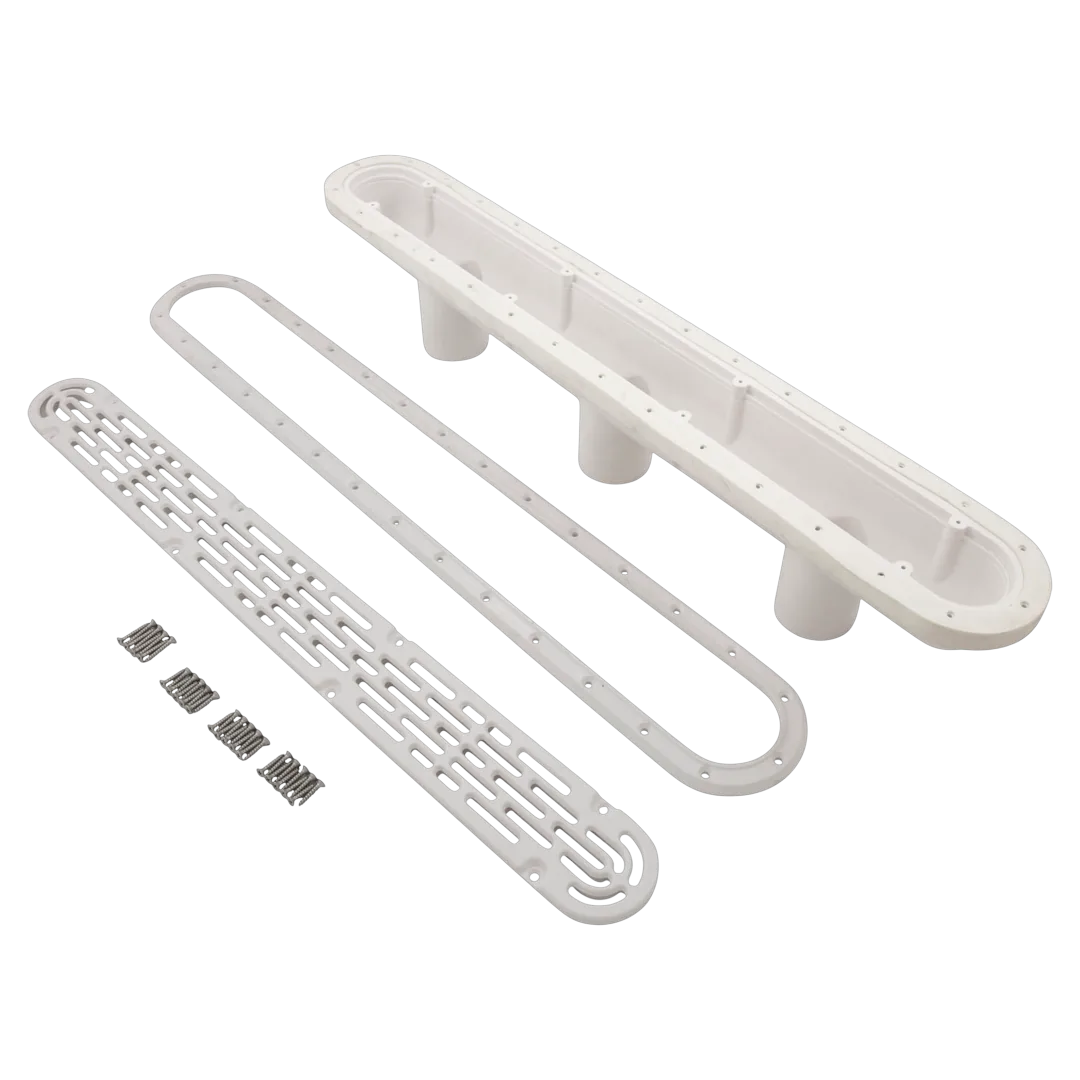

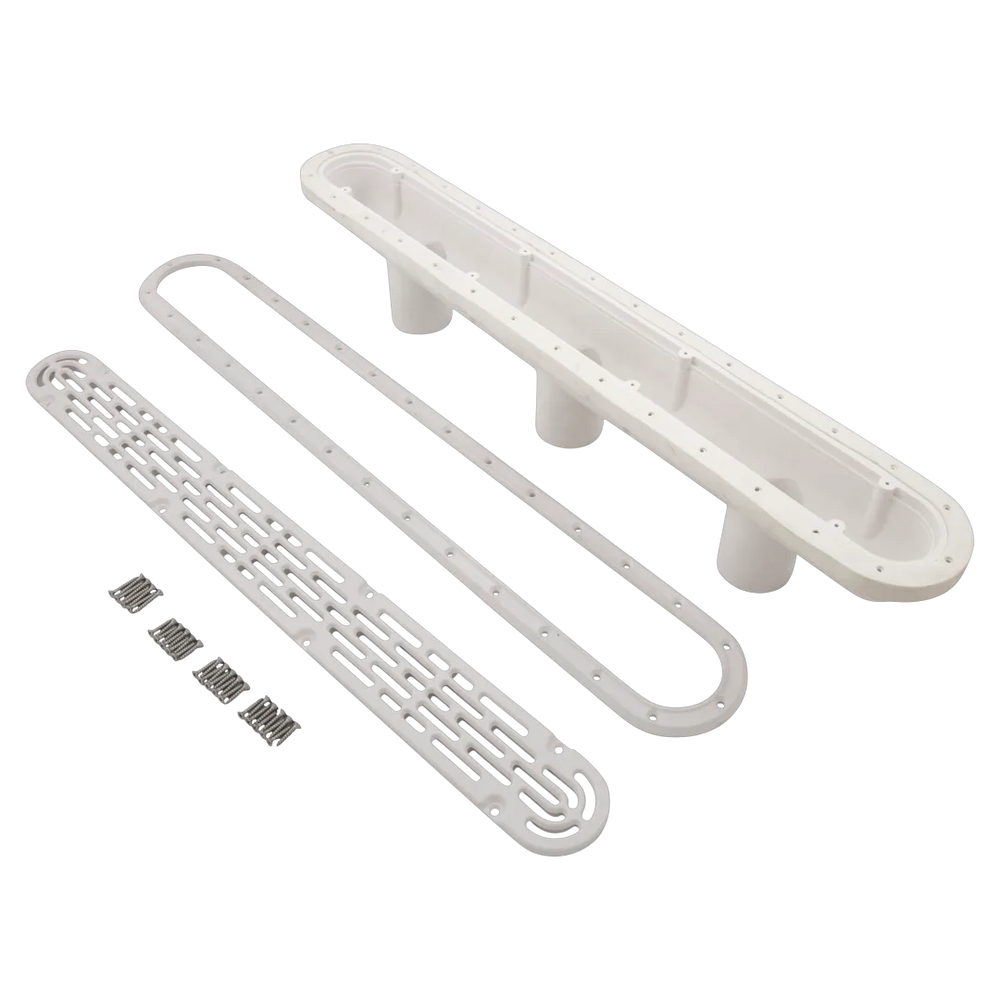

| Includes | 32-inch channel drain, flat grate suction outlet cover, three-port sump, disposable 'dog bone' supports, stainless steel screws |
| Certifications | NSF 50, ASME/ANSI A112.19.8a-2008, ASTM G154 |
| Material | UV-resistant engineered polymers |
| Flow Paths | Three ports: bottom 2.5" OD, 2" ID S/S inside 2" threaded FPT two 2" threaded plugs included |
| Shipping Dimensions | 33 x 7 x 5 inch |
| Product Weight | 5.5 pound |
Features:
- Designed for single or multiple drain use
- Manufactured from UV-resistant engineered polymers
- Three ports: bottom 2.5" OD, 2" ID S/S
- inside 2" threaded FPT
- two 2" threaded plugs included
- Permanently attached gasket reduces gasket alignment problems
- Meets or exceeds NSF 50/ASME/ANSI A112.19.8a-2008 national standards and ASTM G154 UV testing
- Replace every five years from the date of installation
