Aquaflo 91693602 Impeller Gecko AquaFlo FMHP/FMCP
Aquaflo/Gecko | SKU:
91693602
$5600/ea
Unit price
/
Unavailable
Aquaflo 91693602 Impeller Gecko AquaFlo FMHP/FMCP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

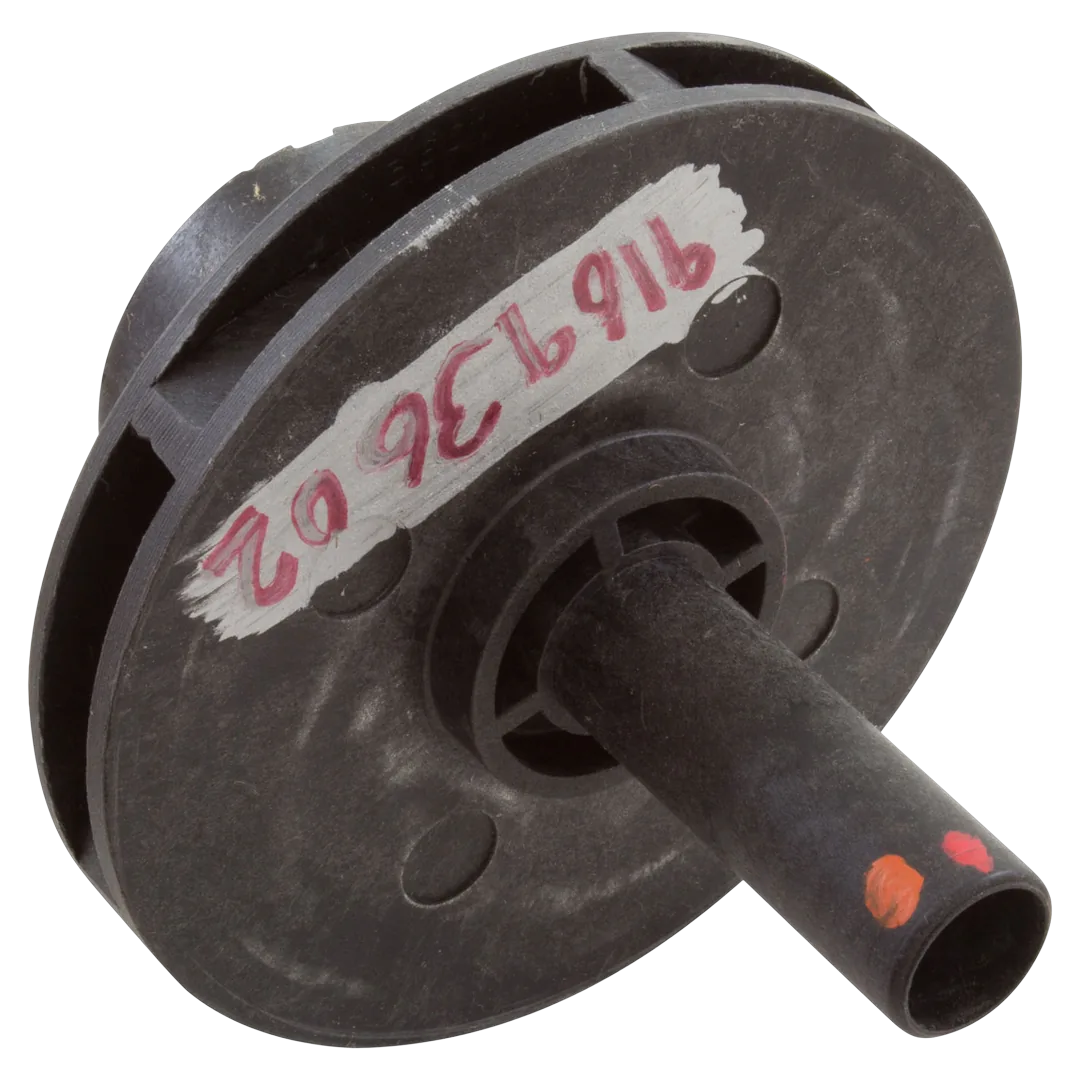

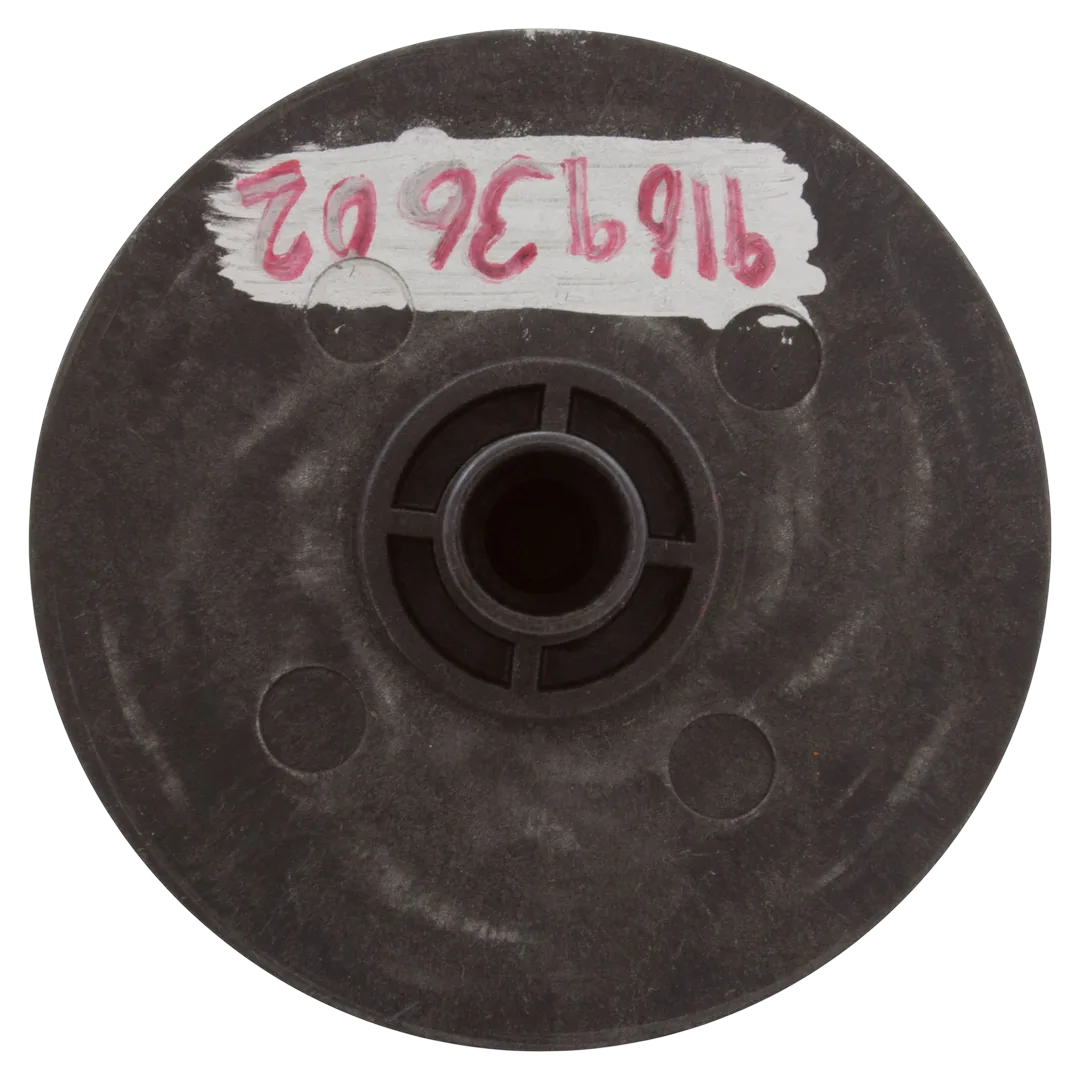

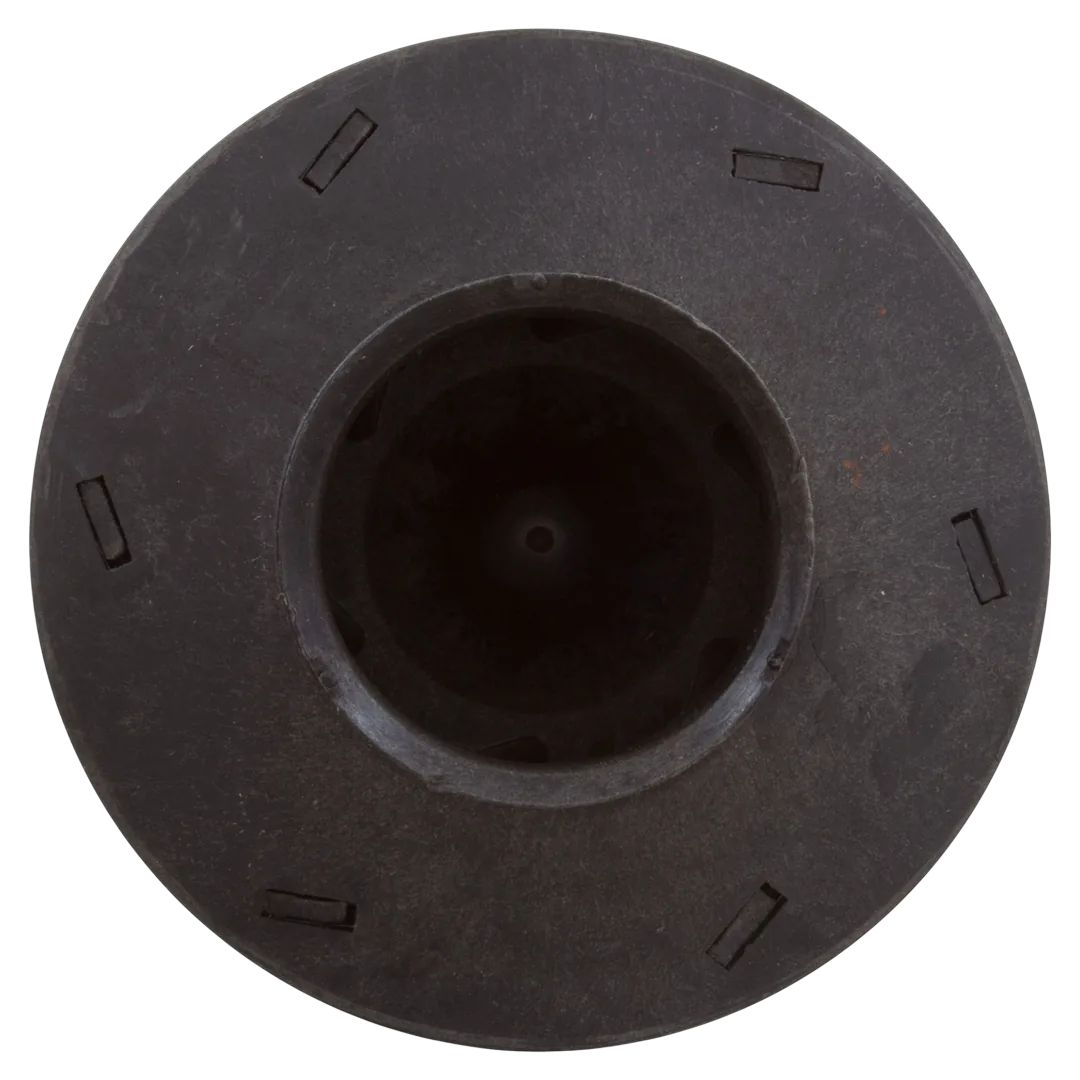

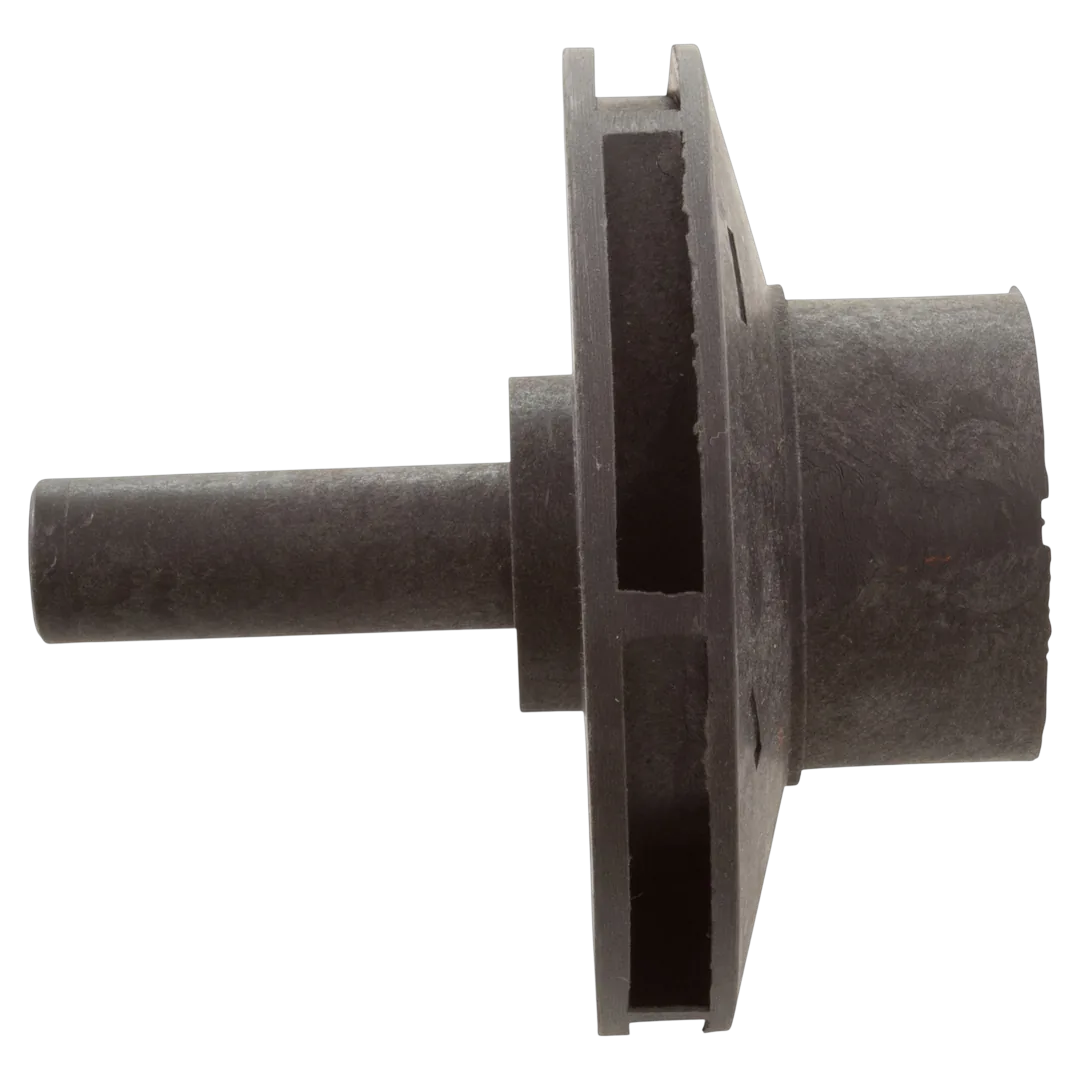

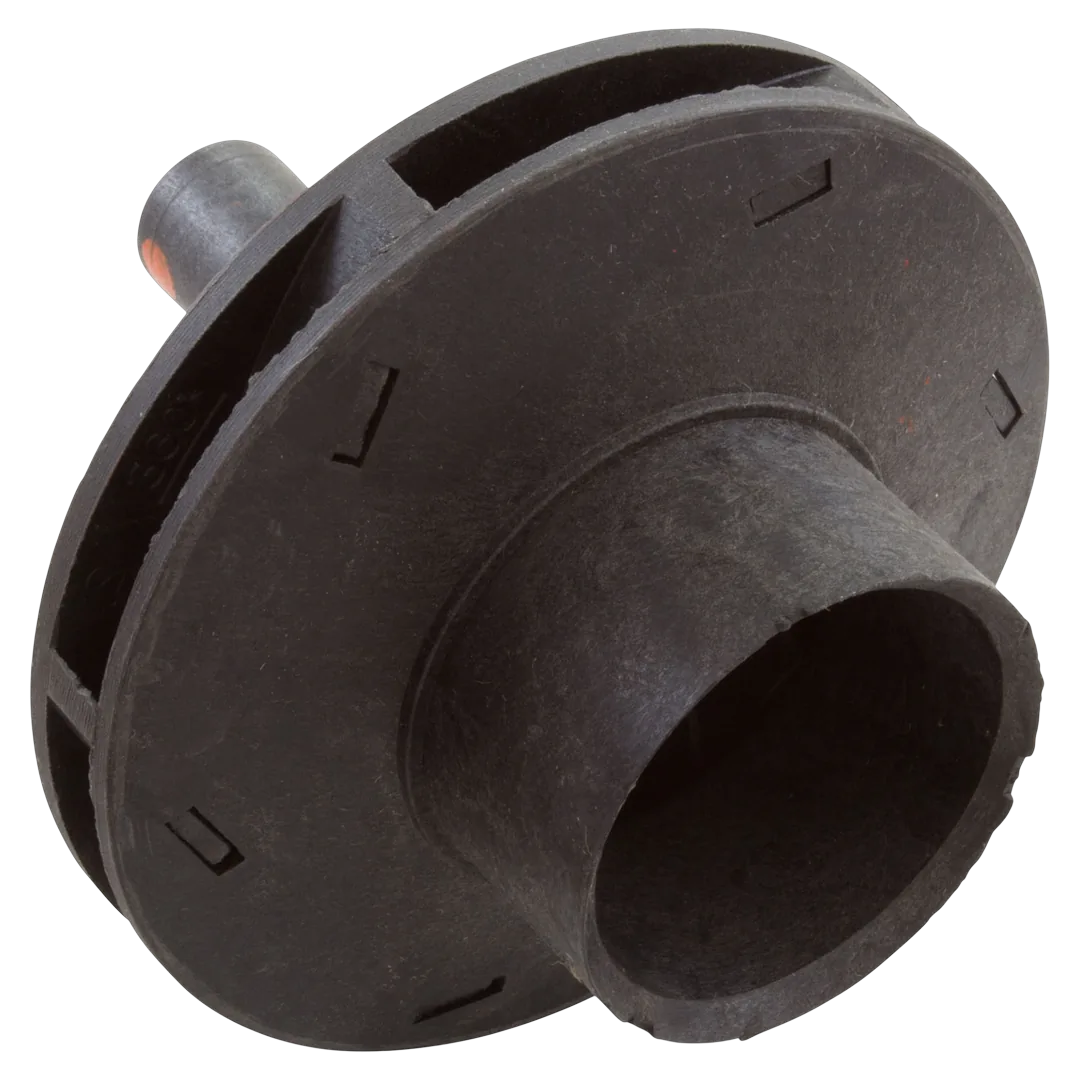

The Aquaflo/Gecko 91693602 is a closed face impeller designed for use in Gecko AquaFlo FMHP, FMCP, TMCP, and FMVP pump models with a 1.0 horsepower capacity. It features an impeller diameter of 3-5/8 inches, a vane width of 1/4 inch, and an eye diameter of 1-3/4 inches. This impeller is specifically trimmed from the 91693601 model and is identifiable by two blue dots on the shaft.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Gecko Aqua-Flo Impeller, 1.5 HP, FMHP/FMCP/TMCP Series |
| Part Number | 91693602 |
| Part Type | Impeller |
| Compatibility | FMHP, FMCP, TMCP series spa pumps |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 3.75 inch |
| Vane Width ID | 0.4375 inch |
| Eye Diameter OD | 1.75 inch |
| Eye Length | 0.8125 inch |
| Impeller Thickness OD | 0.625 inch |
| Seal Seat Depth | 0.125 inch |
| Shaft Length | 1.75 inch |
| Shaft Diameter OD | 0.625 inch |
| Seal Seat Diameter OD | 1.25 inch |
| Shipping Dimensions | 3.75 x 3.75 x 3.6 inch |
| Product Weight | 0.25 pound |
