AquaCal  |  SKU: SQ120ARDSBPR

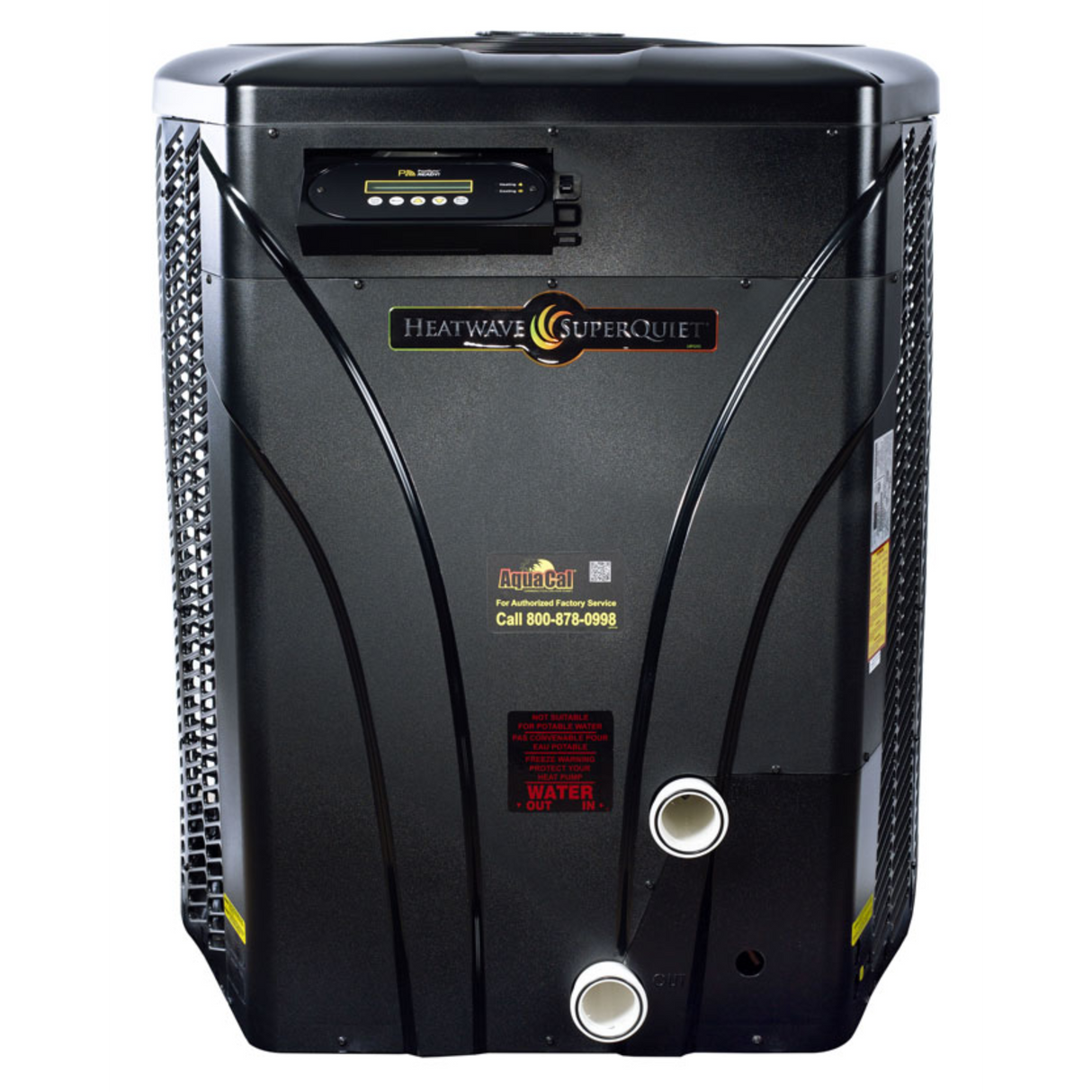

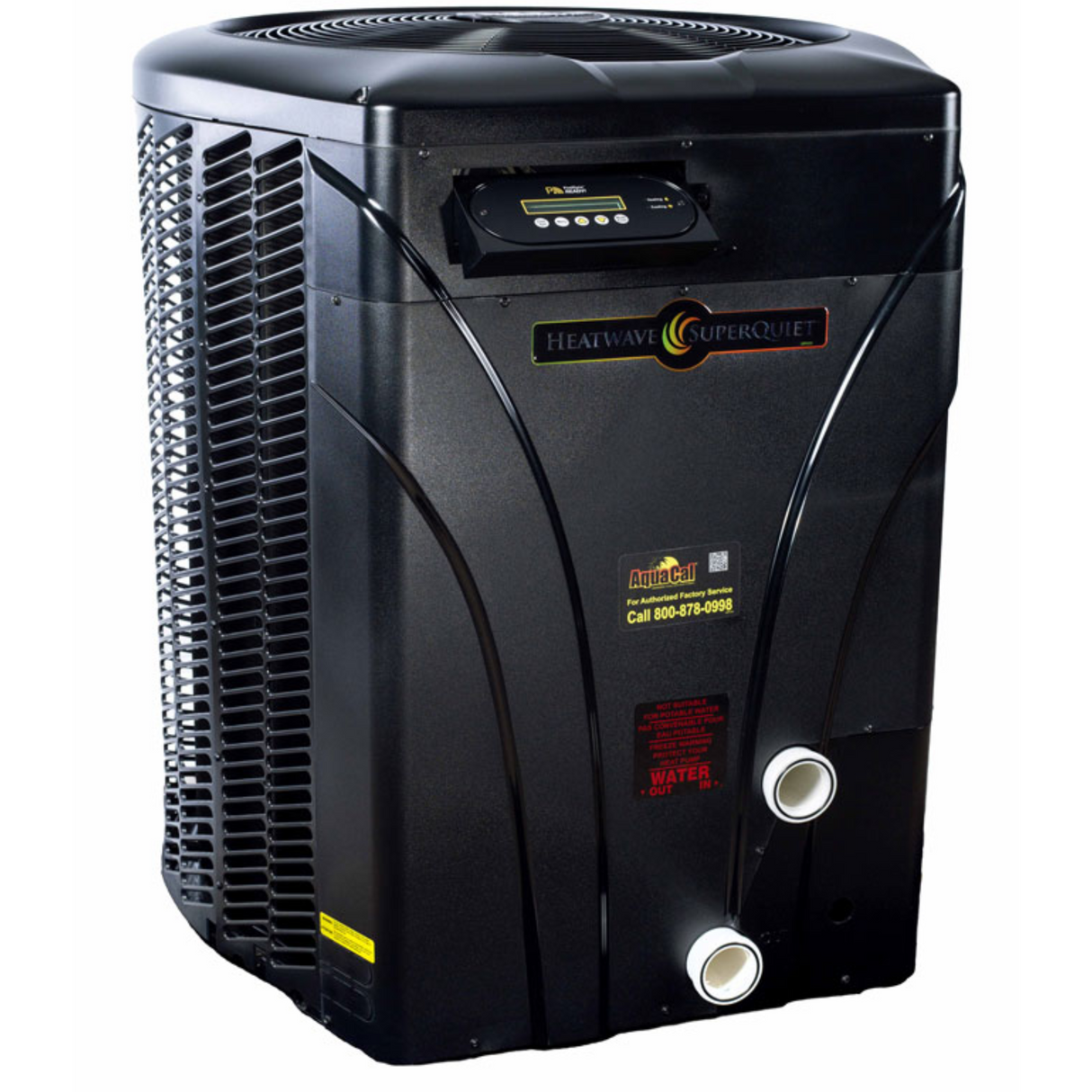

AquaCal HeatWave SuperQuiet SQ120 Heat Pump for Swimming Pools

$5,435.00

was $5,650.00

You save 3%

Shipping calculated at checkout.

AquaCal HeatWave SuperQuiet SQ120 Heat Pump for Swimming Pools is backordered and will ship as soon as it is back in stock.


Product Description

hwsq_logo1

The HeatWave SuperQuiet® SQ120R comes equipped with all standard features. The Patented ThermoLink® Titanium Heat Exchanger at its core makes this unit a power-house that’s built to last. The SQ120R features IceBreaker® technology which allows you to heat and cool your pool. Plus, IceBreaker® units extend the swimming season longer than any other heat pump by continuing to operate in low temperatures.

  • Corrosion proof cabinet
  • Scroll Compressor – for quiet operation
  • Microprocessor Controls
  • Off-Set Plumbing

Minimum/Maximum (gpm)30/70

60 Hz SQ120R
BTUs
(water temp/ambient air/relative humidity)
80/80/80 110,000
80/80/63 103,000
80/50/63 72,000
Coefficient of Performance
(water temp/ambient air/relative humidity)
80/80/80 5.5
80/80/63 5.3
80/50/63 4.0
Refrigerant R410A
Electrical
Heat or Heat & Cool H & C
kW Input 5.9
Voltage/Hz/Phase
A – 208-230/60/1
B – 200-230/60/3
E – 380-415/60/3
G – 460/60/3
A & B
Minimum/Maximum Fuse Size A – 60
B – 50
Minimum Circuit Ampacity A – 38.5
B – 31.0
Water Flow
*A Heater Bypass Kit is required when flow rates exceed the maximum
Physical
Weight (lbs) 273
Length x Width x Height (in) 34″ x 34″ x 44″
Shipping
Weight (lbs) 313
Length x Width x Height (in) 37″ x 36″ x 51″

The only heat pump that allows you to maximize the potential savings of a variable speed pump is an AquaCal®, which utilizes our patented ThermoLink® Heat Exchanger technology with its unique flow characteristics.

• Patented hydraulic design adds only 2 PSI at 45 gpm, increasing compatibility with two-speed & variable speed pumps
• Saves money when using a variable speed pump by reducing the RPM needed to achieve the same flow rate
• Save money in a single speed pump application by reducing the run time needed to achieve the same turnover rate of the pool

Corrosion Proof Cabinet

• Louvered side panels protect evaporator coil while ensuring efficient air flow
• Rust and fade proof
• Impact resistant
• Built-in drain pan provides condensate management

Microprocessor Controlled  with Digital Display

• Weather protected control with full text display provides easy-to-read menu options and unit status
• Ability to connect to most external controllers for heating and cooling mode
• Most common variable speed pumps can be programmed using the heat pump Smart Controller (HP9) or (HP11)

Additional Features

IceBreaker® Technology – Heat & Cool Models

• Extends swimming season longer than any other heat pump on the market
• Continue to heat at freezing temperatures to minimize heat loss
• Cool your pool to a refreshing temperature
• Set to heat, cool or autotemp

PoolSync® Ready
Adjust the mode to heat, cool or autotemp and set your temperature through the PoolSync App.
*Additional purchase of PoolSync WiFi Controller required

Specifications

BTU:
Voltage:
Fuel:
ASME:
